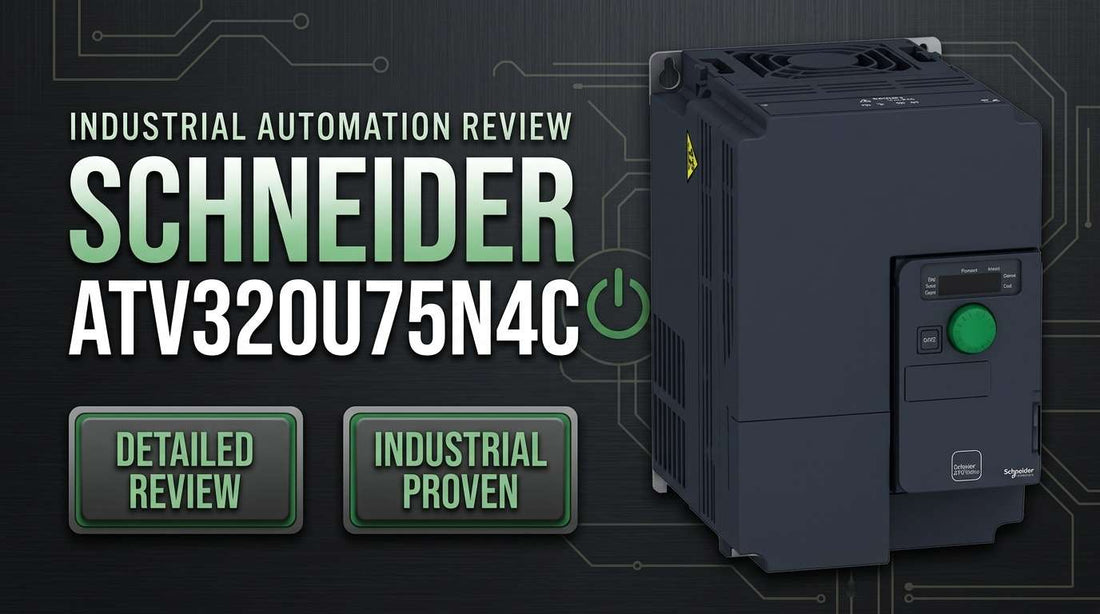

Schneider Electric ATV320U75N4C 7.5kW compact variable frequency drive for OEM packaging and conveyor machinery

Schneider Electric Altivar Machine ATV320 - Compact Variable Speed Drive, 7.5kW, 380-500V, 3-Phase: Specifications, Pricing, and Installation Guide for OEM Machinery

Controls engineers and OEM machine builders searching for the ATV320U75N4C are typically at the same crossroads: enclosure space is tight, the ambient environment is punishing, and they need a 7.5kW variable frequency drive that commissions quickly and stays out of trouble. The Schneider Electric ATV320U75N4C is a compact, fanless variable frequency drive rated for 3-phase 380-500V AC input with a 17A nominal output current, housed in a 150 x 232 x 178 mm footprint that allows vertical stacking inside machine cabinets without separate cooling infrastructure. If your motor is 7.5kW, your supply is 3-phase, and your enclosure is tight, this is a drive worth looking at closely.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ATV320U75N4C — and Who Shouldn't

The ATV320U75N4C is the right choice for OEM equipment manufacturers and control systems designers who meet all of the following criteria:

  • Motor power rating is 7.5kW (10 HP equivalent) — verify the motor nameplate before ordering
  • Incoming supply is 3-phase 380V, 400V, or 500V AC at 50 or 60 Hz — this drive is not compatible with single-phase or DC supply
  • Enclosure mounting requires a compact footprint — 150 x 232 x 178 mm with vertical panel mounting on 4 x M5 threaded holes
  • Ambient operating temperature does not exceed 60°C — fanless operation is supported to that limit via IEC 60721-3-3 Class 3C3 conformal coating
  • Open-loop motor control is sufficient — no encoder feedback or closed-loop servo positioning is required
  • Modbus RTU or CANopen communication is the integration path — not Profibus or Profinet

If your motor exceeds 7.5kW, the ATV320U11N4C at 11kW is the logical step up within the same compact series. If your application requires closed-loop servo positioning or encoder feedback, the ATV650 series or Altivar Process is the correct product family. Single-phase supply applications are outside the scope of this model entirely.

On this page:

What the ATV320U75N4C Actually Does Inside a Machine

The ATV320U75N4C sits between the 3-phase AC power line and the motor, converting fixed-frequency mains power into a variable-frequency, variable-voltage output that controls motor speed and torque in real time. It accepts 3-phase 380-500V AC at 50 or 60 Hz and delivers a pulse-width modulated output from 0 to 500V at up to 17A nominal per phase, with a switching frequency adjustable between 2 and 16 kHz. That switching frequency range — with thermal derating applied above 4 kHz — gives the drive flexibility to trade audible motor noise against heat generation depending on the application environment.

What distinguishes this drive within the Altivar Machine ATV320 Compact Series is the combination of three things that OEM machine builders tend to value most: a footprint small enough to stack multiple units vertically in a single enclosure, a conformal-coated PCB that tolerates moisture, dust, and temperature swings up to 60°C without external cooling, and Modbus RTU communication that integrates into factory automation networks without proprietary hardware or licensing. Electronic thermal overload, phase-loss detection, and short-circuit protection are all built in, eliminating the external overload relays and phase-monitoring modules that would otherwise occupy additional enclosure space.

Open-loop vector control means the ATV320U75N4C supports 3-phase AC induction and synchronous motors without requiring encoder feedback. This is the right architecture for the vast majority of OEM conveyor, packaging, and material handling applications — and it simplifies commissioning considerably. Engineers who need closed-loop speed synchronization or torque positioning are outside the design envelope of this drive series and should evaluate the ATV650 or Altivar Process families instead.

Typical System Architecture for the ATV320U75N4C

The ATV320U75N4C connects directly into the mid-tier of a machine control architecture — downstream of the main circuit breaker and upstream of the motor — with a parallel control path from the PLC or supervisory controller via Modbus RTU. A typical deployment looks like this:

  • 3-phase 380-500V AC supply feeds through a main circuit breaker or disconnect into the drive input terminals (L1, L2, L3)
  • An external regulated 24V DC power supply (minimum 20W, 1.0A) feeds the drive control circuits independently from the power stage
  • The PLC or Modbus master sends run/stop commands and speed references to the drive via a shielded twisted-pair RS-485 cable connected to the drive Modbus RTU terminal
  • The drive output terminals (U, V, W) deliver variable-frequency power to the 3-phase AC motor via a rated motor cable sized per IEC 60364 (typically 2.5 mm² copper for runs under 50 metres at 17A)
  • Integrated thermal overload and phase-loss protection monitors the motor continuously — no external overload relay or soft-starter required

Where the ATV320U75N4C Gets Specified: Industries and Use Cases

Packaging machinery is one of the most common deployment environments for the ATV320U75N4C. Adjustable throughput from 20 to 100% of motor speed without mechanical gearbox changes, combined with automatic startup and shutdown coordination via Modbus, makes it a natural fit for fill-head drives, indexing conveyors, and labelling equipment where production rates change frequently between product runs.

Conveyor systems benefit from the drive's ability to synchronize multiple motors across a Modbus network. A master PLC issues speed references to several ATV320U75N4C units simultaneously, maintaining belt tension and material flow without mechanical coupling. The 150% overload capacity for 60 seconds handles the inrush demands of loaded belt starts cleanly.

Textile machinery and printing equipment use the ATV320U75N4C for spindle speed adjustment, where soft-start ramps from 0.1 to 999 seconds eliminate mechanical shock on fabric guides, print heads, and tension rollers. The fanless operation is particularly valued in textile environments where airflow can transfer fibre contamination into open cooling channels.

Material handling, hoist, and pump applications rely on the integrated thermal overload and phase-loss protection to replace external protection modules. Pump and fan loads running below full speed achieve energy savings proportional to speed reduction — a real operational benefit in facilities running continuous-duty motors at partial load for extended periods.

Application Typical Deployment
Packaging machinery Fill-head and indexing conveyor speed control; Modbus-coordinated multi-drive start/stop sequences
Conveyor line automation Multi-motor speed synchronization via Modbus RTU from a single PLC master
Textile machinery Spindle speed adjustment with soft-start ramps; fanless operation avoids fibre contamination in cooling paths
Hoist and lift equipment Low-speed torque control for precision positioning; integrated thermal overload replaces external protection modules
Pump and fan systems Variable speed modulation for energy savings during low-demand periods; continuous-duty motor protection
Food processing equipment Fanless, sealed-enclosure operation tolerates washdown-adjacent environments; Modbus integration with plant SCADA

ATV320U75N4C Key Specifications and Variant Comparison

Parameter Specification
Rated Motor Power 7.5 kW (10 HP)
Input Voltage 3-phase 380/400/500V AC, ±10%
Input Frequency 50/60 Hz (automatic detection)
Output Current (Nominal) 17A per phase, continuous at 50°C ambient
Overload Capacity 150% rated current for 60 seconds
Switching Frequency 2-16 kHz adjustable (thermal derating above 4 kHz)
Dimensions (L x H x D) 150 x 232 x 178 mm
IP Protection Rating IP20 (NEMA Type 1)
Operating Temperature -10 to +50°C without derating; to +60°C with Class 3C3 coating
Communication Protocols Modbus RTU (standard); CANopen (optional hardware module)

Full technical specifications are available on the product page at LeadTime.ca.

ATV320U75N4C vs. Adjacent Variants in the Altivar Machine ATV320 Compact Series

Model Rated Power Input Voltage Nominal Output Current Form Factor
ATV320U04N4C 4 kW (5 HP) 3-phase 380-500V AC Lower than 17A Compact, same series
ATV320U75N4C 7.5 kW (10 HP) 3-phase 380-500V AC 17A per phase 150 x 232 x 178 mm
ATV320U11N4C 11 kW (15 HP) 3-phase 380-500V AC Higher than 17A Compact, same series
ATV320U22N4C 22 kW (30 HP) 3-phase 380-500V AC Higher than 17A Slightly larger enclosure required

If your motor nameplate exceeds 7.5kW, the ATV320U11N4C is the correct next step within the same compact series — check current ATV320U75N4C availability at LeadTime.ca or contact us to confirm the right model for your motor rating.

Expert Verdict: Is the ATV320U75N4C the Right Drive for Your Project?

The ATV320U75N4C earns its place on the BOM of OEM machine builders who face two constraints simultaneously: limited cabinet space and an industrial environment that is hostile to maintenance-heavy cooling systems. The 150 x 232 x 178 mm footprint is the defining feature here — it allows two or three units to be stacked vertically inside a single enclosure without the separate cooling infrastructure that standard wall-mounted drives require, which Schneider Electric's own documentation supports as enabling a 30-40% reduction in machine cabinet volume compared to conventional industrial drive mounting approaches. The IEC 60721-3-3 Class 3C3 conformal coating extends fanless operation to 60°C ambient, which covers the vast majority of packaging, textile, conveyor, and food processing environments without any additional hardware. Modbus RTU and optional CANopen communication make this drive compatible with the widest range of existing factory automation networks without proprietary protocol licensing. For a 7.5kW open-loop application, this drive removes significant engineering overhead from the project.

Where the ATV320U75N4C has real limits is also where it is honest about them. IP20 protection means this is a panel-mounted drive, not a standalone unit for washdown or outdoor environments — applications requiring IP65 or higher will need a different product. Motors above 7.5kW will trigger thermal overload faults; if your motor nameplate says 11kW, the ATV320U11N4C is the only correct answer within this series. Closed-loop servo positioning, speed synchronization with encoder feedback, or Profibus and Profinet network requirements all fall outside what this drive can deliver — the ATV650 series and Altivar Process are the right families for those specifications. And if your supply is single-phase or 220V, this model is the wrong product family entirely.

From a procurement standpoint, the ATV320U75N4C typically carries a 4-6 week lead time in EMEA and 4-8 weeks in North America through authorized distribution channels such as Rexel, Farnell, and TME. These distributors generally hold committed stock or have confirmed lead-time agreements with Schneider Electric, and they provide the technical documentation — parameter migration guides, Modbus address lists, commissioning support — that generic channels cannot. Ordering through a specialist distributor is not just about price; it is about avoiding the 8-12 week delays that come from sourcing industrial drives through channels that do not carry verified stock. Check current pricing and stock status for the ATV320U75N4C at LeadTime.ca — we ship worldwide.

For volume pricing on multiple units or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can confirm regional availability before your PO is issued.

What Engineers Need to Know Before Ordering the ATV320U75N4C

Community feedback on this specific model number is sparse in publicly accessible forums, which is itself informative: the ATV320U75N4C is a mature, well-documented product in a well-established series, and most of the questions engineers encounter at ordering time are not novel. They are the same voltage mismatch, motor sizing, and control power omission errors that appear across every Altivar Machine deployment. What follows reflects the practical experience of engineers and procurement specialists who have worked through these issues, drawn from the documented failure modes and specification constraints verified against Schneider Electric's official sources.

The single most consequential ordering mistake is voltage variant mismatch. The ATV320U75N4C accepts 3-phase 380-500V AC with ±10% tolerance, which means it is broadly compatible across 380V, 400V, and 500V European and international supply standards — but it is emphatically not compatible with 220V single-phase, DC bus supplies, or split-phase North American residential wiring. Engineers who measure supply voltage at the panel before ordering, rather than assuming a standard, avoid this failure mode entirely. The second most common source of installation problems is the 24V DC control power supply: the drive requires an external regulated 24V DC supply rated minimum 20W and 1.0A for gate drivers and communication circuits. Omitting this supply produces a silent failure — the drive powers on, the green LED illuminates, but run commands are ignored and no fault code is displayed. Providing a dedicated 24V supply, separate from the upstream PLC power rail, eliminates this category of problem.

Motor sizing tolerance is tighter than many engineers expect. The ATV320U75N4C is rated for 7.5kW motors within approximately ±10% of that nameplate figure. Pairing the drive with a significantly undersized motor produces inefficient cold running; pairing it with a motor above 7.5kW produces thermal overload faults within hours of full-load operation. When the motor nameplate is unavailable or unknown, measuring full-load current during operation and calculating power from that measurement is the reliable path to confirming the correct drive size. If that calculated figure exceeds 7.5kW, the ATV320U11N4C is the next model in the series. When in doubt about whether this specific model fits your application, the LeadTime.ca team can help you confirm the match before the PO is placed — that conversation is far less expensive than a wrong-model return or a delayed machine commissioning.

ATV320U75N4C Wiring and Installation Overview

The following is an installation overview for reference. Engineers requiring complete wiring diagrams, terminal pin-out schematics, and step-by-step commissioning procedures should consult the official Schneider Electric ATV320 installation manual available from se.com.

  • Verify 3-phase 380-500V AC supply voltage at the circuit breaker with a multimeter before connecting — confirm frequency is 50 or 60 Hz and voltage is stable within ±10% of nominal
  • Mount the drive vertically on a flat panel surface using 4 x M5 threaded holes aligned to the drive mounting pattern; confirm minimum clearance dimensions per the installation manual and verify ambient temperature at the mounting location does not exceed 60°C
  • Connect 3-phase input conductors to terminals L1, L2, L3; connect motor output conductors to terminals U, V, W; size motor cable per IEC 60364 for 17A at the cable run distance (typically 2.5 mm² copper for runs under 50 metres)
  • Connect a dedicated external regulated 24V DC power supply (minimum 20W, 1.0A) to the drive control power terminals — do not share with PLC power rails; verify polarity with multimeter before energizing
  • For Modbus RTU integration, connect a shielded twisted-pair RS-485 cable from the PLC or Modbus master to the drive communication terminals (A+ and B-), grounding the cable shield at a single point at the drive end

Compatible Modules and System Expansion

The Altivar Machine ATV320 Compact Series supports optional hardware modules that extend the base drive's communication and control capabilities. Confirm module compatibility with the ATV320U75N4C against the current Schneider Electric accessory documentation before ordering.

  • CANopen communication module — upgrades the base Modbus RTU interface to support CANopen network integration; requires hardware installation into the drive option slot
  • External cooling fan kit — required if ambient operating temperature exceeds 60°C; extends the drive's thermal envelope beyond the standard fanless limit
  • Remote keypad option — allows parameter configuration and drive monitoring from outside the enclosure without direct serial connection

Wrong-Part Prevention Checklist Before Ordering the ATV320U75N4C

Run through each of the following checks against your application before issuing a purchase order. These are the six most common sources of wrong-model orders and installation failures for this drive:

  1. Verify incoming power supply is 3-phase 50/60 Hz (not single-phase or DC)
  2. Confirm voltage is between 380-500V AC (not 220V or 110V single-phase)
  3. Check motor power rating does not exceed 7.5kW (verify motor nameplate before ordering)
  4. Confirm machine enclosure allows vertical mounting on flat panel surface (4 M5 holes required)
  5. Verify ambient operating temperature does not exceed 60°C without external fan (check cooling plate option if greater than 60°C)
  6. Confirm no encoder feedback or servo positioning is needed (open-loop only; closed-loop requires different series)

If any item on this list raises a flag for your application, contact LeadTime.ca before ordering — confirming the right model before the PO is placed takes minutes; resolving a wrong-model shipment takes weeks.

Frequently Asked Questions

Does the ATV320U75N4C require an external cooling fan at 60°C ambient?

No external cooling fan is required for ambient temperatures up to 60°C. The drive's IEC 60721-3-3 Class 3C3 conformal coating on the PCB supports fanless operation across this range. If your installation environment exceeds 60°C, an optional external cooling fan kit is available and must be ordered separately — operating beyond the 60°C limit without it risks thermal shutdown at the drive's internal junction temperature threshold.

Can the ATV320U75N4C be used with a 220V single-phase supply or a 110V motor?

No. The ATV320U75N4C requires 3-phase 380-500V AC input and delivers 3-phase variable-frequency output to the motor. It is not compatible with single-phase supply voltages or 110V/220V single-phase motors. Single-phase applications require a different variant within the ATV320 family or a different drive series entirely.

What external 24V DC supply specification does the ATV320U75N4C need?

The drive requires an external regulated 24V DC power supply rated at a minimum of 20W and 1.0A to power the control circuits, gate drivers, and communication interface. This supply must be separate from the main PLC power rail and should be verified at the drive terminals (confirm 22-26V DC) before issuing any run commands. Omitting this supply produces a silent failure where the drive appears powered on but will not respond to start commands.

How do I integrate the ATV320U75N4C into an existing Modbus RTU network?

Connect a shielded twisted-pair RS-485 cable from your PLC serial port or Modbus gateway to the drive's Modbus RTU communication terminals — A+ (positive) and B- (negative) — and ground the cable shield at a single point at the drive end. Assign a unique Modbus node address within the 0-127 configurable range, then use the standard Modbus parameter address list from the Schneider Electric ATV320 technical manual to read and write speed references, monitor motor temperature, and retrieve fault codes from the drive over the network.

What happens if I connect a motor larger than 7.5kW to the ATV320U75N4C?

Running a motor with a nameplate rating above 7.5kW on this drive will typically produce thermal overload fault trips within hours of full-load operation, as the drive's 17A nominal output current is insufficient for the higher motor current demand. The drive's electronic thermal protection is active and will shut down the output to protect itself. If your motor exceeds 7.5kW, the ATV320U11N4C at 11kW is the correct next model within the same compact series.

Is the ATV320U75N4C a direct replacement for a failed unit of the same model number?

Yes — replacing a failed ATV320U75N4C with an identical model number is a direct swap provided the original parameter configuration is backed up before decommissioning the failed unit. Parameters can be read and stored via the Modbus serial interface using the address list in the technical manual. If the original parameter file is lost, the replacement unit will require full recommissioning against the motor nameplate data. Swapping for a different drive brand or series is not a direct replacement — motor control parameters will require complete re-tuning.

Why Order the ATV320U75N4C From LeadTime.ca

  • LeadTime.ca ships the ATV320U75N4C worldwide — no regional restrictions on sourcing or quoting
  • Specialist industrial automation focus means accurate stock and lead-time information before you commit to a purchase order
  • Volume pricing is available for multi-unit OEM orders — contact the team directly to confirm discount tiers for 5 or more units
  • Technical support for Altivar Machine drive selection, wiring confirmation, and Modbus integration questions is part of the service

ATV320U75N4C At-a-Glance Summary

  • Rated motor power: 7.5kW (10 HP) — confirm motor nameplate before ordering
  • Input: 3-phase 380/400/500V AC at 50 or 60 Hz, ±10% voltage tolerance
  • Nominal output current: 17A per phase continuous at 50°C ambient
  • Overload capacity: 150% rated current for 60 seconds — handles loaded belt and conveyor starts
  • Footprint: 150 x 232 x 178 mm — supports vertical stacking in compact machine enclosures
  • Fanless operation: supported to 60°C ambient via IEC 60721-3-3 Class 3C3 conformal PCB coating
  • IP rating: IP20 (NEMA Type 1) — panel-mount only; not suitable for washdown environments
  • Communication: Modbus RTU standard; CANopen via optional hardware module
  • Motor control: open-loop vector — no encoder feedback required
  • Compliance: IEC 61800-3, UL, TÜV, CE, KC
  • Typical lead time: 4-6 weeks EMEA, 4-8 weeks North America — verify with distributor before PO
  • Wrong-application signals: single-phase supply, motor above 7.5kW, closed-loop servo requirements, Profibus/Profinet network, washdown environment
