Schneider Electric ATV320U75N4B — 7.5 kW VFD Buyer Review

By Abdullah Zahid
15 min read

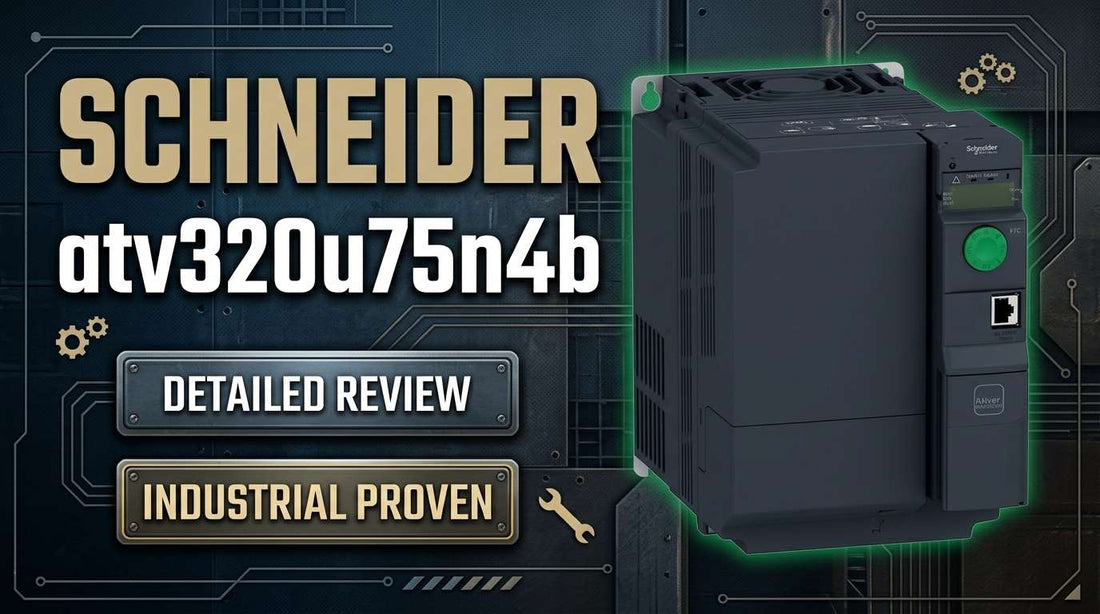

Schneider Electric ATV320U75N4B 7.5 kW 380-500V 3-phase book enclosure VFD for industrial motor control

Schneider Electric ATV320U75N4B — Altivar Machine Variable Speed Drive 7.5 kW 380/500V 3-Phase Book CEM IP20: Specs, Features and Buying Guide

If you are specifying a 7.5 kW variable frequency drive for a three-phase motor in a packaging line, conveyor system, or pump application, the Schneider Electric ATV320U75N4B deserves a close look — but only if your site voltage is 380–500V three-phase, your environment is dry and protected, and your motor nameplate does not exceed 7.5 kW continuous. This Altivar Machine ATV320 series drive comes in a compact book enclosure measuring 150 mm × 308 mm × 232 mm, includes five integrated safety functions, and supports native Modbus RTU and CANopen communications right out of the box — no additional modules required for those protocols.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the ATV320U75N4B at LeadTime.ca — ships worldwide.

Who Should Buy the ATV320U75N4B — and Who Shouldn't

This drive is the right choice for engineers and integrators who need straightforward, open-loop speed control of a 7.5 kW three-phase induction or synchronous AC motor in a dry, temperature-controlled facility. It is the right fit when:

  • Your incoming supply is confirmed 380–500V AC three-phase, 50 or 60 Hz
  • Your motor nameplate rating does not exceed 7.5 kW continuous duty
  • You need a wall-mounted book enclosure to save panel space — not DIN-rail or floor-mount
  • IP20 protection is acceptable — the installation location is dry and protected from dripping water
  • Native Modbus RTU or CANopen satisfies your network control requirement, or you plan to add an optional Ethernet TCP/IP module
  • Integrated safety functions including STO, SS1, SLS, SMS, and GDL are required, eliminating the need for external safety relays

If your motor exceeds 7.5 kW, consider the ATV320U110N4B (11 kW). If your environment involves water spray, high humidity, or washdown cleaning, the ATV320 frame variants with IP65 rating are the correct specification. If your installation is single-phase or operates at 200V or 240V, this model will not work — a different variant is required.

On this page:

What the ATV320U75N4B Actually Does in Your System

The ATV320U75N4B is an open-loop variable frequency drive. It controls the speed and torque of a three-phase AC motor — induction or synchronous — by varying the frequency and voltage delivered to the motor windings using pulse-width modulation. The output frequency range runs from 0 to 599 Hz maximum, with selectable ramp rates for acceleration and deceleration. This makes it suitable for constant-torque applications like conveyors and hoists, as well as quadratic-load applications like pumps and fans where the load increases with speed.

What it does not do is equally important to understand before specifying. There is no integrated encoder feedback, so closed-loop precision speed or position control is not possible. There is no integrated circuit breaker or disconnector — external upstream protection rated appropriately for the 17 A nominal output current is mandatory per electrical code. This is not a servo drive and is not suitable for multi-axis motion coordination or precision positioning applications.

The five integrated safety functions — STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Motion Stopped), and GDL (Guarded Deceleration) — are certified per IEC 61508. In packaging and material-handling applications, these functions frequently eliminate the need for separate external safety relays, reducing both control panel cost and wiring complexity. This is a verifiable advantage of the ATV320 series book format over many competing drives at this power level.

Typical System Architecture for the ATV320U75N4B

The ATV320U75N4B sits between the upstream power protection device and the motor in the signal and power chain, receiving three-phase supply and delivering variable-frequency output to the connected load.

  • Upstream: three-phase 380–500V AC supply → external circuit breaker or motor starter (20–25 A minimum, sized to 17 A nominal plus margin)
  • Drive input: L1, L2, L3 power terminals and PE chassis ground stud on the ATV320U75N4B
  • Drive output: U, V, W terminals → shielded motor cable (shielded cable recommended for runs exceeding 30 m) → three-phase AC motor up to 7.5 kW
  • Control layer: logic input terminals (seven digital inputs standard), analog input (4–20 mA or 0–10V for speed or frequency setpoint), relay output — connected to PLC, HMI, or sensor devices
  • Network layer: native Modbus RTU or CANopen interface to PLC or SCADA; optional Ethernet TCP/IP module added separately if required

Typical Applications and Deployment Scenarios

In packaging machinery, the ATV320U75N4B is commonly applied to conveyor belts, bag sealers, and box-filling systems where controlled acceleration and variable-speed operation reduce mechanical shock on belts and gearboxes. The built-in soft-start capability means gradual ramp-up replaces the abrupt mechanical engagement of direct-on-line starters.

Material-handling applications — including variable-speed hoists, pallet movers, and sorting systems — benefit from the drive's torque-control capability. Load conditions vary significantly in these applications, and the ability to ramp deceleration through SS1 (Safe Stop 1) supports safe stopping under changing loads.

HVAC pump and fan control is a natural fit for the ATV320U75N4B. Quadratic-load applications allow the drive to reduce motor speed during light-load periods, which reduces energy consumption proportionally. The analog input (4–20 mA or 0–10V) accepts a sensor feedback signal for pressure or flow control, enabling variable-speed regulation without a full closed-loop controller.

Food processing mixer and pump applications in dry facilities use this drive for consistent speed control. Textile production — spindle drives and winding equipment — also appears regularly in the ATV320 application record, where precise speed variation across spindles is managed through Modbus or CANopen network commands.

Application Typical Deployment
Packaging conveyor Speed control of 7.5 kW belt motor; soft-start to reduce belt shock; Modbus integration with line PLC
Variable-speed hoist Torque control under variable loads; SS1 safe stop function active; mounted in dry panel enclosure
HVAC pump or fan Quadratic-load speed reduction at partial flow; analog 4–20 mA input from pressure transmitter for setpoint
Food processing pump Sanitary dry-area installation; IP20 acceptable; CANopen integration with processing line controller
Textile spindle drive Variable winding speed via Modbus register commands; compact book enclosure fits machine panel
Water treatment blower Energy savings via speed reduction at low demand; mounted in protected indoor switchgear room

Purchase-Decision Specifications at a Glance

Parameter Value Buyer Note
Input Voltage 380–500V AC 3-phase Not compatible with single-phase or 200V supply
Input Frequency 50/60 Hz ±5% Auto-detection; no manual switching required
Output Voltage 0–500V 3-phase (PWM) Variable; matches motor nameplate
Output Frequency Range 0–599 Hz maximum Selectable ramp rates for accel/decel
Rated Output Current 17 A continuous Size external protection device to this rating plus margin
Rated Power 7.5 kW (quadratic load) Verify motor nameplate does not exceed 7.5 kW continuously
Overload Capacity 110% × 1 min; 150% × 3 s Thermal protection engaged beyond rated overload
IP Rating IP20 Dry, protected indoor locations only — not washdown
Safety Functions STO, SS1, SLS, SMS, GDL Certified per IEC 61508; reduces external safety relay count
Dimensions (W × H × D) 150 × 308 × 232 mm Measure panel opening before ordering; wall-mount only

Full technical specifications are available on the product page at LeadTime.ca.

ATV320U75N4B vs. Other ATV320 Variants: Which Power Rating Do You Need?

Model Power Voltage Form Factor Best For
ATV320U55N4B (Schneider Electric) 5.5 kW 380–500V 3-phase Book Smaller motors; cost-sensitive projects where 5.5 kW is sufficient
ATV320U75N4B (Schneider Electric) 7.5 kW 380–500V 3-phase Book This model — standard 7.5 kW three-phase industrial and commercial machines
ATV320U110N4B (Schneider Electric) 11 kW 380–500V 3-phase Book Applications where motor nameplate exceeds 7.5 kW; same family, same wiring philosophy
ATV320 Frame IP65 variants Various 380–500V 3-phase Frame Washdown, high-humidity, or outdoor environments requiring higher ingress protection
ATV320 single-phase variants Various Single-phase Book/Frame Sites with single-phase supply only — the ATV320U75N4B is 3-phase input only

If your motor nameplate exceeds 7.5 kW, the ATV320U110N4B is the correct step up within the same product family — confirm current availability for the ATV320U75N4B or contact LeadTime.ca to source the correct variant.

Expert Verdict: Is the ATV320U75N4B Worth Specifying?

The ATV320U75N4B earns its place on the specification sheet for OEM machinery integrators building packaging or material-handling equipment in dry, protected facilities, and for plant engineers retrofitting existing 7.5 kW three-phase motors with modern speed control. The compact book enclosure at 150 mm × 308 mm × 232 mm saves measurable panel space compared to larger frame alternatives, and the five integrated safety functions — STO, SS1, SLS, SMS, and GDL — certified per IEC 61508, directly reduce the count of external safety relays in control panels where those functions would otherwise be hardwired. For buyers who need Modbus RTU or CANopen communication natively without extra modules, this drive delivers that without additional cost or sourcing complexity.

The limits are real and should be named clearly. IP20 means this drive has no business in a washdown zone, a humid process area, or any environment with water spray — if that describes your installation, the ATV320 frame variants with IP65 are the correct specification, not this one. Open-loop operation means precision positioning, encoder-based speed regulation, and servo applications are off the table entirely. There is no integrated circuit breaker — if your team assumes one is included and skips the upstream protection device, you have a code violation and a safety hazard. For applications requiring advanced multi-axis coordination or complex motion profiles, drives from other families with closed-loop capability are the appropriate specification.

From a procurement standpoint, the ATV320U75N4B is generally available through authorized distributors with typical lead times in the range of one to two weeks for standard stock — but that window should be confirmed in writing before it becomes a line item in a project schedule. Buying through a specialist distributor rather than a generic online channel matters here: an authorized source can verify the exact regional variant (IP20 versus IP21 differences, for example), confirm communication module compatibility, and provide post-sale support if commissioning questions arise. For current pricing and real-time stock status, check the ATV320U75N4B product page at LeadTime.ca — the team ships worldwide and can advise on optional accessories before you commit to an order.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV320U75N4B

Community-level feedback specific to the ATV320U75N4B is not yet widely available in public forums. What is available — and more useful than anecdote at the purchase-decision stage — is the pattern of specification errors that recur with this class of drive. The wrong-part mistakes that cost engineers time and money are well-documented through distributor experience, and they fall into predictable categories that are entirely preventable with a disciplined pre-order review.

The single most common ordering error in the 7.5 kW VFD category is a voltage mismatch: a buyer assumes their facility has three-phase 380–500V supply without measuring it, or confuses a 200V-class site with a 400V-class requirement. The ATV320U75N4B will not operate on single-phase supply or on 200V or 240V three-phase systems — and the consequence is a non-functional installation and an emergency reorder that typically adds one to two weeks to a project timeline. The second most common error is selecting IP20 when the physical installation environment actually requires IP65 — a mistake that often goes undetected for months until corrosion or moisture accumulation causes intermittent faults or outright failure, at which point warranty coverage may not apply because the unit was used outside its rated protection class.

The third category of error is the assumption that the drive includes an integrated circuit breaker. It does not. The ATV320U75N4B requires an external three-phase protection device upstream of the drive input terminals, sized appropriately for the 17 A nominal output current. Engineers who are familiar with fully integrated drives or motor starters sometimes overlook this step. When community knowledge is sparse for a specific model, that is exactly when it pays to work with a specialist distributor who has pre-sale technical depth — a team that can confirm the right variant, flag accessory gaps, and answer configuration questions before the order ships rather than after. LeadTime.ca serves as that resource for buyers sourcing the ATV320U75N4B worldwide.

Wiring and Installation Overview

The ATV320U75N4B is a vertical wall-mount unit only — it is not compatible with DIN-rail or floor-mount configurations. Before installing, consult the official Altivar Machine ATV320 installation manual for full wiring diagrams and code-compliant procedures. The following points cover the key requirements engineers need to verify before and during installation:

  • Install an external three-phase circuit breaker or motor starter upstream of the drive input (L1, L2, L3) terminals; size based on the 17 A nominal output current with appropriate margin per local electrical code
  • Connect the PE (ground) conductor to the drive chassis ground stud; for runs exceeding 30 m to the motor, use shielded cable and terminate the shield at the drive end only to prevent ground loops
  • Run power cables and signal/control cables in separate conduits or use CEM shielded bundles to maintain EMC compliance consistent with the drive's CEM marking
  • Connect control signal wiring — start/stop inputs, speed setpoint (4–20 mA or 0–10V analog), and relay output — to the designated logic input terminals on the control connector; seven digital inputs are available as standard
  • Ensure adequate air circulation around the drive enclosure; the ATV320U75N4B uses passive cooling and the unit should not operate in an enclosed space without sufficient thermal clearance — verify the panel interior remains within the 0–50°C operating temperature range

Compatible Communication Modules and System Expansion

The ATV320U75N4B includes native Modbus RTU and CANopen communication interfaces without requiring additional modules. For applications requiring Ethernet TCP/IP connectivity to SCADA systems, higher-level PLCs, or plant-wide networks, an optional Ethernet TCP/IP communication module is available and must be ordered separately. Confirm module compatibility and ordering reference with your distributor before finalizing the bill of materials. Key communication and expansion options to review for this drive:

  • Native Modbus RTU — included; suitable for PLC and SCADA integration on RS-485 networks; configure baud rate, device address, and register mapping during commissioning
  • Native CANopen — included; suitable for machine-level networks in packaging and handling equipment; configure node address and network parameters via keypad or software tool
  • Optional Ethernet TCP/IP module — ordered separately; required if your network infrastructure uses Ethernet-based SCADA or if your PLC communicates via TCP/IP rather than serial protocols
  • Parameterization interfaces — built-in keypad for standalone configuration; USB programmer or PC-based software tool compatible for parameter upload, download, and diagnostics

Wrong-Part Prevention Checklist Before Ordering the ATV320U75N4B

Run through every item on this checklist before placing your order. Each check corresponds to a documented category of specification error that results in non-functional installations or emergency reorders.

  1. Verify incoming 3-phase voltage: 380–500V AC. Do NOT order if your site is 200V or 240V single-phase.
  2. Confirm motor power plate: rated power must not continuously exceed 7.5 kW. Oversized motors will cause drive to overheat.
  3. Check if you need external protection device (circuit breaker, motor starter): this unit does NOT include integrated circuit breaker; external protection is required.
  4. Verify IP20 is acceptable: this drive is NOT rated for humid, wet, or washdown environments. If washdown required, specify IP65 frame variant instead.
  5. Confirm communication: if network control needed (factory network, SCADA), verify whether Modbus/CANopen native support (included) or Ethernet TCP/IP module (optional, ordered separately) is correct for your system.
  6. Check mechanical fitment: 150 mm (W) × 308 mm (H) × 232 mm (D). Measure panel mount location before ordering.
  7. Verify mounting: this is a wall/vertical mount unit. Do NOT order if you need DIN-rail or floor-mount form factors.
  8. Confirm CEM marking applies to your region: this unit meets industrial EMC standards for Europe/North America. Verify local compliance requirement with your systems integrator.

If any item on this checklist raises a question before you order, contact LeadTime.ca directly — the team can confirm the correct variant, advise on accessory requirements, and verify stock before your order ships worldwide.

Frequently Asked Questions

Does the ATV320U75N4B work on a single-phase 240V supply?

No. The ATV320U75N4B requires a three-phase 380–500V AC input supply. It will not operate on single-phase supply or on 200V or 240V systems. If your site supply is single-phase, a different ATV320 variant designed for single-phase input is required. Verify your site voltage with a multimeter between any two phases before ordering.

Is an external circuit breaker required, or does the ATV320U75N4B include one?

An external protection device is required — the ATV320U75N4B does not include an integrated circuit breaker or disconnector. You must install an external three-phase circuit breaker or motor starter upstream of the drive input terminals, sized for the 17 A nominal output current plus appropriate margin per your local electrical code. Skipping this step is a code violation and a safety risk.

Can I add Ethernet TCP/IP to the ATV320U75N4B, or is it limited to Modbus and CANopen?

Modbus RTU and CANopen are built in and require no additional modules. Ethernet TCP/IP is available via an optional communication module that must be ordered and installed separately. If your factory network or SCADA system communicates over Ethernet, confirm the correct module part number with your distributor before finalizing the bill of materials.

What does the IP20 rating mean in practice — can I mount this drive near a wash station?

IP20 means the drive is protected against solid objects greater than 12.5 mm but has no protection against water ingress of any kind. It is rated for dry, protected indoor locations only. Mounting near a wash station, in a humid food-processing area, or anywhere subject to water spray or condensation will void the environmental protection rating and can cause premature failure. For those environments, the ATV320 frame variants with IP65 protection are the correct specification.

How do I confirm the ATV320U75N4B's safety functions meet my machine's safety requirements?

The five integrated safety functions — STO, SS1, SLS, SMS, and GDL — are certified per IEC 61508. Whether these satisfy your specific machinery safety standard (such as ISO 13849 or IEC 62061 at a particular Performance Level or Safety Integrity Level) depends on your risk assessment. Consult the official Altivar Machine ATV320 safety function manual and work with your safety systems integrator to validate the configuration against your machine-specific requirements.

What is the typical lead time for the ATV320U75N4B and how do I confirm stock before committing to a project schedule?

Typical lead time through authorized distributors is in the range of one to two weeks for standard stock, but this varies by distributor, region, and current demand. Do not rely on a catalog lead-time estimate for a committed project schedule — request a written lead-time confirmation with SLA from your distributor before the order is placed. LeadTime.ca can confirm real-time stock status and estimated delivery to your location worldwide.

Why Order the ATV320U75N4B Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the ATV320U75N4B to buyers worldwide, not limited to any single country or region
  • Authorized distributor access — orders are fulfilled through verified supply chains that ensure correct regional variants (IP20 versus IP21, CEM marking) and valid warranty coverage
  • Pre-sale technical support — the team can confirm voltage compatibility, communication module requirements, and accessory needs before your order ships
  • Volume pricing — contact for current pricing on multi-unit orders or repeat procurement programs
  • Hard-to-find and short-lead-time sourcing — if standard distributor channels show extended lead times, LeadTime.ca can identify available stock across its supplier network

ATV320U75N4B — At-a-Glance Summary

  • Rated output power: 7.5 kW on quadratic load; rated output current 17 A continuous
  • Input supply: 380–500V AC three-phase, 50/60 Hz — not compatible with single-phase or 200V systems
  • Output frequency range: 0–599 Hz maximum with selectable ramp rates
  • Overload capacity: 110% for 1 minute; 150% for 3 seconds before thermal protection engages
  • Enclosure: book form factor, wall-mount only, 150 mm W × 308 mm H × 232 mm D
  • IP rating: IP20 — dry, protected indoor environments only; not rated for washdown or high humidity
  • Integrated safety functions: STO, SS1, SLS, SMS, GDL — certified per IEC 61508
  • Native communications: Modbus RTU and CANopen — included; Ethernet TCP/IP via optional module ordered separately
  • Control inputs: seven digital inputs standard; one analog input (4–20 mA or 0–10V) for speed/frequency setpoint
  • External protection required: no integrated circuit breaker — external three-phase breaker or motor starter mandatory
  • EMC compliance: CEM (Conducted Emissions Marking) — verify local compliance with your systems integrator
  • Typical lead time: one to two weeks via authorized distributors — confirm in writing before committing to project schedule
