Schneider Electric ATV320U40N4C — Compact 4kW VFD Buyer Review

By Abdullah Zahid
14 min read

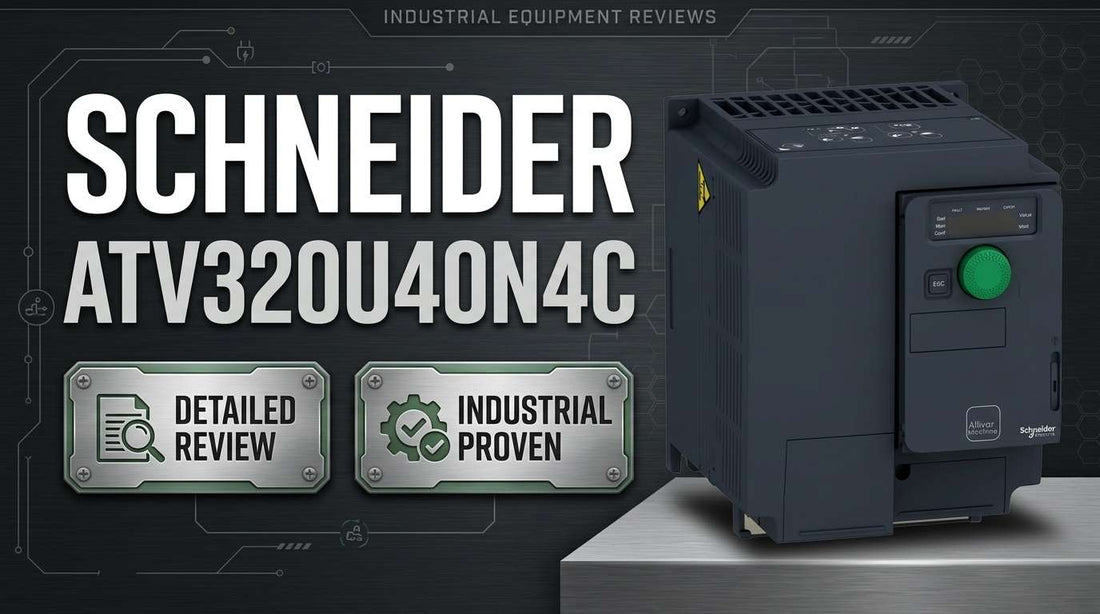

Schneider Electric ATV320U40N4C Altivar Machine 4kW compact variable speed drive for industrial packaging and conveyor motor control

Schneider Electric ATV320U40N4C Altivar Machine Variable Speed Drive — 4kW, 380/500V, 3-Phase Compact VFD for Industrial Motor Control

If you are specifying a compact variable frequency drive for a packaging machine, conveyor, or material handling system and your motor sits in the 4kW to 6kW range on a 380-500V three-phase supply, the Schneider Electric ATV320U40N4C is one of the most field-proven choices in the Altivar Machine series. This VFD delivers precise motor speed and torque control in a vertical-stackable form factor rated IP21, with CEM-compliant EMC certification for standard industrial environments. The drive supports both 3-phase asynchronous induction and synchronous motors, with input current ratings of 13.8A at 380V and 10.6A at 500V under severe duty conditions.

If you have already confirmed this is the right part for your system, check current pricing and availability for the ATV320U40N4C at LeadTime.ca — ships worldwide.

Who Should Buy the ATV320U40N4C — and Who Shouldn't

The ATV320U40N4C is the correct drive when all of the following are true for your application:

  • Your motor nameplate power falls within the 4kW to 6kW range and your incoming supply is three-phase 380-500V AC
  • You need a compact, vertically stackable form factor to fit within a machine frame or space-constrained control enclosure
  • Basic keypad or analog input control (0-10V or 4-20mA) is sufficient — no fieldbus or advanced networking required at the base level
  • Your motor is a standard 3-phase AC induction or synchronous type — not a DC or single-phase motor
  • IP21 or IP20 enclosure protection is acceptable under your local electrical code and installation environment

If your motor exceeds 6kW, consider the ATV320U75N4C. If your supply is single-phase or your power requirement is below 4kW, the ATV320U22N4C or another Altivar 320 variant is the correct starting point. For applications requiring integrated Profibus, advanced motion control, or Industry 4.0 networking from the base unit, the Altivar Process series is a better fit.

On this page:

What the ATV320U40N4C Actually Does in a Control System

The ATV320U40N4C is a variable frequency drive — sometimes called a variable speed drive or inverter — that sits inline between your three-phase power supply and the motor it controls. Its core function is converting fixed-frequency, fixed-voltage three-phase AC power (380-500V at grid frequency) into a variable-frequency, variable-voltage output that allows you to ramp motor speed up or down electronically. Rather than using mechanical methods or across-the-line starters that slam full voltage into the motor at once, the ATV320U40N4C applies a programmable acceleration ramp, reducing mechanical stress, inrush current, and energy consumption at part-load conditions.

The drive accepts both standard 3-phase asynchronous induction motors and synchronous motors, which broadens its applicability across different machine designs without requiring a specialized motor. Control inputs include a local keypad and analog signal inputs supporting 0-10V or 4-20mA references for external speed commands. Two relay outputs (R1 and R2) with a switching capacity of 5mA minimum and up to 3A at 250V AC or 4A at 30V DC allow the drive to signal external control circuits for run confirmation, fault indication, or process interlock logic. The CEM-compliant EMC certification means the drive meets industrial electromagnetic compatibility standards out of the box, which is relevant for machine builders who need to demonstrate CE-type compliance on their equipment.

Typical System Architecture for the ATV320U40N4C

The ATV320U40N4C sits directly upstream of the motor in the power chain, taking conditioned three-phase supply voltage and delivering a controlled output frequency to the motor terminals. Here is where it fits in a typical machine control system:

  • Three-phase main supply (380-500V AC) feeds through a main disconnect and branch circuit protection upstream of the drive
  • The ATV320U40N4C input terminals (L1, L2, L3) receive the conditioned supply; PE/GND connected per local electrical code
  • Drive output terminals (U, V, W) connect directly to the motor leads of a 3-phase induction or synchronous motor in the 4kW to 6kW range
  • Relay outputs R1 and R2 connect to PLC digital inputs or hardwired control circuits for run feedback, fault signaling, or process interlock
  • Analog reference input (0-10V or 4-20mA) from PLC analog output, HMI, or potentiometer provides variable speed setpoint to the drive

Industries and Applications Where This Drive Gets Specified

The ATV320U40N4C has a well-established role in packaging machinery OEM builds. Bag sealers, label applicators, carton feeders, and web tension control systems all benefit from the drive's ability to deliver smooth speed ramps and maintain consistent motor torque through process variations. The compact, stackable form factor is a direct advantage here — machine builders can integrate multiple drives in a shared enclosure without oversizing the cabinet.

In material handling and logistics, conveyor speed modulation is one of the most common applications. The drive allows operators to dial throughput up or down based on line conditions, and its overload capacity of 150% for 60 seconds provides headroom for momentary load spikes on loaded conveyors. Hoist and lift applications benefit from the built-in soft-start and deceleration ramp control, which reduces load swing and mechanical wear on brake systems.

HVAC circulation and pump control represent a secondary but significant use case. Running a pump or fan motor at reduced speed during part-load conditions — rather than full speed against a throttling valve — delivers measurable energy savings, and the ATV320U40N4C's 0-400Hz output frequency range covers both standard 50Hz and 60Hz motor configurations worldwide.

Application Typical Deployment
Packaging machinery Motor speed control on bag sealers, label applicators, and carton feeders using analog reference from PLC
Conveyor speed modulation Variable throughput control in sorting and distribution centers; relay outputs for run/fault indication to upstream PLC
Material handling hoists and lifts Controlled acceleration and deceleration ramps for load safety and precise positioning
Machine tool auxiliary motors Basic speed regulation for spindle cooling fans, chip conveyors, or coolant pumps in metalworking cells
HVAC and circulation pumps Energy optimization through speed reduction at part-load; 0-400Hz output covers 50Hz and 60Hz motor installations
Food and beverage production Controlled motor speed for filling, capping, and conveying equipment; compact footprint suits hygienic machine designs

Purchase-Decision Specifications for the ATV320U40N4C

Parameter Value Notes
Rated Motor Power 4kW to 6kW Verify motor nameplate falls within this range before ordering
Input Voltage 380-500V, 3-phase AC Three-phase only — single-phase supply not compatible
Input Current 13.8A at 380V / 10.6A at 500V Severe duty rating; use for branch circuit protection sizing
Output Frequency Range 0 to 400 Hz Supports both 50Hz and 60Hz motor installations worldwide
Overload Capacity 150% for 60 seconds Provides headroom for conveyor and hoist load spikes
Motor Compatibility 3-phase AC induction and synchronous Not suitable for DC motors or single-phase motors
Protection Rating IP21 / IP20 Verify local electrical code accepts this rating for your installation
Operating Temperature 0 to 40 degrees Celsius Derating required above 40°C
Relay Outputs R1, R2 — 5mA min, 3A at 250V AC or 4A at 30V DC For run feedback, fault indication, or process interlock
EMC Certification CEM compliant Meets industrial electromagnetic compatibility standards

Full technical specifications are available on the product page at LeadTime.ca.

ATV320U40N4C vs. Altivar 320 Variants and Compact VFD Alternatives

Model Power Input Voltage Form Factor Primary Advantage Typical Lead Time
Schneider Electric ATV320U40N4C 4kW 380-500V 3-phase Compact, stackable Small footprint, proven OEM integration In stock / 1-2 weeks (verify with distributor)
Schneider Electric ATV320U22N4C 2.2kW 380-500V 3-phase Compact Lower power for smaller motors In stock / 1-2 weeks (verify with distributor)
Schneider Electric ATV320U75N4C 7.5kW 380-500V 3-phase Compact Higher power range for larger motors In stock / 1-2 weeks (verify with distributor)
ABB ACH550-01-046A-4 4kW 380-480V 3-phase Compact Direct 4kW competitor; ABB ecosystem familiarity 2-4 weeks (verify with distributor)
Siemens SINAMICS G110M 4kW 380-480V 3-phase Compact S7-1200 integration; Siemens ecosystem 2-4 weeks (verify with distributor)
Danfoss VLT Micro Drive FC 51 4kW 380-480V 3-phase Compact European OEM preference; compact housing 3-6 weeks (verify with distributor)

If your motor nameplate exceeds 6kW, the ATV320U75N4C is the correct next step in the Altivar 320 family — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the ATV320U40N4C Worth Ordering?

The ATV320U40N4C earns its place on approved vendor lists for packaging and material handling OEMs because it delivers exactly what those applications need without unnecessary complexity. Its vertical-stackable compact form factor is a documented advantage for machine builders who are integrating multiple drives into a shared enclosure — a requirement that eliminates several larger-footprint competitors immediately. The drive's compatibility with both 3-phase synchronous and asynchronous induction motors adds flexibility for OEMs who may not standardize on a single motor supplier. For integrators already working within the Schneider ecosystem, commissioning via keypad with standard motor nameplate parameters is straightforward, and the built-in soft-start function — configured through programmable acceleration ramps — removes the need for a separate soft-starter in most standard applications. The CEM compliance certification simplifies regulatory documentation for machine CE marking in applicable markets.

That said, this drive has real hard limits that buyers should not work around. Motors above 6kW will trip overload protection and fail to start reliably — the ATV320U75N4C is the correct choice in that case. Single-phase supply is not an option; this is a three-phase input drive without exception. Buyers who need integrated Modbus or Profibus fieldbus communication from day one should note that the base ATV320U40N4C requires an optional communication card for fieldbus connectivity — it is not included in the standard configuration. Projects requiring advanced motion control, process optimization loops, or Industry 4.0 integration should evaluate the Altivar Process series rather than attempting to extend this model beyond its design intent. The ATV320U40N4C is not the wrong choice for those applications — it is simply the wrong product family.

From a procurement standpoint, the ATV320U40N4C is typically held in stock at major automation distributors with market-typical lead times of one to two weeks for in-stock units, though made-to-order scenarios can extend to four to six weeks depending on regional demand — always verify current availability before committing to a build schedule. Ordering through a specialist automation distributor rather than a generic channel significantly reduces the risk of receiving the wrong voltage variant, a mistake that causes commissioning delays and return freight costs. Specialist distributors can verify your incoming site voltage, confirm motor compatibility, and flag potential issues before your order is placed. View current pricing and availability for the ATV320U40N4C at LeadTime.ca — we ship worldwide and maintain technical pre-sale support for exactly these compatibility checks.

For volume pricing, project quotes, or to confirm current lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV320U40N4C

Because community forum data for this specific model is sparse relative to its installed base, the most reliable guidance comes from the technical patterns that experienced VFD integrators and specialist distributors encounter repeatedly at point of sale. The most common pre-order mistakes with the ATV320U40N4C fall into three predictable categories, and all of them are preventable with a two-minute nameplate check before the purchase order is issued.

The first pattern is voltage variant mismatch. The Altivar 320 series covers a 380-500V input range, but buyers occasionally assume any unit in the family will accept their local grid voltage without checking. If your site supply is 380V, confirm the model variant is specified for 380V operation. If your supply is 480-500V, confirm accordingly. Ordering the wrong variant and discovering the mismatch on the bench costs time and freight — a quick confirmation with your distributor before RFQ eliminates this entirely.

The second pattern is motor power mismatch. The ATV320U40N4C is rated for motors in the 4kW to 6kW range. Integrators upgrading from soft-starters sometimes have an existing 7.5kW motor in the system and assume the 4kW drive will handle it in a light-duty cycle. It will not — oversized motors will trigger overload protection and fail to start under load. The ATV320U75N4C is the correct model in that scenario. Conversely, a motor well below 4kW on this drive wastes cost when a smaller Altivar variant would do the job. The third pattern is skipping motor parameter entry at first commissioning. Without entering the motor's rated power, frequency, and full-load current into the drive before first power-up, the drive cannot optimize its soft-start behavior and will default to conservative startup settings that produce apparent stalls or nuisance faults. This is the single most common cause of reported commissioning issues across the Altivar 320 series. Enter the motor nameplate data first, every time.

Wiring and Installation Overview

  • Isolate and lock out incoming three-phase power before beginning any wiring; verify zero voltage at terminals with a calibrated multimeter before touching any connection point
  • Connect incoming three-phase supply to drive input terminals L1, L2, L3 with PE/GND connected per local electrical code; verify wire gauge is sized for 13.8A at 380V or 10.6A at 500V severe duty current
  • Connect motor leads to drive output terminals U, V, W with PE/GND; motor must be 3-phase induction or synchronous type rated within the 4kW to 6kW range
  • Wire relay outputs R1 and R2 to the external control circuit or PLC digital inputs as required for run confirmation or fault indication; switching capacity is 3A at 250V AC or 4A at 30V DC
  • Connect analog speed reference (0-10V or 4-20mA) to the appropriate input terminal if using external setpoint from a PLC analog output or potentiometer; confirm signal type matches drive input configuration before applying power

First-Run Commissioning Overview

  • Access the commissioning menu via the drive keypad and perform a factory reset to clear any residual settings before entering project-specific parameters
  • Enter motor rated power (within the 4kW to 6kW range), rated frequency (50Hz or 60Hz per motor nameplate), and full-load current from the motor nameplate — these three parameters are required before first run
  • Set acceleration and deceleration ramps appropriate for your load profile; standard inertial loads on conveyors or packaging machinery typically call for ramp times in the range of five to ten seconds
  • Test the drive with no mechanical load connected first; verify that output frequency increases smoothly from zero and no fault codes appear on the keypad display
  • Connect the motor, run a brief rotation direction test, and reverse output phase assignment if direction is incorrect; then bring the machine up under normal operating load and monitor for overload faults or thermal warnings during initial run

Wrong-Part Prevention Checklist

Before placing your order for the ATV320U40N4C, confirm every item on this checklist. Each point represents a documented source of commissioning failures, returns, or system incompatibility when missed:

  1. Verify incoming power supply is three-phase 380-500V AC, not single-phase
  2. Confirm motor nameplate power is 4-6kW range (verify motor HP/kW specifications)
  3. Check that motor is standard induction (asynchronous) or synchronous type, not permanent magnet DC
  4. Ensure physical space allows compact form factor (vertical or horizontal stacking)
  5. Confirm commissioning team can work with basic keypad/analog input control (no fieldbus integration expected)
  6. Verify local electrical code accepts IP21/IP20 enclosure rating in your installation environment

If any item on this list cannot be confirmed, contact the LeadTime.ca team before ordering — we can help verify compatibility and identify the correct variant for your application.

Frequently Asked Questions

Can the ATV320U40N4C be used with a single-phase input supply?

No. The ATV320U40N4C is a three-phase input drive rated for 380-500V three-phase AC. Single-phase supply is not compatible with this model. If your installation has single-phase supply only, a different drive product is required — confirm your supply configuration before ordering.

Does the base ATV320U40N4C include Modbus or Profibus fieldbus communication?

The base model does not include fieldbus communication. Modbus and Profibus connectivity are available via optional communication cards that can be added to the drive. If fieldbus integration is required in your control architecture, confirm the communication card availability and compatibility before specifying this model.

What happens if I connect a 7.5kW motor to the ATV320U40N4C?

The drive is rated for motors in the 4kW to 6kW range. Connecting a 7.5kW motor will cause the drive to trigger overload protection and the motor will fail to start reliably under load. For motors above 6kW, the ATV320U75N4C is the correct model. Never assume a close power match will work — overloading the drive will result in nuisance faults and potential drive damage.

Can two ATV320U40N4C drives be stacked vertically in the same enclosure?

Yes. The compact form factor of the ATV320U40N4C is specifically designed to allow vertical stacking within machine enclosures, which is one of its primary advantages for OEM machine builders. Ensure adequate thermal clearance between stacked drives to permit natural convection cooling and prevent thermal derating.

Is a separate soft-starter required when using the ATV320U40N4C?

No. The drive provides built-in soft-start functionality by ramping motor output frequency from zero through a programmable acceleration ramp. This eliminates the need for a separate soft-starter device in the circuit. The acceleration ramp time should be configured in the commissioning menu to match the inertia profile of your specific load.

What is the operating temperature range for the ATV320U40N4C?

The drive is rated for operation from 0 to 40 degrees Celsius. Derating is required above 40°C. Storage temperature range is -20 to 60 degrees Celsius, which covers typical warehouse and transport conditions. Ensure the installation environment stays within the operating range, particularly in enclosed enclosures with multiple stacked drives where internal temperatures can rise above ambient.

Why Order from LeadTime.ca

  • Global shipping — LeadTime.ca ships the ATV320U40N4C and the full Altivar 320 series to customers worldwide, not limited to any single region
  • Pre-sale technical verification — our team confirms incoming voltage, motor compatibility, and correct variant before your order is placed, reducing the risk of wrong-model returns
  • Access to hard-to-source variants — specialist distributors maintain inventory of Altivar 320 models across the power and voltage range, including units that generic channels source only on demand
  • Volume and project pricing — contact us directly for project quantities, OEM pricing structures, or blanket order arrangements
  • Fast response on lead time confirmation — know your availability window before committing to a build schedule

At-a-Glance Summary

  • Model: Schneider Electric ATV320U40N4C — Altivar Machine variable speed drive
  • Rated motor power: 4kW to 6kW; input voltage 380-500V three-phase AC only
  • Input current: 13.8A at 380V, 10.6A at 500V (severe duty)
  • Output frequency range: 0 to 400Hz — supports 50Hz and 60Hz motor installations worldwide
  • Overload capacity: 150% for 60 seconds — suitable for conveyor and hoist load spikes
  • Motor compatibility: 3-phase AC induction and synchronous motors — DC and single-phase motors not supported
  • Protection rating: IP21 / IP20; CEM-compliant EMC certification included
  • Operating temperature: 0 to 40°C; storage -20 to 60°C
  • Relay outputs R1 and R2: 3A at 250V AC or 4A at 30V DC switching capacity
  • Control interface: Keypad and analog input (0-10V or 4-20mA); fieldbus via optional communication card
  • Form factor: Compact, vertical-stackable — designed for space-constrained machine enclosures
  • Carbon footprint: 2476 kg CO2 equivalent per unit (Schneider Electric environmental data)
  • Typical lead time: In-stock units ship within 1-2 weeks (verify current availability with LeadTime.ca before committing to build schedule)
