Schneider Electric ATV320U55N4B — 5.5 kW VFD Buyer Review

By Abdullah Zahid
15 min read

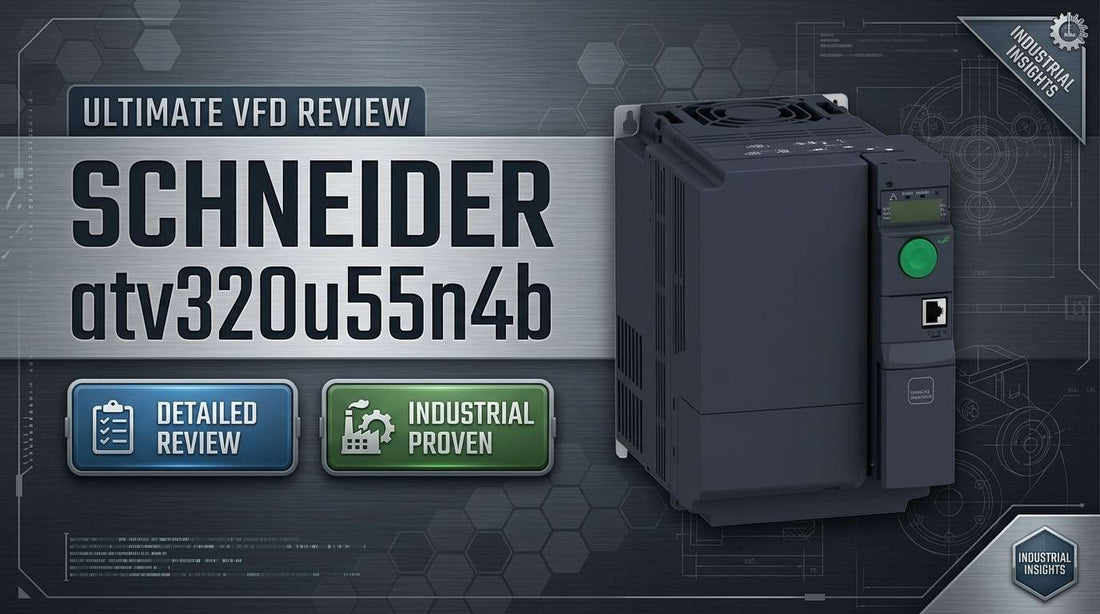

Schneider Electric ATV320U55N4B Altivar Machine 5.5 kW variable speed drive for industrial motor control applications

Schneider Electric ATV320U55N4B Altivar Machine Variable Speed Drive — Specs, Review, and Buying Guide for 5.5 kW Industrial Motor Control

When a controls engineer or procurement specialist searches for the Schneider Electric ATV320U55N4B by model number, they already know what they need: a 5.5 kW variable frequency drive with three-phase 380-500V input, vector control capability, and a compact book-format footprint that fits a standard control cabinet. The decision at this stage is not whether a VFD is needed — it is whether this exact variant is the right one to order, and whether stock is available before the project deadline. This review gives you both answers without padding.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the ATV320U55N4B at LeadTime.ca — ships worldwide.

Who Should Buy the ATV320U55N4B — and Who Should Not

The Schneider Electric ATV320U55N4B is the right choice for engineers and integrators who need a proven mid-range VFD for standard industrial machinery in a controlled indoor environment. It is right for you if all of the following apply:

  • Your power supply is three-phase 380-500V AC — this drive is not single-phase compatible under any configuration
  • Your motor is rated at 5.5 kW — the drive handles up to 7.5 kW in heavy-duty mode for 60 seconds, but motor nameplate power must match
  • Your control cabinet can accommodate the book-format footprint of approximately 130 x 200 x 120 mm with unobstructed cooling airflow around the unit
  • Your installation environment is indoor and climate-controlled, meeting IP20 protection criteria — not wet, outdoor, or high-dust locations
  • Your automation system communicates via Modbus serial or CANopen — if your PLC requires native Ethernet fieldbus, verify interface card availability before ordering

If your motor is rated at 4 kW, order the ATV320U40N4B. If your motor is rated at 7.5 kW, order the ATV320U75N4B. If your environment is wet or dusty, this IP20 model requires a sealed cabinet or you should specify an IP54-rated variant. Ordering the wrong power rating is the single most common mistake with this product family — the wrong-part checklist further down this page exists for exactly that reason.

On this page:

What the ATV320U55N4B Actually Does in a Running System

The Schneider Electric ATV320U55N4B is a variable frequency drive belonging to the Altivar Machine ATV320 series — Schneider Electric's dedicated product family for industrial machinery builders and systems integrators. Its core function is straightforward: it sits between a three-phase 380-500V power supply and an electric motor, converting fixed-frequency mains power into a variable-frequency, variable-voltage output that allows dynamic control of motor speed, torque, and acceleration without mechanical transmission changes.

What separates the ATV320U55N4B from a generic drive in this power class is what it includes out of the box. Vector control for synchronous motors is built in and does not require an external encoder or sensor feedback — this directly reduces bill-of-materials cost and eliminates a wiring task that other drives push back onto the integrator. The integrated Class C2 electromagnetic compatibility filter meets IEC 61800-5-1 and IEC 61000-4 requirements, removing the need for a separately sourced external filter in most industrial cabinet installations. A built-in temperature sensor and integrated fan handle thermal management internally, with auto-derating at high temperatures providing a layer of protection against thermal runaway in warm enclosures.

The output frequency range of 0.1 to 599 Hz is wider than many competing drives in this class, and the adjustable switching frequency of 2 to 16 kHz gives commissioning engineers flexibility to balance motor noise against thermal performance. Maximum output current is 14.3 A at rated load, covering the 5.5 kW motor class across the full 380 to 500V input range. For applications where rapid stopping is required — emergency stop functions, downhill conveyor loads, or high-inertia flywheels — the drive supports up to 170% braking torque for 60 seconds, though this requires an external braking resistor to be sized and connected before commissioning.

Typical System Architecture: Where This Drive Sits in the Signal Chain

The ATV320U55N4B occupies the conversion layer between the facility power infrastructure and the motor load — receiving three-phase mains, processing it under PLC command, and delivering conditioned variable-frequency output to the motor terminals.

  • Three-phase 380-500V AC supply feeds into the drive input terminals (L1, L2, L3) from a main circuit breaker or motor protection switch in the control panel
  • A PLC or automation controller communicates speed and torque commands to the drive via Modbus serial or CANopen protocol over shielded twisted-pair cable
  • The drive processes the command, adjusts output frequency and voltage, and delivers the result through motor output terminals (U, V, W) to the connected motor
  • An optional external braking resistor connects at the braking resistor terminals when dynamic stopping or regenerative loads require energy dissipation beyond the drive's internal capability
  • The motor drives the mechanical load — conveyor belt, pump impeller, textile spindle, packaging actuator — at the speed and torque profile commanded by the automation system

Typical Applications and Deployment Scenarios

The ATV320U55N4B targets the core workhorses of industrial machinery — the 5.5 kW motor class appears repeatedly in packaging equipment, material handling lines, and textile machinery precisely because it sits at a practical mid-point between light-duty conveyance and heavy industrial drives.

In packaging machinery, this drive controls conveyor acceleration and deceleration cycles, enabling smooth product transitions between stations and preventing product spillage during soft-start sequences. Palletizers and case erectors benefit from the vector control capability, which maintains consistent torque at low speeds without the motor hunting or stalling at light loads.

Material handling integrators frequently specify the ATV320U55N4B for standard conveyor drives in distribution centres and manufacturing plants. The compact book format means it can be mounted inside existing control panels without requiring enclosure upgrades, which matters significantly in retrofit projects where cabinet real estate is already committed.

In textile machinery — weaving, spinning, and finishing lines — precise speed control is a production quality requirement, not a convenience feature. The drive's vector control without external sensors handles the varying load profiles of textile machinery without requiring encoder retrofits to older mechanical systems.

Food and beverage processing lines use this drive class for pump and mixing motor control, where the soft-start capability reduces mechanical stress on pipe joints and product handling equipment. The Modbus serial interface integrates directly with standard SCADA and PLC systems that manage production line sequencing.

Application Typical Deployment
Packaging machinery — case erection and palletizing OEM integration; single drive per station; Modbus to packaging PLC
Material handling conveyors Multiple drives per line; book-format in shared control panel; CANopen or Modbus network
Textile spinning and weaving equipment Retrofit of existing motors; vector control mode without encoder addition
Food and beverage pump and mixing control Indoor climate-controlled plant; IP20 acceptable; soft-start priority
General industrial motor retrofit Direct replacement of obsolete Altivar drive; same power class; minimal rewiring
HVAC fan and pump systems Building mechanical room; three-phase supply; energy-saving variable speed operation

Key Specifications for Purchase Decision

Parameter Value Notes
Input Voltage 380-500V AC, 3-phase ±10-15% tolerance; not single-phase compatible
Supply Frequency 50/60 Hz Auto-sensing
Motor Power Rating 5.5 kW Up to 7.5 kW in heavy-duty mode for 60 seconds
Output Current (max) 14.3 A At rated load
Output Frequency Range 0.1-599 Hz Fully adjustable
Switching Frequency 2-16 kHz (adjustable) 4-16 kHz with derating
Braking Torque Up to 170% for 60 sec Requires external braking resistor
Protection Rating IP20 Indoor, low-dust, climate-controlled environments only
EMC Filter Class C2 (integrated) Meets IEC 61800-5-1 and IEC 61000-4
Communication Protocols Modbus serial, CANopen Both standard; Ethernet requires interface card verification

Full technical specifications are available on the product page at LeadTime.ca.

ATV320 Family Power Variants: Which Model Matches Your Motor

The Altivar Machine ATV320 series spans from 2.2 kW to 11 kW and above within the same product family and form factor. Selecting the correct variant is entirely a function of motor nameplate power — do not upsize or downsize the drive relative to the motor without specific engineering justification.

Model Variant Motor Power Max Output Typical Use Cases
ATV320U25N4B 2.2 kW 3 hp Small packaging machines, light conveyors
ATV320U40N4B 4 kW 5.5 hp Mid-size packaging, food processing lines
ATV320U55N4B (this model) 5.5 kW 7.5 hp Material handling, medium textile, standard packaging
ATV320U75N4B 7.5 kW 10 hp Heavy material handling, large conveyors
ATV320U110N4B and above 11+ kW 15+ hp Large machinery, high-demand industrial motors

If your motor nameplate reads 7.5 kW, the ATV320U75N4B is the correct selection — confirm the right variant and check current availability at LeadTime.ca before placing your order.

Expert Verdict: Is the ATV320U55N4B Worth Specifying in 2024

The Schneider Electric ATV320U55N4B earns its place in the mid-range industrial VFD segment through a combination of features that genuinely reduce integration work rather than just appearing on a datasheet. The vector control for synchronous motors without external encoder feedback is the clearest example: competitors in this price class often require an additional encoder card or feedback module to achieve the same motor control quality, which adds cost, wiring complexity, and one more failure point. The integrated Class C2 EMC filter follows the same logic — it eliminates a separate cabinet component and the associated sizing calculation, which matters to OEM machine builders designing for repeatable, certifiable builds. For controls engineers sourcing a drive for standard packaging, material handling, textile, or food processing applications with three-phase 380-500V supply and an indoor climate-controlled cabinet, the ATV320U55N4B represents a well-matched, well-supported choice with CE, UL, CSA, and ATEX certifications covering the major compliance requirements.

Where the ATV320U55N4B shows real limits: its IP20 rating is a hard constraint, not a guideline. In any environment with significant dust, moisture, or temperature variation — outdoor plant areas, wash-down zones, or unenclosed factory floors — this drive will fail prematurely without a properly sealed enclosure. That additional enclosure investment changes the total installed cost calculation and may push some applications toward IP54-rated alternatives. For projects where native Ethernet fieldbus integration is a priority — IIoT-connected lines, EtherNet/IP or PROFINET architectures — the Modbus serial and CANopen protocols on the ATV320U55N4B require interface card verification, whereas competing platforms may offer native Ethernet as a standard feature. Price-sensitive applications where the brand name carries less weight should evaluate the Danfoss VLT Micro Drive for potential cost savings, accepting trade-offs in support infrastructure. For higher power requirements, the ATV320U75N4B (7.5 kW) or ATV320U110N4B (11 kW and above) are the correct next steps within the same Altivar Machine family.

From a procurement standpoint, the ATV320U55N4B is widely distributed through authorized Schneider Electric channels globally, with a standard 2-year warranty through authorized distributors providing meaningful cost protection. Lead times vary significantly by geography and period — market-typical estimates of 2 to 4 weeks for standard stock are a starting point, not a commitment. For time-critical projects, confirming actual stock position with your distributor before issuing a purchase order is not optional advice — it is the difference between meeting your commissioning date and explaining a delay. Buying through a specialist industrial automation distributor rather than a generic online channel gives you real-time stock visibility, application support during commissioning, and genuine warranty registration that protects you against grey-market risk. View current pricing and availability for the ATV320U55N4B at LeadTime.ca — ships worldwide from authorized stock.

For volume pricing on multi-unit builds or to confirm lead time before committing your project schedule, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to technical sourcing inquiries.

What Engineers Need to Know Before Ordering the ATV320U55N4B

Community discussion specific to the ATV320U55N4B is sparse compared to higher-volume PLC platforms — most engineers who have worked with this drive move through the commissioning process without generating forum threads because the drive performs predictably when it has been correctly specified. That predictability, however, depends entirely on getting the specification right before the order is placed. The recurring issues that do surface with Altivar Machine drives in general — and with 5.5 kW VFDs in this class across brands — cluster around three areas that specialist distributors handle routinely and that generic online purchasing channels do not.

The first is power rating mismatch. The ATV320 model numbering (U25, U40, U55, U75, U110) encodes the power class, but the similarity of catalog numbers creates real ordering errors when purchasing copies a part number from an old drawing, a competitor spec sheet, or a previous project BOM where the motor was a different size. An undersized drive will fail to start the motor or nuisance-trip on overcurrent; an oversized drive wastes capital and may not provide the motor protection the application requires. The correct process is to read the motor nameplate power directly, confirm it as 5.5 kW, and only then confirm the ATV320U55N4B as the correct catalog number.

The second is environmental misapplication. IP20 is commonly misread as adequate for general industrial environments. It is not — IP20 provides basic protection against solid objects greater than 12 mm and no protection against liquids. Mounting an IP20 drive directly in a plant area with water wash-down, oil mist, or heavy particulate contamination will cause premature failure. For these environments, the drive requires installation inside a sealed, climate-controlled enclosure rated for the actual environment, or specification of a higher-IP variant. This is the kind of application check that a technical distributor can confirm during the quoting process — and that a generic marketplace cannot.

The third is braking resistor omission. For applications involving rapid stopping, high-inertia loads, or downhill conveyor profiles, the braking torque capability of up to 170% for 60 seconds requires an external braking resistor to dissipate regenerative energy. Engineers who skip this calculation during the design phase and discover it at commissioning face a delay while the resistor is sourced and sized. Identifying this requirement at the ordering stage, not the commissioning stage, is the professional standard — and is exactly the kind of pre-order conversation that LeadTime.ca's technical team supports before any purchase order is issued.

Wiring and Installation: Key Requirements Before You Start

The following points cover the installation requirements engineers need to verify before beginning physical installation. For full wiring diagrams, terminal configurations, and parameter programming procedures, refer to the official Schneider Electric ATV320 installation manual and commissioning guide.

  • Connect three-phase input to terminals L1, L2, L3 using wire gauge appropriate for 14.3 A maximum current; incorrect phasing reverses motor direction but does not damage the drive
  • Route motor output cables (U, V, W) separately from control and communication cables to minimize EMC interference — the integrated Class C2 filter reduces but does not eliminate coupling risk from poor cable routing
  • Use shielded twisted-pair cable for Modbus serial or CANopen communication wiring; ground the cable shield at the PLC (master) end only to prevent ground loops
  • If dynamic braking is required for the application, connect and size the external braking resistor before commissioning — do not attempt a full-load test without the resistor in place if the load profile demands it
  • Ensure minimum clearance around the drive body for cooling airflow; the integrated fan requires unobstructed ventilation — verify cabinet thermal design before final installation, particularly in enclosed panels with multiple heat-generating components

Compatible Communication and Expansion Options

The ATV320U55N4B ships with Modbus serial and CANopen communication as standard on-board interfaces. Engineers integrating into automation systems beyond these two protocols should verify interface card availability and compatibility with Schneider Electric before finalizing system architecture. The following standard integration paths are supported without additional hardware:

  • Modbus serial — standard on all ATV320 drives; compatible with the majority of industrial PLCs and SCADA systems in manufacturing environments
  • CANopen — industrial automation ready; suitable for machine-level networks coordinating multiple drives in synchronized motion applications
  • Adjustable PID regulator — onboard closed-loop speed and torque control without requiring external process controller for simpler applications
  • Motor compatibility — both synchronous and asynchronous (induction) three-phase motors are supported; vector control for synchronous motors operates without external encoder or sensor feedback

Wrong-Part Prevention Checklist

Before placing your purchase order for the ATV320U55N4B, confirm every item on this checklist. Each unchecked item represents a potential commissioning failure or returns process that adds cost and delay to your project.

  1. Is your power supply 3-phase 380-500V AC? (If single-phase, this drive will not work)
  2. Is your motor rated for 5.5 kW? (If 4 kW or 7.5 kW, order the correct power variant)
  3. Do you have space for a book-format drive (approximately 130 x 200 x 120 mm)? (If not, check other Altivar Machine form factors)
  4. Does your environment meet IP20 protection criteria (climate-controlled, indoor, low dust)? (If wet or very dusty, consider IP54 variants)
  5. Do your control systems use Modbus serial or CANopen? (If you need Ethernet or Profibus, verify compatibility or choose an alternative)
  6. Will you need external braking resistor for dynamic braking? (Confirm availability and sizing before ordering)
  7. Is this for a new machine build or retrofit? (Retrofit may require custom cabling; confirm with integrator)

If any item on this checklist raises a question you cannot answer immediately, contact the LeadTime.ca technical team before ordering — confirming the specification costs nothing; ordering the wrong part costs time and freight.

Frequently Asked Questions

Can the ATV320U55N4B control a synchronous motor without adding an external encoder?

Yes. The drive includes vector control functionality for synchronous motors that operates without external encoder or sensor feedback. This is confirmed in official Schneider Electric product documentation and is a specific differentiator of the Altivar Machine ATV320 series compared to drives in this class that require encoder cards for synchronous motor vector control.

What happens if I connect the ATV320U55N4B to a 7.5 kW motor instead of a 5.5 kW motor?

The drive is rated for a maximum output current of 14.3 A at rated load, with heavy-duty operation at up to 7.5 kW available for 60 seconds. Connecting to a motor that continuously demands current above the drive's rated output will cause the drive to nuisance-trip on overcurrent protection or, over time, cause thermal stress on the drive's output stage. For a 7.5 kW motor, order the ATV320U75N4B, which is rated for that power class.

Is the ATV320U55N4B suitable for outdoor installation or wash-down environments?

No. The IP20 protection rating means the drive provides basic protection against solid objects larger than 12 mm and no protection against liquids or fine dust. For outdoor installation or wash-down areas, the drive must be housed in a sealed climate-controlled enclosure rated for the actual environment, or an IP54-rated drive variant must be specified. Do not mount this drive in direct exposure to moisture, oil mist, or heavy particulate contamination.

Does the integrated Class C2 EMC filter eliminate the need for external filtering entirely?

The integrated Class C2 filter meets IEC 61800-5-1 and IEC 61000-4 requirements for industrial electromagnetic compatibility and removes the need for a separately sourced external EMC filter in most standard industrial cabinet installations. However, proper cable routing — keeping power cables separated from control and communication wiring — remains a requirement. The filter reduces electromagnetic interference but does not compensate for poor cabinet wiring practice.

What communication protocol should I use: Modbus serial or CANopen?

Both are standard on the ATV320U55N4B without additional hardware. The choice depends on your PLC or automation controller: Modbus serial is the most universally supported protocol across industrial automation hardware and is the default choice for most factory environments. CANopen is appropriate for machine-level networks where multiple drives need to be coordinated in synchronized motion applications. If your system requires Ethernet-based fieldbus (EtherNet/IP, PROFINET, Modbus TCP), verify whether an interface card option is available for this model before finalizing your architecture.

How do I confirm the ATV320U55N4B is in stock and get an accurate lead time for my project?

Stock status and lead times for the ATV320U55N4B vary by region and change with supply chain conditions — published estimates of 2 to 4 weeks for standard stock are market-typical starting points only. The only reliable way to confirm availability for a specific project deadline is to contact an authorized distributor directly and request a current stock check. Contact LeadTime.ca for a real-time availability and lead time confirmation — we ship worldwide and can provide accurate delivery estimates before you commit your project schedule.

Why Order Through LeadTime.ca

  • Global shipping from authorized distributor stock — the ATV320U55N4B ships worldwide, not just within a single region
  • Real-time stock visibility and accurate lead time confirmation before you commit to a project schedule
  • Technical application support during the ordering and commissioning process — not just transactional order fulfilment
  • Genuine warranty registration through authorized channels — protects you against grey-market and counterfeit risk on industrial automation hardware
  • Volume pricing available for multi-unit OEM builds and larger procurement requirements — contact the team directly for volume quotes

At-a-Glance Summary

  • Model: Schneider Electric ATV320U55N4B — Altivar Machine ATV320 Variable Speed Drive
  • Motor power: 5.5 kW rated; up to 7.5 kW heavy-duty for 60 seconds
  • Input voltage: three-phase 380-500V AC, ±10-15% tolerance, 50/60 Hz
  • Maximum output current: 14.3 A at rated load
  • Output frequency range: 0.1 to 599 Hz, fully adjustable
  • Switching frequency: 2 to 16 kHz adjustable (4 to 16 kHz with derating)
  • Braking torque: up to 170% for 60 seconds — external braking resistor required
  • Vector control for synchronous and asynchronous motors — no external encoder required
  • Integrated Class C2 EMC filter — meets IEC 61800-5-1 and IEC 61000-4
  • Protection rating: IP20 — indoor, climate-controlled environments only
  • Communication: Modbus serial and CANopen standard on-board
  • Certifications: CE, ATEX, UL, CSA, GOST, RCM
  • Form factor: book format, approximately 130 x 200 x 120 mm
  • Cooling: integrated fan with built-in temperature sensor and auto-derating
  • Warranty: 2 years through authorized distributor channel
  • Pricing: available on the product page at LeadTime.ca — contact for volume or project pricing
