Schneider Electric ATV320U30N4C — 3 kW VFD Buyer's Guide

By Abdullah Zahid
14 min read

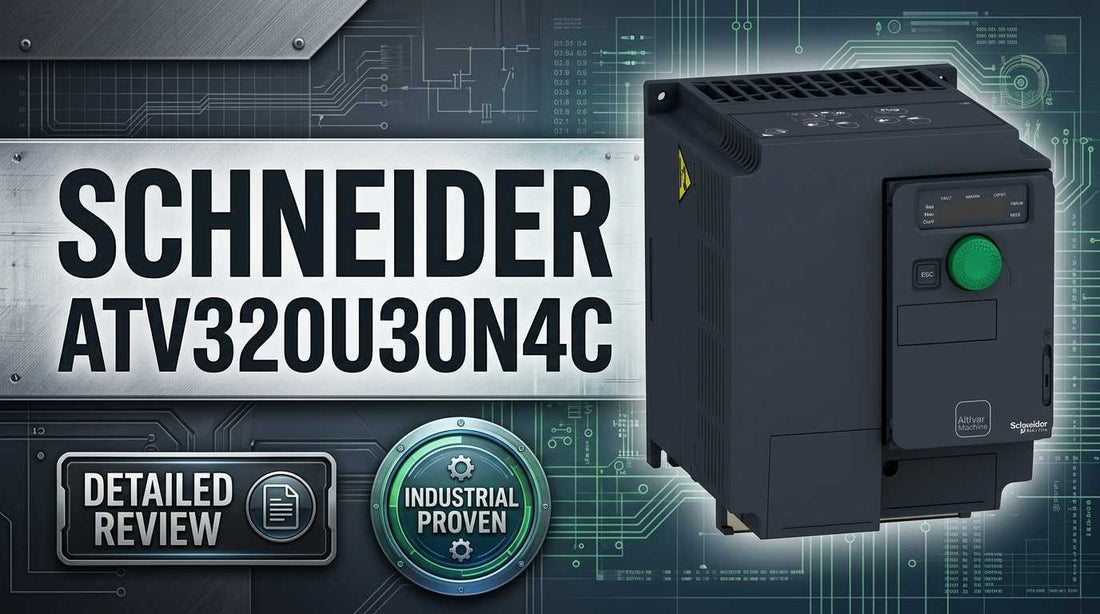

Schneider Electric ATV320U30N4C Altivar Machine 3 kW compact variable frequency drive for industrial motor control

Schneider Electric ATV320U30N4C — Altivar Machine Variable Speed Drive, 3 kW, 380-500V 3-Phase, Compact: Complete Specifications, Pricing, and Buyer's Guide

Controls engineers and panel builders specifying a compact variable frequency drive for a 3 kW industrial motor application often arrive at the Schneider Electric ATV320U30N4C after narrowing their search to drives that combine integrated safety functions, embedded serial communication, and a footprint small enough for space-constrained control cabinets. This drive — part of the Altivar Machine ATV320 family — accepts 380-500V 3-phase input, delivers 7.1A nominal output, and includes five certified safety functions out of the box, making it a strong candidate for OEM machine builders, retrofit integrators, and production maintenance teams working with 3 kW asynchronous or synchronous AC motors.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the ATV320U30N4C at LeadTime.ca — ships worldwide.

Who Should Buy the ATV320U30N4C — and Who Shouldn't

The ATV320U30N4C is the right drive if all of the following conditions apply to your application:

  • Your site electrical supply is 3-phase 380-500V AC at 50 or 60 Hz — single-phase sites cannot use this drive
  • Your motor nameplate power is 3 kW or less — this drive is not oversizable; a 4 kW motor requires a step-up to the ATV320U40N4C
  • Your cabinet can accommodate 184 mm H × 140 mm W × 158 mm D with adequate airflow clearance around the unit
  • Your environment is IP20-rated or the drive will be housed in a protective enclosure — wet or washdown locations require an external IP66 enclosure or a higher-rated variant
  • Your control system uses hardwired 0-10V analog, hardwired digital I/O, or ModBus RTU serial communication — Ethernet connectivity requires an additional communication module
  • Your electrical design includes an upstream 3-phase circuit breaker and contactor — this drive has no internal supply-side protection

If your motor exceeds 3 kW, your environment demands IP66, or your PLC requires Ethernet without an add-on module, the ATV320U30N4C is not the correct choice. The ATV320U40N4C covers the 5.5 kW tier in the same compact footprint, and the ATV340 family addresses advanced Ethernet connectivity requirements.

On this page:

What the ATV320U30N4C Actually Does in a Machine System

The Schneider Electric ATV320U30N4C is a variable frequency drive — it sits between your 3-phase power supply and an AC motor, and it controls that motor's speed and torque by modulating the output frequency and voltage. Where a traditional motor starter runs the motor at a fixed line frequency, the ATV320U30N4C varies output from 0 to 599 Hz, enabling precise speed control, smooth ramp-up and ramp-down, and energy optimization across the motor's load range. The rated output is 7.1A at 3 kW continuous in quadratic load mode.

What separates this unit from a basic VFD is the integration of five certified safety functions — STO (Safe Torque Off), SS1 (Safe Stop 1), SLS (Safe Limited Speed), SMS (Safe Monitored Stop), and GDL (Guarded Drive with Limited Speed) — directly into the drive firmware. For OEM machine builders targeting machine safety certification, these integrated functions eliminate the cost and panel space of a dedicated external safety relay. ModBus RTU and CanOpen communication protocols are embedded as standard; no additional communication card is required for serial connectivity to a PLC or SCADA system. The drive also provides 3 analog inputs, 1 analog output, and 6 digital inputs, covering the majority of hardwired control strategies used in packaging, conveyor, and material handling machinery.

The unit's compact form factor — 184 mm H × 140 mm W × 158 mm D at 2.8 kg — is a deliberate design choice for cabinet builders working with standard 600 mm wide enclosures. Multiple units can be stacked vertically within a single cabinet alongside a PLC and other controller modules, which is a practical advantage for OEM machine designs requiring multiple drive axes in a shared enclosure.

Where This Drive Sits in a Typical Control System

The ATV320U30N4C acts as the motor control layer between your upstream power distribution and the 3-phase AC motor load. Understanding this position in the signal and power chain is essential for correct cabinet design.

  • Main 3-phase supply (380-500V AC, 50/60 Hz) feeds from panel main breaker to a dedicated upstream 3-phase circuit breaker and contactor — this external protection device is mandatory and must be specified separately
  • Upstream contactor output connects to drive input terminals; drive regulates frequency and voltage from this supply
  • PLC or control system delivers speed reference via 0-10V analog output or ModBus RTU serial command to drive control terminals
  • Drive output terminals U, V, W connect via shielded 3-phase cable to motor terminal box; drive manages motor speed and torque in response to reference signal
  • Safety interlock (emergency stop or safety PLC output) wires directly to drive STO input — drive de-energizes motor torque without requiring a main contactor trip

Industries and Applications That Use This Drive

The ATV320U30N4C is deployed most frequently in packaging machinery — bag sealers, label applicators, and conveyor speed control are the dominant use cases. The compact footprint fits the space-constrained control cabinets typical of standard packaging machine designs, and the integrated safety functions meet the machine directive requirements these machines must satisfy.

Material handling applications are the second major segment: powered conveyor lines, hoist positioning systems, and jib crane drives operating 3 kW or smaller motors benefit from the drive's smooth ramp control and hardwired emergency stop via STO. Retrofit of fixed-speed motor starters on existing conveyor lines is one of the highest-volume replacement scenarios — the ATV320U30N4C drops into a cabinet where a direct-online starter previously operated, enabling variable-speed operation and modern safety compliance without full machine redesign.

Food processing and pump applications are secondary but common. Mixer drives, small pump speed controllers for variable-flow systems, and fan speed reduction in small HVAC units all fall within the 3 kW rating. The integral thermal protection eliminates the need for a separate motor overload relay, reducing the bill of materials in these simpler applications.

Application Typical Deployment
Packaging conveyor control Compact VFD mounted in machine cabinet; 0-10V analog reference from PLC; STO wired to E-stop button
Label applicator drive Single ATV320U30N4C per motor axis; ModBus RTU to PLC for speed command and status feedback
Retrofit of fixed-speed motor starter Drive replaces DOL starter in existing cabinet; upstream contactor retained; 0-10V potentiometer added for speed reference
Food processing mixer drive Drive with integral thermal protection; 6 digital inputs used for speed preset selection; no external overload relay required
Variable-speed pump or fan (small HVAC) Drive in panel; speed reference from building management system via ModBus RTU; reduces motor wear vs. fixed-speed operation
OEM multi-axis machine cabinet Multiple ATV320U30N4C units stacked vertically in 600 mm wide cabinet alongside PLC; standardized footprint across all axes

Key Electrical and Physical Specifications

Parameter Value Notes
Motor Power Rating 3 kW continuous Quadratic and linear load modes; do not exceed 3 kW motor nameplate
Input Voltage 380-500V AC 3-phase, 50/60 Hz ±10% voltage tolerance; ±5% frequency tolerance
Output Current (Nominal) 7.1A At rated 3 kW power
Output Frequency Range 0-599 Hz Enables motor overspeed or high-efficiency operation
Safety Functions (Integrated) STO, SS1, SLS, SMS, GDL Certified; no external safety relay required for these functions
Communication Protocols ModBus RTU, CanOpen Embedded; Ethernet requires external module
Analog Inputs / Output 3 inputs (0-10V or 4-20 mA), 1 output (0-10V) Configurable per application
Digital Inputs 6 For STO, start/stop, speed setpoint selection
Dimensions (H × W × D) 184 × 140 × 158 mm Compact; allows vertical stacking in standard 600 mm cabinet
IP Rating / Weight IP20 / 2.8 kg Not suitable for wet locations without additional enclosure

Full technical specifications are available on the product page at LeadTime.ca.

ATV320U30N4C vs. Larger ATV320 Variants: Which One Do You Actually Need?

Model Rated Power Input Voltage Form Factor Safety Functions When to Choose
ATV320U07N4C 0.75 kW 380-500V 3-phase Compact STO, SS1, SLS, SMS, GDL Motor under 1 kW; tightest cabinet space requirement
ATV320U30N4C 3 kW 380-500V 3-phase Compact STO, SS1, SLS, SMS, GDL Motor exactly 3 kW or less; cost-efficient compact choice
ATV320U40N4C 5.5 kW 380-500V 3-phase Compact STO, SS1, SLS, SMS, GDL Motor 3-5.5 kW; same compact footprint; step up if motor exceeds 3 kW
ATV340 (advanced) Various 380-500V 3-phase Standard Advanced safety Ethernet (Modbus TCP, EtherCAT) required; higher-tier PLC integration

If your motor nameplate exceeds 3 kW, the ATV320U40N4C is the correct next step in the same compact form factor — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the ATV320U30N4C the Right Drive for Your Project?

The ATV320U30N4C earns its place in compact machine designs because it resolves several cost and complexity problems at once. The five integrated safety functions — STO, SS1, SLS, SMS, and GDL — are certified and ready to wire without a dedicated external safety relay, which is a genuine bill-of-materials reduction for OEM machine builders under cost pressure. The embedded ModBus RTU and CanOpen protocols mean serial connectivity to a PLC or SCADA system requires no additional communication card. For packaging machinery, conveyor retrofits, material handling drives, and small pump or fan applications where the motor is 3 kW or less and the supply is 3-phase 380-500V, this drive delivers a well-balanced package: competitive cost, compact footprint, and a feature set that meets most machine safety requirements without upsizing the budget.

Where the ATV320U30N4C has real limits, they are hard limits. A motor nameplate showing 4 kW or 5.5 kW means this drive is undersized — specify the ATV320U40N4C instead, which holds the same compact form factor. Applications requiring Ethernet connectivity (Modbus TCP or EtherCAT) will need an external communication module or a migration to the ATV340 family. Environments rated for washdown or outdoor exposure require an additional IP66 enclosure or a higher-rated variant — IP20 is a genuine constraint, not a marginal one. Frequent regenerative braking or rapid deceleration cycles also require a separately sourced external braking resistor; the drive has no integrated braking resistor. And this drive is not a plug-and-play device: factory defaults will not cover every application, and commissioning time should be budgeted for parameter configuration of control source, ramp times, motor base frequency, and safety function modes.

From a procurement standpoint, the ATV320U30N4C is an authorized Schneider Electric catalog item available through specialist distributors globally. Lead times vary: 2-4 weeks for stocked items at major European distributors, and typically 4-8 weeks for Canadian sourcing through authorized Schneider partners. Confirming stock status before committing to a build schedule is critical — especially for production-line replacement scenarios where downtime cost outweighs part cost. Sourcing through a specialist distributor rather than a generic channel matters here because accurate stock location verification, pre-sales technical confirmation of motor compatibility, and post-sale commissioning support are part of the transaction — not afterthoughts. View current availability and pricing for the ATV320U30N4C at LeadTime.ca — ships worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV320U30N4C

Because this is a niche industrial SKU with limited public forum discussion, the most reliable pre-purchase intelligence comes from the field — from the engineers and integrators who have worked through the commissioning sequence, encountered the specification traps, and sourced the part through authorized channels. The patterns that emerge from that experience are consistent enough to be treated as authoritative guidance, and they map directly to the checks that matter most before a purchase order is submitted.

The most common specification error in this power class is motor mismatch. The ATV320U30N4C is rated for motors at 3 kW or less — and that boundary is not a soft guideline. An installer specifying this drive for a 4 kW motor, whether from a misread nameplate or a cost-optimization decision, will encounter repeated thermal overload trips under sustained full-load conditions. The consequence is unplanned downtime and the cost of a drive replacement anyway, making the original cost saving meaningless. The correct response is to specify the ATV320U40N4C for any motor exceeding 3 kW — same compact footprint, same safety function set, appropriate rating.

The second pattern is underestimating commissioning effort. This drive requires parameter configuration before it is production-ready: control source selection (analog or ModBus), ramp time settings, motor base frequency (50 or 60 Hz for your site), and safety function mode configuration for STO and SS1. None of this is resolved by factory defaults alone. Engineers and technicians who have worked with the ATV320 family consistently note that budgeting 2-4 hours for first-time commissioning — using the official Schneider ATV320 commissioning manual as the reference — prevents the most common startup faults: no response to speed command, unexpected motor behavior, and emergency stop function not operating as intended. LeadTime.ca's technical team can assist with pre-order confirmation of compatibility and point you to the right commissioning documentation for your specific control strategy before the drive arrives on site.

Wiring and Installation: What to Verify Before You Commission

The following overview covers the critical requirements for correct installation. For full wiring diagrams, terminal assignments, and step-by-step procedures, refer to the official Schneider Electric ATV320 installation and commissioning manual.

  • An upstream 3-phase circuit breaker and contactor are mandatory on the supply side before the drive input terminals — the drive's short-circuit protection applies to the load side only, not the supply side; missing upstream protection is a fire and personnel safety risk
  • Mount the drive on DIN rail or panel wall with a minimum 50 mm airflow clearance on top and sides; do not pack the drive directly against heat-generating components in the cabinet
  • Wire 3-phase motor output from terminals U, V, W to motor terminal box using shielded 3-phase cable; verify phase sequence with a multimeter before first power-up
  • Connect the drive PE (protective earth) terminal to the panel ground rail per your site electrical code — grounding is mandatory and must be verified for continuity before commissioning
  • Before first power-up, confirm parameter settings for control source (0-10V analog input or ModBus), motor base frequency (50 or 60 Hz), ramp times, and safety function mode (STO and SS1 configuration); do not assume factory defaults are correct for your application

Wrong-Part Prevention: Six Checks Before You Submit the Purchase Order

Run through all six items before finalizing your order. Each check corresponds to a confirmed field failure mode or sourcing error for this drive class.

  1. Confirm input supply is 3-phase 380-500V AC at 50 or 60 Hz (not single-phase, not DC, not higher voltage)
  2. Verify motor nameplate power is exactly 3 kW or less (check motor rating plate; if nameplate shows 4 kW, this drive is undersized)
  3. Confirm physical footprint fits cabinet (compact format is 184×140×158 mm; ensure clearance exists and removal path is clear)
  4. Verify environment is IP20-rated or protected (outdoor or wash-down locations require additional enclosure or upgrade to IP66 variant)
  5. Check that existing control system supports ModBus RTU or hardwired 0-10V analog control (if using Ethernet, this model does not support it without module)
  6. Confirm power distribution includes external branch circuit protection upstream of drive (this drive has no integrated circuit breaker; requires external contactor/breaker upstream)

If any of these checks produces a mismatch, do not proceed with this part number. Contact the LeadTime.ca team to confirm the correct variant for your application before ordering — we ship worldwide and can verify stock and lead time at the same time.

Frequently Asked Questions

Does the ATV320U30N4C include a braking resistor, or do I need to source one separately?

No integrated braking resistor is included. If your application involves frequent rapid deceleration, regenerative braking, or vertical load management, an external braking resistor is required and must be sourced separately. For light-duty applications with gradual deceleration, the external resistor may not be necessary — confirm your duty cycle requirements before specifying.

Can I run this drive from a 0-10V analog output on my existing PLC without using ModBus?

Yes. The drive accepts a 0-10V analog reference signal on one of its three analog input channels (configurable for 0-10V or 4-20 mA). No ModBus configuration is required for this control method. Wire your PLC analog output directly to the drive analog input terminal and set the control source parameter to analog input 1 during commissioning.

Is the STO function sufficient for emergency stop, or do I still need an external safety relay?

The integrated STO (Safe Torque Off) function accepts a hardwired emergency stop signal directly and de-energizes motor torque without an external relay. For many machine applications this is sufficient. However, for critical safety applications or those requiring a specific SIL or PL certification level, best practice is to use a certified safety relay in the STO circuit — consult your machine safety assessment and the applicable safety standard for your jurisdiction.

What happens if the drive is powered on without completing parameter commissioning?

The drive will operate on factory defaults, which may not match your control strategy or motor configuration. Common results include no response to speed commands (if control source parameter does not match your wiring), incorrect ramp behavior, or safety functions that do not operate as intended. Always complete parameter configuration — including control source, ramp times, motor base frequency, and safety function mode — before running the motor under load.

Can multiple ATV320U30N4C units be installed in the same cabinet?

Yes. The compact 184 × 140 × 158 mm form factor and standard DIN rail or panel mounting allow vertical stacking of multiple units within a standard 600 mm wide industrial cabinet. Ensure adequate airflow clearance (minimum 50 mm on top and sides of each unit) and verify that combined thermal dissipation from all drives does not exceed cabinet ventilation capacity.

What is the typical lead time for the ATV320U30N4C for buyers outside Europe?

Stock availability varies by region and distributor. Major European distributors typically hold this unit in stock with 2-4 week delivery. For buyers in Canada and North America, lead times through authorized Schneider distributors are typically 4-8 weeks for non-stocked orders. Confirming current stock status with your distributor before committing to a build schedule is strongly recommended — contact LeadTime.ca directly for a current availability check.

Why Order Through LeadTime.ca

  • Global shipping: LeadTime.ca sources and ships the ATV320U30N4C to customers worldwide — not restricted to any single region or country
  • Verified stock and accurate lead times: current availability is confirmed before you commit to a purchase order, not estimated from a generic catalog listing
  • Pre-sales technical support: compatibility confirmation for motor rating, cabinet fit, and control system integration before the order ships
  • Pricing transparency: no obligation to quote; current pricing is displayed on the product page or available on request for volume orders
  • Post-sale support: warranty and technical follow-up handled through a specialist distributor, not a generic marketplace with no technical depth

At-a-Glance Summary

  • Model: ATV320U30N4C — Altivar Machine variable speed drive, 3 kW, 380-500V 3-phase, compact
  • Rated motor power: 3 kW continuous; nominal output current 7.1A
  • Input supply: 380-500V 3-phase AC, 50/60 Hz; ±10% voltage tolerance, ±5% frequency tolerance
  • Output frequency range: 0-599 Hz; supports motor overspeed and high-efficiency operation
  • Integrated safety functions: STO, SS1, SLS, SMS, GDL — no external safety relay required for these functions
  • Embedded communication: ModBus RTU and CanOpen; Ethernet requires external module
  • I/O: 3 analog inputs (0-10V or 4-20 mA), 1 analog output (0-10V), 6 digital inputs
  • Dimensions: 184 mm H × 140 mm W × 158 mm D; weight 2.8 kg; DIN rail or panel mounting
  • IP rating: IP20 — additional enclosure required for wet, washdown, or outdoor locations
  • No integrated braking resistor — external resistor required for regenerative or frequent rapid deceleration applications
  • No internal supply-side circuit protection — upstream 3-phase contactor and circuit breaker are mandatory
  • Compatible motor types: 3-phase AC asynchronous and synchronous motors rated 3 kW or less
  • Typical lead time: 2-4 weeks stocked (Europe); 4-8 weeks for Canadian and North American sourcing
