Schneider ATV12H075M2 — 1 hp Single-Phase VFD Selection Guide

By Abdullah Zahid
14 min read

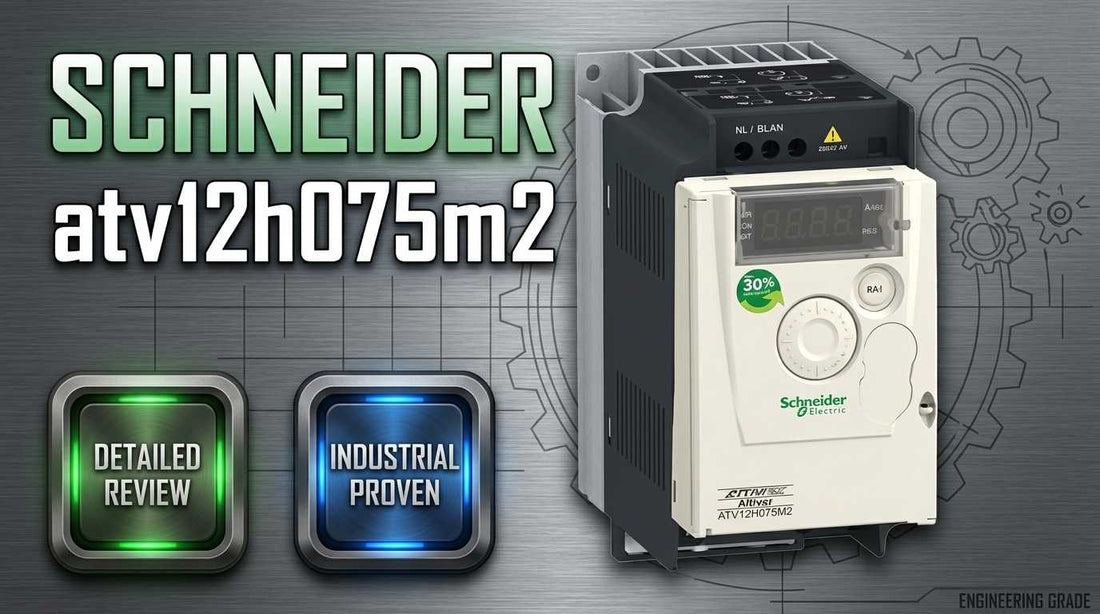

Schneider Electric ATV12H075M2 Altivar 12 variable speed drive 0.75 kW single-phase with passive heatsink for pump and fan control

Schneider ATV12H075M2 Variable Speed Drive, 0.75 kW, 1 hp, 200-240 V Single-Phase, with Heat Sink — Specs, Selection Guide, and Wiring

If you are searching for the Schneider ATV12H075M2 by model number, you are likely at the final confirmation stage — checking specifications, verifying single-phase compatibility, or settling a last-minute question before placing an order. This drive is the Altivar 12 Variable Speed Drive rated at 0.75 kW (1 hp), designed for 200-240 V single-phase input, with a passive heatsink, integrated EMC filter, and sensorless flux vector control. It converts single-phase supply to variable three-phase output across a 0-60 Hz frequency range, making it the practical choice for speed control of induction motors on pumps, fans, conveyors, and mixers where three-phase infrastructure is not available.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ATV12H075M2 — and Who Should Not

The ATV12H075M2 is the right drive for engineers and technicians who need compact, single-phase variable speed control for motors up to 1 hp. It is a strong fit when all of the following apply:

  • Your supply circuit is confirmed single-phase 200-240 VAC — not three-phase
  • Your motor nameplate is rated at 1 hp (0.75 kW) or less, induction type
  • Your cabinet has at least 131.2 mm of interior depth and 72 mm of width available for the drive body
  • Your application is simple mechanical load control — pumps, fans, conveyors, or mixers — with no encoder feedback or motion profiling required
  • You need Modbus RS-485 communication capability, or can operate purely on analog 0-10 V or discrete digital inputs without a network
  • Passive cooling is acceptable — no external cooling fan, ductwork, or forced-air cabinet system in place

If your motor exceeds 1 hp, the correct choice is the ATV12H150M2. If your facility supply is three-phase, the Altivar 320 is the appropriate platform. If the application demands encoder feedback or advanced motion profiling, the Altivar Process or Motion series is the right direction.

On this page:

What the ATV12H075M2 Actually Does in a System

The ATV12H075M2 is a member of Schneider Electric's Altivar 12 series — a family of compact AC variable frequency drives built for simple industrial and commercial speed control applications. At its core, the drive accepts 200-240 V single-phase AC input at 50 or 60 Hz and outputs variable three-phase voltage across a 0-60 Hz range to a connected induction motor. The sensorless flux vector control method maintains constant motor torque across a 1:20 speed range without requiring an encoder, tachometer, or external speed feedback device. For applications like a variable-pressure pump or a conveyor that needs smooth start-stop cycling, this eliminates sensor wiring, mounting hardware, and the commissioning time associated with feedback tuning.

The 4.2 A maximum output current at 0.75 kW handles standard 1 hp induction motors without derating in ambient conditions up to 50°C at altitudes up to 1000 m. The passive heatsink — the physical fin structure integrated into the drive body — dissipates operating heat entirely through natural convection, requiring no fan motor, no ductwork connection, and no additional power draw. The integrated EMC filter brings the drive into compliance with IEC 61800-3 Categories 2, 4, 8, and 12, which means in most standard industrial environments no external harmonic filter is needed. These two features — passive cooling and integrated EMC compliance — are the primary reasons this drive reduces total cabinet cost and commissioning complexity compared to basic open-frame VFD alternatives.

Speed reference arrives via one of three methods: a 0-10 V or 4-20 mA analog input, discrete 24 VDC digital logic inputs (start, stop, reverse), or Modbus RTU commands over a 2-wire RS-485 interface. Default acceleration and deceleration ramp time is 60 seconds, adjustable from 0 to 600 seconds. The switching frequency is adjustable from 2 to 16 kHz, with derating applied above 4 kHz — relevant for applications where audible motor noise at low frequencies is a concern.

Where It Sits in Your Control Architecture

The ATV12H075M2 occupies the power conversion layer between your single-phase supply and the motor — it is neither a controller nor a safety relay, but the active component that translates a speed command into motor shaft rotation. A typical system chain looks like this:

  • Single-phase 200-240 VAC supply breaker feeds the drive input terminals L1 and L2
  • Optional line reactor (5-10 mH) installed on AC input side for harmonic mitigation in sensitive facilities
  • Drive body mounted on DIN rail or panel bracket inside cabinet (minimum 131.2 mm depth, 72 mm width, 143 mm height clearance)
  • Drive output terminals U, V, W connect via shielded cable to three-phase induction motor windings
  • Speed reference from PLC analog output (0-10 V), operator potentiometer, or Modbus RS-485 from supervisory controller — all three paths are simultaneously supported

Typical Applications and Industries for the ATV12H075M2

Food and beverage processing facilities are among the most consistent users of single-phase 1 hp variable frequency drives. Pump lines serving ingredient transfer, filling stations, or CIP (clean-in-place) circuits benefit directly from variable-speed operation — at partial flow demand, the motor runs at reduced frequency, cutting both power draw and mechanical wear. The ATV12H075M2's IP20 enclosure rating suits installation inside a control cabinet adjacent to the process equipment, provided the cabinet is kept clean and dry.

Water treatment and small pump stations use this drive for pressure-regulated booster pumps and circulation systems where fixed-speed operation would otherwise require a bypass valve to manage flow — an approach that wastes energy and adds mechanical complexity. The sensorless flux vector control's ability to hold consistent torque at low speeds makes it appropriate for pumps that must start against backpressure without stalling.

HVAC contractors retrofitting single-phase cabinet systems with variable fan speed control find the ATV12H075M2 straightforward to integrate. The analog 0-10 V speed reference maps directly to a building automation system analog output with no additional signal conditioning. Exhaust fan applications with a frequency ramp-down profile during low-load periods reduce noise and extend bearing life.

Medical device manufacturers integrating variable-speed motors into sterilization chambers or fluid circulation systems use this drive where a PLC analog output controls motor speed via the 0-10 V input, and optional Modbus monitoring confirms operating status without requiring a dedicated control network for the drive alone.

Application Typical Deployment
Food and beverage pump control Cabinet-mounted drive on ingredient transfer or CIP pump, analog speed reference from PLC
Water treatment booster pump Pressure-responsive speed modulation via 4-20 mA pressure transducer reference
HVAC exhaust fan retrofit Existing single-phase cabinet with BAS analog output driving 0-10 V speed reference
Medical fluid circulation PLC-controlled variable speed, Modbus status monitoring, enclosed cabinet installation
Conveyor soft-start and speed Discrete start/stop logic with adjustable ramp time, small warehouse or packaging line
Renewable energy support loads Circulation pump on small solar thermal or wind-assist system with variable demand

ATV12H075M2 Specifications and Variant Comparison

Parameter Value
Rated Power 0.75 kW (1 hp)
Input Voltage 200-240 VAC (±15% to +10% tolerance)
Input Phase Single-phase (1 PH)
Input Frequency 50 or 60 Hz ±5%
Output Current (max) 4.2 A
Output Frequency Range 0-60 Hz (adjustable)
Control Method Sensorless flux vector
Dimensions (H x W x D) 143 mm x 72 mm x 131.2 mm
Enclosure Rating IP20
Communication Interface 2-wire RS-485 Modbus RTU (optional, not required for stand-alone operation)

Full technical specifications are available on the product page at LeadTime.ca.

ATV12H075M2 vs. ATV12H150M2: Which Altivar 12 Do You Need?

Feature ATV12H075M2 ATV12H150M2
Rated Power 0.75 kW (1 hp) 1.5 kW (1.5 hp)
Output Current (max) 4.2 A 5.6 A
Input Phase Single-phase 200-240 VAC Single-phase 200-240 VAC
Control Method Sensorless flux vector Sensorless flux vector
Best For Motors at or below 1 hp Motors between 1 hp and 1.5 hp
Upgrade Trigger — Motor exceeds 1 hp nameplate rating

If your motor nameplate reads above 1 hp but remains on a single-phase supply, the ATV12H150M2 is the correct step up — confirm current availability at LeadTime.ca or contact the team for a comparison quote on both models.

Expert Verdict: Is the ATV12H075M2 the Right Drive for Your Project?

The ATV12H075M2 performs exactly as its specification implies: a dependable, compact variable frequency drive for single-phase 1 hp applications where commissioning simplicity, cabinet space efficiency, and integrated EMC compliance matter more than advanced motion capability. The passive heatsink design is a genuine practical advantage — no fan to fail, no additional power circuit to wire, and no noise contribution in environments where audible cooling fan hum is a concern. Sensorless flux vector control maintaining torque across a 1:20 speed range without an encoder is meaningful in pump applications where system pressure must be held consistently at partial speed. The integrated EMC filter compliant with IEC 61800-3 removes a line item from the bill of materials and simplifies cabinet design for integrators who would otherwise need to specify, procure, and mount a separate filter. For the maintenance technician at a food processing or water treatment facility retrofitting an aging soft-starter, or the HVAC contractor fitting variable fan speed into an existing single-phase cabinet, this drive meets requirements without overcomplicating the project.

The limits are real and worth stating plainly. The 1 hp power ceiling is firm — running a motor above 0.75 kW continuous will engage overload protection and reduce output frequency. If the motor nameplate reads higher, the ATV12H150M2 at 1.5 hp and 5.6 A output current is the direct next step within the Altivar 12 family. For facilities with three-phase distribution as the primary supply, the Altivar 320 is the appropriate platform — the ATV12H075M2 will not function on three-phase input. Applications requiring external encoder feedback, motion profiling, position synchronization, or safety-rated functions (SIL-rated applications, hoist drives, traction systems) require the Altivar Process or Motion series. Installations demanding predictive maintenance telemetry, cloud connectivity, or advanced diagnostics should be specified on IoT-enabled Altivar Machine drives rather than the entry-level ATV12 family.

From a procurement standpoint, the ATV12H075M2 is a stocked, production-active part with broad North American and global distributor availability. The single most important step before placing an order is confirming that the supply circuit is single-phase 200-240 VAC and that cabinet depth meets the 131.2 mm minimum — these two checks prevent the most common return scenarios. Buying through a specialist industrial distributor rather than a general marketplace means pre-order verification of supply phase, motor nameplate, and cabinet dimensions happens before the drive ships, not after it arrives on site. View current pricing and availability for the ATV12H075M2 at LeadTime.ca — global shipping available.

For volume pricing, lead time confirmation ahead of a build schedule, or technical pre-order verification, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV12H075M2

Because the ATV12H075M2 occupies a relatively specialized niche — single-phase 1 hp variable frequency drives represent a small segment of the broader VFD market — public forum discussions and community Q&A threads for this specific model are sparse. Most professionals working with this drive handle installations directly through distributor technical channels or internal engineering documentation rather than open forums. That absence of public discussion does not reflect any product reliability concern; it reflects the nature of the application segment. What it does mean is that the ordering mistakes engineers encounter tend to go unreported publicly, and first-time buyers may not have a forum thread to reference when validating their specification.

The most consequential pre-order errors with this drive cluster around three scenarios. First, confusing single-phase and three-phase supply: the ATV12H075M2 accepts only single-phase 200-240 VAC input, and a facility with three-phase distribution cannot power this drive — it will either remain dark or trip immediately on energization. Second, specifying the drive before measuring the cabinet: at 131.2 mm depth, this drive will not fit in a shallow enclosure, and discovering the clearance problem at installation rather than at the design stage creates project delays and potential cabinet replacement costs. Third, installing the drive adjacent to precision laboratory equipment, medical monitors, or other sensitive analog instrumentation without first assessing harmonic impact — the integrated EMC filter handles standard industrial environments, but a 5-10 mH line reactor on the AC input side and shielded cabling for analog and Modbus signals may be necessary in sensitive deployments. A pre-installation survey for sensitive loads is the step most commonly skipped under time pressure, and it is the step most likely to create a costly post-commissioning retrofit.

When community resources are limited and application stakes are high, working directly with a specialist distributor who can conduct a technical pre-order verification call — confirming motor size, supply phase, cabinet dimensions, and application type against the drive specification — provides the same function that a well-moderated forum thread would otherwise offer. LeadTime.ca's team maintains direct access to Schneider Electric technical documentation and can flag compatibility issues before the drive ships, not after it arrives on a job site three weeks into a project timeline.

Wiring and Installation Overview for the ATV12H075M2

The following overview covers the key requirements and configurations for standard ATV12H075M2 installation. For complete wiring diagrams, terminal torque specifications, and detailed configuration procedures, refer to the official Schneider Electric Altivar 12 installation manual.

  • AC input terminals L1 and L2 accept single-phase 200-240 VAC; the protective earth conductor connects to the chassis ground terminal — tighten M3.5 terminal screws to 0.5-0.8 N·m and verify supply is de-energized before connection
  • Motor output terminals U, V, and W connect to three-phase induction motor windings A, B, and C; use shielded cable for motor runs longer than 30 m to control radiated noise
  • Mount the drive vertically (±10 degrees) on DIN rail or panel bracket with a minimum 50 mm air gap above and below the heatsink fins to maintain natural convection cooling; never obstruct the heatsink face
  • Speed reference connects to the analog input terminal as 0-10 V or 4-20 mA; discrete 24 VDC logic signals wire to the four configurable digital inputs for start, stop, and reverse commands
  • Optional Modbus RS-485 communication uses a 2-wire connection at default 19200 bps baud rate; node address is configurable from 1 to 32 — shielded twisted-pair cable and a separate cable routing path from power conductors are recommended

Wrong-Part Prevention: Verify These Six Points Before Ordering

The following checklist is drawn directly from the ATV12H075M2 specification requirements. Work through each item before finalizing your order — these are the most common sources of returns, installation delays, and site rework on this model.

  1. Confirm supply circuit is single-phase 200-240 VAC; do not order for three-phase input
  2. Verify motor nameplate: 1 hp maximum continuous rating
  3. Check cabinet depth is minimum 131.2 mm; do not attempt shallow-mount installations
  4. Confirm application requires speed control (not just soft-start); soft starter (ATS) is cheaper alternative if only inrush reduction needed
  5. Verify no external DC braking or regenerative load required (ATV12H075M2 does not include energy storage)
  6. Confirm supply frequency is 50 or 60 Hz; do not use on variable or non-standard frequency supplies

If any item on this list raises uncertainty, contact the LeadTime.ca team before ordering — pre-order technical verification is available at no charge and prevents the most common wrong-part scenarios on this drive.

Frequently Asked Questions

Can the ATV12H075M2 run a three-phase motor even though the supply is single-phase?

Yes. The drive accepts single-phase 200-240 VAC at input terminals L1 and L2 and outputs variable three-phase voltage at terminals U, V, and W. The connected motor must be a standard three-phase induction type — single-phase motors cannot be controlled by this drive. This is one of the primary reasons buyers specify the ATV12H075M2: it enables three-phase induction motor use in facilities where only single-phase supply is available.

Does the ATV12H075M2 require an external contactor or soft starter in series?

No. The drive is self-contained and includes integrated motor protection — a series contactor is not required for standard installations. An optional external line reactor (5-10 mH) on the AC input side is recommended for installations adjacent to harmonic-sensitive equipment, but it is not required for the drive to operate correctly in standard industrial environments.

Is Modbus RS-485 communication required, or can the drive operate stand-alone?

Modbus is fully optional. Stand-alone operation uses the analog input (0-10 V or 4-20 mA speed reference) and discrete 24 VDC digital inputs for start, stop, and reverse. Modbus RTU at 19200 bps default baud rate enables remote speed command and status monitoring from a PLC or SCADA system, but the drive requires no network connection for basic pump, fan, or conveyor speed control.

What happens if the connected motor is slightly above 1 hp — will the drive fault or just derate?

The ATV12H075M2 overload protection engages at 1.2 times rated current. Running a motor whose nameplate exceeds 0.75 kW continuous will trigger thermal or overload protection, reducing output frequency and potentially faulting the drive. The correct action is to step up to the ATV12H150M2, which provides 5.6 A output current and 1.5 hp continuous rating, rather than attempting to run an oversized motor on the ATV12H075M2.

What altitude and temperature limits apply to full-rated output?

Full 4.2 A output current is available at altitudes up to 1000 m and ambient temperatures up to 50°C. Above 1000 m, a 1-2% current derating per 100 m of additional altitude applies. Storage temperature range is -10 to +70°C. The passive heatsink design depends on natural convection — vertical mounting with 50 mm clearance above and below the heatsink is required to sustain rated thermal performance.

Is the ATV12H075M2 suitable for replacing a soft starter in an existing cabinet?

In many cases, yes — if the cabinet has at least 131.2 mm of interior depth and 72 mm of width available, and the existing supply is single-phase 200-240 VAC. The key distinction is application intent: if the existing soft starter was installed only for inrush current reduction and the motor runs at fixed speed, a soft starter replacement (Schneider ATS series) may be the more cost-effective solution. If variable speed control and energy savings at partial load are objectives, the ATV12H075M2 is the correct upgrade path.

Why Order the ATV12H075M2 From LeadTime.ca

  • Global shipping on industrial automation components including the full Altivar 12 series — no geographic restriction on where orders are fulfilled
  • Pre-order technical verification available: supply phase, motor nameplate, cabinet dimensions, and application type checked before the drive ships
  • Direct access to Schneider Electric technical documentation and distributor support channels for commissioning questions post-delivery
  • Volume pricing available for multi-unit orders — contact for current tier pricing on 5 or more units
  • Hard-to-source and short lead-time parts sourced through established North American distributor relationships

ATV12H075M2 At-a-Glance Summary

  • Rated power: 0.75 kW (1 hp) continuous; maximum output current 4.2 A
  • Input: single-phase 200-240 VAC (±15% to +10%); 50 or 60 Hz ±5% — not compatible with three-phase supply
  • Output: variable three-phase 0-240 VAC modulated; 0-60 Hz frequency range; adjustable acceleration/deceleration 0-600 seconds (default 60 seconds)
  • Control method: sensorless flux vector; 1:20 speed range ratio; no encoder or tachometer required
  • Physical footprint: 143 mm H x 72 mm W x 131.2 mm D; cabinet or DIN rail mount; minimum 131.2 mm cabinet depth required
  • Cooling: passive heatsink only — no external fan; 50 mm air clearance above and below heatsink required; rated to 50°C ambient at up to 1000 m altitude
  • EMC filter: integrated, IEC 61800-3 Categories 2, 4, 8, and 12 compliant — no external filter required for standard industrial applications
  • I/O: 4 discrete inputs (24 VDC), 2 discrete outputs, 1 analog input (0-10 V or 4-20 mA), 1 analog output (0-10 V), 2-wire RS-485 Modbus RTU at 19200 bps default
  • Certifications: CE, UL 508C, UL 61800-5-1, CSA, RoHS, WEEE, REACH, Green Premium
  • Enclosure: IP20 — cabinet installation required; not suitable for open-air or liquid-exposed environments
