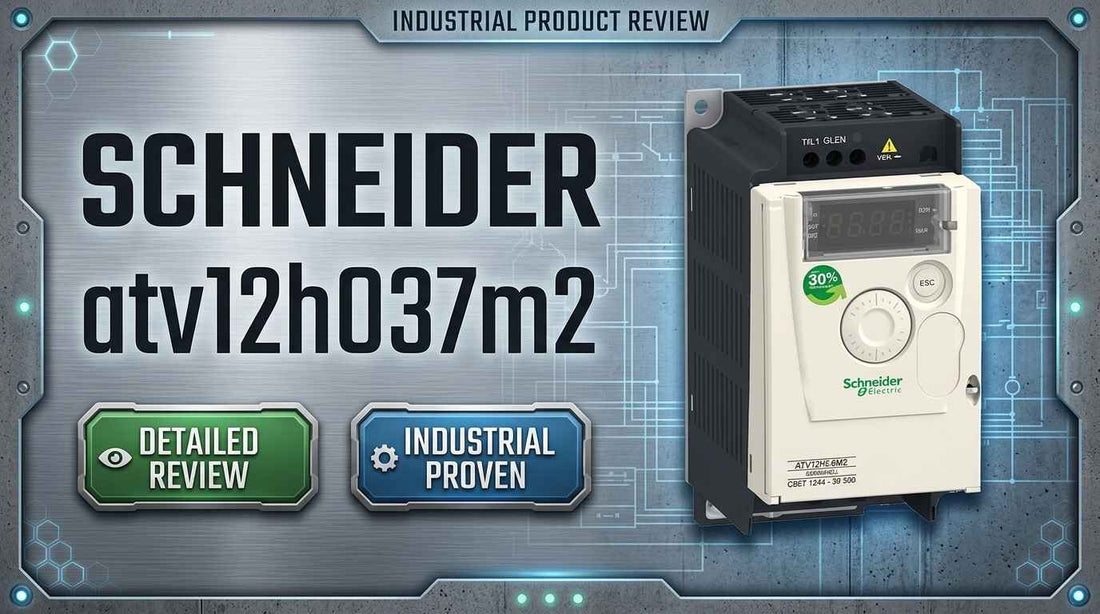

Schneider ATV12H037M2 Altivar 12 0.37 kW single-phase variable speed drive with integrated heat sink for fan and pump motor control

Schneider ATV12H037M2 Variable Speed Drive, Altivar 12, 0.37 kW, 0.55 HP, 200-240V, Single-Phase, with Heat Sink — Specs, Price, and Selection Guide

Controls engineers and maintenance teams specifying a compact, cost-effective variable frequency drive for a fractional-horsepower motor arrive at the Schneider ATV12H037M2 after one of two paths: a direct OEM recommendation or a narrowing search through the Altivar 12 family. The decision hinges on three hard numbers — 0.37 kW rated motor power, 200-240V single-phase input, and a 72 x 143 x 121.2 mm installation envelope. If all three fit your application, this drive delivers reliable variable speed control for fans, pumps, conveyors, and small machinery with an integrated heat sink and a two-year warranty through authorized distributors.

If you have already confirmed this is the right part, check current pricing and availability for the ATV12H037M2 at LeadTime.ca — ships worldwide.

Who Should Buy the ATV12H037M2 — and Who Shouldn't

The Schneider ATV12H037M2 is the right choice for engineers and buyers whose application meets all of the following criteria:

  • Motor rated power does not exceed 0.37 kW (0.55 HP) — this is a hard ceiling, not a guideline
  • Site input power supply is confirmed as 200-240V single-phase — not 480V, not 120V, not three-phase
  • Installation space is within the 72 x 143 x 121.2 mm (W x H x D) mounting envelope
  • Application is a fan, pump, conveyor, or general small industrial motor where variable speed control is the requirement
  • Thermal environment allows the integrated heat sink to manage continuous operation — ambient conditions and enclosure airflow must be assessed before installation
  • Application does not require advanced networking, safety interlocks, encoder feedback, or I/O expansion

If your motor exceeds 0.37 kW, step up to the ATV12H055M2 (0.55 kW). If your site runs three-phase supply, select the corresponding three-phase Altivar 12 variant. If advanced networking or safety integration is required, the ATV12 family is not the right platform — a larger Altivar series is the appropriate direction.

On this page:

What the ATV12H037M2 Actually Does in a Control System

The Schneider ATV12H037M2 is a frequency inverter — it takes fixed-frequency single-phase AC power from your panel and converts it into variable-frequency output, giving you precise motor speed control without mechanical gearing or throttle valves. Rated at 0.37 kW (0.55 HP) and accepting 200-240V single-phase input, it delivers a frequency output range of 0.5 to 400 Hz, which covers the full speed range of virtually any fractional-horsepower AC induction motor in its class. The rated output power at full load is 370W.

What separates this model from basic motor starters is the ability to ramp acceleration and deceleration — eliminating the mechanical shock of direct-on-line starts for pumps and conveyors, reducing water hammer, and extending drive train life. The integrated heat sink is not cosmetic; it is the thermal management system that allows the ATV12H037M2 to sustain continuous industrial-duty operation in a package weighing just 0.7 kg. The Altivar 12 product family, of which this is the 0.37 kW single-phase member, is an active product line confirmed on Schneider Electric's official se.com domain, meaning long-term parts and support continuity is not a concern for projects specifying this drive today.

Typical System Architecture for Single-Phase VFD Installations

The ATV12H037M2 sits between the single-phase power distribution panel and the motor — converting fixed supply voltage into variable-frequency drive output. Here is where it fits in a typical small machine or HVAC control chain:

  • Single-phase 200-240V supply from panel breaker feeds into the ATV12H037M2 input terminals
  • Drive converts fixed-frequency input to variable-frequency output (0.5-400 Hz) and delivers it to the motor output terminals
  • AC induction motor (rated at or below 0.37 kW) connects directly to drive output — no separate starter required
  • Speed reference signal arrives from a potentiometer, 0-10V analog signal, or PLC analog output connected to control terminals
  • Start/stop logic from a push-button station or PLC digital output interfaces with drive control terminals — external thermal overload relay recommended for motor protection

Where the ATV12H037M2 Gets Specified Most

HVAC fan speed control is the most common deployment scenario for this drive. Facilities engineers retrofitting fixed-speed supply or exhaust fans to variable speed — without rewiring the panel for three-phase — specify the ATV12H037M2 because the single-phase input constraint matches existing building power infrastructure, and the 0.37 kW ceiling covers the majority of small ventilation fan motors used in commercial and light industrial settings.

Pump flow modulation is the second major application. In irrigation systems, water distribution, and process cooling loops, running a centrifugal pump at variable speed through the ATV12H037M2 eliminates the throttle valve wear associated with fixed-speed operation and delivers measurable energy savings on continuous-duty pump installations. The drive's soft-start ramp function also reduces water hammer on pump start-up, which is a documented cause of premature pipe fitting failure in smaller distribution systems.

Conveyor line speed adjustment in packaging, textile, and light assembly applications is the third primary use case. Systems integrators building one-off or small-volume OEM conveyor systems frequently specify the ATV12H037M2 because the compact form factor allows the drive to mount inside the machine enclosure without a separate VFD cabinet, and the cost position makes it viable even in cost-sensitive custom equipment builds.

Beyond these primary uses, the drive appears in small machinery motor control — mixers, spindle motors, and lab equipment — as well as proof-of-concept pilot installations where engineers want to validate variable speed control before committing to larger infrastructure. Agricultural equipment OEMs specifying bilge pump or cooling fan control in environments where single-phase power is the only available supply also represent a consistent secondary market for this model.

Application Typical Deployment
HVAC Fan Speed Control Retrofit of single-phase supply and exhaust fans in commercial buildings; potentiometer or 0-10V speed reference
Pump Flow Modulation Centrifugal pump on irrigation or process cooling loop; external pressure transmitter provides speed reference signal
Conveyor Line Speed Compact OEM conveyor in packaging or light assembly; PLC digital output for start/stop, analog for speed
Small Industrial Machinery Mixer, spindle, or lab equipment motor; local push-button control with manual potentiometer speed reference
Proof-of-Concept Pilot Low-cost variable speed validation before full-scale VFD infrastructure investment; single-unit installation
Agricultural and Marine Equipment Bilge pump, cooling fan, or hydraulic pump control on equipment with single-phase power constraint

Purchase-Decision Specifications and Variant Comparison

Parameter Specification
Motor Rated Power 0.37 kW (0.55 HP) — maximum; do not exceed
Rated Output Power 370W at rated motor load
Input Voltage 200-240V single-phase only
Frequency Output Range 0.5 to 400 Hz
Thermal Management Integrated heat sink — continuous industrial-duty operation
Dimensions (W x H x D) 72 x 143 x 121.2 mm
Weight 0.7 kg
Mounting Compact rail or panel mount
Product Type Frequency Inverter (Variable Frequency Drive)
HS Code 85044095

Full technical specifications are available on the product page at LeadTime.ca.

The Altivar 12 series covers a range of power ratings in the same compact form factor. Use this table to confirm you are ordering the correct model for your motor:

Model Power Rating Input Phase Input Voltage Typical Use Ordering Caution
ATV12H018F1 0.18 kW (0.25 HP) Single 200-240V Micro fan and pump control Verify 0.18 kW limit — do not use for 0.37 kW motor
ATV12H037M2 0.37 kW (0.55 HP) Single 200-240V THIS MODEL — fan, pump, conveyor Baseline small-motor single-phase drive
ATV12H055M2 0.55 kW (0.75 HP) Single 200-240V Larger fractional-HP motor control Step up if motor exceeds 0.37 kW
ATV12 Three-Phase Variants 0.37 kW and higher Three 200-240V or 380-480V Industrial applications where three-phase supply is available Different model family required if site supply is three-phase

If your motor is rated above 0.37 kW, the ATV12H055M2 is the correct next step — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the ATV12H037M2 Worth It?

The Schneider ATV12H037M2 earns its place in the Altivar 12 lineup precisely because it does not try to do more than its rating allows. For plant engineers retrofitting fixed-speed fans and pumps in facilities where the panel runs single-phase 200-240V supply, this drive removes the need to re-engineer the electrical infrastructure to accommodate variable speed control. For systems integrators building low-volume OEM equipment where a compact VFD needs to fit inside the machine enclosure without a dedicated drive cabinet, the 72 x 143 x 121.2 mm footprint and 0.7 kg weight make it a legitimate design choice rather than a compromise. The 0.5 to 400 Hz output range and integrated heat sink confirm this is genuine industrial-grade hardware at an entry-level price point, and active listing on se.com confirms ongoing manufacturer support for new installations.

Where the ATV12H037M2 has real limits, those limits are specific and non-negotiable. The 0.37 kW ceiling means any motor nameplate reading 0.55 kW or above disqualifies this drive immediately — the ATV12H055M2 or a larger Altivar series is the honest answer. In three-phase industrial environments, selecting this single-phase model is simply the wrong part regardless of how attractive the compact form factor appears. Applications requiring Modbus, CANopen, fieldbus integration, safety-rated inputs, or encoder feedback belong on a larger Altivar platform with I/O expansion capability. And in installations where ambient temperature is uncontrolled or duty cycle is continuous at maximum load in a poorly ventilated enclosure, the thermal margin in this compact form factor warrants careful assessment before committing to a final design — the integrated heat sink is effective but not unlimited.

From a procurement standpoint, the ATV12H037M2 benefits from a stable, multi-distributor supply chain across North America, with confirmed availability through MRO Electric, Radwell, Newark, and others, and a standard two-year warranty through authorized channels. Lead times from major distributors are typically reasonable given the drive's active product status, but confirming stock before issuing a purchase order remains best practice — especially on project timelines where a multi-week delay is not recoverable. Buying through a specialist distributor rather than a generic channel matters here specifically because the most common and costly mistakes — wrong frame size, wrong input voltage, missing external thermal protection — are preventable at the ordering stage when a knowledgeable distributor reviews the specification against the application before the order ships. View current pricing and stock status for the ATV12H037M2 at LeadTime.ca — worldwide shipping available.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ATV12H037M2

The ATV12H037M2 occupies a niche that sits at the intersection of OEM equipment design and facility retrofit — a segment where buyers tend to be experienced engineers and integrators rather than frequent forum contributors. The absence of a large public discussion footprint for this model is not an indicator of obscurity or unreliability; it reflects that the people who buy and install it typically do so as part of professional project work rather than hobbyist exploration. That said, the patterns that emerge from distributor technical support interactions and application engineering conversations around this model are consistent and worth surfacing here.

The most frequently encountered pre-order error is a motor power rating mismatch. The Altivar 12 family uses a consistent compact housing across multiple power ratings, which means two drives sitting side by side on a distributor shelf can look identical while being rated at 0.18 kW and 0.37 kW respectively. Engineers who are reading motor nameplates in HP rather than kW — or who are working from memory on a machine rated at 0.55 HP — occasionally cross-reference to the wrong model number in the catalog. Verifying the kW figure directly from the motor nameplate and cross-referencing it against the drive's catalog number before purchase is the single most effective prevention step.

The second consistently reported issue involves input supply assumptions. The ATV12H037M2 accepts 200-240V single-phase only. Sites running 480V three-phase distribution, or older facilities with 120V single-phase branch circuits, cannot use this drive without infrastructure changes. This sounds obvious in a specification review, but it becomes a real problem when a technician is ordering a replacement unit under time pressure and does not independently verify the local panel voltage before placing the order. A mandatory site power survey attached to the purchase request eliminates this entirely. The wrong-part checklist below addresses these and additional ordering considerations in full detail — review it before submitting any purchase order for this model.

Wiring and Installation Overview

The ATV12H037M2 installation follows a straightforward single-phase VFD pattern. Key points to verify before and during installation:

  • Mount the drive in a location with unobstructed airflow around the integrated heat sink — adequate ventilation is a thermal management requirement, not a preference; confirm enclosure ambient temperature and airflow before finalizing mounting location
  • Connect 200-240V single-phase AC input power to the designated input terminals — confirm phase, neutral, and ground connections match local wiring codes and the drive's terminal diagram from the manufacturer manual
  • Connect motor output terminals to the drive's output — verify motor lead connections match the drive output diagram; motor rated power must not exceed 0.37 kW
  • Wire control signals — start/stop from PLC digital output or push-button station, and speed reference from potentiometer or 0-10V analog signal — to the drive control terminal block; confirm logic level compatibility before energizing
  • If harmonics are a concern in the application or installation environment, budget for external EMC filters or line reactors at design stage — these are not included and must be sourced separately; external motor overload thermal protection is also required per manufacturer documentation

For complete wiring diagrams, terminal assignments, and parameter tables, refer to the official Schneider Electric ATV12 installation and commissioning manual available through se.com.

Wrong-Part Prevention: The Pre-Order Checklist

Before submitting a purchase order for the ATV12H037M2, work through each item on this checklist. These are the documented ordering mistakes that result in returns, project delays, and additional sourcing cost:

  1. Confusing ATV12H037M2 (0.37 kW) with ATV12H018F1 or other ATV12 frame sizes - verify motor HP/kW matches exactly
  2. Ordering single-phase model when three-phase supply is available - confirm input power type before purchase
  3. Missing the single-phase voltage requirement (200-240V) and attempting to power from 480V or 120V supply
  4. Assuming the drive includes integrated motor overload protection - requires external thermal protection per manual
  5. Ordering without verifying motor control compatibility (some motors require external contactor)
  6. Forgetting to budget for external EMC filters or reactors if harmonics are a concern in the application
  7. Assuming no commissioning time needed - verify basic start/stop logic must be programmed into controller

If any item on this checklist raises a question about whether this is the correct model for your application, contact the LeadTime.ca technical team before ordering — we can confirm the right part against your motor and supply specifications before any purchase commitment is made.

Frequently Asked Questions

Can the ATV12H037M2 be powered from a 120V single-phase supply found in North American residential or light commercial panels?

No. The ATV12H037M2 requires 200-240V single-phase input. A 120V supply is outside the rated input voltage range and will not operate the drive correctly. If your available supply is 120V, a different drive family with the appropriate input voltage rating is required.

Does the ATV12H037M2 provide built-in motor overload protection, or is an external thermal relay required?

The drive does not include integrated motor overload protection as a standalone feature — external thermal protection is required per the manufacturer's installation documentation. Budget for an external thermal overload relay or equivalent motor protection device when specifying the complete control circuit.

What happens if the connected motor load exceeds the 0.37 kW drive rating — does it trip immediately or derate gradually?

Operating a motor load that exceeds the drive's 0.37 kW rating will cause the drive to fault and trip on overcurrent protection. It does not silently derate and continue running — the result is a drive fault condition that requires a power cycle and root cause correction. The correct response is to select the ATV12H055M2 if the motor rating exceeds 0.37 kW.

Is the ATV12H037M2 a direct replacement for a failed drive on existing equipment, or is rewiring required?

If the failed drive is another ATV12H037M2 or an equivalent single-phase 200-240V drive with the same terminal layout, the swap is typically straightforward — but terminal assignments and parameter settings must be verified against the original installation before powering up. If replacing a drive from a different family or manufacturer, a full wiring review against the ATV12H037M2 terminal diagram and manual is mandatory before installation.

Can the drive be mounted inside a sealed enclosure without external ventilation, given that it has an integrated heat sink?

The integrated heat sink requires airflow to dissipate heat effectively — mounting in a sealed enclosure without ventilation is not recommended for continuous-duty applications. High ambient temperature or a sealed enclosure with no airflow can cause the drive to enter thermal derating or shut down on overtemperature fault. Assess the enclosure thermal environment and provide ventilation or an enclosure cooling solution if the installation operates continuously at or near rated load.

What speed reference signal types does the ATV12H037M2 accept for external speed control?

Based on the application profiles confirmed in the brief, the drive supports potentiometer-based speed reference and 0-10V analog signal input for external speed control — common in PLC analog output and HVAC BAS integration scenarios. For the complete control terminal specification and signal type details, refer to the official ATV12 technical manual available through Schneider Electric.

Why Order the ATV12H037M2 Through LeadTime.ca

  • LeadTime.ca ships worldwide — not limited to any single region or country
  • Pre-order specification review available — confirm motor kW rating, input voltage, and application fit before the order is placed, reducing wrong-model returns
  • Current stock status and confirmed lead time available before purchase commitment — no surprises on project timelines
  • Volume pricing available for OEM and multi-unit project orders — contact for current pricing on quantities
  • Access to complementary components — thermal relays, EMC filters, mounting hardware — at the same time as the drive order, avoiding secondary sourcing delays

ATV12H037M2 At-a-Glance Summary

  • Rated motor power: 0.37 kW (0.55 HP) maximum — hard limit, not derated
  • Rated output power: 370W at full motor load
  • Input: 200-240V single-phase only — 480V and 120V supplies are incompatible
  • Frequency output range: 0.5 to 400 Hz for full motor speed range control
  • Dimensions: 72 x 143 x 121.2 mm (W x H x D) — verify mounting space before ordering
  • Weight: 0.7 kg — compact enough for machine enclosure or DIN-rail panel installation
  • Thermal management: integrated heat sink — airflow around heat sink required for continuous-duty operation
  • Warranty: two years through authorized distributors including MRO Electric, Radwell, and Newark
  • Product status: active in Schneider Electric portfolio, confirmed on se.com — long-term support continuity assured
  • Step-up variant: ATV12H055M2 (0.55 kW) for motors exceeding 0.37 kW rating in same form factor and input voltage class
  • External motor overload protection required — not included in drive; must be specified separately per manufacturer manual
