Product Overview

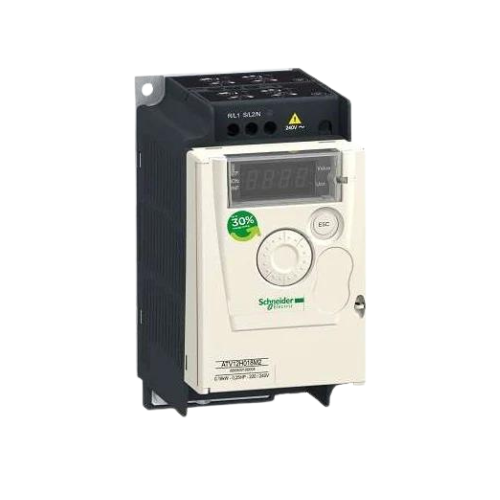

The Schneider Electric ATV12H037M2 is a reliable variable speed drive designed for controlling single-phase motors in industrial applications. With a power rating of 0.37kW (0.55hp) and a supply voltage range from 200V to 240V, this drive is perfect for managing HVAC systems, centrifugal pumps, conveyors, and other basic industrial machinery. The ATV12H037M2 comes equipped with a heat sink assembly to provide effective cooling without the need for a built-in fan.
Key Features
- Power Rating: 0.37kW (0.55hp)
- Voltage Range: 200V to 240V
- Modbus Communication Protocol: Supports RS-485 and RJ45 interfaces
- Cooling: Heat sink assembly (fan-less design)
- Compact Dimensions: 143mm x 72mm x 121.2mm
- Certifications: UL, CSA, CE, GOST, RoHS compliant
Technical Specifications
| Power Rating | 0.37kW (0.55hp) |
| Voltage Range | 200V to 240V |
| Output Current | 2.4A |
| Control Type | Variable Speed Drive |
| Mounting | Panel Mount |
| Temperature Range | -10°C to 60°C (with derating) |
| Dimensions | 143mm x 72mm x 121.2mm |
| Weight | 0.7kg |
Applications / Use Case
This variable speed drive is ideal for a range of industrial applications, including centrifugal pumps, HVAC systems, conveyors, and other basic machinery requiring precise motor control.
Warranty and Certifications
The ATV12H037M2 comes with global certifications including UL, CSA, CE, GOST, and RoHS compliance, ensuring it meets international standards. Backed by Schneider Electric's quality assurance, it is a trusted choice for your industrial needs.
-
