Schneider Electric ATV12HU15M2 — 1.5kW Single-Phase VFD Buyer Review

By Abdullah Zahid
13 min read

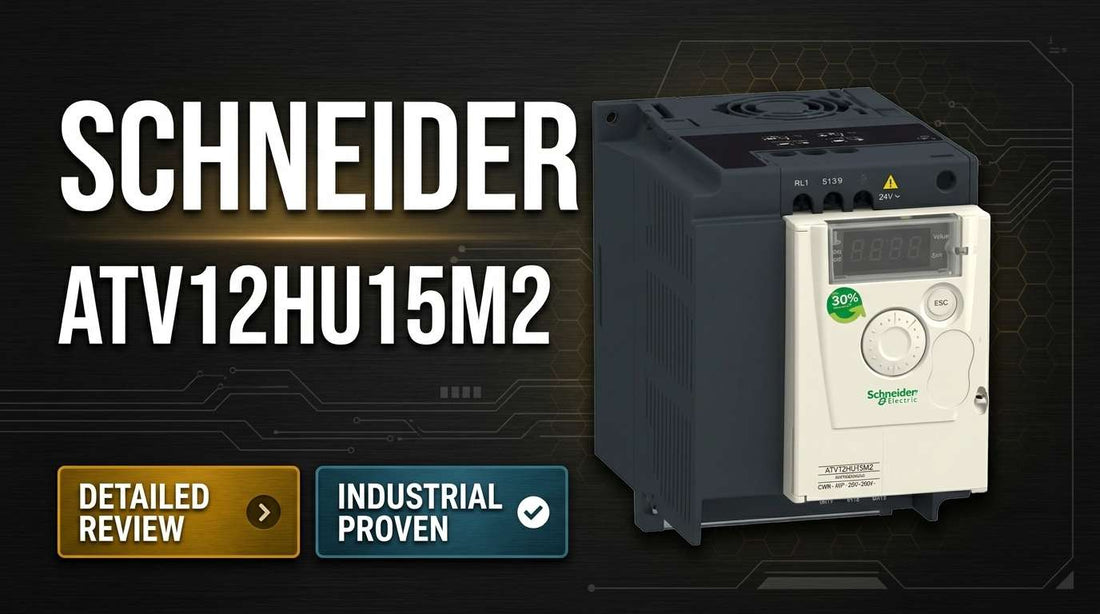

Schneider Electric ATV12HU15M2 Altivar 12 1.5kW single-phase variable frequency drive with integrated heat sink for pump and fan motor control

Schneider Electric ATV12HU15M2 Variable Speed Drive — 1.5kW, 2hp, 200-240V Single Phase Input with Heat Sink: Specs, Wiring Overview and Alternatives

Controls engineers and maintenance technicians searching for the Schneider Electric ATV12HU15M2 are typically at the same decision point: they have single-phase power available on site, a 1.5kW or 2hp AC induction motor to control, and limited enclosure space. The ATV12HU15M2 is a compact variable frequency drive from the Altivar 12 family, rated at 1.5kW and 2hp, accepting 200-240V single-phase input and converting it to three-phase output for AC induction motors. It weighs 1.4kg, stands 156.2mm tall, and ships with an integrated heat sink, built-in EMC filter, and a front-panel Modbus RJ45 port — features that matter enormously at this power class.

If you have already confirmed this is the correct part, check current pricing and availability for the ATV12HU15M2 at LeadTime.ca — ships worldwide.

Who Should Buy the ATV12HU15M2 — and Who Should Not

The ATV12HU15M2 is the right drive when your application meets all of the following conditions:

  • Site electrical supply is 200-240V single-phase only — no three-phase distribution available
  • Connected motor power does not exceed 1.5kW or 2hp at nameplate rating
  • Motor is an asynchronous AC induction type — not DC, permanent magnet, or servo
  • Enclosure or mounting location can provide a minimum 10cm unobstructed clearance around the heat sink
  • Continuous output current does not exceed 14.9A at rated load
  • Terminal wiring supports minimum 5.5mm² (AWG 10) conductors at the power connections

If your motor is 2.2kW or larger, or if three-phase input power is available at your panel, this is not the correct model. The ATV12HU22M2 is the direct step-up for motor upgrades, and the ATV310 series is the appropriate path when three-phase supply is accessible.

On this page:

What the ATV12HU15M2 Does in a Real System

The ATV12HU15M2 is a variable frequency drive whose core job is accepting single-phase AC power and producing a three-phase AC output whose frequency — and therefore motor speed — it controls precisely. At 1.5kW and 2hp, it occupies a specific and narrow power class. This is not a general-purpose industrial panel drive; it is a compact, self-contained controller intended for applications where only single-phase utility power is present and where space inside the electrical enclosure is measured carefully.

The integrated EMC filter, built to EN 61800-3 Category C2, is a meaningful practical advantage at this power class. Without it, a designer specifying a competitive drive must allocate enclosure space and budget for a separate filter module. The ATV12HU15M2 arrives with filtering already inside the housing, which reduces enclosure size requirements by 20-30% compared to equivalent drives without integrated filtering, according to Schneider Electric's own datasheet documentation. The integrated forced-air cooling fan activates automatically at elevated internal temperatures, removing the need to specify a separate enclosure cooling unit in most pump and fan applications.

The front-panel Modbus RJ45 port supports RTU protocol and enables remote speed commands, fault diagnostics, and parameter monitoring from a PLC or gateway device. For standalone applications — a simple pump room, an agricultural irrigation circuit, a small HVAC fan — the drive can be commissioned entirely from its front-panel buttons without any external controller. This flexibility is one of the practical reasons OEM integrators and maintenance technicians at this power class choose it over alternatives that require external commissioning tools.

Typical System Architecture for the ATV12HU15M2

The ATV12HU15M2 sits between the single-phase power supply and the AC induction motor, handling all frequency conversion and speed control in that signal path. A typical deployment looks like this:

  • 200-240V single-phase utility supply enters through a main disconnect or branch circuit breaker rated for the application
  • Single-phase conductors (minimum 5.5mm² / AWG 10) connect to the ATV12HU15M2 input terminals L1 and L2
  • The ATV12HU15M2 outputs three-phase variable-frequency AC (200-240V, up to 14.9A continuous) to motor terminals U, V, and W
  • The connected AC induction motor (1.5kW or smaller, 200-240V nameplate) drives the mechanical load — pump impeller, fan blade, or machine spindle
  • Optional: PLC or Modbus master device connects to the front-panel RJ45 port via CAT5e cable for remote speed commands and fault status monitoring

Where the ATV12HU15M2 Is Deployed

Agricultural operations running irrigation pumps at variable speeds during low-demand seasons represent one of the most common deployments for the ATV12HU15M2. The single-phase input requirement matches exactly the utility service available at most rural pump stations, and variable speed operation reduces water waste and energy draw compared to fixed-speed throttle-valve control.

In HVAC installations, small fan motors serving ventilation or cooling coil circuits benefit from variable speed to match thermal load. At partial load, a fan running at reduced speed draws significantly less power than one running full-speed with a mechanical damper restricting airflow — and the ATV12HU15M2 provides that control from a single-phase supply without transformer investment.

Water treatment facilities operating centrifugal pumps for flow control find the ATV12HU15M2 useful in secondary or satellite pump stations where three-phase service was never installed. The integrated EMC filter reduces electrical noise on the control circuit, which matters in environments with sensitive instrumentation nearby.

Small machine tool applications — spindle speed ramping, feed drive control — use the drive's soft-start capability to reduce mechanical shock during startup, extending coupling and bearing life on retrofit equipment.

Circulation pumps in industrial heat exchangers with temperature-based speed modulation via external thermostat represent a fifth common scenario, where the Modbus port allows the thermostat controller to command speed directly without a separate analog signal conditioner.

Application Typical Deployment
Agricultural irrigation pump Single-phase rural pump station, variable speed for seasonal demand
HVAC fan motor control Rooftop or inline fan with partial-load speed reduction on single-phase supply
Water treatment centrifugal pump Secondary pump station without three-phase service, flow-matched speed control
Small machine tool spindle Retrofit soft-start on 2hp spindle motor to reduce mechanical shock at startup
Industrial heat exchanger pump Temperature-controlled circulation pump with Modbus speed command from thermostat controller
Hospitality pool pump Variable speed pool circulation on single-phase commercial service, timed speed profile

ATV12HU15M2 Key Specifications and Variant Comparison

Parameter Value Notes
Motor Power Rating 1.5kW / 2hp Maximum connected motor power; do not exceed
Input Voltage 200-240V AC, single-phase -15% to +10% tolerance; single-phase only
Output Voltage 200-240V AC, three-phase Variable frequency output to AC induction motor
Output Current (Continuous) 14.9A At rated power, 230V, 50Hz
Rated Frequency 50/60Hz ±5% tolerance supported
EMC Filter Integrated EN 61800-3 Category C2; no external filter required
Communication Port Modbus RJ45 (RTU protocol) Front-panel connection; optional for standalone use
Protection Rating IP20 Without upper blanking plate; install in enclosure for dusty environments
Height / Weight 156.2mm / 1.4kg Compact retrofit form factor
Minimum Terminal Wire Size 5.5mm² (AWG 10) Required for 14.9A continuous current rating

Full technical specifications are available on the product page at LeadTime.ca.

Model Power Input Voltage Form Factor Primary Advantage
ATV12HU11M2 1.1kW 200-240V single-phase Compact Lower cost and smaller footprint for sub-1.5kW motors
ATV12HU15M2 (this model) 1.5kW / 2hp 200-240V single-phase Compact Integrated EMC filter and heat sink; Modbus included
ATV12HU22M2 2.2kW 200-240V single-phase Compact Direct upgrade path when motor exceeds 1.5kW
ABB ACH380-043-4-00P2 1.5kW 200-240V single-phase Similar compact ABB support ecosystem for sites already standardized on ABB
Siemens V20 1.5kW 1.5kW 200-240V single-phase Similar compact Siemens ecosystem; integrated web interface
Danfoss VLT Micro 1.5kW 1.5kW 200-240V single-phase Similar compact Danfoss thermal warranty; established pump application support

If your connected motor has been upgraded to 2.2kW or your project requires a higher power headroom, the ATV12HU22M2 is the correct next step — confirm current availability of the ATV12HU15M2 or discuss the upgrade path at LeadTime.ca.

Expert Verdict: Is the ATV12HU15M2 the Right Drive for Your Project?

The ATV12HU15M2 solves a genuinely specific problem well. For a facilities operator replacing a failed fixed-speed starter on a 2hp pump or fan motor at a site where only single-phase utility power is present, this drive eliminates what would otherwise be a significant upfront investment in a phase converter — typically several hundred to over a thousand dollars for equivalent capacity. The 1.4kg, 156.2mm footprint means it fits inside most existing enclosures without structural modification. The integrated EMC filter removes a design step that catches less experienced system builders off guard. The Modbus RJ45 port enables remote fault diagnostics and speed control from a PLC without additional signal conditioning hardware. For OEM integrators designing compact motor controller assemblies where bill-of-materials footprint and Tier-1 vendor support matter, the ATV12HU15M2 presents a clear and defensible specification choice at this power class.

Where this drive has real limits: it is an open-loop drive with no integrated encoder feedback, which makes it unsuitable for applications requiring closed-loop speed regulation. Its IP20 protection rating means it must be housed inside a protective enclosure in any environment with airborne dust, oil mist, or moisture — buyers needing an IP65 solution must either enclose the ATV12HU15M2 in a NEMA 4X cabinet or select a drive with a sealed housing. If available site power is three-phase, the economics and thermal headroom of a standard industrial panel-mount VFD make the ATV12HU15M2 the wrong choice. And if the connected motor is 2.2kW or above, the ATV12HU22M2 or ATV310 series is the correct model — the 14.9A output current limit is a hard ceiling, not a derating guideline.

From a procurement standpoint, single-phase compact VFDs at this power class are not commodity stock at general industrial suppliers. Specialist distributors who carry the Altivar 12 family maintain the correct documentation, can confirm model selection against your motor nameplate before the purchase order is issued, and provide access to Schneider Electric's technical escalation path if commissioning issues arise with the Modbus integration or thermal management. Ordering confidence on the ATV12HU15M2 is high when the three pre-purchase conditions are confirmed: single-phase 200-240V supply, motor nameplate at or below 1.5kW, and minimum 10cm heat sink clearance available. Check current pricing and stock status for the ATV12HU15M2 at LeadTime.ca — we ship worldwide.

For volume orders or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on regional fulfillment options.

What Engineers Need to Know Before Ordering the ATV12HU15M2

Community discussion for the ATV12HU15M2 is sparse across English-language automation forums — a pattern typical of European-designed compact industrial drives with strong installed bases in industrial and OEM markets but lower profile in the hobbyist and general-purpose PLC communities that drive forum activity. That absence of peer discussion is not a red flag about the product; it simply means the pre-purchase burden falls more directly on the buyer's own due diligence and on the distributor's pre-sales support capability.

What the technical documentation and application engineering notes make clear is that the ordering mistakes for this product are consistent and predictable. The most consequential error is connecting a motor whose nameplate power exceeds 1.5kW — the drive's overload protection will trip within minutes and no parameter adjustment corrects a fundamental power-class mismatch. The second most common field problem is insufficient heat sink clearance: the integrated heat sink requires a minimum 10cm unobstructed air path, and tight enclosure mounting without that clearance leads to thermal shutdown during partial-load operation, which is frequently misdiagnosed as a drive fault rather than a ventilation issue. The third recurring installation problem is undertorqued terminal connections — the M32 screw terminals require a calibrated 5 Nm torque, and hand-tightening on 5.5mm² conductors produces connections that loosen progressively under pump vibration and cause intermittent motor dropouts months after commissioning.

When community data is thin and the cost of a wrong-part order or a commissioning failure is measured in downtime and return freight, working with a specialist distributor who will confirm your motor nameplate, site supply voltage, and enclosure dimensions before issuing a ship confirmation is worth the conversation. LeadTime.ca stocks Altivar 12 family drives and provides pre-sales technical support to buyers worldwide — if you are not certain this is the right model, reach out before ordering.

Wiring and Installation Overview for the ATV12HU15M2

The following is an overview of the installation sequence. Engineers requiring full wiring diagrams, terminal torque specifications, and detailed safety procedures should refer to the official Schneider Electric ATV12 installation guide available through se.com and iportal.se.com.

  • Confirm main disconnect is OFF and locked out before any terminal work; verify with a calibrated multimeter that input and output terminals are de-energized
  • Connect single-phase supply conductors (minimum 5.5mm² / AWG 10) to input terminals L1 and L2; connect motor leads to output terminals U, V, and W; connect protective earth from motor frame to terminal PA
  • Torque all power terminal screws to 5 Nm using a calibrated torque wrench — hand-tightening is insufficient for sustained vibration environments
  • Verify minimum 10cm unobstructed clearance on all sides of the heat sink before closing the enclosure; use thermal verification during first-hour operation to confirm adequate airflow
  • For Modbus integration, connect CAT5e cable from PLC or gateway Modbus master port to the front-panel RJ45 connector; configure VFD slave address and baud rate via the front-panel parameter menu to match the master device settings

Wrong-Part Prevention Checklist Before Ordering the ATV12HU15M2

Before submitting your purchase order for the ATV12HU15M2, confirm each of the following points. These are the verified pre-order checks that prevent the most common and costly ordering errors for this model:

  1. Verify site has 200-240V single-phase power available (not 380V three-phase). If three-phase input is available, this drive cannot use it; select three-phase input variant instead.
  2. Confirm connected motor power does NOT exceed 1.5kW / 2hp. Oversized motors will trip overload protection.
  3. Check that no external soft starter or VFD is already installed on the motor circuit — this drive replaces those devices entirely, not adds to them.
  4. Verify the motor is asynchronous AC induction type. This drive does NOT work with DC motors, permanent magnet motors, or servo motors.
  5. Confirm motor nameplate voltage matches VFD output (200-240V three phase). Mismatched voltage will cause motor overheating.
  6. Check terminal wire gauge supports 14.9A continuous current — minimum AWG 10 / 5.5mm² per datasheet.
  7. Ensure adequate ventilation around heat sink (minimum 10cm clearance) — blocked airflow causes thermal shutdown.

If any item on this checklist is uncertain, contact the LeadTime.ca team before ordering — confirming these details before shipment prevents return freight costs and commissioning delays. You can also review full technical documentation linked from the product page.

Frequently Asked Questions

Can the ATV12HU15M2 accept three-phase input power if my site has it?

No. The ATV12HU15M2 is configured exclusively for single-phase 200-240V input. It converts that single-phase supply to three-phase output for the connected AC induction motor. If your site has three-phase distribution available, a three-phase input drive from the Altivar 310 or similar series will provide better economics and thermal headroom — the ATV12HU15M2 cannot be rewired or configured to accept three-phase input.

What happens if I connect a motor larger than 1.5kW — will the drive derate or shut down?

The overload protection will trip, not derate. The ATV12HU15M2 is rated for exactly 1.5kW and 14.9A continuous output current. A motor drawing more than that at load will cause the drive's overload protection to activate within minutes of operation. No parameter setting resolves a power-class mismatch. If your motor is 2.2kW, the correct model is the ATV12HU22M2.

Is Modbus communication required to operate the ATV12HU15M2, or can it run standalone?

Modbus is optional. The drive can be commissioned and operated entirely from its front-panel buttons and display, which makes it suitable for standalone pump and fan applications where no PLC is present. The front-panel RJ45 Modbus port becomes relevant when remote speed commanding, fault monitoring, or parameter logging from a PLC or SCADA system is required.

The drive is mounted in a tight enclosure and runs hot after 30-40 minutes — is this a drive fault or a mounting problem?

Almost certainly a mounting and ventilation problem. The ATV12HU15M2 requires a minimum 10cm unobstructed clearance on all sides of the heat sink for the integrated forced-air cooling fan to function correctly. In installations where this clearance is not available, the drive reaches thermal shutdown temperature during sustained operation. Check heat sink clearance before concluding the drive is faulty — this is the most common commissioning issue for this model in tight enclosure installations.

Can I use the ATV12HU15M2 to replace a phase converter already installed on my motor circuit?

Yes, in most retrofit scenarios. The ATV12HU15M2 accepts single-phase input and outputs three-phase to the motor, which is the same fundamental conversion a phase converter performs — but the VFD adds variable speed control, soft-start, integrated EMC filtering, and Modbus connectivity. Remove the existing phase converter and any separate soft starter from the motor circuit; the ATV12HU15M2 replaces both devices. Verify that the replacement motor circuit wiring meets the minimum 5.5mm² / AWG 10 conductor requirement at 14.9A continuous before terminating.

What is the noise level during operation and is it a concern for indoor installations?

The ATV12HU15M2 is rated at 45 dB during standard operation at rated load, per Schneider Electric's datasheet. This is comparable to a quiet office environment and is not typically a concern for mechanical plant rooms, pump stations, or industrial enclosures. In noise-sensitive indoor environments such as healthcare or hospitality back-of-house installations, confirm that the combined acoustic signature of the drive and motor is acceptable for the space before specifying.

Why Order the ATV12HU15M2 From LeadTime.ca

  • LeadTime.ca carries Altivar 12 family drives and ships worldwide — not limited to any single region or country
  • Pre-sales technical support is available to confirm model selection against your motor nameplate and site supply before the order ships
  • Single-phase compact VFDs at this power class are not reliable stock at general industrial retailers — specialist distributor sourcing avoids the wrong-model substitution risk common in generic channels
  • Volume pricing is available for OEM integrators and procurement teams placing recurring orders — contact for current terms
  • Post-sale support and access to full Schneider Electric documentation suite are available through the LeadTime.ca team

ATV12HU15M2 At-a-Glance Summary

  • Power rating: 1.5kW / 2hp — hard ceiling, do not exceed with connected motor nameplate
  • Input: 200-240V AC single-phase only; output: 200-240V AC three-phase variable frequency
  • Continuous output current: 14.9A at rated power, 230V, 50Hz
  • Weight: 1.4kg; height: 156.2mm — compact retrofit form factor for space-constrained enclosures
  • Integrated EMC filter to EN 61800-3 Category C2 eliminates external filter module requirement
  • Integrated forced-air cooling fan with heat sink; requires minimum 10cm clearance on all sides
  • Front-panel Modbus RJ45 port (RTU protocol) — optional for standalone use, required for PLC-controlled speed command
  • Protection rating: IP20 — must be housed in protective enclosure in dusty or wet environments
  • Minimum terminal wire size: 5.5mm² / AWG 10 for 14.9A continuous current
  • Noise level: 45 dB at rated load during standard operation
  • Typical applications: agricultural irrigation pumps, HVAC fan motors, water treatment centrifugal pumps, small machine tool spindles, industrial heat exchanger circulation pumps
  • Direct upgrade models: ATV12HU22M2 (2.2kW), ATV12HU30M2 (3kW) for motor power increases
