Schneider Electric ABLS1A24031 — 24V 75W DIN Rail Power Supply Review

By Abdullah Zahid
13 min read

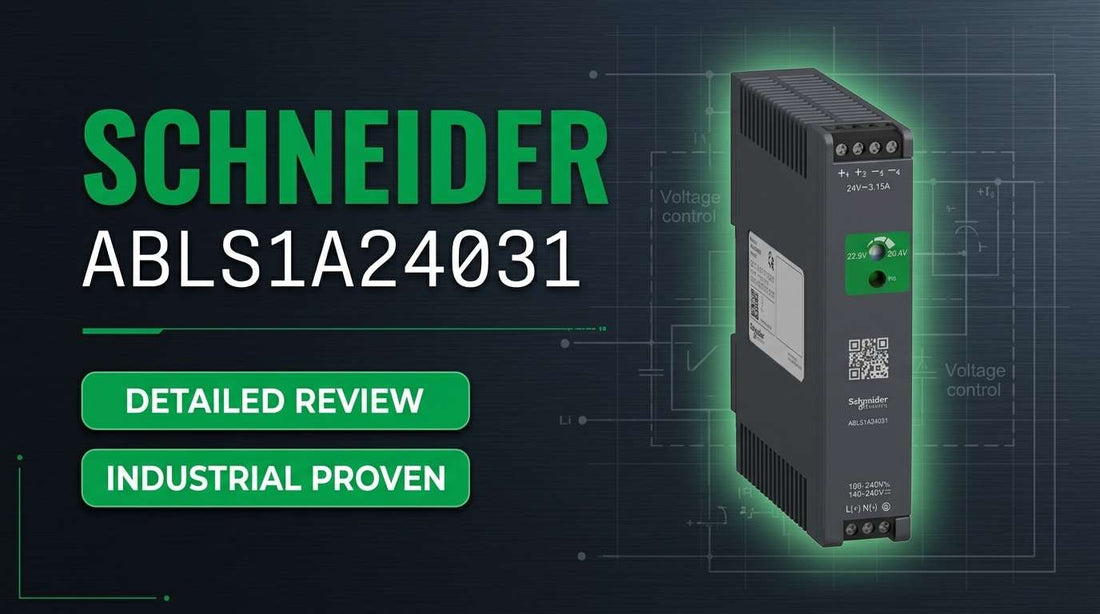

Schneider Electric ABLS1A24031 regulated 24V DC 3.1A compact DIN rail power supply for industrial automation panels

Schneider Electric ABLS1A24031 Regulated Power Supply, 100 to 240V AC, 24V, 3.1A, Single Phase, Optimized — Specifications, Pricing, and Alternatives

Controls engineers and panel builders searching for the Schneider Electric ABLS1A24031 are typically at the same crossroads: they have a 24V DC load to feed, a tight DIN rail enclosure to work within, and a need to confirm this specific model handles both the current draw and the input power available before they commit to the order. At 75W nominal output, a 1.06-inch profile, and dual acceptance of 100 to 240V AC or 140 to 340V DC input, the ABLS1A24031 covers a specific but highly common range of compact automation power applications. The four integrated protection functions — overload, short-circuit, overvoltage, and undervoltage — make it a complete solution in a single SKU that replaces the predecessor ABL8REM24030 without enclosure re-engineering.

If you have already confirmed this is the right part for your system, check current pricing and availability for the ABLS1A24031 at LeadTime.ca — ships worldwide.

Who Should Buy the ABLS1A24031 — and Who Shouldn't

The ABLS1A24031 is the right choice for engineers and integrators whose application meets all of the following criteria:

  • Input power at the enclosure is single-phase 100 to 240V AC or 140 to 340V DC — not three-phase
  • Total 24V DC load current of all connected devices, multiplied by a 1.2 safety factor, does not exceed 3.1A
  • Enclosure ambient temperature will not exceed 70°C under worst-case operating conditions
  • DIN rail space is constrained and the 1.06-inch width is a meaningful advantage over wider alternatives
  • Four integrated protection functions (overload, short-circuit, overvoltage, undervoltage) are required without adding separate protection modules to the BOM
  • A direct drop-in replacement for an ABL8REM24030 is needed with no enclosure re-engineering

If your total load current exceeds 3.1A, even by a small margin, or if your facility runs three-phase input power, this model is not the correct choice. The ABLS2A24030 (5A, 120W, same compact form factor) is the logical next step for higher current requirements. Confirm which model fits your load before ordering.

On this page:

What the ABLS1A24031 Actually Does in a Control System

The ABLS1A24031 is a regulated switch-mode power supply from Schneider Electric's Modicon ABL range. Its job is straightforward: accept single-phase AC or DC input from the facility power feed and deliver stable, regulated 24V DC output to the control logic layer — PLC modules, I/O cards, sensors, solenoids, and small automation devices mounted on the same DIN rail or distributed within the same enclosure. The switch-mode conversion topology means it maintains stable output across the full 100 to 240V AC input window without manual range switching, which eliminates one of the most common commissioning errors in facilities with unstable or variable supply voltage.

Schneider Electric's official product documentation describes the ABLS1A24031 as one of the most compact power supplies on the market in its output class. The 1.06-inch width is the critical dimension for panel builders: it allows this unit to occupy the same rail space as a standard terminal block group rather than the 2-inch-plus footprint of conventional 75W supplies. For OEM machine builders assembling dozens of identical panels per year, that width difference directly reduces enclosure size and sheet metal cost.

All four protection functions — overload, short-circuit, overvoltage, and undervoltage — are integrated into the unit. In practice, this eliminates the need for separate current-limiting or overvoltage protection modules in the BOM, reducing both component count and wiring complexity. The output is provided across four terminals, giving the installer parallel connection flexibility for downstream distribution.

Typical System Architecture for the ABLS1A24031

The ABLS1A24031 sits between the facility power feed and the 24V DC distribution bus in a typical DIN rail control panel. Here is how the component chain looks in a standard deployment:

  • Facility single-phase AC supply (100 to 240V AC) or DC bus (140 to 340V DC) feeds the upstream main breaker or disconnect
  • Main breaker output connects to the ABLS1A24031 input terminals (Line, Neutral, Ground for AC — or positive, negative, ground for DC)
  • The ABLS1A24031 four output terminals feed a 24V DC distribution rail or terminal block group
  • From the distribution rail, individual circuits supply PLC CPU, I/O modules, sensors, solenoids, and operator interface devices
  • All ground returns tie back to the enclosure ground bus for fault current return

Typical Applications and Deployment Scenarios

The ABLS1A24031 is most commonly found in discrete manufacturing environments where space-optimized panels power small-to-medium machine control systems. Automotive assembly lines, packaging machinery, and material handling conveyors all represent applications where the 75W output class is standard and the 1.06-inch width is a genuine advantage over alternatives.

Building automation and HVAC controls are a significant secondary market for this model. These installations often require 24V DC for damper actuators, valve positioners, and field sensors distributed across a building — applications where the dual AC/DC input acceptance is particularly useful in facilities that have both utility AC and battery-backed DC buses available at the panel.

Maintenance replacement of aging ABL8REM24030 units is one of the highest-volume use cases for this model. Because the ABLS1A24031 is the documented direct replacement for the ABL8REM24030, service teams can swap units without re-engineering terminal assignments or modifying the enclosure layout. This backward compatibility shortens planned maintenance windows and eliminates re-commissioning risk.

Food processing equipment and water treatment installations also use this model where the 70°C ambient temperature rating is sufficient and the integrated protection functions handle the short-circuit and overload events typical of high-cycling solenoid and valve actuator loads.

Application Typical Deployment
Discrete manufacturing line control Primary 24V DC supply for PLC I/O and field sensors in machine panel
Packaging machinery OEM build Space-constrained panel with multiple 24V loads, 1.06-inch width critical
Building automation / HVAC controls Powers damper actuators and sensors from mixed AC/DC source panels
ABL8REM24030 maintenance replacement Direct swap in existing enclosure, no re-wiring required
Remote I/O terminal power Distributed 24V supply for edge controllers in manufacturing facilities
Emergency backup power (commercial buildings) Low-power 24V feed for safety modules drawing under 3.1A continuous

Key Specifications and Variant Comparison

Specification ABLS1A24031 Value
Input Voltage (AC) 100 to 240 VAC, 50-60 Hz, single phase
Input Voltage (DC) 140 to 340 VDC
Output Voltage 24 VDC
Output Current (Maximum) 3.1 A (3.13 A nominal)
Power Rating 75 W nominal
Integrated Protection Overload, Short-Circuit, Overvoltage, Undervoltage
Width 1.06 inches
Depth / Height 4.02 inches / 4.87 inches
Ambient Temperature (Operating) Up to +70°C
Replaces Model ABL8REM24030

Full technical specifications are available on the product page at LeadTime.ca.

Model Output Current Power Rating Width Input Type Best For
ABLS1A24031 3.1 A 75 W 1.06 in AC (100-240V) or DC (140-340V) Space-constrained panels, dual-input facilities, loads under 3.1A
ABLS2A24030 5 A 120 W 1.06 in AC or DC both Higher current requirements, same compact footprint
Mean Well HRPG-75 3.2 A 75 W Standard (approx. 2 in) Universal AC input Cost-focused generic industrial applications
Phoenix Contact QUINT POWER 10 A 240 W Modular Three-phase AC High-power, modular systems, three-phase input required

If your load calculation exceeds 3.1A or you anticipate adding devices later, the ABLS2A24030 shares the same 1.06-inch form factor and input range — check current availability and compare models at LeadTime.ca.

Expert Verdict: Is the ABLS1A24031 the Right Power Supply for Your Project?

The ABLS1A24031 earns its place as a reference selection for compact 24V DC power distribution because it solves a precise problem without compromise: delivering 75W of regulated output in the smallest available footprint, while accepting both AC and DC input and packaging all four critical protection functions in a single SKU. The buyer profile this unit is genuinely right for is the controls engineer or integrator building space-optimized panels — machinery OEMs, retrofit automation projects, or maintenance teams replacing ABL8REM24030 units in existing systems — who has verified that total 24V load current, with a 1.2 safety factor applied, stays within 3.1A and that enclosure ambient temperature will remain at or below 70°C. For those buyers, this model eliminates the need for separate overload protection modules, reduces BOM line items, and delivers a documented direct replacement path with no re-engineering required.

Where this model has genuine limits: it is not a fit for three-phase input environments, for loads that push beyond 3.1A (even by 0.2A — do not compromise on this), or for applications requiring remote monitoring, network-connected status reporting, or parallel redundancy operation. For three-phase input or higher power density, a different ABL family model is needed. For loads between 3.1A and 5A, the ABLS2A24030 maintains the same 1.06-inch compact format and should be selected without hesitation. For mission-critical redundancy architectures, Schneider Electric's modular ABL configurations with dedicated redundancy modules are the correct path. The ABLS1A24031 is not a universal answer — it is an exact answer for a well-defined set of conditions.

On the procurement side, this model is documented as in-stock at major authorized distributors with lead times ranging from same-day to five business days depending on location. The lifecycle carbon footprint is manufacturer-documented at 648 kg CO2 eq per unit, which satisfies sustainability reporting requirements for procurement teams with Scope 3 emission visibility requirements. For current pricing, volume discount eligibility, or confirmation of stock before committing to a build schedule, visit the ABLS1A24031 product page at LeadTime.ca — pricing is displayed live and the team ships worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Why Specialist Advice Matters When Specifying the ABLS1A24031

Community forum discussion for the ABLS1A24031 is sparse — this is not a product that generates troubleshooting threads or unboxing commentary. Compact 75W regulated power supplies are considered proven commodity components in industrial automation: engineers either verify the specification against their load requirements and order with confidence, or they consult a specialist distributor to confirm the selection. The absence of forum noise is itself a data point: this is a mature, well-understood product family where the specification sheet answers the key questions and field failures are uncommon when the unit is correctly sized.

That said, the ordering mistakes that do occur with this model class are consistent and preventable. The most consequential is current draw miscalculation — specifically, engineers who calculate total load at 3.0A and order the ABLS1A24031, then add I/O expansion cards or solenoids post-commissioning that push actual draw above 3.1A. The overload protection activates, the system shuts down intermittently, and the root cause is not immediately obvious. A second common mistake is confusing the dual AC/DC input flexibility with three-phase compatibility: this model accepts both AC and DC input types within the single-phase voltage ranges specified, but it cannot accept three-phase power under any configuration.

When community feedback is thin and manufacturer documentation requires interpretation against a specific application, the value of consulting a specialist distributor is concrete. LeadTime.ca's team can verify whether your total load current and input power configuration match the ABLS1A24031's ratings before an order is placed — not after a unit arrives on site. For a component this central to system uptime, that pre-order conversation costs nothing and can prevent a two-week delay caused by a return and reorder of the correct model.

Wiring and Installation Overview

The following points cover the key requirements and verification steps for installing the ABLS1A24031. Engineers requiring full wiring diagrams and step-by-step procedures should consult the Schneider Electric technical manual for this model.

  • Mount the unit to a standard DIN rail using the snap-on rear clips — confirm the unit does not shift under a firm lateral tug before connecting any wiring
  • For AC input (100 to 240V): connect Line, Neutral, and Earth ground to the designated input terminals; for DC input (140 to 340V): observe strict polarity and verify with a multimeter before applying power
  • Connect the four output terminals to your 24V DC distribution rail or terminal block group — document which load devices connect to which terminal pair to simplify future fault-finding
  • Verify that ground and earth connections from both the input and output sides bond to the enclosure ground bus — this ensures safe fault current return paths
  • After applying input power, measure output voltage at the terminals with a digital multimeter and observe LED status indicators — consult the technical manual for LED state meanings before assuming normal operation

Wrong-Part Prevention: Verify Before You Order

Before placing your order for the ABLS1A24031, work through this checklist in full. Every item corresponds to a real ordering or installation failure mode for this product family.

  1. Confirm actual available input power: is it single-phase 100-240V AC, or 140-340V DC, or both? (This model only handles both ranges listed - not three-phase)
  2. Calculate total current draw of all connected devices and verify it does not exceed 3.1A (safety margin should push decision toward next size up if over 2.5A)
  3. Verify enclosure ambient temperature will not exceed 70°C
  4. Check DIN rail width: this model is only 1.06 inches - confirm adjacent devices will not interfere
  5. Confirm polarity requirements for connected devices (this is +24V DC output with 4 terminals)
  6. Verify this is a direct replacement for ABL8REM24030 if upgrading an existing system (it replaces this model, but check any older installations)
  7. Confirm regulatory compliance needed: if CE, UL, or other marking required, verify this specific SKU includes it (not noted in available specs)

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before ordering — confirming the right part number takes minutes and prevents project delays that cost far more than the component itself.

Frequently Asked Questions

Can the ABLS1A24031 accept three-phase input power from a facility distribution panel?

No. The ABLS1A24031 is rated for single-phase AC input only (100 to 240V AC) or single-source DC input (140 to 340V DC). It cannot be connected to three-phase power. If your facility's available input at the enclosure is three-phase AC, a different model from the Schneider Electric ABL universal power supply family is required. Confirm your input power type before ordering.

Does this unit require an external fuse or circuit breaker, or is the integrated protection sufficient?

The ABLS1A24031 includes integrated overload, short-circuit, overvoltage, and undervoltage protection — these cover the output side comprehensively. An upstream main breaker or fuse on the input circuit is typically required by site-specific electrical codes regardless of the power supply's internal protection. Consult local electrical code requirements and your facility's electrical engineer to confirm input-side protection requirements for your installation.

Can I run two ABLS1A24031 units in parallel to double the output current to 6.2A?

No. The ABLS1A24031 is not rated for parallel operation. Connecting two units in parallel without approved configuration can result in current sharing instability, protection conflicts, or unit damage. For applications requiring more than 3.1A at 24V DC, select the ABLS2A24030 (5A) or consult Schneider Electric documentation for approved modular ABL configurations with dedicated redundancy or current-sharing modules.

Is the ABLS1A24031 a direct drop-in replacement for the ABL8REM24030 without rewiring the enclosure?

Yes. The ABLS1A24031 is the documented direct replacement for the ABL8REM24030, with the same 24V DC output voltage, 3.1A output current rating, and compatible form factor. Service teams replacing aging ABL8REM24030 units can swap the unit without re-engineering terminal assignments. However, verify the specific terminal layout against your existing wiring diagram before installation, particularly in older systems where field modifications may have been made.

What does the LED indicator mean, and how do I identify a fault condition?

LED status indicator meanings — including normal operation states, fault indication, and specific fault codes — are documented in the Schneider Electric technical manual for the ABLS1A24031. As a general reference for this product class: no illuminated LED typically indicates no input power present; solid green indicates normal regulated output; a red or flashing LED indicates a fault or protection activation. Always refer to the manufacturer's technical manual for this specific model rather than generic LED conventions, as indicator behavior varies by model variant.

What is the expected service life of the ABLS1A24031 under continuous industrial operation?

Industrial switch-mode power supplies in this class typically operate for five to seven years under continuous operation at rated load and ambient temperature. Actual service life depends on three primary factors: ambient temperature (cooler environments extend capacitor life significantly), load profile (operating at moderate loads rather than sustained maximum current reduces thermal stress), and input power quality. Installations that maintain enclosure temperatures well below the 70°C maximum rating and avoid sustained overload conditions will typically see service life at the longer end of this range.

Why Order the ABLS1A24031 from LeadTime.ca

  • Ships worldwide — no geographic restriction on orders, including volume shipments for OEM builds and international project sites
  • Specialist industrial automation focus means the team can verify model fit against your application before the order is placed, not after
  • Access to alternative and complementary models (including ABLS2A24030 and other ABL family variants) when the primary selection requires adjustment
  • Volume pricing available — contact directly for quantity discount eligibility before committing to a large panel build
  • Live pricing and real-time availability visible on the product page — no need to call for a quote just to see where the number lands

At-a-Glance: ABLS1A24031 Key Facts

  • 75W nominal output power at 24V DC, 3.1A maximum continuous current
  • Accepts 100 to 240V AC single-phase input or 140 to 340V DC input — not three-phase compatible
  • 1.06-inch DIN rail width — Schneider Electric describes it as one of the most compact units in its output class
  • Dimensions: 1.06 in wide, 4.02 in deep, 4.87 in tall
  • Four integrated protection functions: overload, short-circuit, overvoltage, undervoltage
  • Operating ambient temperature up to +70°C
  • Four output terminals for flexible downstream distribution
  • Direct replacement for ABL8REM24030 — same output ratings and form factor
  • Manufacturer-documented lifecycle carbon footprint: 648 kg CO2 eq
  • Part of Schneider Electric's Modicon ABL compact power supply family
  • Manufactured in Thailand; available through authorized distributors worldwide
