Schneider ABLM1A24025 — 24V 60W DIN Rail Power Supply Review

By Abdullah Zahid
13 min read

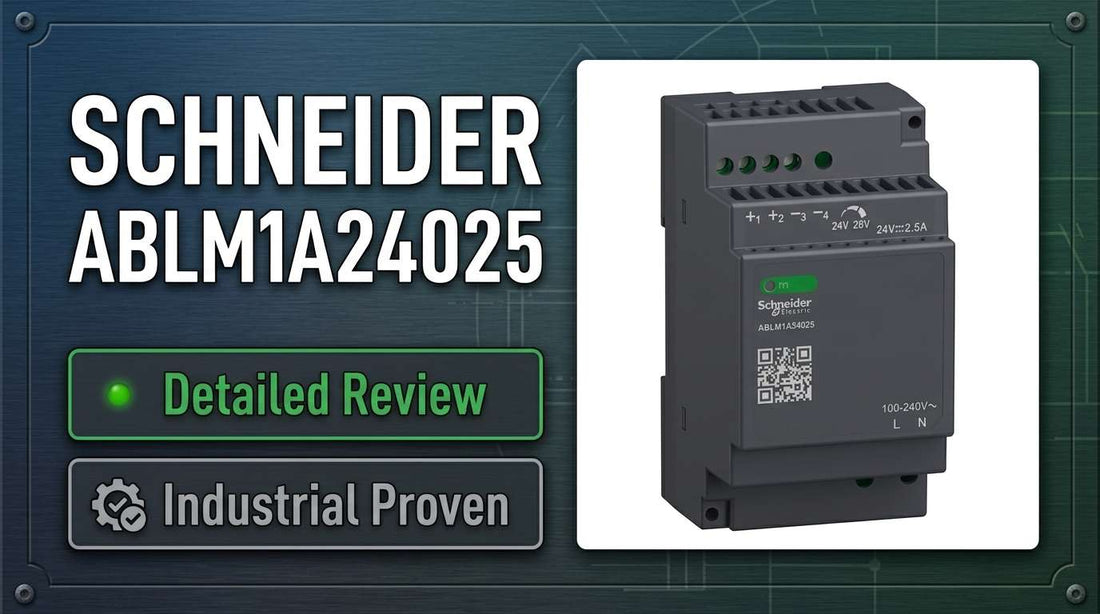

Schneider Electric ABLM1A24025 regulated 24V DC DIN rail power supply for industrial control panels

Schneider Electric ABLM1A24025 Regulated Power Supply, 100 to 240V AC, 24V, 2.5A, Single Phase, Modular — Specs, Review & Alternatives

Controls engineers specifying 24V DC power for compact machine panels are landing on the Schneider Electric ABLM1A24025 for one overriding reason: it delivers a full 60W of regulated 24V DC output from a 53mm-wide DIN rail footprint that is approximately 40% smaller than comparable units in its class. If you are validating this SKU against your BOM, confirming load margins, or checking stock before finalizing a purchase order, this review covers exactly that.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ABLM1A24025 — and Who Shouldn't

The ABLM1A24025 is the right choice for engineers and panel builders who need a compact, certified 24V DC regulated supply with integrated multi-function protection and confirmed global compliance. Specify this unit when all of the following are true:

  • Your system requires exactly 24V DC output at 2.5A continuous (60W) — with your worst-case load below 2.0A for a proper 20% safety margin
  • Site AC input is within the 100–240V AC, 50/60Hz range and a separate upstream AC circuit breaker (6A–10A rated) will be installed
  • Available DIN rail space is at least 53mm wide and panel depth is at least 55.6mm clear from rail to back wall
  • IP20 protection rating is acceptable — this unit is not rated for wet, splash, or corrosive gas environments
  • Certifications including UL, CE, cULus, RoHS, and REACH are required for system approval

If your connected load exceeds 2.5A, or if you need Ethernet-based diagnostics or parallel redundancy, this is not the correct model. The Schneider ABLM3A24100 (100W) or ABLM3A24200 (240W) are the appropriate upgrades depending on your power budget.

On this page:

On this page:

What the ABLM1A24025 Actually Does in a Control System

The Schneider Electric ABLM1A24025 is a switch-mode AC-to-DC regulated power supply from the Modicon ABLM Series. It accepts a wide-range single-phase AC input of 100–240V AC at 50/60Hz and converts it to a stable 24V DC output at up to 2.5A continuous — 60W total. Its primary role in any control cabinet is to serve as the sole regulated DC power source for PLC I/O modules, discrete solenoid and relay coils, sensors, and smart transmitters.

What distinguishes this unit from a basic commodity supply is the integration of four protection stages directly into the module: overload protection, short-circuit current limiting with automatic recovery, overvoltage clamping, and undervoltage shutdown. For a panel builder, that consolidation eliminates the need to source and wire separate external protection relays or fuses on the DC side, reducing both BOM complexity and assembly labor. The isolation voltage between input and output is rated at 3750V AC — a reinforced isolation figure that satisfies the relevant EN/IEC 61204-3 and EN 62368-1 safety requirements.

One critical constraint engineers must internalize: the ABLM1A24025 does not contain an internal AC circuit breaker. A separate external protection device — thermal-magnetic circuit breaker or fused disconnect, rated 6A–10A at the applicable AC voltage — must be installed upstream on the AC feed before this unit can be energized safely or in compliance with applicable electrical codes.

Typical System Architecture for the ABLM1A24025

The ABLM1A24025 sits at the DC power conversion stage of a control cabinet, downstream of the AC feed and upstream of all 24V DC loads. Here is where it fits in a typical deployment chain:

  • AC mains supply (100–240V AC, single phase) enters the panel through the main disconnect
  • External AC circuit breaker (6A–10A, thermal-magnetic) installed immediately downstream of the disconnect — required before ABLM1A24025 input terminals
  • ABLM1A24025 converts AC input to regulated 24V DC output on a TS35 DIN rail
  • 24V DC bus distributes to PLC I/O modules, solenoid valve coils, discrete relays, sensors, and communication gateways
  • Remote or branch loads at the end of long DC wire runs may require individual DC fusing at the load — not at the power supply output terminals

Where Engineers Deploy the ABLM1A24025

Packaging and small assembly machine builders use the ABLM1A24025 as the primary 24V DC source in compact machine control panels where DIN rail space is at a premium. The 53mm mounting width allows multiple units to be clustered on a single rail segment without requiring panel redesign.

Pneumatic and hydraulic system integrators specify this unit to power directional solenoid valve coils and component clamping circuits. Its short-circuit recovery behavior — limiting fault current and automatically resuming output once the fault clears — reduces downtime in systems where accidental coil shorts occur during maintenance.

Water treatment and HVAC controls panels use the ABLM1A24025 to power distributed I/O racks and smart transmitters (pressure, flow, temperature). The 100–240V AC wide input range allows a single supply variant to be deployed across international sites without substitution.

Gateway and industrial communication module power is another common use case. Ethernet switches, serial-to-Ethernet converters, and wireless I/O bridges requiring stable 24V DC draw well under 2.5A are a natural fit for this supply, leaving headroom for additional discrete I/O on the same bus.

Application Typical Deployment
Compact machine control panels Primary 24V DC supply for PLC I/O in space-constrained enclosures, retrofit projects
Pneumatic/hydraulic valve actuation Solenoid coil power, directional control valve circuits
Sensor and transmitter power Distributed I/O racks, pressure/flow/temperature smart transmitters
Water treatment and HVAC controls International site deployments using wide-range AC input across different regional standards
Gateway and communication modules Ethernet switches, serial converters, wireless I/O nodes requiring stable 24V DC
Safety-rated control pre-load power Pre-load DC power in functional safety architecture as part of larger control system

Purchase-Decision Specifications

Specification Value
AC Input Voltage 100–240V AC, single phase, 50/60Hz
DC Output Voltage 24V DC (nominal, regulated)
Output Current (Rated) 2.5A continuous
Output Power 60W
Protection Features Overload, short-circuit, overvoltage, undervoltage (all integrated)
Isolation Voltage 3750V AC (reinforced, input to output)
Dimensions (W × H × D) 53mm × 91mm × 55.6mm
Mounting TS35 DIN rail (35mm standard)
IP Rating IP20
Certifications UL, CE, cULus, RoHS, REACH, WEEE, EAC, KC, NEC Class 2

Full technical specifications are available on the product page at LeadTime.ca.

ABLM1A24025 vs. Higher-Capacity Variants and Alternatives

Model Output Power Output Current Key Differentiator Best For
ABLM1A24025 (this unit) 60W 2.5A Smallest footprint (53mm W), integrated 4-stage protection Compact panels, low-to-mid load systems under 2.0A typical draw
Schneider ABLM3A24100 100W 4.2A Higher power, same Modicon ecosystem Systems with peak solenoid transients or total load approaching 3–4A
Schneider ABLM3A24200 240W 10A High-capacity single-rail supply Large I/O racks, multi-axis drives, high solenoid count systems
Schneider ABLM8MPE24025 60W 2.5A Optional Ethernet monitoring capability Systems requiring remote power diagnostics or predictive maintenance
Mean Well RSP-60-24 60W 2.5A 5-year standard warranty, lower cost, wider export availability Cost-sensitive projects where footprint and ecosystem integration are secondary

If your connected load exceeds 2.5A continuous — even briefly during solenoid inrush — the ABLM3A24100 is the correct next step. Check current availability at LeadTime.ca and confirm which variant is in stock before finalizing your build schedule.

Expert Verdict: Is the ABLM1A24025 Worth Specifying?

The ABLM1A24025 earns its place on the BOM for a specific and well-defined buyer: the controls engineer or panel builder working with a tight DIN rail budget who needs a certified, compact 24V regulated supply that does not require supplementary external protection relays on the DC side. The 53mm mounting width — with the full four-stage protection suite built in — is a genuine advantage in retrofit projects and OEM machine builds where every millimeter of rail space has a cost. The 3750V AC reinforced isolation and the breadth of compliance certifications (UL, CE, cULus, NEC Class 2, RoHS, REACH, EAC, KC) make this unit approvable across North American, European, and Asian-Pacific market requirements without sourcing a second variant.

Where this unit has real limits: there is no onboard diagnostic communication, which matters if your plant maintenance team relies on SCADA-level power monitoring or predictive maintenance alerts. There is also no native parallel redundancy support — if your application demands fault-tolerant 24V power, you will need to step up to the ABLM8MPE24025 for Ethernet-monitored capability or look at a parallel-capable platform entirely. And if your worst-case load calculation puts peak demand above 2.0A after a 20% safety margin is applied, the 60W rating of this model will leave you with marginal headroom that causes exactly the intermittent resets engineers dread finding in the field. In those cases, the ABLM3A24100 is not an upgrade — it is the correct part.

From a procurement standpoint, the ABLM1A24025 is a well-supported SKU with confirmed availability through authorized distributors globally and typical lead times ranging from same-day to two weeks depending on regional warehouse stock. For a 24V regulated supply at this power level, that availability profile is reliable enough to commit to in a production build schedule. If you are finalizing quantities or need to confirm current lead time before locking a PO, check live stock status at LeadTime.ca — the team ships worldwide and can confirm whether the unit ships from regional inventory.

For volume pricing or to verify lead time against your build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ABLM1A24025

Community discussion on this specific SKU is limited relative to higher-volume commodity supplies — which is itself informative. The ABLM1A24025 tends to be specified by engineers who already know Schneider's ABLM family, which means ordering mistakes are less about brand confusion and more about subtle sizing and compatibility errors that only surface during commissioning. The questions that come up consistently when engineers consult specialist distributors about this part fall into a predictable set of categories: load sizing margin, external protection requirements, and panel space verification.

The most common ordering mistake is underestimating peak load current. Engineers calculate steady-state draw correctly but overlook simultaneous solenoid inrush — multiple coils energizing at once during a machine cycle start — which can push instantaneous current well above the 2.5A rated output. The correct approach is to apply a 20% safety margin to worst-case load, targeting below 2.0A typical draw. If the calculation comes out above that threshold, the ABLM3A24100 is the correct specification, not a workaround.

The second most frequent issue is assuming the integrated protection replaces the need for external AC protection. It does not. The ABLM1A24025 has no internal circuit breaker. Engineers who bypass or delay installing an upstream 6A–10A AC protection device are creating a compliance gap and a safety risk that no amount of integrated DC-side protection compensates for. When community data is sparse and the stakes of a wrong-part or wrong-installation decision are real, this is exactly the scenario where speaking to a specialist distributor before ordering — not after — saves rework time. LeadTime.ca's team validates part numbers and application fit before shipment, which matters more than price-per-unit when the alternative is a panel redesign.

Wiring and Installation Overview

  • Mount on a TS35 (35mm) DIN rail with minimum 53mm clear width; verify 55.6mm depth clearance from rail to panel back wall, plus a recommended 25mm airflow clearance around the unit on all sides
  • Install an external AC circuit breaker (6A–10A, thermal-magnetic) or fused disconnect upstream of the ABLM1A24025 AC input terminals — this is a mandatory safety and compliance requirement, not optional
  • Connect AC input (L and N terminals for single-phase, or dual-phase for 240V systems) with conductors stripped to 5–7mm; keep AC and DC cable runs physically separated to minimize noise coupling
  • Connect DC output positive and negative conductors to the output terminal block; verify polarity before energizing and do not connect system loads until output voltage is confirmed at 24V DC with a multimeter
  • After initial power-up, verify DC output reads within the acceptable operating range; confirm ambient enclosure temperature remains within 0°C to 50°C under full load conditions before declaring commissioning complete

Wrong-Part Prevention Checklist

Before placing an order for the ABLM1A24025, verify each of the following against your system design documents:

  1. Verify system specification sheet explicitly requires 24V DC output, NOT 12V, 48V, or 230V DC
  2. Calculate worst-case system load current: total watts of all connected devices ÷ 24V = required amperes. Must be less than 2.5A continuous with 20% safety margin (i.e., target below 2.0A typical draw)
  3. Confirm site AC input power is 100–240V AC, 50/60Hz range (regional standards vary; check local electrical code)
  4. Measure available DIN rail mounting space: minimum 53mm width required for this model; confirm no adjacent modules block access to terminal blocks
  5. Confirm external AC protection device (circuit breaker 6A–10A rated, or fused disconnect) will be installed upstream; ABLM1A24025 has no built-in breaker
  6. Verify IP20 protection rating is acceptable (no water spray or corrosive gas environment); if harsher conditions exist, specify enclosed power supply instead

If any item on this checklist cannot be confirmed, do not order until it is resolved. Contact LeadTime.ca to verify fit before committing — or review full specifications on the product page before finalizing your BOM.

Frequently Asked Questions

Does the ABLM1A24025 require an external circuit breaker, or is the integrated protection sufficient for code compliance?

An external AC circuit breaker or fused disconnect is required — it is not optional. The ABLM1A24025 has no internal AC circuit breaker. A 6A–10A thermal-magnetic breaker must be installed upstream of the AC input terminals to satisfy both safety standards and applicable electrical codes. The integrated overload, short-circuit, overvoltage, and undervoltage protection in this unit operates on the DC output side only.

What happens if my system load momentarily exceeds 2.5A during solenoid inrush — does the supply shut down permanently or recover automatically?

The ABLM1A24025 includes short-circuit and overload protection with automatic recovery. When an overload or short-circuit condition is detected, the supply limits current and enters a protection state. Once the fault is cleared or the overload is removed, the supply automatically resumes normal output — it does not require a manual reset. However, repeated exceedances accelerate thermal stress on the unit; if your peak load regularly approaches or exceeds 2.5A, sizing up to the ABLM3A24100 (100W) is the correct long-term solution.

Can I use two ABLM1A24025 units in parallel on the same 24V DC bus for redundancy or increased current capacity?

The ABLM1A24025 is not specified in the brief as a parallel-capable or redundancy-certified unit for combined output current. If your application requires redundant 24V power or current capacity above 2.5A, the ABLM8MPE24025 (with optional Ethernet monitoring) or a dedicated redundancy-capable supply should be evaluated instead. Do not assume parallel operation is safe without confirming with Schneider Electric's technical documentation for this specific model.

Is the ABLM1A24025 a direct replacement for the older ABL8MPE24025 without rewiring the panel?

The ABLM1A24025 and ABL8MPE24025 are separate product lines with different mounting footprints, terminal block layouts, and feature sets. A direct plug-in replacement without wiring verification is not confirmed in available documentation. Engineers migrating from ABL8 to ABLM1 series must verify DIN rail spacing, terminal block type, conductor sizing compatibility, and any differences in protection behavior before substituting in an existing panel. Consult the manufacturer's technical documentation for both models before proceeding.

What is the operating temperature range, and does the ABLM1A24025 derate at high ambient temperatures?

The operating temperature range is 0°C to 50°C. Derating applies at the upper end of this range — the exact derating curve is defined in the manufacturer's datasheet, which should be consulted for high-ambient installations. Storage temperature range is -25°C to 70°C (non-operating). Ensure the enclosure ambient remains within the operating range under full load conditions before commissioning.

What certifications does the ABLM1A24025 carry, and does it meet NEC Class 2 requirements?

The ABLM1A24025 carries UL, CE, cULus, RoHS, REACH, WEEE, EAC, and KC certifications. It is also rated NEC Class 2 for safe low-voltage secondary circuit designation at 24V DC output — relevant for North American installations where Class 2 wiring methods reduce conduit and overcurrent protection requirements on the DC output side. Verify your local electrical authority's acceptance of NEC Class 2 designation if operating outside North America.

Why Order From LeadTime.ca

  • Ships worldwide — not limited to any single region or country
  • Part-number validation before shipment reduces the risk of wrong-SKU delivery on industrial power supply orders
  • Volume pricing available — contact directly for project quantities or blanket order discussions
  • Response time for technical inquiries is prioritized for controls engineers and procurement teams on active builds
  • Hard-to-find and low-stock industrial SKUs sourced through authorized distributor networks

At-a-Glance Summary

  • Output: 24V DC regulated, 2.5A continuous, 60W total
  • Input: 100–240V AC, single phase, 50/60Hz — wide-range global compatibility
  • Dimensions: 53mm W × 91mm H × 55.6mm D — approximately 40% smaller footprint than comparable 60W supplies
  • Protection: Overload, short-circuit (auto-recovery), overvoltage, and undervoltage — all integrated, no external DC protection modules required
  • Isolation: 3750V AC reinforced isolation between AC input and DC output
  • Mounting: TS35 DIN rail, minimum 53mm clear rail width required
  • IP Rating: IP20 — suitable for enclosed control panels only, not wet or corrosive environments
  • Operating Temperature: 0°C to 50°C (derating applies at upper range)
  • Certifications: UL, CE, cULus, RoHS, REACH, WEEE, EAC, KC, NEC Class 2
  • External AC breaker required: 6A–10A upstream protection device mandatory — not included in unit
  • Upgrade path: ABLM3A24100 (100W) for higher load; ABLM8MPE24025 for Ethernet diagnostics; ABLM3A24200 (240W) for high-capacity systems
  • Availability: In stock at authorized distributors globally; typical lead time same-day to two weeks depending on region
