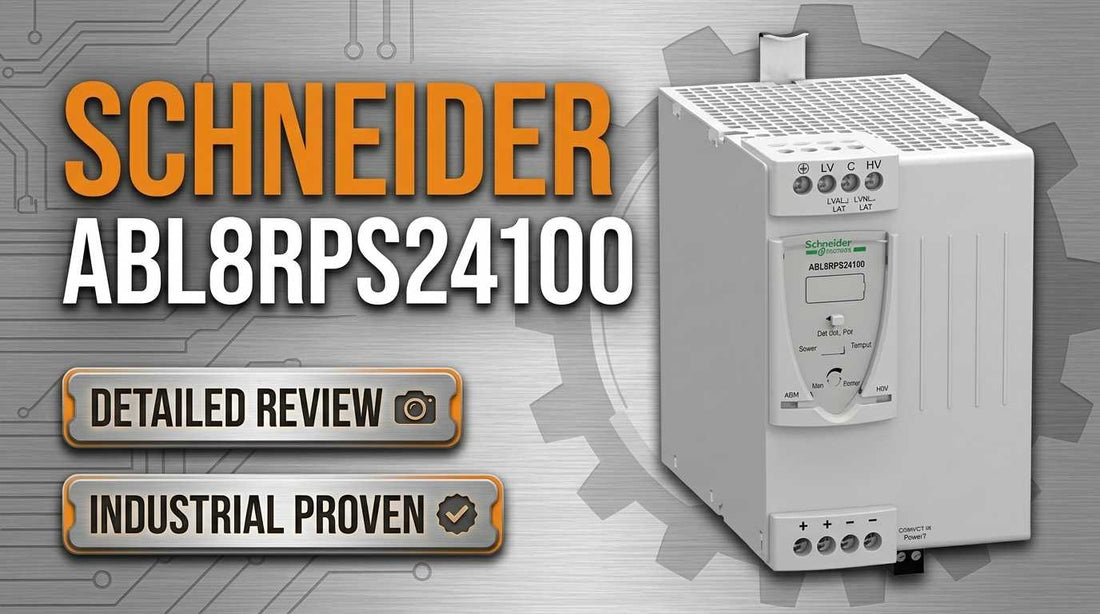

Schneider Electric ABL8RPS24100 24V 10A DIN rail regulated switch mode power supply for industrial control panels

Schneider Electric ABL8RPS24100 Regulated Switch Mode Power Supply — 24V 10A DIN Rail Review and Buying Guide

Controls engineers specifying auxiliary power for a new machine build or replacing a failed 24V supply in the field arrive at this page with one core question: does the Schneider Electric ABL8RPS24100 match my load, my cabinet, and my site's AC supply — or do I need the bigger model? This is a 240W regulated switched-mode power supply delivering 24V DC at 10A continuous, with a universal 100-500V AC input that covers single-phase and three-phase sites without hardware changes. The 150% temporary current boost — 15A for up to 4 seconds — handles solenoid and inductive inrush that would otherwise trip a tightly rated supply. If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ABL8RPS24100 — and Who Shouldn't

This supply is the right choice for controls engineers and panel integrators powering standard 24V DC control circuits where total continuous load is confirmed at 8A or less, leaving adequate thermal margin below the 10A rated ceiling.

  • Total 24V DC continuous load is 10A or less (8A or under is the recommended operating ceiling with headroom)
  • Site AC supply falls within 100-500V AC — single-phase at 100-120V L-N or three-phase at 200-500V L-L
  • Control cabinet uses standard 35mm DIN rail and has at least 86mm width available for this unit
  • Startup inrush current does not exceed 15A, which is the 4-second temporary boost ceiling
  • Operating ambient temperature stays within -25°C to +60°C with no derating requirement
  • A single 24V DC output rail is sufficient — this model has one output

If your total continuous load exceeds 10A, or if you need parallel-redundant power with load sharing, the ABL8RPS24200 (24V, 20A, 480W) is the correct model. Do not order the ABL8RPS24100 for sustained loads above 10A — the 15A boost is a transient feature, not a sustained operating range.

On this page:

What the ABL8RPS24100 Actually Does in Your Control System

The ABL8RPS24100 is a DIN rail-mounted regulated switched-mode power supply from Schneider Electric's Phaseo ABL8 series. Its job is straightforward: take whatever AC voltage is present at the cabinet's incoming terminals — anywhere from 100V single-phase to 500V three-phase — and deliver a stable, regulated 24V DC output to the control circuit. That output feeds PLC input modules, I/O terminals, solenoid valve coils, proximity sensors, indicator lamps, and any other 24V DC devices in the enclosure.

What separates this model from a generic SMPS is the combination of universal input coverage and configurable protection behavior. The 100-500V AC input range means one SKU works across North American single-phase 120V sites, three-phase 208V and 480V industrial facilities, and international 380-400V installations without reconfiguration. Protection is configurable for automatic or manual reset on overload and short-circuit events — a detail that determines whether an unattended machine self-recovers from a brief transient or holds a fault state until a technician arrives. At 87% efficiency, the unit dissipates approximately 31W as heat at full 10A load, which is modest enough that standard DIN rail cabinet ventilation handles thermal management without forced cooling.

Typical System Architecture and Signal Chain Position

The ABL8RPS24100 sits between the incoming AC distribution and the 24V DC control bus — it is the conversion point that everything downstream depends on. Here is where it fits in a typical control cabinet chain:

  • Incoming AC supply (100-500V AC, single-phase or three-phase) feeds through an upstream circuit breaker or fuse to the ABL8RPS24100 AC input terminals
  • ABL8RPS24100 converts and regulates to 24V DC output, with built-in overload, short-circuit, overvoltage, and thermal protection
  • 24V DC output feeds a terminal block distribution rail or directly to PLC power input, I/O module commons, and sensor supply rails
  • PLC input modules, analog I/O cards, proximity switches, solenoid valve coils, and indicator lamps draw from the 24V DC bus
  • Optional ABL8PRP24100 protection module can be added downstream for circuit distribution or redundant supply configuration

Industries and Applications Where This Supply Is Specified

Discrete manufacturing panel builders specify the ABL8RPS24100 as the primary 24V auxiliary supply in new machine builds — automotive assembly cells, appliance manufacturing lines, and packaging machinery where PLC input modules, solenoid valves, and photoelectric sensors all draw from a single regulated 24V bus. The 10A continuous rating covers the typical load profile of a mid-size control panel without requiring the larger 20A model.

Field retrofit and emergency replacement is another high-frequency use case. When an existing 24V DIN rail supply fails on a production line, the 86mm width and standard 35mm DIN rail mounting make the ABL8RPS24100 a practical drop-in candidate. The universal input range also simplifies replacement in multi-tenant facilities where the electrical infrastructure may have changed since the original installation.

OEM machine builders standardizing across global product lines find the 100-500V input particularly valuable. A single ABL8RPS24100 stocked in the parts room covers 120V North American sites, 230V European installations, and 480V heavy industrial facilities — eliminating the per-region SKU management that complicates spare parts logistics and field service training.

Food and beverage processing, pharmaceutical packaging, and semiconductor assembly facilities also deploy this supply in distributed control cabinets along production lines, where each machine cell carries its own 240W supply for sensor and valve networks, and cabinet access for replacement needs to be fast and straightforward.

Application Typical Deployment
Discrete manufacturing machine build Primary 24V supply for PLC inputs, I/O modules, and solenoid valves in new panel
Field retrofit / emergency replacement Drop-in DIN rail replacement for failed 24V supply; same form factor, universal input
Multi-site OEM standardization Single SKU covering 120V, 230V, and 480V sites; eliminates region-specific inventory
Food and beverage line control Distributed control cabinets, one supply per machine cell powering sensor and valve networks
Pharmaceutical packaging automation 24V control bus for low-voltage circuits in clean-room-adjacent control enclosures
Smart building and facility automation 24V DC supply for BMS input modules and field device networks in building control panels

Key Specifications for Purchase Decisions

Specification Value Notes
Output Voltage 24V DC Adjustable ±10%; verify exact range in datasheet
Output Current (Continuous) 10A 8A or less recommended for thermal headroom
Output Power 240W Nominal at 24V, 10A
Temporary Current Boost 15A (150%) Up to 4 seconds; for startup inrush only — not sustained operation
Input Voltage Range 100-500V AC Single-phase 100-120V L-N or three-phase 200-500V L-L
Input Frequency 50-60 Hz Automatic range
Efficiency (Nominal) 87% Approx. 31W heat dissipation at full 10A load
Operating Temperature -25°C to +60°C No derating stated within this range
Overvoltage Protection 30-32V DC threshold Manual reset required
Unit Width (DIN Rail) 86mm (3.39 in) Standard 35mm DIN rail; depth 145mm (5.71 in)

Full technical specifications are available on the product page at LeadTime.ca.

ABL8RPS24100 vs. ABL8RPS24200 vs. Alternatives — Which One Do You Need?

Model Output Voltage Max Current Max Power Input Range When to Choose
ABL8RPS24050 24V DC 5A 120W 100-500V AC Compact machines with minimal load under 5A
ABL8RPS24100 24V DC 10A 240W 100-500V AC Standard PLC and sensor power; most single-panel applications
ABL8RPS24200 24V DC 20A 480W 100-500V AC Larger I/O systems, redundant parallel configurations
Siemens PSE200U 24V DC 10A 240W 85-264V AC single-phase or 100-500V three-phase Existing Siemens ecosystem preference
Phoenix Contact QUINT 4 24V DC 20A 480W 100-480V AC Modular redundancy and hot-standby capability required

If your confirmed continuous load is at or above 10A, the ABL8RPS24200 is the correct next step — do not rely on the 15A temporary boost as a substitute for adequate continuous rating. Check current availability and confirm your model at LeadTime.ca.

Expert Verdict: When This Supply Earns Its Place and When It Doesn't

The ABL8RPS24100 is genuinely fit for purpose in the application it was designed for: a single-output, DIN rail-mounted 24V supply for standard factory automation control circuits where continuous load is confirmed under 10A and site AC supply falls within the 100-500V input window. Controls engineers standardizing a supply SKU across multiple facilities — whether those run on 120V single-phase in a North American light industrial setting or 480V three-phase in a heavy manufacturing plant — get real operational value from not managing separate part numbers for each region. The 150% temporary boost at 15A for up to 4 seconds is a practical feature, not a marketing number: it eliminates nuisance shutdowns during solenoid and inductive load switching without requiring a second supply or external soft-start circuit. At 87% efficiency and approximately 31W heat dissipation at full load, the thermal footprint is modest enough to fit standard enclosed DIN rail cabinets without active cooling. The configurable automatic or manual reset protection is the kind of detail that matters when you are specifying for unattended machinery versus safety-critical circuits — one supply covers both philosophies.

The limitations are real and worth naming directly. If your 24V load exceeds 10A continuous — even occasionally — the ABL8RPS24100 will trigger overload protection during normal operation, not just startup, and that causes machine shutdowns that require either automatic or manual reset intervention. The correct fix in that scenario is the ABL8RPS24200 (20A, 480W), not a workaround. If your application requires parallel-redundant 24V power with load sharing, a single ABL8RPS24100 unit is architecturally insufficient; you need the ABL8RPS24200 paired with the ABL8PRP24100 protection module, or a different supply platform entirely. Buyers in Siemens-dominant ecosystems who want a single-vendor support chain should evaluate the Siemens PSE200U directly — it covers the same 24V 10A class. And if sealed or potted construction is required for washdown or explosive atmosphere environments, this IP20-rated industrial SMPS is not the right category.

From a procurement standpoint, the ABL8RPS24100 is a well-established part in a stable product family with confirmed stock at multiple authorized distributors worldwide. Lead times in the 3-7 business day range for single units are typical under normal conditions, making it a reliable choice for project timelines that cannot absorb extended waits. Ordering through a specialist industrial distributor rather than a generic marketplace channel matters here — authorized distributors carry current firmware documentation, commissioning datasheets, and can confirm the actual stocked quantity before you commit a project timeline to delivery. View current pricing and availability for the ABL8RPS24100 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ABL8RPS24100

Community discussion specific to the ABL8RPS24100 is sparse across major automation forums including r/PLC, PLCTalk, PLCS.net, MrPLC, and distributor Q&A platforms. No widespread failure patterns or design defects have surfaced in publicly accessible sources — which is itself a meaningful data point for a production-proven supply in a mature product family. What integrator experience and the broader Phaseo ABL8 community consistently surface, however, are configuration and sizing errors at order time that cause problems after delivery. These are worth understanding before you finalize a purchase.

The most common ordering error is confusing the 15A temporary boost with a sustained 15A operating capability. The 150% boost is specifically a 4-second inrush tolerance — it exists for solenoid switching and motor soft-start transients, not for running a 12A continuous load. Buyers who calculate their total 24V load at 11-12A and assume the boost provides headroom end up with a supply that triggers overload protection during normal machine operation, not just startup. The rule is straightforward: if your continuous load exceeds 8A, specify the ABL8RPS24200. The second frequent mistake is assuming the universal 100-500V input applies without verifying actual site supply configuration. A three-phase 480V site with no single-phase drop presents a specific terminal configuration requirement — measuring the actual supply and matching it to the unit's terminal diagram before ordering prevents a commissioning failure. Third, undersized DC output cable runs cause voltage droop that gets misdiagnosed as a supply fault. A 10A load over a 10-meter run on 16 AWG wire drops output voltage below what many PLC input modules tolerate — the issue is cable gauge, not the supply itself.

Buyers who find community feedback sparse and want a second opinion on load calculations, cabinet space confirmation, or lead time for a specific project should reach out to a specialist distributor before placing the order. LeadTime.ca carries the technical context to validate your configuration and confirm stock before your project timeline is at risk — and because community data is limited for this specific model, a brief pre-order conversation with a knowledgeable distributor is worth more than a forum search that returns nothing.

Wiring and Installation Overview

  • Confirm AC input terminal configuration before wiring: single-phase sites connect L and N (100-120V); three-phase sites connect L1, L2, L3 (200-500V L-L) — do not assume; verify the terminal diagram in the official Schneider manual for your specific supply configuration
  • DC output terminals are marked +24V and 0V (common); earth ground terminal is present and should be connected to cabinet ground per industrial safety practice
  • Upstream AC-side protection (circuit breaker or fuse) is required — the ABL8RPS24100 does not include an integrated AC circuit breaker; DC output protection (overload and short-circuit reset) is built into the unit
  • Cable gauge for 10A DC output runs: use 12 AWG (4 mm²) or larger for runs up to 10 meters to prevent voltage droop below acceptable PLC input module tolerance; consult NEC or IEC wiring tables and your regional electrical code for specific requirements
  • Screw terminal torque is typically 2-3 Nm for industrial DIN rail supplies in this class — verify the exact specification in the Schneider manual and use a calibrated torque screwdriver; do not hand-tighten or over-torque

Compatible Modules and System Expansion

The ABL8RPS24100 is part of the Schneider Electric Phaseo ABL8 series, and Schneider offers accessory modules designed to work alongside it for distribution and redundancy applications:

  • ABL8PRP24100 — Protection and redundancy module for parallel supply configurations; required when operating two ABL8 supplies in parallel for redundancy or load sharing; direct parallel connection without this module risks circulating current and unequal load distribution
  • ABL8RPS24200 — The 20A, 480W variant in the same family; architectural upgrade path when load exceeds 10A continuous or redundant parallel supply is required
  • ABL8RPS24050 — The 5A, 120W variant; appropriate for compact auxiliary panels with minimal sensor and indicator load

Wrong-Part Prevention Checklist

Before placing your order, verify all of the following. This checklist is drawn directly from common ordering errors — skipping any item has resulted in post-delivery commissioning failures.

  1. Verify DC output load in amps at 24V (total of all PLC inputs + sensors + solenoids + indicators at 24V must not exceed 10A continuous)
  2. Check input AC supply voltage at site (confirm it falls within 100-500V range; three-phase sites need L-L phase-to-phase voltage confirmation)
  3. Confirm DIN rail width in control enclosure (ABL8RPS24100 is 3.39 in / 86 mm wide; verify cabinet has space)
  4. Check overload protection strategy (ABL8RPS24100 provides manual and automatic reset; confirm your system design allows automatic recovery or requires manual intervention)
  5. Verify temperature derating not required (ambient conditions must stay within -25 to +60°C; if colder required, different supply needed)
  6. Confirm single 24V output is sufficient (this model has one output; multi-voltage systems need different approach)
  7. Check if temporary 150% current boost meets startup transient needs (5-second capability at 15A max; confirm system startup current does not exceed this)
  8. Verify efficiency loss acceptable (87% nominal; approximately 31W heat dissipation at full 10A load; ensure thermal derating not triggered)

If any of these checks raises uncertainty before you order, contact the LeadTime.ca team — we can help confirm the right part before your order is placed.

Frequently Asked Questions

What is the practical difference between the ABL8RPS24100 and the ABL8RPS24200 — when does the 10A model become insufficient?

The core difference is continuous current capacity: 10A (240W) versus 20A (480W), both at 24V DC and both with the same 100-500V AC universal input. The ABL8RPS24100 becomes insufficient when your total 24V DC continuous load exceeds 8-10A, or when your application requires parallel-redundant power configuration. The 15A temporary boost on the ABL8RPS24100 is a startup inrush feature only — if your sustained load is 12A, you need the ABL8RPS24200, not a workaround.

Can I parallel two ABL8RPS24100 units for redundancy without additional hardware?

No. Direct parallel connection of two ABL8RPS24100 units without a dedicated protection module risks circulating current between the supplies and unequal load sharing, which can trigger overload conditions on one unit. The ABL8PRP24100 protection module is required for proper parallel or redundant operation within the Phaseo ABL8 family. If redundancy is a design requirement, consult the Schneider Electric documentation or contact a specialist distributor before finalizing the architecture.

The ABL8RPS24100 overload protection LED is lit and there is no DC output — what is the correct troubleshooting sequence?

First, disconnect all DC loads from the output and check for no-load DC output voltage — it should read 24V ±2V DC. If output is present with no load, the fault is in the downstream circuit (short-circuit or excessive load); investigate each load branch before reconnecting. If the overvoltage protection indicator is active (output exceeds 30-32V DC threshold), this requires a manual reset and investigation of the load for abnormal voltage demand. If AC input is confirmed present but DC output is zero under no load, the unit may require replacement or Schneider technical support review.

Does the ABL8RPS24100 carry UL and CSA certification for North American industrial panel use?

Schneider Electric typically documents UL508L and CSA certification for the North American Phaseo ABL8 series supplies. Certification marks should be visible on the unit label and confirmed in the official datasheet for your specific unit before installation in a listed control panel. Verify the certification markings on the physical unit received — do not rely solely on distributor listings for compliance confirmation.

Is the ABL8RPS24100 suitable as a UPS or backup power source for a PLC?

No. The ABL8RPS24100 is a regulated AC/DC switched-mode power supply with no battery, no hold-up capacitor of meaningful duration, and no backup power capability. If your application requires uninterruptible power or ride-through during AC supply interruptions, a dedicated UPS module or modular redundant power platform is required. This supply provides no protection against AC input loss.

Can the ABL8RPS24100 replace a failed Mean Well RSP-500-24 in an existing cabinet?

The 24V DC output at 10A is compatible as a direct electrical substitute for a 24V 10A rated supply of another brand. However, terminal pinout, physical dimensions, and mounting orientation differ between manufacturers — you must verify that the ABL8RPS24100's 86mm width and 145mm depth fit the available cabinet space, and that the input and output terminal positions allow your existing cable runs to reach. Do not assume a drop-in swap without physically comparing the footprint and terminal layout against your cabinet drawing.

Why Order From LeadTime.ca

  • Ships worldwide — the ABL8RPS24100 is available to controls engineers and procurement teams globally, not limited to a single region
  • Specialist industrial distributor with direct access to Schneider Electric Phaseo ABL8 series inventory — not a generic marketplace relying on drop-ship
  • Volume pricing available for OEM and machine builder quantities — contact the team for a quote
  • Technical support for pre-order configuration validation — confirm load calculations, cabinet fit, and input voltage match before the order ships
  • View current pricing and real-time availability at LeadTime.ca

At-a-Glance Summary

  • Output: 24V DC, 10A continuous, 240W nominal
  • Temporary current boost: 15A (150%) for up to 4 seconds — startup inrush tolerance only, not sustained operation rating
  • Input range: 100-500V AC, single-phase (100-120V L-N) or three-phase (200-500V L-L) — one SKU covers all standard North American and international AC supply voltages
  • Efficiency: 87% nominal; approximately 31W heat dissipation at full 10A load
  • Operating temperature: -25°C to +60°C with no derating stated within this range
  • Physical footprint: 86mm (3.39 in) wide, 145mm (5.71 in) deep — standard 35mm DIN rail mounting
  • Overvoltage protection threshold: 30-32V DC — manual reset required
  • Overload and short-circuit protection: configurable automatic or manual reset
  • Upgrade path: ABL8RPS24200 (24V, 20A, 480W) for loads above 10A or parallel redundancy requirements
  • Correct operating load ceiling: 8A continuous is the recommended maximum for thermal headroom; do not sustain above 10A
