Schneider Electric ABLS1A24050 — 24V 5A DIN Rail Power Supply Review

By Abdullah Zahid
15 min read

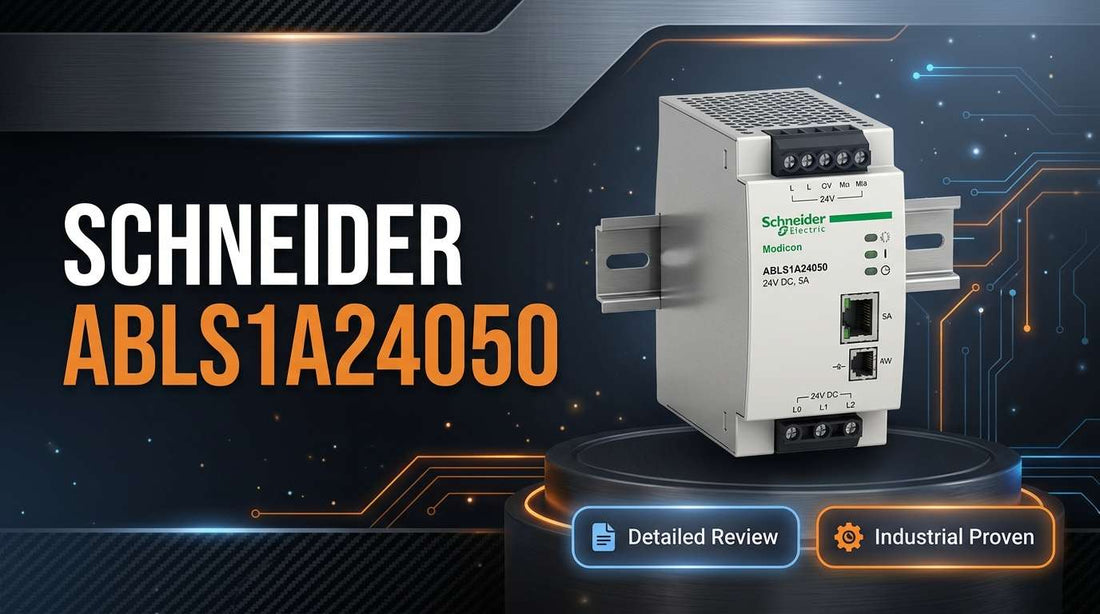

Schneider Electric ABLS1A24050 regulated 24V 5A DIN rail power supply for industrial PLC control cabinets

Schneider Electric ABLS1A24050 Regulated Power Supply, 100-240V AC, 24V 5A, Single Phase, Optimized — Specs, Review, and Alternatives

Controls engineers specifying a 24V DC supply for a PLC cabinet face a familiar set of pressures: confirm the input voltage covers your facility, validate the output current against the actual connected load, and make sure the form factor drops cleanly onto the DIN rail already welded into the enclosure. The Schneider Electric ABLS1A24050 is a regulated switched-mode power supply from the Modicon ABL Series that answers all three questions with a single catalog number — 100-240V AC single-phase input, 5A continuous output at 24V DC, and IEC 60715 TH35 DIN rail mounting. With a published MTBF of 700,000 hours and integrated overload, short-circuit, and overvoltage protection, it is one of the more thoroughly specified supplies in its class for discrete manufacturing and machine automation cabinets.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the ABLS1A24050 — and Who Shouldn't

This supply is the right choice for engineers and procurement teams who can confirm all of the following:

  • Input voltage source is 100-240V AC single-phase (or 140-340V DC) — this model does not support 3-phase AC input directly
  • Continuous output current requirement is 5A or below at the installation's ambient temperature, with derating applied above 40°C
  • Cabinet DIN rail is IEC 60715 TH35-15 or TH35-7.5 profile — non-standard or legacy rail profiles are not compatible with the snap-on mounting tabs
  • An upstream manual disconnect switch or circuit breaker is available within 1 meter of the supply inlet, as required by Class I electrical safety classification
  • Operating ambient temperature remains within -20 to +70°C, with load budget adjusted for the 2% per °C current derating above 40°C
  • Integrated (non-user-replaceable) fuse and sealed enclosure design are acceptable for your maintenance philosophy — field fuse replacement is not possible

If your continuous load exceeds 5A, or if ambient temperatures routinely exceed 50°C, the ABLS2A24050 at 10A or the ABL2S 20A series are the appropriate next steps rather than pushing this unit beyond its thermal budget.

On this page:

What the ABLS1A24050 Actually Does in a Control Cabinet

The ABLS1A24050 is a regulated industrial switched-mode power supply (SMPS) belonging to Schneider Electric's Modicon ABL Series. Its job is straightforward but critical: accept a wide-range AC mains input — anywhere from 85V AC to 264V AC continuously, covering every common single-phase industrial voltage worldwide — and deliver a stable, regulated 24V DC output at up to 5A continuous current to feed PLC logic buses, sensor circuits, solenoid valve pilots, safety controllers, and HMI panels mounted in the same cabinet.

Unlike a basic transformer-rectifier supply, the ABLS1A24050 regulates output voltage under varying load conditions, absorbs input voltage fluctuations within its rated range, and responds automatically to overload and short-circuit faults on the DC output side. The integrated overload and short-circuit protection uses automatic reset logic — when a fault clears, the supply restores output without operator intervention. Over-temperature faults are the exception: a thermal shutdown on this unit requires a manual power cycle to reset, which is by design to prevent a hot supply from repeatedly restarting into a persistent fault condition.

The 120W output power rating and compact 40mm width make this supply a practical choice for modular cabinet designs where real estate is measured in millimeters. The aluminium enclosure contributes both EMC shielding and passive thermal conduction, keeping the unit within its thermal envelope in well-ventilated cabinets operating at normal industrial ambient temperatures.

Typical System Architecture for the ABLS1A24050

The ABLS1A24050 sits between the facility's single-phase AC distribution and the 24V DC logic bus that powers the majority of components in a control cabinet. Understanding its position in the signal and power chain helps engineers plan breaker sizing, wiring gauge, and downstream protection correctly.

  • Facility single-phase AC supply (100-240V AC) feeds through a type B or C curve circuit breaker rated at 20A for 230V circuits or 13A for 115V circuits — sized to handle the 60A inrush current at 230V during start-up
  • A manual disconnect switch within 1 meter of the supply input provides the Class I safety isolation point required before any maintenance work on the cabinet
  • The ABLS1A24050 accepts the AC input and delivers regulated 24V DC at up to 5A onto the positive and negative output terminals
  • Output terminals connect to a 24V DC distribution rail or terminal block that branches to PLC CPU modules, I/O cards, sensor power rails, solenoid valve coils, and safety relay inputs
  • Downstream devices draw from this 24V bus; total continuous current draw across all connected loads must be calculated and confirmed below the derated output current at the installation's ambient temperature before commissioning

Industries and Applications Where This Supply Fits

The ABLS1A24050 is used most commonly in discrete manufacturing environments where a modular control cabinet feeds a machine or production cell. Automotive assembly lines and machine tool installations rely on this class of supply to power PLC racks, proximity sensors, and pneumatic valve pilots from a single regulated source — the 100-240V AC input range means the same cabinet design ships to plants in North America and Europe without any power supply substitution on the bill of materials.

Beverage and food processing facilities represent another strong fit, particularly in climate-controlled processing rooms where ambient temperatures remain below 40°C and the 5A output can be used at full rating. Water treatment and HVAC control panels use the ABLS1A24050 to power distributed sensor nodes and valve actuators where cabinet space is constrained and DIN rail layouts are the standard construction method.

Retrofit and upgrade projects in older facilities benefit specifically from the wide voltage acceptance range. When replacing a legacy transformer-based supply in a panel that might be fed from either a 120V or 240V branch, the ABLS1A24050 eliminates the pre-installation voltage verification step that previously required halting work while an electrician confirmed the feed voltage. The unit accepts both without modification or jumper changes.

Laboratory test benches and prototyping stations also see this supply regularly. Engineers building proof-of-concept PLC systems appreciate the compact form factor and the ability to connect the unit to whatever bench power outlet is available without a step-down transformer.

Application Typical Deployment
Automotive Assembly Line 24V DC supply for PLC rack and proximity sensor rail in a modular machine control cabinet
Food and Beverage Processing Solenoid valve pilot supply in pneumatic control panel; climate-controlled room at ambient 20-35°C
Water Treatment Control Panel Distributed sensor and actuator supply in DIN rail enclosure; wide input covers variable facility feed voltage
Retrofit Panel Upgrade Replacement for legacy transformer supply in existing cabinet; universal input eliminates feed voltage rework
Machine Tool Automation Safety controller and HMI 24V supply in standalone machine enclosure shipped to multi-region customers
Laboratory and Prototyping Bench PLC development and test supply; compact form factor mounts on temporary DIN rail section

Electrical Specifications and Variant Comparison

Parameter Value Notes
Input Voltage (AC, Nominal) 100-240V AC, single-phase 50-60 Hz; operational range 85-264V AC
Input Voltage (DC) 140-340V DC Operational range 120-375V DC
Output Voltage 24V DC Regulated and stable
Output Current (Max Continuous) 5A At 25°C ambient; derate above 40°C
Output Power 120W Full rated output
Inrush Current 30A at 115V / 60A at 230V Peak transient at start-up; breaker sizing critical
Temperature Range -20 to +70°C Current derating 2% per °C above 40°C
MTBF 700,000 hours At 25°C full load, per SR332 standard
IP Rating IP20 Finger-contact protection; not dust or moisture sealed
DIN Rail Compatibility TH35-15 or TH35-7.5 (IEC 60715) Snap-on mounting; both standard profiles supported

Full technical specifications are available on the product page at LeadTime.ca.

ABLS1A24050 vs. Higher-Current and Alternative Variants

Model Output Current Output Power Best Fit
ABLS1A24050 5A 120W PLC and sensor loads up to 5A in climate-controlled cabinets
ABLS2A24050 10A 240W Higher-current loads exceeding 5A continuous; same universal input range
ABL2S (20A variant) 20A 480W High-density I/O racks, large solenoid banks, or multi-drop 24V bus architectures
ABL2S with backup module 20A + battery backup Modular Redundancy-critical systems requiring hot-swap or UPS capability

If your calculated continuous load exceeds 4.5A — or if ambient temperatures push the derated output below your required current — the ABLS2A24050 is the direct next step. Check current availability and variant options at LeadTime.ca.

Expert Verdict: Is the ABLS1A24050 the Right Supply for Your Project?

The ABLS1A24050 earns its place on a bill of materials when the project involves modular DIN rail cabinets, multi-region deployment, and 24V DC loads in the 3-5A range operating in reasonably controlled ambient conditions. The 700,000-hour MTBF rating at full load is not marketing language — it reflects a design philosophy that prioritizes long mean operational life over field repairability, which is the correct tradeoff for safety-critical automation where unplanned maintenance is more costly than planned spare-unit replacement. The universal 100-240V AC input covering a nominal range of 85-264V AC means a single part number satisfies a North American 120V cabinet and a European 230V cabinet simultaneously, a real inventory and logistics advantage for OEMs shipping machines worldwide.

Where this supply has genuine limits: it is not the right choice for sustained loads above 5A, and the thermal derating curve at 2% per degree Celsius above 40°C is material in warm environments. A cabinet in a foundry or food processing area running at 55°C ambient will see available output current reduced to approximately 4A — if the designed load sits at 4.8A, nuisance resets will follow. In those conditions, the ABLS2A24050 at 10A provides the headroom needed. For systems requiring redundancy, parallel operation, or hot-swap capability, the sealed single-output architecture of the ABLS1A24050 is a fundamental mismatch; the ABL2S series with modular backup options is the correct path. The non-user-replaceable integrated 4A fuse and sealed enclosure also mean this is not a supply for environments where a night-shift technician needs to perform an emergency field repair — if that matters to your maintenance model, factor in a spare unit on the shelf.

From a procurement standpoint, sourcing this supply through a specialist automation distributor rather than a generic online marketplace reduces two real risks: receiving a unit with unclear provenance or warranty status, and losing access to pre-sale technical consultation when sizing questions arise at the last minute before a build date. Lead times for in-stock units through authorized channels typically run 5-7 working days regionally, versus significantly longer waits through unvetted third-party sellers. View current stock status and pricing for the ABLS1A24050 at LeadTime.ca — the team ships worldwide and can advise on variant selection if your load or thermal budget is close to the boundary.

For volume pricing or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the ABLS1A24050

Because specific community discussion threads for the ABLS1A24050 are sparse in public automation forums, engineers specifying this part for the first time rely heavily on the manufacturer datasheet and the knowledge of specialist distributors rather than peer field reports. That is not a red flag — it reflects the reality of a supply that performs quietly and reliably in applications where it is sized and installed correctly, generating little reason for forum complaint. What it does mean is that the pre-order technical review becomes more important, not less.

The ordering mistakes that appear most frequently across the broader Modicon ABL family and similar Schneider 24V DIN rail supplies fall into three categories that are directly relevant here. First, engineers confuse the ABLS1A24050 (5A, 120W) with the ABLS2A24050 (10A, 240W) when the load calculation sits in the 6-10A range — the result is a correctly ordered but undersized unit that causes intermittent resets during commissioning and a second purchase order to correct the selection. Second, buyers working in 3-phase 480V facilities assume the wide voltage input covers their facility feed without confirming that the supply accepts single-phase only; a step-down transformer or different supply architecture is required in those installations. Third, the IP20 enclosure rating is occasionally overlooked by installers placing the unit in outdoor or wash-down cabinets — IP20 provides finger-contact protection only and is not rated for dust or moisture exposure, making it a protected indoor-enclosure supply exclusively.

The thermal derating characteristic warrants particular attention for integrators who are not accustomed to carefully auditing cabinet ambient temperatures. The 2% per degree Celsius reduction in available output current above 40°C is a real operational constraint, not a conservative footnote. At 60°C ambient, available output is reduced to approximately 4A. Engineers who design to the nameplate 5A without a thermal survey of the installation environment have reported nuisance protection resets during summer months or after equipment is moved to a warmer production area. Building a 10% current margin into the load budget and performing a thermal assessment of the cabinet location before finalizing the supply selection eliminates this failure mode entirely. When the calculation is close to the boundary, the conversation is worth having with a distributor technical contact before the purchase order is placed — the cost of a phone call is considerably lower than a field retrofit.

Wiring and Installation Overview

The following points cover the key requirements for installing the ABLS1A24050. Full wiring procedures, terminal torque specifications, and commissioning sequences are documented in the Schneider Electric technical datasheet and installation guide, which should be consulted before any electrical work.

  • Confirm input source voltage falls within the 85-264V AC or 120-375V DC operational range before connecting; if outside range, halt installation
  • Install a type B or C curve circuit breaker rated at 20A (for 230V) or 13A (for 115V) upstream of the supply input, and verify a manual disconnect switch is accessible within 1 meter per Class I safety requirements
  • Snap the unit onto the IEC 60715 TH35 DIN rail with steady downward pressure until the snaplock tabs engage fully; maintain minimum 25mm clearance above and below the unit for convection cooling
  • Connect 24V DC output positive and negative terminals to the downstream load rail with correct polarity confirmed by voltmeter measurement before connecting to any PLC or sensor input; reverse polarity on the DC output side can damage PLC input modules
  • After power-on with no load, verify output voltage reads within the expected 24V DC regulation band using a calibrated meter before connecting downstream devices; a reading outside this band requires immediate investigation before proceeding

Compatible System Components and Expansion

The ABLS1A24050 is part of Schneider Electric's Modicon ABL Series, which includes a range of complementary supplies and accessories that can be combined in the same cabinet when load or redundancy requirements exceed what a single ABLS1A24050 can provide.

  • ABLS2A24050 — 10A, 240W variant with the same 100-240V AC universal input and TH35 DIN rail mounting; direct upgrade path when load exceeds 5A continuous
  • ABL2S 20A series — high-current modular supply for dense I/O racks and multi-drop 24V bus architectures within the same Modicon ABL family
  • ABL2S with dual-output or battery backup modules — for redundancy-critical applications requiring hot-swap capability or UPS integration; these modular variants support configurations the ABLS1A24050 sealed design cannot
  • IEC 60715 TH35-15 and TH35-7.5 DIN rail sections — confirm rail profile in cabinet before ordering; both standard profiles are compatible with the ABLS1A24050 snap-on mounting tabs

Wrong-Part Prevention Checklist

Before placing an order for the ABLS1A24050, verify each of the following items against your application requirements. This checklist is drawn directly from the manufacturer datasheet and distributor technical guidance.

  1. Verify input voltage range matches your source (100-240V AC single-phase OR 140-340V DC); this model does NOT support 3-phase AC input
  2. Check output current requirement against 5A rating; if >5A peak continuous draw, order ABLS2A (10A) or ABL2S (20A) instead
  3. Confirm DIN rail profile type in cabinet (IEC 60715 standard TH35-15 or TH35-7.5); this unit does not support Omega/35/7 or DIN 46277 mounting
  4. Verify external protection disconnect is available within 1 meter (Class I electrical safety requires manual circuit breaker or switch near power supply)
  5. Check ambient operating temperature; if sustained >70°C or <-20°C, consult derating curve (2% per °C above 40°C) or select industrial-grade variant
  6. Confirm polarity of 24V DC output terminals before wiring PLCs and sensors (positive/negative terminals must match input device specs)
  7. Verify inrush current capability of upstream protection (30A at 115V, 60A at 230V); external 20A C or 13A C protection recommended per datasheet

If any item on this checklist cannot be confirmed before ordering, contact LeadTime.ca — the technical team can help validate your selection against your application parameters before the order is placed.

Frequently Asked Questions

Can the ABLS1A24050 be used in a facility with 3-phase 480V power distribution?

No — the ABLS1A24050 accepts single-phase AC input only, with an operational range of 85-264V AC. A 3-phase 480V facility feed requires either a step-down transformer to derive a single-phase 120V or 240V supply, or a different power supply architecture designed for 3-phase input. Connecting this unit directly to 3-phase 480V input will exceed the rated voltage limits and damage the supply.

What happens when the output load exceeds 5A — does the supply shut down or derate automatically?

The ABLS1A24050 is equipped with automatic overload and short-circuit protection that responds to sustained over-current conditions. The supply will current-limit or shut down and then automatically reset once the fault clears. In warm environments where the output is already derated due to ambient temperature above 40°C, the effective trip threshold will be lower than 5A. Repeated nuisance resets in service are typically a sign that the load has grown to exceed the derated output — the correct remedy is to replace the unit with the ABLS2A24050 at 10A, not to attempt to defeat the protection.

Is the integrated fuse in the ABLS1A24050 user-replaceable in the field?

No. The integrated 4A input fuse is a non-interchangeable component sealed within the enclosure. Attempting to open the supply and replace the fuse with a field-sourced component voids the warranty and compromises the electrical safety integrity of the unit. If the integrated fuse has failed, the correct procedure is to replace the entire unit with a spare and return the failed unit through the authorized distributor for warranty evaluation. Keeping at least one spare ABLS1A24050 in inventory for mission-critical cabinets is the recommended practice.

How much does the output current derate at elevated ambient temperatures?

Above 40°C ambient, available output current decreases at a rate of 2% per degree Celsius per the manufacturer datasheet. At 60°C ambient, the output current is reduced to approximately 4A from the 5A nameplate rating. Engineers should apply this derating calculation during the design phase and confirm that the resulting available current still exceeds the maximum continuous load with a 10% margin. If the thermal survey of the installation location shows sustained temperatures above 50°C, selecting the ABLS2A24050 at 10A provides the headroom to remain safely within rated output even after derating.

Can the ABLS1A24050 be paralleled with a second unit for redundancy or load sharing?

The brief and manufacturer documentation do not confirm that the ABLS1A24050 supports parallel operation for redundancy or active load sharing. Applications requiring hot-swap capability, battery backup, or N+1 supply redundancy should be specified using the modular ABL2S series with dedicated backup modules, which are designed for that architecture. Attempting to parallel two ABLS1A24050 units without confirmed parallel operation support from the manufacturer is not recommended.

What upstream circuit breaker type and rating is required to handle the inrush current at startup?

The ABLS1A24050 draws a peak inrush current of 30A at 115V or 60A at 230V during startup. The manufacturer datasheet recommends an external type C curve circuit breaker rated at 20A for 230V circuits and 13A for 115V circuits. Type A breakers should not be used, as their trip curve will nuisance-trip on the startup inrush current before the supply reaches steady-state operation. If the supply is being added to a circuit that already feeds other loads, the total inrush current of all devices must be factored into the breaker selection.

Why Order From LeadTime.ca

  • Ships worldwide — the ABLS1A24050 can be sourced and delivered internationally, not limited to any single country or region
  • Authorized distributor access means units come with full manufacturer warranty and proper provenance — not third-party reseller gray market stock
  • Technical pre-sale support for sizing questions, variant selection, and DIN rail compatibility confirmation before the purchase order is placed
  • Volume pricing available for OEM and multi-unit orders — contact for current rates on quantities above single-unit requirements
  • Hard-to-find and short lead-time parts sourced through a specialist network, reducing the schedule risk of procurement through generic online channels

At-a-Glance Summary

  • Model: ABLS1A24050 — Regulated Power Supply, 100-240V AC, 24V 5A, Single Phase, Optimized; Modicon ABL Series
  • Input: 100-240V AC single-phase (85-264V AC operational) or 140-340V DC (120-375V DC operational); single universal SKU covers North American and European voltage standards
  • Output: 24V DC regulated, 5A continuous at 25°C ambient, 120W total rated power
  • Inrush current: 30A at 115V / 60A at 230V — requires type B or C curve breaker rated 20A (230V) or 13A (115V)
  • Thermal derating: 2% per °C above 40°C ambient; at 60°C ambient, available output is approximately 4A
  • MTBF: 700,000 hours at 25°C full load per SR332 standard
  • DIN rail: IEC 60715 TH35-15 or TH35-7.5 snap-on mounting; width 40mm, depth 117mm, height 124mm, weight 0.55 kg
  • Protection: Integrated overload and short-circuit (auto-reset), over-temperature (manual reset), integrated non-user-replaceable 4A input fuse
  • Safety: Class I (requires grounded external disconnect switch within 1 meter), Pollution Degree 2, IP20, IEC 62368-1 and IEC 60715 compliant
  • Capacitor design life: 10 years at rated conditions; country of origin: Thailand
  • Wrong-part risk: Confirm single-phase input, 5A load budget with thermal derating applied, TH35 rail profile, and manual disconnect availability before ordering
