Schneider Electric 18800 — Discontinued MCB Specs & Alternatives

By Abdullah Zahid
15 min read

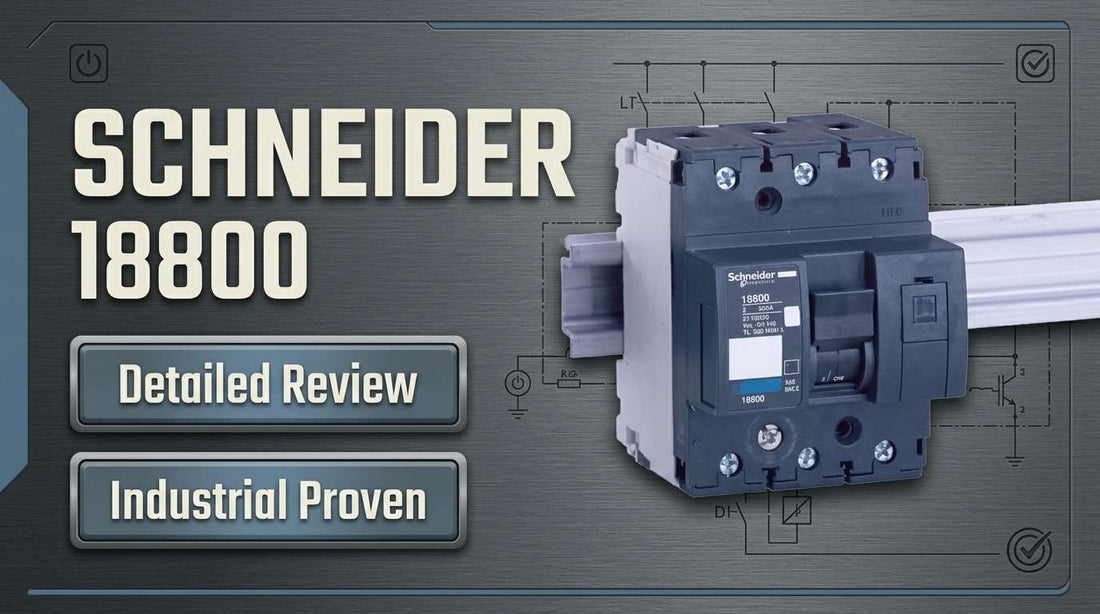

Schneider Electric 18800 Acti9 NG125L 3-pole 16A C-curve miniature circuit breaker for industrial panel DIN rail installation

Schneider Electric 18800 NG125L, 3P, 16A, C curve Miniature Circuit Breaker — Discontinued Model Specifications, Alternatives, and Replacement Guide

If you have landed here with catalog number 18800 in hand, you are most likely a facilities electrician or maintenance engineer trying to replace a failed unit in an existing Acti9 NG125-based panel — or a procurement specialist trying to figure out why this part is suddenly hard to find. The short answer: Schneider Electric formally discontinued the 18800 on 9 February 2023, with no designated replacement model. Residual authorized stock exists, but it is depleting. This guide covers the verified specifications of the Schneider Electric 18800 NG125L, 3P, 16A, C curve, your best replacement options, and exactly what to confirm before you order anything.

If you have already confirmed this is the correct part for your panel, check current stock and availability at LeadTime.ca — we source through authorized Schneider Electric distribution channels and ship worldwide.

Who Should Order the Schneider Electric 18800 — and Who Should Not

This MCB is the correct choice for maintenance personnel who need an exact electrical replacement for a failed unit in an operational Acti9 NG125-based panel. Confirm all of the following before ordering:

  • Your circuit is a three-pole (3P) configuration — the 18800 is not interchangeable with 1-pole or 2-pole breakers
  • Your circuit requires exactly 16A rated current — the 18800 is a fixed-rating device; oversizing or undersizing creates safety and compliance risk
  • Your load type matches a C-curve trip characteristic — C-curve is appropriate for mixed inductive and resistive loads with moderate inrush; it is not correct for heavy motor-start inrush (D-curve) or purely resistive low-inrush loads (B-curve)
  • Your network fault level does not exceed 50 kA — the 18800 is rated at 50 kA breaking capacity per IEC 60947-2; exceeding this threshold creates a catastrophic failure risk
  • Your panel voltage class (typically 230V or 400V) matches the rated voltage of the specific unit you are sourcing
  • You have confirmed stock availability and lead time with an authorized distributor before committing to a project schedule

If you are designing a new panel, planning a multi-year capital refresh, or need smart connectivity and remote monitoring, the 18800 is the wrong choice. The current Acti9 Smartlink MCB family (3P, 16A, C-curve variant available) is the forward path and offers the same core electrical performance with added predictive diagnostics.

On this page:

What the Schneider Electric 18800 Does in a Real Panel

The Schneider Electric 18800 is a three-pole miniature circuit breaker (MCB) from the Acti9 NG125L product family. Its primary function is overcurrent protection: it monitors current flow across all three poles simultaneously and automatically interrupts the circuit when fault current — either a sustained overload or a sudden short circuit — is detected. The C-curve trip characteristic means the breaker is calibrated to tolerate moderate inrush currents typical of mixed inductive and resistive loads, tripping instantly at fault currents above approximately five times the 16A rated current and with a deliberate delay for lower-level overloads in the one-to-five times range, per IEC 60947-2.

The 18800 is a manual-reset device. After an automatic trip on fault, the lever must be moved fully to the OFF position before the breaker can be reset to ON. It does not auto-restart. This behavior is by design and is a safety requirement — it prevents energizing a faulted circuit without deliberate human intervention. The unit mounts on standard DIN rail, with an 18mm rail width per pole in a modular, stackable configuration standard to the Acti9 family. With a 50 kA breaking capacity verified against IEC 60947-2, the 18800 can safely interrupt fault currents up to 50,000 amperes without mechanical failure — a specification that must be respected when evaluating any alternative model.

Typical System Architecture for the NG125L

The Schneider Electric 18800 sits at the branch-circuit protection layer of a low-voltage electrical distribution system, downstream of the main distribution board and upstream of individual loads or sub-panels.

  • Utility supply or transformer secondary feeds the main low-voltage switchboard or distribution panel
  • Main incomer breaker (higher-rated MCB or MCCB) provides upstream fault protection for the entire panel
  • The Schneider Electric 18800 mounts on DIN rail in the branch-circuit row, protecting one three-phase circuit at 16A
  • Downstream load — motor starter, HVAC equipment, control panel supply, or sub-distribution — connects to the outgoing terminals of the 18800
  • In multi-breaker panels, multiple NG125L units sit in adjacent DIN rail positions; each protects its own branch independently

Where the Schneider Electric 18800 Is Typically Deployed

The 18800 was widely installed across industrial and commercial facilities during its production life. The most common current use case is maintenance replacement in existing Acti9 NG125-based panels — facilities where this breaker family was standardized across dozens or hundreds of branch circuits, and where a failed unit needs an exact electrical match to avoid panel recertification or redesign.

In HVAC and building management applications, three-pole 16A MCBs of this class protect supply circuits to variable-speed drives, fan motor starters, and control panel power supplies. Water treatment and pharmaceutical facilities use them extensively in motor control centers where the C-curve characteristic accommodates pump and mixer inrush. Industrial manufacturing environments rely on them for branch protection of conveyor drives and pneumatic control systems.

A secondary current use case is equipment remanufacturing — integrators and panel builders restoring decommissioned machinery to service need the 18800 to match original panel configurations for functional and documentation compliance.

Application Typical Deployment
Industrial manufacturing Branch circuit protection for conveyor drives, pneumatic control panels, and motor starters in DIN rail distribution boards
HVAC systems Three-pole supply protection for variable-speed drives and fan motor starters in commercial building management panels
Water treatment facilities Pump and mixer motor circuit protection in motor control centers; C-curve matched to pump inrush characteristics
Pharmaceutical / cleanroom facilities Branch protection in validated electrical distribution systems where maintaining original equipment specifications is required for compliance documentation
Equipment remanufacturing Replacement of original breakers in decommissioned machinery panels being restored for redeployment
Commercial multi-unit buildings Sub-distribution panel branch protection for common-area electrical loads and HVAC supply circuits

Schneider Electric 18800 Key Specifications and Variant Comparison

Parameter Value Notes
Catalog Number 18800 EAN: 3303430188001
Product Family Acti9 NG125L Discontinued as of 9 February 2023
Pole Configuration 3P All three poles protected; not interchangeable with 1P or 2P variants
Rated Current (In) 16A Fixed rating; continuous load must not exceed this value
Trip Curve C Moderate inrush tolerance; suited to mixed inductive/resistive loads
Breaking Capacity 50 kA Per IEC 60947-2; network fault level must not exceed this value
Voltage Class 230V / 400V (typical) Verify on unit nameplate; regional variation may apply
Frequency 50/60 Hz Dual-frequency rated
Standard Compliance IEC 60947-2 Globally recognized low-voltage circuit breaker standard
Mounting DIN rail, 18mm per pole Modular stackable; manual on/off lever with automatic fault trip (no auto-restart)

Full technical specifications are available on the product page at LeadTime.ca.

The table below compares the Schneider Electric 18800 against current alternatives. Pay close attention to the breaking capacity column — this is the specification most frequently mismatched when buyers select a substitute.

Model Manufacturer Poles Rated Current Trip Curve Breaking Capacity Smart Features Typical Lead Time (North America) Notes
18800 (NG125L) Schneider Electric 3 16A C 50 kA None 2–4 weeks (residual stock only) Discontinued 9 Feb 2023; no new production
NG125 Smartlink Schneider Electric 3 16A C 50 kA Remote monitoring, predictive diagnostics 1–2 weeks Recommended upgrade; same electrical performance
ABB S200 ABB 3 16A C 25 kA None 1–2 weeks Lower breaking capacity; verify fault level before substituting
Eaton XPQC Eaton 3 16A C 36 kA None 1–3 weeks Good North American availability; verify breaking capacity against site fault level
Siemens 5SL6 Siemens 3 16A C 25 kA None 2–4 weeks European-standard footprint; terminal adapter may be required
C120N Schneider Electric 3 20–100A (configurable) C/D Up to 100 kA Smart variants available 2–3 weeks Larger frame; not a plug-and-play replacement; requires panel redesign

If your network fault level is near or at 50 kA, the ABB S200 (25 kA) and Siemens 5SL6 (25 kA) cannot be used as direct substitutes without engineering review. The Acti9 NG125 Smartlink and the Eaton XPQC (36 kA) are closer alternatives, but only the Smartlink matches the original 50 kA rating exactly. Check current stock and pricing at LeadTime.ca before committing to any alternative.

Expert Verdict: Is the Schneider Electric 18800 Still Worth Sourcing?

The Schneider Electric 18800 is the right choice for one specific buyer: the facilities or maintenance professional who is managing an existing Acti9 NG125-based electrical system and needs an exact electrical replacement for a failed breaker without triggering panel recertification or redesign. Within that context, it remains a technically sound device. It is IEC 60947-2 compliant, carries a 50 kA breaking capacity that exceeds many alternative MCBs at the same current rating, and fits directly into existing DIN rail positions without physical modification. For equipment remanufacturers restoring original panel configurations, it similarly justifies the sourcing effort. The fixed 3P, 16A, C-curve specification means there is no ambiguity in the selection — either your application matches all three parameters, or it does not.

Outside of the maintenance-replacement scenario, this is not the part to specify. New panel designs should use the current Acti9 Smartlink MCB, which delivers the same 50 kA breaking capacity and C-curve performance while adding remote monitoring and predictive diagnostics — capabilities the 18800 simply cannot offer. Buyers with urgency who cannot wait 2–4 weeks for residual stock should evaluate the Eaton XPQC (36 kA breaking capacity) or the Acti9 Smartlink as faster-availability alternatives. Buyers in systems where fault levels are definitively below 25 kA may consider the ABB S200 or Siemens 5SL6, but only after a qualified engineer has confirmed the network fault level — never assume. The C120N is not a substitute; it requires panel redesign and serves a different current range entirely.

From a procurement standpoint, the 18800's discontinued status as of 9 February 2023 means residual inventory is finite and will not be replenished. Lead times of 2–4 weeks are typical for North American authorized distributor sourcing; international sourcing may extend further as regional stock depletes. Buying through an authorized specialist distributor is particularly important for a discontinued product — gray-market sources cannot reliably provide authenticity documentation, compliance certificates, or warranty clarity, all of which matter for installation records and insurance purposes. View current availability and sourcing options at LeadTime.ca — we ship worldwide and work within Schneider Electric's authorized reseller network.

For volume requirements or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can help you evaluate alternatives if residual 18800 stock does not meet your timeline.

Why Specialist Advice Matters When Specifying the Schneider Electric 18800

The Schneider Electric 18800 does not have an active community of buyers sharing notes on forums or review platforms. That is not surprising for a product that was discontinued in February 2023 and whose remaining buyers are primarily in maintenance-replacement mode rather than first-time design mode. Engineers who know this part know it from years of working with it in existing facilities — they are not posting sourcing questions on Reddit. What this means in practice is that when a question does arise about the 18800, there is rarely a peer community thread to consult. The authoritative source is an experienced distributor who has navigated the discontinuation and tracked where remaining stock resides.

The most consequential mistakes made when sourcing discontinued MCBs like the 18800 are not technical misunderstandings — they are procurement process failures. An engineer orders based on a catalog number from legacy documentation, assumes the part is still in production, and discovers a 6-week lead time the week the panel needs to go back online. Or a buyer accepts a cheaper alternative from a non-authorized channel with no compliance documentation, only to discover during an insurance audit that the installed breaker cannot be traced to an authorized source. A specialist distributor with direct relationships in the Schneider Electric reseller network checks stock status in real time, provides documentation with every shipment, and can flag immediately when a proposed alternative has a breaking capacity mismatch — the single most dangerous substitution error in this product category.

General MCB selection errors that surface consistently in the broader electrical engineering community are directly relevant to anyone sourcing the 18800 today. Ordering the wrong pole count — particularly confusing 1-pole and 3-pole variants with similar catalog number structures — is a well-documented mistake that causes installation failures and project delays. Selecting the wrong trip curve without analyzing load type (substituting a B-curve or D-curve for a C-curve without engineering review) changes the overload protection profile of the circuit in ways that may not be visible until a nuisance trip or missed fault event occurs. Underspecifying breaking capacity is the most serious error: installing a 25 kA alternative in a network with a 40 kA available fault current creates a genuine arc-flash hazard. These are the conversations a specialist distributor has before the order ships — not after.

Installation and Wiring Overview

The following points cover the key verification steps and physical requirements for installing the Schneider Electric 18800 or an approved equivalent. For full wiring diagrams, terminal torque specifications, and step-by-step procedures, refer to the official Schneider Electric Acti9 NG125L installation documentation.

  • Isolate and lock/tag the main panel disconnect before any installation or removal work; verify absence of voltage at the DIN rail and breaker terminals with a calibrated tester
  • Verify the DIN rail is undamaged, free of corrosion, and properly grounded per local electrical code before mounting the new breaker
  • Seat the MCB onto the DIN rail from left to right until the latching mechanism clicks audibly — partial seating will result in poor contact and potential arc damage at the terminals
  • Connect incoming phase wires to the top terminals and outgoing load wires to the bottom terminals using wire of the correct gauge for a 16A circuit; tighten terminal connections to the torque specified in the Schneider NG125L installation manual — improper torque is a leading cause of connection failure over time
  • After restoring power, monitor the protected circuit under normal operating load and confirm the breaker holds in the ON position; measure load current with a clamp meter to verify it remains within the 16A rated current limit

Wrong-Part Prevention: Confirm Before You Order

Before placing any order for the Schneider Electric 18800 — or an alternative replacement — work through this checklist in full. Each item represents a documented source of ordering errors for this model.

  1. Confirm discontinuation status and verify remaining stock with distributor before committing to order
  2. Check voltage class of your electrical system (230V, 400V, etc.) matches this model's rating
  3. Verify pole count requirement: 18800 is 3-pole; if you need 1-pole or 2-pole, this is incorrect
  4. Confirm rated current matches your circuit requirement (18800 is fixed at 16A; oversizing or undersizing creates safety risk)
  5. Verify C-curve trip characteristic matches your load type (C-curve is general purpose; if you need B-curve for resistive loads or D-curve for heavy motor inrush, this is wrong)
  6. Check fault level of your electrical system: 18800 has 50 kA breaking capacity; if network fault level exceeds 50 kA, breaking capacity may be inadequate

If any item on this checklist raises a question, do not guess. Contact LeadTime.ca before ordering — our team can verify compatibility, confirm current stock status, and identify a suitable alternative if the 18800 is unavailable for your timeline.

Frequently Asked Questions

Can I still buy the Schneider Electric 18800, and how long will stock last?

Residual authorized stock is available through specialist distributors, but no new production exists — Schneider Electric discontinued the 18800 on 9 February 2023. Lead times are typically 2–4 weeks for North American sourcing, with international sourcing potentially extending beyond that as inventory depletes. Stock levels vary by distributor and region; always confirm availability before committing to a delivery date. Use EAN code 3303430188001 to eliminate catalog number ambiguity when requesting stock checks.

Is it safe to replace the 18800 with a breaker that has a lower breaking capacity?

Only if your network fault level is confirmed to be below the alternative breaker's breaking capacity. The Schneider Electric 18800 is rated at 50 kA per IEC 60947-2. The ABB S200 and Siemens 5SL6 alternatives carry 25 kA ratings — installing either of these in a network with a fault level above 25 kA creates a serious arc-flash and personnel safety hazard. Always obtain the network short-circuit study for the panel location and compare it against the replacement breaker's breaking capacity before substituting. Never downgrade breaking capacity without engineering sign-off.

What does the C-curve trip characteristic mean, and how do I know if it is correct for my circuit?

The C-curve defines the relationship between overcurrent magnitude and trip time. A C-curve breaker tolerates inrush currents typical of mixed inductive and resistive loads — such as motor starters with moderate starting current — without nuisance tripping, while still protecting against sustained overloads. If your circuit has confirmed high motor inrush (heavy across-the-line motor starts), a D-curve may be more appropriate. If your load is purely resistive with low inrush (heating elements, resistive banks), a B-curve offers tighter overload protection. Substituting a different curve type requires engineering review; it is not a simple drop-in change.

Will the Acti9 Smartlink MCB install directly in the same DIN rail position as the 18800?

The Acti9 NG125 Smartlink is the electrically closest current-generation replacement, offering the same 50 kA breaking capacity and the same C-curve performance at 3P, 16A. The Smartlink family is designed around the same DIN rail mounting standard. Confirm physical dimensions and terminal compatibility with your distributor for your specific panel configuration before ordering, particularly if the panel has bus bar connectors or auxiliaries attached to the original 18800.

My 18800 is tripping but the measured load current is well below 16A. What is happening?

If the measured continuous current is genuinely below the rated current and the breaker is still tripping, the most likely causes are either brief inrush events exceeding the C-curve threshold at equipment startup (which a clamp meter reading steady-state current will miss), or internal contact damage from a previous high-fault event that has shifted the trip calibration. Move the lever fully to OFF, then reset to ON. If the breaker will not hold or trips immediately under low load, the unit has likely sustained internal damage and must be replaced — do not operate a suspect breaker. Document the failure for facility maintenance records before replacement.

Does replacing the 18800 with an alternative brand affect my panel certification?

This depends on how the panel was originally certified. If the panel carries a type-tested or certified assembly designation that specifies Schneider Electric breakers, substituting a different brand may affect the certification status. Contact the original panel builder or the certification body before making a brand substitution in a certified assembly. For field-modified panels, document the change thoroughly — including the alternative breaker's datasheet and compliance documentation — so future maintenance personnel have a complete record.

Why Order the Schneider Electric 18800 Through LeadTime.ca

  • Authorized sourcing network: LeadTime.ca sources through established Schneider Electric authorized reseller channels — critical for a discontinued product where gray-market risk is elevated
  • Documentation provided: Every shipment includes compliance documentation and traceability data, which matters for installation records, insurance audits, and code compliance
  • Technical pre-order verification: Our team can confirm stock status, flag breaking capacity mismatches, and identify alternatives before the order ships — not after
  • Global shipping: LeadTime.ca ships worldwide; lead times and availability are not restricted to any single region
  • Volume and project pricing: Contact us directly for volume orders or project-specific sourcing requirements

At-a-Glance: Schneider Electric 18800 Key Facts

  • Official product name: Miniature Circuit-Breaker, Acti9 NG125L, 3P, 16A, C curve — catalog number 18800, EAN 3303430188001
  • Discontinued by Schneider Electric on 9 February 2023; no manufacturer-designated replacement model
  • Three-pole configuration (3P), fixed 16A rated current, C-curve trip characteristic
  • 50 kA breaking capacity per IEC 60947-2 — highest breaking capacity among commonly compared alternatives at this current rating
  • Rated for 230V / 400V (typical); dual-frequency rated at 50/60 Hz; verify voltage class on unit nameplate
  • DIN rail mounting, 18mm per pole, modular stackable; manual reset required after automatic trip — no auto-restart
  • Residual authorized stock available; typical North American lead time 2–4 weeks; international sourcing may extend further
  • Closest current replacement: Acti9 NG125 Smartlink (3P, 16A, C-curve, 50 kA) — same electrical performance plus remote monitoring and predictive diagnostics
  • Alternative brands with partial compatibility: ABB S200 (25 kA), Eaton XPQC (36 kA), Siemens 5SL6 (25 kA) — verify breaking capacity against site fault level before substituting
  • Wrong-part risk: pole count mismatch, trip curve mismatch, and breaking capacity underspecification are the three most consequential ordering errors for this model
