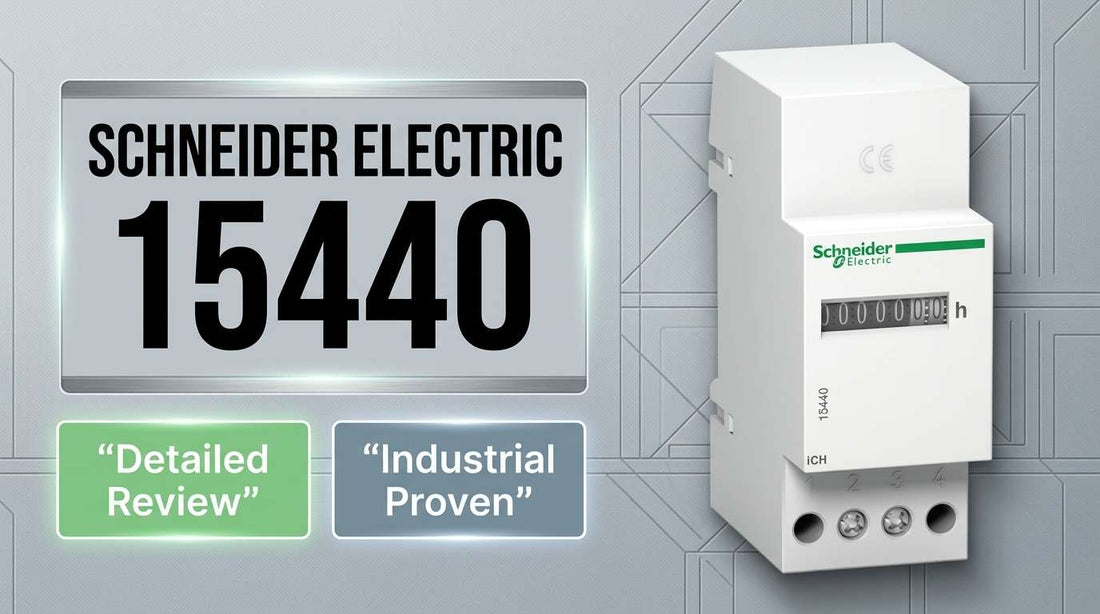

Schneider Electric 15440 modular hour counter iCH 230V mounted on DIN rail in industrial control cabinet

Schneider 15440 Modular Hour Counter iCH - 230V: Specifications, Troubleshooting, and Alternatives Guide

Maintenance technicians and controls engineers searching for the Schneider 15440 are typically at one of two crossroads: confirming specifications before placing an order for an Acti9-based cabinet build, or scrambling to find a replacement after learning this product was discontinued on February 21, 2025. The 15440 is an electromechanical, DIN rail-mounted hour counter operating on 230V AC 50Hz, designed to accumulate operating hours continuously up to 99,999.99 hours — roughly 11.4 years of uninterrupted runtime — with no battery dependency and no reset capability. Understanding exactly what it does and does not do is the difference between a smooth installation and a costly ordering mistake.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the Schneider 15440 at LeadTime.ca — we ship worldwide and can advise on current stock before you commit to a purchase order.

Who Should Buy the Schneider 15440 — and Who Shouldn't

The Schneider 15440 is the right choice for facilities and maintenance teams already standardized on Schneider Electric Acti9 modular cabinets who need reliable, battery-independent operating-hour tracking for predictive maintenance or compliance documentation.

  • Your installation supply voltage is confirmed 230V AC 50Hz — no other voltage is compatible without an external transformer
  • Your DIN rail uses 9mm pitch and has at least 4 consecutive module slots free to accommodate the 36mm module width
  • You require a permanent, non-resettable cumulative hour record — rental or multi-tenant equipment tracking is not a fit
  • An electromechanical display is acceptable — this device has no digital screen, no wireless output, and no alarm threshold function
  • IP65 front face protection meets your cabinet environmental requirements
  • You are sourcing from existing distributor stock — this product is discontinued and supply is finite

If your circuit runs at 120V or 24V, you require reset functionality, or you need digital readout with remote monitoring, the Schneider 15440 is the wrong part. See the variant comparison table below for specific alternatives to evaluate.

On this page:

What the Schneider 15440 Actually Does in a Control System

The Schneider 15440 — officially designated the modular hour counter iCH - 230V — is not a timer, not a programmable time switch, and not a digital counter. It is an electromechanical accumulator: it counts forward from zero every moment it receives 230V AC power, and it never counts backward. The seven-digit display reads to two decimal places, resolving down to 0.01 hours (approximately 36 seconds per the 0.0001-hour display accuracy specification). When the circuit supplying it is de-energized, the counter stops. When power returns, it resumes from exactly where it stopped.

This simple behavior is precisely the point. There is no firmware to update, no battery to replace, no network connection to secure, and no configuration to perform. The 15440 draws only 0.15 VA from the monitored circuit — a negligible load — and provides a permanent, tamper-evident record of cumulative operating time. For predictive maintenance programs, compliance audits, and equipment lifetime documentation, this is exactly the kind of authoritative record that holds up under regulatory scrutiny.

The device is classified within the Schneider Electric Acti9 modular range, certified compatible with Prisma and Prisma P/G enclosure doors, making it a standardized drop-in component for facilities already operating Schneider cabinet infrastructure. The maximum measurable value of 99,999.99 hours translates to approximately 11.4 years of continuous 24/7 operation — a range that eliminates the need for frequent module replacement in long-term equipment monitoring scenarios.

Typical System Architecture for DIN Rail Hour Counter Installations

The Schneider 15440 sits directly on the 230V AC supply branch that powers the equipment being monitored — it is a passive observer in the circuit, not a control element. Here is how it typically fits into a control cabinet:

  • Upstream: Main distribution panel or sub-panel supplying 230V AC to the equipment circuit
  • Branch circuit protection: Circuit breaker or fuse protecting the 230V feed to both the load and the hour counter
  • Schneider 15440: Tapped directly onto the 230V phase and neutral, mounted on the 9mm DIN rail within the enclosure — accumulates hours whenever the circuit is live
  • Controlled load: Motor starter, contactor, or HVAC compressor downstream of the same supply — the equipment whose runtime is being tracked
  • Maintenance interface: Technician reads the electromechanical display visually at the cabinet door; no data output or network interface exists

Where the Schneider 15440 Gets Installed: Industries and Use Cases

In manufacturing environments, the Schneider 15440 is most commonly found tracking runtime on compressors, conveyor drives, and CNC spindle motors — equipment where oil changes, filter replacements, and bearing inspections are triggered by accumulated hours rather than calendar intervals. A compressor running two shifts daily accumulates hours at a very different rate than one running around the clock, and the 15440 captures that difference precisely.

Industrial HVAC and building automation teams use the 15440 to track chiller and air handler runtime for service contract compliance. In data center cooling applications, where equipment uptime is critical and maintenance windows are tightly scheduled, a permanent hour record provides the documentation needed to verify service intervals and support warranty claims on high-value equipment.

Motor and pump installations in process industries — water treatment, chemical processing, food and beverage — benefit from the IP65 front face rating, which protects the display in cabinet environments with elevated humidity or occasional wash-down exposure. The non-resettable design also supports regulatory and ISO audit requirements, where a tamper-evident cumulative record carries more evidentiary weight than a resettable digital counter.

For equipment rental and temporary installations, the 15440 is often the wrong choice precisely because it cannot be reset between rental cycles. However, some rental fleet operators use it deliberately to maintain a permanent lifetime-hours record that survives multiple tenants — the total lifetime record informs end-of-life decisions regardless of individual rental periods.

Application Typical Deployment
Compressor runtime tracking Tapped on 230V feed to motor starter; triggers oil change and filter maintenance at defined hour intervals
Industrial HVAC monitoring Mounted in Acti9 panel alongside chiller control; documents runtime for service contract compliance
CNC machine spindle monitoring Installed in machine control cabinet; tracks spindle hours for bearing and tooling replacement scheduling
Pump station maintenance Mounted on DIN rail in pump control panel; logs cumulative hours for predictive bearing and seal replacement
Compliance and audit documentation Permanent non-resettable record used during ISO or regulatory inspections to verify equipment duty cycle
Equipment lifetime tracking Total hours at end of life used to justify capital replacement decisions and warranty claim support

Schneider 15440 Specifications Engineers Need Before Ordering

Specification Value
Rated Supply Voltage 230V AC, 50Hz only
Power Consumption 0.15 VA
Display Type Electromechanical, 7-digit
Decimal Precision 2 decimal places (reads to 0.01 hours)
Display Accuracy 0.0001 h
Maximum Measurable Hours 99,999.99 h (approx. 11.4 years continuous)
Reset Capability None — non-resettable permanent record
Module Width / DIN Footprint 36 mm / 4 modules on 9mm pitch DIN rail
Front Face IP Rating IP65
Enclosure Compatibility Prisma, Prisma P door, Prisma G door (Acti9 range)

Full technical specifications are available on the product page at LeadTime.ca.

Schneider 15440 vs. Digital Hour Counter Alternatives: Which One Do You Need?

Feature Schneider 15440 Digital Hour Counter (Generic) Advanced Digital Counter
Display Type Electromechanical, 7-digit LCD or LED digital Digital with configurable display
Battery Backup None — counts only while powered Typically included Yes, in most models
Resettable No — permanent record only Often yes Yes
Remote Monitoring No No (basic models) Yes (advanced models)
Voltage Options 230V AC only Varies by model (often multi-voltage) Multiple voltage options typical
DIN Rail Mount Yes, 4 modules on 9mm pitch Usually Usually
Acti9 Ecosystem Fit Certified Acti9 / Prisma compatible Not certified for Schneider enclosures Ecosystem-dependent
Availability Discontinued Feb 2025 — existing stock only Generally available Generally available

If your installation requires reset capability, multi-voltage input, or remote data access, the Schneider 15440 is not the right fit regardless of stock availability. Visit the product page at LeadTime.ca to confirm current stock, or contact our team to discuss alternative hour counter options that match your voltage and feature requirements.

Expert Verdict: Is the Schneider 15440 Still Worth Buying in 2025?

The Schneider 15440 is the right choice for a specific and well-defined buyer: a maintenance or facilities team already operating Schneider Acti9 or Prisma cabinets on a 230V AC infrastructure, with a requirement for permanent, non-resettable cumulative hour records — whether for compliance audits, ISO documentation, or long-range predictive maintenance scheduling. Its electromechanical design requires no battery, no firmware, and no configuration. The 0.15 VA power draw is negligible, and the 0.0001-hour display accuracy is more than sufficient for maintenance intervals measured in hundreds or thousands of hours. For that buyer profile, it has been a reliable, low-failure workhorse.

The honest limits are equally clear. The 15440 tracks hours at a single location, displays them locally on a seven-digit mechanical dial, and cannot be reset, connected, or alarmed. If your maintenance program has evolved toward digital dashboards, IoT-connected asset tracking, or multi-circuit monitoring, this device will not grow with it. Buyers needing reset capability — particularly rental fleet managers or temporary installation contractors — should evaluate digital hour counters with manual reset functionality from the outset rather than discovering the limitation after installation. And critically: the February 21, 2025 discontinuation means you are purchasing from a finite pool of existing distributor stock. No direct replacement has been announced by Schneider Electric. For new installations where long-term parts availability matters, evaluating a digital alternative now protects your capital investment against a future supply gap.

From a procurement standpoint, the most common project risk with the Schneider 15440 is not technical — it is timing. Buyers who discover this product through an older bill of materials or legacy equipment list may not realize stock is depleted until weeks into a procurement cycle. Working with a specialist industrial distributor that maintains real-time inventory visibility is the practical safeguard here. Check current stock and availability for the Schneider 15440 at LeadTime.ca before finalizing your order — we ship worldwide and can confirm whether existing stock meets your project timeline or whether an alternative should be specified instead.

For volume pricing inquiries or to discuss alternative hour counter options when the 15440 is unavailable, contact the LeadTime.ca team directly — we ship worldwide and respond quickly to time-sensitive sourcing requests.

What Engineers Need to Know Before Ordering the Schneider 15440

Because the Schneider 15440 occupies a narrow technical niche — a single-voltage, non-resettable, electromechanical counter in a product family now discontinued — it generates very little online discussion compared to programmable controllers or variable frequency drives. There are no active forum threads to consult, no crowdsourced troubleshooting guides, and no community-driven comparison charts. What exists instead is a set of hard technical constraints and a discontinuation timeline that make specialist sourcing advice more valuable than peer forum searches.

The ordering mistakes that matter most with this product are predictable from the specifications alone. Technicians working from older equipment lists sometimes order the 15440 for a 120V AC panel — a common North American circuit voltage — without checking the datasheet voltage requirement. The 15440 accepts 230V AC 50Hz only; there is no multi-voltage variant, and applying the wrong voltage risks damaging the internal electromechanical mechanism and voiding the 18-month warranty. A second common error is assuming the module can be reset between equipment ownership changes or rental cycles. The non-resettable design is not a missing feature — it is a deliberate characteristic that makes the record tamper-evident. Buyers who need reset capability must select a different product category entirely. A third mistake — increasingly common since February 2025 — is submitting a purchase order without first confirming current stock. Procurement systems carrying the 15440 as an active catalog item may not yet reflect discontinuation status, leading to order confirmations that are later cancelled when the distributor checks real inventory.

When community data is sparse and the product clock is ticking on available supply, the most productive resource is a specialist distributor who actively monitors inventory across channels and can flag end-of-life status in real time. That conversation — about what is in stock, what the lead time actually is, and what the closest alternative looks like if the shelf is empty — is exactly where LeadTime.ca adds value that a general search engine cannot. The wrong-part checklist below captures the critical verification steps to complete before any purchase order is submitted.

Wiring and Installation Overview

The installation of the Schneider 15440 is straightforward for any technician familiar with DIN rail panel assembly, but several pre-installation verifications are critical before powering the module. Engineers requiring full wiring diagrams and terminal identification should refer to the official Schneider Electric datasheet.

  • Confirm supply voltage at the installation point is 230V AC — use a multimeter before connecting; the 15440 accepts no other input voltage
  • Verify the DIN rail uses 9mm pitch and has at least 4 consecutive empty module slots to accommodate the 36mm module width
  • De-energize the circuit fully before mounting; clip the module onto the DIN rail top-first, then press the bottom clip to engage
  • Connect the 230V AC phase and neutral conductors to the designated supply terminals per the Schneider datasheet terminal markings — tighten connections to the specified torque
  • Restore power and confirm the electromechanical display is active — the counter begins accumulating from its current displayed value immediately upon receiving 230V power

Wrong-Part Prevention: Verify Before You Order

Before submitting any purchase order for the Schneider 15440, work through each item on this checklist. These are the specific errors that result in delayed projects, damaged modules, and emergency re-sourcing:

  1. Confirm supply voltage in your installation is 230V AC 50Hz (not 120V, 24V, or DC)
  2. Verify DIN rail has 9mm pitch and at least 4 consecutive module slots available
  3. Confirm no reset requirement; this counter is permanent record only
  4. Check Prisma door cabinet compatibility if using Schneider Prisma enclosure
  5. Verify 18-month warranty coverage aligns with your maintenance contract cycle
  6. Do NOT order if you need digital display, wireless connectivity, or hour threshold alarm
  7. Confirm current distributor stock; product discontinued as of Feb 2025 (existing stock only)

If any item on this checklist raises a question, contact the LeadTime.ca team before placing your order — we can confirm stock availability, verify compatibility, and recommend alternatives when the 15440 is not the right fit.

Frequently Asked Questions

Is the Schneider 15440 still available, or has it been fully discontinued?

The Schneider 15440 was officially discontinued on February 21, 2025, with no direct replacement announced by Schneider Electric. Existing distributor stock remains available while it lasts, but supply is finite and depleting. Always confirm current stock with your distributor before submitting a purchase order — do not rely on procurement system catalog entries that may not yet reflect the discontinuation status.

Can the Schneider 15440 be reset to zero for rental equipment or project-to-project use?

No. The 15440 is explicitly non-resettable by design — the electromechanical mechanism accumulates hours permanently from first power-on. There is no user-accessible reset button, and attempting a forced mechanical reset will damage the internal mechanism and void the 18-month warranty. Applications requiring reset functionality must use a different product category, such as a digital hour counter with manual reset capability.

Will the Schneider 15440 work on a 120V AC circuit with a step-up transformer?

Technically, a step-up transformer converting 120V to 230V AC could supply the required voltage to the 15440, but the 15440 is rated for 230V AC 50Hz — North American 120V circuits typically run at 60Hz, not 50Hz. Frequency mismatch may affect electromechanical counting accuracy. If your installation is 120V or 60Hz, selecting a purpose-rated alternative hour counter is the safer approach. Verify with Schneider Electric technical support before attempting any transformer-based workaround.

Does the Schneider 15440 work with non-Schneider enclosures, or only with Prisma cabinets?

The 15440 mounts on any standard 9mm pitch DIN rail and is not mechanically restricted to Schneider enclosures. The Prisma and Prisma P/G door compatibility designation means it is certified to fit Schneider's own enclosure door cutouts and accessory mounting positions — useful for Acti9 ecosystem builds. For non-Schneider enclosures, verify that the 36mm module width and the 87-90mm height clear your cabinet's DIN rail clearance and door opening dimensions.

What happens when the Schneider 15440 display reaches 99,999.99 hours?

The counter stops at its maximum display value of 99,999.99 hours and does not roll over to zero. Equipment that has been operating continuously for approximately 11.4 years would reach this limit. For installations where runtime will approach this figure, plan for module replacement before the maximum is reached if uninterrupted tracking is required. The non-rollover behavior prevents silent data loss but requires proactive lifecycle management for very long-running equipment.

What is the display accuracy of the Schneider 15440, and is it sufficient for predictive maintenance scheduling?

The 15440 has a display accuracy of 0.0001 hours, with readout resolution to 0.01 hours — equivalent to approximately 36 seconds of measurement precision. For predictive maintenance programs scheduling service every 1,000 to 10,000 hours, this accuracy is more than adequate. The 0.15 VA power consumption and continuous accumulation design mean measurement begins immediately on power-up with no warm-up period or calibration required.

Why Order the Schneider 15440 Through LeadTime.ca

  • Real-time stock visibility on discontinued and hard-to-source Schneider Electric parts, including the 15440
  • Worldwide shipping — no geographic restrictions on order fulfillment
  • Direct distributor access to confirm availability and lead time before you commit to a purchase order
  • Volume pricing available for multi-unit orders and cabinet integration projects
  • Alternative sourcing recommendations when the 15440 is out of stock — we identify the closest compatible options for your specific voltage and mounting requirements

At-a-Glance Summary

  • Model: Schneider 15440 — modular hour counter iCH - 230V
  • Supply voltage: 230V AC 50Hz only — no other voltage options without external transformer
  • Maximum measurable hours: 99,999.99 h (approximately 11.4 years continuous operation)
  • Display: Electromechanical 7-digit, 2 decimal places, accuracy 0.0001 h
  • Power consumption: 0.15 VA
  • DIN rail footprint: 36mm width, 4 modules on 9mm pitch rail
  • Front face protection: IP65
  • Reset capability: None — permanent non-resettable record
  • Enclosure compatibility: Acti9 range, Prisma and Prisma P/G door certified
  • Warranty: 18 months
  • Discontinuation status: Discontinued February 21, 2025 — existing stock only, no direct replacement announced
