Schneider Electric 28903 Compact INS63 — 4-Pole 63A Switch Guide
Schneider Electric 28903 Compact INS63 Switch Disconnector: 4-Pole 63A Specifications and Selection Guide
When a controls engineer or electrical contractor needs a reliable manual isolation point for a 3-phase circuit up to 63A, the Schneider Electric 28903 is one of the first parts on the shortlist. It is a 4-pole switch-disconnector in the Compact INS63 family, fitted with a manual black rotary handle and positive contact indication as standard — the feature that confirms the load path is genuinely open before a technician puts hands on the equipment. If you are at the point of validating this SKU against your circuit requirements, the decision usually comes down to three numbers: 4 poles, 63A, and manual operation.
If you have already confirmed this is the right part, check current pricing and availability for the Schneider Electric 28903 at LeadTime.ca — ships worldwide.
Who Should Buy the Schneider Electric 28903 — and Who Shouldn't
This switch-disconnector is the right choice for engineers and integrators specifying a standard 4-pole manual isolation switch for compact industrial cabinets. It is a well-matched fit when all of the following apply:
- Your circuit requires 4-pole isolation — all three phases plus neutral — confirmed on your one-line diagram
- Maximum circuit current is 63A or less; upstream breaker or fuse has been cross-checked against actual load, not assumed
- Manual rotary handle operation is acceptable; no remote or automated switching requirement exists in the control system design
- Positive contact indication is required or preferred for safety-critical isolation confirmation
- Cabinet space is configured for Compact INS63 DIN-rail or panel-mount footprint
- Installation is in a standard atmosphere; no hazardous zone or explosive atmosphere certification is required
If your circuit current exceeds 63A, you need the Compact INS100 or INS160 instead. If motorized or remote isolation is required, the 28903 cannot be retrofitted — a different Schneider SKU from the motorized Compact range is the correct specification. If only 3-pole isolation is needed, an alternative pole-configuration SKU exists and avoids unnecessary cost and complexity.
On this page:
- What the Schneider Electric 28903 Actually Does in a Control System
- Typical System Architecture for the Compact INS63
- Where the 28903 Gets Installed: Industries and Use Cases
- Key Specifications and Variant Comparison
- Expert Verdict: Is the 28903 the Right Part for Your Project?
- What Engineers Need to Know Before Ordering the Schneider Electric 28903
- Wiring and Installation Overview
- Wrong-Part Prevention Checklist Before You Order
- Frequently Asked Questions
- Why Order Through LeadTime.ca
- At-a-Glance Summary
What the Schneider Electric 28903 Actually Does in a Control System

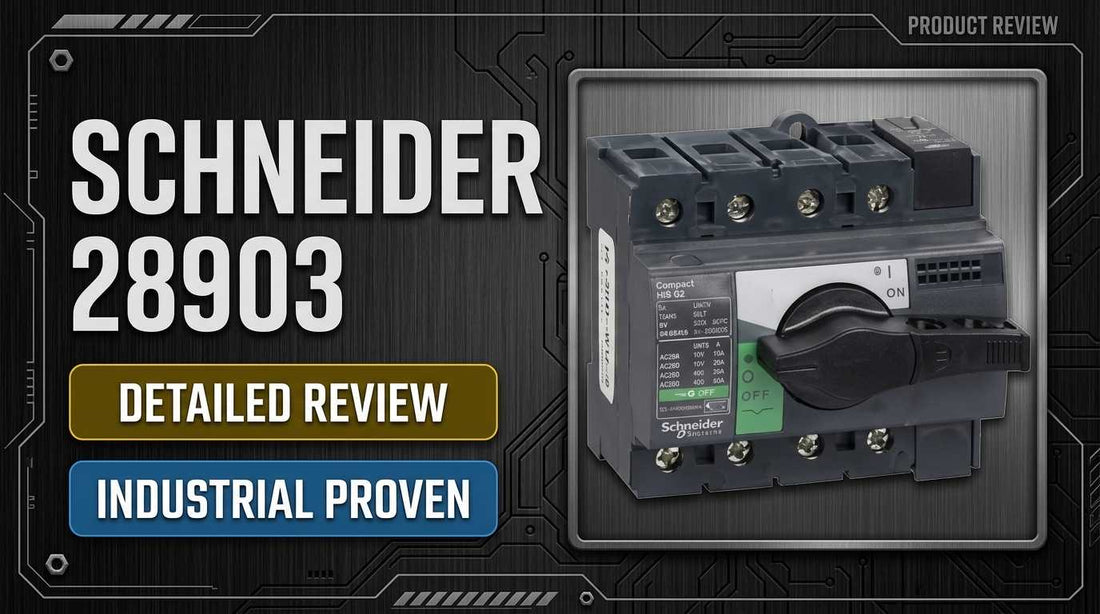

The Schneider Electric 28903 is a manual switch-disconnector — not a circuit breaker, not a contactor, and not a protective relay. Its sole job is to provide a visible, physically confirmed isolation point between a supply and a downstream load. When the black rotary handle is turned to the open position, positive contact indication confirms that the mechanical contacts have separated and the load circuit is genuinely de-energized. That distinction matters in high-energy industrial environments where a partially open contact or a loose mechanism creates a latent safety hazard.
As part of the Compact INS63 range, the 28903 is the standard manual version — 4 poles covering L1, L2, L3, and neutral on a single device. This matters when local electrical codes or system design standards mandate that neutral isolation cannot be left floating during maintenance. The Compact INS product family was developed to fit standard industrial cabinet layouts without consuming excessive DIN-rail real estate, which is why machine builders and panel integrators return to this SKU repeatedly when specifying pre-assembled modular cabinets. The carbon footprint transparency data published by Schneider Electric — 60 kg eq.CO2 per unit on a lifecycle basis — also reflects the manufacturer's environmental reporting posture, which is increasingly relevant for procurement teams supporting green building or sustainability certification programmes.
The global EAN code for this part is 3303430289036, which simplifies procurement cross-referencing and reduces barcode-scanning errors when receiving inventory in a warehouse or distribution centre.
Typical System Architecture for the Compact INS63
The 28903 sits between the upstream overcurrent protection device and the downstream load — acting as the manually operated isolation barrier in the signal and power chain. Here is how a typical deployment looks in practice:
- Upstream: Main panel or MCC incoming supply feeds a circuit breaker or fuse providing overcurrent protection for the circuit
- Switch-disconnector (28903): Provides the manual isolation point; positive contact indication confirms open state before maintenance begins
- Downstream: Motor starter, variable frequency drive, PLC control cabinet, or other industrial load rated at or below 63A
- Operator interface: Technician or maintenance engineer operates the black rotary handle directly; no control wiring or auxiliary power required for basic isolation
- Cabinet layout: Compact INS63 footprint mounts on DIN rail or panel, positioned to allow unobstructed handle rotation through full open-close travel
Where the 28903 Gets Installed: Industries and Use Cases
In manufacturing environments, the 28903 is a standard component in motor control centers serving 3-phase motor loads up to 63A — conveyors, pumps, compressors, and process machinery where routine maintenance isolation is a recurring operational requirement. Machine builders shipping pre-assembled modular cabinets routinely specify the Compact INS63 as the main disconnect because its predictable footprint simplifies DIN-rail layout across multiple cabinet configurations.
In data centers and commercial electrical distribution, the switch provides a controlled isolation point for power distribution cabinets where technicians need guaranteed circuit confirmation before working on UPS feeds or distribution busbars. The positive contact indication feature is particularly valued in these environments where high-energy circuits demand unambiguous open-state verification.
Water and wastewater treatment facilities use the 28903 as an isolation switch for pump drives and control panel feeds, where the 4-pole configuration ensures that neutral is isolated alongside all three phases during equipment replacement or sensor maintenance. HVAC system integrators also specify the Compact INS63 in air handling unit control panels where circuit isolation during seasonal servicing is a routine requirement.
Replacement and retrofit applications form a meaningful share of orders. When an existing Compact INS-range switch fails or reaches end of mechanical life, the 28903 is a direct family replacement that drops into the same cabinet position without requiring DIN-rail reconfiguration.
| Application | Typical Deployment |
|---|---|
| Motor Control Center (MCC) | Main manual disconnect for 3-phase motor loads up to 63A in production line panels |
| Machine Builder Cabinet | Pre-assembled modular control cabinet main isolator; consistent Compact INS63 footprint across product line |
| Data Center Power Distribution | Isolation point for distribution cabinet feeds; positive contact indication confirms de-energized state |
| Water and Wastewater Treatment | Pump drive and control panel isolation with 4-pole neutral break for maintenance safety |
| HVAC Control Panel | Seasonal servicing isolation for air handling unit circuit feeds in commercial buildings |
| Retrofit / Replacement | Direct Compact INS family replacement in existing panels without DIN-rail reconfiguration |
Key Specifications and Compact INS Variant Comparison
| Parameter | Value |
|---|---|
| Product Family | Compact INS63 |
| Catalog Number | 28903 |
| Pole Count | 4 (3-phase + Neutral) |
| Rated Current | 63A |
| Contact Indication | Positive (confirms load path is open) |
| Operation | Manual — black rotary handle |
| Voltage Rating | 400V 3-phase typical — verify exact voltage range in official datasheet |
| Frequency | 50/60 Hz |
| Mounting | DIN rail or panel mount |
| Lifecycle Carbon Footprint | 60 kg eq.CO2 per unit (manufacturer lifecycle assessment) |
Full technical specifications are available on the product page at LeadTime.ca.
| Model | Current Rating | Pole Config | Operation | Selection Driver |
|---|---|---|---|---|
| 28903 (Compact INS63) | 63A | 4-pole | Manual only | Standard manual isolation; compact cabinet space; cost-effective baseline |
| Compact INS100 | 100A | 4-pole | Manual or motorized options | Higher current requirement; room for future load expansion |
| Compact INS160 | 160A | 4-pole | Motorized typically | Heavy-duty industrial circuits; high-current MCC applications |
If your circuit current sits anywhere above 63A — even intermittently during motor inrush — the Compact INS100 is the correct next step. Check current availability and confirm the right model for your load at LeadTime.ca.
| Feature | Schneider Electric 28903 | ABB OS32AI4 | Eaton C320 |
|---|---|---|---|
| Current Range | 63A (fixed SKU) | 63–100A range | 32–160A range |
| Pole Configuration | 4-pole | 3-pole or 4-pole | 4-pole |
| Contact Indication | Positive (standard) | Included | Included |
| Cabinet Footprint | Compact INS63 (space-optimized) | Standard industrial size | Standard industrial size |
| Key Differentiator | Schneider ecosystem integration; compact footprint | European distribution strength | Broader current range per family |
Expert Verdict: Is the 28903 the Right Part for Your Project?
The Schneider Electric 28903 is the right part for controls engineers and electrical integrators specifying a standard, no-complexity manual isolation switch in a compact 4-pole 63A application. Positive contact indication is included as standard — not an add-on, not a higher-tier option — which means any safety-critical isolation requirement in that current class is covered without upsizing to a more complex or expensive product. The Compact INS63 footprint fits predictably into standard industrial cabinet DIN-rail layouts, and Schneider Electric's global support network means replacement parts, documentation, and technical guidance are accessible through authorized channels wherever the system is installed. For machine builders standardizing their cabinet BOM, for maintenance teams replacing failed isolators in existing Compact INS installations, and for electrical contractors working within an established Schneider ecosystem, the 28903 represents a straightforward, mature, and well-supported choice.
Where the 28903 has real limits: it tops out at 63A, it cannot be retrofitted with a motor actuator, and it carries no hazardous atmosphere rating. If your circuit analysis — not just the upstream breaker size, but actual load current with motor inrush factored in — puts you anywhere near or above that 63A ceiling, the Compact INS100 is the correct specification and shares the same 4-pole Compact family logic. If remote or automated isolation is in scope for the control system architecture, the motorized Compact INS variants need to be evaluated from the start; specifying a manual switch and discovering the requirement later means a full switch replacement and potential cabinet redesign. For buyers where brand is flexible and cost is the primary driver, the ABB OS32AI4 and Eaton C320 are functional equivalents worth quoting — but the Schneider 28903's standard positive contact indication and compact footprint are the differentiators that pull many engineers back to this SKU over those alternatives.
On the procurement side, the 28903 is a standardized component that authorized Schneider Electric distributors carry in regular stock, with market-typical lead times running one to four weeks depending on regional inventory levels — though you should confirm availability before committing to a build schedule. Buying through a specialist distributor matters here because they will cross-check the EAN code (3303430289036) against your order, confirm the voltage and pole configuration against your system requirements at order entry, and provide accurate lead-time data tied to actual Schneider production schedules rather than generic estimates. View current pricing and availability for the Schneider Electric 28903 at LeadTime.ca — we ship worldwide.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Need to Know Before Ordering the Schneider Electric 28903
Because the Schneider Electric 28903 is a standardized industrial component, buyers rarely need to turn to public forums for selection guidance — the specification questions tend to be addressed directly between engineers and authorized distributors who know the Compact INS range. That said, the ordering mistakes that do occur with this SKU are predictable and avoidable, and they almost always trace back to one of three root causes: an incorrect current assumption, a pole-count oversight, or a late-stage discovery that motorized operation was actually required.
The most consequential mistake is specifying the 28903 based on the upstream circuit breaker rating rather than actual measured or calculated load current. A 100A breaker protecting a 50A motor circuit does not make that circuit a 100A application — but buyers who read breaker ratings rather than motor nameplates have ordered the 28903 for circuits that genuinely needed the INS100. The 63A ceiling on this SKU is a hard limit; contacts that operate continuously at or above their thermal rating fail early and, critically, may fail to open cleanly when isolation is needed most. If there is any uncertainty in the current calculation, the INS100 is the safer upsize with minimal cost difference.
The pole-count question is the other recurring source of ordering errors. Some applications genuinely require only 3-pole isolation, and a 4-pole device adds unnecessary cost and consumes extra DIN-rail space. Conversely, there are jurisdictions and system designs where neutral isolation is code-mandated, and substituting a 3-pole switch creates a compliance failure that does not surface until inspection. The 28903 is 4-pole only — if your one-line diagram and local code do not mandate neutral isolation, confirm whether an alternative SKU is more appropriate before ordering. LeadTime.ca's technical team can help you work through the Compact INS range options and confirm the correct variant for your specific system configuration.
Wiring and Installation Overview
The following is an overview of the key installation considerations for the Schneider Electric 28903. Full wiring procedures and terminal torque specifications are contained in the official Schneider Electric installation manual, which should be consulted before commissioning.
- Power down and apply lockout/tagout upstream of the switch location before beginning any installation or wiring work; verify zero voltage at the intended mounting position with a calibrated multimeter
- Mount the Compact INS63 on DIN rail or panel with sufficient clearance to allow the black rotary handle to rotate through its full open-close travel without obstruction from adjacent components or cable runs
- Connect line-side (input) terminals in order: L1, L2, L3, Neutral to the corresponding top terminals; connect load-side (output) cables to T1, T2, T3, and Neutral output terminals in matching sequence — verify terminal torque against the official installation guide before energizing
- After wiring and before applying power, manually cycle the rotary handle through three to five full open-close cycles; confirm that positive contact indication responds visibly with each handle position change and that no mechanical binding or resistance is felt
- Following energization, test load isolation with the handle in the open position: confirm zero continuity across all load-side output terminals and record the commissioning test results for the facility maintenance log
Wrong-Part Prevention Checklist Before You Order
Work through each item below before finalizing your order for the Schneider Electric 28903. These checks directly prevent the most costly ordering and installation mistakes associated with this product.
- POLE COUNT: Verify you need all 4 poles (3-phase + neutral). Check your circuit diagram. Do not substitute with 3-pole if neutral isolation is mandatory.
- CURRENT RATING: Confirm your circuit max current does not exceed 63A. Check breaker/fuse rating upstream. Undersizing switch ratings is unsafe.
- HANDLE TYPE: Confirm manual rotary handle is acceptable; verify no motorized operation requirement. This model is manual only.
- VOLTAGE COMPATIBILITY: Verify your system voltage (typically 230V or 400V 3-phase). Check datasheet for rated voltage.
- MOUNTING: Confirm DIN-rail or panel mount space is available for Compact INS63 footprint.
- POSITIVE CONTACT INDICATION: Confirm application requires or permits positive contact indication (safety-critical isolation). Some applications may not require this feature.
- STANDARD VERSION: Verify standard (non-explosive) atmosphere application. This is the standard version; do not use in hazardous zones without additional certification.
Once all seven items are confirmed, place your order or request a quote for the Schneider Electric 28903 at LeadTime.ca. If any item raises a question, contact the LeadTime.ca team before ordering — we can validate your configuration against the Compact INS range and confirm the correct SKU.
Frequently Asked Questions
What does positive contact indication actually confirm, and is it required for my application?
Positive contact indication is a mechanical feature built into the 28903 that provides physical confirmation the switch contacts have fully separated — not just that the handle has moved. This matters in high-energy isolation scenarios where a partially engaged contact could allow an unexpected restart or present a live circuit to a technician who believes the equipment is de-energized. Whether it is mandatory depends on your local electrical code, your system safety design standard, and the energy level of the circuit. For most industrial isolation applications, having positive contact indication is an advantage rather than a complication, and since it is standard on the 28903 at no additional cost, there is rarely a reason to avoid it.
Can I upgrade this switch to a higher current rating in the future without replacing the whole unit?
No. The 63A rating of the Compact INS63 (28903) is fixed to the hardware. There is no field-upgradeable current rating option within this SKU. If your load grows beyond 63A — due to motor replacement, circuit expansion, or revised load calculations — the entire switch must be replaced with a Compact INS100 or INS160. This is why verifying your actual maximum circuit current before ordering, rather than relying on the upstream breaker size, is the single most important pre-order check for this product.
Is the 28903 a direct drop-in replacement for an existing Compact INS63 that has failed?
Yes, within the Compact INS63 family. The 28903 is the standard 4-pole manual version and shares the Compact INS63 footprint and DIN-rail mounting configuration. If the existing switch in your cabinet is a Compact INS63 4-pole manual variant, the 28903 is a direct dimensional replacement. If the existing unit is from a different product generation or a competitor brand with a different footprint, confirm dimensional compatibility before ordering. The EAN code 3303430289036 is the definitive identifier to use when cross-referencing against existing cabinet documentation.
What happens if the circuit current briefly exceeds 63A during motor inrush — does the switch trip, derate, or fail?
The 28903 is a switch-disconnector, not a circuit breaker, and it does not have a trip mechanism. It will not self-interrupt on overcurrent. Sustained operation above the 63A thermal rating stresses the contacts and can lead to overheating, accelerated wear, and eventual failure to open cleanly when isolation is required. Coordination with an appropriately rated upstream overcurrent protective device — circuit breaker or fuse — is essential. If motor inrush on your circuit regularly approaches or exceeds 63A, verify the actual steady-state load against the switch rating and consider the Compact INS100 for adequate headroom.
How does the 28903 compare to the ABB OS32AI4 or Eaton C320 for a buyer who is not locked into Schneider ecosystem?
All three products perform the same fundamental isolation function at a comparable performance tier. The Schneider Electric 28903's differentiators are its standard positive contact indication, its Compact INS63 space-optimized footprint, and integration into the broader Schneider panel component ecosystem. The ABB OS32AI4 covers a broader current range within a single SKU family, and the Eaton C320 covers 32A to 160A under one product line. If you are not committed to a specific brand ecosystem, obtaining formal quotes from all three authorized distributors before specifying is the recommended approach — regional availability, lead time, and volume pricing all vary and should be confirmed before committing to a cabinet BOM.
Why Order Through LeadTime.ca
- Ships worldwide — LeadTime.ca sources and ships industrial automation and electrical components globally, not restricted to a single region
- Specialist distributor expertise — the team validates your configuration against Compact INS range specifications at order entry, reducing the risk of receiving the wrong variant
- Hard-to-find and standard-stock parts — whether the 28903 is in regional stock or requires sourcing through the Schneider Electric authorized network, LeadTime.ca manages the procurement chain
- Volume pricing available — contact the team directly for multi-unit orders, project BOM pricing, or scheduled delivery requirements
- Fast response on lead time confirmation — get accurate availability data before committing your build schedule, not after
- View the Schneider Electric 28903 product page at LeadTime.ca
- Contact LeadTime.ca for a quote or technical validation
At-a-Glance Summary
- Product: Schneider Electric 28903 — switch-disconnector, Compact INS63, standard version with black rotary handle
- Pole count: 4 poles — isolates L1, L2, L3, and Neutral simultaneously
- Rated current: 63A maximum — hard ceiling; do not install on circuits exceeding this value
- Contact indication: Positive — standard feature, confirms load path is genuinely open
- Operation: Manual rotary handle only — no motorized retrofit option on this SKU
- Mounting: DIN rail or panel mount — Compact INS63 footprint for space-constrained cabinet layouts
- Atmosphere rating: Standard only — not rated for hazardous or explosive zone installations
- Lifecycle carbon footprint: 60 kg eq.CO2 per unit (Schneider Electric manufacturer lifecycle assessment)
- Global EAN identifier: 3303430289036
- Typical market lead time: 1–4 weeks for in-stock SKUs — confirm with distributor before quoting a build schedule
- Step up to: Compact INS100 for circuits above 63A; motorized Compact INS variants for remote or automated isolation requirements
