Omron WLCA12-2N Limit Switch — Specs, Variants & Buyer Guide

By Abdullah Zahid
15 min read

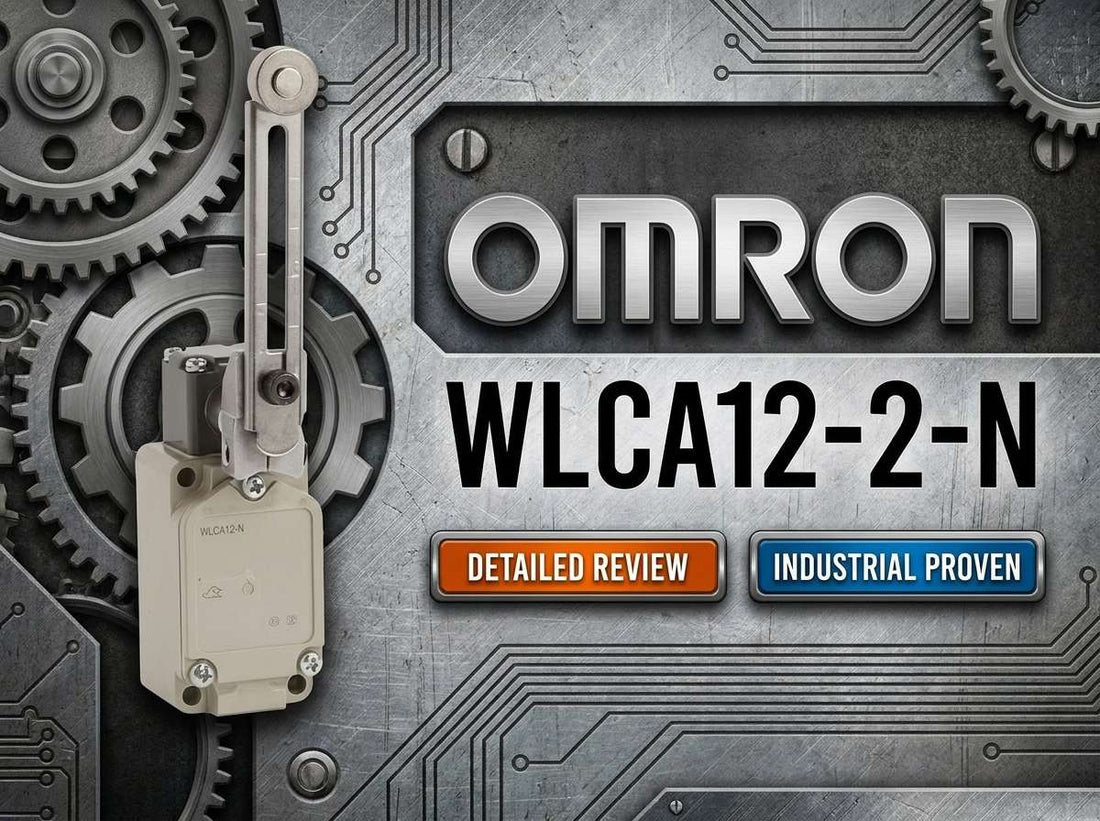

Omron WLCA12-2N two-circuit adjustable roller lever limit switch for conveyor and machine position sensing

Omron WLCA12-2N Two-Circuit Limit Switch with Adjustable Roller Lever — Complete Specs, Uses, and Buying Guide

If you are on a maintenance team replacing a failed limit switch on a conveyor or machine tool, or an OEM engineer specifying position sensing for a new build, the Omron WLCA12-2N is likely already on your list. This is a mechanical, general-purpose, two-circuit limit switch from the Omron WL-N/WLM-N series, fitted with an adjustable roller lever actuator and screw terminals — a workhorse design found across material handling, packaging, and general manufacturing lines worldwide. The critical question is not whether the WLCA12-2N is a quality device — it is — but whether the specific actuator geometry, contact configuration, and enclosure rating precisely match your application. Getting that wrong is the only real risk in ordering this part.

If you have already confirmed this is the correct part for your application, check current pricing and availability for the Omron WLCA12-2N at LeadTime.ca — ships worldwide.

Who Should Buy the Omron WLCA12-2N — and Who Should Not

The WLCA12-2N is the right choice when all of the following are true for your application:

  • Your machine cam or actuator direction of travel is compatible with an adjustable roller lever — not a plunger, rod, or wobble lever geometry.
  • Your control circuit requires two separate circuits from a single compact switch body — the two-circuit WL-N arrangement is a defined characteristic of this model.
  • The electrical load is control-level signaling, not a direct motor or solenoid switch — you have appropriate interposing relays or suppression in the circuit for inductive loads.
  • The mounting footprint, conduit entry orientation, and screw terminal connection style match the existing installation or machine design drawing.
  • Your plant environment is within the standard WL-N housing ratings — dry or lightly protected factory environments without high-pressure washdown or immersion exposure.
  • You are standardizing on or replacing within the Omron WL-N/WLM-N family for spare parts simplification and technician familiarity.

If you need a sealed washdown-rated device, a non-contact electronic position sensor, a safety-rated door interlock with certified functionality, or a different actuator style entirely, the WLCA12-2N is not your part — review the broader Omron WL-N family or consult with a specialist before ordering.

On this page:

What the Omron WLCA12-2N Actually Does in a Control System

The WLCA12-2N is a mechanical, general-purpose limit switch belonging to Omron's WL-N/WLM-N series — a two-circuit family described by Omron as suitable for a wide range of industrial position sensing applications. Its role in a machine is straightforward: when a moving component — a carriage, cam, gate, or guard — contacts the roller and depresses the lever, the internal contacts switch state, delivering an on/off electrical signal to the control system. That signal is used for sequencing, interlocking, overtravel protection, or status indication depending on how the circuit is designed.

What distinguishes the WLCA12-2N within the WL-N family is the adjustable roller lever actuator. Unlike fixed-geometry lever or plunger variants, the adjustable lever allows the installer to set both the lever length and angle to match the cam profile and trip point geometry of the specific machine, without fabricating custom brackets. The two-circuit contact arrangement means a single switch body can serve two independent control functions — a practical advantage when panel space or mounting positions are limited. Termination is via screw terminals, which suits standard panel wiring practices with ferrules and appropriate torque.

Where the WLCA12-2N Fits in Your Machine Architecture

The WLCA12-2N sits at the field device layer of a machine control system, converting mechanical position into an electrical signal that the controller acts on. In a typical installation, the signal chain runs as follows:

  • PLC or relay logic controller — receives the switched contact state from the WLCA12-2N as a digital input signal.
  • Input wiring and terminals — connects the screw terminals of the WLCA12-2N through the control panel terminal strip to the PLC input card or relay coil.
  • WLCA12-2N — mounted on the machine frame, with its adjustable roller lever positioned to contact the cam or actuating surface on the moving machine component.
  • Machine cam or actuator — the moving part (carriage, conveyor stop arm, guard door, slide) that physically depresses the roller lever at the defined travel position.
  • Downstream controlled devices — motor starters, solenoid valves, or indicator lamps that the controller enables or disables based on the switch signal.

Typical Applications for the WLCA12-2N in Industrial Machinery

The WLCA12-2N is a natural fit for conveyor end-of-travel and accumulation sensing, where a roller lever switch positioned at a stop or diverter point confirms carriage or product presence. The adjustable lever makes it practical to set the exact actuation point along a conveyor frame without relocating the switch body itself.

On packaging lines and machine tools, position confirmation for slides, cylinders, and linear carriages is a common use. The two-circuit design supports both a stop signal and a status indication in the same switch — useful where space for multiple switches is limited and the machine designer needs two independent signals from one physical trip point.

Guard door and access panel interlocking in non-safety-rated monitoring applications is another typical deployment, particularly on older or legacy machines where mechanical limit switches are already the established technology. The WLCA12-2N slots directly into existing WL-N mounting positions when replacing worn switches, simplifying maintenance replacement without mechanical rework.

Home position and reference sensing for hoists, jacks, and actuators — where a defined mechanical home position must be confirmed before a motion sequence initiates — is a further application where the adjustable roller lever allows fine positioning of the trip point relative to the datum surface.

Application Typical Deployment
Conveyor end-of-travel detection Mounted at conveyor stop or diverter; roller contacts carriage arm or product gate
Machine guard door interlocking Fixed to frame; lever actuated by door or panel when closed — non-safety monitoring role
Linear slide home position sensing Mounted on slide frame; cam on carriage contacts roller at datum position
OEM packaging machine sequencing Embedded in machine structure; adjustable lever set to trip at defined cam position
Hoist and actuator overtravel protection Positioned at travel limit; roller lever depressed by mechanical stop to cut control signal
Retrofit replacement on legacy equipment Direct form-factor replacement within WL-N mounting pattern on existing machinery

Specifications That Drive the Purchase Decision

The following table covers the parameters engineers use to confirm suitability before ordering. All values are drawn from the Omron WL-N/WLM-N series datasheet as referenced in the official product documentation. Note that operating force and lever travel parameters are tested and specified by Omron at a lever length of 38 mm for WLCA12-series models — an important reference point when comparing measured actuation forces in your application against published data.

Parameter Value / Description Notes
Brand Omron WL-N / WLM-N series
Model / Catalog Number WLCA12-2N Exact catalog designation — verify full suffix against machine BOM
Product Type Mechanical limit switch, general-purpose Two-circuit design per WL-N series datasheet
Actuator Type Adjustable roller lever Lever length adjustable within Omron-specified range; tested at 38 mm reference length
Number of Circuits Two-circuit Verify NO/NC configuration in current Omron datasheet for your control design
Termination Style Screw terminals Use ferrules and correct tightening torque per Omron wiring instructions
Contact Type Mechanical contacts Snap or slow action as stated in WL-N documentation — confirm for your circuit requirements
Electrical Ratings AC and DC control-level voltages and currents Pull exact voltage and current figures from current Omron WL-N datasheet before specifying
Operating Temperature Per WL-N datasheet Do not exceed stated range — confirm against installation environment
Typical Applications Position and end-of-travel sensing Conveyors, OEM machines, general industrial position detection

Full technical specifications are available on the product page at LeadTime.ca.

WLCA12-2N vs Other WL-N Variants: Which One Do You Actually Need?

The WL-N series uses a structured catalog numbering system where small suffix differences signal meaningful changes in actuator geometry, contact configuration, or terminal style. Ordering the wrong suffix is the most common mistake buyers make with this family — and it is entirely avoidable with a careful code comparison.

Model Actuator Type Circuit / Contact Notes When to Choose
WLCA12-2N Adjustable roller lever Two-circuit WL-N design Need two circuits and adjustable lever geometry — this model
WLCA12-N Adjustable roller lever Single-circuit WL-N variant Only one circuit needed from the same lever style
WLCA12-2-N Adjustable roller lever Suffix difference — verify contact or structural variation in datasheet Cross-reference full Omron code table before substituting
WLCA12-2N-N Adjustable roller lever Additional suffix — may indicate terminal or connector variation Confirm against original machine BOM and wiring diagram
WLG12-N (and similar) Different lever geometry Per WL-N datasheet specifications at 38 mm lever length When cam direction or operating force requires different lever type
Plunger-type WL-N variants Push plunger Per variant datasheet Direct, in-line actuation without lever travel — different cam geometry

If your application requires a different actuator style, a different number of circuits, or a sealed connector entry, the correct approach is to identify the exact WL-N suffix combination from the Omron series selection table — not to assume substitutability. Check current availability for the WLCA12-2N at LeadTime.ca, or contact the team if you need help confirming the correct variant.

Expert Verdict on the Omron WLCA12-2N

The WLCA12-2N earns its place in maintenance spare parts bins and OEM bills of materials precisely because it is a known quantity. For maintenance technicians and controls engineers standardizing on the Omron WL-N/WLM-N family, the two-circuit adjustable roller lever configuration covers a broad range of conveyor, machine tool, and general industrial position sensing requirements without custom fabrication. The adjustable lever is genuinely useful in practice — being able to fine-tune the trip point to match an existing cam profile without relocating the switch body saves real labor in tight machine frames. The Omron WL-N series is also widely recognized in the community for reliable, long-duration service in standard factory environments, which supports the case for stocking this model as a critical maintenance spare.

Where the WLCA12-2N is not the right answer is equally clear. If the environment involves washdown, submersion, heavy coolant exposure, or contamination beyond what the standard WL-N housing is rated for, a higher-IP-rated device is required — do not add guarding as a workaround if the datasheet ratings are not met. If the application demands certified safety-rated interlocking — EN ISO 13849 or IEC 62061 compliance — a dedicated safety interlock switch with the appropriate PL/SIL rating is the only correct choice. If the direction of actuation does not suit a roller lever — for example, a direct plunger push — there are WL-N variants with the right actuator geometry. In each case, the WLCA12-2N is not a compromise choice; it is simply the wrong model, and the WL-N series has a variant that fits.

From a procurement standpoint, the WLCA12-2N benefits from Omron's strong distribution network, making it available through multiple channels globally with typically short lead times compared with more specialized sensor types. That said, regional warehouse depth varies — larger distributors serving North America will generally have faster availability than smaller resellers who may need to order in. For time-sensitive maintenance replacements or volume OEM orders where lead time and correct variant confirmation matter, sourcing through a specialist automation distributor is the practical choice over anonymous online channels. A specialist can verify the suffix, confirm the contact configuration against your schematic, and flag any availability constraints before you commit. View current pricing and stock status for the Omron WLCA12-2N at LeadTime.ca — we ship worldwide.

For volume pricing, lead time confirmation, or technical pre-sales questions before committing to a build quantity, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the WLCA12-2N

The Omron WL-N/WLM-N series limit switches, including the WLCA12-2N, are described by technicians and maintenance engineers across industrial automation forums as reliable and long-lasting in general factory service. The consensus view is that these switches perform well when applied correctly — years of service before replacement is a commonly reported outcome when the part is matched to the application properly. The adjustable lever format is specifically valued for field fine-tuning: being able to shift the actuation point without relocating the switch body or machining a new cam is a practical time-saver that experienced maintenance crews appreciate.

However, the most consistent theme in community discussions about this family is misorder risk. The WL-N series naming convention uses short suffixes to encode meaningful differences — actuator type, contact count, and terminal style can all change between model numbers that look nearly identical on a purchase order. Technicians on automation forums report ordering a non-adjustable lever or single-circuit variant when a two-circuit adjustable lever was required, simply because the part numbers differ by one or two characters. A second recurring complaint involves electrical misapplication: using limit switch contacts to directly switch motor or solenoid loads without interposing relays or suppression, which accelerates contact wear and leads to premature failure that gets attributed to the switch rather than the circuit design. A third practical note from the community is that wiring space inside the WLCA12-style housings can be tight, particularly when terminating larger-gauge control cables — plan your wire preparation and ferrule selection accordingly.

Because community-level data specific to the WLCA12-2N model number is sparse compared with the broader WL-N family, and because the ordering mistakes listed above are genuinely consequential in terms of downtime and rework cost, this is a product where specialist distributor advice adds real value. When the part number difference between what you need and what you might accidentally order is a single suffix character, a pre-order check with a knowledgeable distributor is faster and cheaper than a return and re-order cycle. LeadTime.ca's team can confirm the correct variant against your schematic and hardware before the order ships.

Wiring and Installation Overview for the WLCA12-2N

The following is an overview of the key steps and requirements for wiring and installing the WLCA12-2N. Engineers requiring full step-by-step wiring procedures and dimensional installation drawings should refer to the current Omron WL-N/WLM-N series datasheet and installation instructions.

  • Isolate and lockout/tagout the control panel before opening the switch housing and making any terminal connections — this is a mandatory site safety requirement, not optional.
  • Identify terminal markings (common, NO, NC) from the Omron WL-N wiring diagram before connecting conductors; apply correct tightening torque to screw terminals and use wire ferrules for secure, clean terminations.
  • Verify NO and NC contact behavior against your control schematic using a continuity tester with the lever manually actuated before applying power — confirm contact logic matches the circuit design.
  • Mount the switch body so that the cam or actuating surface contacts the roller within the Omron-specified pre-travel range, avoiding excessive over-travel beyond datasheet limits; use locking fasteners to prevent movement from machine vibration.
  • After installation, run several operation cycles in a low-risk mode (jog or slow speed) to verify reliable switching without chatter, missed actuations, or mechanical interference before returning the machine to normal production.

Wrong-Part Prevention Checklist Before You Order the WLCA12-2N

Before placing your order, run through this checklist against your machine documentation and existing hardware. Each item represents a real source of misorder or installation failure.

  1. Confirm actuator type: WLCA12-2N is an adjustable roller lever head; do not confuse with plunger or non-adjustable lever variants in the WL-N family.
  2. Verify contact configuration and number of circuits match the control design (two-circuit WL-N style; check if snap-action or slow-action is required in the panel design standard).
  3. Check voltage and current ratings against the actual load (AC vs DC, inrush vs steady-state); avoid using low-level contacts on high-current loads without interposing relays.
  4. Confirm mounting footprint and conduit/terminal orientation match existing hardware to avoid re-drilling or re-wiring in tight enclosures.
  5. Check operating force and pre-travel/over-travel versus the machine cam profile to ensure reliable actuation without overstressing the lever.
  6. Verify environmental conditions (temperature, presence of oil, coolant, dust, or washdown) are within WLCA12-2N ratings; choose sealed or different IP-rated models if exposure is harsh.

If any item on this checklist raises a question, view the product page at LeadTime.ca for current documentation links, or contact the LeadTime.ca team to confirm the correct variant before ordering.

Frequently Asked Questions About the Omron WLCA12-2N

What is the actual difference between WLCA12-2N and WLCA12-N — are they interchangeable?

No, they are not directly interchangeable in all applications. The WLCA12-2N is a two-circuit WL-N series switch, while WLCA12-N is a single-circuit variant of the same adjustable roller lever design. If your control schematic requires two independent contact circuits from a single switch body, the WLCA12-N will not fulfill the design requirement. Always cross-reference the full Omron WL-N series selection table and your control drawing before substituting.

Can the WLCA12-2N contacts be used to switch a motor starter or solenoid valve directly?

This depends on whether the load falls within the rated electrical parameters stated in the Omron WL-N datasheet for the contact configuration. In practice, inductive loads such as motor starters and solenoids present high inrush currents and generate voltage spikes on de-energization that accelerate contact wear and can cause premature failure. The correct approach is to use the WLCA12-2N contacts to switch a control-level signal or interposing relay coil, with appropriate suppression devices in the circuit, rather than switching the inductive load directly.

How much can I adjust the lever on the WLCA12-2N, and will adjusting it affect the mechanical life rating?

The WLCA12-series lever is adjustable within the range specified in the Omron WL-N/WLM-N datasheet. Operating force and travel characteristics published in the datasheet are tested at a reference lever length of 38 mm — changing the lever length shifts the effective operating force at the roller, which affects both actuation reliability and mechanical life. Set the lever within Omron's specified adjustment range and avoid exceeding the maximum over-travel limit; excessive over-travel is a documented cause of accelerated mechanical wear.

Is the WLCA12-2N a direct replacement for an older Omron WL-series switch on legacy equipment?

It is a strong candidate for retrofit replacement within the WL-N family, but direct form-factor compatibility depends on the specific suffix of the original switch. Record the complete part number from the nameplate of the switch being replaced, compare the actuator type, contact configuration, mounting hole pattern, and conduit orientation against the WLCA12-2N dimensions, and verify the control schematic matches the two-circuit configuration. If the original switch has a different suffix indicating a different lever geometry or single-circuit design, a different WL-N variant may be required.

What does the WLCA12-2N wiring terminal layout look like — which terminals are NO and which are NC?

Terminal identification follows the Omron WL-N series wiring diagram included in the official datasheet. Terminal markings identify common, normally open (NO), and normally closed (NC) connections for each circuit. Always use the manufacturer's wiring diagram specific to the WLCA12-2N — do not assume terminal layout from other WL-N variants, as minor differences exist across the series. Verify contact state with a continuity tester during manual lever actuation before energizing the control circuit.

Why Source the Omron WLCA12-2N Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single country or region.
  • Specialist variant confirmation — our team can cross-reference the full suffix against your schematic and hardware before the order ships, reducing misorder risk on a family where one character in the part number matters.
  • Hard-to-find and low-stock parts — if regional warehouses are short on stock, LeadTime.ca has sourcing channels to locate inventory and provide realistic lead time estimates before you commit.
  • Volume and OEM pricing — quantity orders for maintenance spares or OEM builds are handled directly with transparent pricing; contact the team for current terms.
  • Fast response on urgent replacements — downtime situations get priority attention; we understand the cost of waiting on the wrong part or an uncertain lead time.

At-a-Glance Summary: Omron WLCA12-2N

  • Product: Two-circuit limit switch with adjustable roller lever, Omron WL-N/WLM-N series — catalog number WLCA12-2N.
  • Actuator type: Adjustable roller lever — operating force and travel characteristics specified by Omron at 38 mm reference lever length.
  • Contact arrangement: Two-circuit WL-N design — confirm NO/NC configuration and snap or slow action from the current Omron datasheet for your circuit.
  • Termination: Screw terminals — use wire ferrules and manufacturer-specified tightening torque.
  • Best fit: Conveyor end-of-travel, position sensing on OEM machinery, home position detection, guard door monitoring in non-safety roles, and retrofit replacement within the Omron WL-N family.
  • Not suitable for: Washdown or sealed environments beyond WL-N housing ratings, safety-rated interlock applications requiring certified SIL/PL ratings, or applications requiring a different actuator geometry.
  • Key ordering risk: Single-character suffix differences in the WL-N catalog number encode meaningful changes — confirm the full WLCA12-2N code against your schematic and nameplate before ordering.
  • Electrical caution: Use control-level signals only; apply interposing relays and suppression for inductive loads to protect contacts and achieve rated mechanical life.
  • Global availability: Stocked by major automation distributors worldwide; LeadTime.ca ships internationally with specialist pre-order variant confirmation available.
