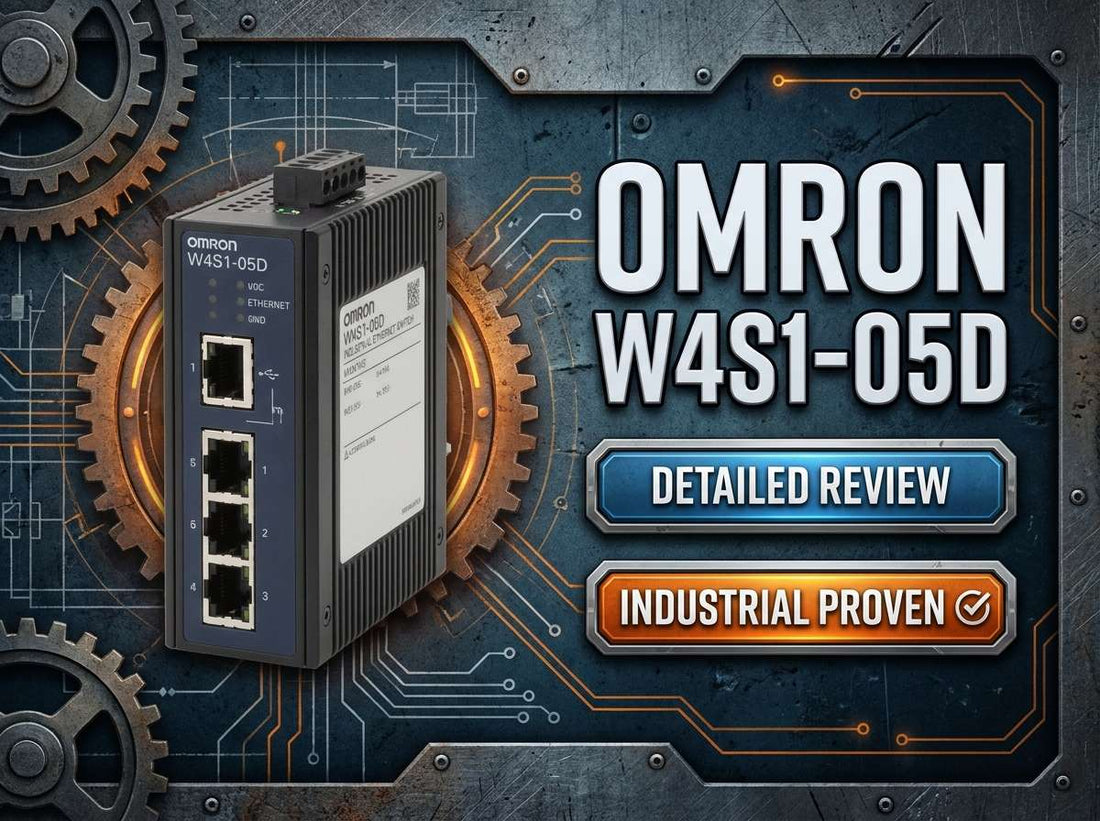

Omron W4S1-05D Industrial Switching Hub, 5-Port Type – Specs, Expert Review & Buying Guide
Controls engineers and panel builders searching for the Omron W4S1-05D are typically at the same decision point: they need a compact, reliable industrial Ethernet switch for a small machine or cell, and they want to confirm the specs before committing to the order. The W4S1-05D is a 5-port unmanaged industrial switching hub supporting 10/100BASE-TX, powered by 24 VDC, and built for factory floor conditions — store-and-forward switching, broadcast storm detection, and QoS for EtherNet/IP included, with no software configuration required.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the Omron W4S1-05D — and Who Shouldn't
The W4S1-05D is the right choice for engineers who need a plug-and-play industrial Ethernet hub with no configuration overhead. It fits your project if:
- You need exactly 5 x RJ45 ports at 10/100 Mbps for connecting PLCs, HMIs, drives, or I/O blocks inside a control panel or on a machine.
- Your control power is 24 VDC — specifically within the 20.4 to 28.8 VDC range — and you can provide external overcurrent protection.
- Your application requires broadcast storm detection and QoS for EtherNet/IP, but does not require VLANs, IGMP snooping, STP, SNMP, or port mirroring.
- Your panel environment stays within 0 to 55 °C operating temperature and 10 to 95 % RH non-condensing.
- You have DIN-rail space available and need a compact footprint with copper RJ45 connections only — no fiber, no PoE.
If your network requires VLAN segmentation, multicast management, remote diagnostics, Gigabit speeds, or fiber uplinks, the W4S1-05D is not the right fit. A managed industrial switch is the correct choice for those requirements — confirm the alternative with a specialist before ordering.
On this page:
- What the Omron W4S1-05D Actually Does on the Factory Floor
- Typical System Architecture for the W4S1-05D
- Where the W4S1-05D Gets Deployed: Industries and Use Cases
- Key Specifications and Variant Comparison
- Expert Verdict: Is the W4S1-05D the Right Switch for Your Project?
- What Engineers Need to Know Before Ordering the W4S1-05D
- Wiring and Installation Overview
- W4S1-05D vs Other W4S1 Family Models and Competing Switches
- Wrong-Part Prevention Checklist
- Frequently Asked Questions
- Why Order From LeadTime.ca
- At-a-Glance Summary
What the Omron W4S1-05D Actually Does on the Factory Floor
The Omron W4S1-05D is an unmanaged industrial switching hub from the W4S1 product family — Omron's line of hardened Ethernet switches designed for use inside control panels and on machines in factory automation environments. With 5 x RJ45 ports supporting IEEE 802.3 10BASE-T and 100BASE-TX, the W4S1-05D provides a local aggregation point for EtherNet/IP and TCP/IP devices without requiring any software setup, web interface, or CLI access. It uses store-and-forward switching with a 700 Mbps switching fabric, Auto MDI/MDI-X, and Auto Negotiation — meaning it handles mixed device speeds and cable types without manual configuration.
What separates the W4S1-05D from an office-grade switch in this role is its 24 VDC power input, DIN-rail mounting, operating temperature range of 0 to 55 °C, and the inclusion of broadcast storm detection and QoS for EtherNet/IP. These features matter in practice: broadcast storms in small, unmanaged machine networks can cause HMI freezes, slow I/O updates, and intermittent PLC communication faults. The W4S1-05D's storm detection function provides a layer of protection that most commercial switches at this price point do not include. Similarly, QoS for EtherNet/IP helps prioritize time-sensitive control traffic over other TCP/IP traffic sharing the same ports.
The trade-off is complete intentionality in the design: this switch has no VLAN support, no SNMP, no STP, no IGMP snooping, and no port mirroring. It is a plug-and-play device. If your requirements go beyond that, the W4S1-05D is not the product — and knowing that clearly before ordering saves a return shipment.
Typical System Architecture for the W4S1-05D
The W4S1-05D sits at the edge of the machine-level network, acting as the local Ethernet hub between the control system and the devices it manages. It is not a backbone switch — it is a panel-level aggregation point that connects a handful of intelligent devices to a common network segment.
- Plant network backbone or managed uplink switch — provides the upstream connection to SCADA, MES, or higher-level infrastructure.
- W4S1-05D installed on DIN rail inside the machine control panel — receives the uplink on one port and distributes connectivity to machine devices on the remaining ports.
- Omron PLC or safety controller — typically occupies one port and acts as the EtherNet/IP scanner or Modbus TCP master for the local segment.
- HMI, operator panel, or vision system — connected directly to the W4S1-05D for local machine interface and inspection functions.
- EtherNet/IP I/O blocks, servo drives, or variable frequency drives — occupy the remaining ports, receiving cyclic I/O updates from the PLC over the shared 10/100 Mbps segment.
Where the W4S1-05D Gets Deployed: Industries and Use Cases
The W4S1-05D is a natural fit for OEM machinery builders who need a standardized, low-maintenance Ethernet switch inside every machine panel. Packaging machine builders, for example, frequently use this type of device to connect a PLC, HMI, servo drives, and a remote I/O block — typically four or five nodes — in a single compact panel. Having a 24 VDC-powered, DIN-rail-mounted switch eliminates the need for a separate AC power supply just to run an office switch.
In food and beverage and consumer goods facilities, the W4S1-05D sees use on production line machines where Omron PLCs manage conveyor control, filling, labeling, or inspection stations. The 0 to 55 °C operating range and humidity tolerance up to 95 % RH (non-condensing) make it appropriate for the ambient conditions around most process equipment, provided the switch is housed inside a rated enclosure.
Retrofit applications represent another strong use case. When a plant is adding Ethernet connectivity to legacy machines — pulling a PLC, adding an HMI and a remote I/O block — the W4S1-05D provides a fast, low-cost way to bring those devices onto the plant network without deploying a managed switch that would go largely unused in that context.
Material handling systems with small conveyor cells, robotic work cells using Omron robot controllers alongside PLCs and vision systems, and small process utility skids with SCADA data feeds are all documented application areas for this type of 5-port industrial switching hub.
| Application | Typical Deployment |
|---|---|
| OEM packaging machine | PLC + HMI + servo drives + remote I/O inside a single DIN-rail panel |
| Food and beverage production line | Local cell switch connecting Omron PLC and EtherNet/IP I/O to plant network uplink |
| Legacy machine retrofit | Adding Ethernet to an upgraded panel — PLC, HMI, and one or two EtherNet/IP modules |
| Robotic work cell | Robot controller, vision system, PLC, and safety I/O on a shared machine-level segment |
| Material handling conveyor cell | Compact 4-5 node network with barcode scanner, PLC, and VFD sharing one switch |
| Process utility skid / SCADA data tap | Bridging PLC and instrumentation to a SCADA uplink through a single 5-port hub |
Key Specifications and Variant Comparison
| Specification | W4S1-05D Value |
|---|---|
| Number of Ports | 5 x RJ45 |
| Ethernet Standards | IEEE 802.3 10BASE-T, 100BASE-TX |
| Switching Method | Store-and-forward |
| Switching Fabric Capacity | 700 Mbps |
| Auto Features | Auto MDI/MDI-X, Auto Negotiation |
| Industrial Features | Broadcast storm detection, QoS for EtherNet/IP |
| Management | Unmanaged — no VLAN, STP, SNMP, IGMP snooping, port mirroring |
| Power Supply Input | 24 VDC (20.4–28.8 VDC); approx. 70 mA current consumption; up to approx. 1.7 W |
| Operating Temperature | 0 to 55 °C (no icing or condensation) |
| Operating Humidity | 10 % to 95 % RH (non-condensing) |
Full technical specifications are available on the product page at LeadTime.ca.
| Feature | W4S1-05D (Unmanaged) | Managed Industrial Switch (Generic) |
|---|---|---|
| Management | None — plug and play | Full web/CLI management |
| Port Count | 5 x RJ45 copper | Typically 5–8 ports; fiber uplink options available |
| VLAN / IGMP / STP | Not supported | Supported |
| Remote Diagnostics / SNMP | Not supported | Supported |
| Broadcast Storm Detection | Yes | Yes, with configurable thresholds |
| QoS for EtherNet/IP | Yes | Yes, configurable |
| Ethernet Speed | 10/100 Mbps | Up to Gigabit depending on model |
| Price Band | Lower — no management overhead | Higher — reflects management capability |
| Ideal Use Case | Small/simple machine cells | Complex multi-segment plant networks |
| W4S1 Variant Type | Port Count | Key Difference vs W4S1-05D | Typical Use Case |
|---|---|---|---|
| 3-port model | 3 x RJ45 | Fewer ports and lower switching fabric capacity; smaller footprint | Minimal-node cells — PLC plus one or two devices |
| 5-port model (W4S1-05D) | 5 x RJ45 | Reference model; 700 Mbps switching fabric | Small to medium machine panels with 4–5 Ethernet nodes |
If 5 ports are not sufficient for your node count, or if your machine panel will grow beyond that limit soon, the correct step is to either add a second W4S1-05D or evaluate a higher-port-count industrial switch. Check current availability and pricing at LeadTime.ca before finalizing your panel design.
Expert Verdict: Is the W4S1-05D the Right Switch for Your Project?
The Omron W4S1-05D earns its place in the panel as a dependable building block for small industrial Ethernet networks — the kind that controls engineers build regularly: a PLC, an HMI, a couple of EtherNet/IP I/O blocks, maybe a servo drive or a vision camera. Five 10/100 Mbps ports at 24 VDC with broadcast storm detection and QoS for EtherNet/IP covers exactly those scenarios, and the store-and-forward switching method with 700 Mbps fabric means it handles the traffic load without contention issues at this scale. For OEMs standardizing a basic Ethernet switch across a machine platform, the W4S1-05D's unmanaged simplicity is a genuine operational advantage — there is nothing to misconfigure, and replacement in the field requires no IT involvement.
Where the W4S1-05D genuinely falls short is any network that has outgrown simple connectivity. If your plant is deploying multicast-heavy EtherNet/IP with many I/O adapters that require IGMP snooping to prevent flooding, or if your network team requires SNMP visibility for predictive maintenance or uptime reporting, this switch cannot meet those requirements. Similarly, if you need Gigabit speeds for vision systems generating large image transfers, or fiber uplinks for long-distance runs, the W4S1-05D is the wrong hardware. In those cases, a managed industrial switch — whether from Omron's broader portfolio or from another vendor's managed line — is the honest recommendation. Do not stretch an unmanaged switch to fit a managed-switch requirement to save cost; the network instability costs more.
From a procurement standpoint, the W4S1-05D is typically available through industrial automation distributors at shorter lead times than more complex managed switches, making it a practical choice for MRO replacements and short-schedule OEM builds. For project quantities, lead times can extend depending on regional stock levels, so confirming availability before committing to a build schedule is worth the five-minute call. View current pricing and stock status for the W4S1-05D at LeadTime.ca — a specialist distributor can also confirm fit with your PLC architecture and suggest the right alternative if the W4S1-05D is constrained or not the optimal match for your application.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Need to Know Before Ordering the W4S1-05D
Community discussion specific to the Omron W4S1-05D is limited in public automation forums — this is a focused, workhorse component that tends to go in the panel and stay there without drama, which means it generates fewer forum threads than more complex or problem-prone hardware. What does exist in the broader W4S1 family and unmanaged industrial switch discussions is instructive for anyone evaluating this model for the first time.
The most consistent theme in practitioner conversations about this class of switch is the value of truly industrial power and environmental specs versus office-grade hardware. Engineers on forums including Reddit r/PLC, PLCTalk, and PLCS.net have documented cases where commercial desktop switches failed in control panels due to vibration, heat buildup, or electrical noise — sometimes intermittently and frustratingly. Switching to a 24 VDC industrial switch with proper DIN-rail mounting resolved those failures. The W4S1-05D's 0 to 55 °C operating range and 10 % to 95 % RH tolerance, combined with its 24 VDC input, are not marketing specs — they are the specs that determine whether the device survives 24/7 in a real production environment.
The ordering mistakes that come up repeatedly in community discussions map directly onto this product. Buyers sometimes order an unmanaged switch expecting VLAN or SNMP capability — then discover the limitation only after installation. Others order a 5-port model when their node count was actually 6 or 7 after accounting for a laptop port for maintenance access. And a recurring issue across switch families is part-number confusion when multiple variants share similar naming conventions. The Wrong-Part Prevention Checklist below addresses each of these scenarios directly. When community knowledge is sparse for a specific model, the right move is to work through the checklist with a specialist distributor who knows the product family — that conversation takes minutes and prevents a costly mis-shipment.
Wiring and Installation Overview for the W4S1-05D
The following covers the key requirements engineers should verify before and during installation. For full wiring diagrams and detailed procedures, refer to Omron's official installation documentation for the W4S1 series.
- Power is supplied via the power connector using wire sized between 0.14 and 1.5 mm²; verify polarity and connect the protective earth conductor to the grounding terminal for a low-resistance earth connection before energizing.
- External overcurrent protection — a fuse or breaker sized to Omron's guidelines — is required; the W4S1-05D does not contain an integrated circuit breaker.
- The unit mounts on a standard DIN rail; orient the switch to allow clear visual access to all port LEDs and the power LED for maintenance checks.
- Use industrial-grade twisted-pair Ethernet cable for all port connections; route Ethernet cabling away from high-voltage conductors and cross at right angles where parallel routing is unavoidable.
- After powering up, verify the power LED and per-port link/activity LEDs for each connected device before performing PLC-to-device communication tests to confirm stable network operation.
W4S1-05D vs Other W4S1 Family Models and Competing Switches
Within the W4S1 family, Omron offers at least a 3-port and a 5-port model. The 3-port variant suits minimal-node installations — a PLC and one or two devices — where the smaller footprint is a priority and the reduced switching capacity is not a constraint. The W4S1-05D at 5 ports and 700 Mbps switching fabric is the more versatile choice for typical machine panels. If your node count approaches or exceeds 5, the correct solution is either a second switch or a higher-port-count unit — not attempting to stretch a 5-port device past its physical limit.
Against competing 5-port unmanaged industrial switches from other vendors — including offerings from Phoenix Contact, Siemens SCALANCE, Rockwell Stratix, Moxa, and Hirschmann — the W4S1-05D is comparable on the core attributes that matter for this application: 24 VDC power, 10/100 Mbps copper ports, DIN-rail mounting, and industrial environmental ratings. The differentiating factors at a project level are usually vendor preference, existing platform standardization, and available stock. For Omron-centric panels with existing Omron hardware and established Omron distributor relationships, the W4S1-05D is the natural choice. For mixed-vendor or platform-agnostic procurement, the competing alternatives are legitimate options — but require individual datasheet verification for temperature range, power input tolerance, and protocol-specific features before substitution.
Wrong-Part Prevention Checklist Before Ordering the W4S1-05D
Before placing your order, work through each of these checks to confirm the W4S1-05D is the correct part for your application:
- Confirm you truly need an unmanaged switch; if you need VLANs, IGMP snooping, or SNMP, this model is not suitable.
- Verify 5 ports are sufficient for all connected devices now and in the near future; consider expansion requirements.
- Check that your control power is 24 VDC (20.4–28.8 VDC) and that you can provide external protection and proper grounding.
- Ensure 10/100 Mbps Fast Ethernet is adequate; this is not a Gigabit switch.
- Verify that copper RJ45 connections are acceptable; there is no fiber or PoE support.
- Confirm the ambient temperature and humidity of the panel or machine stay within the specified operating range.
- Check control panel space and DIN rail availability against the switch's compact but finite dimensions.
- Confirm you are ordering the correct W4S1-05D variant and not confusing it with other W4S1 family part numbers.
If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming fit takes minutes and avoids a return shipment.
Frequently Asked Questions
Does the W4S1-05D support VLANs, IGMP snooping, or SNMP management?
No. The W4S1-05D is an unmanaged switch. Per Omron's official specification, it does not support VLAN, STP, IGMP snooping, SNMP, or port mirroring. If any of these features are required for your network, a managed industrial switch is the correct product selection.
Can I use the W4S1-05D with non-Omron PLCs and devices?
Yes. The W4S1-05D supports standard IEEE 802.3 10BASE-T and 100BASE-TX with Auto Negotiation and Auto MDI/MDI-X. Any EtherNet/IP or TCP/IP device conforming to these standards can connect to it. The QoS for EtherNet/IP feature provides traffic prioritization benefits regardless of PLC brand.
What external power supply and protection does the W4S1-05D require?
The W4S1-05D requires a 24 VDC supply within the 20.4 to 28.8 VDC range, with current consumption of approximately 70 mA and power draw up to approximately 1.7 W. An external fuse or circuit breaker must be provided — the unit does not have an integrated protective device. Wire size for the power connector is 0.14 to 1.5 mm².
How many devices can I reliably connect to the W4S1-05D?
The W4S1-05D provides 5 x RJ45 ports — one port per connected device. With a 700 Mbps switching fabric and 10/100 Mbps Fast Ethernet, the switch handles the traffic load of a typical small machine cell without congestion. If your node count reaches or exceeds 5 (counting all PLCs, HMIs, drives, and I/O blocks), plan for a second switch or a higher-port-count unit rather than using cascaded consumer-grade hardware.
What does the broadcast storm detection function actually do, and will it prevent all network outages?
The broadcast storm detection function monitors for abnormal broadcast traffic levels that can overwhelm an unmanaged network segment — a known failure mode in EtherNet/IP environments with misconfigured or faulty devices. It provides a protective response that helps maintain network stability. However, it is not a substitute for managed switch features like IGMP snooping or VLAN segmentation in larger or more complex networks where multicast traffic is heavy or multiple segments interact.
Is the W4S1-05D a direct replacement for an office-grade desktop switch in a machine panel?
Functionally yes for basic Ethernet connectivity, but the W4S1-05D is the specifically correct choice for industrial applications. Office-grade switches typically require 120/240 VAC power rather than 24 VDC, do not mount on DIN rail, and are not rated for the operating temperature, vibration, or humidity levels found in control panels and machine environments. The W4S1-05D addresses all of those gaps.
Why Order the W4S1-05D From LeadTime.ca
- LeadTime.ca ships the Omron W4S1-05D worldwide — no regional restrictions on orders.
- Specialist automation distributor with direct access to current stock levels, lead time data, and volume pricing — not a generic marketplace.
- Pre-order application review available: confirm that the W4S1-05D fits your PLC architecture, port count, and power requirements before committing.
- Alternative sourcing support if the W4S1-05D is on extended lead time — the team can identify suitable alternatives within the W4S1 family or from comparable product lines.
- View the W4S1-05D product page for current pricing and availability, or contact LeadTime.ca directly for volume orders and project-level sourcing support.
At-a-Glance Summary
- 5 x RJ45 ports, IEEE 802.3 10BASE-T and 100BASE-TX, store-and-forward switching with 700 Mbps fabric.
- Unmanaged operation — no VLAN, SNMP, STP, IGMP, or port mirroring; plug-and-play only.
- Broadcast storm detection and QoS for EtherNet/IP included without configuration.
- 24 VDC power input, 20.4 to 28.8 VDC range; approximately 70 mA current consumption; up to approximately 1.7 W.
- Wire size range for power connector: 0.14 to 1.5 mm²; external overcurrent protection required.
- Operating temperature: 0 to 55 °C; operating humidity: 10 % to 95 % RH non-condensing.
- DIN-rail mounting; copper RJ45 connections only — no fiber, no PoE.
- Right for: small Omron-centric or mixed-brand machine cells needing simple, hardened Ethernet connectivity.
- Not right for: VLAN, IGMP, Gigabit, fiber, SNMP, or networks requiring remote diagnostics.
