Omron Z-15GQ-B Micro Switch — Specs, Wiring & Buying Guide

By Abdullah Zahid
15 min read

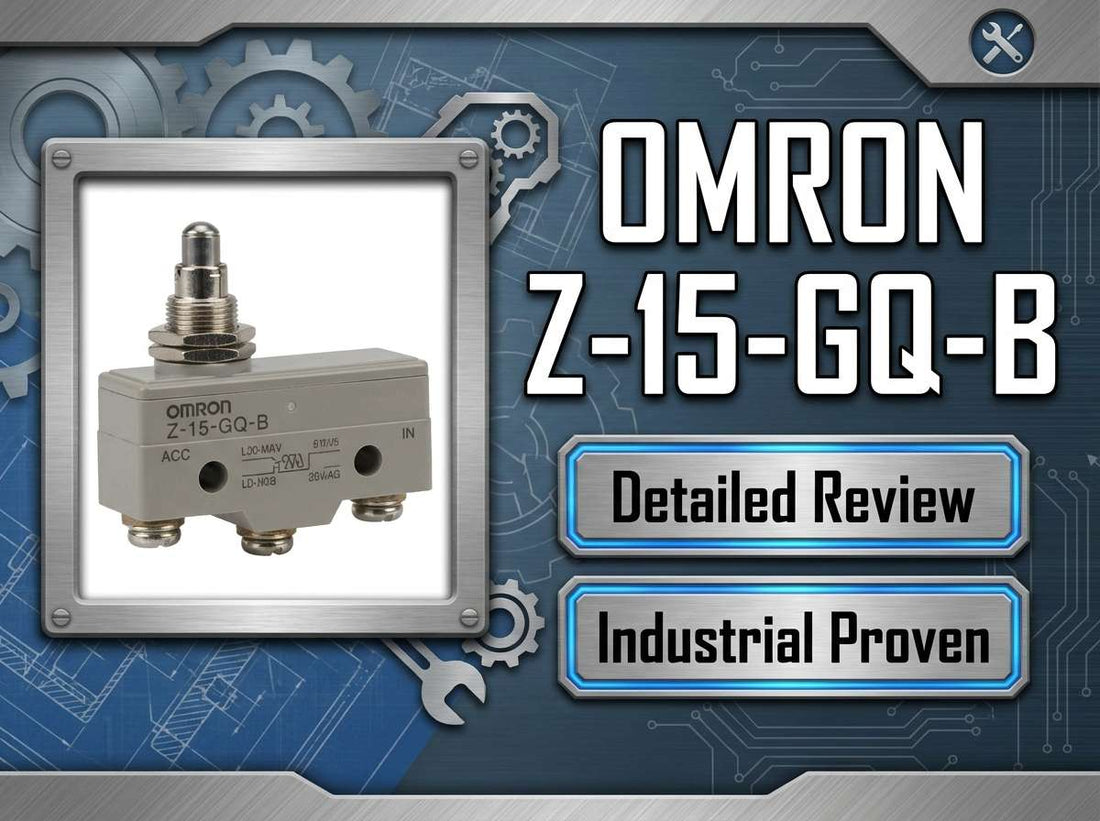

Omron Z-15GQ-B general-purpose basic micro switch with panel-mount plunger and screw terminals for industrial position sensing

Omron Z-15GQ-B — Z General-purpose Basic Switch, Panel Mount Plunger, SPDT, 15 A, Screw Terminals: Specs, Wiring & Buying Guide

When a maintenance technician or control panel builder searches for the Omron Z-15GQ-B, the decision is usually already close to being made — they need a 15 A SPDT basic micro switch with a panel-mount plunger actuator and screw terminals, and they want confirmation that this exact variant is the right one before the purchase order goes through. The Z-15GQ-B is a member of Omron's long-established Z General-purpose Basic Switch family, offering snap-action SPDT switching at 15 A class ratings with straightforward screw terminal connections and an IP00 open-type housing built for clean to moderately controlled indoor environments.

If you have already confirmed this is the right part, check current pricing and availability for the Omron Z-15GQ-B at LeadTime.ca — ships worldwide.

Is the Omron Z-15GQ-B the Right Switch for Your Application?

This switch is the right choice for control panel builders, maintenance teams, and OEM designers who need a reliable, easy-to-wire plunger-actuated micro switch for general-purpose indoor position sensing and switching duties. Confirm all five points below before ordering:

  • Your circuit requires a 15 A class SPDT contact configuration — one common, one normally open, one normally closed — not a DPDT or SPST arrangement.
  • Your load voltage and current type (AC or DC, resistive or inductive) fall within the Z-15GQ-B rated switching capacity as defined in the Omron datasheet.
  • A panel-mount plunger actuator is the correct interface for your cam, mechanism, or moving part — straight-on contact without significant side loading.
  • Screw terminals (M4 type, compatible with ring or fork lugs) are acceptable for your panel wiring method and conductor size standards.
  • Your installation environment is clean or only moderately dusty indoors, and you can provide a suitable enclosure if any contamination, moisture, or wash-down exposure is present, since the Z-15GQ-B is IP00 open type.

If your application requires a sealed or washdown-rated limit switch, a lever or roller actuator, solder or quick-connect terminals, a different current class, or a safety-rated limit switch, a different variant within the Z series or the Omron D4 series enclosed limit switch family is the correct choice — see the variant comparison section below.

On this page:

What the Omron Z-15GQ-B Actually Does in a Control System

The Omron Z-15GQ-B is a snap-action basic micro switch — the class of component that detects a physical event (a plunger being depressed by a cam, gate, or actuator) and converts it into a reliable electrical switching event. Inside the housing, a precision snap-action mechanism throws the SPDT contacts between their normally open and normally closed states with a clean, repeatable transition that resists contact bounce and provides consistent actuation characteristics over a high-cycle service life. The 15 A class rating means it can switch real loads directly in many control circuit applications — not just signal-level currents — making it suitable for direct control of small motors, solenoids through contactors, indicator circuits, and interlock chains.

The screw terminal design accommodates ring and fork lugs on standard conductor sizes, making field wiring and replacement straightforward without specialized tools. The panel-mount plunger actuator offers a medium operating position — the plunger must travel a defined distance before the snap point is reached, and the mechanism resets when the plunger is released. This behavior is what makes the Z-15GQ-B a go-to replacement part in legacy equipment and a practical standardization choice for plants that maintain Omron Z series as a preferred basic switch family.

Typical System Architecture: Where the Z-15GQ-B Fits

The Z-15GQ-B sits between the moving mechanical element of a machine and the control circuit that acts on the detected position — it is the electromechanical interface in the signal chain.

  • PLC or relay logic controller receives discrete input from the switch COM–NO or COM–NC path to detect position or presence events.
  • Control panel wiring routes from the PLC input card or relay terminal block through the circuit protection device (fuse or breaker) to the switch terminals.
  • The Omron Z-15GQ-B is mounted to a panel, machine frame, or bracket with its plunger aligned to the moving cam, gate, or actuator arm.
  • The moving mechanism depresses the plunger at the defined travel position, triggering snap-action contact switching and signaling the controller.
  • If the switched load is large or highly inductive, an interposing relay or contactor handles the load current while the Z-15GQ-B switches the coil circuit only.

Industries and Applications Where Engineers Reach for This Switch

The Z-15GQ-B covers a wide range of general-purpose detection duties across industrial machinery. On conveyors and material handling systems, it provides end-of-travel detection on linear slides, gate position feedback, and product-presence confirmation at defined points along the line. The 15 A SPDT rating with screw terminals makes it practical for direct wiring into panel door interlock circuits, where detecting an open access door for non-safety interlock logic is the requirement.

In packaging and printing machinery, cam-operated switching is a common Z-series application — the plunger makes contact with a rotating cam profile at precise mechanical positions, generating reliable cycle signals. OEM machine builders use the Z series as a standardized basic switch across product lines, reducing the number of distinct part numbers held in the service kit and simplifying maintenance technician training.

Replacement and MRO scenarios account for a significant share of Z-15GQ-B demand. When a legacy machine was originally built using Omron Z series basic switches, returning to the same family ensures dimensional compatibility, identical actuator behavior, and consistent electrical performance without redesigning the mounting bracket or rewiring the panel.

Application Typical Deployment
Conveyor end-of-travel detection Plunger actuated by carriage or gate reaching travel limit; signal to PLC stop input
Panel door and access plate interlock Plunger depressed when door is closed; NC path opens when door is opened (non-safety rated)
Cam-operated machine cycle position Rotating cam contacts plunger at defined angular positions; drives relay or PLC discrete input
MRO replacement in legacy equipment Direct replacement for worn Z-series switch; matches mounting footprint and actuator interface
Custom jigs and test fixtures Plunger detects presence or position of workpiece or fixture locating pin
HVAC and building automation panel Position detection on damper actuators and valve stems in controlled indoor environments

Key Specifications and Purchase-Decision Data

Parameter Value / Description Notes
Brand Omron Z General-purpose Basic Switch family
Model / Catalog Number Z-15GQ-B Exact part number — confirm suffix before ordering
Contact Form SPDT (1NO / 1NC) Single-pole double-throw; COM, NO, NC terminals
Rated Current 15 A class Verify AC and DC load ratings in Omron datasheet; resistive vs inductive load ratings differ
Actuator Type Panel-mount plunger (medium operating position) Direct plunger actuation; must contact straight-on without side loading
Terminal Type Screw terminals (M4 type) Suitable for ring or fork lugs; verify conductor size compatibility
Protection Class IP00 Open type — requires protective enclosure in contaminated or wet environments
Mounting Panel / surface mount, standard Z footprint Verify hole spacing from Omron dimension drawing for retrofit fit
Approximate Dimensions Approx. 49 mm L x 17–18 mm W x 24 mm H Use official Omron dimension drawing for exact figures before designing mounting
Operating Temperature Typical industrial range Confirm specific low and high limits from current Omron datasheet for your environment

Full technical specifications are available on the product page at LeadTime.ca.

Z-15GQ-B vs Other Z-Series Variants: Which One Do You Actually Need?

The Omron Z series shares a common internal snap-action mechanism across the family — what differentiates one part number from another is the actuator style, terminal type, and mounting orientation. The suffix letters carry the critical information. Getting this wrong is the most common ordering mistake with Z-series switches.

Model Actuator Style Terminals Best Use Case
Z-15GQ-B Panel-mount plunger (medium operating position) Screw terminals (M4) Direct cam or actuator plunger contact; panel wiring with ring/fork lugs
Z-15GQ Panel-mount plunger Different terminal style from -B variant Same plunger actuation; verify terminal compatibility before substituting for Z-15GQ-B
Z-15GW series Lever-type actuators (hinge lever, roller lever, adjustable roller) Varies by sub-variant Cam-following applications where a lever arm is required; not a direct swap for plunger models
Z-15GQ8-B / Z-15GQ3-B Plunger variants with different operating point or plunger geometry Screw terminals Applications requiring a different pre-travel or operating force characteristic; check datasheet for operating point differences

If your mechanism contacts a lever arm or roller rather than pushing directly on a plunger, the Z-15GW lever variants are the correct family — contact LeadTime.ca to confirm the right Z-series model for your actuator geometry.

Expert Verdict: When to Buy the Z-15GQ-B and When to Walk Away

The Omron Z-15GQ-B is a dependable, low-risk specification for maintenance teams and panel builders who need a proven 15 A SPDT micro switch with a panel-mount plunger and screw terminals for indoor industrial service. It draws on a long-established Z-series platform that many plants already hold as a preferred basic switch family, meaning spare parts, mounting compatibility, and technician familiarity are all working in its favor. For MRO replacement duties on legacy equipment originally built around Z-series switches, and for OEM standardization on a widely available commodity switch, this model delivers exactly what the application requires with minimal integration effort.

The honest limits are these: the IP00 open-type construction is not suitable for wash-down environments, heavy dust exposure, or outdoor installation without a properly rated enclosure — engineers in those environments should look at fully enclosed limit switch families such as the Omron D4 series, which provide sealed housing and rated ingress protection. Similarly, if your mechanism requires a lever or roller follower rather than a direct-contact plunger, a Z-15GW lever variant is mechanically correct where the Z-15GQ-B is not. And if your load is heavily inductive or exceeds the rated switching capacity, the switch should drive a relay or contactor coil rather than the load directly. The Z-15GQ-B does not present a miniature footprint — if your panel or machine has very tight dimensional constraints, verify the approximate 49 mm L x 17–18 mm W x 24 mm H body size against available mounting space before committing.

From a procurement standpoint, the Z-15GQ-B benefits from being a commodity component in the Omron catalogue — it carries short lead times when stock is available, and the wide distributor network means alternatives to a single-source stock shortage are usually reachable. For builds requiring confirmed availability, volume pricing, or cross-referencing to verify this is the correct Z-series suffix for your specific machine, working with a specialist distributor eliminates the wrong-part risk that generic channels routinely miss. View current pricing and stock status for the Omron Z-15GQ-B at LeadTime.ca — we ship worldwide and can confirm suffix compatibility before your order ships.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Z-15GQ-B

Community discussion specific to the Z-15GQ-B catalog number is limited in the major industrial forums and automation communities — most feedback circulates at the Z-series family level rather than targeting this exact suffix. That actually reflects well on the product: the absence of recurring model-specific failure threads suggests that when the switch is correctly applied, it performs as expected without generating the support questions that problematic components tend to accumulate. What the community does surface consistently about Z-series basic switches is a pattern worth understanding before ordering.

Technicians who have worked with Omron Z-series switches in forum discussions on PLCTalk, PLCS.net, and similar communities describe the family as reliable and widely available, with the screw-terminal variants specifically called out as practical for panel retrofits and field replacement work. The recurring praise for Z-series durability and broad distributor availability lines up with what distributors and controls engineers experience in practice. Where complaints emerge, they trace almost entirely to environmental misuse — specifically, mounting open IP00 basic switches in areas with oil, coolant mist, metal dust, or washdown exposure. Community members who have been through that lesson consistently recommend selecting a sealed enclosed limit switch for those environments rather than attempting to protect an open basic switch with ad-hoc shielding.

The most instructive ordering mistakes that surface in these communities are worth treating as a pre-order checklist in their own right. Confusing Z-series suffix letters and ordering a plunger variant when a lever roller is required — or vice versa — accounts for a disproportionate share of wrong-part returns. Selecting the wrong terminal type (screw versus quick-connect versus solder-lug) without checking existing panel wiring is the second most common issue. A third recurring error is assuming that any Omron Z switch will drop into the same mounting footprint as the part being replaced, without verifying mounting hole spacing and operating point geometry against the machine drawing. When community guidance is sparse for a specific part number, specialist distributor knowledge is the most reliable substitute — the LeadTime.ca team can confirm suffix meaning, check dimensional compatibility, and identify true equivalents before an order leaves the building.

Wiring the Omron Z-15GQ-B: Terminal Layout and Best Practices

  • Identify the three screw terminals on the Z-15GQ-B body: COM (common), NO (normally open — circuit made when plunger is depressed), and NC (normally closed — circuit open when plunger is depressed). Confirm terminal identity against Omron datasheet markings before connecting conductors.
  • Terminate all conductors with correctly sized ring or fork lugs for the M4 screw terminals; do not insert bare stranded wire directly into screw-terminal clamps, as this risks poor contact and terminal damage over time.
  • Use the NO contact path for signals that should activate when the plunger is pressed (detection events), and the NC contact path for fail-safe circuits that should de-energize when the plunger is released or the switch fails open.
  • Tighten terminal screws to the torque value specified in the Omron datasheet and perform a firm tug-test on each lug after torquing; loose terminals are a leading cause of intermittent switching behavior and contact overheating.
  • Ensure appropriate circuit protection (fuse or breaker sized to the conductor and load) is installed upstream of the switch, and route cables with sufficient strain relief to prevent mechanical stress at the terminal connections.

Mechanical Installation and Commissioning Overview

  • Mount the Z-15GQ-B to the panel or machine surface using the standard Z-footprint mounting holes; confirm hole spacing against the Omron dimension drawing before drilling, especially in retrofit applications where the existing pattern may differ from legacy switches.
  • Align the cam, moving part, or actuator so it contacts the plunger straight-on — side loading on the plunger shaft accelerates wear and reduces mechanical life; adjust bracket position if the contact angle is not perpendicular.
  • Set the cam or actuator travel so the plunger reaches its operating (snap) point with adequate overtravel remaining, but without bottoming out the mechanism or forcing the switch body against its mounting surface under peak travel.
  • After mechanical installation and before energizing the circuit, manually cycle the mechanism through its full travel range at least five times to confirm consistent snap action, full reset on each cycle, and no binding or sluggish plunger return.
  • Perform continuity checks on both the COM–NO and COM–NC paths in both the actuated and unactuated switch states before connecting load circuits, confirming correct switching logic against the wiring diagram.

Wrong-Part Prevention: Confirm These Six Points Before You Order

Before placing an order for the Omron Z-15GQ-B, work through this checklist verbatim — each item addresses a real ordering mistake that causes installation delays or premature failures:

  1. Confirm SPDT contact form is required, not DPDT or only SPST.
  2. Verify 15 A and voltage ratings are sufficient for the load and duty type (AC/DC, inductive/resistive).
  3. Check actuator style: panel-mount plunger is correct for the cam/actuator interface and available overtravel.
  4. Confirm screw terminals are acceptable for wiring method and panel standards (ring/fork lugs, conductor size).
  5. Ensure open-type IP00 construction is allowed; add protective enclosure if contamination or moisture is present.
  6. Match mounting footprint and dimensions with existing Z-series or legacy switch to avoid mechanical retrofit issues.

If any item on this list is unresolved, contact LeadTime.ca before ordering — confirming these points takes minutes and prevents days of unplanned downtime.

Frequently Asked Questions About the Omron Z-15GQ-B

Can I swap the Z-15GQ-B directly for another Z-15 variant without mechanical changes?

Only if the actuator style and mounting footprint are identical. Z-series models sharing the same basic body dimensions and plunger actuator type (such as Z-15GQ versus Z-15GQ-B) may be mechanically interchangeable, but the terminal configuration or operating point may differ — confirm both the mechanical interface and the terminal type from the Omron datasheet before substituting one suffix for another. Lever variants such as Z-15GW models are not mechanically interchangeable with plunger models regardless of shared body dimensions.

What do the suffix letters in the Omron Z-15 part number actually mean?

The letters following Z-15 identify the actuator type and terminal style. In Z-15GQ-B, the GQ designation indicates the panel-mount plunger actuator style, and the -B suffix indicates the screw terminal configuration. Variants such as GW indicate lever-type actuators. Always decode the full suffix from the Omron Z-series selection guide or ask your distributor to confirm before ordering a replacement, especially when the physical switch on the machine is damaged or its label is unreadable.

Is the Z-15GQ-B suitable for outdoor or wash-down environments?

No — the Z-15GQ-B is an IP00 open-type switch, meaning it provides no rated protection against dust, water, or contaminants. It is intended for clean to moderately controlled indoor industrial environments. If your application involves coolant mist, wash-down cycles, heavy particulate, outdoor mounting, or significant moisture exposure, an enclosed and IP-rated limit switch — such as models from the Omron D4 series — is the correct product category. Using the Z-15GQ-B in such environments without a fully rated protective enclosure is a leading cause of premature failure reported in the field.

How do I know whether to use the NO or NC contact for my circuit?

Use the NO (normally open) contact when the circuit should activate only when the plunger is physically depressed — for example, a detection signal that tells the PLC a part is present. Use the NC (normally closed) contact for fail-safe designs where the circuit should remain active under normal conditions and de-energize when the plunger is pressed or when the switch fails open — for example, an interlock that must open to allow machine motion only when a guard is confirmed closed. Both paths share the COM terminal; the choice depends entirely on the intended logic behavior of your control circuit.

What are the best alternatives if the Z-15GQ-B is out of stock or on extended lead time?

Within the Omron Z series, the Z-15GQ (without the -B suffix) uses the same plunger actuator but a different terminal style — verify terminal compatibility before substituting. For cross-brand equivalents, other manufacturers offer 15 A SPDT plunger-style basic switches with similar mounting footprints, but actuator geometry, operating force, and exact mounting hole spacing must be verified against your application drawing rather than assumed. A specialist distributor familiar with the Z-series family can identify verified equivalents quickly and advise on dimensional fit, reducing the risk of a second wrong-part order.

Why Order Through LeadTime.ca

  • LeadTime.ca ships industrial automation components worldwide — no regional restriction on sourcing or delivery.
  • The team can confirm Z-series suffix meanings and verify whether a specific variant matches your mechanical and electrical requirements before the order is placed.
  • Volume pricing is available for MRO stocking programs and OEM production builds — contact the team for a quote.
  • Hard-to-find variants and parts on extended lead time through standard channels are regularly sourced through the LeadTime.ca distributor network.
  • View current pricing and availability for the Omron Z-15GQ-B — live stock status on the product page.

At-a-Glance Summary

  • The Omron Z-15GQ-B is a 15 A class SPDT general-purpose basic micro switch from Omron's Z series with a panel-mount plunger actuator and M4 screw terminals.
  • Contact form is SPDT: one COM, one NO, one NC — suitable for direct switching or relay/contactor coil control in industrial control circuits.
  • Approximate body dimensions are 49 mm L x 17–18 mm W x 24 mm H; confirm exact figures from the Omron dimension drawing before designing mounting hardware.
  • Protection class is IP00 open type — a protective enclosure is required in environments with dust, moisture, oil mist, or coolant exposure.
  • The -B suffix identifies screw terminals (M4); the GQ actuator designation indicates panel-mount plunger; different suffixes indicate different actuators or terminal styles and are not interchangeable without verification.
  • Primary applications include end-of-travel detection, cam-operated position sensing, panel door interlock (non-safety rated), and MRO replacement in legacy Z-series installations.
  • Commodity-class pricing and wide distributor availability support short lead times; confirm current stock status directly with LeadTime.ca for time-sensitive builds.
  • When the environment requires sealing, or the mechanism requires a lever or roller actuator, select a different Z-series variant or the Omron D4 series enclosed limit switch family instead.
