Omron S8VK-C48024 — 24V 20A DIN Rail Power Supply Guide

By Abdullah Zahid
15 min read

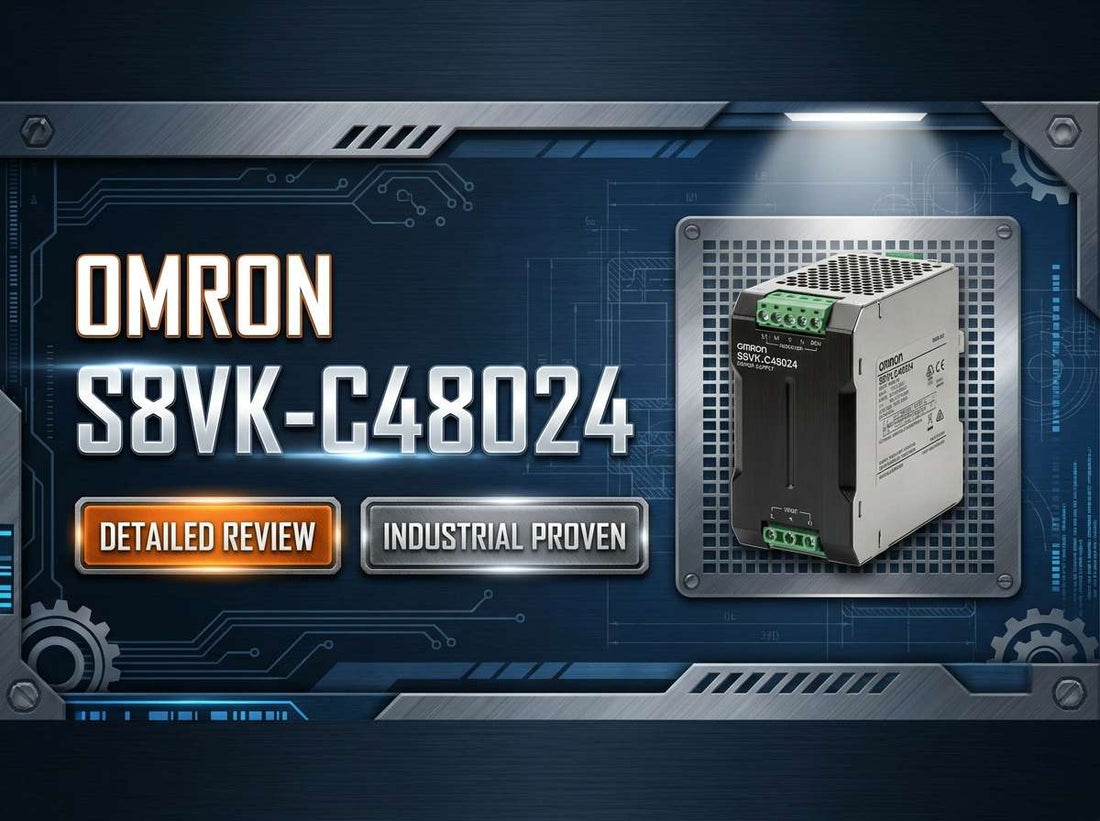

Omron S8VK-C48024 480W 24VDC 20A book-type DIN rail power supply for industrial control panels

Omron S8VK-C48024 Book Type Power Supply, Lite, 480 W, 24 VDC, 20 A, DIN Rail Mounting — Expert Review and Buying Guide

Controls engineers and panel builders searching for the Omron S8VK-C48024 are typically at the final stage of a component decision: they have a 24 VDC control bus to power, a BOM cost target to hit, and a panel layout that demands a compact DIN rail form factor. The S8VK-C48024 is a 480 W, 24 VDC, 20 A book-type switch mode power supply from Omron's S8VK-C Lite series, accepting a wide input range of 85–264 VAC or 90–350 VDC on a single-phase connection — making it a practical fit for both North American and international machine platforms. The question most buyers are actually asking is not whether this is a capable supply, but whether the Lite feature set is the right match for their specific application.

If you have already confirmed this is the correct part, check current pricing and availability for the S8VK-C48024 at LeadTime.ca — ships worldwide.

Who Should Buy the S8VK-C48024 — and Who Shouldn't

The S8VK-C48024 is the right choice for OEMs, panel shops, and system integrators building mainstream industrial control panels that need a dependable 480 W supply with recognized approvals at a competitive price point. Confirm all of the following before ordering:

  • Your DC bus requires 24 VDC nominal output at up to 20 A continuous — total load plus margin must not exceed 480 W.
  • Your input supply is single-phase 85–264 VAC or 90–350 VDC; this unit is not rated for three-phase connections.
  • The book-type physical envelope (approximately 95 × 125 × 140 mm) fits your DIN rail layout and panel depth.
  • The operating environment stays within −25 to +60 °C with adequate ventilation and derating observed.
  • Your project and end-customer panel standards are satisfied by UL, CSA, and EN safety approvals with EN61204-3 and EN55011 Class A EMC compliance.
  • You do not require a DC-OK status relay, communication interface, or conformal coating — none of these are present in the S8VK-C Lite series.

If your application demands alarm relays, extended environmental ratings, hazardous-location approvals, or richer diagnostics, the Omron S8VK-G48024 or a premium-tier supply is the more appropriate specification. Details on that decision are covered in the variant comparison section below.

On this page:

What the S8VK-C48024 Actually Does in a Control Panel

The S8VK-C48024 sits between your incoming single-phase mains and every 24 VDC load in your control cabinet. Its job is to convert 85–264 VAC or 90–350 VDC input into a stable, regulated 24 VDC rail capable of sustaining 20 A continuously — that is 480 W of usable DC power for PLCs, I/O modules, sensors, safety relays, HMIs, contactors, and any other 24 V control load in the panel.

What makes the S8VK-C series the workhorse choice for mainstream panels is the combination of a compact book-type footprint, convection cooling with no internal fan, double DC output terminals that simplify field wiring to distribution blocks, and approximately 92% efficiency at rated conditions. That efficiency figure matters practically: less wasted heat inside a sealed or poorly ventilated enclosure means longer service life and fewer thermal trips. The Lite designation is Omron's honest signal that this series trades advanced diagnostics and environmental hardening for a lower price point — a deliberate and often sensible trade-off for standard industrial panel applications.

The supply requires external fusing or circuit protection on both AC input and DC output circuits. It does not include an integrated circuit breaker, alarm relay, or communication port. Status indication is provided via a front-panel LED. Output voltage can be trimmed within a range defined in the Omron datasheet to accommodate slight bus voltage requirements. Overload, overvoltage, and overtemperature protection functions are built in as hardware-level protections.

Typical System Architecture

The S8VK-C48024 sits at the power conversion layer of a control panel, taking mains AC and delivering the 24 VDC rail that every control device in the cabinet depends on. A typical deployment looks like this:

  • Single-phase 100–240 VAC supply enters through an external AC input fuse or circuit breaker, then feeds the S8VK-C48024 L and N terminals with PE bonded to the enclosure.
  • The S8VK-C48024 converts AC to a regulated 24 VDC output, distributed via dual DC output terminals to a DIN rail terminal block or busbar.
  • From the 24 VDC distribution point, individual fused branches feed the PLC CPU, I/O modules, and communication processors.
  • Separate fused branches from the same 24 VDC rail supply field devices — sensors, proximity switches, solenoids, and pilot devices — with cable runs back to the I/O terminals.
  • Safety relays, contactors, and HMIs connect directly to the 24 VDC distribution block, with the total current draw of all branches sized to remain within the 20 A rated output.

Typical Applications and Deployment Scenarios for the S8VK-C48024

The S8VK-C48024 is the power supply that appears most frequently in standard OEM machine control panels, where the load is a PLC, a handful of I/O cards, a touchscreen HMI, and a cluster of sensors and relays. Packaging machinery, conveyor systems, material handling equipment, and automotive assembly cell controls are all natural fits — applications where 480 W covers the full panel load and the operating environment stays within the rated temperature range.

Panel builders standardizing on a single 24 V supply across multiple machine platforms often select the S8VK-C48024 as their platform power supply precisely because its wide input range of 85–264 VAC allows the same part number to ship to facilities with different mains voltages, reducing BOM variants and spare-parts inventory. The 90–350 VDC input capability adds further flexibility for installations where a DC bus rather than an AC feed is available.

The S8VK-C48024 also appears regularly as a retrofit replacement for failed or aging 24 VDC supplies in existing panels. Its book-type DIN rail form factor fits into the standard 35 mm rail space that most panels already have, and the double DC output terminals mean that existing wiring can often be redistributed without adding a terminal block.

In water and wastewater treatment panels, building automation control cabinets, and small process skid enclosures, the S8VK-C48024 covers the typical 24 VDC load budget while meeting the UL, CSA, and EN approvals that most end-customer panel standards require.

Application Typical Deployment
OEM machine control panel Main 24 VDC bus supplying PLC, I/O, HMI, and safety relays
Production line distributed cabinet Field I/O and sensor power for a single machine zone
Packaging and conveyor machinery Platform standardization — single part number across multiple machines
Legacy machine retrofit Drop-in DIN rail replacement for failed 24 VDC supply
Water and wastewater control panel 24 VDC control bus with UL/CSA/EN-approved supply
Small process skid enclosure Single-supply 24 VDC architecture with wide AC input range

S8VK-C48024 Key Specifications and Variant Comparison

Parameter Value Notes
Output voltage (nominal) 24 VDC Adjustable — confirm range in Omron datasheet
Rated output current 20 A Continuous at rated conditions
Rated output power 480 W Single output; do not oversubscribe total load
Input voltage range (AC) 85–264 VAC Single-phase, 50/60 Hz; rated 100–240 VAC
Input voltage range (DC) 90–350 VDC For DC bus supply applications
Efficiency ~92% At rated load and nominal input
Operating temperature −25 to +60 °C Follow Omron derating curve; ventilation required
Cooling method Convection No internal fan; clearances must be maintained
Mounting DIN rail (35 mm) Book-type; approx. 95 × 125 × 140 mm
Safety and EMC approvals UL, CSA, EN, CE; EN61204-3, EN55011 Class A Suitable for industrial panel approvals

Full technical specifications are available on the product page at LeadTime.ca.

S8VK-C48024 vs. S8VK-G48024: Which Omron Supply Do You Actually Need?

Feature S8VK-C48024 (Lite) S8VK-G48024
Output power 480 W, 24 VDC, 20 A 480 W, 24 VDC, 20 A
DC-OK alarm relay Not included Included
Communication / diagnostics None Enhanced diagnostics
Environmental ratings −25 to +60 °C, convection Wider environmental capability
Conformal coating option Not specified in Lite series Available for harsh environments
Global approvals scope UL, CSA, EN, CE Broader approval set for global export
Relative price Lower — cost-optimized Higher — feature premium
Best for Standard industrial panels, cost-controlled BOMs Harsh environments, demanding compliance, export machines

If your application requires an alarm relay to signal PLC fault logic, or if you are building panels destined for harsh or demanding environments, the S8VK-G48024 is the correct specification — check current availability for both variants at LeadTime.ca.

Expert Verdict: Is the S8VK-C48024 Right for Your Project?

The S8VK-C48024 is a genuinely solid choice for the large majority of standard 24 VDC industrial control panels. It delivers 20 A at 24 VDC continuously in a compact book-type DIN rail form factor, with approximately 92% efficiency that keeps heat generation low in well-designed panels. The wide input range of 85–264 VAC and 90–350 VDC means a single part number handles multiple global mains voltages, which is a tangible advantage for OEMs building the same machine for different markets. UL, CSA, and EN approvals with EN61204-3 and EN55011 Class A EMC compliance satisfy the requirements of most industrial panel certification programs. For panel builders and integrators who need a dependable, approved 480 W supply and are operating within standard temperature and environment conditions, the S8VK-C48024 hits the price-to-quality balance well.

The limits are real and worth naming. The S8VK-C Lite series does not include a DC-OK alarm relay, so if your PLC logic needs to detect a power supply fault via a hardwired signal, this supply will not provide it without additional components. There is no communication interface, no conformal coating for humid or corrosive atmospheres, and no special hazardous-location rating. The operating temperature ceiling of +60 °C with derating means that hot enclosures — common in foundries, outdoor cabinets in warm climates, or panels mounted near process heat — require careful thermal design or a move to the S8VK-G48024 with its broader environmental capability. If you find yourself needing any of these features, the honest advice is to specify the S8VK-G48024 or evaluate premium-tier alternatives rather than trying to work around the Lite series' intentional limitations.

From a procurement standpoint, the S8VK-C48024 benefits from being part of a widely stocked, well-established Omron product family. Major distributors globally carry it, which keeps lead times manageable for most project schedules — though as with any branded industrial component, checking actual stock before committing to a build date is always worthwhile. Buying through a specialist distributor like LeadTime.ca means you get a confirmation that this is the correct variant for your load, environment, and approval requirements before the order is placed, not after a field failure. View current pricing and stock for the S8VK-C48024 at LeadTime.ca — we ship worldwide.

For volume pricing, project-specific lead time confirmation, or help comparing the S8VK-C48024 against the S8VK-G48024 for your application, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the S8VK-C48024

Community feedback across forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and distributor Q&A sections consistently describes the Omron S8VK series as a reliable, field-proven platform. The recurring phrase from panel builders is effectively set-and-forget — units installed in standard industrial environments and sized correctly tend to run without intervention for extended periods. The compact book-type footprint earns specific praise from integrators working with shallow enclosures or tight DIN rail layouts, where every millimeter of panel depth matters. Buyers who have used both S8VK-C and more expensive premium-tier supplies frequently note that for mainstream machine control panels, the cost difference rarely translates into a meaningful reliability advantage.

The recurring complaints and warnings from the same community are consistent and instructive. Screw terminals on the S8VK-C series are reported as tight when using larger-gauge conductors, with several users recommending ferrules on stranded wire to maintain reliable contact and pass inspection. The more significant recurring issue is confusion between the S8VK-C Lite and the S8VK-G series: buyers have ordered the S8VK-C48024 expecting a DC-OK status relay — which does not exist in the Lite series — and have had to reorder the S8VK-G variant after the panel was already partially assembled. Thermal trips in hot enclosures are a third repeated topic, with engineers noting that the derating requirement at higher ambient temperatures is real and must be factored into the enclosure thermal design, not treated as a conservative footnote.

Ordering mistakes that appear repeatedly in community discussions follow a predictable pattern: over-specifying the 20 A model when a lower-current variant within the S8VK-C family would have covered the actual load, ordering the 24 V model when the system required a different output voltage, and selecting the S8VK-C without checking approval requirements for the destination country or the specific end-customer panel standard. These are exactly the mistakes that a pre-order conversation with a specialist distributor catches before they become field or certification problems. When community feedback is sparse on a specific catalog number and your application has any unusual characteristics — elevated temperature, export requirements, or mixed load types — the right move is to consult directly with a sourcing specialist who can cross-reference the datasheet against your requirements.

Wiring and Installation Overview for the S8VK-C48024

The following points summarize the installation and wiring approach. Always refer to the official Omron S8VK-C installation manual and your applicable electrical code for complete procedures, wire sizing tables, and torque values.

  • Mount the S8VK-C48024 on a standard 35 mm DIN rail in the upright orientation specified by Omron, with ventilation clearances maintained above and below the unit — convection cooling depends on unobstructed airflow and the supply should not be mounted directly above high-heat components.
  • Connect single-phase AC input to the L and N terminals and bond the PE terminal to the panel earth; use wire sizes and tightening torques specified in the Omron manual and sized for the 20 A output rating and local electrical code requirements.
  • Connect 24 VDC output from the +V and −V terminals — the double set of DC output terminals allows logical branch splitting directly at the supply, reducing the need for a separate distribution terminal block in some layouts.
  • Install external fusing or circuit breakers on both the AC input and DC output circuits per your panel design and local electrical code; the S8VK-C48024 requires external overcurrent protection and does not include an integrated circuit breaker.
  • Before energizing, verify polarity, terminal tightness, conductor labeling, and that no load branches exceed the 20 A total output rating when summed; confirm the front-panel LED indicates normal operation on first power-up and measure output voltage at the terminals before connecting loads.

What Engineers Get Wrong When Ordering the S8VK-C48024

Review this checklist before finalizing your order. Every item on this list corresponds to a real ordering or installation mistake that leads to reorders, field failures, or failed panel inspections.

  1. Confirm required DC output: 24 VDC, 20 A — check total load plus margin; do not oversubscribe 480 W.
  2. Confirm input supply is single-phase 100–240 VAC (or supported DC range); do not use on 3-phase lines without correct wiring.
  3. Check physical size (approx. 95 × 125 × 140 mm) fits panel space and DIN rail layout.
  4. Verify that the "Lite" model's feature set (no communication port, no alarm relay) is acceptable for the project.
  5. Confirm operating temperature and derating are compatible with enclosure temperature and cooling design.
  6. Verify regional approvals and EMC requirements (UL/CSA/EN) meet the end-customer's panel standards.
  7. Ensure you are not confusing S8VK-C48024 with other S8VK variants (e.g., S8VK-G, different power ratings, or different output voltage).
  8. Check that external fusing/breakers and wiring gauges are designed for 20 A DC output and local electrical codes.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact LeadTime.ca before ordering — our team can cross-reference your load, enclosure, and approval requirements against the S8VK-C48024 spec and confirm whether this or an alternative variant is the correct choice.

Frequently Asked Questions

Can the S8VK-C48024 accept a DC input, and what voltage range is supported?

Yes. The S8VK-C48024 accepts a DC input in the range of 90–350 VDC in addition to its 85–264 VAC input range. This makes it usable in applications where a DC bus rather than an AC mains feed is the available supply source. Refer to the Omron datasheet for any derating or wiring differences applicable when operating on DC input.

Can multiple S8VK-C48024 units be connected in parallel for higher current or redundancy?

Parallel operation of power supplies for redundancy or current sharing requires specific design considerations including matched output voltages and appropriate load-sharing or ORing diode circuitry. The official Omron S8VK-C installation manual is the definitive reference for whether and how parallel operation is supported for this model. Do not assume parallel operation is permissible without confirming this in the manufacturer documentation.

What fuse or circuit breaker size should I use on the AC input of the S8VK-C48024?

External fusing or circuit breaker sizing must account for the input current draw at full 480 W output, inrush current characteristics, conductor sizing, and local electrical code requirements. The Omron manual provides specific recommendations for AC input protection. A specialist distributor or the Omron technical team can advise on appropriate protection device sizing if you are uncertain after reviewing the manual.

What are the practical differences between the S8VK-C48024 and the S8VK-G48024 for a 480 W application?

Both models deliver 480 W at 24 VDC, 20 A on DIN rail. The S8VK-G48024 adds a DC-OK alarm relay output for hardwired fault signaling to a PLC or safety circuit, broader environmental and approval capabilities, and enhanced diagnostic features not present in the S8VK-C Lite. If your panel design relies on the power supply generating a hardwired fault signal, or if the installation environment exceeds the S8VK-C's thermal or compliance limits, the S8VK-G48024 is the correct specification.

Is the S8VK-C48024 suitable for high-temperature or dusty control panel environments?

The S8VK-C48024 is rated for operation from −25 to +60 °C, subject to the derating curve in the Omron datasheet, and uses convection cooling with no internal fan. In hot enclosures, dusty environments, or installations near high-heat components, the derating requirement reduces available output current at elevated ambient temperatures. If the enclosure cannot be cooled to maintain conditions within the derating envelope, or if conformal coating for humidity or dust resistance is required, the S8VK-G series or a premium-tier supply with appropriate environmental ratings is the better choice.

Is the S8VK-C48024 a direct replacement for a failed 24 V, 20 A DIN rail supply from a different brand?

The S8VK-C48024 performs the same functional role as any other 24 VDC, 20 A DIN rail switch mode power supply. However, direct drop-in compatibility depends on physical dimensions, terminal arrangement, mounting clearances, and approval requirements for the specific panel. Always verify the approximate 95 × 125 × 140 mm footprint fits the available DIN rail space, and confirm that UL/CSA/EN approvals meet the panel's certification requirements before treating it as a direct replacement.

Why Order the S8VK-C48024 From LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single country or region.
  • Specialist sourcing — our team can check stock across multiple warehouse locations and propose equivalent alternatives when availability is constrained.
  • Wrong-part prevention — we review your load, environment, and approval requirements before confirming the order, catching variant confusion before it becomes a field problem.
  • Volume and project pricing — contact us directly for volume commitments, blanket orders, or project-specific pricing on the S8VK-C48024.
  • Hard-to-find parts — as a specialist industrial automation distributor, we source parts across the full Omron S8VK family and related product lines.

S8VK-C48024 At-a-Glance Summary

  • Output: 24 VDC, 20 A, 480 W continuous — single output, book-type DIN rail form factor.
  • Input: 85–264 VAC single-phase or 90–350 VDC — wide range covers North American and international mains voltages.
  • Efficiency: approximately 92% at rated conditions — convection cooled, no internal fan.
  • Operating temperature: −25 to +60 °C — derating required at elevated ambients per Omron datasheet.
  • Approvals: UL, CSA, EN, CE — EMC to EN61204-3 and EN55011 Class A.
  • Physical: approximately 95 × 125 × 140 mm, 35 mm DIN rail mount, double DC output terminals.
  • No DC-OK alarm relay, no communication port, no conformal coating — Lite series; upgrade to S8VK-G48024 if these features are required.
  • External fusing and overcurrent protection on AC input and DC output are required — not integrated.
  • Best for: standard OEM machine panels, production line distributed cabinets, retrofit replacements, and platform standardization across multiple machine variants.
