Omron S8VK-C24024 — 24V 10A DIN Rail Power Supply Review

By Abdullah Zahid
14 min read

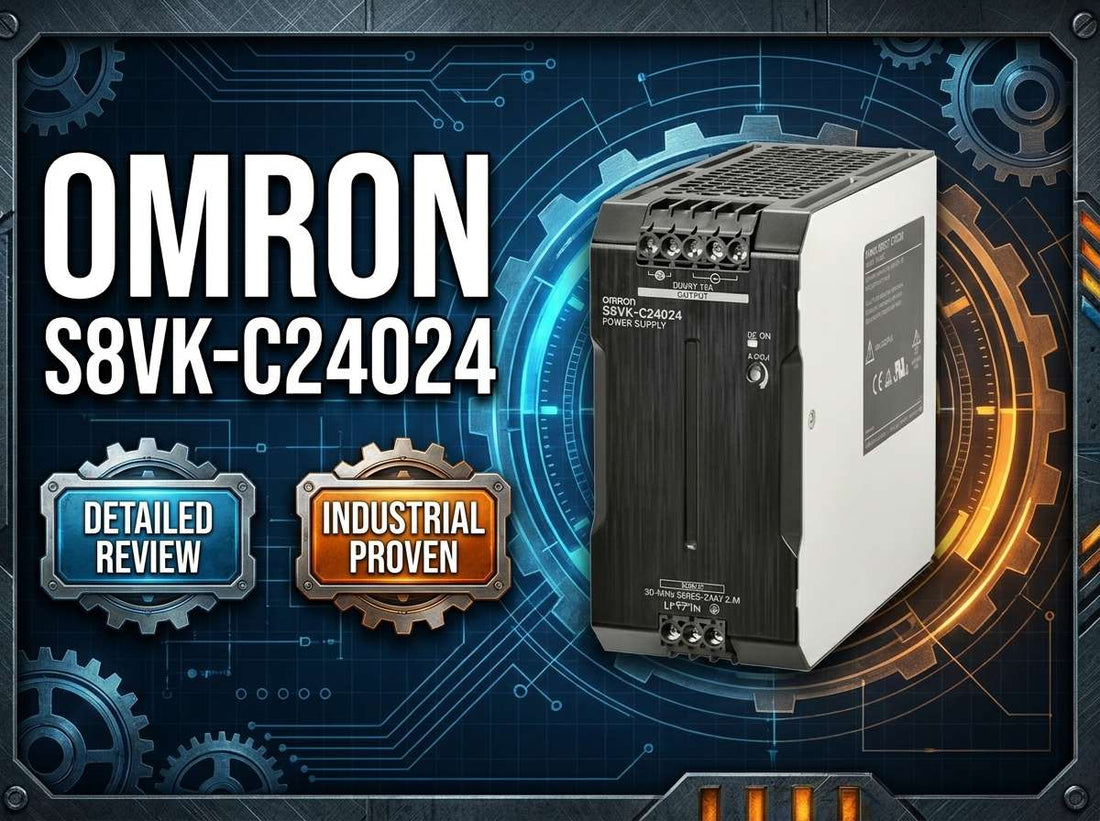

Omron S8VK-C24024 240W 24VDC 10A DIN-rail switching power supply for industrial control panels

Omron S8VK-C24024 DC Power Supply, 24 VDC, 10 A, 240 W — Full Review, Specs & Buying Guidance

When a controls engineer or panel builder needs a dependable 24 VDC, 10 A DIN-rail supply for a general automation panel, the Omron S8VK-C24024 lands consistently on the shortlist. It delivers a nominal 240 W output from a wide-range 100–240 VAC single-phase input, fits the tight real estate of modern control enclosures, and carries the documentation and approval trail that machine builders need to sign off a panel quickly. The decision usually comes down to confirming that 10 A at 24 VDC covers your load budget with thermal headroom to spare — and that you do not need alarm relay contacts or advanced diagnostics that sit in a higher Omron series.

If you have already confirmed this is the right part, check current pricing and availability for the S8VK-C24024 at LeadTime.ca — ships worldwide.

Who Should Buy the S8VK-C24024 — and Who Shouldn't

The S8VK-C24024 is the right call for OEMs and systems integrators building standard industrial control panels who want a reputable brand, a compact DIN-rail footprint, and a competitive price point for a 24 VDC / 10 A supply without advanced monitoring features. It belongs in your panel if all of the following are true:

  • Your 24 VDC load — PLCs, I/O modules, sensors, relays, and solenoids combined — stays comfortably within 10 A continuous after applying a safety margin and any temperature derating.
  • Your input supply is single-phase 100–240 VAC and complies with the S8VK-C24024's specified input range.
  • Panel space is tight and you need a compact 240 W-class supply with a narrow DIN-rail width and manageable depth.
  • Your approvals path requires UL and CE markings for the end customer or target market.
  • You do not need alarm relay contacts, redundancy inputs, or extended diagnostics on the power supply itself.

If your load exceeds 10 A, step up to the S8VK-C48024 for 480 W output. If you need alarm contacts or diagnostics, look to the Omron S8VK-G or S8VK-WB series instead.

On this page:

What the Omron S8VK-C24024 Does in a Real Panel

The S8VK-C24024 is a single-phase DIN-rail switching power supply from Omron's S8VK-C cost-effective series. Its job is straightforward and critical: convert 100–240 VAC from the panel's incoming power rail into a stable, regulated 24 VDC bus that every control component downstream depends on. At 10 A continuous and 240 W rated output power, it covers the typical load profile of a small to mid-size machine control panel — a PLC CPU with several I/O modules, a handful of sensors and proximity switches, relay coils, solenoid valve pilot circuits, and perhaps a compact HMI or pilot device network.

The S8VK-C series spans 60 W, 120 W, 240 W, and 480 W models. The S8VK-C24024 sits at the 240 W middle position — large enough for substantive panel loads, compact enough to avoid occupying excessive rail space. Output voltage is adjustable across an approximate range of 22.5–28 VDC, providing a trim margin for long cable runs or specific load requirements. The wide input range means the same unit works on 100 VAC and 240 VAC mains without switching or rewiring, which is relevant to OEMs shipping machines internationally. Omron backs the S8VK-C series with a five-year product warranty, which is a meaningful data point when standardizing a supply across a production fleet.

Protection functions cover overcurrent, short-circuit, and overvoltage conditions. There is no alarm relay contact on the S8VK-C24024 — monitoring is via DC OK LED only. That single omission is the most common reason engineers step up to a different Omron series, and it is worth settling before the BOM is locked.

Typical System Architecture Using the S8VK-C24024

The S8VK-C24024 sits at the power distribution layer of the control panel — fed from the AC branch protection device and feeding everything on the 24 VDC control bus downstream. Understanding its position in the chain helps confirm whether 10 A is sufficient for your specific topology.

  • Single-phase 100–240 VAC mains enters the panel through an isolation transformer or main disconnect, then passes through a fuse or circuit breaker sized for the AC input of the S8VK-C24024.
  • The S8VK-C24024 converts AC to a regulated 24 VDC bus, typically feeding a terminal block distribution rail or output bus bar.
  • From the 24 VDC bus: PLC CPU and I/O modules draw their logic and field power; sensors, proximity switches, and field instruments receive loop supply; relay coils, solenoid valve pilots, and indicator lamps complete the load picture.
  • Downstream loads with significant inrush — motor starters, larger solenoids — are accounted for in the load budget before the S8VK-C24024 is selected.
  • If a second isolated 24 VDC supply is needed for safety circuits or instrumentation loops, a second S8VK-C24024 or a dedicated supply is added on a separate DIN-rail section.

Where the S8VK-C24024 Gets Deployed

General factory automation is the primary home for the S8VK-C24024. Assembly machines, packaging lines, and material handling conveyors all share a common need: a reliable 24 VDC backbone for PLC I/O, sensors, and actuator pilots. The 240 W rating fits most small to mid-size machine panels without being oversized to the point of wasting panel real estate.

Machine building OEMs use the S8VK-C series as a standardized power block across multiple machine variants. The family's consistent footprint and wiring arrangement mean the same panel template works whether the application calls for 120 W or 240 W — only the part number changes. This standardization reduces panel build time and simplifies spares management across a fleet.

In food and beverage processing and automotive parts manufacturing, the S8VK-C24024 appears regularly in distributed control panels powering valve islands, proximity sensor networks, and safety relay modules. The UL and CE approvals support machine certification requirements in both North American and European markets.

Retrofit projects are another natural fit. When an aging panel supply needs replacement, the S8VK-C24024's compact dimensions and standard DIN-rail mounting simplify the swap without forcing a panel re-layout. The wide input range also accommodates legacy panels where input voltage is not precisely documented.

Application Typical Deployment
Assembly machine control panel Powers PLC CPU, I/O modules, and sensor network on a single 24 VDC bus
Packaging line machine Supplies solenoid valve pilots, HMI, and relay coils from one 240 W supply
OEM standard panel template Consistent 24 VDC block across multiple machine sizes in same product family
Panel retrofit / PSU replacement Direct DIN-rail swap for aging supply; wide input handles uncertain incoming voltage
Plant skid instrumentation Dedicated 24 VDC supply for sensor and field instrument loops isolated from PLC power

S8VK-C24024 Key Specifications and Variant Comparison

Parameter Value Notes
Output voltage 24 VDC nominal Adjustable approx. 22.5–28 VDC
Output current 10 A Continuous at nominal conditions
Output power 240 W Total 24 V load must remain within rating
Input voltage 100–240 VAC (and specified DC range) Wide range; single-phase only
Input frequency 50/60 Hz Standard single-phase mains
Mounting 35 mm DIN rail Vertical mounting recommended for convection cooling
Dimensions (H x W x D) 125 x 60 x 150 mm (approx.) Verify exact values on product page or datasheet
Cooling Natural convection Maintain clearances above and below unit
Protection functions Overcurrent, short-circuit, overvoltage Confirm hiccup/auto-restart behavior in Omron manual
Approvals UL, CE (and additional marks per datasheet) Verify exact listing against project certification requirements

Full technical specifications are available on the product page at LeadTime.ca.

S8VK-C Family Variant Comparison

Model Output Voltage Output Current Output Power Best Fit
S8VK-C06024 24 VDC 2.5 A 60 W Small panels, limited I/O loads
S8VK-C12024 24 VDC 5 A 120 W Moderate panel loads, mid-size machines
S8VK-C24024 24 VDC 10 A 240 W Standard machine panels with PLC, I/O, sensors
S8VK-C48024 24 VDC 20 A 480 W Larger panels, higher load density, future expansion

If your calculated load budget — including inrush margin and temperature derating — pushes past 10 A, the S8VK-C48024 at 480 W is the straightforward next step. Check current availability for the S8VK-C24024 and related variants at LeadTime.ca.

Expert Verdict on the Omron S8VK-C24024

The S8VK-C24024 earns its place as a default selection for general-purpose 24 VDC panel power. It delivers exactly what a controls engineer needs for a standard machine panel: a reputable brand with published documentation, a compact 240 W footprint that cooperates with tight enclosure layouts, and a five-year warranty that supports long service commitments. The wide 100–240 VAC input range is a genuine operational advantage for OEMs shipping to multiple markets, eliminating the need to specify or stock different power supplies by region. For panel builders standardizing across a product range, the consistent S8VK-C family footprint from 60 W to 480 W means a single wiring template and a predictable spares list.

Where the S8VK-C24024 has real limits is equally clear. There is no alarm relay contact — only a DC OK LED — which means the panel controller has no direct hard-wired signal if the supply fails. Designs that require power supply fault signaling to a safety PLC, a SCADA system, or an annunciator panel need to step up to the Omron S8VK-G or S8VK-WB series, both of which provide the diagnostics and alarm outputs the C-series omits. Similarly, if the application involves particularly harsh ambient conditions, extended temperature ranges beyond the S8VK-C derating profile, or a formal redundancy requirement, those higher-grade Omron lines or premium alternatives are the honest recommendation. The S8VK-C24024 is a value-tier supply in the best sense — not a compromise on reliability, but a deliberate choice of features appropriate for general-purpose work.

From a procurement standpoint, the 240 W / 24 VDC rating is one of the most commonly stocked configurations in the S8VK-C family, which supports faster delivery for standard project quantities. For large OEM orders or project buys, confirming stock and lead time before finalizing the BOM is still essential — demand spikes can affect any part number. Ordering through a specialist automation distributor adds a practical check against common selection errors between S8VK-C variants and protects against the kind of wrong-rating or wrong-voltage mistakes that cost time on a panel build. View current pricing and stock status for the S8VK-C24024 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a panel build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Consistently Report About the S8VK-C24024

Feedback from automation forums including Reddit r/PLC, Reddit r/industrialautomation, PLCTalk, PLCS.net, and MrPLC, along with distributor Q&A sections, paints a consistent picture of this supply. The dominant theme is quiet, reliable operation once correctly installed. Panel builders describe the S8VK-C series as a supply that gets mounted, wired, commissioned in a few minutes, and then simply runs — a contrast to lower-cost generic supplies where output quality and longevity are less predictable. The five-year warranty and Omron's documentation quality are cited as factors that reinforce confidence when specifying a brand-name supply for a customer's machine.

The recurring complaint that surfaces across multiple communities is thermal behavior in dense panels. When installed near the top of its rated ambient temperature range without adequate ventilation clearance, the S8VK-C24024 runs noticeably warm, and users who did not account for derating reported output voltage instability or early failures. This is not a design defect — Omron's derating guidance is explicit — but it does highlight that the enclosure thermal environment needs to be part of the specification process, not an afterthought. A second consistent point of friction is feature expectation mismatch: several posts describe buyers who selected S8VK-C series supplies and later realized they needed alarm relay contacts or a DC OK dry contact for their panel wiring. The S8VK-C provides only an LED indicator; anything beyond that requires a different series.

Ordering errors are worth paying attention to. The most frequently cited mistake across forums is selecting the 120 W S8VK-C12024 or the 60 W S8VK-C06024 instead of the 240 W S8VK-C24024, because the part numbers are visually similar and a quick glance at a distributor search result does not always make the wattage obvious. A second ordering error involves mixing up 12 VDC and 24 VDC variants within the S8VK-C family — an easy mistake when a panel design includes both voltages and the search is done under time pressure. Both errors are preventable with a deliberate part number check before the purchase order is placed, which is where the wrong-part checklist below is most valuable.

Wiring and Installation Overview for the S8VK-C24024

  • Mount on a 35 mm DIN rail in the recommended vertical orientation, maintaining the clearances specified in the Omron manual above and below the unit to support natural convection cooling — do not pack tightly against adjacent heat-generating components.
  • Connect AC Line and Neutral to the designated input terminals and protective earth to the PE terminal; conductor sizing and torque values must be confirmed from the current Omron datasheet for your installation jurisdiction.
  • Install upstream AC branch protection — a correctly sized fuse or circuit breaker — on the AC input side; the S8VK-C24024 does not incorporate an integrated AC breaker.
  • Connect the 24 VDC output (+V and -V terminals) to the panel's DC distribution bus or terminal block, observing polarity; ground the negative bus or leave it floating according to your system grounding scheme and panel design standard.
  • Before energizing with full load, verify AC input voltage is within 100–240 VAC range, confirm the DC OK LED illuminates at power-up, and measure output voltage at the terminals — adjust within the 22.5–28 VDC range if needed before connecting field loads.

Wrong-Part Prevention Checklist Before Ordering the S8VK-C24024

Run through each item below before finalizing your purchase order — these checks prevent the most common selection and ordering errors reported by engineers working with the S8VK-C family:

  1. Confirm required output is 24 VDC at up to 10 A; if load is higher, move to a larger PSU (e.g., S8VK-C48024 or equivalent).
  2. Confirm input is single-phase 100–240 VAC (or compatible DC range) and not a 3-phase or higher-voltage supply requirement.
  3. Verify physical dimensions and DIN-rail depth against available panel space, especially in shallow enclosures.
  4. Check that the environment (ambient temperature, ventilation, vibration) fits the S8VK-C derating and mounting conditions.
  5. Confirm required certifications (UL, CE, etc.) are met for the end user or target country.
  6. Verify you do not need alarm relay contacts or advanced diagnostics; if you do, choose a higher-spec Omron series.
  7. Ensure quantity and stock/lead time can meet project deadlines; do not assume on-the-shelf availability for large orders.

If any item on this list raises a question, contact the LeadTime.ca team before ordering — we can validate your selection against the application and confirm current stock status worldwide.

Frequently Asked Questions

Can I connect two S8VK-C24024 units in parallel to get 20 A on a single 24 VDC bus?

Parallel operation rules for the S8VK-C24024 must be confirmed directly from the current Omron technical documentation, as switching power supply parallel behavior depends on the specific droop and current-sharing design of the unit. If your load requirement exceeds 10 A, the S8VK-C48024 at 480 W and 20 A is typically the simpler and more reliable path forward rather than paralleling two 240 W units.

At what ambient temperature does the S8VK-C24024 start to derate, and by how much?

The exact derating curve — the point at which full 10 A output can no longer be guaranteed and must be reduced — is published in the Omron datasheet for the S8VK-C24024 and should be consulted for your specific installation temperature. Panel engineers working in enclosures where ambient temperature inside the cabinet can approach the upper end of the rated range need to apply this curve to their load calculation before committing to 10 A as the available current budget.

Does the S8VK-C24024 provide a dry-contact alarm output for power supply fault signaling?

No. The S8VK-C24024 provides a DC OK LED indicator only — there is no alarm relay contact or dry-contact fault output on this model. If your panel design requires a hardwired fault signal to a PLC input, safety relay, or annunciator, you need to specify the Omron S8VK-G or S8VK-WB series, which include that functionality.

What fuse or circuit breaker size is recommended on the AC input side?

The correct upstream AC protection rating for the S8VK-C24024 must be taken from the current Omron datasheet and installation manual, as the appropriate fuse or breaker size depends on the rated input current and the wiring installation category of your panel. Omron's documentation specifies the protection requirements; do not size the upstream device from memory or from a generic rule of thumb.

Is the S8VK-C24024 suitable for powering a PLC, safety relays, and field I/O all on the same 24 VDC bus?

Yes, provided the combined continuous current draw of all loads — including the PLC CPU, I/O modules, safety relays, sensors, and any solenoid or relay coil loads — stays within the 10 A rating after accounting for temperature derating and a reasonable safety margin. In panels where safety relay circuits require a cleanly isolated 24 VDC supply separate from the general control bus, a second dedicated supply is typically used regardless of available current capacity.

How do I adjust the output voltage on the S8VK-C24024, and what is the adjustment range?

The S8VK-C24024 output voltage is adjustable over an approximate range of 22.5–28 VDC via a trim potentiometer on the unit. The exact adjustment procedure and the location of the trim control are detailed in the Omron installation manual. Adjustment is typically needed when compensating for voltage drop across long cable runs to field devices or when a specific load device requires a tighter voltage tolerance than the nominal 24 VDC setting.

Why Order the S8VK-C24024 From LeadTime.ca

  • LeadTime.ca ships the S8VK-C24024 and the full S8VK-C family worldwide — not limited to any single region or country.
  • Specialist automation distributors can confirm stock levels and realistic lead times before your purchase order is placed, protecting panel build schedules against supply surprises.
  • The team can validate your selection against the application — particularly between closely numbered S8VK-C variants — reducing the ordering errors that forums report regularly.
  • Volume pricing and blanket order arrangements are available for OEMs and panel shops standardizing on the S8VK-C series across multiple machine builds.

S8VK-C24024 At-a-Glance Summary

  • Output: 24 VDC nominal, 10 A continuous, 240 W rated power.
  • Output voltage adjustable over approximately 22.5–28 VDC.
  • Input: 100–240 VAC wide range, single-phase, 50/60 Hz.
  • Mounting: 35 mm DIN rail, natural convection cooling, vertical orientation recommended.
  • Approximate dimensions: 125 x 60 x 150 mm — verify exact values on the product page.
  • Monitoring: DC OK LED only — no alarm relay contact on this model.
  • Protection: overcurrent, short-circuit, overvoltage — refer to Omron manual for protection mode behavior.
  • Approvals: UL and CE markings — verify full approval listing on the current datasheet.
  • Warranty: five-year product warranty per Omron S8VK-C series documentation.
  • Family range: S8VK-C series spans 60 W, 120 W, 240 W, and 480 W at 24 VDC — standardize across machine sizes with consistent footprint and wiring.
  • Not suitable for: applications requiring alarm relay contacts, advanced diagnostics, or redundancy — consider S8VK-G or S8VK-WB series for those requirements.
