Omron S8VK-G06024 24V 60W DIN Rail PSU — Specs & Buyer Review

By Abdullah Zahid
14 min read

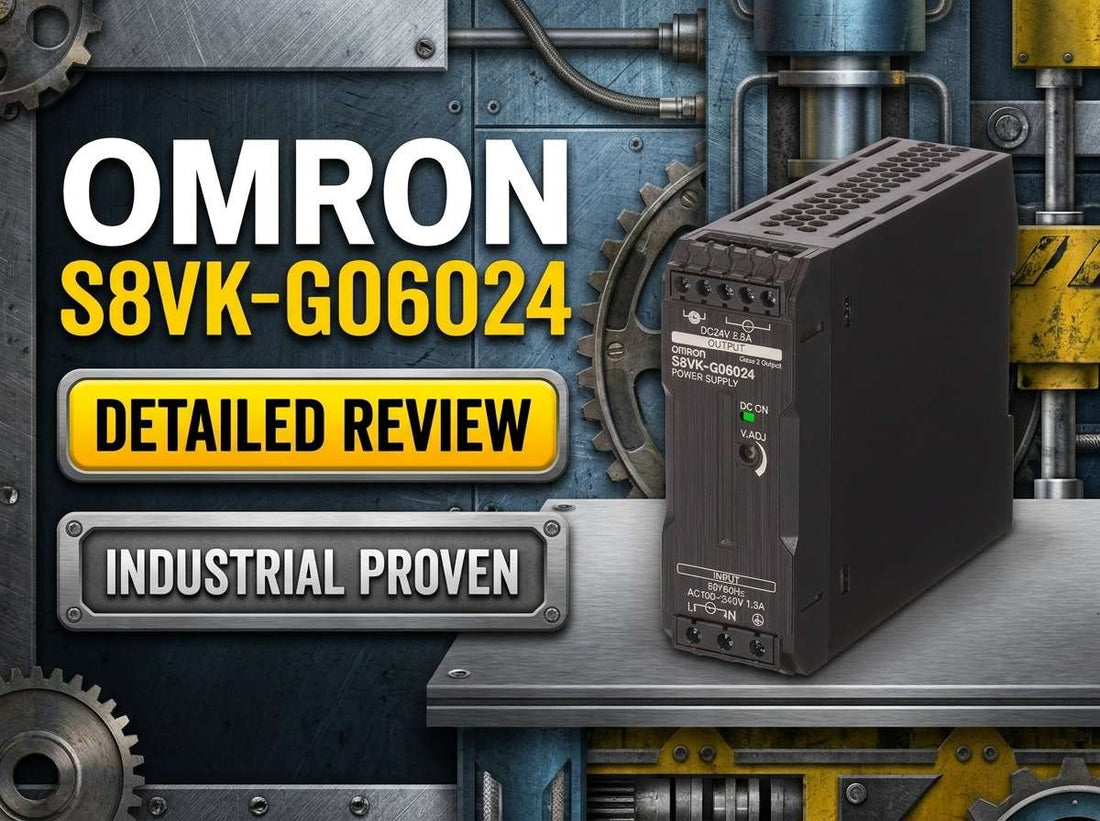

Omron S8VK-G06024 60W 24VDC DIN rail switch mode power supply for industrial control panels

Omron S8VK-G06024 S8VK-G Switch Mode Power Supply, 60 W, 24 VDC — Specs, Review and Alternatives

Controls engineers and panel builders searching for the Omron S8VK-G06024 are typically at the final stage of a BOM decision: the load calculation is done, the panel layout is roughed out, and the question is whether this specific 60 W, 24 VDC DIN rail supply is the right fit before the purchase order goes in. The S8VK-G06024 is a single-phase switch mode power supply from Omron's S8VK-G family, converting 85–264 VAC or 90–350 VDC input into a regulated 24 VDC output at 2.5 A continuous — enough for a typical small PLC, I/O rack, and sensor load without oversizing the panel budget or rail space.

If you have already confirmed this is the correct part for your project, check current pricing and availability for the S8VK-G06024 at LeadTime.ca — ships worldwide.

Who Should Buy the S8VK-G06024 — and Who Shouldn't

The S8VK-G06024 is the right choice for controls engineers, panel builders, and OEMs who need a dependable, general-purpose 24 VDC supply for PLCs and control circuits in the 1–2 A continuous range with modest room for expansion. It is a correct fit when all of the following apply:

  • Your regulated output requirement is specifically 24 VDC — not 5 V, 12 V, or 48 V
  • Your total continuous 24 V load, including a 20–30% margin for inrush and future expansion, stays comfortably below 2.5 A after temperature derating
  • Your AC input is single-phase within 85–264 VAC, or your DC bus falls within 90–350 VDC
  • Your enclosure has the DIN rail space and depth to accommodate the S8VK-G form factor
  • Your project requires industrial approvals including UL, cUL, and CE marking

If your derated load exceeds 2.5 A, if you need built-in redundancy diagnostics, or if a three-phase input is required, the S8VK-G12024 (120 W) or a higher-wattage variant in the same family is the correct step up — not this model.

On this page:

What the S8VK-G06024 Actually Does in a Control Panel

The S8VK-G06024 occupies the power foundation layer of any 24 VDC control system. Its job is straightforward: accept whatever single-phase AC voltage the facility provides — from 85 VAC on a low-line industrial site to 264 VAC on a European 230 V supply — and deliver a stable, regulated 24 VDC rail that every downstream device in the panel depends on. The universal AC input range of approximately 85–264 VAC, combined with DC input capability spanning 90–350 VDC, means a single SKU covers worldwide deployment without input transformer changes. That is the practical value of the S8VK-G family's design for OEM machine builders shipping panels internationally.

At 60 W and 2.5 A continuous output, the S8VK-G06024 is sized for the workload that appears most frequently in compact machine panels: a small PLC CPU, a handful of digital and analog I/O modules, a mix of proximity and photoelectric sensors, and the relay or indicator loads that complete the circuit. It is not a supply for large drives, heavy solenoid banks, or panels where the 24 V bus has grown through successive expansions to draw well beyond 2.5 A. Knowing where that boundary sits is the central competency this article develops.

The S8VK-G family is available in approximately 15 W, 30 W, 60 W, 120 W, 240 W, and 480 W ratings, giving panel designers a consistent family choice across different panel sizes without switching brands or approval packages. The S8VK-G06024 is the second smallest step in that ladder — above the 30 W version and well below the point where most engineers start thinking about redundancy or dual-supply architectures.

Where the S8VK-G06024 Sits in Your System Architecture

The S8VK-G06024 is the AC-to-DC conversion point between the facility's single-phase power distribution and the 24 VDC control bus that every device in the panel depends on. It sits immediately downstream of the panel's main disconnect and input fusing, and immediately upstream of the 24 V distribution terminal blocks that feed the PLC and all control loads.

  • Facility single-phase AC supply (85–264 VAC) → main panel disconnect and input branch protection
  • Input branch protection (fuse or breaker) → S8VK-G06024 AC input terminals
  • S8VK-G06024 24 VDC output terminals → 24 V positive and negative distribution bus
  • 24 V bus → PLC CPU, digital I/O modules, analog I/O modules, sensors, relays, HMIs
  • Optional: second S8VK-G06024 unit feeding a separate sensor or safety circuit bus for load segregation

Typical Applications and Deployment Scenarios

The S8VK-G06024 appears most frequently in compact machine panels where 24 VDC is the control standard and the total instrumentation and logic load sits in the 1–2 A continuous range. Packaging machinery — case erectors, fillers, labelers — typically carry exactly this profile: a small PLC, a modest I/O count, and a field device network that stays well within 60 W unless the designer has added significant valve manifolds or indicator towers.

Material handling and conveyor control panels are another natural home. A conveyor section controller with a single PLC, motor starter interlocks, and a handful of presence sensors rarely approaches 2.5 A on the 24 V bus, making the S8VK-G06024 a correctly sized, non-oversized choice that avoids the unnecessary cost and rail width of a 120 W unit.

OEM machine builders who ship panels internationally value the S8VK-G06024 specifically because the 85–264 VAC input eliminates the need for a separate input transformer when the destination country operates on 110 V or 230 V infrastructure. One SKU, one approval package, one installation procedure — that consistency reduces BOM complexity across product lines.

Retrofit and modernization projects are a third common use case. When an aging linear power supply or an early-generation switch mode unit needs replacement, the S8VK-G06024 often fits the available DIN rail space and wiring terminations with minimal rework, provided the installer verifies that the S8VK-G form factor matches the existing enclosure depth — a check the Wrong-Part Prevention Checklist below formalizes.

Application Typical Deployment
Compact packaging machine panel Single S8VK-G06024 powering PLC CPU, I/O modules, and field sensors
Conveyor section controller 24 VDC supply for PLC, motor starter interlocks, and presence sensors
OEM machine exported internationally Universal 85–264 VAC input eliminates input transformer for worldwide shipment
Retrofit of legacy power supply Drop-in DIN rail replacement of older linear or first-generation switch mode supply
Food and beverage control panel 24 V control power for sensors, relays, and HMI in a hygienic-area enclosure
Water and wastewater instrumentation panel Stable 24 VDC bus for transmitters, solenoids, and SCADA interface devices

Key Specifications for Purchase Decisions

Parameter Value Notes
Output voltage 24 VDC Regulated DC output
Rated output current 2.5 A Continuous at rated conditions
Rated output power 60 W Continuous within specified operating conditions
AC input voltage range 85–264 VAC Single-phase, 50/60 Hz, universal range
DC input voltage range 90–350 VDC Adds flexibility for DC bus supply applications
Mounting DIN rail Standard industrial DIN rail; orientation per Omron installation manual
Protections Overload, overcurrent, overvoltage, thermal Refer to Omron datasheet for protection trigger levels
Approvals UL, cUL, CE Confirm current listing status on Omron datasheet for your project
Product family S8VK-G Switch Mode Power Supplies Family spans approx. 15 W to 480 W; consistent approval package across range
Input type Single-phase AC or DC Not suitable for three-phase-only input requirements

Full technical specifications are available on the product page at LeadTime.ca.

S8VK-G06024 vs Other S8VK-G Variants: Which Wattage Do You Need?

The S8VK-G family's consistent approval and mounting architecture makes it straightforward to step up or down in power without changing suppliers, approval documentation, or installation practices. The decision between variants comes down almost entirely to load calculation with margin and temperature derating.

Model Output Rated Power Typical Use Case Notes
S8VK-G03024 24 VDC / 1.3 A 30 W Very small panels, single PLC and minimal I/O Step down when 60 W is clear oversize
S8VK-G06024 24 VDC / 2.5 A 60 W Compact machine panels, PLC plus I/O and sensors This model — correct fit for 1–2 A continuous loads with margin
S8VK-G12024 24 VDC / 5 A 120 W Mid-size panels with larger I/O count, valves, or indicators Step up when derated load approaches or exceeds 2.5 A
S8VK-G24024 24 VDC / 10 A 240 W Larger control panels with multiple subsystems When 120 W is insufficient after load growth
S8VK-G48024 24 VDC / 20 A 480 W Large machine panels or distributed control architectures High-current bus supply; verify enclosure space

If your load calculation with a 20–30% margin puts you at or above 2.5 A after applying temperature derating, the S8VK-G12024 is the direct and correct next step — check current availability of the full S8VK-G range at LeadTime.ca.

Expert Verdict: Is the S8VK-G06024 the Right Supply for Your Panel?

The S8VK-G06024 earns its place on standard BOMs because it solves the most common 24 V power problem in industrial panel building without introducing unnecessary cost, footprint, or complexity. For controls engineers and panel builders specifying a supply for a compact machine — a PLC CPU, a modest I/O rack, and a field device network that draws comfortably under 2.5 A continuous — this is exactly the right tool. The universal 85–264 VAC input range means it travels well across global facility voltages, and the S8VK-G family's industrial approvals including UL, cUL, and CE marking satisfy the compliance requirements of North American and European control panel standards without additional documentation overhead.

Its real limits are sizing limits, not design limits. If your 24 V bus has grown through successive I/O additions, or if you are planning significant expansion within the next machine revision cycle, the S8VK-G06024 will not protect you from a nuisance trip at 2.6 A. The community evidence on this is consistent: output shutdowns reported in forums trace back to loads sized too close to rated current without derating margin, not to product defects. When the load calculation with margin pushes toward or past 2.5 A — especially in a warm enclosure — the S8VK-G12024 at 120 W is the honest recommendation. Similarly, if your application demands built-in redundancy signaling, advanced diagnostics outputs, or a slimmer housing format, a different Omron series or a premium-feature line may be the appropriate specification.

From a procurement standpoint, the S8VK-G06024 is a well-stocked part at major distributors worldwide, with typical availability that supports both planned project builds and urgent MRO replacements. Working with a specialist distributor rather than a generic channel matters most when stock tightens, when a project BOM has multiple S8VK-G wattage variants on the same line, or when a sizing question needs a fast answer before a panel ships. View current S8VK-G06024 pricing and stock status at LeadTime.ca — the team can validate sizing, confirm warehouse positions, and recommend the correct alternative if the 60 W variant is not the right fit for your specific load profile.

For volume pricing, project lead time confirmation, or to discuss multiple S8VK-G variants in a single BOM, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the S8VK-G06024

Across automation forums including PLCTalk, PLCS.net, MrPLC, r/PLC, and distributor Q&A threads, the S8VK-G family consistently draws positive sentiment. Practitioners describe S8VK-G units as compact and easy to fit in crowded DIN rail panels — a practical advantage over older, bulkier linear supplies they replace. The more common observation is that these units simply stay running in control panels with minimal intervention over extended service periods, which matters considerably to maintenance engineers who cannot afford nuisance supply failures on production lines. Electricians specifically cite the straightforward screw terminal layout and clear front-face labeling as features that accelerate both initial installation and field replacement — particularly in panels where a maintenance technician may not have been the original installer.

The recurring complaints in community discussions are not about product reliability — they are about selection errors. Forum threads flag two failure modes with notable frequency. First, output shutdowns experienced when loads were sized at or near rated current without applying a margin or accounting for ambient temperature derating inside a warm enclosure. This is not a product fault; it is a sizing discipline failure, and the resolution in every reported case was moving to the 120 W variant. Second, terminal spacing and front labeling feel cramped to electricians working with larger gauge conductors in dense panels — a practical ergonomic constraint worth knowing before the enclosure layout is finalized. Some installers note that allowing adequate working clearance around the supply during layout review avoids this problem entirely.

The most consequential ordering mistakes found in community discussions follow a clear pattern. Buyers order the S8VK-G06024 when actual load plus expansion margin genuinely required the S8VK-G12024. Others select a 12 V or 48 V S8VK-G variant by misreading the last digits of the Omron part number, discovering the error only at panel wiring. A third category assumes all S8VK family models share identical dimensions and terminal layouts across series, then encounters enclosure depth or terminal position conflicts when swapping between Omron families. All three mistakes are preventable with the checklist below — and all three are the type of pre-order validation that a specialist distributor can walk through with you in a single conversation before the purchase order is placed.

Wiring and Installation Overview

The following points summarize the key requirements for installing the S8VK-G06024. Engineers requiring complete wiring diagrams and torque specifications should refer to the Omron installation manual for this model.

  • Mount on standard DIN rail in the orientation specified by Omron, with recommended clearance on all sides for adequate convective cooling — do not mount immediately adjacent to high heat sources or block ventilation paths
  • Connect AC input using appropriately sized conductors with an external fuse or branch circuit breaker on the input line as required by the Omron datasheet and applicable local electrical code; do not rely on internal protection alone for branch circuit compliance
  • Connect 24 VDC output terminals to the 24 V distribution bus using conductor sizing appropriate to the 2.5 A rated current, tighten all terminal screws to the torque values specified in the manual, and verify separation of 24 V output wiring from AC input conductors and signal wiring
  • If the unit provides an output voltage adjustment, use a calibrated multimeter to set and confirm the output voltage at the desired level under representative load before commissioning downstream devices
  • Verify input voltage at the AC terminals and confirm 24 VDC output is present and within specification before connecting loads; check for any fault indication LEDs on the front face of the supply during first energization

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the S8VK-G06024, work through each item on this checklist. These are the exact points where mis-orders occur, based on community reports and distributor pre-sale inquiries.

  1. Confirm required output voltage is 24 VDC (not 5, 12, or 48 V) and load current is comfortably below 2.5 A with margin.
  2. Verify 60 W rating is sufficient after considering inrush of loads, expansion margin, and temperature derating.
  3. Check supply input is single-phase 100–240 VAC (or within the specified DC input range), not three-phase only.
  4. Ensure DIN rail space and enclosure depth support the S8VK-G form factor, not the slim S8VK-C or larger S8VK-S footprint.
  5. Confirm regional approvals (UL/cUL, CE, etc.) and control panel standards meet your project's compliance requirements.
  6. Distinguish clearly between S8VK-G06024 and other similar Omron part numbers (e.g., G03024, G12024) when ordering, especially in multi-line BOMs.

If any item on this checklist raises a question before you commit to an order, contact the LeadTime.ca team — confirming fit takes minutes and prevents costly returns or panel rework.

Frequently Asked Questions

Can a single S8VK-G06024 power both a PLC and multiple I/O modules, or do I need the 120 W version?

It depends on your load calculation. The S8VK-G06024 delivers 2.5 A continuous at 24 VDC. If your PLC CPU, I/O modules, and connected sensors sum to less than approximately 2.0 A continuous after applying a 20–30% margin and temperature derating, the 60 W unit is correctly sized. If the summed load with margin approaches or exceeds 2.5 A — which happens quickly when digital output modules drive relay coils or solenoid valves — the S8VK-G12024 at 120 W is the appropriate choice.

How much do I need to derate the S8VK-G06024 at higher ambient temperatures inside a warm control panel?

The S8VK-G series is specified with an operating temperature range and associated derating guidance in the Omron datasheet for this model. In practice, a control panel enclosure with poor ventilation or multiple heat-generating devices can easily exceed the ambient temperature at which full rated output is available. Always check Omron's derating curve for the S8VK-G06024 against your worst-case enclosure temperature, not just the rated specification, before finalizing your supply selection.

Can I parallel two S8VK-G06024 units for higher current output or redundancy?

Parallel operation of switch mode power supplies for current sharing or redundancy requires diode or active ORing circuits and is not a configuration that should be assumed without explicit manufacturer documentation supporting it. Before designing a parallel or redundancy scheme using S8VK-G06024 units, consult the Omron installation manual and confirm whether this configuration is supported, what additional components are required, and whether Omron offers a dedicated redundancy module for the S8VK-G family.

What external fuse or breaker is required on the AC input to the S8VK-G06024?

The Omron datasheet and installation manual for the S8VK-G06024 specify the recommended external input protection device type and rating. Local electrical codes — including the NEC in North America, the CEC in Canada, and EN standards in Europe — also impose requirements on branch circuit protection for control panel power supplies. Both the manufacturer's recommendation and the applicable electrical code must be satisfied; do not rely on the supply's internal protections to fulfill branch circuit protection requirements.

Is the S8VK-G06024 a direct drop-in replacement for an older Omron S8VS power supply in an existing panel?

The S8VK-G and S8VS are both Omron DIN rail switch mode supplies, but they are different product generations with potentially different physical dimensions, terminal positions, and mounting configurations. Before specifying the S8VK-G06024 as a replacement for an S8VS unit, verify that the enclosure depth, DIN rail footprint, and terminal layout are compatible with your existing panel wiring. A side-by-side mechanical comparison using the datasheets for both models is the correct approach — do not assume dimensional interchangeability across Omron product generations.

Why Order the S8VK-G06024 Through LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not limited to any single region
  • Specialist distributor with visibility into stock positions across multiple warehouses, reducing project risk when availability is time-sensitive
  • Pre-order sizing support — the team can help confirm that S8VK-G06024 is the correct wattage variant before a purchase order is placed
  • Volume and project pricing available — contact directly for multi-unit or BOM-level quotations
  • Hard-to-find and short-lead-time parts sourced from authorized supply channels

At-a-Glance Summary

  • Model: S8VK-G06024 — S8VK-G Switch Mode Power Supply, 60 W, 24 VDC
  • Output: 24 VDC at 2.5 A continuous, 60 W rated
  • AC input range: 85–264 VAC single-phase, 50/60 Hz — universal worldwide input
  • DC input range: 90–350 VDC — supports DC bus supply applications
  • Mounting: Standard DIN rail, S8VK-G form factor
  • Protections: Overload, overcurrent, overvoltage, thermal
  • Approvals: UL, cUL, CE — suitable for North American and European control panels
  • S8VK-G family power range: approximately 15 W, 30 W, 60 W, 120 W, 240 W, 480 W — consistent approval and mounting architecture across the range
  • Primary sizing risk: Load plus 20–30% margin plus temperature derating must stay below 2.5 A — step up to S8VK-G12024 when in doubt
  • Primary ordering risk: Confusing S8VK-G06024 with S8VK-G03024 or S8VK-G12024 in multi-line BOMs — verify part number digit by digit before ordering
