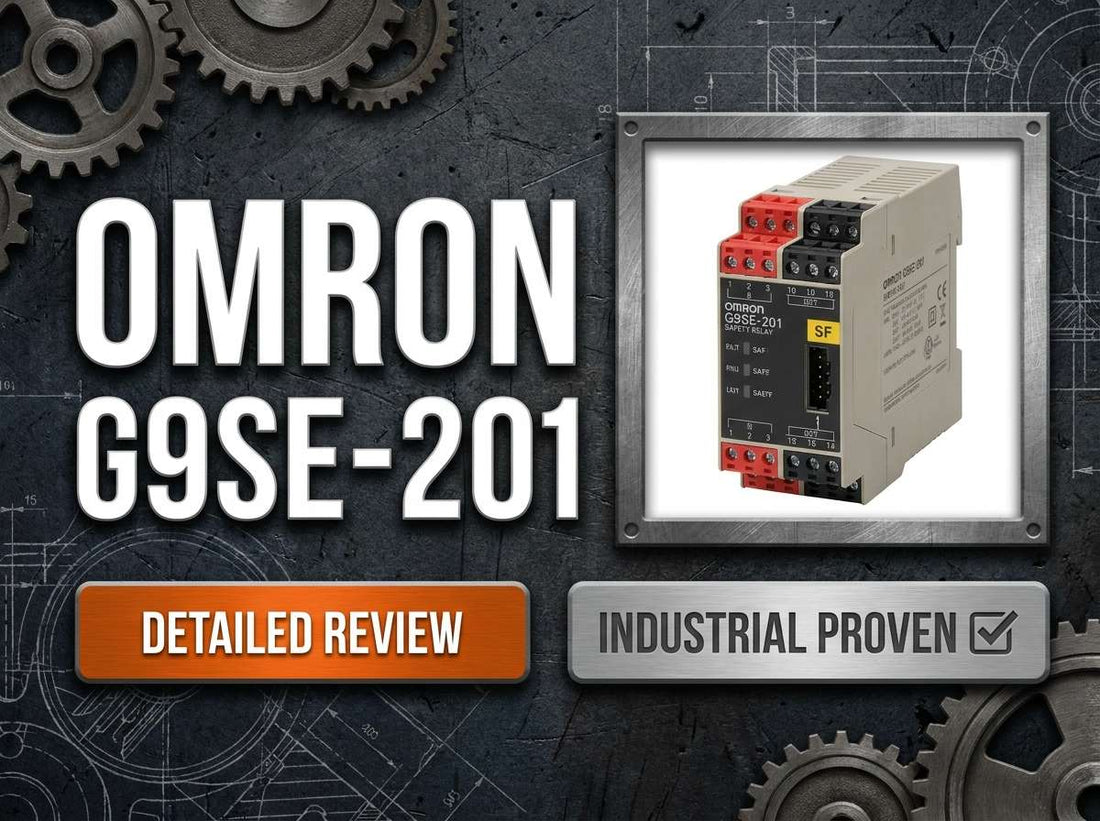

Omron G9SE-201 Safety Relay Unit DIN rail mounted 24VDC for E-stop and guard door monitoring

Omron G9SE-201 Safety Relay Unit – Specs, Wiring Overview, and Buying Guide

When a controls engineer or panel builder is specifying a 24 VDC safety relay for an E-stop or guard door circuit, the shortlist gets narrow fast. The Omron G9SE-201 is a DIN rail-mounted safety relay unit from the G9SE Safety Relay Unit series, designed to monitor 1- or 2-channel safety inputs — emergency stop buttons, safety door switches, light curtain relay outputs — and control safety contact outputs to interrupt hazardous motion. Its slim profile, screw-less terminals, and LED status indicators make it a practical candidate for panel builders working in constrained enclosures on 24 VDC control systems.

If you have already confirmed this is the right part for your application, check current pricing and availability for the Omron G9SE-201 at LeadTime.ca — we ship worldwide.

Who Should Buy the Omron G9SE-201 — and Who Shouldn't

The Omron G9SE-201 is the right choice for controls engineers, OEM machine designers, and panel builders who need a compact, brand-name safety relay for basic E-stop and guard switch monitoring on 24 VDC control systems. It is specifically well-suited when:

  • Your control system operates at 24 VDC — this relay is not rated for 120 VAC or 230 VAC supply
  • Your application requires basic E-stop or safety guard monitoring with 1- or 2-channel dry contact or PNP inputs
  • The number and current rating of your safety outputs aligns with the G9SE-201's relay contact configuration and 5 A resistive load rating
  • Panel space is constrained and a slim DIN rail profile with screw-less terminals is preferred
  • Your risk assessment requires compliance with recognized safety standards and certifications including CE and UL/cUL
  • You are working within an Omron-centric controls architecture and want ecosystem consistency

If your application requires multiple safety zones, OFF-delay outputs, additional safety contacts beyond what the G9SE-201 provides, or configurable safety logic, the G9SE-401 or G9SE-221-T variants are the more appropriate selection — and a configurable safety controller should be evaluated for complex lines.

On this page:

What the Omron G9SE-201 Does in a Real Safety Circuit

The Omron G9SE-201 occupies a specific and well-understood position in a machine safety architecture: it sits between the safety input devices — E-stop pushbuttons, safety door switches, light curtain relay outputs — and the machine's power control elements such as contactors and motor starters. Its job is to monitor those inputs continuously, confirm a defined safe state when a safety condition is triggered, and provide force-guided relay contact outputs that interrupt the hazardous motion circuit. The addition of a solid-state auxiliary PNP output allows it to simultaneously feed status information back to a PLC input or illuminate an indicator light, giving the control system visibility into safety circuit state without requiring a second relay.

The G9SE-201 is an instantaneous model within the G9SE Safety Relay Unit series — meaning its safety outputs open immediately when an input fault or safety trigger is detected, without an intentional time delay. This distinguishes it from the -T variants in the G9SE family, which incorporate OFF-delay functions for applications requiring a controlled, timed shutdown sequence before power is removed. For the large majority of simple E-stop and guard monitoring applications, the instantaneous G9SE-201 is the technically correct and cost-effective selection. The relay supports both 1-channel and 2-channel input wiring, supporting dry contact or PNP input device types, which covers the most common safety switch and E-stop button configurations encountered in industrial panel design.

The G9SE-201 mounts on a DIN rail and uses screw-less terminals that are non-removable, a design choice that accelerates wiring during panel assembly and reduces the chance of terminal loosening over time. LED indicators for power, input status, and fault conditions are built in, which reduces time spent probing terminals during commissioning and troubleshooting. The operating temperature range of -10 to +55 °C and IP20 degree of protection are consistent with standard panel-interior installation requirements, confirming the relay is designed for mounting inside a control enclosure rather than for exposure to the machine environment.

Typical System Architecture for the G9SE-201

The G9SE-201 sits between the safety field devices and the machine power control elements, acting as the monitored interface that translates a safety input event into a controlled output interrupt. A typical deployment chain looks like this:

  • Safety input device (E-stop button or safety door switch) wired in 1- or 2-channel dry contact or PNP configuration to the G9SE-201 input terminals
  • G9SE-201 safety relay unit mounted on DIN rail inside the control enclosure, powered at 24 VDC
  • Safety relay contact outputs wired to the control circuit coils of the machine contactors or motor starters
  • Auxiliary PNP output connected to a PLC digital input or status indicator for circuit health monitoring
  • Reset circuit (manual or automatic, per application requirements) wired to the G9SE-201 to allow restart after a safe-state event

Where the G9SE-201 Gets Specified: Industries and Use Cases

The G9SE-201 appears most frequently in general machinery, packaging machinery, and material handling applications where the safety circuit is straightforward — a single machine or production cell with a defined set of E-stop buttons and guard switches, a 24 VDC control panel, and a clear requirement for monitored redundant safety outputs. The slim DIN rail profile makes it an efficient fit in compact panel layouts common in OEM machine builds and retrofit projects.

In food and beverage packaging, the relay is used on individual filling, sealing, and labeling machines where guarded access points and operator E-stop stations require monitored interlock monitoring. Logistics and warehouse conveyor systems use the G9SE-201 where conveyors are individually controlled and each zone requires its own E-stop monitoring circuit. Woodworking machinery and metalworking equipment — categories where guard door monitoring is a frequent compliance requirement — represent another consistent application segment.

Retrofit and upgrade projects represent a meaningful share of G9SE-201 demand. When older relay-based E-stop circuits on existing machines are upgraded to meet current ISO 13849-1 or IEC 62061 requirements, the G9SE-201 provides a compact, standards-compliant solution that fits existing DIN rail layouts and 24 VDC control architectures without requiring panel redesign.

Application Typical Deployment
Single-machine E-stop monitoring G9SE-201 monitoring 1 or 2 E-stop buttons, outputs to main contactor control circuit
Safety guard door interlock Safety door switch wired in 2-channel configuration, relay contacts control machine drive enable
Conveyor safety circuit Zone-level E-stop on conveyor section, 24 VDC panel, relay output to conveyor motor starter
Packaging machinery access guarding Guard door and E-stop combined into G9SE-201, auxiliary PNP output feeds PLC safety input
Safety relay retrofit / upgrade Replacement of older relay-based E-stop circuit to bring machine into compliance with current safety standards
Light curtain or safety scanner interface Relay output from safety light curtain or scanner OSSD wired as PNP input to G9SE-201

Key Specifications and Variant Comparison

Parameter Value Notes
Manufacturer Omron G9SE Safety Relay Unit series
Model / Catalog Number G9SE-201 Exact ordering code
Rated Supply Voltage 24 VDC Operating range approx. -15% to +10% of nominal
Input Types 1 or 2 channels, dry contact or PNP Supports common E-stop and guard switch types
Safety Outputs Relay contacts, rated up to approx. 250 VAC / 30 VDC, 5 A resistive Confirm exact contact configuration in datasheet before quoting
Auxiliary Output 1 solid-state PNP output For PLC status feedback or indicator
Mounting DIN rail Slim profile; check manual for rail type
Terminal Type Screw-less, non-removable Impacts panel wiring method and assembly speed
Operating Temperature -10 to +55 °C Panel interior installation
Approvals CE, UL/cUL, safety standard certifications Verify full approval list in current datasheet for compliance documentation

Full technical specifications are available on the product page at LeadTime.ca.

Model Key Differentiator When to Choose It Instead of G9SE-201
G9SE-201 Instantaneous safety outputs, 1 auxiliary PNP output, 24 VDC, slim profile Baseline selection for simple E-stop and guard monitoring
G9SE-401 Additional safety outputs for multiple contactors or circuits When your load circuit requires more safety relay contacts than G9SE-201 provides
G9SE-221-T OFF-delay safety outputs for timed shutdown sequences When your application requires a controlled delay before power removal
Configurable Safety Controller Programmable safety logic, multiple safety functions, multiple zones Complex lines, multiple safety zones, or applications requiring configurable safety logic

If your application needs more safety outputs than the G9SE-201 provides, the G9SE-401 is the logical next step — check the product page at LeadTime.ca and contact us to confirm which variant is currently in stock.

Expert Verdict: Is the G9SE-201 the Right Relay for Your Project?

The Omron G9SE-201 earns its place as a standard-bearer for simple 24 VDC safety circuits precisely because it does not try to be more than it needs to be. For controls engineers, OEM machine designers, and panel builders working with 24 VDC control architectures who need dependable E-stop and guard door monitoring with CE and UL/cUL certifications in hand, this is a thoroughly sensible selection. The screw-less terminal design speeds up panel wiring, the built-in LED indicators for power, input status, and fault conditions reduce commissioning time, and the 1- or 2-channel input flexibility means one part number covers the most common E-stop and safety switch wiring configurations encountered in the field. Its relay contacts rated up to approximately 250 VAC / 30 VDC at 5 A for resistive loads cover the contactor coil loads typical of small to medium machine applications. In Omron-centric installations, the integration story is clean — it pairs naturally with Omron safety switches, PLCs, and broader machine safety architecture without requiring adaptation.

Where the G9SE-201 reaches its limits is equally clear. It is a single-function, instantaneous safety relay — if your risk assessment requires multiple simultaneous safety zones, a timed controlled shutdown before power removal, or logic that responds differently to different input combinations, you will quickly run past what this relay can provide. The G9SE-221-T handles the OFF-delay requirement; the G9SE-401 addresses the need for more safety output contacts; and a configurable safety controller or safety PLC is the correct direction for complex lines where hard-wired safety relay logic becomes an installation and maintenance liability. Being honest about these limits is not a criticism of the G9SE-201 — it is an argument for selecting the right tool for the actual application rather than over- or under-specifying the safety circuit.

From a procurement standpoint, the G9SE-201 is a well-supported product from a major automation manufacturer, commonly stocked by specialist distributors serving North America and available for worldwide shipment. Working through a specialist automation distributor rather than a generic catalog-only channel matters here because safety relay selection is one area where a wrong-part order carries real consequences — both for project schedule and for safety compliance documentation. A specialist distributor can validate your part selection against your application requirements, confirm current lead time and stock status before you commit to a build schedule, and provide wiring and standards guidance that reduces the risk of a costly re-order. View current availability and pricing for the Omron G9SE-201 at LeadTime.ca — we ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the G9SE-201

Public forum and community discussion specific to the Omron G9SE-201 is very limited. Searches across Reddit r/PLC, Reddit r/automation, PLCTalk, PLCS.net, MrPLC, and distributor Q&A sections produced no recurring model-specific threads, complaints, or ordering mistake patterns tied directly to this relay. This is not unusual for a straightforward, reliable safety component from a major manufacturer — safety relays of this type tend to perform as specified, and any issues are typically resolved directly between engineers, distributors, and Omron support rather than discussed in open forums. The absence of notable public complaints is a cautiously neutral signal, not a strong endorsement.

What this means practically is that when you are specifying the G9SE-201, the most important source of pre-order intelligence is not community forums — it is the datasheet, your risk assessment, and a conversation with a specialist distributor who knows the product family. The variant selection question is the most consequential decision point: the G9SE-201, G9SE-401, and G9SE-221-T share a family name but serve different output requirements, and confusing them is the highest-probability ordering mistake in this product family. Engineers who contact LeadTime.ca before ordering are in a better position to validate selection, confirm certification requirements for their specific region and industry, and avoid the schedule impact of receiving the wrong relay after a two-week lead time.

One recurring theme in general safety relay discussions across the communities searched is the importance of aligning the relay's rated performance level and category with the machine's risk assessment output — not simply selecting the first relay that fits the voltage and form factor. The G9SE-201 carries CE and UL/cUL certifications and is designed to support recognized safety standards including ISO 13849-1 and IEC 62061, but the specific performance level and category achievable in your circuit configuration depends on how the relay is wired and what safety devices are connected. Verifying this alignment with the current datasheet and, where needed, with Omron's application support or a certified safety engineer is a step that experienced controls engineers treat as non-negotiable before sign-off.

Wiring and Installation Overview

The following points summarize the key installation and wiring requirements for the Omron G9SE-201. For complete wiring diagrams, terminal assignments, and commissioning procedures, refer to the official Omron installation manual for the G9SE series.

  • Mount the G9SE-201 on a suitable DIN rail inside a control enclosure; verify that the enclosure ambient conditions remain within the -10 to +55 °C operating temperature range and that the relay is not positioned adjacent to high-heat devices without adequate spacing
  • Connect 24 VDC supply to the designated power terminals, observing correct polarity; confirm the supply voltage is within the operating range of approximately -15% to +10% of the 24 VDC nominal before energizing
  • Wire safety inputs — E-stop buttons or guard switches — in 1-channel or 2-channel configuration using dry contact or PNP input types as supported; confirm input device type compatibility with the G9SE-201 input specifications in the datasheet before wiring
  • Wire safety relay contact outputs to contactor control circuit coils; do not exceed the rated contact load of approximately 250 VAC / 30 VDC at 5 A resistive, and provide external overcurrent protection for each output circuit as the G9SE-201 does not include integrated circuit protection
  • Connect the auxiliary PNP output to a PLC digital input or status indicator for circuit health monitoring; verify the PLC input sink current is compatible with the PNP output specification in the datasheet

Compatible Safety Devices and System Expansion

The G9SE-201 is designed to operate within Omron's broader safety device ecosystem, accepting inputs from the most common safety field devices and integrating cleanly with Omron PLCs and safety controllers. Compatible safety input device types and system elements include:

  • Emergency stop pushbuttons with dry contact or PNP outputs — compatible with standard E-stop button modules from Omron and other manufacturers providing dry contact or PNP output types
  • Safety door and gate switches — safety interlock switches providing dry contact outputs wired in 1- or 2-channel configuration to the G9SE-201 inputs
  • Safety light curtain and safety laser scanner relay outputs — OSSD or relay output types from safety light curtains and scanners can be interfaced via the PNP or dry contact input options
  • Omron PLCs and safety PLCs — the auxiliary PNP output provides direct compatibility with Omron NX, NJ, and CP series PLC digital inputs for circuit status monitoring and diagnostics
  • Downstream contactors and motor starters — safety relay contact outputs rated up to approximately 250 VAC / 30 VDC at 5 A resistive enable direct control of appropriately sized contactors; for larger or multiple load circuits, evaluate the G9SE-401 for additional contact capacity

Wrong-Part Prevention Checklist

Before placing an order for the Omron G9SE-201, confirm each of the following points against your application requirements and risk assessment documentation:

  1. Confirm the control voltage is 24 VDC; this relay is not for 120 VAC or 230 VAC supply.
  2. Verify you only need a basic safety relay (E-stop/guard monitoring) and not a configurable safety controller.
  3. Check that the number and rating of safety outputs match the number and current draw of your contactors or load circuits.
  4. Confirm your safety inputs (E-stop, guard switch, etc.) can be wired as 1- or 2-channel dry contact or PNP inputs, as supported by the G9SE-201.
  5. Ensure the safety performance level/category of the G9SE series matches your risk assessment and standards requirements.
  6. Verify panel space and DIN rail layout for the G9SE-201's slim profile and non-removable screw-less terminals.

If any of these points raise a question, contact the LeadTime.ca team before ordering — we can help validate selection and confirm current availability worldwide.

Frequently Asked Questions

Can the Omron G9SE-201 provide OFF-delay outputs for a controlled machine shutdown sequence?

No. The G9SE-201 is an instantaneous safety relay — its safety outputs open immediately when a safety input event is detected. If your application requires a timed delay before power removal, the G9SE-221-T and other -T variants in the G9SE family include OFF-delay safety output functionality. Confirm the specific OFF-delay timing range in the datasheet for those variants before selecting.

What types of safety devices can I connect to the G9SE-201 inputs?

The G9SE-201 accepts 1- or 2-channel inputs using dry contact or PNP input types. This covers the most common safety input devices including E-stop pushbuttons with dry contacts, safety door interlock switches, and relay or PNP outputs from safety light curtains and safety laser scanners. Verify the specific input device output type against the G9SE-201 input specification in the datasheet before wiring to avoid input circuit compatibility issues.

What safety standards and performance levels does the Omron G9SE series support?

Omron designed the G9SE series to support recognized safety standards including ISO 13849-1 and IEC 62061. The specific safety performance level and category achievable in your installation depends on the circuit configuration, the safety devices connected, and how the relay is applied. Always verify the detailed performance level and category data in the current official Omron datasheet for the G9SE-201 and confirm alignment with your machine risk assessment before finalizing selection.

Can I use the auxiliary PNP output of the G9SE-201 for PLC diagnostics and status monitoring?

Yes. The G9SE-201 includes one solid-state auxiliary PNP output specifically intended for status feedback to a PLC digital input or to drive an indicator light. This allows the machine control system to monitor the safety circuit state — for example, detecting when the safety relay has opened due to an E-stop activation — without requiring an additional relay or output expander module. Confirm the PLC input sink current compatibility with the auxiliary output specification in the datasheet.

Is the G9SE-201 a direct replacement for an older safety relay in a retrofit project?

The G9SE-201 can serve as a modern, standards-compliant replacement for older relay-based E-stop circuits in retrofit projects, provided the control voltage (24 VDC), input type, and output configuration requirements match. However, a direct pin-for-pin swap cannot be assumed — terminal assignments, reset circuit wiring, and input channel configuration must be verified against both the old and new relay documentation. Retrofits should also be followed by functional testing and updated safety compliance documentation.

What do I do if the G9SE-201 safety outputs do not energize after wiring?

Start by confirming that the 24 VDC supply is within the rated operating range and the power LED is illuminated. Check input wiring for open circuits, incorrect channel configuration, or a mismatch between dry contact and PNP input settings, and verify input status via the LED indicators. Confirm that the reset circuit is correctly wired and that reset conditions have been met, then review any fault or error LEDs against the manual's indicator description table. If the fault persists after wiring corrections and reset attempts, isolate power and contact LeadTime.ca or Omron support for further guidance.

Why Order From LeadTime.ca

  • Global shipping — the Omron G9SE-201 and related G9SE variants are available for shipment worldwide from LeadTime.ca
  • Specialist distributor validation — our team can confirm part selection, variant differences, and certification requirements before you commit to an order
  • Hard-to-find and short-lead-time sourcing — we maintain sourcing relationships across North America to reduce delays when standard distribution channels are out of stock
  • Volume and project pricing — contact us directly for volume inquiries or project-level procurement support
  • Response from people who know the product — not a catalog-only channel; questions about wiring, variants, and lead times get real answers

At-a-Glance Summary

  • Model: Omron G9SE-201, part of the G9SE Safety Relay Unit series
  • Rated supply voltage: 24 VDC, operating range approximately -15% to +10% of nominal
  • Safety inputs: 1 or 2 channels, dry contact or PNP — covers E-stop buttons, safety door switches, and safety device relay outputs
  • Safety outputs: Force-guided relay contacts rated up to approximately 250 VAC / 30 VDC at 5 A resistive load
  • Auxiliary output: 1 solid-state PNP output for PLC feedback or status indication
  • Output function: Instantaneous — not an OFF-delay model; see G9SE-221-T for timed shutdown
  • Mounting: DIN rail, slim profile with screw-less non-removable terminals
  • Operating temperature: -10 to +55 °C; degree of protection IP20
  • Certifications: CE, UL/cUL, and safety standard certifications — verify full list in current datasheet
  • Designed to support ISO 13849-1 and IEC 62061 safety standard requirements — confirm performance level and category for your specific circuit in the official datasheet
  • Best fit: Simple E-stop and guard monitoring on 24 VDC control panels; Omron-centric installations; panel builds where slim DIN rail profile and screw-less terminals are priorities
  • Step up to G9SE-401 for more safety outputs, G9SE-221-T for OFF-delay, or a configurable safety controller for complex multi-zone logic
