Omron G9SA-301 Safety Relay — Specs, Selection & Alternatives

By Abdullah Zahid
16 min read

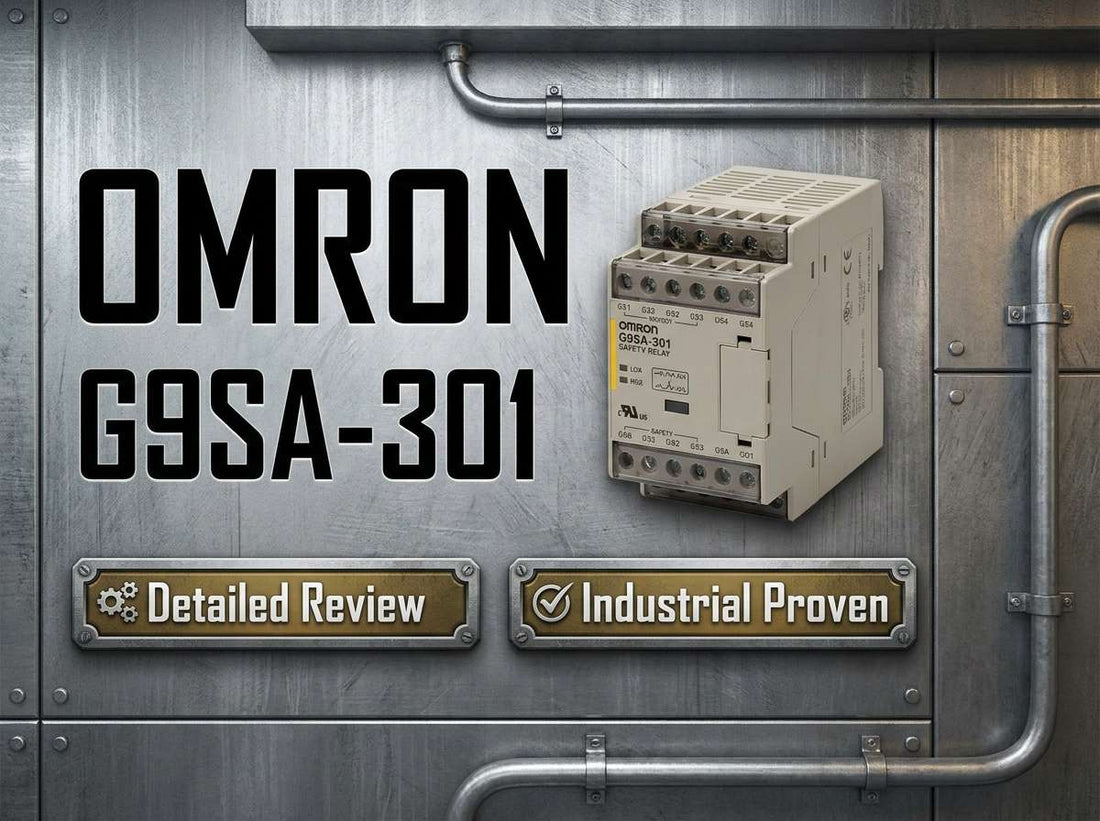

Omron G9SA-301 safety relay unit mounted on DIN rail for E-stop and safety door monitoring in industrial panel

Safety Relay Unit G9SA-301 — Complete Buyer's Review and Selection Guide for Machine Safety Applications

When a controls engineer is shortlisting safety relays for an E-stop or guard door application, the decision usually comes down to three things fast: does the unit achieve the required safety level, does it have enough outputs for the machine architecture, and does it arrive before the project deadline. The Omron G9SA-301 is a 3-pole safety relay base unit — available in 24 VAC/DC and 100–240 VAC supply variants — designed to monitor one- or two-channel safety inputs and de-energize force-guided relay outputs when a fault or emergency stop is detected. It fits a 45 mm-wide DIN-rail slot and is part of Omron's expandable G9SA safety relay family, making it a practical choice for compact panel builds where three NO safety outputs cover the machine's contactor and actuator switching requirements.

If you have already confirmed this is the right part for your application, check current pricing and availability for the Omron G9SA-301 at LeadTime.ca — ships worldwide.

Who Should Buy the G9SA-301 — and Who Shouldn't

The G9SA-301 is the right choice for controls engineers and OEM panel designers building small to mid-sized machines that need a reliable, standards-compliant safety relay without overengineering the panel. You are a good fit if all of the following are true:

  • Your machine safety function requires E-stop or safety door monitoring at a safety level supported by the G9SA-301's rated safety category, PL, and SIL ratings — confirm against your risk assessment before specifying.
  • Three NO safety outputs plus an auxiliary contact are sufficient to switch all safety contactors, motor starters, or valve coils in your safety circuit.
  • Your control cabinet provides 24 VAC/DC or 100–240 VAC control power — you need to match the exact voltage suffix on the catalog number before ordering.
  • You require one- or two-channel safety input monitoring with manual or automatic reset, and external device monitoring (EDM) if your safety design calls for it.
  • Panel space is constrained and a 45 mm-wide DIN-rail unit with screw terminal connections fits your layout.
  • You are working within the Omron G9SA ecosystem and may need to add compatible expansion modules later as machine I/O requirements grow.

If your application requires more than three safety output poles, look at the G9SA-501 instead. If you need OFF-delay safety outputs for a controlled stop, the G9SA-321-T is the correct variant. If built-in two-hand control logic is needed, choose the G9SA-TH301 rather than adding external logic to a G9SA-301 circuit.

On this page:

On this page:

What the G9SA-301 Actually Does in a Safety Circuit

The G9SA-301 is not a logic controller — it is a dedicated safety monitoring relay whose job is to watch safety input devices and cut power to downstream actuators the moment a fault or emergency stop condition is detected. When the monitored inputs are healthy and the reset sequence is completed correctly, the three NO force-guided safety output contacts close, allowing current to flow to contactor coils, motor drives, or hydraulic valve solenoids. The moment either safety input opens — because an E-stop button has been pressed, a safety door has been opened, or a wiring fault has broken one channel — those output contacts open and stay open until the fault is cleared and the reset circuit is operated.

Force-guided relay contacts are the core safety mechanism here. If a contact welds closed due to an overcurrent event, the mechanical linkage inside the relay prevents the complementary contacts from moving, meaning the next diagnostic check catches the failure before the machine can restart. This is the hardware-level redundancy that allows the G9SA-301 to achieve its rated safety category, performance level, and SIL rating — the unit is not simply relying on software logic to declare itself safe.

The auxiliary contact — typically NC — provides a status output that can feed a PLC input for condition monitoring, HMI annunciation, or integration into a broader control system. This does not carry safety function weight; it is a monitoring signal only. Engineers designing to current machine safety standards should note that the external device monitoring (EDM) feedback loop from downstream contactors is a separate function and must be wired per the G9SA-301 datasheet and the applicable standard requirements for the chosen safety architecture.

Where the G9SA-301 Sits in Your System

The G9SA-301 occupies the safety relay layer between your safety input devices and your power switching devices — it is the unit that translates a safety input signal into a safe de-energization command for loads. A typical deployment chain looks like this:

  • Safety input devices — two-channel E-stop pushbutton contacts or safety door interlock switch contacts — wire directly into the G9SA-301's safety input terminals.
  • Control power (24 VAC/DC or 100–240 VAC depending on variant) feeds the G9SA-301 supply terminals (A1/A2).
  • The G9SA-301's three NO safety output contacts wire in series with the coil circuits of main safety contactors or directly switching safety loads.
  • Safety contactor auxiliary contacts wire back into the G9SA-301's EDM feedback terminals to close the external device monitoring loop.
  • The G9SA-301's auxiliary NC contact connects to a PLC digital input for safety relay status monitoring at the supervisory level.

Typical Applications and Where This Relay Gets Specified

The G9SA-301 is most frequently specified on small to mid-sized machines where the guarding architecture is straightforward and the safety I/O count does not demand a full safety PLC. Conveyors with one or two E-stop stations and a single guarded access point are a natural fit — three safety outputs are enough to control the drive contactor, brake relay, and an auxiliary function simultaneously.

Packaging machinery OEMs regularly use this class of safety relay to monitor safety door interlock switches on infeed and outfeed guards. The two-channel input monitoring supports both positively driven safety switches and dual-contact E-stop buttons, giving designers the diagnostic coverage required for higher safety categories without adding complexity to the panel wiring.

In small robotic cells and light assembly lines, the G9SA-301 is often chosen for retrofits — replacing older, non-rated relay logic with a certified safety relay to bring the machine up to current EN/ISO and IEC machine safety standards without redesigning the entire control system. The 45 mm panel width makes it practical to add into existing enclosures where space is already allocated.

Material handling equipment in food and beverage and logistics environments also represents a strong use case, where the relay's compliance with relevant safety standards and its straightforward wiring conventions allow maintenance engineers to service and replace the unit in the field without specialized safety controller programming tools.

Application Typical Deployment
Conveyor E-stop monitoring Two-channel E-stop button wired to G9SA-301; three safety outputs switching drive contactor, brake, and auxiliary load
Safety door / guard interlock Mechanical or non-contact door switch on dual-channel input; EDM feedback from main safety contactor
Small robot cell guarding Perimeter gate interlock plus E-stop loop monitored by G9SA-301; safety outputs to servo drive enable and robot controller safety input
Packaging machine infeed guard Safety door switch on two-channel input; manual reset required at machine operator panel before restart
Machine retrofit to current standards G9SA-301 replacing legacy relay logic; mounted in existing panel, wired to existing E-stop loop with minimal rewiring
Light assembly cell Single safety relay monitoring E-stop and one guard; three outputs sufficient for two contactors and PLC enable signal

Key Specifications and Variant Comparison

Parameter Value Notes
Brand / Manufacturer Omron Official Omron G9SA family
Model / Catalog Number G9SA-301 Confirm exact voltage suffix (AC/DC24 or AC100–240) before ordering
Product Type Safety relay unit, 3-pole base unit For E-stop and safety door input monitoring
Power Supply Voltage 24 VAC/DC or 100–240 VAC (variant dependent) Two variants available — verify against panel control power
Safety Output Contacts 3 NO safety contacts + auxiliary contact (typically NC) Verify exact contact arrangement in official datasheet
Input Configuration 1- or 2-channel; manual or automatic reset; EDM capability Confirm supported modes against safety design requirements
Mounting / Width DIN-rail, 45 mm width Confirm panel space and rail type before installation
Safety Standards Compliance Conforms to relevant EN/ISO and IEC safety standards Confirm exact listed standards in Omron datasheet for your project
Safety Ratings Safety category, PL, and SIL ratings per Omron datasheet Verify against risk assessment and project safety requirements
Operating Temperature Range Per Omron datasheet (approximately -25 to +55 °C) Confirm exact range and any derating conditions in official documentation

Full technical specifications are available on the product page at LeadTime.ca.

G9SA-301 vs Key G9SA Family Variants — Which Model Fits Your Requirements?

Model Safety Outputs OFF-Delay Timing Two-Hand Control Typical Application Fit
G9SA-301 3 NO safety contacts No No E-stop and guard door monitoring on small to mid-sized machines; 3 outputs sufficient
G9SA-501 5 NO safety contacts No No Machines requiring more safety outputs than G9SA-301 can provide
G9SA-321-T 3 NO safety contacts + OFF-delay outputs Yes No Applications requiring controlled stop sequences before de-energization
G9SA-TH301 3 NO safety contacts No Yes (built-in) Press and stamping applications requiring two-hand control logic
G9SA Expansion Modules Additional safety outputs Model dependent No Expanding safety output count beyond base unit capacity when paired with a compatible G9SA host

If your machine architecture requires more than three safety output contacts, or if a controlled stop sequence is part of your safety design, the G9SA-501 or G9SA-321-T is the correct starting point — check current availability and compare options at LeadTime.ca.

Expert Verdict on the Omron G9SA-301

The G9SA-301 earns its place in the panel when the application is exactly what it was designed for: a small to mid-sized machine with a defined E-stop loop or guard door interlock, a clear safety level requirement that falls within the unit's rated performance, and a panel where 45 mm of DIN-rail space is available and three NO safety outputs are sufficient to control all safety-rated loads. For controls engineers and OEM machine designers who want a well-documented, standards-compliant safety relay that integrates cleanly into an Omron-based control architecture without requiring a safety PLC license or complex configuration software, this unit delivers exactly what it promises — reliable force-guided output switching with clear wiring conventions and recognized safety certifications.

Where the G9SA-301 reaches its limits is equally clear. If your machine cell has grown to the point where three safety output contacts no longer cover all the contactors and actuators in the safety circuit, the G9SA-501 is the correct upgrade rather than stacking multiple G9SA-301 units. If your stop category requires OFF-delay outputs — for example, to allow a servo drive to complete a controlled deceleration before the safety contactors open — the G9SA-321-T is the right tool. For machines with networked safety, complex configurable safety logic, or extensive diagnostic reporting requirements, a dedicated safety controller or safety PLC is the more appropriate platform; the G9SA-301 is a relay-based device, not a programmable safety system, and using it beyond its intended scope creates design risk rather than reducing it.

From a procurement standpoint, the G9SA-301 is part of a widely adopted Omron safety platform that major automation distributors carry across North America and internationally, which means in-stock variants typically ship quickly. The voltage suffix is the most common ordering mistake — confirming whether the project needs the 24 VAC/DC or the 100–240 VAC variant before submitting the purchase order saves the kind of delay that derails commissioning schedules. A specialist distributor can verify the exact ordering code, check live stock across both variants, identify compatible expansion modules if the design evolves, and provide application support on EDM and reset circuit wiring — none of which a generic e-commerce channel offers at the point of sale. View current pricing and availability for the Omron G9SA-301 at LeadTime.ca — ships worldwide.

For volume pricing, project-specific lead time confirmation, or help selecting between G9SA variants, contact the LeadTime.ca team directly — we ship worldwide and can respond quickly to project-critical sourcing requests.

What Engineers Need to Know Before Ordering the G9SA-301

Public discussion and model-specific reviews for the Omron G9SA-301 are sparse across the major automation forums and community channels — this is characteristic of well-established commodity safety components that perform as documented and do not generate the kind of troubleshooting threads that drive online discussion. The absence of widespread complaints is itself meaningful: when a safety relay causes recurring field problems, engineers talk about it. The relative silence around the G9SA-301 is consistent with a product that behaves predictably when applied and wired according to manufacturer guidance.

What the broader safety relay community does discuss with regularity maps directly to the most common mistakes made with this class of device. Miswiring dual-channel inputs is the single most frequently cited issue across safety relay discussions on forums such as PLCTalk, PLCS.net, and MrPLC — specifically, wiring both channels of an E-stop or door switch in series on a single input terminal rather than routing each channel independently to its designated input. This defeats the redundancy architecture and can prevent the relay from achieving its rated safety category and PL, which only surfaces during a formal safety audit or, worse, during an incident investigation. The G9SA-301 datasheet provides explicit wiring examples for two-channel configurations, and following those diagrams exactly — rather than adapting a wiring scheme from a different relay family — is essential.

The second recurring theme from the broader community is the EDM feedback loop. Engineers new to dedicated safety relays sometimes skip the external device monitoring wiring during initial commissioning, either because the machine is running in a test configuration or because the purpose of the feedback terminals is not immediately obvious from a quick reading of the datasheet. Skipping EDM can cause nuisance tripping after a real fault or, in some configurations, prevent the relay from resetting at all. Both symptoms send engineers into unnecessary troubleshooting cycles. The third consistent pre-order risk — voltage variant mismatch — is straightforward to prevent: the full catalog number including the voltage suffix must be confirmed against the project power schematic before the purchase order is issued. When community data is thin and manufacturer documentation is the primary reference, sourcing through a distributor who can validate the ordering code and flag compatibility questions before shipment is the most reliable way to avoid the ordering and wiring mistakes that cost the most time on the plant floor.

Wiring and Installation Overview

The following is a high-level overview of the G9SA-301 installation and commissioning process. Engineers implementing this relay must follow the official Omron installation manual and applicable safety standards for their jurisdiction. This overview does not substitute for manufacturer documentation.

  • Mount the G9SA-301 on a standard DIN rail within the panel, confirming 45 mm of clear width and that the unit's operating temperature range is not exceeded in the installed enclosure environment.
  • Connect the control power supply to the designated supply terminals (A1/A2) matching the unit's rated voltage variant — 24 VAC/DC or 100–240 VAC — as marked on the relay and confirmed in the datasheet.
  • Wire each channel of the two-channel safety input device (E-stop contacts or door switch contacts) independently to the correct input terminals as specified in the Omron wiring diagrams — do not connect both channels to a single input terminal.
  • Wire the three NO safety output contacts in series with the coil circuits of the main safety contactors or directly to safety loads; connect the auxiliary NC contact to a PLC input for status monitoring if required by the control system design.
  • Implement the EDM feedback loop by wiring auxiliary contacts from the downstream safety contactors back to the G9SA-301's feedback terminals; verify the reset circuit (manual or automatic) is configured per the datasheet and applicable safety standard before performing commissioning tests.

Compatible Expansion and System Growth Options

The G9SA-301 is designed as a base unit within the Omron G9SA family, which includes compatible expansion modules that add safety output capacity when the three outputs of the base unit are no longer sufficient. Before adding expansion units, confirm the specific G9SA-301 variant is approved as a host for the expansion modules under consideration — not all base unit and expansion combinations are documented as compatible in every configuration.

  • G9SA expansion modules — add additional NO safety output contacts beyond the three provided by the G9SA-301 base unit; check the Omron G9SA family documentation for compatible expansion types and maximum configuration limits.
  • G9SA OFF-delay expansion variants — provide timed safety output de-energization for controlled stop applications; review whether adding an expansion achieves the required timing function or whether switching to a G9SA-321-T base unit is more appropriate for the design.
  • G9SA-TH301 — a separate base unit variant with built-in two-hand control logic; this is a distinct product, not an expansion module, and should be selected at the base unit level when two-hand control monitoring is required.

Wrong-Part Prevention Checklist

Before submitting your purchase order for the Omron G9SA-301, work through each item on this checklist — it reflects the most common specification and ordering errors for this product:

  1. Confirm the safety relay will achieve the required safety category/PL/SIL for the target machine safety function.
  2. Verify the power supply variant (e.g., G9SA-301 AC/DC24 vs 100–240 VAC version) matches available control power.
  3. Check that 3 NO safety outputs (and auxiliary NC contact) are sufficient for all contactors and safety loads.
  4. Confirm the relay supports the intended input type: single-channel vs two-channel E-stop/safety door, manual vs automatic reset, and EDM if required.
  5. Make sure the terminal style (screw clamp) and module width (45 mm) match panel space and wiring standards.
  6. Check compatibility with any planned G9SA safety expansion units and that the base unit model is approved as a host for expansions.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our team can validate ordering codes, confirm stock on both voltage variants, and help identify the correct G9SA variant or expansion configuration for your application.

Frequently Asked Questions

What is the difference between the G9SA-301 and the G9SA-501, and how do I choose between them?

The G9SA-501 provides five NO safety output contacts compared to the G9SA-301's three. If your machine's safety circuit requires switching more than three contactors or safety loads simultaneously, the G9SA-501 is the correct selection. If three safety outputs are sufficient for your application, the G9SA-301 is the more compact and typically more cost-effective choice at 45 mm panel width.

Can the G9SA-301 monitor both a two-channel E-stop and a safety door interlock on the same unit?

The G9SA-301 supports one- or two-channel safety input monitoring as documented in the Omron datasheet. Whether a single unit can simultaneously monitor an E-stop loop and a separate safety door interlock depends on the specific input configuration and safety architecture required — consult the Omron G9SA-301 wiring documentation and the applicable machine safety standard for your design before wiring multiple safety input devices to a single relay unit.

How do I know if I need the G9SA-321-T with OFF-delay instead of the standard G9SA-301?

If your machine's stop category requires a controlled deceleration before the safety outputs de-energize — for example, allowing a servo drive or motor to reach standstill before the main contactor opens — you need an OFF-delay safety output, which the G9SA-301 does not provide. The G9SA-321-T includes OFF-delay safety output capability. The choice should be determined during the machine safety design phase based on the required stop category per EN/ISO 13849 or IEC 62061 analysis.

What do the LED indicators on the G9SA-301 show, and how do I read a fault condition?

The G9SA-301 includes LED indicators for power and output status as described in the Omron product manual. Fault diagnostics — such as a single-channel input fault, EDM feedback loop open, or relay contact weld detection — are indicated through the LED states, and the exact diagnostic logic is documented in the Omron G9SA-301 instruction manual. Always reference the official manual's LED diagnostic table before concluding a unit is faulty, as many no-reset conditions are caused by wiring issues rather than internal relay failure.

Will the G9SA-301 reset automatically after an E-stop is cleared, or is manual reset always required?

The G9SA-301 supports both manual and automatic reset configurations, as specified in the Omron datasheet and selectable via the wiring configuration. Most machine safety standards require manual reset for emergency stop monitoring at higher safety categories to prevent inadvertent machine restart — confirm the required reset type for your application against the applicable safety standard and your risk assessment before wiring the reset circuit.

Is the G9SA-301 a direct replacement for a legacy non-rated relay logic safety circuit?

The G9SA-301 is widely used in retrofit applications to replace non-rated relay logic with a certified safety relay, and its screw terminal DIN-rail mounting makes physical integration into existing panels straightforward. However, a direct wiring replacement is not guaranteed — the safety input terminals, EDM loop, and reset circuit must be wired according to the G9SA-301 datasheet requirements, which may differ from the legacy circuit layout. A revised wiring diagram and a recommissioning safety validation test are required for any retrofit.

Why Order the Omron G9SA-301 From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships Omron safety relay products worldwide, not limited to any single region.
  • Voltage variant confirmation — our team can verify the exact G9SA-301 ordering code including voltage suffix against your project requirements before the order ships.
  • Expansion and compatibility guidance — we can identify compatible G9SA expansion modules and advise on which G9SA variants are stocked versus requiring lead time.
  • Volume and project pricing — contact us directly for volume orders or project-specific pricing and delivery scheduling.
  • Hard-to-find variants — if the specific G9SA-301 variant you need is not in regional stock, we have the sourcing reach to locate it quickly.

G9SA-301 At-a-Glance Summary

  • Product: Safety Relay Unit G9SA-301 — part of Omron's G9SA compact safety relay family
  • Safety outputs: 3 NO force-guided safety contacts plus auxiliary contact (typically NC)
  • Input monitoring: one- or two-channel safety inputs; manual or automatic reset; EDM (external device monitoring) capability
  • Power supply variants: 24 VAC/DC or 100–240 VAC — voltage suffix must be confirmed before ordering
  • Panel footprint: 45 mm wide, DIN-rail mounted, screw terminal connections
  • Safety ratings: complies with relevant EN/ISO and IEC machine safety standards; safety category, PL, and SIL ratings confirmed in Omron datasheet
  • Primary use cases: two-channel E-stop monitoring, safety door interlock monitoring, small to mid-sized machine guarding, retrofit of legacy relay circuits
  • Choose a different variant when: more than 3 safety outputs are needed (G9SA-501), OFF-delay is required (G9SA-321-T), or two-hand control logic is needed (G9SA-TH301)
  • Expandable: compatible with Omron G9SA expansion modules — confirm host compatibility before specifying expansion units
  • Available worldwide through LeadTime.ca — confirm exact variant and stock before project commitment
