Omron G9SP-N20S Safety Controller — Specs & Buying Guide

By Abdullah Zahid
15 min read

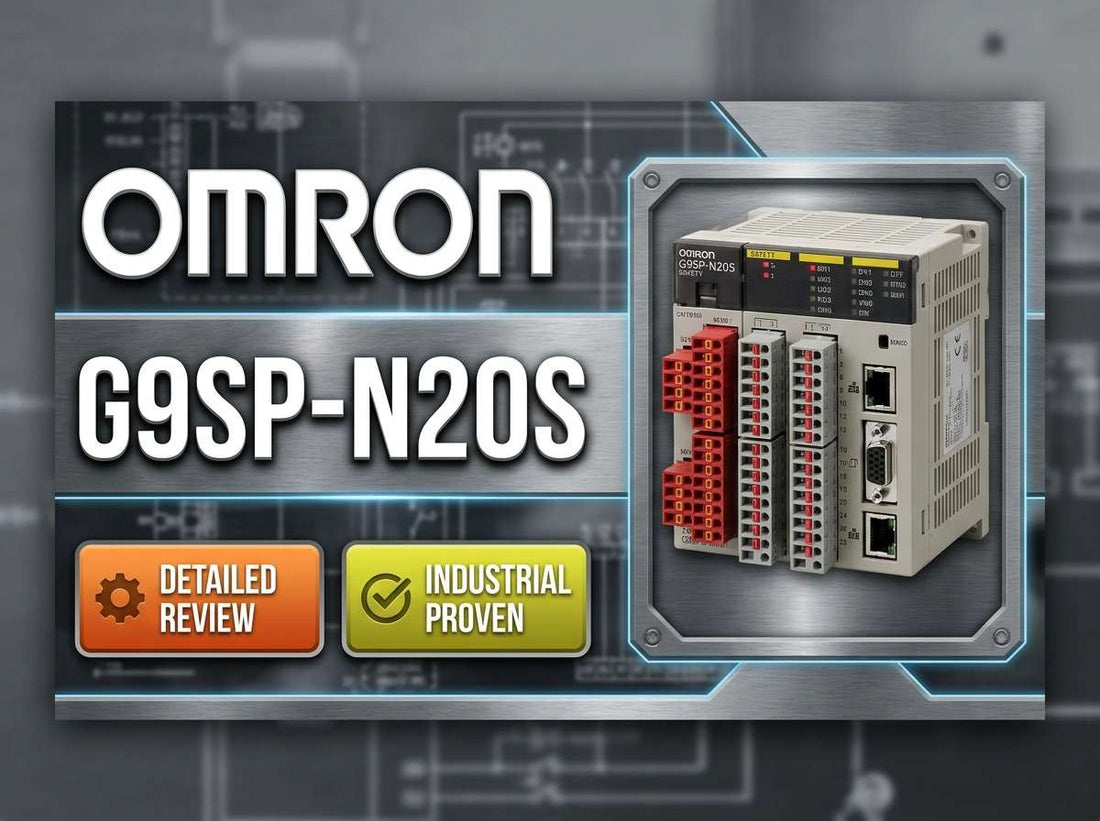

Omron G9SP-N20S stand-alone safety controller with 20 safety inputs and 8 safety outputs for small machine safety applications

Omron G9SP-N20S G9SP Series Stand-alone Safety Controller: Specs, Pricing, and Best Alternatives

If you are a controls engineer evaluating configurable safety controllers for a small or mid-sized machine, the Omron G9SP-N20S is likely already on your shortlist. This stand-alone safety controller provides 20 safety inputs and 8 safety outputs on a single 24 V DC device, filling the space between a bank of hard-wired safety relays and the overhead of a full safety PLC. The decision usually comes down to I/O count, required safety performance level, and whether a stand-alone architecture fits your panel and commissioning workflow.

If you have already confirmed the G9SP-N20S is the right part for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron G9SP-N20S — and Who Shouldn't

The G9SP-N20S is the right choice for engineers who need configurable safety logic on a single machine without stepping up to a full safety PLC architecture. It is a strong fit when all of the following apply:

  • Your machine requires up to 20 safety inputs to cover E-stops, light curtains, safety doors, interlocks, and safety mats in a single controller.
  • Your safety output requirement fits within 8 safety outputs for controlling external safety relays and contactors.
  • Your system operates on a 24 V DC supply and your field safety devices are compatible with the G9SP I/O type.
  • You need configurable safety logic — zoning, muting, restart interlock — that hard-wired safety relays cannot deliver without excessive complexity.
  • Your team has access to Omron's configuration software and a defined process for configuration validation and documentation.

If your application requires fewer safety channels, consider the G9SP-N10S or G9SP-N10D. If you need advanced networked safety, motion safety integration, or a large distributed I/O count across multiple machines, a modular safety PLC is the more appropriate path — and LeadTime.ca can help you identify the right product.

On this page:

Where the G9SP-N20S Sits in the Safety Controller Landscape

The Omron G9SP-N20S belongs to the G9SP Series Safety Controller family, positioned by Omron specifically for small to mid-sized machinery where hard-wired safety relay logic has reached its practical limit. A machine with multiple E-stops, a light curtain, several interlocked access doors, and a safety mat requires safety relay panels that are expensive to wire, difficult to modify, and nearly impossible to document cleanly. The G9SP-N20S consolidates that logic into a single configurable device with 20 safety inputs and 8 safety outputs, all operating on a 24 V DC supply.

This controller sits above simple safety relays — which are fixed-function, single-channel devices — and below the full safety PLC architectures such as Omron's NX/NX-S series, which are better suited to networked, distributed, or motion-safety applications. The G9SP is a mature platform with a long field history, making it a low-risk choice for engineers who need proven, documentable safety logic on a self-contained machine. Configuration is handled through Omron's PC-based safety configuration software, and the controller supports configuration backup and restore via an Omron CP1-series memory cassette — a practical feature when a replacement controller needs to be commissioned quickly during a production outage.

G9SP-N20S Technical Specifications That Drive the Purchase Decision

Parameter G9SP-N20S Value
Manufacturer Omron
Model / Catalog Number G9SP-N20S
Product Family G9SP Series Safety Controller
Product Type Stand-alone configurable safety controller
Supply Voltage 24 V DC nominal
Safety Inputs 20 safety inputs (24 V DC)
Safety Outputs 8 safety outputs
Mounting Style DIN rail
Configuration Method Omron PC-based safety configuration software
Configuration Backup CP1-series memory cassette

Full technical specifications are available on the product page at LeadTime.ca.

Safety I/O Breakdown: 20 Inputs, 8 Outputs, and What That Means in Practice

The 20 safety inputs on the G9SP-N20S accommodate the full range of field safety devices found on typical small to mid-sized machinery: dual-channel E-stop buttons, safety interlock switches on access doors, light curtain OSSD outputs, safety mats, and two-hand control devices. Each input pairing in a dual-channel configuration consumes two of the 20 available inputs, so a machine with six dual-channel safety devices, a safety mat, and a light curtain will consume inputs at a predictable rate. Completing a full I/O count during the design phase — before ordering — is the single most important step in confirming this is the right variant.

The 8 safety outputs are control-level outputs designed to drive external safety relays and contactors, not to switch motor power or high-current loads directly. This is a critical distinction: the G9SP-N20S outputs control the coils of external devices rated for the actual load. External protection devices and correctly rated safety contactors are required as part of the safety circuit. The controller also provides standard (non-safety) I/O that can be used for status signals, manual reset inputs, auxiliary outputs, and other non-safety-critical functions, giving the panel designer flexibility without consuming safety I/O channels unnecessarily.

Where the application requires more safety I/O than the G9SP-N20S provides, dedicated G9SP expansion I/O modules are available within the G9SP ecosystem, allowing the base controller to grow with more complex machine safety requirements.

Typical Applications and Deployment Scenarios

Packaging machinery is one of the most common deployment environments for the G9SP-N20S. A packaging line typically includes multiple E-stop stations, interlocked guards on feeding and discharge areas, and at least one light curtain protecting the operator interface zone. Managing all of these with discrete safety relays creates a panel wiring burden that is both costly and difficult to audit. The G9SP-N20S brings that logic into a single device with documented, configurable safety functions.

Material handling and conveying systems present a similar profile. A conveyor cell may include emergency stops at multiple positions, safety mats in loading areas, and interlocked maintenance access doors — a mix of device types that the G9SP-N20S handles within a single controller without requiring separate relay modules for each function type.

Small assembly cells and machining centers benefit from the G9SP-N20S when the safety design includes zoning — for example, allowing an operator to enter one zone of a cell while another zone remains active. Configurable zoning logic is beyond the capability of simple safety relays and is one of the strongest reasons to step up to a controller like this one.

OEM machine builders find the G9SP-N20S particularly practical for standardization. Using the same safety controller across a family of machine variants reduces engineering time, simplifies spare parts management, and enables configuration backup and restore via the CP1-series memory cassette — meaning a replacement unit can be put into service quickly without re-engineering the safety program from scratch.

Retrofit applications are also well served. When older equipment carries a bank of aging safety relays that no longer meets current performance requirements, replacing the relay panel with a single G9SP-N20S can simplify the panel layout, reduce component count, and bring the machine up to a documented, auditable safety standard.

Application Typical Deployment
Packaging machinery Multiple E-stops, light curtains, interlocked guards on one controller
Conveyor and material handling Safety mats, E-stops, access door interlocks across a conveyor cell
Small assembly and machining cells Multi-zone safety logic requiring configurable zoning and muting
OEM machine families Standardized safety controller with configuration backup for fast replacement
Safety retrofit on existing equipment Replacing multiple safety relays with a single configurable controller
Food and beverage machinery Hygienic environment machines with multiple guarded access points

G9SP-N20S vs. G9SP-N10S and Other Safety Controller Options

The G9SP family includes multiple CPU variants, and the choice between them is driven entirely by I/O count and output type. The G9SP-N20S is not the right choice for every application — and choosing the wrong variant means a redesign. The table below covers the core trade-offs across the G9SP family and positions the G9SP-N20S relative to alternative architectures.

Controller Option Safety Inputs Safety Outputs Best Fit Relative Cost Level
G9SP-N10S 10 safety inputs Fewer safety outputs Simpler machines with fewer safety devices Lower than N20S
G9SP-N10D 10 safety inputs Different output type configuration Applications needing different output type mix Similar to N10S
G9SP-N20S 20 safety inputs 8 safety outputs Small to mid-sized machines with multiple safety devices Mid-range
Omron safety relay (standalone) Single function Single function Very simple, single safety function machines Lowest
Omron NX/NX-S Safety PLC Scalable via expansion Scalable via expansion Networked, distributed, or motion safety systems Higher

If your machine's safety device count exceeds 20 inputs or requires networked safety integration across multiple machines, the G9SP-N20S has reached its ceiling — check current availability at LeadTime.ca or contact the team to discuss the right next step in the G9SP or NX-S family.

Expert Verdict: Is the G9SP-N20S the Right Safety Controller for Your Machine?

The Omron G9SP-N20S is a practical, well-positioned solution for controls and safety engineers working on single-machine or cell-level projects. If your machine has a meaningful number of safety devices — E-stops at multiple stations, interlocked access doors, a light curtain, possibly a safety mat — and you need configurable logic to manage zoning, restart interlocks, or muting functions, this controller gives you the capability to do that without the complexity and cost of a full safety PLC. The 20-input, 8-output configuration covers the typical small to mid-sized machine footprint cleanly, and the stand-alone architecture keeps panel wiring straightforward. The CP1-series memory cassette backup capability is a genuine operational advantage for OEMs building multiple units of the same machine — rapid configuration restore on a replacement unit is a real-world time saver.

The G9SP-N20S has clear limits, and it is worth naming them directly. If your safety I/O demand grows beyond 20 inputs, you will need to look at G9SP expansion modules or a different architecture entirely. If your plant is standardizing on networked safety — where safety data must flow over a fieldbus to a central safety PLC — the stand-alone G9SP is not the right foundation. In those cases, Omron's NX-S safety PLC platform is the more appropriate direction. Equally, if your application genuinely only needs one or two safety functions, a simpler G9SP-N10S or a dedicated safety relay is a more economical and appropriately sized choice. The G9SP-N20S earns its place in the mid-range of this spectrum — and it is a solid one — but it is not a universal answer.

From a procurement standpoint, the G9SP-N20S is widely available through major automation distributors in North America, though regional stock levels vary. Lead times can extend when distributor stock is depleted, and safety hardware delays carry real project risk — commissioning dates slip, and safety validation cannot proceed without the controller in hand. Buying through a specialist distributor who can verify real-time regional stock, confirm the correct variant against your I/O list, and flag any lead time risk before you commit to a build schedule is a meaningful risk reduction step. Check current pricing and availability for the G9SP-N20S at LeadTime.ca — the team ships worldwide and can advise on compatible accessories and alternative stocking options if lead time is a concern.

For volume pricing, project-level quotes, or to confirm stock before locking in a commissioning schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the G9SP-N20S

Public community discussion specific to the Omron G9SP-N20S is sparse — which is entirely typical for a mature, specialized industrial safety product. Safety controllers are rarely discussed in general automation forums because they are specified by engineers working from machine safety standards, risk assessments, and internal design guidelines rather than from peer recommendations on Reddit or PLCTalk. The absence of forum chatter is not a red flag; it reflects the technical specificity of the product and the audience that buys it.

What that means practically is that when you are evaluating the G9SP-N20S, manufacturer documentation and distributor expertise carry far more weight than online reviews. The Omron instruction manual and datasheet, available through ia.omron.com and omron.eu, contain the authoritative wiring diagrams, electrical ratings, and configuration guidance you need. When documentation leaves questions about variant selection, compatibility, or regional availability unanswered, a specialist distributor is the right resource — not a forum thread.

The ordering mistakes that matter most with a product like this are the ones rooted in I/O miscounting, misunderstanding output types, and underestimating what is required beyond the controller itself. Engineers who have specified configurable safety controllers before will recognize these traps immediately. For those newer to this product category, the wrong-part checklist below captures the critical verification steps before committing to a purchase.

Wiring and Installation Overview

The following bullets cover the key requirements for installing and wiring the G9SP-N20S. For complete wiring diagrams, terminal assignments, and step-by-step procedures, refer to the Omron G9SP instruction manual directly.

  • Mount the G9SP-N20S on a DIN rail inside a suitably rated enclosure; confirm the enclosure's environmental protection matches the installation environment before mounting.
  • Connect a 24 V DC power supply with correct polarity, proper grounding, and external protection devices as specified in the Omron manual — do not omit overcurrent protection on the supply circuit.
  • Wire safety inputs for each field device (E-stop, interlock switch, light curtain OSSD, safety mat) to the designated safety input terminals using the dual-channel wiring configurations described in the official wiring diagrams.
  • Wire the 8 safety outputs to external safety relays or contactors only — these are control-level outputs and must not be connected directly to motor loads or other high-current devices; external protection and correctly rated contactors are mandatory.
  • Before applying power, verify all connections against the wiring diagram, confirm that standard I/O terminals are assigned correctly for reset and status signals, and check that no safety input or output terminal has been left unconnected when required by the configuration.

Configuration and Commissioning Overview

  • Connect a PC running Omron's safety configuration software to the G9SP-N20S and create or open the project file for the machine being commissioned.
  • Assign each safety input and output in the software to match the wired field devices, and configure the required safety logic including zoning, restart interlocks, and muting as needed for the application.
  • Transfer the validated configuration to the controller and run the built-in validation checks within the software; document the final configuration file in a controlled location.
  • Perform functional safety tests on every connected safety device — actuate each E-stop, trigger each interlock, break the light curtain beam — and confirm that the controller drops the correct outputs as designed for each condition.
  • Back up the validated configuration to a CP1-series memory cassette and secure storage, record all test results for compliance documentation, and retain this package for future audits and replacement controller commissioning.

Wrong-Part Prevention Checklist

Before placing an order for the Omron G9SP-N20S, work through each item on this checklist. Every one of these has caused a redesign or project delay for someone who skipped it.

  1. Confirm you specifically need the G9SP-N20S (20 safety inputs, 8 safety outputs) rather than G9SP-N10S or G9SP-N10D with different I/O and output types.
  2. Verify that a 24 V DC supply is available and that total load on the safety outputs does not exceed the rated current for V1 and V2.
  3. Check that the safety controller I/O types (PNP, logic-level) match your field safety devices and external contactors.
  4. Confirm required safety category / PL / SIL for the machine can be achieved with G9SP when combined with your chosen safety devices and wiring practices.
  5. Ensure your team has access to Omron's configuration software and understands the configuration/validation workflow.
  6. Confirm physical format (DIN-rail mounting, controller width) fits the existing panel and that environmental ratings match the installation location.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — confirming the right part number before the order is placed costs nothing; correcting a wrong order after the fact costs time you likely do not have.

Frequently Asked Questions

What is the actual difference between the G9SP-N20S and the G9SP-N10S — which one do I need?

The primary difference is I/O capacity. The G9SP-N20S provides 20 safety inputs and 8 safety outputs, while the G9SP-N10S offers a smaller I/O count suited to simpler machines with fewer safety devices. The right choice depends on a complete count of your machine's safety devices: dual-channel E-stops, interlocked doors, light curtains, safety mats, and any other monitored safety functions. If that count fits comfortably within the N10S, it is the more economical choice. If your count is at or near 20 inputs, the G9SP-N20S is the correct variant — do not undersize and expect to add devices later without confirming expansion capacity.

Can the G9SP-N20S be expanded if I add more safety devices to the machine after commissioning?

The G9SP ecosystem supports dedicated expansion I/O modules, which can extend the safety I/O count beyond the base controller's built-in channels. If you anticipate future safety device additions, identify the expansion modules available in the G9SP family during the initial design phase and confirm that the expansion architecture will meet your projected maximum I/O count. Do not assume the base controller alone will accommodate future growth without verifying the expansion path.

How do I back up and restore the G9SP-N20S configuration if the controller needs to be replaced?

Omron documentation confirms that a CP1-series memory cassette can be used with G9SP controllers to back up and restore configuration data. This makes controller replacement in a production environment significantly faster — the replacement unit can be configured from the cassette without re-running the full PC-based configuration workflow. Maintaining a validated configuration backup on a memory cassette, with a separate copy in controlled file storage, is a commissioning best practice and an audit requirement for most safety compliance frameworks.

Do I need external safety relays or contactors, or can I wire loads directly to the G9SP-N20S safety outputs?

External safety relays and contactors are required. The G9SP-N20S safety outputs are control-level outputs designed to switch the coil circuits of external safety relays or contactors — they are not rated for direct connection to motor loads, high-current actuators, or other power devices. The external safety relays or contactors must be appropriately rated for the actual load, and external protection devices must be provided per the Omron manual. Wiring safety outputs directly to power loads is a wiring error that will also invalidate the safety function of the circuit.

Does the G9SP-N20S integrate with my existing PLC, or does it operate completely independently?

The G9SP-N20S is a stand-alone safety controller — it executes its configured safety logic independently of any external PLC. Standard (non-safety) I/O on the controller can be used to exchange status, fault, and reset signals with a supervising PLC, giving the main control system visibility into safety state without creating a safety dependency on the PLC. This stand-alone architecture is one of the design advantages for OEM machine builders, since the safety function remains independent of the main control program and PLC platform.

How does the G9SP-N20S compare to a full safety PLC for a machine with complex or distributed safety requirements?

For a single machine with up to 20 safety inputs and 8 safety outputs and no requirement for networked safety data or motion safety integration, the G9SP-N20S is a more practical and cost-effective solution than a full safety PLC. A safety PLC becomes the better choice when the application requires safety data over a fieldbus, distributed safety I/O across multiple machines or large systems, or tight integration with servo and motion safety functions. For most stand-alone machine applications, the G9SP-N20S delivers the required safety performance without the engineering overhead of a full safety PLC platform.

Why Order the G9SP-N20S From LeadTime.ca

  • LeadTime.ca specializes in industrial automation components including Omron safety controllers — real-time stock visibility and accurate lead time information are available before you commit to an order.
  • The team can help verify the correct G9SP variant against your I/O requirements and flag compatible accessories including expansion modules and memory cassettes.
  • Volume pricing is available for OEM builders standardizing on the G9SP-N20S across a machine family — contact the team for project-level quotes.
  • LeadTime.ca ships worldwide, serving controls engineers and procurement teams across North America and internationally.

G9SP-N20S At-a-Glance Summary

  • The Omron G9SP-N20S is a stand-alone configurable safety controller from the G9SP Series, rated for 24 V DC operation.
  • Provides 20 safety inputs and 8 safety outputs — sized for small to mid-sized machines with multiple safety devices and zones.
  • Safety outputs are control-level only; external safety relays and contactors are required for all power-switching functions.
  • Configuration is managed via Omron's PC-based safety configuration software; configuration backup and restore is supported via a CP1-series memory cassette.
  • Positioned above simple safety relays and below full safety PLC architectures — the practical middle-ground for single-machine safety logic applications.
  • Key alternative variants within the G9SP family are the G9SP-N10S and G9SP-N10D for lower I/O counts; Omron NX-S safety PLC for networked or distributed safety requirements.
  • Widely available from North American distributors; lead times vary by regional stock levels — verify availability before committing to a commissioning schedule.
