Omron G7SA-2A2B DC24 Safety Relay — Specs & Buying Guide

By Abdullah Zahid
16 min read

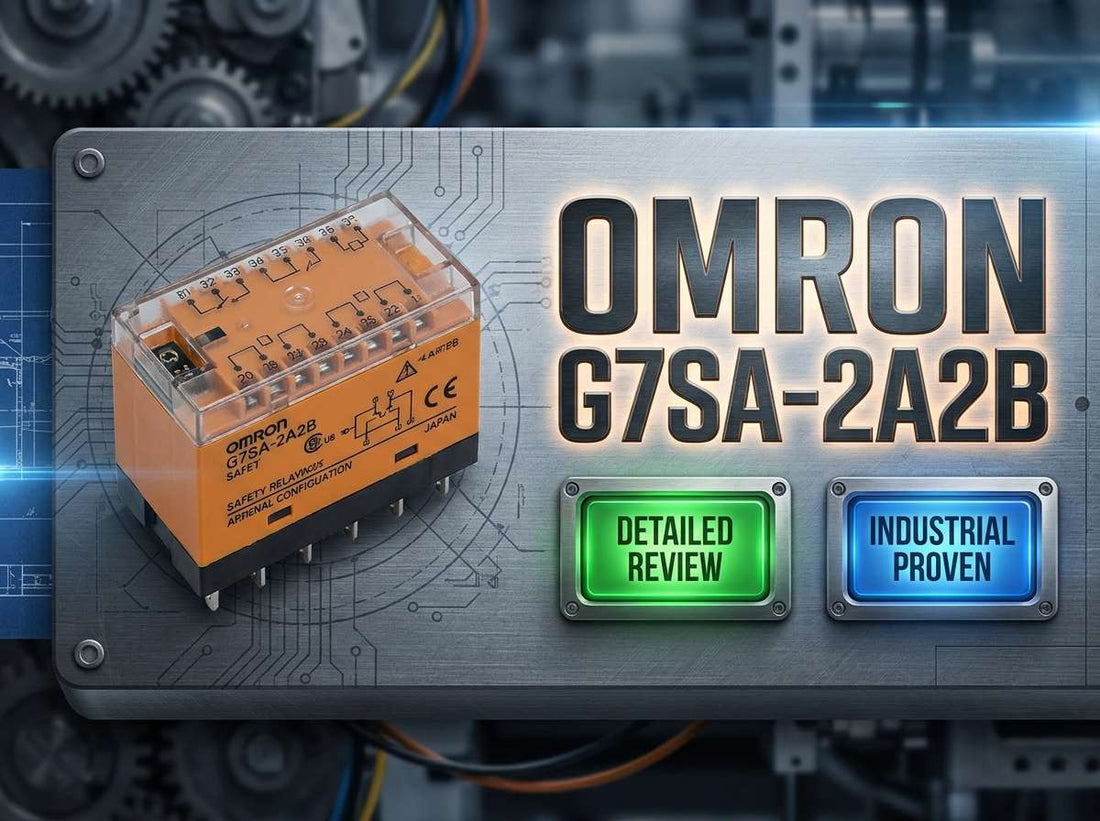

Omron G7SA-2A2B DC24 safety relay with forcibly guided contacts 2NO 2NC 24VDC coil for E-stop and guard door circuits

Omron G7SA-2A2B DC24 — G7SA Relays with Forcibly Guided Contacts, 2NO/2NC, 24 VDC Coil: Specs, Pricing and Best Alternatives

Controls engineers specifying safety outputs for E-stop loops, guard door circuits, or light curtain channels consistently reach for a relay that can prove its contacts have dropped out — not just assume it. The Omron G7SA-2A2B DC24 delivers exactly that: a compact, socket- or PCB-mountable safety relay with 2 normally open and 2 normally closed forcibly guided contacts, a 24 VDC coil, and a 6 A switching rating that covers the vast majority of safety output applications on small to mid-size machines. What separates it from a general-purpose relay is the EN 50205 Class A forcibly guided contact mechanism, which gives your safety controller a mechanically verifiable feedback signal — a hard requirement in any category 3 or category 4 safety architecture.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron G7SA-2A2B DC24 — and Who Should Not

This relay is the right choice for machine builders, panel shops, and OEM engineers standardizing on 24 VDC control systems who need a proven, compact safety relay with forcibly guided contacts for conventional safety functions.

  • Your safety design requires exactly 2 normally open and 2 normally closed forcibly guided contacts — not 3NO/1NC or 4NO/2NC.
  • Your control supply is 24 VDC and must match the coil voltage of this specific variant.
  • Switched loads are within 6 A at 240 VAC or 6 A at 24 VDC resistive — high-inrush motor loads must be handled downstream by a contactor.
  • You are mounting via a P7SA socket on DIN rail or directly soldering to PCB — confirm your chosen mounting method before ordering.
  • EN 50205 Class A forcibly guided contact compliance is a project requirement, and you need major approvals such as VDE and UL confirmed for your safety category.

If your design calls for a different contact mix, a different coil voltage such as DC12 or DC48, or integrated safety logic with diagnostics, the G7SA-3A1B, G7SA-4A1A, or an Omron G9SA/G9SE safety module are the variants to evaluate instead.

On this page:

Where the Omron G7SA-2A2B DC24 Fits in a Safety System

The Omron G7SA-2A2B DC24 is a safety output relay — it sits between your safety controller or safety relay module and the field power circuits that need to be interrupted on a stop command. Its coil is driven by the safety controller output, and its 2 NO contacts switch the power to downstream contactors or loads while the 2 NC contacts feed back a mechanically verified signal confirming that the relay has actually de-energized. This is the core function of forcibly guided contact technology: because the NO and NC contact bridges are mechanically linked, a welded NO contact will physically prevent the NC contact from closing, giving the safety controller a detectable fault condition rather than a silent failure.

The G7SA-2A2B DC24 belongs to Omron's G7SA family of safety relays with forcibly guided contacts, all sharing the same socket footprint and P7SA socket ecosystem. Within that family it occupies the mid-point in contact count — providing two power-switching NO contacts and two feedback NC contacts — which covers a wide range of standard machine safety functions without the complexity of a higher-contact-count relay.

Typical Safety System Architecture

The G7SA-2A2B DC24 sits as a safety output stage in the power removal chain, driven by the safety controller and upstream of the final switching element. A typical deployment looks like this:

  • Safety input device (E-stop button, guard door switch, light curtain, or two-hand control) feeds into a certified safety controller or safety relay module.
  • The safety controller evaluates the input channel(s) and provides a 24 VDC output to energize the G7SA-2A2B DC24 coil.
  • The G7SA-2A2B DC24 NO contacts switch control power or directly enable downstream contactors that carry the main machine power.
  • The G7SA-2A2B DC24 NC contacts wire back to the safety controller's feedback input channel, confirming relay drop-out under all stop conditions.
  • Downstream load — motor contactor coil, valve solenoid, or safety-rated load — receives or loses power depending on relay state.

Real Machine Applications for the Omron G7SA-2A2B DC24

On press and forming machinery, the G7SA-2A2B DC24 is a common output relay in two-hand control circuits where dual-channel feedback is mandatory. The 2 NC contacts feed the cross-monitoring inputs of the safety controller, while the 2 NO contacts enable the press contactor only when both channels confirm safe state.

Packaging machines running multiple safety gates and light curtains often use multiple G7SA-2A2B DC24 units to expand the safety output count from a central safety PLC, giving each zone its own guided-contact output relay with independent feedback monitoring.

Material handling and robotics cells use the relay to provide galvanic isolation between the safety PLC output and the contactor or drive enable circuit, keeping the safety signal clean and verifiable through the NC feedback path.

Retrofit and compliance upgrade projects on older machines frequently specify the G7SA-2A2B DC24 as a direct upgrade from non-guided general-purpose relays, restoring EN ISO 13849 compliance and enabling category 3 or category 4 architecture that the original design lacked.

Application Typical Deployment
Emergency stop circuit G7SA-2A2B DC24 driven by safety relay module; NO contacts enable main contactor, NC contacts feed feedback loop
Guard door interlocking Relay output from safety PLC; guided contact feedback monitors door contact state across dual channels
Light curtain output Galvanic isolation stage between safety controller and drive enable; NC contacts verify relay de-energization
Two-hand control on press Dual G7SA-2A2B DC24 units providing cross-monitored NC feedback to safety controller input channels
Safety output expansion Additional guided contact relays driven by safety PLC to extend output count on multi-zone machines
Compliance retrofit Replacing non-guided relays with G7SA-2A2B DC24 to meet EN ISO 13849 category requirements

Purchase-Decision Specifications for the Omron G7SA-2A2B DC24

Parameter Value Notes
Contact configuration 2NO + 2NC forcibly guided contacts EN 50205 Class A; mechanically linked NO and NC bridges
Rated load — AC 6 A at 240 VAC resistive Verify inductive load derating against Omron datasheet
Rated load — DC 6 A at 24 VDC resistive Use external contactor for high-inrush or motor loads
Coil rated voltage 24 VDC This variant only; DC12, DC48, DC110 variants exist in G7SA family
Forcibly guided contact standard EN 50205 Class A Suitable for contact-gap monitoring in safety circuits
Mounting method PCB soldering or P7SA socket (panel/DIN rail) Socket model must match relay pin layout — confirm P7SA variant
Major approvals VDE, UL, CSA (confirm current approvals on datasheet) Verify approvals required by your machine's standards before finalizing
Suitable safety functions EN ISO 13849 and EN 62061 compliant circuit designs Suitability depends on system architecture and safety controller used
Contact family Omron G7SA series Compatible with P7SA socket accessories including Push-In Plus variants
Product family G7SA Relays with Forcibly Guided Contacts Other contact configurations available: G7SA-3A1B, G7SA-4A1A, and others

Full technical specifications are available on the product page at LeadTime.ca.

G7SA-2A2B vs Other G7SA Variants: Which One Do You Actually Need?

The G7SA family uses a structured part number format: the digits after G7SA- describe the contact mix. The G7SA-2A2B designation means 2 NO (A) contacts and 2 NC (B) contacts with forcibly guided linkage between them. Selecting the wrong variant is one of the most commonly reported ordering mistakes in this family.

Model Contact Config Best For When to Avoid
G7SA-2A2B DC24 2NO + 2NC Standard E-stop and guard door circuits needing two switching and two feedback contacts When design requires more than 2 NC feedback contacts or more than 2 NO switching paths
G7SA-3A1B DC24 3NO + 1NC Applications needing more NO switching contacts with one feedback NC When two NC feedback contacts are required for dual-channel monitoring
G7SA-4A1A DC24 4NO + 1NC (verify) High switching-contact-count applications with minimal feedback Safety designs where NC feedback monitoring across multiple inputs is critical
G7SA-2A2B DC12 2NO + 2NC Same contact function but for 12 VDC control systems 24 VDC control supply — coil will not operate correctly
G7SA-2A2B DC48 2NO + 2NC 48 VDC control system designs 24 VDC systems — mismatch will prevent coil energization

If your load exceeds the 6 A rated contact capacity or your design needs more than 2 NC feedback contacts, revisit the G7SA family configuration options or consider adding a downstream contactor — check current availability of the G7SA-2A2B DC24 at LeadTime.ca and contact the team to discuss the right variant for your system.

Expert Verdict: Is the Omron G7SA-2A2B DC24 Right for Your Machine?

The Omron G7SA-2A2B DC24 earns its place as a default specification on a wide range of small to mid-size machine safety designs for straightforward reasons: the forcibly guided contact mechanism conforms to EN 50205 Class A, the 2NO/2NC split gives you both power-switching and feedback contacts in one compact body, and the P7SA socket ecosystem means maintenance technicians can replace a relay in minutes without touching a single screw terminal. For the machine builder or panel shop standardizing on 24 VDC control and building to EN ISO 13849 category 3 or category 4, this relay checks the major boxes without over-engineering the solution.

Where it has real limits: the 6 A contact rating is appropriate for safety control-circuit switching and driving contactor coils, but it is not a relay for direct motor or high-inrush load switching. If you find yourself needing more than two NC feedback contacts for a complex multi-channel monitoring scheme, the G7SA-3A1B or a higher-contact-count G7SA variant is the right call. And if your application genuinely benefits from integrated safety logic, diagnostic LEDs, and a plug-in module form factor, an Omron G9SA or G9SE safety relay module will serve you better than adding discrete G7SA relays to a growing panel. The G7SA-2A2B DC24 is a building block, not an all-in-one safety solution.

From a procurement standpoint, the G7SA-2A2B DC24 is one of the more commonly stocked G7SA variants in North America precisely because 24 VDC and 2NO/2NC are the most widely specified combination. That said, supply conditions change, and less common coil voltage variants in the G7SA family have historically seen lead time spikes that catch engineers off guard when parts are not ordered early. Working through a specialist industrial distributor that can confirm in-hand stock, flag lead time realities before you commit to a build schedule, and suggest stocking alternatives reduces that risk significantly. View current pricing and availability for the G7SA-2A2B DC24 at LeadTime.ca — orders ship worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

Ordering, Lead Times and Sourcing the Omron G7SA-2A2B DC24 Worldwide

The G7SA-2A2B DC24 sits in mid-range safety relay pricing territory — it is not a commodity relay, but it is also not a specialized high-cost device. Pricing is available on the product page and reflects current distributor market conditions. For volume or project purchases, contacting LeadTime.ca directly will yield the most accurate current figure.

In North America, the 24 VDC, 2NO/2NC variant is the most commonly distributed G7SA configuration and is generally stocked with good availability. Less common coil voltage variants such as DC12, DC48, or DC110 can carry extended lead times when not immediately available from regional stock — plan accordingly and confirm availability before design freeze if you are on a tight build schedule.

LeadTime.ca sources and ships industrial automation components worldwide. Regardless of your location, the process is the same: confirm the full part number including coil voltage suffix on your purchase order, verify your socket selection at the same time, and check current availability before committing the part to a BOM.

What Engineers Need to Know Before Ordering the Omron G7SA-2A2B DC24

Model-specific community discussion on the G7SA-2A2B DC24 is limited — most forum activity covers the G7SA family broadly or addresses general forcibly guided contact safety relay practice. That scarcity of model-specific feedback does not mean the part is obscure; it means engineers who know safety relays well tend to specify it confidently without extensive forum debate. What the community does consistently surface, at the family level, is a short list of ordering and application mistakes that trip up buyers who are less familiar with the part number structure. The checklist below is drawn from those recurring patterns and from Omron's own application guidance.

The most common theme across distributor Q&A sections and automation forums is part number confusion within the G7SA family. The model numbers are deliberately systematic — but that means G7SA-2A2B DC24 and G7SA-3A1B DC24 look superficially similar enough that one is occasionally ordered instead of the other. The difference of one NC contact versus two NC contacts is consequential in a dual-channel feedback design: a safety controller expecting two independent NC feedback signals will report a fault or fail to operate safely if only one NC contact is wired. Engineers who have caught this mistake after delivery describe it as an entirely avoidable delay that comes down to not reading the contact configuration off the datasheet before issuing the PO.

Socket selection is the second area where specialist advice adds real value. The P7SA socket family for the G7SA series includes multiple variants — screw terminal and Push-In Plus terminal styles, and configurations matched to the relay's pin count. Ordering the relay without simultaneously confirming the correct P7SA socket model is a documented ordering pattern that results in a relay arriving on site with no compatible base to mount it in. LeadTime.ca can confirm the correct socket alongside the relay at point of order, which is exactly the kind of check a specialist distributor handles that a generic channel does not.

  1. Confirm the coil voltage: this brief focuses on G7SA-2A2B DC24 (24 VDC coil). Do not order DC12, DC48, or DC110 variants by mistake.
  2. Verify the required contact configuration: 2NO + 2NC forcibly guided contacts. Ensure your safety design actually calls for 2NO/2NC, not 3NO/1NC or 4NO/2NC.
  3. Check the contact load: ensure 6 A at 240 VAC/24 VDC is sufficient for the load; for higher power or high inrush, plan to use a contactor downstream.
  4. Confirm mounting method: PCB soldering vs use with P7SA socket. If using a socket, select the correct P7SA model (screw terminal vs Push-In Plus, pole count).
  5. Check approvals and safety category requirements: confirm that your machine's required standards (EN ISO, EN 50205, UL) are met by this relay and socket combination.
  6. Verify mechanical footprint and pin layout against your PCB or socket to avoid mismatched footprints or rework.
  7. Confirm operating temperature and environment (ambient temperature range, pollution degree, vibration) match the application.
  8. Ensure external protection (fuses, circuit breakers) and safety diagnostics are designed according to Omron guidelines and applicable standards.

Before issuing a purchase order, run through this checklist against your electrical drawings and BOM — or visit the product page at LeadTime.ca to confirm you have the right variant and compatible accessories in your cart.

Wiring and Installation Overview for the Omron G7SA-2A2B DC24

  • Mount the P7SA socket on DIN rail or panel per Omron guidelines; verify orientation and terminal numbering before wiring to avoid reversed coil polarity or transposed contacts.
  • Connect the 24 VDC coil supply from the safety controller output to the designated coil terminals; confirm polarity where indicated and keep coil wiring separated from high-voltage power circuits for EMC integrity.
  • Wire the 2 NO contacts to the power-switching circuit and the 2 NC contacts to the safety controller's feedback input channels; verify that switched load current and voltage stay within the 6 A at 240 VAC / 6 A at 24 VDC resistive rating.
  • Seat the G7SA-2A2B DC24 relay fully into the P7SA socket and secure any retaining clips before powering up; a partially seated relay is a common cause of intermittent contact operation.
  • After installation, perform a functional safety test: trigger each safety input device, verify the relay de-energizes, confirm the feedback NC contacts signal correctly to the controller, and document results for compliance records.

Compatible Sockets and System Accessories

The Omron G7SA-2A2B DC24 is designed for use with the P7SA socket family. Selecting the correct P7SA model at the time of ordering the relay avoids the commonly reported mismatch between relay and base on arrival.

  • P7SA screw terminal sockets — DIN rail or panel mount bases with traditional screw terminal connections; compatible with the G7SA-2A2B DC24 pin layout.
  • P7SA Push-In Plus terminal sockets — tool-free spring-clamp wiring connections; Omron documentation notes that Push-In Plus sockets significantly reduce wiring time compared to screw terminal variants, making them a strong choice for high-volume panel builds.
  • Correct pole count P7SA — verify that the socket pole count matches the G7SA-2A2B DC24 contact and coil pin configuration; ordering a socket for a different contact count within the G7SA family will result in a physical mismatch.

Frequently Asked Questions

Can I use the Omron G7SA-2A2B DC24 to switch motor loads directly, or do I need a contactor?

The G7SA-2A2B DC24 is rated for 6 A at 240 VAC and 6 A at 24 VDC on resistive loads. Motor and other high-inrush loads can significantly exceed these limits during starting, causing premature contact wear or welding that compromises the safety function. The standard practice — and Omron's recommendation — is to use the G7SA-2A2B DC24 contacts to switch a downstream contactor coil, not the motor load directly.

Which P7SA socket model is compatible with the G7SA-2A2B DC24, and what is the difference between screw and Push-In Plus terminals?

The G7SA-2A2B DC24 is compatible with the P7SA socket family — confirm the pole count and configuration match the relay's pin layout before ordering. Screw terminal P7SA sockets use traditional tightening torque connections, while Push-In Plus variants use spring-clamp tool-free termination that Omron documents as reducing wiring time. The electrical function is identical; the choice comes down to installation method preference and whether your panel shop has standardized on one termination style.

How do I wire the NC feedback contacts of the G7SA-2A2B DC24 into my safety controller for welded-contact detection?

The 2 NC contacts should be wired in the feedback input circuit of the safety controller, typically in series or as separate inputs depending on the controller's monitoring architecture. Because the NO and NC contacts in the G7SA-2A2B DC24 are forcibly guided and mechanically linked, a welded NO contact prevents the NC contact from returning to its closed rest position. The safety controller reading an open NC contact after a reset attempt detects this condition as a fault. Refer to the Omron G7SA datasheet and your safety controller's application manual for the specific wiring diagram applicable to your architecture.

Is the Omron G7SA-2A2B DC24 suitable for category 3 or category 4 safety circuits?

The G7SA-2A2B DC24 uses EN 50205 Class A forcibly guided contacts, which satisfy the contact monitoring requirement in EN ISO 13849 category 3 and category 4 architectures. Achieving a specific category or PL level depends on the complete system design — including the safety controller, wiring, redundancy, and diagnostic coverage — not the relay alone. Confirm the overall safety function design with your safety engineer and verify against the applicable machine standards before declaring conformance.

Can I replace a different brand's safety relay with the G7SA-2A2B DC24 without changing the socket or wiring?

Not without verification. The G7SA-2A2B DC24 has a specific pin layout matched to Omron P7SA sockets. Other brands use different footprints, terminal assignments, and socket systems. Swapping in a G7SA-2A2B DC24 on a different brand's socket without confirming pinout compatibility will likely result in mis-wired contacts or a physically incompatible fit. Always compare datasheets and pinouts directly, and replace the socket if necessary to ensure a correctly wired, mechanically secure, and standards-compliant installation.

What does the designation 2A2B mean in the Omron G7SA-2A2B part number?

In Omron's G7SA part number structure, the characters after the dash describe the contact configuration. 2A means 2 normally open (NO) contacts, and 2B means 2 normally closed (NC) contacts — all forcibly guided and mechanically interlinked. DC24 at the end of the full catalog number designates the 24 VDC coil voltage. If you need 3 NO and 1 NC, the correct model is the G7SA-3A1B, not this variant.

Why Order the Omron G7SA-2A2B DC24 From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation components worldwide, regardless of your location.
  • Specialist part number verification — the team can confirm coil voltage variant, compatible P7SA socket, and any relevant accessory at point of order, reducing the ordering mistakes that are well-documented in this product family.
  • Hard-to-find variant sourcing — when specific coil voltage or contact configuration variants are not immediately available locally, LeadTime.ca can locate stock or provide realistic lead time expectations before you commit to a build schedule.
  • Volume and project pricing available — contact the LeadTime.ca team for volume orders, project BOM pricing, or lead time confirmation.
  • Current pricing and availability — view the product page at LeadTime.ca for live stock status and pricing.

Omron G7SA-2A2B DC24 — At-a-Glance Summary

  • Contact configuration: 2 normally open + 2 normally closed forcibly guided contacts per EN 50205 Class A.
  • Rated load: 6 A at 240 VAC resistive and 6 A at 24 VDC resistive — use a downstream contactor for motor or high-inrush loads.
  • Coil voltage: 24 VDC — this specific variant only; DC12, DC48, and DC110 variants also exist in the G7SA family.
  • Mounting: PCB soldering or P7SA socket (DIN rail/panel); Push-In Plus P7SA sockets reduce wiring time per Omron documentation.
  • Safety compliance: EN 50205 Class A forcibly guided contacts; approvals include VDE, UL, CSA — confirm current approval list on Omron datasheet.
  • Suitable for: EN ISO 13849 and EN 62061 compliant safety circuit architectures when used as part of a correctly designed safety system.
  • Primary use: E-stop loops, guard door interlocking, light curtain output isolation, two-hand control circuits, safety output expansion on 24 VDC systems.
  • Key ordering check: confirm full part number (G7SA-2A2B DC24), contact configuration (2NO/2NC), and matching P7SA socket variant before issuing the PO.
