Omron G7SA-3A1B Safety Relay — Specs, Variants & Buyer Guide

By Abdullah Zahid
16 min read

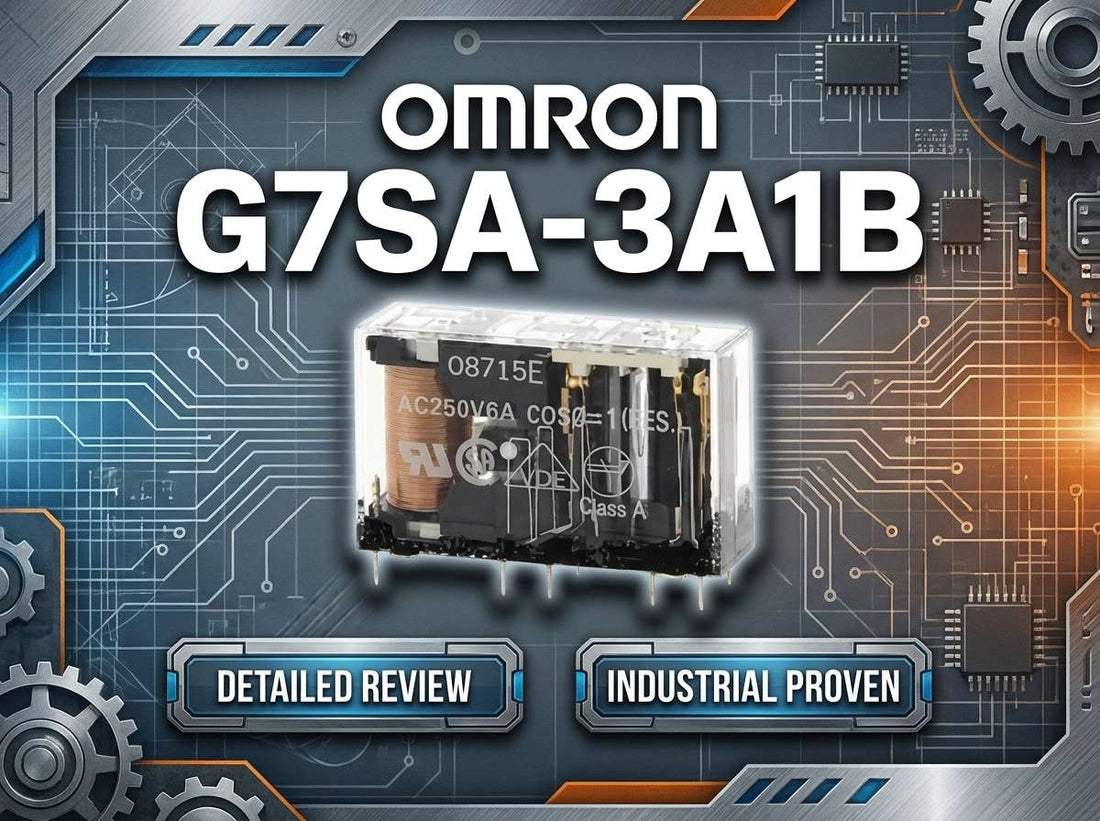

Omron G7SA-3A1B safety relay with forcibly guided contacts 3NO 1NC 4-pole 24VDC coil for industrial safety circuits

Omron G7SA-3A1B — G7SA Relays with Forcibly Guided Contacts, 4-Pole (3NO + 1NC) Buying Guide

When a controls engineer or machine safety designer searches for the Omron G7SA-3A1B safety relay, the decision is almost always already framed: the safety circuit calls for a compact, 4-pole relay with forcibly guided contacts, 3 normally open outputs, 1 normally closed feedback contact, and a 24 VDC coil. What remains is confirming the exact part number suffix, verifying the contact ratings cover the load, and locking in stock before a build deadline arrives. This guide covers all of that — specs, coil options, mounting, variant comparison, wiring overview, and ordering reality — so you can specify with confidence.

If you have already confirmed this is the right part, check current pricing and availability for the Omron G7SA-3A1B at LeadTime.ca — ships worldwide.

Who Should Buy the Omron G7SA-3A1B — and Who Shouldn't

The Omron G7SA-3A1B is the right relay when all of the following apply to your project:

  • Your safety circuit requires exactly 3 normally open and 1 normally closed forcibly guided contacts (4 poles total) — not 6-pole, not a 2A2B split.
  • Your control panel runs on 24 VDC (the most common coil variant), or you have a confirmed requirement for another available DC coil voltage such as 12, 48, or 110 VDC.
  • Your switched loads fall within the contact rating of 6 A at up to 250 VAC or 30 VDC resistive, and you have addressed inductive load derating.
  • Your installation uses either PCB mounting or DIN-rail socket mounting with a compatible P7SA series 4-pole socket already on the panel.
  • Your safety assessment requires compliance with forcibly guided contacts per EN 50205 Class A and associated regional approvals.

If your design needs more than 4 poles, consider the G7SA-3A3B (6-pole, 3NO + 3NC). If your application demands integrated reset logic, diagnostics, or safety PLC-level functionality, a dedicated safety relay module is the more appropriate path — and a G7SA-3A1B is not a substitute for those systems.

On this page:

What the Omron G7SA-3A1B Actually Does in a Safety Circuit

The Omron G7SA-3A1B belongs to the G7SA Relays with Forcibly Guided Contacts family — a category of electromechanical relays where the normally open and normally closed contacts are mechanically linked so that they cannot both be closed simultaneously. This mechanical linkage is the core safety property. If a normally open contact welds shut due to overcurrent or sustained arcing, the mechanically coupled normally closed contact is physically prevented from closing. A safety controller monitoring that NC feedback contact will detect the discrepancy and can hold the machine in a safe state rather than allowing a false restart.

In practical terms, the G7SA-3A1B gives you three NO contacts for switching power to actuators, contactors, solenoid valves, or brake releases, and one NC contact wired back into the monitoring loop of your safety controller or safety relay. The 4-pole format in a slim body means it fits into compact panels and existing DIN-rail socket layouts without requiring significant redesign. The 24 VDC coil variant — catalogued as G7SA-3A1B-DC24 — is driven directly from safety controller digital outputs, keeping the circuit architecture straightforward.

Critically, the G7SA-3A1B is not a complete safety function by itself. It is a safety contact relay — a building block. The safety function, including logic, monitoring, reset, and category or PL determination, is provided by the safety controller or safety relay module driving the G7SA coil. Understanding this distinction prevents misapplication and keeps safety assessments accurate.

Typical System Architecture for the G7SA-3A1B

The G7SA-3A1B sits in the output switching layer of a safety circuit, between the safety logic device and the controlled field loads. Here is where it fits in the typical signal chain:

  • Safety input devices (E-stop buttons, guard door switches, light curtains) feed signals to a safety controller or dedicated safety relay module.
  • The safety controller evaluates the input state and, when safe conditions are met, energizes the G7SA-3A1B coil via a 24 VDC digital output.
  • The three NO contacts of the G7SA-3A1B close, supplying power to downstream loads — motor contactor coils, solenoid valves, or safety-rated signaling devices.
  • The single NC contact is wired back to a feedback input on the safety controller, allowing the controller to verify contact position at every machine cycle and detect welded contacts before the next safe start.
  • External protective devices (fuses or circuit breakers sized per Omron's datasheet requirements) protect each switched circuit downstream of the NO contacts.

Where the G7SA-3A1B Gets Deployed: Industries and Use Cases

Emergency stop circuits are the most common home for the G7SA-3A1B. The three NO contacts switch power to main contactor coils or drive contactors, while the NC feedback contact provides the discrepancy monitoring loop that confirms all contacts have dropped out correctly after an E-stop event. This configuration is a foundational pattern in machine safety design for equipment ranging from conveyor drives to robotic work cells.

Guard door and light curtain interlock circuits use the G7SA-3A1B to relay a safety controller output to the power circuits feeding hazardous actuators. When the safety controller detects an open door or a broken beam, it de-energizes the relay coil. The NO contacts open, removing power from the actuators. The NC contact simultaneously confirms to the controller that the relay has de-energized properly.

Safety output expansion is another high-volume application. A single safety controller output may not source enough contacts to simultaneously switch multiple loads. The G7SA-3A1B provides three additional NO contacts from a single coil drive, allowing one safety output to control multiple contactors or valves in parallel — all with the same forcibly guided contact guarantee.

Retrofit and maintenance scenarios are significant in practice. When a failed safety relay needs replacement in a machine that already has P7SA sockets installed, specifying a G7SA-3A1B with the matching coil voltage and contact configuration allows a like-for-like swap without re-wiring, re-approval work, or socket changes.

Application Typical Deployment
Emergency stop circuit G7SA-3A1B coil driven by safety controller; NO contacts switch main contactor coils; NC contact feeds feedback loop
Guard door interlock Safety controller output energizes relay; NO contacts power actuators; NC contact confirms de-energized state when door opens
Safety output expansion Single safety PLC output drives G7SA-3A1B coil; three NO contacts independently switch multiple valves or brakes
Light curtain interface Safety relay module output drives G7SA-3A1B; NO contacts remove power from robot or press; NC contact verifies open state
Safety-related signaling NO contact drives stack light or alarm circuit with position monitoring via NC contact
Retrofit replacement Failed G7SA-family relay swapped for G7SA-3A1B in existing P7SA socket with matching coil voltage and contact configuration

Specs That Drive the Purchase Decision

Parameter Value Notes
Contact configuration 3 NO + 1 NC, forcibly guided, 4 poles Mechanically linked contacts; cannot be simultaneously closed
Contact current rating 6 A at 250 VAC / 30 VDC (resistive) Derate for inductive loads; confirm in current datasheet
Max switching voltage 250 VAC / 125 VDC (typical family value) Verify precise limits and load type in Omron datasheet
Coil rated voltage options DC: 12, 18, 21, 24, 48, 110 V 24 VDC most common; confirm suffix (e.g., DC24) before ordering
Coil current (24 VDC variant) Approx. 15 mA (approx. 1.6 kΩ resistance) Approx. 360 mW coil power consumption
Operating temperature -40 to +85 °C Per Omron G7SA datasheet; verify enclosure conditions against upper limit
Mounting PCB or plug-in socket (P7SA series, 4-pole) Confirm correct P7SA socket model for DIN-rail panel builds
Safety standard Forcibly guided contacts per EN 50205 Class A VDE and other regional approvals; confirm current approval marks by region
Required external protection Fuses or circuit breakers per Omron datasheet No integrated overcurrent protection; external devices mandatory
Common stocked variant G7SA-3A1B-DC24 24 VDC coil; other voltages may require planned orders

Full technical specifications are available on the product page at LeadTime.ca.

G7SA-3A1B vs G7SA-3A3B vs G7SA-2A2B: Which Variant Do You Actually Need?

The G7SA model code encodes the contact configuration directly. The number after the first letter group is the NO count; the number after the second letter group is the NC count. Reading the code precisely eliminates the most common ordering mistake in this family.

Model Contact Configuration Poles Best For When to Avoid
G7SA-3A1B 3 NO + 1 NC 4 Standard E-stop, guard door, output expansion with 1 feedback contact When more than 3 NO contacts or more than 1 NC contact are required
G7SA-3A3B 3 NO + 3 NC 6 Redundant feedback loops or applications needing multiple NC contacts When panel space is tight and 4-pole is sufficient
G7SA-2A2B 2 NO + 2 NC 4 Circuits prioritizing NC contacts for monitoring-heavy safety functions When 3 NO outputs are required to switch three independent loads

All coil voltage variants share the same contact configuration within a model. If your panel runs on 24 VDC, the G7SA-3A1B-DC24 is the stock standard. If a project uses 48 VDC or 110 VDC control power, confirm that variant availability before finalizing the BOM — those coil voltages may carry longer lead times. If your application needs the 6-pole G7SA-3A3B, check current stock and alternatives at LeadTime.ca.

Expert Verdict: Is the G7SA-3A1B the Right Relay for Your Build?

For controls and safety engineers who need a 4-pole safety relay with 3 NO and 1 NC forcibly guided contacts, the Omron G7SA-3A1B is a well-supported, approval-backed choice. The 24 VDC coil draws approximately 15 mA at roughly 360 mW, which sits comfortably within the output current budget of most safety PLCs and safety relay modules. The contact rating of 6 A at 250 VAC covers the vast majority of contactor coil and solenoid valve loads at control-circuit level. The operating range of -40 to +85 °C means panel heating in typical industrial environments is not a disqualifying concern, provided the enclosure thermal design is addressed. Engineers who already have P7SA sockets installed in existing machinery will find replacement straightforward — no rewiring, no re-approval exercise if the coil voltage matches.

The G7SA-3A1B is not the right choice in every scenario, and being honest about that is more useful than overselling it. If your safety design calls for more than three switched outputs or more than one NC feedback path, the G7SA-3A3B (6-pole, 3NO + 3NC) is the correct step up. If the required contact mix leans heavier on NC contacts, the G7SA-2A2B (2NO + 2NC) better fits that architecture. And if your safety function requires integrated diagnostics, configurable logic, muting, or network connectivity, a dedicated safety relay module or safety PLC is the appropriate tool — the G7SA-3A1B is a contact-switching building block, not a logic device. Buyers who want the lowest-cost general-purpose relay and have no safety compliance requirement should also look elsewhere; the G7SA carries a price premium over standard relays precisely because of its EN 50205 Class A forcibly guided contact certification and associated approvals.

From a procurement standpoint, the G7SA-3A1B-DC24 variant is the most consistently stocked across North American distributor networks, making it a reliable choice for both initial builds and emergency replacements. Other coil voltages in the family may require planned orders with lead times that can affect build schedules if left unconfirmed. The single most important ordering discipline is verifying the full part number — including the coil voltage suffix — against your safety design and the sockets already installed. A specialist distributor can cross-check the exact variant against your application, confirm real-time stock across warehouse locations, and flag lead time exposure before it affects your timeline. View current pricing and availability for the Omron G7SA-3A1B at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the G7SA-3A1B

Model-specific community discussion about the Omron G7SA-3A1B is sparse across the major automation forums. Searches across Reddit communities including r/PLC and r/industrialautomation, PLCTalk, PLCS.net, and MrPLC yield very little feedback tied to this exact part number. That is not unusual for a specialist safety component — engineers who use it correctly do not post about it, and those who run into problems typically describe the symptom at the circuit level rather than naming the relay model. What that means practically is that buyers specifying this part for the first time are largely navigating on datasheet knowledge and direct consultation rather than community consensus. That makes getting the specification details right before ordering more important, not less.

The ordering mistakes that do surface in safety relay discussions at the family and category level are directly relevant to the G7SA-3A1B. The most reported error is coil voltage mismatch — ordering a relay with the wrong DC coil voltage because the part number suffix was truncated on a BOM or because a distributor substituted a different coil variant when the original was out of stock. A 24 VDC coil and a 48 VDC coil are physically identical in appearance; the relay will fail to energize, and if the installation is done quickly, the root cause is not immediately obvious. The second common mistake is contact configuration confusion — assuming that all G7SA relays share the same NO/NC split, when in fact the 3A1B, 3A3B, and 2A2B variants differ in ways that directly affect safety circuit architecture and safety assessment outcomes.

A third area of risk, raised in safety engineering discussions generally, is the treatment of forcibly guided contact relays as interchangeable with standard relays. The G7SA-3A1B carries EN 50205 Class A certification specifically because its contact mechanism is verified to prevent simultaneous closure of NO and NC contacts. Substituting a standard relay — even one with identical contact ratings — removes that mechanical guarantee and the documentation that supports it. Safety practitioners consistently flag this as a compliance exposure, particularly during machine re-certification audits. When community guidance is thin and the stakes involve safety compliance, direct consultation with a specialist distributor who knows the Omron G7SA product line is a practical risk-reduction step before finalizing any order.

Wiring and Installation Overview

The following points summarize key requirements for installing the Omron G7SA-3A1B. Full wiring procedures, terminal torque specifications, and circuit diagrams are available in the Omron G7SA datasheet — consult that documentation before installation.

  • The DC coil must be connected with correct polarity at the rated voltage (e.g., 24 VDC for the G7SA-3A1B-DC24); applying incorrect voltage will prevent energization or damage the coil.
  • The three NO contacts are used to switch power to load circuits (contactors, valves, brakes); the single NC contact must be wired into the safety controller monitoring input to enable feedback loop validation.
  • External fuses or circuit breakers sized per Omron's datasheet are mandatory on each switched circuit — the relay provides no integrated overcurrent protection.
  • For inductive loads such as contactor coils, arc suppression components appropriate to the load type should be applied across the load, not across the relay contacts, to protect contact life.
  • Verify correct seating in the P7SA socket or secure PCB mounting before energizing; confirm terminal wiring and wire gauge against the datasheet before first power-up.

Compatible Sockets and System Expansion

The Omron G7SA-3A1B supports two mounting methods, and the choice must be confirmed at the design stage. For DIN-rail panel builds, the P7SA series 4-pole sockets are the specified plug-in socket family. Selecting the correct P7SA model requires matching the socket to the relay's pole count and terminal pitch — consult the Omron G7SA accessories documentation to confirm the exact socket catalog number for your installation. For PCB-mounted applications, the relay mounts directly to the board without a socket, and terminal pitch compatibility must be verified against the PCB layout. The following compatible accessories are relevant to most G7SA-3A1B installations:

  • P7SA series 4-pole DIN-rail sockets — plug-in socket for panel mounting; confirm exact model against relay pin layout before ordering.
  • Arc suppression modules compatible with P7SA sockets — for inductive load protection on switched circuits.
  • DIN-rail mounting track and end clamps — standard 35 mm DIN rail compatible with P7SA sockets for organized panel builds.

Wrong-Part Prevention Checklist

Before placing an order for the Omron G7SA-3A1B, work through each item on this checklist. These are the exact verification steps that prevent the most common misorder and misapplication errors with this relay:

  1. Confirm required contact configuration and pole count (3 normally open + 1 normally closed, forcibly guided; 4 poles total).
  2. Verify coil voltage and DC type in the part number (for example, G7SA-3A1B-DC24 for 24 VDC coil).
  3. Check that the contact current and voltage ratings cover the actual load (AC / DC, resistive vs inductive).
  4. Ensure mounting style matches your design (PCB vs plug-in socket) and that you have the correct P7SA socket model where needed.
  5. Verify safety approvals and category requirements with your safety standard (EN 50205 Class A, and other regional approvals).
  6. Confirm physical dimensions and terminal pitch will fit the existing PCB or panel wiring layout.
  7. Check ambient temperature range and enclosure conditions (panel heating) against relay specifications.
  8. Make sure any external protection (fuses, circuit breakers) and arc-suppression components required by Omron are present in the circuit.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team to confirm the correct variant — we stock the Omron G7SA family and ship worldwide.

Frequently Asked Questions

Does the G7SA-3A1B contact configuration actually prevent a welded NO contact from going undetected?

Yes — this is the defining function of forcibly guided contacts. The mechanically linked design means that if any of the three NO contacts welds shut, the single NC contact is physically prevented from returning to its closed position. A safety controller monitoring the NC feedback input will detect that the contact has not returned and hold the machine in a safe state, preventing a false restart. This mechanism is what EN 50205 Class A certification verifies.

Which coil voltages are available for the G7SA-3A1B, and which is easiest to source?

Available DC coil voltages include 12, 18, 21, 24, 48, and 110 V, with the specific variant identified by the suffix in the part number (e.g., G7SA-3A1B-DC24 for 24 VDC). The 24 VDC variant is by far the most commonly stocked option across North American distributor networks. Other coil voltages may require planned orders with longer lead times — confirm availability before finalizing your BOM.

Can a standard general-purpose relay replace the G7SA-3A1B in a safety circuit?

No — not without compromising the safety function. A standard relay does not have mechanically linked (forcibly guided) contacts and therefore cannot provide the contact position monitoring guarantee required for EN 50205 Class A compliance. Substituting a standard relay removes the documentation trail needed to support the safety assessment and can invalidate the safety category or PL rating of the circuit. Always use a safety relay with the appropriate approvals in certified safety circuits.

Which P7SA socket do I need for the G7SA-3A1B on a DIN rail?

The G7SA-3A1B is compatible with P7SA series 4-pole sockets for DIN-rail plug-in mounting. The exact P7SA model number must be confirmed against the relay's pole count and terminal configuration using Omron's G7SA accessories documentation. Ordering a 6-pole socket for a 4-pole relay — or vice versa — is a common panel-build error. Confirm the specific P7SA catalog number before placing the socket order.

Can I swap a G7SA-3A1B for a G7SA-3A3B without changing wiring?

Not without modification. The G7SA-3A3B has 6 poles (3 NO + 3 NC) versus the 4-pole G7SA-3A1B (3 NO + 1 NC). The additional NC contacts mean a different socket pin layout and wiring configuration. A direct drop-in swap is not valid — the socket, wiring, and safety documentation would all need to be updated to reflect the 6-pole configuration.

Is the G7SA-3A1B approved for use in EN 50205 Class A safety circuits?

Yes. The G7SA family is certified for forcibly guided contacts compliant with EN 50205 Class A, with approvals including VDE and other regional marks. Buyers should confirm the current approval marks and any region-specific certifications against the latest Omron datasheet, as approval scope can be updated. The relay itself is a safety contact device — the overall safety category or PL of the circuit depends on the complete safety system architecture, not the relay alone.

How do I know when to replace a G7SA-3A1B in a high-cycle application?

Mechanical and electrical life values at specific loads for the G7SA-3A1B should be obtained from the current Omron datasheet, as these figures depend on switching frequency and load type. In high-cycle applications, proactive scheduled replacement based on cycle count is standard practice rather than waiting for failure. Visual inspection of sockets and terminals for discoloration, pitting, or heat damage at each maintenance interval is also recommended. Consult Omron's documentation and your site's safety maintenance plan to set appropriate replacement intervals.

Why Order the Omron G7SA-3A1B Through LeadTime.ca

  • LeadTime.ca stocks the Omron G7SA family and can confirm real-time availability of the G7SA-3A1B-DC24 and other coil voltage variants before you commit to a build schedule.
  • Global shipping — orders fulfilled worldwide, not limited to any single country or region.
  • Specialist sourcing support for less common coil voltage variants and G7SA accessories including P7SA sockets, reducing the risk of lead time surprises on complete BOM items.
  • Volume pricing available — contact for quantity breaks on larger panel builds or ongoing OEM orders.
  • Expert team available to cross-check your G7SA variant selection against your safety circuit design before the order is placed.

At-a-Glance Summary

  • Contact configuration: 3 NO + 1 NC, forcibly guided, 4 poles total — mechanically linked contacts per EN 50205 Class A.
  • Contact rating: 6 A at 250 VAC or 30 VDC resistive load.
  • Max switching voltage: 250 VAC / 125 VDC (typical family value — confirm in current datasheet).
  • Most common coil variant: G7SA-3A1B-DC24 (24 VDC), drawing approx. 15 mA at approx. 1.6 kΩ coil resistance, approx. 360 mW consumption.
  • Available DC coil voltages: 12, 18, 21, 24, 48, 110 V depending on variant ordered.
  • Operating temperature: -40 to +85 °C.
  • Mounting: PCB or DIN-rail plug-in via P7SA series 4-pole sockets.
  • Step up to G7SA-3A3B (6-pole, 3NO + 3NC) when more contacts are needed; step to G7SA-2A2B (4-pole, 2NO + 2NC) when NC contacts are prioritized.
  • Not a substitute for a safety relay module or safety PLC when integrated diagnostics or logic is required.
  • External fuses or circuit breakers are mandatory — no integrated overcurrent protection.
