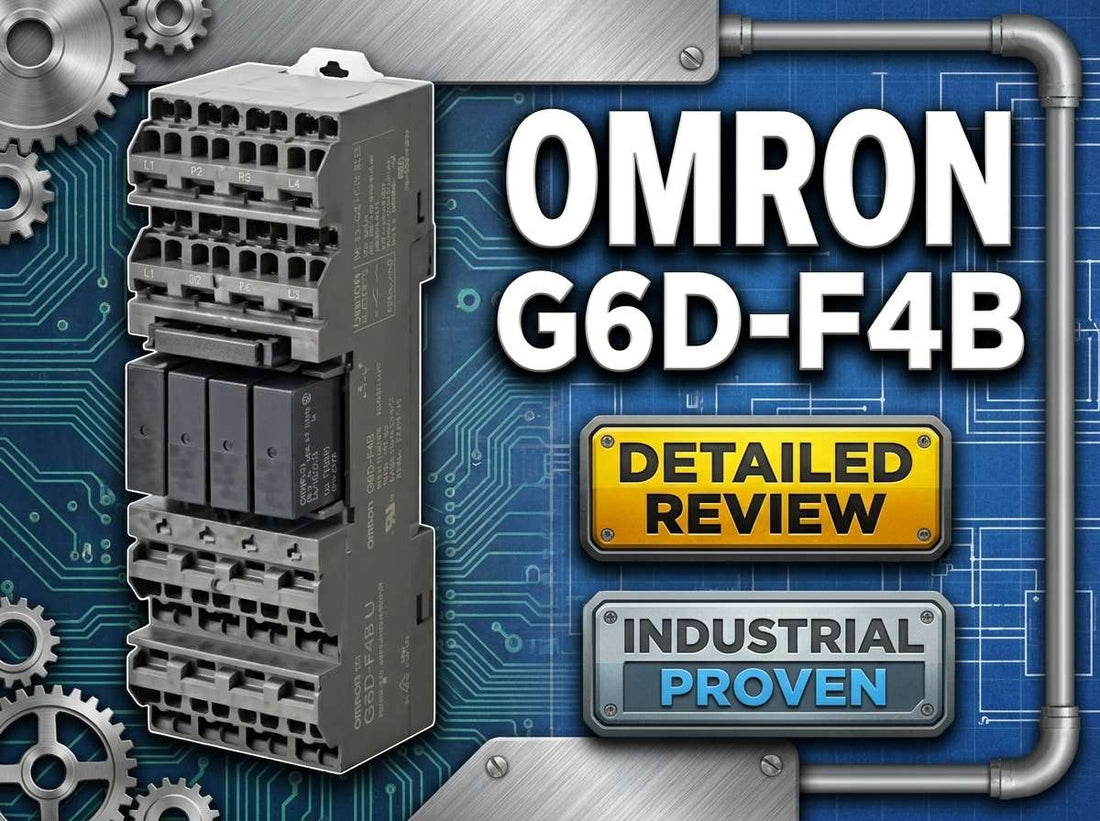

Omron G6D-F4B 4-point terminal relay block mounted on DIN rail in industrial control panel

Omron G6D-F4B Terminal Relay (4-point output) — Specs, Selection Guide & Where to Buy

When a controls engineer or panel builder searches for the Omron G6D-F4B terminal relay, they are typically at one of two points: confirming this is the right part before placing the order, or evaluating it against the G3DZ-F4B solid-state alternative and similar compact relay blocks. The G6D-F4B delivers four independent SPST-NO mechanical relay outputs in a single DIN rail or screw-mount terminal block, with built-in LED indicators and diode-based coil surge absorption as standard features — making it a practical choice for interfacing 24 VDC PLC transistor outputs to AC or DC field loads without adding four separate relay sockets to the panel.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron G6D-F4B — and Who Shouldn't

The G6D-F4B is the right choice for engineers and panel builders who meet the following criteria:

  • Your control system runs on 24 VDC or 12 VDC coil voltage and you need to match the ordering code suffix (DC24 or DC12) to your PLC output supply.
  • You need mechanical relay outputs — with true galvanic isolation per point — rather than solid-state switching, and your switching frequency is moderate rather than high-cycle.
  • Panel space is constrained and you need four relay points grouped in a single compact block rather than four individual plug-in relays and sockets.
  • Your loads fall within the contact ratings for a single point and within the derated combined rating when all four outputs are energized simultaneously.
  • Your project requires UL and CSA certified components for compliant industrial control panels.
  • You are interfacing PLC transistor outputs to AC contactors, solenoid valves, indicator lamps, or interlocks where relay isolation is preferred.

If your application requires high switching frequency, very high cycle counts on DC loads, or output voltages and interface arrangements outside the G6D-F4B variants, the solid-state G3DZ-F4B or a different relay family is the more appropriate choice — both are discussed in the comparison section below.

On this page:

What the Omron G6D-F4B Actually Does in a Control Panel

The G6D-F4B is a 4-point terminal relay block built around Omron's G6D miniature relay platform. Its fundamental role is electrical isolation: it sits between the low-voltage DC control side of a panel — typically PLC transistor outputs or a controller I/O card — and the higher-voltage field side where contactors, solenoids, lamps, and small motors live. Each of the four points is an independent SPST-NO circuit, so one channel energizing or faulting has no electrical effect on the other three.

What distinguishes the G6D-F4B from simply mounting four individual plug-in relays on a rail is the integration. LED status indicators and diode-based coil surge absorption are built into the block as standard, not added as accessories. This means a panel builder does not need to separately source suppression diodes for each coil circuit, and commissioning technicians get per-channel visual feedback from the moment power is applied. The result is faster panel build times and a smaller footprint — four relay points in approximately the space a single standard relay socket would occupy on a wider base.

The coil side accepts DC control signals (12 VDC or 24 VDC depending on the ordered variant), making it directly compatible with the transistor output sections of most modern PLCs at 24 VDC. Coil power consumption is approximately 200 mW per point, which is a relevant figure for engineers calculating total PLC output current budget when multiple outputs may be energized simultaneously.

Typical System Architecture for the G6D-F4B

The G6D-F4B sits in the signal chain between the PLC's transistor output card and the field devices, acting as the isolation boundary between control-voltage and load-voltage circuits.

  • PLC CPU or remote I/O module (transistor output card, 24 VDC sourcing or sinking) drives the G6D-F4B coil inputs directly.
  • The G6D-F4B terminal block — mounted on DIN rail or screw-fixed in the panel — receives the 24 VDC control signal, energizes the corresponding relay, and closes the SPST-NO contact for that point.
  • The contact-side terminals of each point connect to the field load circuit: AC or DC supply, fuse or breaker, and the load itself (contactor coil, solenoid valve, indicator lamp, or interlock circuit).
  • Surge protection external to the block — fuses, breakers, or arc suppression at inductive loads — is applied on the contact side according to load type and local electrical codes.
  • LED indicators on the G6D-F4B confirm coil actuation visually without requiring a meter, supporting fast commissioning and fault-finding at the panel door.

Where the G6D-F4B Gets Used: Industries and Applications

The most common deployment is PLC-to-field isolation in factory automation panels. Controls engineers use the G6D-F4B to bridge transistor PLC outputs — which cannot switch AC loads directly — to AC solenoids, small contactors, pilot lamps, and interlock circuits. Grouping four related outputs into one relay block (for example, a four-valve manifold or four motor starter coil signals) keeps the panel organized and the wiring compact.

OEM machine designers value the G6D-F4B when building modular control panels where enclosure space is fixed and every millimeter of rail width matters. Replacing four individual relay-and-socket assemblies with a single G6D-F4B block reduces component count, eliminates per-relay wiring between sockets and rail, and standardizes the I/O interface across machine variants.

Maintenance teams and panel retrofitters use the G6D-F4B to add isolated output capacity to an existing panel without redesigning the I/O rack. When a machine needs four new outputs — zone control signals, additional interlocks, or alarm outputs — a single relay block dropped onto available rail space and wired to a spare PLC output group is a clean, low-disruption solution.

Process skids and packaged systems also use relay blocks of this type to protect PLC I/O from inductive load stress, creating a buffer between the controller and field wiring that absorbs the electrical punishment of repeated solenoid switching.

Application Typical Deployment
PLC transistor output to AC load interface G6D-F4B coil inputs driven from 24 VDC PLC output card; contacts switch AC solenoids or contactors
Valve manifold control Four solenoid valve outputs grouped in one relay block for a single manifold assembly
OEM machine modular panel Compact DIN rail mounting replaces four individual relay sockets; reduces panel width
Panel retrofit / output expansion Single relay block added to rail for additional isolated outputs without I/O rack redesign
Interlock and indicator circuits Four independent output points for pilot lamps, alarm outputs, and safety interlocks
PLC I/O protection on process skids Relay block as buffer between controller and inductive field devices to absorb switching stress

G6D-F4B Specifications Engineers Need Before Ordering

Parameter Value Notes
Product type 4-point terminal relay block Mechanical relay outputs
Output points / contact form 4 × SPST-NO Independent circuits per point
Coil voltage options 12 VDC, 24 VDC Specify correct suffix: DC12 or DC24
Coil power consumption Approx. 200 mW per point Use to size PLC output current budget
Built-in coil protection Diode for surge absorption DC polarity must be observed
Status indication LED per point Visual coil actuation confirmation
Combined contact rating (all 4 ON) Derated vs single-point rating Use datasheet combined rating as design limit
Mounting DIN rail or screw mounting Confirm panel layout and rail type
Approvals UL, CSA Verify current file numbers from datasheet
Terminal type Screw terminals Confirm wire size compatibility with panel conductors

Full technical specifications are available on the product page at LeadTime.ca.

G6D-F4B vs G3DZ-F4B vs G6D-F4PU: Which Variant Do You Actually Need?

Model Output Type Points Coil Voltage Options Key Differentiator Best Use Case
G6D-F4B DC24 Mechanical relay (SPST-NO) 4 24 VDC True galvanic isolation, LED, DIN rail or screw mount Standard PLC-to-AC-load interface, moderate switching duty
G6D-F4B DC12 Mechanical relay (SPST-NO) 4 12 VDC Same block, 12 VDC coil for lower-voltage control systems 12 VDC control panels, automotive or battery-backed systems
G3DZ-F4B Solid-state (MOSFET) 4 Per datasheet No mechanical contact wear, no contact bounce, leakage current present High switching frequency, DC loads, high-cycle applications
G6D-F4PU / G3DZ-F4PU Relay / Solid-state 4 Per datasheet Different form factor or mounting arrangement vs B suffix When panel layout requires PU-style mounting or terminal arrangement

The most common misorder in this family is selecting G3DZ-F4B (solid-state MOSFET) when the application requires physical isolation through a mechanical contact — or the reverse. If your load is AC, or if leakage current through a solid-state output would cause issues (lamps staying faintly lit, solenoids not fully releasing), the G6D-F4B mechanical relay version is the correct choice. If you are switching DC loads at high frequency, contact wear becomes the limiting factor and the G3DZ-F4B extends service life significantly. Confirm your variant before placing the order — check current stock and coil options at LeadTime.ca.

Expert Verdict: Is the G6D-F4B the Right Relay Block for Your Project?

The Omron G6D-F4B delivers exactly what a controls engineer needs when the goal is a compact, reliable, four-point relay interface for a 24 VDC control system: true mechanical isolation per output, per-channel LED status, built-in diode surge protection on the coil side, and UL/CSA certifications that satisfy industrial control panel requirements without additional approval work. It excels in the common scenario where a PLC transistor output card needs to drive AC field devices — contactors, solenoids, indicators — and the engineer wants a clean, integrated solution rather than four separate relays and sockets consuming extra rail space. OEM machine designers, panel builders standardizing on 24 VDC systems, and maintenance teams adding output capacity to existing panels will find this relay block fits naturally into their workflow.

The G6D-F4B has genuine limits that honest selection demands you acknowledge. Contact ratings are appropriate for general-purpose loads, but using all four outputs simultaneously at or near the single-point maximum is a sizing mistake the datasheet explicitly warns against — the combined rating for all four channels ON is lower than four times the single-point figure, and inductive loads require further derating. For applications with high switching frequency, high cycle counts, or predominantly DC loads where contact bounce and wear are real concerns, the G3DZ-F4B solid-state variant is the more appropriate part. Similarly, if your control system does not run on 12 VDC or 24 VDC, or if the terminal arrangement of the B-suffix variant does not suit your panel layout, the G6D-F4PU or G3DZ-F4PU variants are worth evaluating before committing.

From a procurement standpoint, the G6D-F4B DC24 is the most commonly stocked coil variant at North American distributors, and availability is generally better than the DC12 version. Non-stock variants and lower-volume orders can see lead times extending into weeks through standard Omron distribution channels, which matters when a machine build is on a tight timeline. Ordering through a specialist automation distributor reduces the risk of the subtle misorders this product category is prone to — confusing the DC12 and DC24 suffix, or inadvertently ordering the G3DZ solid-state version when the mechanical relay is required. Review current stock status and pricing at LeadTime.ca before committing to a build schedule.

For volume pricing, to confirm lead time on a specific coil variant, or to discuss a safe alternative when your preferred configuration is out of stock, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the G6D-F4B

Community discussion on the G6D-F4B specifically is limited compared to broader Omron relay families, but the recurring themes from panel builders and controls engineers working with the G6D terminal relay platform are consistent and worth surfacing here. The positive picture is straightforward: the compact format, integrated LEDs, and coil protection that eliminate extra components are genuinely valued by experienced panel builders. Long service life in low to moderate load applications is a frequently cited strength when the relay is sized correctly for its duty.

The complaints that do appear are almost uniformly selection and sizing errors rather than product failures. Engineers working with this family in forums and distributor Q&A sections flag two issues repeatedly. First, the tight terminal spacing and labeling on multi-point relay blocks can make wiring and maintenance more demanding in densely populated panels — a real consideration when planning panel layout for future serviceability. Second, the combined contact derating rule when all four outputs are energized simultaneously catches engineers who read only the single-channel rating and assume it applies across all four points in parallel. It does not, and the datasheet is explicit on this. Designing to the combined rating from the outset avoids shortened relay life or nuisance failures under load.

The third recurring mistake is one that specialist distributors see regularly: the coil voltage suffix is overlooked on the purchase order. A DC12 arriving on a 24 VDC control panel, or a DC24 on a 12 VDC system, produces unreliable operation at best and coil damage at worst. When community data on a specific model is sparse, the clearest signal for buyers is to work with a distributor who knows the ordering nuances of this family — LeadTime.ca's team can cross-check coil variant, confirm mechanical vs solid-state designation, and flag stock gaps before the wrong part ships to a job site.

Wiring and Installation Overview for the G6D-F4B

  • Mount the relay block on DIN rail or secure via screw mounting in the recommended orientation per the Omron datasheet; some derating of must-operate voltage applies if the block is mounted in a non-standard orientation.
  • Connect DC coil supply and control signal wires to the coil-side terminals for each of the four channels, observing polarity — the built-in surge absorption diode is polarity-dependent and incorrect connection will prevent proper protection.
  • Connect load supply and load wires to the contact-side terminals, keeping voltage and current within the rated limits and within the derated combined rating when all four outputs will be energized simultaneously.
  • Tighten all screw terminals to the torque values specified in the Omron datasheet, and verify that conductor sizes are within the terminal's rated range before energizing.
  • Apply required external protection — fuses, circuit breakers, or arc suppression at inductive loads — on the contact side based on load type and applicable local electrical codes; the relay block itself does not provide overcurrent protection for the load circuit.

Full wiring diagrams, terminal numbering, and torque specifications are provided in the Omron G6D-F4B/G3DZ-F4B datasheet and installation documentation. Engineers should reference manufacturer documentation for complete procedures.

Wrong-Part Prevention Checklist

Before placing your order for the Omron G6D-F4B, verify each of the following points. This checklist is provided verbatim from the product selection brief and addresses the most common misorders in this relay family:

  1. Confirm required coil voltage and order the correct code (e.g., G6D-F4B DC24 vs DC12).
  2. Verify relay output type (mechanical relay G6D vs MOSFET solid-state G3DZ) matches load and switching duty.
  3. Check contact rating against the highest load and total load when all four outputs are energized simultaneously.
  4. Confirm mounting method (DIN rail vs screw) and block dimensions fit the panel layout and rail type.
  5. Ensure screw terminal size and wiring capacity match conductor size and type used in the panel.
  6. Check approvals (UL/CSA, CE) and operating temperature range against project and customer specifications.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before ordering — getting the coil voltage, output type, and contact rating right before the part ships is far less costly than a misorder on a live build.

Frequently Asked Questions

Can I drive G6D-F4B coils directly from PLC transistor outputs, or do I need an intermediate driver stage?

In most cases, 24 VDC PLC transistor outputs can drive G6D-F4B coils directly, provided the coil power consumption — approximately 200 mW per point — is within the output current budget of the PLC output card. When multiple outputs are energized simultaneously, calculate the total coil current draw across all active points and verify it does not exceed the PLC output card's rated load capacity. If it does, an intermediate driver or relay is required between the PLC and the G6D-F4B coil inputs.

Does the contact rating change when all four relay outputs are energized at the same time?

Yes. Omron's datasheet specifies a combined rating for all four outputs ON simultaneously, and this combined rating is lower than four times the single-point rating. Always use the combined rating as your design limit when your application will energize multiple outputs at once — sizing to the single-point rating while running all four channels is a common cause of premature contact wear or failure.

Is the G6D-F4B suitable for switching inductive loads like solenoid valves?

The G6D-F4B can switch inductive loads, but external arc suppression — RC snubbers or flyback diodes on DC loads — is recommended to protect the contacts and extend electrical life. Inductive loads produce voltage spikes at contact opening that accelerate contact erosion if unmanaged. The datasheet provides guidance on inductive load ratings and recommended protection; follow those values rather than applying resistive load ratings to inductive applications.

What is the key functional difference between the G6D-F4B and the G3DZ-F4B, and how do I choose?

The G6D-F4B uses mechanical relay contacts (SPST-NO) providing true galvanic isolation, zero leakage current when open, and contact bounce on switching. The G3DZ-F4B uses MOSFET solid-state outputs with no moving parts, no contact bounce, near-unlimited cycle life on DC loads, but with small leakage current when the output is open and no physical isolation. Choose G6D-F4B when you need true isolation, are switching AC loads, or have low to moderate switching frequency. Choose G3DZ-F4B when high switching frequency, DC load compatibility, or contact wear life are the primary concerns.

What do the LED indicators on the G6D-F4B tell me during commissioning and troubleshooting?

Each LED corresponds to one relay point and indicates that the coil for that point is energized. If the LED is on but the load is not switching, the fault is on the contact or load circuit — check contact wiring, load fuse, or load circuit continuity. If the LED is off when the PLC output is commanded on, the fault is on the coil circuit — check control supply voltage, PLC output status, wiring polarity, and coil-side fusing. The LEDs do not indicate contact condition directly, but they cleanly divide coil-side and contact-side fault diagnosis.

Why Order the Omron G6D-F4B Through LeadTime.ca

  • LeadTime.ca stocks and sources Omron terminal relay products including coil voltage variants — DC24 and DC12 — and can confirm live availability before you commit to a build schedule.
  • Specialist knowledge of the G6D / G3DZ terminal relay family means the team can cross-check your coil voltage, output type, and mounting requirement to catch misorders before they ship.
  • Global shipping: LeadTime.ca ships to customers worldwide, not limited to Canada or North America.
  • Volume pricing and project-quantity quotes available — contact the team directly for multi-unit orders or recurring panel build requirements.
  • When the specific variant you need is on extended lead time, the LeadTime.ca team can recommend stocked alternatives and help you evaluate functional equivalents without compromising your panel specification.

At-a-Glance Summary

  • The Omron G6D-F4B is a 4-point terminal relay block with 4 × SPST-NO independent mechanical relay outputs in a single DIN rail or screw-mount assembly.
  • Coil voltage options are 12 VDC and 24 VDC — the coil voltage suffix (DC12 or DC24) must be specified in the ordering code; the base model number alone is incomplete.
  • Coil power consumption is approximately 200 mW per point; total draw across all four active points must be within the PLC output card's current budget.
  • Built-in features include LED status indicators per point and diode-based coil surge absorption — both standard, not optional accessories.
  • Contact ratings derate when all four outputs are energized simultaneously; the combined rating from the datasheet is the correct design limit, not four times the single-point figure.
  • The G6D-F4B carries UL and CSA certifications, making it suitable for compliant industrial control panels.
  • The mechanical relay G6D-F4B and the MOSFET solid-state G3DZ-F4B share the same family and form factor but are not interchangeable — output type must match load and switching duty requirements.
  • G6D-F4B DC24 is the most commonly stocked North American variant; DC12 and non-standard configurations may require additional lead time.
  • External overcurrent protection and inductive load suppression are required on the contact side — the relay block does not provide these internally.
