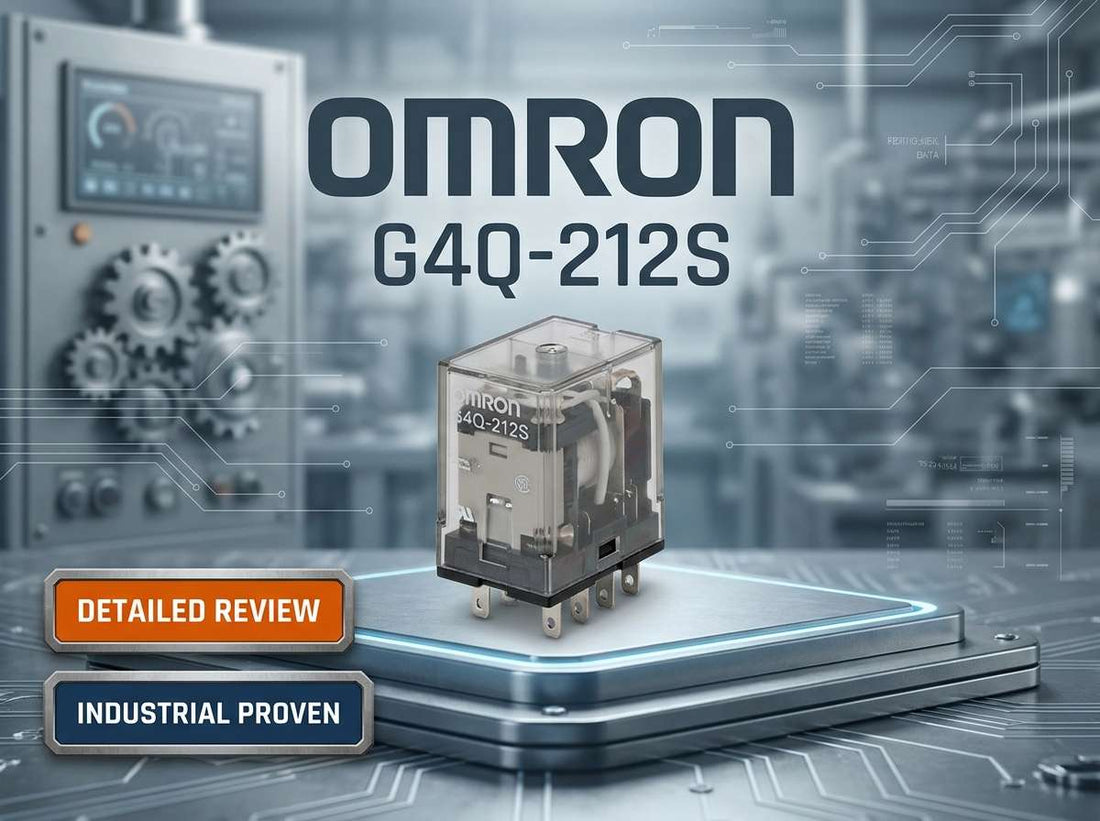

Omron G4Q-212S plug-in DPDT ratchet relay 8-pin for industrial control panel latching applications

Omron G4Q-212S Ratchet Relay (G4Q Series): Specs, Wiring Overview, Price and Alternatives

Panel builders and controls engineers searching for the Omron G4Q-212S are typically at a well-defined decision point: they need a plug-in mechanical ratchet relay that holds its contact state without continuous coil power, fits a standard 8-pin socket, and carries DPDT contacts rated for up to approximately 5 A at 250 VAC resistive loads. The G4Q-212S delivers exactly that function in a compact, well-documented package from Omron's G4Q series. The critical variable before ordering is the coil voltage suffix — AC120, DC24, and other variants are distinct orderable items, not interchangeable.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Omron G4Q-212S — and Who Shouldn't

The Omron G4Q-212S is the right relay for panel builders, OEM designers, and maintenance teams who need a hard-wired memory or toggle function in a standard industrial control panel without relying on PLC logic.

  • Your control circuit operates at one of the common coil voltages available in the G4Q series (such as AC120, AC240, DC12, or DC24) and you can specify the full model including the coil voltage suffix.
  • Your load falls within the DPDT contact rating of approximately 5 A at up to 250 VAC resistive — motor inrush and highly inductive loads require additional interface devices.
  • Your panel already uses or will include a compatible 8-pin Omron socket such as the PL08 or 8PFA1 — this relay will not seat in 11-pin bases.
  • The application genuinely requires mechanical latching behavior that retains state through power loss, not momentary switching.
  • Ambient temperature inside the enclosure falls within approximately -10 °C to +55 °C and panel ventilation is adequate.

If your application demands safety-certified functionality, high-current motor switching, or programmable diagnostics, the G4Q-212S is not the right tool — consider certified safety relays or PLC-based latching logic instead. Specific G4Q family variants with different coil voltages are the correct alternative when only the control supply voltage differs.

On this page:

What the Omron G4Q-212S Actually Does in a Control System

The Omron G4Q-212S is a plug-in ratchet relay — the term "ratchet" is Omron's designation for what the broader industry calls a mechanical latching relay. Each time the coil receives a momentary pulse, the internal ratchet mechanism advances the relay to the next contact state and holds it there mechanically. When the pulse ends, the contacts stay put. No continuous coil current is required to maintain the latched position, which means no heat buildup from the coil and no loss of state when the control supply drops out.

This behavior makes the G4Q-212S fundamentally different from a standard non-latching relay. A conventional relay drops out the moment coil power is removed. The G4Q-212S does not. That distinction is the entire reason to choose it — and the reason it must never be substituted into a circuit that expects momentary action without accounting for the latching behavior.

The relay's DPDT contact configuration (2 Form C) provides two independent changeover contacts in a single 8-pin plug-in body. The result is a compact, socket-mounted component that delivers a hard-wired memory function in control panels where a PLC either does not exist or where the design philosophy calls for electromechanical reliability independent of programmable logic.

Typical System Architecture for the G4Q-212S

The G4Q-212S sits between the control logic layer and the load circuit, acting as a mechanically retentive switching point that preserves its last commanded state regardless of power conditions.

  • Control supply (AC or DC at rated coil voltage) feeds the relay coil through a momentary pushbutton, PLC output, or pulse-generating circuit.
  • The G4Q-212S seated in its 8-pin socket (PL08 or 8PFA1) receives each coil pulse and advances its ratchet mechanism to the next contact state.
  • DPDT contacts carry the switched load — typically a contactor coil, indicator lamp, or low-current process device at up to approximately 5 A at 250 VAC resistive.
  • External overcurrent protection (fuse or MCB) is wired upstream of the load circuit; the relay itself does not provide integrated circuit protection.
  • For heavier or inductive loads, an interface contactor or additional relay sits between the G4Q-212S contacts and the final load device.

Typical Applications and Deployment Scenarios

The most common deployment is the machine start/stop latch, where a momentary pushbutton press sets the relay and a second press resets it — giving operators an alternate-action control without requiring the PLC to maintain a memory bit. This is particularly valued in retrofit panels where adding PLC logic is impractical or where the machine must retain its run/stop state through a momentary power interruption.

Mode selection circuits — manual versus automatic, local versus remote — benefit from the G4Q-212S because the selected mode is held mechanically even if the control panel loses power briefly. When power returns, the relay is already in the correct state, and the machine resumes from a known condition without operator re-intervention.

Interlock circuits that must stay engaged without burning coil energy are another natural fit. In conveyor and material-handling panels, a latched interlock relay can hold a permissive condition closed across an entire shift without the coil drawing continuous current — reducing panel heat load in densely packed enclosures.

Packaging machinery, small process systems, and building-services panels for lighting and HVAC switching also appear regularly as application contexts for the G4Q series, wherever a simple toggle function between two output states eliminates the need for more complex programmable control.

Application Typical Deployment
Machine start/stop latch Momentary pushbutton pairs toggle run/stop state; relay holds state through power loss
Manual/auto mode selection Single relay latches the selected operating mode in the panel; mode retained after power cycle
Conveyor interlock Latched permissive contact held without continuous coil current across the production shift
Lighting toggle control Alternate-action switching of lighting circuits from momentary control inputs
Local/remote interlock DPDT contacts switch both the command source and an indicator simultaneously in one relay body
Simple memory function in small systems Hard-wired state retention in panels without a PLC, replacing software latching logic

Specifications That Matter at the Purchase Stage

Parameter Value Notes
Contact configuration DPDT (2 Form C) Two independent changeover contacts
Contact rating (resistive) Approx. 5 A at 250 VAC Verify exact value by load type from Omron datasheet
Maximum switching voltage Up to 250 VAC / 250 VDC Check datasheet for DC load derating
Operating function Mechanical ratchet (latching) Holds state without continuous coil energization
Coil voltage options AC and DC variants (e.g., AC120, AC240, DC12, DC24) Must be specified as suffix when ordering
Coil frequency (AC types) 50/60 Hz Confirm tolerance range from datasheet
Mounting style Plug-in, 8-pin base Fits Omron PL08 and 8PFA1 sockets only — not 11-pin
Operating temperature Approx. -10 °C to +55 °C Requires adequate panel ventilation at upper limit
Required external protection Fuse or MCB sized to load No integrated overcurrent protection in relay body
Product series Omron G4Q Ratchet Relay Series Family of plug-in latching relays with multiple coil options

Full technical specifications are available on the product page at LeadTime.ca.

G4Q-212S Variants and Coil Options: Which One Do You Need?

The base model designation G4Q-212S identifies the relay's contact configuration and mechanical type within the G4Q series. It does not by itself constitute a complete, orderable part number. The coil voltage must be appended as a suffix — for example, G4Q-212S AC120 for a 120 VAC coil or G4Q-212S DC24 for a 24 VDC coil. Ordering the base number without a coil voltage suffix is one of the most common purchasing errors for this product family.

Documented coil voltage variants within the G4Q series include options across common AC voltages (such as 24 VAC, 120 VAC, and 240 VAC) and DC voltages (such as 12 VDC and 24 VDC). AC coil types are rated for 50/60 Hz operation. The correct variant is determined entirely by the control supply voltage available in the panel — not by preference or availability.

Variant Coil Type Typical Availability When to Choose
G4Q-212S AC120 120 VAC, 50/60 Hz Commonly stocked at major distributors North American panels with 120 VAC control supplies
G4Q-212S AC240 240 VAC, 50/60 Hz Available; check current stock European-spec or 240 VAC control circuits
G4Q-212S DC24 24 VDC Commonly stocked PLC-driven panels with 24 VDC control supply
G4Q-212S DC12 12 VDC Available; verify lead time 12 VDC control systems and mobile equipment panels
G4Q-212S AC24 24 VAC, 50/60 Hz Available; verify lead time HVAC and building-services panels using 24 VAC control

If the required coil voltage is not listed above, confirm availability directly with LeadTime.ca before finalizing your BOM — check current stock and lead times on the product page.

Expert Verdict: Is the Omron G4Q-212S Right for Your Project?

The Omron G4Q-212S earns its place in a control panel by doing one thing extremely well: providing a mechanically retained contact state using a pulse input, without any continuous coil current and without depending on PLC memory or firmware. For panel builders working on machine start/stop circuits, mode selection interlocks, and similar hard-wired toggle functions, this relay is a mature, well-documented solution with a plug-in 8-pin form factor that makes field replacement straightforward. The contact rating of approximately 5 A at 250 VAC resistive covers the majority of control-voltage-level loads — indicator lamps, contactor coils, small solenoids — and the operating temperature range of approximately -10 °C to +55 °C fits standard indoor industrial enclosures. If your project description matches that profile, the G4Q-212S is a defensible, low-risk specification.

Where this relay reaches its limits is equally clear. It provides no safety-rated function — it must not be used where a certified safety relay is required by the machine safety standard applicable to the installation. Contact ratings for inductive and motor loads are lower than the resistive rating, and high-current or high-inrush loads require an intermediate contactor. If your system already has a PLC with retentive memory functionality, software latching may be more cost-effective and easier to modify. And if you need more than two poles, the DPDT configuration is a hard constraint — no wiring trick changes that. In those cases, look at other relay families or PLC-based solutions rather than trying to force the G4Q-212S into a role it was not rated for.

From a procurement standpoint, the most important step before any order is confirmed is ensuring the full model number — including the coil voltage suffix — appears correctly on the purchase order and matches the BOM. Common coil variants such as AC120 and DC24 are typically stocked through authorized distributors, but less common coil voltages may carry multi-week factory lead times that can affect project schedules. A specialist automation distributor can verify coil variant compatibility, confirm real-time stock status, advise on compatible sockets, and provide accurate lead-time expectations before you commit — which is a material risk reduction compared with placing an order through a generic catalog channel. View current pricing and availability for the Omron G4Q-212S at LeadTime.ca.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the G4Q-212S

Because model-specific community discussion for the Omron G4Q-212S is sparse across the major automation forums — including PLCTalk, PLCS.net, MrPLC, and the Reddit automation communities — the most reliable guidance comes not from peer anecdotes but from the patterns that experienced distributors and panel engineers have observed across the G4Q family and the broader category of mechanical latching relays.

The recurring theme in general latching relay discussions is not reliability — mechanical latching relays like the G4Q series are rarely cited as chronic failure items. Instead, the repeated warnings are about selection and documentation. Forum contributors consistently note that when a mechanical latching relay behaves unexpectedly in service, the cause is almost always one of three things: the wrong coil voltage was ordered, the electrician wiring or commissioning the panel did not know the relay was a ratchet type and misdiagnosed a correctly functioning unit as "stuck," or the schematic failed to note the latching behavior clearly enough for maintenance staff to understand it. None of these are relay defects — they are specifier and documentation failures that a careful ordering process prevents.

The absence of widespread complaint threads for the G4Q-212S is itself informative: it is a product that tends to behave predictably when correctly applied and correctly installed. When buyers encounter problems, the resolution almost always traces back to one of the checklist items below. If you are specifying this relay for the first time, or replacing an older unit in an unfamiliar panel, working through the wrong-part checklist with a specialist distributor before the order is placed is the single highest-value step you can take. LeadTime.ca's team is available to confirm coil variant compatibility, validate socket selection, and provide lead-time realities for your specific coil voltage — exactly the kind of pre-order verification that prevents costly reorders.

Wiring and Installation Overview

The following points summarize key requirements for installing and wiring the Omron G4Q-212S. Engineers needing full wiring diagrams and torque specifications should refer to the Omron G4Q series datasheet and the relevant socket installation instructions.

  • Mount the 8-pin socket (PL08 or 8PFA1) securely on the panel surface or DIN rail before inserting the relay — verify orientation against the socket pinout marking to avoid reversed coil or contact connections.
  • Terminate coil and contact conductors to the socket terminals according to the G4Q-212S pin numbering; coil terminals and contact terminals are distinct and must not be transposed.
  • Connect external overcurrent protection (fuse or MCB) appropriately rated for the load circuit — the G4Q-212S does not include integrated circuit protection and relies entirely on external devices.
  • Verify that the control supply voltage at the coil terminals matches the rated coil voltage of the specific variant ordered (e.g., 120 VAC for the AC120 variant) before energizing.
  • After installation, apply a brief coil pulse and confirm the relay latches to the expected state; apply a second pulse and confirm it toggles — if the relay does not advance, check coil voltage level and pulse duration against datasheet minimum values.

Compatible Sockets and System Accessories

The Omron G4Q-212S requires an external 8-pin socket — the relay body itself has no integral mounting provision. The following Omron sockets are documented as compatible:

  • Omron PL08 — 8-pin surface-mount socket for the G4Q series; panel-mount installation with screw terminals.
  • Omron 8PFA1 — 8-pin socket compatible with the G4Q relay; alternative mounting configuration for panel or DIN-rail deployment via socket accessories.

Specifying the socket alongside the relay on the BOM is strongly recommended — receiving the relay without a compatible socket on hand is a common cause of installation delays. Confirm socket availability when you order the relay.

Wrong-Part Prevention Checklist

Before finalizing your order for the Omron G4Q-212S, work through each item on this checklist. These are the verified points at which incorrect selections most frequently occur:

  1. Confirm the coil voltage and type (AC or DC) and add it to the base model (e.g., G4Q-212S AC120 or G4Q-212S DC24) before ordering.
  2. Verify that DPDT (2 Form C) contacts with the specified current rating are sufficient for the load (motor inrush, lighting, etc.).
  3. Check that an appropriate 8-pin Omron socket (such as PL08 or 8PFA1) is specified or already installed — this relay will not fit 11-pin bases.
  4. Ensure the ratchet (latching) behavior is actually desired; do not substitute this for a standard non-latching relay in momentary control circuits.
  5. Confirm panel space, mounting orientation, and clearances match the relay and socket dimensions.
  6. Verify local standards and approvals (where required) and ensure that the relay is not being used in applications that demand dedicated safety relays or certified safety devices.

If any item on this checklist raises a question you cannot resolve from the datasheet alone, contact the LeadTime.ca team before placing the order — confirming the right variant now is significantly less costly than a reorder after the build has started.

Frequently Asked Questions

What coil voltage variants are available for the Omron G4Q-212S, and how do I specify the correct one?

The G4Q series is available with multiple AC and DC coil voltages, including commonly documented options such as 12 VDC, 24 VDC, 24 VAC, 120 VAC, and 240 VAC. The coil voltage must be appended as a suffix to the base model — for example, G4Q-212S AC120 or G4Q-212S DC24. The correct variant is determined by the nominal control supply voltage in your panel. Submitting an order with only the base model number G4Q-212S, without a coil voltage suffix, is one of the most common ordering errors for this product.

Is the Omron G4Q-212S suitable for safety circuits or safety-rated applications?

No. The G4Q-212S is a standard industrial ratchet relay and does not carry safety relay certification. It must not be used as the primary switching device in applications where a certified safety function is required by the applicable machinery safety standard. Where safety-rated functionality is needed, a dedicated certified safety relay must be specified instead. The G4Q-212S can coexist in a panel alongside safety devices, but it cannot substitute for them.

What socket must I use with the Omron G4Q-212S, and will it fit a universal octal socket?

Omron documents the PL08 and 8PFA1 as compatible 8-pin sockets for the G4Q series. The relay requires an 8-pin base — it will not fit 11-pin octal-style bases used by other relay families. While the G4Q-212S uses an 8-pin footprint, compatibility with non-Omron universal sockets should be verified against the exact socket pinout and terminal design before assuming interchangeability; using an unverified socket risks poor contact engagement and unreliable connections.

How does a ratchet relay like the G4Q-212S differ from a standard non-latching relay in a control circuit?

A standard non-latching relay energizes its contacts while the coil is powered and drops out immediately when coil power is removed. The G4Q-212S advances its contact state mechanically each time a momentary coil pulse is applied and holds that state with no further coil current. The result is that the relay retains its last commanded position through a power loss or a control signal interruption. This behavior is the design intent — but it means the relay must never be substituted into a circuit that expects standard momentary behavior without explicitly accounting for the latching function.

Can I replace a different brand's plug-in latching relay with the Omron G4Q-212S if the pin count matches?

A matching pin count is a necessary but not sufficient condition for a direct replacement. Before treating the G4Q-212S as a drop-in substitute for another brand's latching relay, you must verify that the coil voltage and type match, that the contact rating and configuration are equivalent or better for the intended load, that the ratchet mechanism behavior (number of pulses per state change, reset method) is the same as the relay being replaced, and that the socket dimensions and terminal layout are truly compatible. When in doubt, consult the original relay's datasheet and compare it line by line against the G4Q-212S datasheet before committing to the swap.

What are typical lead times for the Omron G4Q-212S, and are common coil variants stocked in North America?

Common coil variants such as AC120 and DC24 are typically held in stock by authorized distributors in North America and can often ship within normal warehouse processing times. Less common coil voltages — including some AC and DC variants outside the most frequently specified values — may require factory ordering with multi-week lead times. Because lead-time status changes with demand and production schedules, confirming real-time availability with LeadTime.ca before finalizing a project timeline is the only reliable approach.

Why Order the Omron G4Q-212S Through LeadTime.ca

  • Global shipping — orders ship worldwide, not limited to any single country or region.
  • Coil variant verification — the team can confirm that the full model number including coil voltage suffix matches your control supply before the order ships.
  • Socket sourcing — PL08 and 8PFA1 sockets can be confirmed and sourced alongside the relay in a single transaction.
  • Real-time lead-time visibility — current stock status and factory lead times for all coil variants are confirmed before you commit to a build schedule.
  • Volume and OEM pricing — contact for current pricing on larger quantities or repeat orders.

At-a-Glance Summary

  • The Omron G4Q-212S is a DPDT (2 Form C) plug-in ratchet relay from the G4Q series — mechanically latching, no continuous coil current required to hold state.
  • Contact rating: approximately 5 A at up to 250 VAC resistive; maximum switching voltage up to 250 VAC / 250 VDC.
  • Coil voltage must be specified as a suffix (e.g., AC120, DC24) — the base model number alone is not a complete orderable part number.
  • Documented compatible sockets: Omron PL08 and 8PFA1 (8-pin); incompatible with 11-pin bases.
  • Operating temperature range: approximately -10 °C to +55 °C — requires adequate panel ventilation at upper limits.
  • Not a safety relay — external overcurrent protection (fuse or MCB) is required; certified safety devices must be used where safety functions are mandated.
  • Common coil variants (AC120, DC24) typically stocked by authorized distributors; less common variants may carry multi-week factory lead times.
  • Primary application fit: hard-wired memory functions, machine start/stop latches, mode selection, and interlocks in standard industrial control panels.
