Omron E2B-M12KS04-M1-B1 — M12 PNP Sensor Buying Guide

By Abdullah Zahid
15 min read

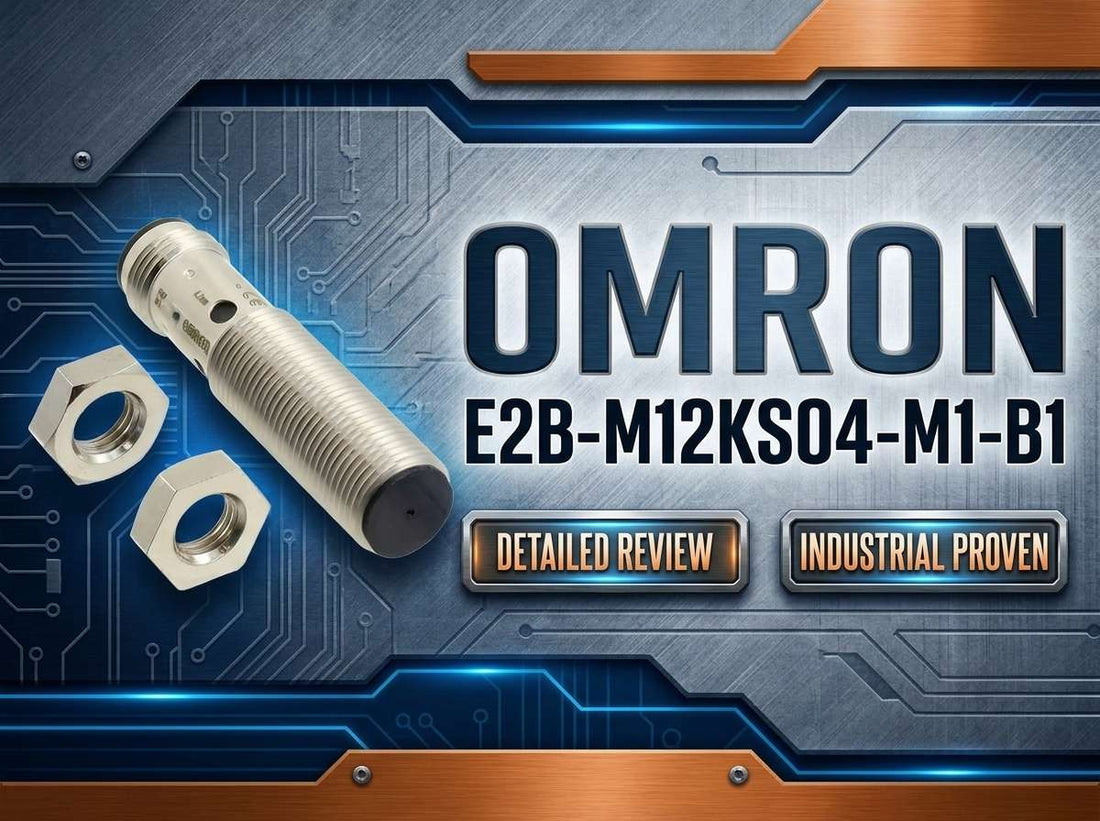

Omron E2B-M12KS04-M1-B1 M12 shielded inductive proximity sensor with PNP NO output for factory automation

Omron E2B-M12KS04-M1-B1 Proximity Sensor, Inductive, Nickel-Brass, Short Body, M12, Shielded, 4 mm, DC, 3-Wire, PNP NO, M12 Connector — Specs, Review and Selection Guide

Controls engineers specifying a replacement or new-build M12 inductive sensor for a standard factory environment face one core decision: does the catalog number on the BOM actually match the PLC input type, mounting geometry, and environmental conditions on the machine? The Omron E2B-M12KS04-M1-B1 is a shielded, flush-mount, M12-threaded inductive proximity sensor with a 4 mm nominal sensing distance on standard steel, a 10–30 VDC supply range, and a 3-wire PNP normally open output delivered through an M12 connector — a configuration that fits a wide range of OEM machinery and conveyor applications directly off the shelf. The E2B family from Omron spans 372 models across M8, M12, M18, and M30 body diameters, positioning this part as a value-tier option within a well-supported Tier 1 sensor ecosystem.

If you have already confirmed this is the right part for your application, check current pricing and availability for the Omron E2B-M12KS04-M1-B1 at LeadTime.ca — we ship worldwide.

Who Should Buy the Omron E2B-M12KS04-M1-B1 — and Who Shouldn't

This sensor is the right choice for OEM machine builders and plant engineers who need a standard M12 flush inductive sensor from a major brand, running in a general-purpose factory environment with dust, light oil, or occasional splash exposure. Confirm all of the following before ordering:

  • Your PLC or controller digital input card uses a PNP (sourcing) input and expects a normally open signal — NPN or NC wiring will not work with this model.
  • Your mounting bracket or guard accepts a shielded (flush) M12 sensor — this is not the correct choice where a non-flush, unshielded sensor is required by the target geometry.
  • A 4 mm nominal sensing distance on standard steel targets is sufficient for your application — long-range sensing, recessed targets, or non-ferrous materials will reduce effective range.
  • Your installation environment is within IP67 general-purpose limits — nickel-plated brass housing in typical industrial conditions with dust and light liquid exposure.
  • Your panel wiring uses M12 cordsets and you have compatible mating connectors available — this is a connector-style sensor, not a fixed-cable version.
  • A 10–30 VDC supply is available at the field I/O or panel terminal.

If your application requires NPN output, NC logic, stainless steel housing, extended sensing distance, aggressive washdown protection, or a fixed cable, this model is not the correct variant — review the E2B family alternatives or consider a higher-specification Omron sensor family.

On this page:

What the Omron E2B-M12KS04-M1-B1 Actually Does in a Control System

The Omron E2B-M12KS04-M1-B1 is a non-contact metal detection device — it generates an oscillating electromagnetic field through its sensing face and detects the damping effect when a ferrous or non-ferrous metal target enters that field. The output transistor switches from off to on (PNP normally open logic) when the target is within range, sending a sourcing signal to the connected PLC digital input. There is no physical contact, no moving parts, and no wear mechanism from normal switching cycles.

The shielded (flush) construction means the sensing coil is surrounded by a ferrite ring that concentrates the field forward, allowing the sensor to be mounted flush with or below the surface of a metal bracket without the bracket material interfering with the sensing field. This is the correct installation type for the vast majority of M12 sensor mounts in OEM machinery. The 4 mm nominal sensing distance is measured against a standard square steel target as defined in the E2B datasheet — actual operating distance with an adequate safety margin is typically set closer than the nominal figure to ensure reliable switching across temperature variation and target size tolerance.

The nickel-plated brass body is a general-purpose industrial housing. It is not a washdown-specific or corrosion-resistant choice, but it is fully appropriate for dusty, oily, or lightly splashed environments common in packaging, material handling, and light assembly. The IP67 rating confirms resistance to dust ingress and temporary immersion under defined conditions — it does not qualify the sensor for sustained submersion, high-pressure spray, or chemically aggressive cleaning agents.

Typical System Architecture: Where This Sensor Fits in the Signal Chain

The E2B-M12KS04-M1-B1 sits at the field level of a machine control architecture, converting physical metal position into a discrete digital signal that a PLC or controller can act on. A typical component chain looks like this:

  • PLC or safety controller with PNP-compatible digital input card — receives the sourcing 3-wire signal from the sensor output (black wire)
  • 24 VDC field power supply or I/O panel terminal — provides the 10–30 VDC supply to the sensor brown wire
  • M12 cordset — connects the sensor M12 connector to the panel junction box or direct to a distributed I/O module
  • Omron E2B-M12KS04-M1-B1 sensor — mounted in the machine bracket, reading metal target presence or position
  • Metal target (flag, cam, bracket, or part) — moves relative to the sensor face as the machine cycles

Industries and Applications: Where the E2B-M12KS04-M1-B1 Gets Specified

Conveyor and material handling systems are among the most common deployments for this sensor. Part counting, reject gate triggering, and pallet or tray detection using metal flags are all standard applications where a 4 mm flush M12 PNP NO sensor is a direct fit. The M12 connector version speeds up line maintenance because a failed sensor can be unplugged and replaced without opening the panel or disturbing field wiring.

Packaging machinery — including form-fill-seal lines, cartoners, and labeling equipment — frequently uses M12 inductive sensors for end-of-travel detection on pneumatic cylinders with metal rod extensions or proximity tabs. The short body format of this model fits the tight mounting guards and sensor brackets common in compact packaging machines.

Assembly station and indexing table applications use this sensor type to confirm that a metal fixture or carrier is correctly positioned before a robot or press cycle begins. A 4 mm sensing range with flush mounting fits the majority of metal carrier designs without modification to the tooling.

OEM machine builders in general factory automation frequently specify M12 PNP NO inductive sensors as a standard component across their machine line, sourcing them in volume and stocking spares. The E2B-M12KS04-M1-B1 positions well in that context as a value-tier Omron part that does not require a premium budget but carries Tier 1 documentation and approval support.

Application Typical Deployment
Conveyor part counting and sorting Flush-mounted in metal side rail or bracket, reading metal product or carrier tabs at line speed
Pneumatic cylinder end-of-travel detection Mounted in sensor bracket adjacent to cylinder body, detecting metal piston rod extension flag
Indexing table position confirmation Reading metal cam or target on rotating table; sensor flush-mounted in fixed bracket
Packaging machine part-present detection Detecting metal fixture or tool holder in position before initiating press, seal, or label cycle
Retrofit replacement of legacy M12 PNP sensors Drop-in replacement using existing M12 mounting hole and cordset — verify PNP NO logic match

Key Specifications for Purchase Decisions

Parameter Value Notes
Sensor Type Inductive proximity sensor Metal targets only; ferrous and non-ferrous with correction factor
Body Size / Thread M12 x 1, short body Cylindrical threaded; check bracket clearance for short body length
Mounting Type Shielded (flush) Designed for flush mounting in metal panels and brackets
Sensing Distance (nominal) 4 mm on standard steel Actual operating gap should include safety margin; non-ferrous metals reduce range
Supply Voltage 10–30 VDC Standard 24 VDC panel power is within range
Output Configuration 3-wire PNP, normally open Sourcing output — confirm PLC input card accepts PNP signals
Connection Type M12 connector Mating M12 cordset required — not included
Housing Material Nickel-plated brass General-purpose industrial environments; not corrosion-resistant grade
Degree of Protection IP67 Dust-tight and temporary immersion; not rated for sustained submersion or high-pressure washdown
Status Indication Built-in LED Indicates power and output switching state

Full technical specifications are available on the product page at LeadTime.ca.

E2B-M12KS04-M1-B1 vs Related Variants: Which Model Do You Actually Need?

The E2B family's 372 models cover four body sizes and a wide matrix of sensing distances, output types, body lengths, and connection styles. The table below addresses the most common selection decision points at the M12 level.

Variant Dimension E2B-M12KS04-M1-B1 (This Model) Alternative to Consider When to Switch
Output logic PNP, normally open E2B M12 NPN or NC variant PLC input card requires NPN (sinking) or NC logic for the safety or control function
Mounting type Shielded (flush) E2B M12 non-shielded (non-flush) variant Target geometry or mounting depth requires extended field, non-flush installation
Connection style M12 connector E2B M12 fixed cable version Cable version preferred in panel-routed or retrofit applications where connectors are not practical
Housing material and IP Nickel-plated brass, IP67 Omron E2E or E2A stainless / higher-IP variant Washdown, corrosive cleaning agents, or extreme temperatures exceed E2B general-purpose ratings
Body diameter M12 E2B M8, M18, or M30 variants Mounting bracket or sensing distance requirement dictates a different body size

If your application requires a non-flush mounting type or a longer sensing distance than 4 mm on steel, confirm the correct E2B variant before ordering — check current availability and variant options at LeadTime.ca.

Expert Verdict: Is This Sensor Worth Specifying?

The Omron E2B-M12KS04-M1-B1 delivers exactly what the majority of general-purpose factory automation applications actually need: a well-documented 3-wire PNP NO output on a shielded M12 body with a 4 mm sensing range, IP67 protection, and an M12 connector that makes field replacement straightforward. For OEM machine builders running standard environments with dust, light oil, or occasional splash — and for plant engineers maintaining machines with M12 inductive sensors already installed — this is a reliable, cost-effective choice from a Tier 1 brand with full datasheet, approval, and ecosystem support. The M12 connector version specifically reduces the time and risk involved in replacing a failed sensor because wiring stays in the panel; only the sensor body is swapped.

Where this sensor is genuinely the wrong tool is in aggressive washdown environments, applications involving caustic or acidic cleaning chemistry, sustained high temperatures outside the E2B family range, or installations that physically require a stainless steel housing for compliance or durability reasons. In those cases, the correct move is to specify an Omron E2E or E2A variant with a stainless body and higher environmental rating rather than fitting the E2B-M12KS04-M1-B1 into a role it was not built for. Similarly, if your sensing distance requirement exceeds 4 mm on steel, or if your target is non-ferrous and the correction factor reduces the usable range below your safety margin, a different model in the E2B non-flush range or a longer-range variant is the right answer.

From a procurement standpoint, the E2B-M12KS04-M1-B1 occupies the value tier of the Omron inductive lineup, which means it is generally accessible through major distributors in North America. When stock is constrained, lead times can run into weeks depending on batch size and regional warehouse levels — a specialist distributor with visibility across multiple channels can identify in-stock alternatives or confirm the fastest sourcing path before you commit to a build schedule. Check current pricing and availability at LeadTime.ca, where we ship worldwide and can assist with variant selection if there is any question about the right catalog code for your application.

For volume pricing, lead time confirmation before a production build, or help selecting the correct E2B variant for your BOM, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Omron E2B-M12KS04-M1-B1

Model-specific community feedback for the E2B-M12KS04-M1-B1 is sparse across the major automation forums — Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and Omron's own support communities contain general inductive sensor discussions but do not surface recurring praise, failure patterns, or ordering warnings tied specifically to this catalog number. That absence of chatter is itself informative: this is a commodity-tier M12 sensor that most engineers specify, install, and move on from without much drama when the application is properly matched. The majority of online inductive sensor discussions that do exist focus on family-level selection questions rather than model-specific performance data.

What those general forum discussions do highlight consistently is where engineers get into trouble with sensors in this category. The two dominant misapplication patterns are PNP versus NPN confusion and flush versus non-flush mounting errors — both of which result in either a non-functioning input or a sensor that detects the mounting bracket instead of the target. These are not failures of the sensor; they are ordering and installation errors that a quick spec check against your PLC input card and mechanical drawing would prevent. The E2B family's broad catalog — 372 models — exists precisely because these parameters vary, and the correct model number encodes every one of them.

When community data is thin and the catalog is deep, this is exactly the scenario where a specialist distributor adds value beyond transaction processing. LeadTime.ca's team can cross-reference your PLC I/O type, mounting constraints, and environmental conditions against the E2B model matrix and confirm you are ordering the right catalog code — not just the one that appeared in a search result. That conversation costs nothing and can prevent a two-week delay caused by receiving a PNP NO sensor when your legacy machine runs NPN NC logic.

Wiring and Installation Overview

The following points summarize what to verify before and during installation. For complete wiring diagrams and torque specifications, refer to the current Omron E2B datasheet available from Omron's official documentation portal.

  • The sensor uses standard 3-wire PNP color coding: brown to positive supply voltage, blue to 0 V (negative), black to the PLC PNP digital input terminal — confirm these assignments against the datasheet before applying power.
  • Install the sensor in the mounting hole using the supplied nuts; thread engagement and tightening torque must follow the datasheet recommendation to avoid damaging the nickel-plated brass body or sensor face.
  • Route the M12 cordset away from sharp edges, pinch points, and heat sources; secure at regular intervals with appropriate strain relief to prevent connector-end fatigue and intermittent faults.
  • For flush mounting in metal brackets, verify that the surrounding metal does not encroach beyond the flush-mount installation rules specified in the Omron datasheet — excess metal in the sensing zone beyond the shielded area can still affect performance if installation dimensions are not followed.
  • Apply LOTO (lockout/tagout) procedures before installation; the sensor requires an external overcurrent and short-circuit protection device as required by the applicable electrical code for your jurisdiction.

Wrong-Part Prevention: Eight Checks Before You Confirm the Order

Run through every item on this checklist against your drawings and PLC documentation before placing an order for the Omron E2B-M12KS04-M1-B1:

  1. Confirm control system input type: ensure you need a 3-wire PNP NO sensor (not NPN, not NC).
  2. Confirm mounting type: this model is shielded (flush). Do not use where a non-flush (unshielded) sensor is required for the target geometry.
  3. Verify thread and body size: M12 x 1 short-body form factor; check space in brackets and guards.
  4. Check required sensing distance and target size: 4 mm nominal on standard steel – verify your application does not need longer range or special metal correction.
  5. Confirm connector style: M12 connector version – ensure you have compatible M12 cordsets and routing.
  6. Check environmental conditions: temperature, coolant, washdown, vibration; if exposure is harsher than IP67 / nickel-plated brass can handle, consider a higher-spec family.
  7. Match supply voltage: ensure 10–30 VDC power is available at the panel or field I/O.
  8. Validate regional approvals and standards required by your end user; confirm E2B series approvals are acceptable.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can validate your selection against the E2B family matrix and confirm the correct catalog code for your application.

Frequently Asked Questions

How do I confirm whether my PLC needs a PNP or NPN inductive sensor before ordering?

Check the input card specification in your PLC hardware manual for the input common wiring type. PNP (sourcing) inputs connect the common to negative (0 V) and expect the sensor to source current on the signal wire — this is the type required for the E2B-M12KS04-M1-B1. NPN (sinking) inputs connect the common to positive voltage and expect the sensor to sink current. Ordering the wrong type results in either no switching or a permanently active input, and the sensor itself will not be damaged, but it will not function correctly in the control system.

What is the practical difference between a shielded (flush) and non-shielded (non-flush) M12 inductive sensor, and does it affect sensing distance?

A shielded sensor uses a ferrite ring around the coil to focus the electromagnetic field forward, allowing flush installation in metal without the bracket interfering with the field. A non-shielded sensor has a wider, less focused field and must be installed with a clear zone of non-metallic material around the sensing face. The E2B-M12KS04-M1-B1 is shielded, which limits its sensing range compared to a non-flush variant of the same body size — 4 mm nominal is correct for shielded M12. If you need more range on the same M12 thread, you need a non-shielded E2B variant and a bracket designed for it.

Can the E2B-M12KS04-M1-B1 be used in coolant or light washdown areas?

The IP67 rating means the sensor can handle temporary immersion and is dust-tight, making it suitable for light splash and coolant mist in standard machine tool or general factory environments. It is not rated for high-pressure washdown or sustained submersion, and the nickel-plated brass housing is not corrosion-resistant for caustic or acidic cleaning agents. For heavier washdown or chemical exposure, an Omron E2E or E2A stainless variant with a higher IP or NEMA rating is the appropriate choice.

Is the E2B-M12KS04-M1-B1 a direct drop-in replacement for a legacy M12 PNP NO inductive sensor from another brand?

Mechanically, any M12 x 1 threaded sensor body should fit an M12 mounting hole, and the M12 connector wiring standard (brown positive, blue negative, black signal) is consistent across most major brands. However, you must verify that the legacy sensor was also a 3-wire PNP NO type, that the sensing distance requirement is 4 mm or less on steel, and that the original sensor was flush-mounted. Differences in body length between brands can also affect target gap in tight mounting arrangements — measure the installed length of the original sensor before assuming it is a direct swap.

What does the built-in LED indicate, and how do I use it to troubleshoot a non-switching sensor?

The LED on the E2B-M12KS04-M1-B1 indicates both power status and output state. If the LED is completely off, verify that 10–30 VDC supply is present on the brown wire and that the blue wire is connected to 0 V — no power means no indication and no output. If the LED is on but not switching when the target approaches, check that the target material is ferrous or appropriately conductive, that the target size meets the minimum specified in the datasheet, and that the actual gap is within the 4 mm nominal sensing distance with adequate margin. Persistent non-switching in a correctly wired and positioned sensor can indicate internal damage from overvoltage, reverse polarity, or mechanical impact.

Why Order from LeadTime.ca

  • Global shipping on industrial automation parts including the full Omron E2B sensor family — no geographic restrictions on orders.
  • Specialist team available to cross-reference your PLC I/O type and mounting drawings against the E2B model matrix before you confirm an order.
  • Visibility across multiple supply channels to identify in-stock alternatives when a specific catalog number is constrained or on extended lead time.
  • Volume pricing and OEM blanket order support for machine builders specifying sensors in quantity across a product line.
  • View the Omron E2B-M12KS04-M1-B1 product page at LeadTime.ca
  • Contact LeadTime.ca for a quote or variant selection assistance

At-a-Glance Summary

  • Omron E2B-M12KS04-M1-B1 is a shielded, flush-mount, M12-threaded inductive proximity sensor with 4 mm nominal sensing distance on standard steel.
  • Output is 3-wire PNP normally open — only compatible with PNP (sourcing) digital input cards; NPN or NC applications require a different catalog number.
  • Supply voltage range is 10–30 VDC; standard 24 VDC field power is within specification.
  • Housing is nickel-plated brass with IP67 protection — suitable for dust, light oil, and splash; not rated for high-pressure washdown or corrosive cleaning agents.
  • M12 connector version requires a compatible M12 mating cordset — not a fixed-cable sensor.
  • Part of the Omron E2B family, which includes 372 models across M8, M12, M18, and M30 body diameters, covering flush, non-flush, PNP, NPN, NO, NC, cable, and connector configurations.
  • Correct for OEM machinery, conveyor lines, assembly stations, and general factory automation in standard environments; step up to E2E or E2A families for harsher conditions.
  • Built-in LED provides visible power and output state indication for fast commissioning and field troubleshooting.
