Omron D4SL-N2NFA-D — Guard Lock Safety Switch Buyer Review

By Abdullah Zahid
14 min read

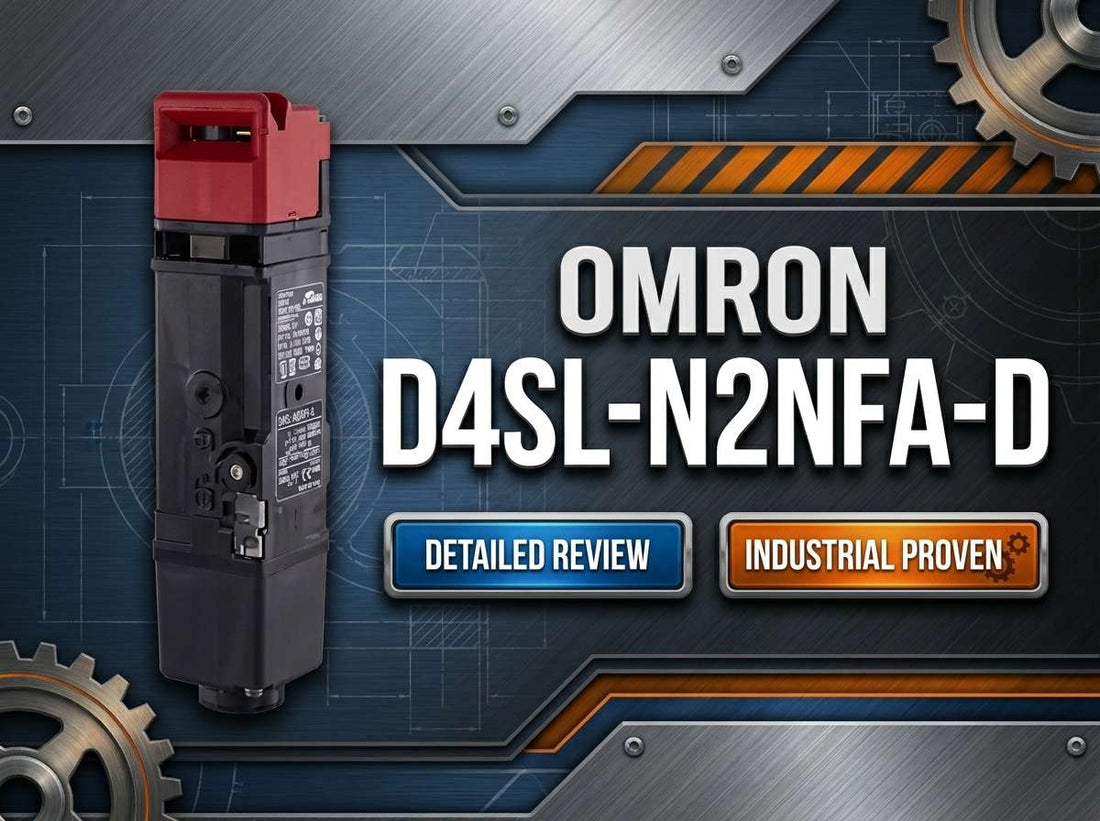

Omron D4SL-N2NFA-D guard lock safety door switch with G1/2 conduit and orange LED indicator for machine guarding

Omron D4SL-N2NFA-D Guard Lock Safety Door Switch, G1/2 Conduit, 2NC/1NO + 2NC/1NO, Resin, Mechanical Lock / 24 VDC Solenoid Release, LED Indicator

Controls engineers specifying guard locking for a robot cell, press enclosure, or conveyor access gate are typically searching for one thing: a guard-lock safety door switch that delivers the correct lock principle, the right contact configuration, and a 24 VDC solenoid that fits the existing control architecture — all in a single, sourceable unit. The Omron D4SL-N2NFA-D is that unit for a large segment of standard industrial machinery. It is a key-operated guard lock switch with a mechanical lock and 24 VDC solenoid release, providing 2NC/1NO + 2NC/1NO contacts (six total), a G1/2 conduit entry, a plastic body with resin head, an orange LED indicator, and a rated holding force of 1300 N across an ambient operating range of -10 to +55 °C.

If you have already confirmed this is the correct variant for your application, check current pricing and availability for the Omron D4SL-N2NFA-D at LeadTime.ca — we ship worldwide.

Who Should Buy the Omron D4SL-N2NFA-D — and Who Should Not

This switch is the right choice when all of the following are true for your project:

  • Your safety function requires mechanical lock with 24 VDC solenoid release (power-to-release), not power-to-lock.
  • Your control system operates at 24 VDC and can supply the solenoid and LED indicator at that voltage.
  • Your enclosure or conduit infrastructure uses G1/2 conduit thread, matching standard cable glands.
  • Your safety relay or safety PLC design requires 2NC/1NO + 2NC/1NO (6 contacts) to cover both safety and door/lock monitoring channels.
  • The installation environment is compatible with a plastic housing and resin head — protected from heavy impact, chemical wash-down, and direct water ingress.
  • You are specifying or replacing within an Omron D4SL-N family installation where actuator interchangeability and spare-parts standardization matter.

If your risk assessment calls for power-to-lock operation, a different solenoid voltage, metal housing, or a non-contact RFID coded switch for hygiene or high-misalignment environments, a different D4SL-N variant or an alternative technology is the correct path. Specific alternatives are covered in the variant comparison section below.

On this page:

Where the D4SL-N2NFA-D Fits in a Machine Safety System

The D4SL-N2NFA-D sits at the physical boundary between the hazardous zone and the operator — mounted to the fixed frame of a machine enclosure, gate, or access door, with the matching D4SL-N actuator key mounted on the movable guard. Its role in the signal chain is to hold the door mechanically closed until the safety system commands release, and simultaneously to report both door position status and lock status back to the safety relay or safety PLC.

  • Safety relay or safety PLC — processes safety function commands and monitors input channel states.
  • D4SL-N2NFA-D safety contacts (2NC/1NO) — wired to dedicated safety input channels on the safety relay, confirming that the door is closed and the guard lock is engaged before the machine can start or continue running.
  • D4SL-N2NFA-D monitoring contacts (2NC/1NO) — wired to diagnostic inputs on the safety PLC or standard PLC I/O, providing separate confirmation of door position and lock state for fault detection and HMI feedback.
  • 24 VDC solenoid — energized by the safety relay or controller output to release the mechanical lock and permit door opening when the hazardous motion has ceased.
  • Orange LED indicator — locally confirms power and lock status at the switch body, aiding maintenance and operator feedback without requiring an additional indicator lamp.

The distinction between the two contact groups is functionally important. The first 2NC/1NO set is used for the safety interlocking channel — confirming door and lock status for the safety function. The second 2NC/1NO set provides independent monitoring, enabling the safety controller to detect discrepancies between door position and lock state, which is a requirement in higher-category safety architectures. This six-contact arrangement in a single device is one of the primary reasons engineers in safety PLC applications select the D4SL-N2NFA-D over simpler two-contact interlock switches.

Typical Applications and Deployment Scenarios

The D4SL-N2NFA-D is well matched to standard industrial machinery where the guard must remain physically locked until it is safe to enter. In robot cells and automated assembly lines, sliding or hinged access doors require both interlocking and guard locking because the hazardous motion — robot arm movement, tooling cycles — takes time to stop after an e-stop command. The 1300 N holding force and 24 VDC solenoid release mean the door stays locked during deceleration and only releases on a deliberate command from the safety system.

On presses and CNC machining centers, the D4SL-N2NFA-D is commonly installed on large hinged doors where the combination of guard-lock and monitoring contacts is required to satisfy the machine's safety function. The G1/2 conduit entry matches the conduit infrastructure common in machine enclosures in North America and internationally.

In material handling and conveyor systems, the switch is used at transfer point access gates where operators need occasional entry for clearing jams or performing maintenance. The 2NC/1NO + 2NC/1NO contact configuration supports systems where the safety PLC must distinguish between door-open and lock-disengaged states as separate fault conditions.

For packaging machinery and general industrial applications operating in dry or lightly contaminated environments within the -10 to +55 °C ambient range, the plastic housing and resin head are appropriate choices. Installations subject to regular wash-down or heavy chemical exposure require a different housing specification.

Application Typical Deployment
Robot cell access doors Guard lock on hinged or sliding door; lock released only after robot motion confirmed stopped
CNC machining center enclosures Door interlocking with safety PLC; monitoring contacts feed fault diagnostics
Conveyor transfer point gates Guard locking at maintenance access point; 24 VDC release tied to zone stop confirmation
Press safety guarding Six contacts supporting redundant safety channel and independent lock-status monitoring
Multi-door safety systems Multiple D4SL-N2NFA-D units in series or parallel monitored by safety relay for compound guard status
Legacy machine retrofit Replacement of older guard-lock switches where 24 VDC control and G1/2 conduit are already present

Key Specifications, Purchase-Decision Data, and Variant Comparison

Specification D4SL-N2NFA-D
Product type Guard lock safety-door switch, key-operated
Lock principle Mechanical lock, 24 VDC solenoid release (power-to-release)
Contact configuration 2NC/1NO + 2NC/1NO (6 contacts total)
Conduit size G1/2
Housing / head material Plastic body, resin head
Holding force 1300 N
Ambient operating temperature -10 to +55 °C
Solenoid supply voltage 24 VDC
LED indicator Orange, 24 VDC
Product family Omron D4SL-N guard lock safety-door switches

Full technical specifications are available on the product page at LeadTime.ca.

The D4SL-N ordering code encodes the lock principle, contact configuration, conduit size, housing material, and solenoid voltage in a systematic way. The table below shows where the D4SL-N2NFA-D sits relative to the most common selection variables engineers encounter when cross-checking variants.

Selection Variable D4SL-N2NFA-D (This Model) When to Choose a Different Variant
Lock principle Mechanical lock, 24 VDC solenoid release (power-to-release) Risk assessment requires power-to-lock — select a D4SL-N power-to-lock variant
Solenoid voltage 24 VDC Control system operates at a different voltage — select matching D4SL-N voltage variant
Contact configuration 2NC/1NO + 2NC/1NO (6 contacts) Fewer or more contacts needed — select D4SL-N variant with matching contact code
Conduit size G1/2 Installation uses a different conduit standard — select matching conduit size variant
Housing material Plastic body, resin head Harsh impact, wash-down, or hygiene environment — select metal-body D4SL-N variant or alternative technology
Detection principle Key-operated mechanical High misalignment, hygiene, or coded-actuator requirement — consider non-contact RFID safety switch

If your application falls outside the D4SL-N2NFA-D column in any row above, use the D4SL-N ordering code to identify the correct variant before purchasing. Check current stock and availability at LeadTime.ca — if your variant requires confirmation, our team can help decode the ordering code and verify the correct part.

Expert Verdict: Is the D4SL-N2NFA-D the Right Switch for Your Project?

The Omron D4SL-N2NFA-D is a strong, well-proven choice for guard locking on standard industrial machinery running on 24 VDC control systems. Its defining advantage is the combination of six contacts — 2NC/1NO for safety interlocking and 2NC/1NO for independent door and lock monitoring — in a single compact device, paired with an orange LED indicator that provides local status feedback without an additional component. The 1300 N holding force is appropriate for typical hinged and sliding machine doors, and the -10 to +55 °C operating range covers the majority of factory floor environments. Engineers and OEMs standardizing on the Omron D4SL-N family benefit from a wide actuator selection, consistent mounting dimensions across variants, and a well-documented safety platform familiar to controls teams worldwide.

Where the D4SL-N2NFA-D is not the right answer: if your risk assessment concludes that power-to-lock is required — meaning the door must remain locked when power is lost rather than releasing — this model's power-to-release principle is a disqualifying mismatch. Select the corresponding D4SL-N power-to-lock variant instead. Similarly, if the installation environment involves regular wash-down, heavy chemical exposure, or repeated physical impact, the plastic body and resin head of the D4SL-N2NFA-D are not the appropriate choice; a metal-housing D4SL-N variant or an alternative technology should be evaluated. For applications where door misalignment is significant or hygiene coding of the actuator is required, a non-contact RFID-based safety switch is the more appropriate technology category altogether.

From a procurement standpoint, popular D4SL-N variants are generally available through specialist automation distributors, but niche codes — including those with specific contact configurations or conduit sizes — may carry factory-order lead times of several weeks. Ordering without confirming stock status against your project schedule is the most common source of preventable delay. Specifying the matching D4SL-N actuator at the same time as the switch is equally important: the actuator is sold separately, and forgetting it or ordering the wrong style adds another ordering cycle to your timeline. For current stock position, lead-time confirmation, and actuator availability in the same shipment, view the D4SL-N2NFA-D product page at LeadTime.ca — we source and ship automation components worldwide.

For volume pricing, project-quantity quotes, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the D4SL-N2NFA-D

Model-specific community discussion on the D4SL-N2NFA-D is limited across forums including Reddit r/PLC, PLCTalk, PLCS.net, and MrPLC. Most practical feedback exists at the broader D4SL-N family level. Where direct discussion is sparse, the more useful resource is the pattern of ordering mistakes and installation errors that experienced integrators consistently flag — and those patterns are directly relevant to this model.

The single most repeated error across D4SL-N community threads is selecting the wrong variant from the ordering code. The D4SL-N part number encodes the lock principle, contact configuration, conduit size, housing material, and solenoid voltage in a compact string that is easy to misread under time pressure. Engineers report ordering a power-to-lock variant when their risk assessment assumed power-to-release, or receiving a unit with the wrong contact count because adjacent part numbers in the catalog differ by a single character. The prevention is straightforward but must be deliberate: decode every segment of the ordering code against your safety design before placing the order, and have the responsible engineer sign off on the final part number.

The second recurring issue is the actuator. The D4SL-N actuator key is sold separately, and it is regularly omitted from initial orders. Arriving on-site to install a guard lock switch without the matching actuator key is a common and avoidable cause of installation delays. There are also multiple actuator styles for different door types and opening directions — ordering the wrong actuator style creates the same problem as forgetting it entirely. Specify the correct D4SL-N actuator part number at the same time as the switch, and confirm mechanical compatibility with your guard design before the order is placed. Community feedback also consistently flags mechanical misalignment — door sag on large or heavy guards, flexible mounting, or imprecise actuator positioning — as the primary cause of nuisance trips, intermittent lock failures, and accelerated wear on otherwise reliable D4SL-N installations. Rigid mounting on the fixed frame, careful actuator positioning on the movable guard, and verification of smooth insertion and full lock engagement under real operating conditions are not optional steps.

Wiring and Installation Overview for the D4SL-N2NFA-D

The following overview covers the key requirements and verification steps for a successful D4SL-N2NFA-D installation. Full wiring diagrams, terminal designations, and step-by-step procedures are available in Omron's official product documentation for the D4SL-N series.

  • Mount the switch body rigidly to the fixed machine frame using Omron's specified mounting dimensions; flexible or inadequate support is the leading cause of misalignment faults.
  • Mount the matching D4SL-N actuator key to the movable guard so that it inserts cleanly and achieves full lock engagement when the door closes — verify smooth operation through the full door travel range before securing fasteners.
  • Connect the 2NC/1NO safety contacts to the dedicated safety input channels on your safety relay or safety PLC, following Omron's terminal designations; connect the 2NC/1NO monitoring contacts to diagnostic inputs or standard PLC I/O as required by your safety architecture.
  • Supply 24 VDC to the solenoid and LED circuits, confirming correct polarity and voltage quality at the device terminals — the solenoid release and orange LED indicator both require 24 VDC.
  • Install G1/2 conduit fittings and cable glands with adequate strain relief; route cables away from heat sources, sharp edges, and moving parts, and verify that wiring does not create mechanical stress on the switch body.

Wrong-Part Prevention Checklist Before Ordering the D4SL-N2NFA-D

Run through every item on this checklist against your safety design and wiring scheme before submitting a purchase order. One overlooked item is enough to cause a return, a reorder, and a project delay.

  1. Confirm the solenoid principle: this model is mechanical lock with 24 VDC solenoid release (power-to-release). Do not use if your risk assessment calls for power-to-lock.
  2. Verify voltage: ensure your control system provides 24 VDC suitable for the solenoid and LED.
  3. Confirm conduit: G1/2 conduit threads match your cable glands and wiring hardware.
  4. Check contact configuration: 2NC/1NO + 2NC/1NO (6 contacts total) is sufficient for your safety and monitoring channels.
  5. Ensure the matching Omron D4SL-N actuator (key) is specified and ordered; it is typically sold separately.
  6. Verify mechanical dimensions, mounting pattern, and door-opening direction against your guard design.
  7. Confirm environmental limits (temperature, enclosure, contamination) are compatible with the installation.
  8. Check that your safety relay or safety controller supports the number and type of safety channels provided.

If any item on this checklist raises a question, contact LeadTime.ca before ordering — our team can help confirm the correct variant, check actuator compatibility, and verify current stock and lead time.

Frequently Asked Questions

Does the Omron D4SL-N2NFA-D include the actuator key, or do I need to order it separately?

The actuator key is sold separately from the switch body. This is standard for the D4SL-N family. You must specify the correct D4SL-N actuator part number for your door type and opening direction at the time of ordering. Omitting the actuator is one of the most commonly reported ordering mistakes for this product family.

How do I identify which contacts are the safety contacts and which are the monitoring contacts in the 2NC/1NO + 2NC/1NO configuration?

The D4SL-N2NFA-D provides two independent contact groups. The first 2NC/1NO set is used for the safety interlocking function — wired to the safety relay or safety PLC safety input channels to confirm door and lock status for the safety function. The second 2NC/1NO set provides independent monitoring of door position and lock state for diagnostics and fault detection. Omron's terminal designation documentation for the D4SL-N series identifies the specific terminal numbers for each group.

What is the difference between power-to-release and power-to-lock, and how do I know which one my application requires?

In a power-to-release (this model) configuration, the 24 VDC solenoid must be energized to release the mechanical lock and allow the door to open. If power is lost, the door remains locked. In a power-to-lock configuration, the solenoid must be energized to engage the lock; loss of power releases the door. The correct principle is determined by your risk assessment and the safety function design — specifically what must happen to the guard lock state under power-loss or safety-relay de-energization conditions. Your risk assessment document and machine safety standard requirements define this, not the component itself.

Can I replace an older guard lock switch on an existing machine with the D4SL-N2NFA-D without mechanical modifications?

This depends entirely on whether the mounting dimensions, actuator style, conduit entry, and contact configuration of the replacement match the existing installation. The D4SL-N2NFA-D has specific mounting hole patterns and mechanical dimensions that must be verified against the existing guard frame. If the original switch was a different D4SL-N variant or a different brand entirely, do not assume mechanical or electrical compatibility — verify against Omron's dimensional drawings and your existing wiring scheme before ordering.

What does the orange LED indicator on the D4SL-N2NFA-D actually tell me, and is it useful for maintenance diagnostics?

The orange LED indicator on the D4SL-N2NFA-D operates at 24 VDC and provides a local visual indication of power and operational status at the switch body. For maintenance technicians, it offers a quick on-site check of whether the 24 VDC supply is present and the device is powered without requiring a multimeter or remote HMI check. Specific LED state meanings — on, off, flashing — should be confirmed in Omron's product documentation for the D4SL-N series.

Is the D4SL-N2NFA-D typically in stock, or should I plan for a factory lead time?

Popular D4SL-N variants are generally maintained in distributor stock by specialist automation suppliers. However, the D4SL-N2NFA-D is a specific variant with a defined contact configuration, conduit size, and solenoid voltage, and availability varies by distributor and region. It is advisable to confirm stock status and current lead time before committing this part to a build schedule. Contact LeadTime.ca for current availability — pricing is shown live on the product page.

Why Order the Omron D4SL-N2NFA-D From LeadTime.ca

  • Specialist automation distributor — our team can decode the D4SL-N ordering code, confirm the correct variant, and verify actuator compatibility before you order.
  • Global shipping — we source and ship industrial automation components worldwide, not limited to any single region.
  • Hard-to-find parts — niche D4SL-N variants and factory-order codes are part of our regular sourcing work; we check stock positions across multiple channels.
  • Volume and project pricing — contact us for quantity quotes aligned to your build schedule or maintenance stocking requirements.
  • Fast response — current pricing is live on the product page; our team responds quickly on lead-time and availability questions.

At-a-Glance Summary

  • Product: Omron D4SL-N2NFA-D — guard lock safety door switch, key-operated, D4SL-N family.
  • Lock principle: Mechanical lock with 24 VDC solenoid release (power-to-release).
  • Contact configuration: 2NC/1NO + 2NC/1NO — 6 contacts total for safety interlocking and independent door/lock monitoring.
  • Conduit: G1/2 conduit entry for standard cable gland compatibility.
  • Housing: Plastic body, resin head — suitable for standard industrial environments within -10 to +55 °C ambient.
  • Holding force: 1300 N.
  • Indicator: Orange LED, 24 VDC — local status feedback at the switch body.
  • Actuator: Sold separately — must be specified and ordered as a matched D4SL-N actuator key.
  • Critical ordering check: Confirm lock principle (power-to-release), voltage (24 VDC), contact configuration (2NC/1NO + 2NC/1NO), conduit (G1/2), and actuator style before purchasing.
  • Pricing: Available live on the product page at LeadTime.ca — contact for volume or project quotes.
