Omron E2E-X2D1-N — M8 Inductive Sensor Buying Guide

By Abdullah Zahid
15 min read

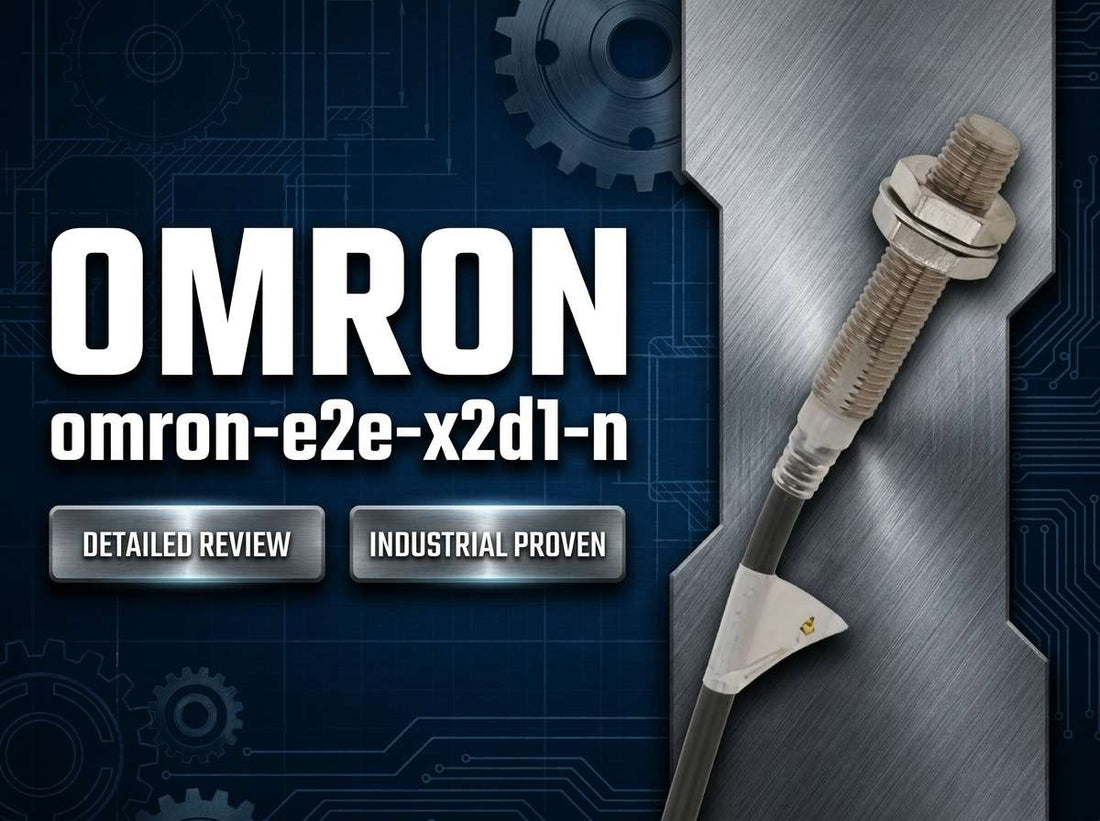

Omron E2E-X2D1-N M8 cylindrical inductive proximity sensor with pre-wired cable for machine tool metal detection

Omron E2E-X2D1-N Standard Inductive Proximity Sensor, Cylindrical M8, 2 mm, DC 3-Wire, NPN NO, Pre-Wired — Specs, Wiring, and Selection Guide

Controls engineers and maintenance technicians searching for the Omron E2E-X2D1-N are typically at a single decision point: confirm the specs match the application, verify NPN NO output suits the PLC input type, and confirm availability before placing the order. This is a compact, shielded M8 cylindrical inductive proximity sensor with a 2 mm nominal sensing distance, DC 3-wire NPN normally open output, and a pre-wired oil-resistant cable — a straightforward workhorse device with a well-established track record in machine tool and general automation environments. If you already know this is the right part, the fastest next step is to check stock.

If you have already confirmed this is the correct part, check current pricing and availability for the Omron E2E-X2D1-N at LeadTime.ca — ships worldwide.

Who Should Buy the Omron E2E-X2D1-N — and Who Should Not

This sensor is the right choice for OEMs and maintenance teams who need a proven, compact M8 flush-mount inductive sensor for metal detection in tight machine spaces, where NPN inputs are already the standard on the installed PLC.

  • Your system uses DC 3-wire NPN inputs and your control power runs in the 10–30 VDC range.
  • You need a shielded (flush-mountable) M8 sensor with a 2 mm nominal sensing distance for ferrous metal targets.
  • The sensor is going into a general machinery or machine tool environment with exposure to cutting oil or coolant, where cable and sensing face durability matter.
  • You are replacing an existing M8 pre-wired sensor on a machine and need a direct, drop-in compatible form factor.
  • Fast visual commissioning via the LED operation indicator and consistent Omron color coding is a practical priority for your maintenance team.

If your system requires PNP output, consider the E2E-X2E1-N instead. If you need a sensing distance greater than 2 mm or a body size larger than M8, look at M12 or M18 E2E variants. If quick-disconnect maintenance is a priority, an M8 or M12 connector version of the E2E family will serve you better than this pre-wired model.

On this page:

What the Omron E2E-X2D1-N Actually Does on a Machine

The Omron E2E-X2D1-N is a discrete, non-contact sensing device that produces a switched DC output signal — NPN, normally open — whenever a ferrous metal target enters within approximately 2 mm of its sensing face. That signal feeds directly into a PLC digital input, a relay, or a counter module, providing position or presence feedback without physical contact, wear, or mechanical linkage. The sensor belongs to Omron's established E2E cylindrical family, a range specified across general industrial machinery globally for exactly this class of on/off metal detection task.

The M8 threaded cylindrical housing and shielded (flush) construction are what make this model useful in confined machine geometries. A flush-mount sensor can be installed so that its face sits level with the surrounding mounting bracket or machined pocket, eliminating the need for a protruding body that could be struck by tooling, workpieces, or fixtures. The 2 mm nominal sensing distance is deliberately short, which is appropriate for precise positioning applications where a tight, repeatable trigger point matters more than long standoff distance.

Omron documents the E2E series as using an oil-resistant PVC cable and a sensing face material rated as resistant to cutting oil — a practical differentiation for machine tool environments where coolant and cutting fluid exposure is constant. The operation indicator LED on the sensor body gives maintenance technicians an immediate visual confirmation of switching state without opening a panel or connecting a meter, which matters when diagnosing a machine stop at the machine.

Typical System Architecture for an M8 Inductive Proximity Sensor

The Omron E2E-X2D1-N sits at the field level of a discrete I/O sensing chain, feeding a switched signal upstream to a controller input. Understanding where it sits helps you confirm the right power supply, wiring path, and input module configuration before ordering.

  • Control power supply (10–30 VDC) provides the sensor's operating voltage via the brown and blue conductors of the pre-wired cable.
  • The sensor monitors the gap between its sensing face and the ferrous metal target — a cylinder rod end, a machine component, or a metal part on a conveyor.
  • When the target enters the sensing range, the NPN open-collector output (black conductor) switches to pull the signal line toward 0 V, toggling the PLC input from inactive to active.
  • The PLC digital input module receives the NPN sinking signal and passes presence or position data to the control logic for sequencing, counting, or interlock decisions.
  • Downstream outputs — solenoids, drives, alarm indicators, or counters — respond to the PLC logic triggered by the sensor state.

Where the Omron E2E-X2D1-N Gets Deployed: Industries and Use Cases

The E2E-X2D1-N is a sensor that earns its place through volume and repeatability, not through complexity. On pneumatic cylinder-based machines, it provides end-of-stroke confirmation — confirming that a slide, clamp, or actuator rod has reached its travel limit before the next step in a sequence is permitted. The 2 mm flush sensing makes this reliable even when mounting depth is constrained inside a cylinder mounting block.

On fixture-based assembly stations and indexing tables, the same sensor detects whether a metal part is correctly seated in a nest before a press, weld, or dispensing operation proceeds. The short, defined sensing range reduces false triggers from nearby metal structure while remaining sensitive enough to confirm a 2 mm target approach reliably.

In light conveyor and escapement applications, the E2E-X2D1-N counts metal components or triggers divert gates as parts pass the sensing face. Machine tool environments — lathes, machining centers, transfer lines — use the sensor for position feedback on turrets, tailstocks, and guards, where the oil-resistant cable and cutting-fluid-resistant sensing face reduce the consumable replacement rate compared to lower-rated sensors.

Application Typical Deployment
Pneumatic cylinder end-of-stroke Flush-mounted in cylinder bracket, detects rod tip or flag at 2 mm travel limit
Part presence on fixture or nest Mounted in fixture body, confirms ferrous component seated before operation proceeds
Metal part counting on conveyor Side-mounted over chute or belt, counts parts passing within 2 mm sensing window
Position feedback on cam or actuator Detects cam lobe or target flag on rotary or linear actuator for sequencing logic
Guard or door interlock permissive Senses metal striker on guard panel to confirm closed position before machine enable
Machine tool turret or tailstock position Mounted in machined pocket, detects indexed position in coolant-rich environment

Specifications That Drive the Purchase Decision

Parameter Value
Sensing principle Inductive proximity — detects ferrous metals
Nominal sensing distance 2 mm
Installation type Shielded (flush mountable), M8 cylindrical
Output type NPN, normally open (NO)
Circuit type DC 3-wire
Supply voltage range 10–30 VDC
Cable type Oil-resistant PVC pre-wired cable
Sensing face material Cutting-oil-resistant material
Indicator Operation indicator LED
Environmental protection Industrial-grade IP protection per E2E series rating (confirm exact IP class on datasheet)

Full technical specifications are available on the product page at LeadTime.ca.

Omron E2E-X2D1-N vs Close Variants: Which One Do You Actually Need?

Model Key Difference vs E2E-X2D1-N When to Choose
E2E-X2D1-N Baseline — NPN NO, M8, 2 mm, pre-wired cable NPN sinking PLC inputs, pre-wired installation, standard M8 mounting
E2E-X2E1-N PNP NO output, otherwise comparable sensing and form factor When the PLC input card requires PNP (sourcing) signals — most common mistake when swapping between systems
E2E M8 connector variant Same sensing parameters but M8 or M12 quick-disconnect connector instead of fixed cable When rapid sensor replacement without rewiring is required, or where machine cable assemblies are pre-terminated
E2E M12 or M18 longer-range variants Larger body, longer sensing distance (typically 4 mm or more depending on model) When target standoff is greater than 2 mm, mounting space allows a larger body, or target misalignment is common
E2E NEXT series Extended sensing range, additional diagnostics, IO-Link capable on some models New machine designs where future-proofing, predictive maintenance data, or extended range justify a newer platform

If your control system uses PNP sourcing inputs, the E2E-X2E1-N is the direct equivalent — do not order the E2E-X2D1-N and expect to make it work with a wiring workaround. Review current variant availability at LeadTime.ca to confirm which model is in stock for your required ship date.

Expert Verdict: Is the Omron E2E-X2D1-N the Right Sensor for Your Build?

The Omron E2E-X2D1-N earns its place on approved vendor lists and standard BOMs because it solves a specific, high-frequency problem in industrial automation reliably and without complexity. For any controls engineer or maintenance team standardized on NPN DC inputs and working with ferrous metal detection at close range — cylinder end-of-stroke, part presence on a fixture, position confirmation on a small actuator — this is a proven, low-risk choice. The compact M8 form factor, flush shielded construction, consistent LED indicator, and oil-resistant cable directly address the practical realities of machine tool and general manufacturing environments. The E2E family's track record across these environments is reflected in how frequently it appears on legacy BOMs and spares lists worldwide.

Where this sensor reaches its limits is equally important to understand. If your project uses PNP sourcing inputs, stop here — the E2E-X2E1-N is the correct model, and wiring an NPN output into a PNP input card will not produce reliable operation. If you need to sense aluminum, stainless steel, or non-ferrous targets at the same distance as mild steel, be aware that inductive sensors inherently produce shorter effective ranges on non-ferrous materials, and a 2 mm nominal distance leaves very little margin. For applications requiring longer standoff distances, larger M12 or M18 body E2E variants are the appropriate choice. Where the severity of washdown, chemical exposure, or mechanical impact exceeds what a standard IP-rated sensor with a PVC cable can withstand, a stainless housing or higher-rated variant should be specified instead.

From a procurement standpoint, the E2E-X2D1-N is a well-distributed part with reliable availability through specialist automation channels globally. Lead times for standard Omron E2E parts are generally favorable from authorized distributors, though spot shortages during peak demand periods can extend wait times — a situation where having a knowledgeable distributor who can quickly confirm stock or propose an equivalent saves significant downtime. Buying through a specialist automation distributor rather than a general catalog channel gives you access to NPN/PNP compatibility confirmation, direct cross-reference support, and accurate current lead time data before you commit to a purchase order. Check current stock and pricing for the Omron E2E-X2D1-N at LeadTime.ca — available to ship worldwide.

For volume pricing, multi-line BOM sourcing, or to confirm lead time against a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the Omron E2E-X2D1-N

Model-specific community discussion on the E2E-X2D1-N is limited — this is a part that tends to work correctly when specified correctly, so it rarely generates troubleshooting threads. What does appear consistently across Omron E2E family discussions on PLC forums and automation communities is a clear pattern of selection errors that lead to ordering problems, wiring confusion, and unexpected behavior in the field. The guidance below synthesizes those recurring themes into practical pre-order awareness.

The most consistently reported ordering mistake in the E2E family is NPN versus PNP confusion. Engineers who only note "E2E M8 2 mm" on a BOM — without capturing the D versus E suffix — regularly receive the wrong polarity variant. On machines with mixed NPN and PNP inputs across different zones or different vintages of control hardware, this leads to a sensor that either holds the input permanently active or produces no signal at all. The second most cited issue is sensing distance expectations on non-ferrous targets: the 2 mm nominal is specified for mild steel, and effective sensing distance on aluminum, stainless, or brass will be shorter. Community discussions note that users sometimes discover this at commissioning rather than during selection, requiring the sensor to be repositioned or replaced with a model that provides adequate margin for the actual target material.

Cable failures due to inadequate strain relief on moving machine elements are a recurring theme when the E2E series does generate service discussions. The pre-wired PVC cable is oil-resistant and generally well-regarded for static or semi-static installations, but if the sensor is mounted on a moving slide, door, or actuator arm without a cable carrier or dedicated strain relief, flexing at the cable entry point leads to early failures. Where frequent sensor access or replacement is anticipated, the connector variants of the E2E family eliminate this failure mode by allowing cable assembly replacement without disturbing the sensor mounting. If the Wrong-Part Prevention Checklist below covers ground you have already verified, proceed directly to the product page to confirm availability.

Wiring and Installation Overview

  • The pre-wired cable uses the standard DC 3-wire color code: brown for supply positive, blue for 0 V common, and black for the NPN output — verify against the specific datasheet before terminating, as color codes must be confirmed from the manufacturer documentation.
  • For NPN (sinking) connection to a PLC input, connect the black output conductor to the PLC input terminal, the brown conductor to the DC supply positive, and the blue conductor to the 0 V common shared with the PLC input common — the PLC input card must be configured for NPN (sinking) operation.
  • Supply voltage must be within the 10–30 VDC range; do not connect this sensor to AC mains or to supply voltages outside this band.
  • Route the cable away from moving components, sharp metal edges, and high-voltage conductors; use cable conduit, trays, or spiral wrap to protect the PVC jacket and maintain the IP rating at the cable entry point.
  • Before energizing, confirm the mounting thread is fully engaged in the M8 tapped hole or bracket, locknuts are tightened to the torque specified in the Omron datasheet, and the sensing face has the metal-free clearance zone required for flush-mounted shielded sensors to avoid false triggering from surrounding metal structure.

Wrong-Part Prevention Checklist

Before finalizing your order for the Omron E2E-X2D1-N, work through each item below — these are the exact checks that prevent the most common mis-specifications for this sensor family.

  1. Confirm output type: NPN vs PNP and NO vs NC matches the PLC input expectation and wiring standard.
  2. Verify supply voltage (DC 10–30 V range) is compatible with the machine's control power; do not use on AC mains.
  3. Check mechanical size: M8 threaded body, overall length, and flush mounting suitability fit the existing bracket or hole.
  4. Confirm required sensing distance and target material; 2 mm flush sensing may be too short for some applications or non-ferrous metals.
  5. Check cable type and length (pre-wired, typically 2 m) vs panel layout and junction boxes; ensure routing is possible without splices.
  6. Verify environmental needs (cutting oil, coolant, IP rating, ambient temperature) match actual machine conditions; choose washdown or stainless variant if required.

If any item on this list reveals a mismatch, do not force the E2E-X2D1-N into an application it is not rated for. Contact the LeadTime.ca team to confirm the correct Omron E2E variant for your specific requirements — we can cross-reference from an old part number, a competitor sensor, or a description of the application.

Frequently Asked Questions

How do I wire the Omron E2E-X2D1-N NPN output to a sourcing PLC input card?

An NPN (sinking) sensor output is not directly compatible with a sourcing PLC input without an interface relay or input module reconfiguration. The E2E-X2D1-N outputs an NPN open-collector signal that pulls toward 0 V when active — this suits a sinking input card where the common terminal is connected to 0 V. If your PLC input card is a sourcing type, you should specify the PNP equivalent, the E2E-X2E1-N, rather than attempting a wiring adaptation. Confirm your PLC input card's sinking or sourcing configuration before ordering.

Will the Omron E2E-X2D1-N detect stainless steel or aluminum at the same 2 mm distance as mild steel?

No. The 2 mm nominal sensing distance is specified for a standard mild steel target of defined dimensions. Stainless steel, aluminum, brass, and other non-ferrous or lower-permeability metals will produce a shorter effective sensing distance. In practice this means the sensor may need to be positioned closer to the target, or a model with a longer nominal distance may be required to provide adequate margin when detecting non-ferrous parts. Always confirm target material and effective sensing range during commissioning.

Can the E2E-X2D1-N drive a relay coil directly, or is an interposing relay required?

Whether the E2E-X2D1-N can drive a relay coil directly depends on the coil's current draw relative to the sensor's rated load current — confirm the exact current rating from the Omron datasheet for this model. Small 24 VDC relay coils within the rated load current range can typically be switched directly by the NPN output. For higher-current loads, inductive relay coils, or to provide galvanic isolation between the sensor circuit and control circuits, an interposing relay or solid-state relay interface module is the appropriate solution.

The LED on my E2E-X2D1-N switches ON, but the PLC input does not change state — what should I check?

This symptom typically points to a wiring issue between the sensor output and the PLC input terminal, rather than a failed sensor. First verify that the black output conductor is correctly terminated at the PLC input terminal and that the 0 V common is shared between the sensor and the PLC input card common. Check that the input card is configured for NPN (sinking) inputs and that no wiring is open or incorrectly landed at the terminal block. If wiring checks out, use a multimeter to measure the voltage on the output conductor relative to 0 V when the LED is active — a correct NPN output should pull close to 0 V in the active state.

Is the standard Omron E2E-X2D1-N suitable for direct washdown environments, or is a higher-rated version needed?

The E2E series carries an industrial-grade IP protection rating suitable for oil splash and coolant exposure in machine tool environments when installed correctly — confirm the exact IP class on the current Omron datasheet for this model. For direct high-pressure washdown, submersion, or environments involving aggressive cleaning chemicals, a variant with a higher IP rating, stainless steel housing, or chemical-resistant construction should be selected. The standard PVC cable and nickel-plated brass housing of the E2E-X2D1-N are appropriate for typical shop-floor and machining environments but are not specified for severe washdown duty.

Is the Omron E2E-X2D1-N a safety-rated device that can be used as a sole means of safeguarding?

No. The E2E-X2D1-N is a standard inductive proximity sensor and is not certified as a safety-rated device. It must not be used as the sole means of safeguarding personnel or as a primary safety function in a machine safety architecture. If sensor feedback is used as an input to safety logic, it must be combined with appropriately rated safety relay modules, safety PLCs, or dual-channel safety circuits as required by the applicable machinery safety standard. Always consult the relevant safety standard and a qualified safety engineer for safety function design.

Why Order the Omron E2E-X2D1-N Through LeadTime.ca

  • Global shipping on all orders — LeadTime.ca sources and ships Omron automation products worldwide, not limited to any single region.
  • Specialist automation focus means accurate NPN/PNP compatibility confirmation, variant cross-reference support, and honest lead time data before you commit to an order.
  • Access to broader Omron E2E family inventory — if the exact model is constrained, the team can identify the nearest stocked equivalent and confirm technical compatibility.
  • Volume pricing available for OEM builds, MRO blanket orders, and multi-line BOM sourcing — contact directly for project quantities.
  • Faster response than generic catalog channels for time-sensitive replacement orders and production downtime situations.

At-a-Glance Summary

  • The Omron E2E-X2D1-N is a shielded (flush-mount) M8 cylindrical inductive proximity sensor with a 2 mm nominal sensing distance for ferrous metal targets.
  • Output is DC 3-wire NPN normally open — compatible with NPN (sinking) PLC digital input cards operating on 10–30 VDC control power.
  • Pre-wired with an oil-resistant PVC cable; sensing face material is rated as resistant to cutting oil — suited for machine tool and general manufacturing environments.
  • The NPN suffix (D in E2E-X2D1-N) versus PNP suffix (E in E2E-X2E1-N) is the single most important selection check before ordering — wrong polarity is the leading ordering error for this sensor family.
  • Effective sensing distance on non-ferrous metals (aluminum, stainless, brass) is shorter than the 2 mm nominal specified for mild steel — confirm target material before finalizing mounting position.
  • Not a safety-rated device — must not be used as the sole safeguarding means in a machine safety function.
  • For PNP output, use E2E-X2E1-N. For longer sensing range, use M12 or M18 E2E variants. For quick-disconnect maintenance, use the connector version of the E2E M8 family.
  • Available to ship worldwide through LeadTime.ca — check current stock and pricing here.
