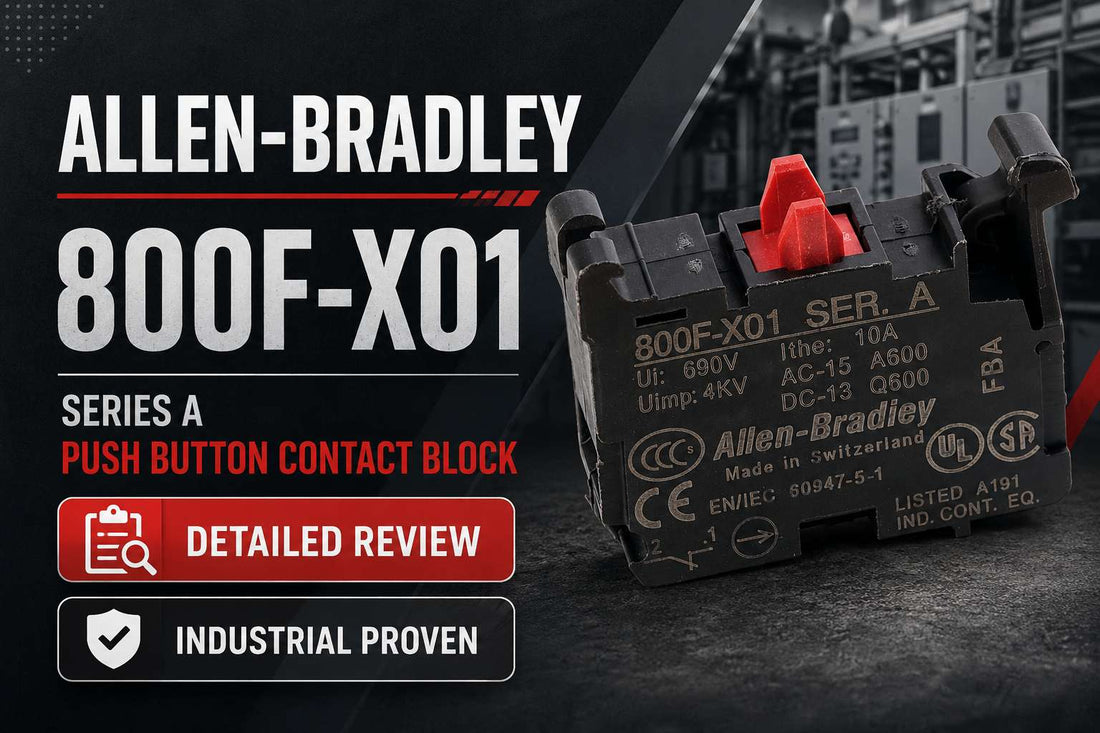

Allen-Bradley 800F-X01 22.5mm normally closed screw-terminal contact block for Bulletin 800F push button operators

Allen-Bradley 800F-X01 22.5 mm No Latch Screw Contact Block, 1 N.C. — Specs, Review & Selection Guide

If you are specifying or replacing a normally closed contact block for an Allen-Bradley Bulletin 800F 22.5 mm operator station, the Allen-Bradley 800F-X01 is the catalog number you are looking for. This single-pole, 1 N.C. screw-terminal contact block mounts directly to the rear of 800F push buttons and selector switches, adding one normally closed control contact for stop circuits, interlocks, permissives, and PLC input signals. It carries an A600 control-duty utilization category, UL and CSA approvals, and fits the standard 22.5 mm panel cutout that defines the 800F platform. The decision to order it usually comes down to three things: verifying you need NC rather than NO, confirming screw terminals are acceptable, and making sure you are working with 800F operators — not the 30 mm 800T or 800H family.

If you have already confirmed this is the right part, check current pricing and availability for the Allen-Bradley 800F-X01 at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 800F-X01 — and Who Shouldn't

The Allen-Bradley 800F-X01 is the correct choice for engineers, technicians, and buyers who meet all of the following criteria:

  • Your panel uses Allen-Bradley Bulletin 800F operators with 22.5 mm panel cutouts — not 800T, 800H, or any other operator family.
  • You require exactly one normally closed (N.C.) contact — not N.O., not a mixed 1NO+1NC block, not dual-contact or safety-rated configurations.
  • Screw-clamp terminals are acceptable for your wiring standards and environment — you are not in a high-vibration application requiring spring-clamp terminals.
  • Your control circuit operates within control-duty ratings at A600 utilization category — this is not a power-switching or motor-load device.
  • Your application requires UL, CSA, or CE approvals, all of which are carried by the Bulletin 800F platform.

If you need a different contact configuration — 1 N.O., 1NO+1NC, safety-rated contacts, or spring-clamp terminals — the Allen-Bradley 800F-X01 is not the right variant. See the comparison table in the variant section below for specific alternatives within the 800F family.

On this page:

What the Allen-Bradley 800F-X01 Actually Does in a Control System

The Allen-Bradley 800F-X01 is an auxiliary contact element — it does not contain an actuator, a lens, or a pilot light. Its sole function is to add one normally closed electrical contact to any compatible Bulletin 800F 22.5 mm operator. When the operator is at rest, the contact is closed and current flows. When the operator is actuated, the contact opens and the circuit breaks. This is the fundamental behavior required in stop circuits, emergency interlock chains, permissive logic, and PLC digital input wiring where a loss of signal on actuation is the intended outcome.

Within the Bulletin 800F platform, the 800F-X01 is one of several interchangeable contact blocks that latch onto the rear of the operator body. The "no latch" designation in its official product name refers to the contact behavior — the contact does not latch or maintain its position after actuation. This is the standard momentary-contact behavior and should not be confused with maintained-action operators, which mechanically hold position until released. Multiple contact blocks can be stacked behind a single 800F operator within manufacturer-specified limits, making it straightforward to build multi-contact operator stations without replacing the front panel hardware.

The A600 utilization category confirms that the 800F-X01 is rated for general-purpose AC control-circuit switching — start and stop circuits, interlock relays, PLC inputs — and is not intended for directly switching motor loads or high-inrush power circuits. External overcurrent protection is required; the contact block itself has no integrated circuit breaker or fuse element.

Where the 800F-X01 Sits in a Typical Control Station

The 800F-X01 is one element in a stacked operator assembly that connects control logic to field devices. Understanding this physical chain helps during specification and troubleshooting.

  • PLC or relay logic output — provides control voltage to the operator circuit.
  • Bulletin 800F 22.5 mm operator (push button, selector switch, or E-stop) — provides the actuating mechanism mounted through the panel face.
  • Allen-Bradley 800F-X01 contact block — latches to the rear of the operator body and provides the N.C. contact in the wiring circuit.
  • Field wiring via screw-clamp terminals — connects the contact block to the control circuit conductors in the panel or junction box.
  • Downstream device — relay coil, PLC digital input card, safety relay input, or auxiliary contactor coil that responds to the contact state.

Industries and Applications Where This Contact Block Gets Specified

The Allen-Bradley 800F-X01 appears most frequently in applications where Bulletin 800F operators are already the plant or OEM standard. Maintenance teams replacing worn or damaged contact blocks on production lines represent the highest-volume use case — a single failed N.C. contact block can stop a machine, and a like-for-like replacement is the fastest path to recovery.

OEM panel builders standardizing on the 800F platform specify the 800F-X01 when their control schematics call for N.C. contacts on push buttons or selector switches. The consistent catalog number simplifies BOM management and spares stocking across multiple machine variants.

In retrofit and modernization projects, engineers converting older operator hardware to the Bulletin 800F 22.5 mm platform use the 800F-X01 to replicate existing N.C. contact functions from legacy devices. The 22.5 mm cutout size is a widely adopted standard in modern control panels, which reduces panel rework in many retrofit scenarios.

Secondary applications include water and wastewater control panels, building automation motor starters, marine control stations (where the 800F platform's marine approvals are relevant), and mining or energy utility panels where Allen-Bradley ecosystem standardization drives component selection.

Application Typical Deployment
Production line stop circuits N.C. contact block on stop push button feeding PLC input or relay coil
Emergency stop interlock chain N.C. contact added to E-stop operator to break interlock circuit on actuation
OEM machine panel — new build Standardized 800F-X01 blocks across all N.C. contact points in the BOM
MRO replacement — aging 800F station Like-for-like swap of worn 800F-X01 to restore machine function with zero wiring changes
Retrofit to 22.5 mm Bulletin 800F 800F-X01 replicates legacy N.C. contact function after operator upgrade
Water/wastewater control station N.C. permissive contact on selector switch in pump control panel

Key Specifications for Purchase Decisions

Parameter Value Notes
Catalog Number 800F-X01 Allen-Bradley / Rockwell Automation
Contact Configuration 1 N.C. (normally closed) Opens on operator actuation; control duty only
Terminal Type Screw-clamp terminals Wire size and torque per official Rockwell datasheet
Operator Family Compatibility Bulletin 800F, 22.5 mm operators Not compatible with 800T or 800H 30 mm hardware
Rated Thermal Current (Ith) Approx. 10 A (control duty) Confirm exact value from official Rockwell datasheet
Maximum Voltage Rating Up to 600 V class (control circuits) Confirm AC/DC breakdown from datasheet
Utilization Category A600 General-purpose AC control-circuit switching
Mounting Style Latch mount to rear of 800F operator body "No latch" refers to contact behavior, not mounting
Panel Cutout 22.5 mm Matches standard Bulletin 800F operator cutout
Approvals UL, CSA, CE, CCC, cUL, marine, KC Verify specific marks per current catalog series

Full technical specifications are available on the product page at LeadTime.ca.

Allen-Bradley 800F-X01 vs Other 800F Contact Block Variants

The Bulletin 800F contact block range covers multiple contact configurations and two terminal styles. The table below covers the most common variants a buyer will encounter when specifying or replacing contact blocks on 800F operators.

Model Contact Configuration Terminal Type Choose When
800F-X01 1 N.C. Screw-clamp You need a single N.C. contact with screw terminals — standard choice for stop and interlock circuits
800F-X10 1 N.O. Screw-clamp You need a single normally open contact with screw terminals — start circuits or signal contacts
800F mixed contact block 1 N.O. + 1 N.C. Screw-clamp You need both contact types on one operator without stacking two separate blocks
800F spring-clamp NC variant 1 N.C. Spring-clamp High-vibration environments or plants with a spring-clamp wiring standard

Note: The 800F-X01 and 800F-X10 catalog numbers look nearly identical — a single digit difference separates a normally closed from a normally open block. Always verify the contact type against your schematic before placing a purchase order. If you are unsure which variant your application requires, review the full 800F contact block range at LeadTime.ca or contact the team for confirmation.

Expert Verdict: Is the Allen-Bradley 800F-X01 Worth Ordering?

The Allen-Bradley 800F-X01 earns its place as the default N.C. contact block choice for anyone already operating within the Bulletin 800F 22.5 mm ecosystem. It provides exactly one normally closed screw-terminal contact, integrates cleanly with the full range of 800F operators, carries A600 control-duty ratings, and is backed by UL, CSA, and CE approvals. For maintenance teams replacing a worn block under production pressure, the 800F-X01 is a like-for-like swap that requires no rewiring, no engineering review, and no tooling changes. For OEM builders standardizing a BOM, it is a known quantity with predictable behavior and documented support. The recurring issues in the field come not from the block itself, but from ordering the wrong variant — specifically confusing the 800F-X01 with the 800F-X10 N.O. equivalent, or ordering 800F hardware for 800T/800H 30 mm operators.

Where the 800F-X01 is not the right answer: applications that require safety-rated contacts or special timing functions need dedicated safety-rated devices that are outside the standard 800F contact block range. High-vibration installations where screw terminals may loosen over time are better served by the spring-clamp variant. Buyers starting a new panel design from scratch with no existing Allen-Bradley infrastructure and a tight component budget may find that 22 mm contact block platforms from other manufacturers offer comparable control-duty performance at lower unit cost — though this requires replacing the entire operator assembly, not just the contact block. And applications demanding more than one contact pole per operator should evaluate the dual-contact 800F blocks or a stacked configuration within the operator's specified stacking limits.

From a procurement standpoint, the 800F-X01 is one of the better-stocked Allen-Bradley consumable components. Standard quantities are typically available through North American distributors with short lead times, and the part's position within the Bulletin 800F family means it is supported by current Rockwell documentation, revision tracking, and product change notifications. Ordering through a specialist distributor rather than a general-purpose channel matters here — a specialist can cross-check your existing catalog numbers against current series designations, confirm that the block you are ordering matches the operator already installed on your machine, and flag if a series revision has changed any mechanical or electrical detail. Check current availability and pricing for the Allen-Bradley 800F-X01 at LeadTime.ca — the team ships worldwide and can validate compatibility before your order is placed.

For volume pricing, project BOM reviews, or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we source and ship worldwide.

What Engineers Need to Know Before Ordering the Allen-Bradley 800F-X01

Community discussion of the Allen-Bradley 800F-X01 specifically is sparse — most forum activity covers the Bulletin 800F family broadly rather than individual contact block catalog numbers. What does emerge consistently across industrial forums including PLCTalk, PLCS.net, MrPLC, r/PLC, and r/industrialautomation is a pattern of praise for 800F reliability and modularity, combined with a recurring set of ordering mistakes that are entirely preventable with the right pre-order checks.

The reliability feedback is genuine. Forum users and panel builders regularly describe Bulletin 800F contact blocks as durable in typical industrial environments, and the ability to swap a contact block without disturbing the operator or the panel cutout is consistently praised. The modularity of the platform — adding or changing contact blocks in the field without rewiring the front panel — is cited as a practical advantage over one-piece operator designs. Availability from North American distributors is another recurring positive: when a contact block fails and a machine is down, the ability to source a replacement the same day or next day matters, and the 800F platform generally delivers that.

The complaints are equally consistent. Price is the most common objection — the 800F-X01 costs more per contact than generic 22 mm alternatives, and buyers who are not committed to the Allen-Bradley ecosystem will notice the difference on a large BOM. The second complaint is mechanical: plastic latch tabs on the contact block can break if the block is forced onto or off the operator rather than being pressed and released correctly. The third and most costly issue is misorders. The 800F-X01 versus 800F-X10 confusion — N.C. versus N.O. — is the most frequently mentioned ordering error, followed closely by buyers purchasing 800F contact blocks for 800T or 800H 30 mm operators and discovering the incompatibility only when the parts arrive. A third category of mistake involves ignoring terminal style: screw-clamp and spring-clamp contact blocks look similar in catalog thumbnails but are not interchangeable once wired into a panel. When community data is sparse for a specific catalog number, the most protective thing a buyer can do is work with a specialist distributor who has seen these errors before and can verify the order against the installed hardware before it ships.

Wiring and Installation Overview

  • Isolate control power and verify the panel is de-energized before removing or installing any contact block on the 800F operator.
  • Align the 800F-X01 so its actuator interface correctly engages the operator's actuating mechanism, then press firmly until the latch engages audibly — do not force or pry the latch tabs.
  • Strip control wiring to the length specified in the Rockwell installation sheet, insert conductors into screw-clamp terminals, and tighten to the torque value listed in the official datasheet — use ferrules where plant wiring standards require them.
  • Before energizing, verify N.C. continuity at rest and confirm the contact opens when the operator is manually actuated using a multimeter set to continuity or resistance.
  • After energizing the control circuit, perform a functional test of the operator in the actual machine sequence and document the catalog number, panel location, and test result for the maintenance record.

For complete wiring diagrams, torque specifications, wire size tables, and stacking instructions, refer to the official Allen-Bradley Bulletin 800F installation and selection documentation from Rockwell Automation.

Wrong-Part Prevention: Work Through This Checklist Before Placing a PO

The most common causes of returned orders and emergency re-buys on 800F contact blocks are all avoidable. Before finalizing a purchase order for the Allen-Bradley 800F-X01, verify every item on this checklist:

  1. Confirm you are using the 22.5 mm Bulletin 800F family (not 30 mm 800T/800H or other operator lines).
  2. Verify you require a single NC contact, not NO or mixed contacts (check your control circuit diagram).
  3. Check that screw-clamp terminals are acceptable (do not accidentally order spring-clamp or PCB-style variants).
  4. Ensure "no latch" contact style is correct for your operator and application (do not confuse with maintained/latching operators themselves).
  5. Confirm environmental and approvals of the 800F platform meet site requirements (UL/CSA, marine, etc.).
  6. Validate that panel cutouts are 22.5 mm and that there is enough depth in the enclosure for the operator plus contact block stack.
  7. Cross-check the catalog number on existing parts – 800F-X01 is not interchangeable with 800F-X10 or other similar codes.
  8. For replacements, visually confirm mechanical keying and mounting style match the existing contact blocks on the machine.

If any item on this checklist raises a question, review the product details at LeadTime.ca or contact the team before submitting your order — a five-minute check can prevent a multi-day delay.

Frequently Asked Questions

Is the Allen-Bradley 800F-X01 compatible with all 800F operators, or are there exceptions within the family?

The 800F-X01 is designed for the Bulletin 800F 22.5 mm operator platform as a whole, covering push buttons, selector switches, and similar devices in that family. It is not compatible with 800T or 800H 30 mm operators, which use a different mounting system and contact block format entirely. For any operator not clearly labeled as Bulletin 800F 22.5 mm, verify compatibility through the current Rockwell Automation selection guide or contact your distributor before ordering.

Can I mix 800F-X01 N.C. blocks with N.O. blocks on the same 800F operator?

Yes — the Bulletin 800F platform supports stacking multiple contact blocks of different configurations on a single operator, within the manufacturer's specified stacking limits. This allows a single push button or selector switch to drive both N.C. and N.O. contacts simultaneously. Consult the official Bulletin 800F installation documentation for the maximum number of blocks allowed per operator and the correct stacking sequence.

What loads can the 800F-X01 contact switch, and can I use it for small motor starting?

The 800F-X01 carries an A600 utilization category rating for control-duty AC switching, with a thermal current rating on the order of 10 A and a maximum voltage class up to 600 V. This makes it suitable for relay coils, PLC digital inputs, pilot lights, and interlock signals. It is not intended for directly switching motor loads or high-inrush circuits — those applications require appropriately rated motor starters or contactors with external overcurrent protection.

How do I tell an N.C. and an N.O. 800F contact block apart without a datasheet in hand?

Bulletin 800F contact blocks are typically marked with their catalog number and contact symbol directly on the block body. An N.C. contact is represented by a diagonal line through the contact symbol, and the catalog number for a screw-terminal N.C. block is 800F-X01. The N.O. equivalent is 800F-X10. The single digit difference makes visual catalog number verification essential — do not rely on color alone, and always cross-reference against the schematic symbol before installation.

Can I replace a competitor's 22 mm contact block with an Allen-Bradley 800F-X01 without changing anything else?

No — the 800F-X01 is mechanically designed to latch onto Bulletin 800F operators specifically. While 22.5 mm is a widely used panel cutout standard, the mechanical interface between the contact block and the operator body is manufacturer-specific. Replacing a competitor's contact block with an 800F-X01 requires replacing the corresponding 800F operator as well, and potentially verifying panel depth and cutout dimensions. It is a system-level change, not a direct drop-in swap.

What is the risk if I order 800F-X01 instead of 800F-X10 by mistake?

Installing an N.C. contact where an N.O. contact is required — or vice versa — will cause the control circuit to behave in exactly the opposite of its intended logic. In a stop circuit, this could mean the machine fails to stop on command. In a start circuit, it could mean the machine energizes unexpectedly. A continuity check with a multimeter before energizing the circuit will catch this error before it becomes a safety issue. Always match the catalog number to the schematic symbol and verify contact state at rest before commissioning.

Why Order the Allen-Bradley 800F-X01 from LeadTime.ca

  • Global shipping — LeadTime.ca fulfills orders worldwide, not just within Canada or North America.
  • Specialist cross-checking — the team can verify that the catalog number you are ordering matches your installed 800F operator hardware and flag series or revision differences before the order ships.
  • Real-time stock visibility — current availability and lead time confirmed at time of order, not estimated from a static catalog.
  • Volume and project pricing — contact directly for BOM quantities, blanket orders, or project-based pricing discussions.
  • Hard-to-source parts — if 800F-X01 is constrained, the team can identify in-family alternatives and confirm mechanical and electrical equivalence.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 800F-X01 — 22.5 mm No Latch Screw Contact Block, 1 N.C.
  • Contact configuration: 1 normally closed (N.C.) control-duty contact; opens on operator actuation.
  • Terminal type: screw-clamp; not interchangeable with spring-clamp variants.
  • Compatible operator family: Bulletin 800F 22.5 mm only — not 800T or 800H 30 mm operators.
  • Utilization category: A600 for general-purpose AC control-circuit switching.
  • Thermal current rating: approximately 10 A control duty; maximum voltage up to 600 V class.
  • Approvals: UL, CSA, CE, CCC, cUL, marine, KC — verify specific marks for current series.
  • Panel cutout: 22.5 mm standard — confirm enclosure depth accommodates operator plus stacked contact blocks.
  • Critical ordering check: 800F-X01 (N.C.) versus 800F-X10 (N.O.) — one digit separates correct from wrong part.
  • Availability: typically stocked by North American distributors with short lead times for standard quantities; ships worldwide through LeadTime.ca.
