Allen-Bradley 800F-ALP — Plastic Mounting Latch Buying Guide

By Abdullah Zahid
14 min read

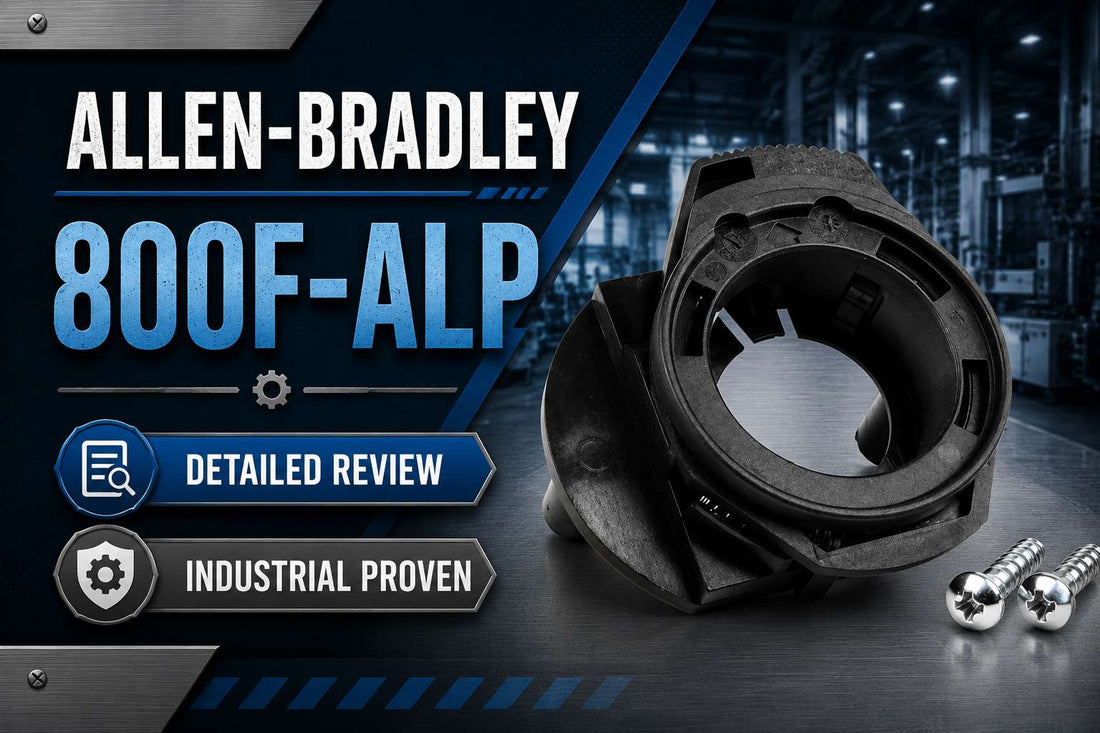

Allen-Bradley 800F-ALP plastic mounting latch 10-piece kit for Bulletin 800F 22 mm push button operators

Allen-Bradley 800F-ALP 22 mm Accessory, 800F PB, Plastic Mounting Latch, 10 Pieces — Specs, Compatibility & Buying Guide

Control panel designers and OEM machine builders specifying Allen-Bradley Bulletin 800F push button assemblies eventually hit the same question: are the mounting latches included, or do they need to be ordered separately? For most 800F builds, the answer is separate — and the Allen-Bradley 800F-ALP is the manufacturer's standard plastic mounting latch kit, supplied as 10 latches per package, used at the rear of the panel to clamp 22 mm 800F operators and contact blocks firmly in place. Getting this small accessory right early in the BOM prevents one of the most common — and frustrating — commissioning surprises in control panel work.

If you have already confirmed this is the right part for your 800F build, check current pricing and availability for the Allen-Bradley 800F-ALP at LeadTime.ca — ships worldwide.

Who Should Order the Allen-Bradley 800F-ALP — and Who Should Not

The 800F-ALP is the right choice for engineers and panel shops that have confirmed the following conditions:

  • All operator positions in the design use Allen-Bradley Bulletin 800F 22 mm push buttons — not 800T or 800H 30 mm devices, and not another manufacturer's 22 mm system.
  • The panel cut-out is the correct 22 mm size and panel thickness is within the 800F mounting range specified in Rockwell documentation.
  • A plastic latch is acceptable for the environment — moderate vibration, standard industrial temperatures, and no aggressive chemical exposure.
  • The project or MRO stock requires a 10-piece pack and the quantity ordered covers all operator positions plus a reasonable spare buffer.
  • The design must carry certifications including UL, cUL, CSA, CCC, KC, or Marine as part of the overall 800F system compliance.

If your application involves high vibration, shock loading, or elevated thermal stress, a metal latch variant within the 800F family — or an entirely different operator system — may provide greater mechanical margin. The 800F-ALP is not a universal 22 mm latch; it is specific to the Bulletin 800F ecosystem.

On this page:

What the Allen-Bradley 800F-ALP Does in a Control Panel

The Allen-Bradley 800F-ALP is a plastic mounting latch — supplied 10 pieces per package — that secures Bulletin 800F 22 mm push button operators and contact blocks to the panel cut-out from the rear side. Without the latch, the operator stack has nothing mechanically clamping it to the panel face, which creates wobble, misalignment of legend plates, and potential intermittent actuation under repeated use or vibration. The latch is an accessory, not a standalone operator, and it is the final mechanical step that completes a properly assembled 800F installation.

The snap-on design means no tools and no wiring changes are required to install it. The 800F-ALP simply engages over the back of the assembled operator and contact block stack, its tabs locking against the rear panel surface and pulling the entire assembly tight into the 22 mm cut-out. It is the kind of part that earns no attention when it is correct and causes immediate problems when it is missing or wrong. Multiple distributor listings aligned with Rockwell data confirm the 800F-ALP carries approvals under UL, cUL, CSA, CCC, KC, and Marine, consistent with the wider 800F family's certification posture — an important detail for panels destined for certified applications.

Typical System Architecture for Bulletin 800F Assemblies

The 800F-ALP sits at the mechanical completion layer of a Bulletin 800F operator stack. Understanding where it lands in the assembly chain helps avoid BOM gaps at installation time.

  • Control panel or machine console with a 22 mm cut-out prepared to Rockwell's specified dimensions and panel thickness limits.
  • Allen-Bradley 800F 22 mm operator (push button, selector switch, or pilot light) inserted from the front of the panel through the cut-out.
  • Allen-Bradley 800F contact blocks assembled onto the rear of the operator body in the required electrical configuration.
  • 800F-ALP plastic mounting latch snapped onto the rear of the assembled stack, clamping the entire assembly tightly against the panel face.
  • Control wiring connected to the contact block terminals to complete the circuit — the latch has no electrical function and requires no wiring.

Where the 800F-ALP Is Used: Applications and Deployment Scenarios

The primary use case for the 800F-ALP is new OEM panel construction. Machine builders assembling conveyors, packaging lines, material handling systems, and automated manufacturing cells who have standardised on Allen-Bradley 800F operators need one 800F-ALP latch per operator position. Ordering a 10-pack at the BOM stage — rather than discovering the gap on the shop floor — is a straightforward discipline that experienced panel shops treat as automatic.

In plant maintenance environments, the 800F-ALP is a critical MRO spare. Operators on high-use machine fronts and MCC doors experience physical wear on the latch over years of panel vibration and repeated actuation. A cracked or broken plastic latch is a rapid field replacement — provided the plant stocks the part. Plants standardised on Bulletin 800F across many machines have good reason to keep 800F-ALP packs in inventory rather than sourcing them reactively.

Retrofit and panel rework projects also generate demand. When legacy operator stations are being upgraded to 800F hardware, or when panels are being re-engineered for new machine functions, the latches must be ordered alongside the operators and contact blocks. The 800F-ALP's approvals under Marine, CCC, and KC in addition to UL, cUL, and CSA make it suitable for use in panels destined for certified environments including marine installations and international infrastructure projects.

Application Typical Deployment
OEM machine panels New 800F operator assembly on conveyors, packaging, and material handling equipment
Plant MRO and maintenance Replacement of worn or cracked latches on high-use push buttons in manufacturing plants
MCC door operator stations Securing 800F push buttons and selector switches on motor control centre door fronts
Panel rework and retrofit New latches required when 800F operators are installed during panel upgrades or re-engineering
Marine and certified installations 22 mm operator stations requiring UL, cUL, CSA, CCC, KC, or Marine approval chain
MRO inventory stocking Spare latch packs held on-site at plants standardised on Bulletin 800F across multiple machines

Key Specifications, Packaging, and Variant Comparison

The table below covers the purchase-decision-relevant specifications for the Allen-Bradley 800F-ALP drawn from manufacturer-aligned distributor data and Rockwell product listings.

Attribute Value
Manufacturer Allen-Bradley (Rockwell Automation)
Catalog number 800F-ALP
Product type Plastic mounting latch kit
Compatible operator family Bulletin 800F 22 mm operators and contact blocks
Pack quantity 10 latches per package
Material Plastic
Width x Height Approx. 1-11/16 in (W) x 1-21/32 in (H)
Mounting method Snap-on latch at rear of panel, 22 mm panel cut-out
Certifications UL, cUL, CSA, CCC, KC, Marine
Factory lead time (when not stocked) On the order of several weeks (approximately 55 days reported)

Full technical specifications are available on the product page at LeadTime.ca.

The variant comparison below addresses the most common specification decision point engineers face with 800F latch selection: plastic versus metal, and how the 800F-ALP fits relative to other configurations within the Bulletin 800F accessory family.

Catalog Number Material Pack Quantity Typical Use Case Notes
800F-ALP Plastic 10 pieces Standard industrial panels, general environments, moderate vibration Manufacturer-recommended standard latch for most 800F applications
800F-ALM (naming-convention inference) Metal (unconfirmed) Confirm with Rockwell High-vibration, high-temperature, or mechanically demanding environments Catalog number inferred from Rockwell naming conventions — confirm in official Rockwell literature before specifying
Competitor 22 mm latches (e.g., Schneider ZB5 family, Siemens 3SU/3SB, Eaton M22) Varies Varies Installations committed to those operator families System-level alternatives only — not cross-compatible with 800F operators or contact blocks

If your application's environmental or vibration conditions exceed what a plastic latch can reliably handle, confirm the correct metal latch catalog number in current Rockwell documentation before ordering — the LeadTime.ca product page is the right starting point for confirming which 800F latch variant fits your build.

Expert Verdict: Is the 800F-ALP the Right Latch for Your Project?

The Allen-Bradley 800F-ALP does exactly what a mounting accessory should do: it completes the assembly, stays out of the way, and does not become a topic of conversation after installation. For OEMs, panel shops, and plant maintenance teams that have already standardised on Bulletin 800F 22 mm operators, this plastic latch is the logical default choice for standard industrial environments. The 10-piece pack quantity is practical for both new panel builds and MRO stocking, and the approvals list — UL, cUL, CSA, CCC, KC, Marine — covers the certification requirements most control panel designers encounter. The snap-on installation requires no tools and adds no wiring complexity to the build process.

The honest limit of the 800F-ALP is its material. Plastic latches in environments with significant vibration, mechanical shock, or elevated ambient temperatures carry a higher risk of wear or cracking over time compared to metal alternatives. If your application involves heavy machinery vibration, frequent shock loads, or aggressive chemical exposure near the operator, the right move is to verify whether a metal latch variant within the 800F family is available and suitable — starting with Rockwell's current published documentation rather than relying on naming-convention inference alone. Similarly, if the installed base includes any 30 mm 800T or 800H devices, or any non-Allen-Bradley 22 mm operators, the 800F-ALP is not the correct latch — each operator family requires its own proprietary mounting hardware.

From a procurement standpoint, the most common failure mode with this part is not performance — it is logistics. Rockwell's product listing indicates a factory lead time on the order of several weeks, with approximately 55 days reported when the part is not in distributor stock. For a low-cost accessory that blocks panel completion, that is a meaningful delay. Ordering through a specialist distributor who can verify live stock levels, flag BOM gaps, and align your latch order with the rest of your 800F operator package is the practical way to avoid that outcome. Check current availability for the Allen-Bradley 800F-ALP at LeadTime.ca — we ship worldwide and can confirm lead time before your order is committed.

For volume pricing, project-level BOM review, or questions about regional lead times, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 800F-ALP

Direct, model-specific community discussion of the 800F-ALP is sparse — this is a small accessory that rarely generates its own forum thread. What the broader panel-building community does discuss is the Bulletin 800F family as a whole, and the patterns in those conversations are instructive for anyone specifying the latch. Panel builders who work regularly with 800F hardware consistently describe the operator assemblies as straightforward to build and reliable once properly latched, treating accessories like the 800F-ALP as fit-and-forget hardware. The strongest recurring theme is not a complaint about the part itself — it is the ordering oversight. Latches are forgotten on BOMs, assumed to be included with operators or contact blocks, and discovered missing at installation time. That single mistake generates more frustration in 800F communities than any mechanical characteristic of the latch itself.

A secondary theme is cost sensitivity. When many operator positions are involved — as in large OEM machine panels or plant-wide standardisation programs — the per-unit cost of 800F hardware including accessories draws comparison to non-brand or alternative 22 mm systems. The counterpoint heard consistently from integrators is that standardisation on a single operator family simplifies engineering, stocking, and maintenance in ways that offset the accessory cost difference over the system's life. The convenience of consistent mechanical hardware across many machines, and the availability of a single latch part number that works across all standard 800F operator positions, is a practical argument that shows up repeatedly in panel-builder discussions.

The third pattern worth noting is about panel fit. A small number of field reports in 800F family discussions mention slight operator wobble tracing back to panel thickness near the edge of the specification range, or to a latch that was not fully seated during installation. The fix in every case is mechanical — re-seating the latch and verifying panel thickness against Rockwell's published limits — not a product defect. When community data is sparse and the manufacturer's documentation is the authoritative source, a specialist distributor familiar with the Bulletin 800F family is the most reliable resource for catching these issues before they reach the shop floor. The wrong-part checklist below reflects the exact verification steps that prevent these scenarios.

Installation Overview: Fitting the 800F-ALP on an 800F Operator

The 800F-ALP installation is a rear-of-panel snap-on operation. The following points summarise the key requirements — engineers requiring full procedures should consult the current Allen-Bradley Bulletin 800F installation documentation.

  • Confirm the panel has a correct 22 mm cut-out with deburred edges and that panel thickness is within the 800F mounting range specified in Rockwell documentation before beginning assembly.
  • Insert the 800F operator from the front of the panel so its body seats against the panel surface, then assemble the required 800F contact blocks onto the rear of the operator body per Rockwell's documented sequence.
  • Position the 800F-ALP plastic latch over the rear of the assembled stack and snap it firmly into place, verifying that all latch tabs are fully engaged and the assembly is pulled tight against the panel face.
  • Manually actuate the push button after installation to confirm it is secure, correctly aligned, and free of lateral movement or wobble.
  • For field replacement of a damaged latch, de-energise and follow site lockout/tagout procedures before releasing the existing latch tabs from the rear; support the operator during removal to prevent it from falling forward through the cut-out.

Wrong-Part Prevention Checklist Before Ordering the Allen-Bradley 800F-ALP

Before placing an order, run through these verification steps. Skipping any one of them is the documented source of the most common ordering and installation errors on 800F latch projects.

  1. Confirm the push button family is Bulletin 800F (22 mm) and not 800T/800H (30 mm) or another series.
  2. Verify the panel cut-out is the correct 22 mm size and that panel thickness is within the 800F mounting range specified in Rockwell documentation.
  3. Check that a plastic latch is acceptable for the environment (temperature, vibration, chemical exposure); otherwise investigate metal latch alternatives.
  4. Confirm that "800F-ALP" is a 10-piece package and that the quantity ordered covers all operators and spares needed.
  5. Ensure local/regional approvals (UL, cUL, CSA, Marine, CCC, KC) match project requirements.
  6. Verify lead time and stock status with a distributor, especially for large orders or Canadian deliveries, as factory lead time can extend to several weeks.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming compatibility now is faster than returning the wrong part later.

Frequently Asked Questions

Do Allen-Bradley 800F push button operators include the mounting latch, or does the 800F-ALP need to be ordered separately?

In many 800F configurations, the mounting latch must be ordered separately as a distinct line item. The 800F-ALP is a standalone 10-piece accessory pack, not automatically included with every operator or contact block. Confirm what is included in your specific operator configuration by reviewing the Rockwell product documentation or asking your distributor before finalising the BOM.

Can the 800F-ALP be used with any 22 mm push button, or only with Allen-Bradley Bulletin 800F devices?

The 800F-ALP is specifically designed for Allen-Bradley Bulletin 800F 22 mm operators and contact blocks. It is not compatible with 30 mm 800T or 800H devices, and it is not a universal 22 mm latch — other manufacturers' 22 mm operator systems use their own proprietary latching hardware that is not interchangeable with 800F accessories.

What should I check if my 800F push button feels loose or wobbly after installation?

The most common causes are a latch that was not fully snapped into engagement — all tabs must seat completely — or panel thickness near the edge of the 800F mounting specification range. Verify that the 800F-ALP latch tabs are fully locked and that the panel thickness is within Rockwell's published limits for the 800F family. A cracked or deformed plastic latch should be replaced with a new 800F-ALP unit.

Is there a metal version of the 800F mounting latch, and when should I use it instead of the 800F-ALP?

Metal latch variants for the Bulletin 800F family are referenced under nearby catalog numbers based on Rockwell's naming conventions — 800F-ALM is the commonly cited example — but this should be confirmed against current official Rockwell literature before specifying. A metal latch is worth evaluating for applications with significant vibration, mechanical shock, elevated ambient temperatures, or chemical environments that could degrade plastic over time. For standard industrial panels with moderate environmental conditions, the 800F-ALP plastic latch is the manufacturer-recommended choice.

How many 800F-ALP packs should I order for a panel project, and how many should I keep as spares?

Each 800F-ALP pack contains 10 latches and one latch is required per operator position. Count every 800F operator in the design, divide by 10, and round up to the next whole pack. Add spare packs appropriate to your site's maintenance practice — plants with many 800F operators benefit from keeping at least one additional pack in MRO stock given the reported factory lead time of approximately 55 days when distributor stock is exhausted.

Does the 800F-ALP carry the certifications needed for marine or international projects?

Yes. The 800F-ALP carries UL, cUL, CSA, CCC, KC, and Marine certifications, consistent with the wider Bulletin 800F operator family's approval posture. These approvals support use in certified control panel applications including marine installations and projects requiring CCC or KC compliance. Always verify that the specific approvals match your project's certification requirements before finalising the design.

Why Order the Allen-Bradley 800F-ALP From LeadTime.ca

  • LeadTime.ca ships Allen-Bradley accessories worldwide — no geographic restriction on orders.
  • Our team can verify live stock levels and factory lead time before your order is committed, preventing the project delays that a several-week lead time on a low-cost accessory can create.
  • We can review your full 800F BOM and flag missing or mismatched accessories — including latches that are often overlooked — before the order is placed.
  • Volume pricing is available for panel shops and OEMs ordering 800F-ALP packs in quantity alongside operators and contact blocks.
  • We source hard-to-find and short-lead-time industrial automation parts across North America and internationally, with direct support for Canadian buyers where cross-border supply chain timing matters.

At-a-Glance Summary: Allen-Bradley 800F-ALP

  • Plastic mounting latch kit for Allen-Bradley Bulletin 800F 22 mm push button operators and contact blocks — 10 pieces per package.
  • Snap-on installation at the rear of the panel — no tools, no wiring changes required.
  • Approximate dimensions: 1-11/16 in (W) x 1-21/32 in (H) — verify against panel layout for critical applications.
  • Certifications: UL, cUL, CSA, CCC, KC, Marine — supports use in a wide range of certified panel applications.
  • Not compatible with 30 mm 800T/800H devices or with other manufacturers' 22 mm operator families.
  • Factory lead time approximately 55 days when not in distributor stock — order early and verify availability before project schedules are locked.
  • Plastic construction is suitable for standard industrial environments; evaluate metal latch alternatives for high-vibration, high-temperature, or chemically aggressive applications.
  • One latch required per operator position — count all 800F positions in the BOM and round up to whole 10-packs, with spares added for MRO inventory.
