Allen-Bradley 800F-X10 — 1 N.O. Contact Block Buying Guide

By Abdullah Zahid
14 min read

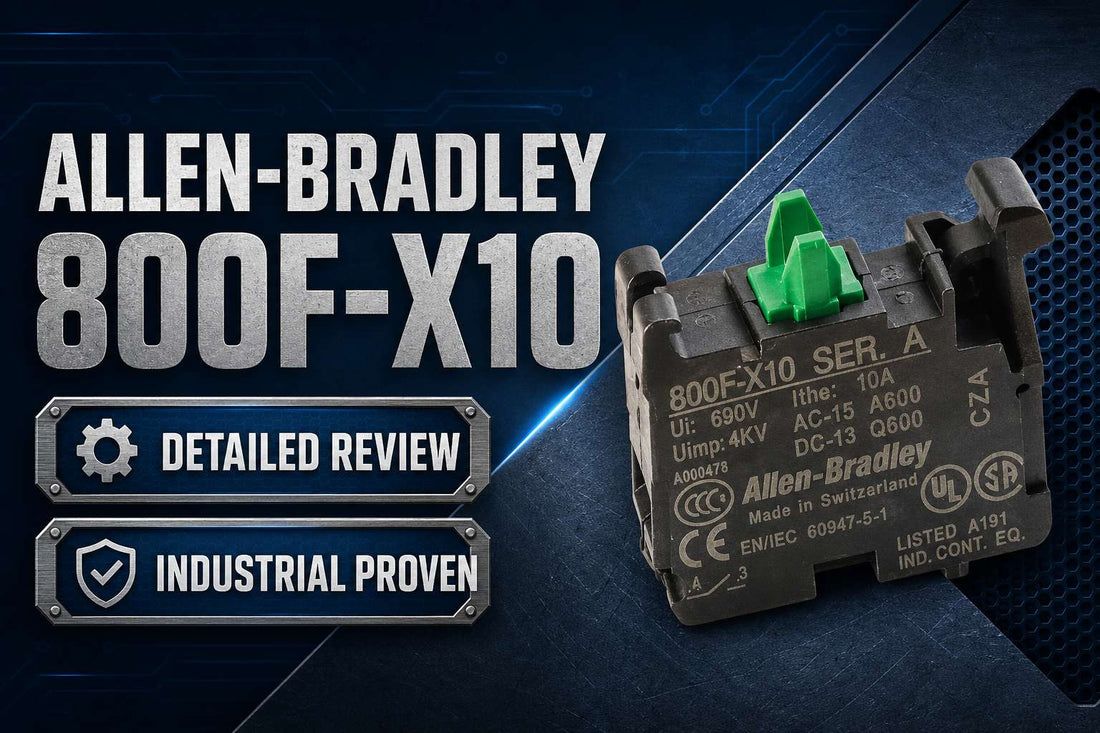

Allen-Bradley 800F-X10 22 mm contact block with 1 N.O. screw termination for Bulletin 800F push button operators

Allen-Bradley 800F-X10 22 mm Contact Block, 1 N.O., Screw Termination — Specs, Pricing, and Best Alternatives

When a push button station goes down on a production line, the part you need is usually a contact block — and the question is always the same: is this the right one? The Allen-Bradley 800F-X10 is the standard 1 normally open (N.O.) contact block for the Bulletin 800F 22 mm push button family, using screw termination and a no-latch design that clips directly behind any compatible 800F operator. If your panel is already built around 800F hardware and you need a single N.O. switching contact with screw terminals, this is almost certainly the correct part — provided you verify three things before ordering: operator family, contact function, and termination style.

If you have already confirmed the 800F-X10 is the right part for your application, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the Allen-Bradley 800F-X10 — and Who Shouldn't

The 800F-X10 is right for you if all of the following apply to your application:

  • Your operators are Allen-Bradley Bulletin 800F, 22 mm — not 800T, 800H, or any 30 mm family
  • Your control circuit requires exactly one normally open (N.O.) contact per block
  • Your panel wiring standard accepts screw termination (not spring-clamp or cage-clamp)
  • Your panel cutout is 22 mm and you have sufficient depth behind the panel for the contact block body
  • Your circuit voltage and current fall within the AC-15 / DC-13 utilization category ratings for the 800F family — verify against the 800F datasheet for your exact voltage
  • Your application does not require safety-rated contacts, latching function, or mixed N.O./N.C. poles on a single block

If your application requires N.C. contacts, mixed contact blocks, spring-clamp termination, safety-rated switching, or any 30 mm operator family, the 800F-X10 is not the correct selection. Other variants within the 800F family or a different Allen-Bradley product line will better serve those requirements — see the variant comparison table below.

On this page:

What the Allen-Bradley 800F-X10 Actually Does in a Control Panel

The 800F-X10 is a 22 mm contact block that provides the electrical switching function behind an 800F series operator — a push button, selector switch, key switch, or similar device mounted in a standard 22 mm panel cutout. When the operator is actuated, the contact block closes the N.O. contact, completing a control circuit. The operator you see on the panel face is mechanically separate from the contact block that does the electrical work; the 800F-X10 clips onto the rear of the operator and can be replaced independently without removing the operator from the panel.

This separation is a practical advantage in maintenance. A worn or failed contact block can be swapped during a brief shutdown without disturbing the panel cutout hardware or the overall station wiring run. The screw termination style on the 800F-X10 connects directly to control conductors using a standard flat-blade or torque-limiting screwdriver — no proprietary tools required. The no-latch designation means the contact is spring-return: it opens as soon as the operator is released, which is the correct behavior for momentary push buttons used in start, jog, and reset functions.

The 800F-X10 is designed and tested according to IEC 60947-5-1 for control circuit devices and carries UL and CSA listings along with CE marking, making it suitable for panels built to both North American and IEC standards. The operating temperature range for the 800F family is -25 °C to +70 °C, which covers the vast majority of indoor industrial environments without derating.

Where the 800F-X10 Fits in a Typical Control Station Architecture

The 800F-X10 sits at the field device level, directly behind the operator on a control station enclosure, and passes the switching signal upstream into the control circuit. Here is a typical signal chain for a motor start/stop application:

  • PLC digital input card or control relay — receives the N.O. contact closure signal from the field
  • Control circuit wiring — 18 or 16 AWG conductors routed from the terminal block to the push button station
  • 800F push button station enclosure — houses one or more 22 mm operators in a standard panel cutout
  • 800F operator (e.g., green "Start" push button actuator) — the physical device the operator presses; mechanically drives the contact block below
  • Allen-Bradley 800F-X10 contact block — clips to the rear of the operator, closes the N.O. contact when actuated, returns to open when released

Typical Applications for the 800F-X10 Contact Block

The most common deployment for the 800F-X10 is the start/stop station on motor control centers and local control panels in general manufacturing. A green "Start" push button with a 1 N.O. contact block is the default configuration in thousands of motor starter circuits, and the 800F-X10 is the standard 800F part for that role. Any application using a momentary N.O. contact to signal a PLC input, energize a contactor coil, or trigger a timing relay is a valid use case.

Control consoles and HMI panels in automotive, metals, and packaging machinery frequently use multiple 800F operators for jog, reset, manual mode, and cycle start functions. Each of those push buttons typically needs at least one contact block, and when the circuit logic is N.O., the 800F-X10 is the straightforward choice. OEM machine builders who have standardized on the 800F platform as their 22 mm operator family will stock the 800F-X10 as a common spare across all machines, simplifying both procurement and field replacement.

In maintenance and MRO scenarios, the 800F-X10 is one of the most frequently ordered contact blocks precisely because it is the default N.O. block in the 800F line. When a push button station fails on a conveyor, packaging line, or process skid, the contact block behind the operator is often the first component to inspect and replace.

Application Typical Deployment
Motor start/stop station 1 N.O. 800F-X10 behind green "Start" push button, wired to contactor coil or PLC input
Jog and reset controls Single 800F-X10 per operator on machine control console, momentary N.O. signal to PLC
OEM panel build Multiple 800F-X10 blocks across a machine panel standardized on the 800F 22 mm family
MRO / field replacement Direct swap for failed N.O. contact block in existing 800F installation, same catalog number
Process skid local control Manual mode, permissive, or status push buttons on skid-mounted panels in water and food facilities
Conveyor control station Start and momentary N.O. signal blocks on material handling lines in distribution and manufacturing

Allen-Bradley 800F-X10 Specifications and Variant Comparison

Parameter Value Notes
Brand Allen-Bradley (Rockwell Automation) Bulletin 800F family
Catalog Number 800F-X10 Verify marking on product and packaging
Product Type 22 mm contact block, 1 N.O., no latch For use with 800F 22 mm push button operators
Contact Configuration 1 normally open (N.O.) Spring-return; opens when operator is released
Termination Style Screw terminals Match to plant wiring standard before ordering
Operator Compatibility Allen-Bradley Bulletin 800F, 22 mm Not compatible with 800T / 800H 30 mm families
Utilization Category AC-15 / DC-13 Confirm exact ratings per voltage from 800F datasheet
Operating Temperature -25 °C to +70 °C 800F family-level rating; confirm from current datasheet
Certifications UL, CSA, CE IEC 60947-5-1; verify applicable marks for your region
Panel Cutout 22 mm Confirm enclosure panel depth is sufficient for block body

Full technical specifications are available on the product page at LeadTime.ca.

The table below compares the 800F-X10 against other common contact block configurations within the 800F family to help you confirm you are selecting the right variant.

Configuration Contact Function Termination Right For Not Right For
800F-X10 (this part) 1 N.O. Screw Start, jog, signal circuits with N.O. logic and screw wiring standard N.C. logic, spring-clamp panels, safety functions
800F N.C. variant 1 N.C. Screw Stop, interlock, guard circuits with N.C. logic N.O. circuits; will cause reversed logic if substituted
800F mixed N.O./N.C. variant 1 N.O. + 1 N.C. Screw Applications needing both functions from a single operator Single-pole applications where cost or depth is a constraint
800F spring-clamp N.O. variant 1 N.O. Spring-clamp Plants standardized on tool-free or cage-clamp termination Screw-terminal panel standards; not cross-wireable without ferrules
800F safety-rated contact block Safety function Screw or spring Safety-rated e-stop or guard interlock circuits per IEC 62061 / ISO 13849 Standard control logic; safety blocks cost more and are over-spec for normal N.O. functions

If your circuit requires a mixed contact configuration or a spring-clamp termination, the 800F-X10 is not the correct selection — check current availability of all 800F contact block variants at LeadTime.ca.

Expert Verdict: Is the Allen-Bradley 800F-X10 Worth Standardizing On?

The 800F-X10 is the default 1 N.O. contact block you stock once your facility or machine platform commits to Allen-Bradley 800F 22 mm operators. It does not try to be anything other than what it is: a dependable, standard-format contact block with familiar screw terminals, clip-on mounting, and a no-latch spring-return action that suits every momentary push button application from motor starts to jog and reset buttons. The IEC 60947-5-1 compliance, UL and CSA listings, CE marking, and -25 °C to +70 °C operating range mean it fits the approval matrix for most industrial panel builds without special justification. Maintenance teams and panel builders alike appreciate that the 800F contact block can be replaced independently of the operator, cutting replacement time significantly during unplanned downtime events.

That said, the 800F-X10 is specifically the wrong choice if your control circuit uses N.C. logic, if your plant standard mandates spring-clamp or cage-clamp termination, or if your application is a safety function requiring a safety-rated contact block. Installing a 1 N.O. block where the schematic calls for N.C. is one of the most common and costly field mistakes on 800F panels — it results in reversed circuit logic that may not be caught until commissioning. Similarly, buyers who are not locked into the Allen-Bradley ecosystem should evaluate whether a different 22 mm platform better fits their total cost of ownership, since the 800F line does carry a price premium compared to some alternatives.

From a procurement standpoint, the 800F-X10 is among the most accessible parts in the 800F catalog — it is a high-volume, commonly stocked item at specialist distributors worldwide, which keeps lead times short for both single-piece MRO orders and project-volume quantities. Working with a specialist distributor rather than a generic channel matters here because the 800F family has enough catalog complexity that a wrong-part order is genuinely easy to make. A distributor with industrial automation depth can confirm compatibility with your specific operator, identify in-family alternatives when the exact variant is on back-order, and help you build a standardized 800F spare parts list that covers multiple facilities. Check current pricing and stock for the Allen-Bradley 800F-X10 at LeadTime.ca — we ship worldwide.

For volume pricing on project quantities or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can assist with cross-referencing across the 800F contact block family.

What Engineers Need to Know Before Ordering the 800F-X10

Across industrial forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and distributor Q&A sections, the 800F family draws consistent positive sentiment — users describe the contact blocks as durable and reliable in everyday industrial service, and electricians specifically mention that the clip-on mounting makes field replacement fast and intuitive. Panel builders report that the screw terminals on 800F blocks are easy to access and wire compared to some compact 22 mm alternatives, which matters when working inside a crowded enclosure.

The complaints that surface repeatedly are just as instructive. The 800F line carries a price premium that draws comment, particularly from buyers specifying large quantities across multi-machine projects. The more operationally significant concern is catalog complexity: users on PLCTalk and PLCS.net note that confusing N.O., N.C., mixed-contact, latching, and different terminal variants within the 800F family is easy to do if you are working quickly or relying on memory rather than checking the schematic. The single most common ordering mistake cited across these communities is receiving an N.O. block when the panel required N.C. contacts — or vice versa — and having to absorb the cost of a reorder and field rework. A secondary but recurring issue is buyers ordering 800F contact blocks for 800T or 800H operators, only to find the parts physically incompatible because the 800T and 800H are 30 mm families.

A few community members also flag space as a real constraint when stacking multiple contact blocks behind deep 22 mm operators in shallow panels. If your enclosure has limited rear depth, verify the assembled depth of the operator plus one or more contact blocks against your available panel space before ordering. When community feedback is sparse on a specific catalog number — as it is for many individual 800F variants — the right move is to consult a specialist distributor who works with the 800F line daily and can confirm compatibility questions before the order ships.

Wiring and Installation Overview for the Allen-Bradley 800F-X10

  • Always isolate the control circuit and follow lockout/tagout procedures before installing or replacing the 800F-X10; confirm zero energy at all terminals before touching conductors.
  • Verify the 800F operator is correctly seated and secured in the 22 mm panel cutout before attaching the contact block; misalignment between operator and block is a source of intermittent switching behavior.
  • Align the 800F-X10 with the operator's rear mounting interface and press until it locks securely into place; an incompletely engaged block will not transfer actuator motion to the contact reliably.
  • Strip conductors to the manufacturer-recommended length, insert into the screw terminals, and tighten to the specified torque value from the 800F datasheet; under-tightened terminals are a leading cause of intermittent operation and terminal overheating in service.
  • After installation, perform a continuity test on the N.O. contact in both the open and actuated positions, and confirm correct PLC input or relay coil behavior before returning the circuit to service.

Wrong-Part Prevention Checklist Before You Order the 800F-X10

The six checks below address the most common ordering errors on the 800F contact block line. Confirm each point against your panel documentation before placing the order.

  1. Confirm the operator family is Bulletin 800F (not 800T/800H or another 30 mm family).
  2. Verify you actually need a 1 N.O. block; check the control diagram for N.O. vs N.C. requirements.
  3. Check that screw terminals are acceptable; if the panel standard is spring-clamp, select the matching variant.
  4. Confirm the mounting style (front vs rear) is compatible with the chosen 800F operator hardware.
  5. Ensure the panel cutout is 22 mm and that you have space for the depth of the block behind the panel.
  6. Match electrical ratings to the control voltage and current of your circuit, especially for AC-15/DC-13 loads.

If any of those checks raises a question you cannot resolve from the schematic or existing hardware markings, contact the LeadTime.ca team before ordering — confirming the part takes minutes; correcting a wrong-part order takes days.

Frequently Asked Questions

Will the 800F-X10 fit my existing Allen-Bradley push button, and how do I confirm it is an 800F operator and not an 800T or 800H?

The 800F-X10 is compatible with Allen-Bradley Bulletin 800F 22 mm operators only. The 800T and 800H families use a 30 mm format and physically incompatible mounting interfaces — contact blocks from one family will not attach to operators from the other. Check the operator nameplate or the panel drawing for the Bulletin number; if it reads 800F, the 800F-X10 is mechanically compatible. If you cannot locate documentation, measure the panel cutout: 22 mm confirms the 800F family, 30 mm points to 800T or 800H.

How do I tell from the catalog number whether an 800F contact block is N.O. or N.C.?

For the 800F family, the catalog number suffix indicates contact function. The 800F-X10 designation identifies this as a 1 N.O. block. Other variants carry different suffixes for N.C. contacts or mixed N.O./N.C. configurations. Always cross-reference the catalog number against the current Allen-Bradley Bulletin 800F product selection guide or datasheet rather than relying on memory, because the suffixes between N.O. and N.C. variants can look similar at a glance.

Can I mix screw-terminal and spring-clamp 800F contact blocks on the same operator?

Mechanically, different termination-style contact blocks can often be attached to the same 800F operator, but this is not a recommended practice. Mixing termination styles on a single station creates wiring inconsistency that complicates maintenance and can introduce errors during panel modifications. If your plant standard is screw termination, specify all blocks with screw termination; if the standard is spring-clamp, select spring-clamp variants throughout. Confirm the acceptable combination with Rockwell Automation documentation before mixing styles on a single operator.

What should I check first if my PLC input does not change state after installing a new 800F-X10?

Start with mechanical engagement: confirm the contact block is fully locked onto the operator and that actuating the push button visibly moves the block's internal mechanism. Next, check terminal tightness — a loosely torqued screw terminal is the most common cause of no-signal faults immediately after installation. Then perform a continuity test directly across the contact block terminals while actuating the operator, bypassing the control wiring to isolate whether the fault is in the block itself or in the wiring run. Finally, verify the PLC input card channel and wiring polarity against the control schematic.

Is the 800F-X10 appropriate for e-stop or safety interlock circuits?

No. The 800F-X10 is a standard-duty 1 N.O. contact block and is not rated or certified as a safety contact block for use in SIL or PLr-rated safety functions. E-stop circuits and safety interlocks requiring compliance with IEC 62061 or ISO 13849 must use contact blocks specifically rated and certified for safety applications. Using a standard contact block in a safety-rated circuit is a compliance and liability risk. Select a dedicated safety-rated 800F variant and confirm the safety circuit design with a qualified functional safety engineer.

Why Order the Allen-Bradley 800F-X10 From LeadTime.ca

  • LeadTime.ca stocks and ships Allen-Bradley 800F contact blocks worldwide — no geographic restriction on orders
  • Specialist distributor with industrial automation focus — able to confirm 800F family compatibility and suggest in-stock alternatives when a specific variant has extended lead time
  • Volume pricing available for project quantities and MRO blanket orders — contact the team for current quotes
  • Fast response on sourcing questions — useful when you are working against a downtime clock and need to confirm the right part before shipping
  • View current pricing and availability for the Allen-Bradley 800F-X10 at LeadTime.ca

At-a-Glance Summary — Allen-Bradley 800F-X10

  • 22 mm contact block for Allen-Bradley Bulletin 800F operators — not compatible with 800T or 800H 30 mm families
  • 1 normally open (N.O.) contact, no-latch, spring-return — correct for momentary start, jog, and signal circuits
  • Screw termination — verify this matches your plant wiring standard before ordering
  • Operating temperature range: -25 °C to +70 °C, covering standard indoor industrial environments
  • Certified to IEC 60947-5-1; carries UL, CSA, and CE listings for North American and international panel builds
  • AC-15 / DC-13 utilization category — confirm exact voltage and current ratings from the current 800F datasheet for your specific circuit
  • Not suitable for safety-rated e-stop or guard interlock circuits — use a dedicated safety contact block for those applications
  • Widely stocked item; typically short lead time for standard quantities at specialist distributors worldwide
  • Most common ordering errors: wrong contact type (N.O. vs N.C.), wrong operator family (800F vs 800T/800H), wrong termination style (screw vs spring-clamp)
