Allen-Bradley 440R-D22R2 — Guardmaster Safety Relay Review

By Abdullah Zahid
17 min read

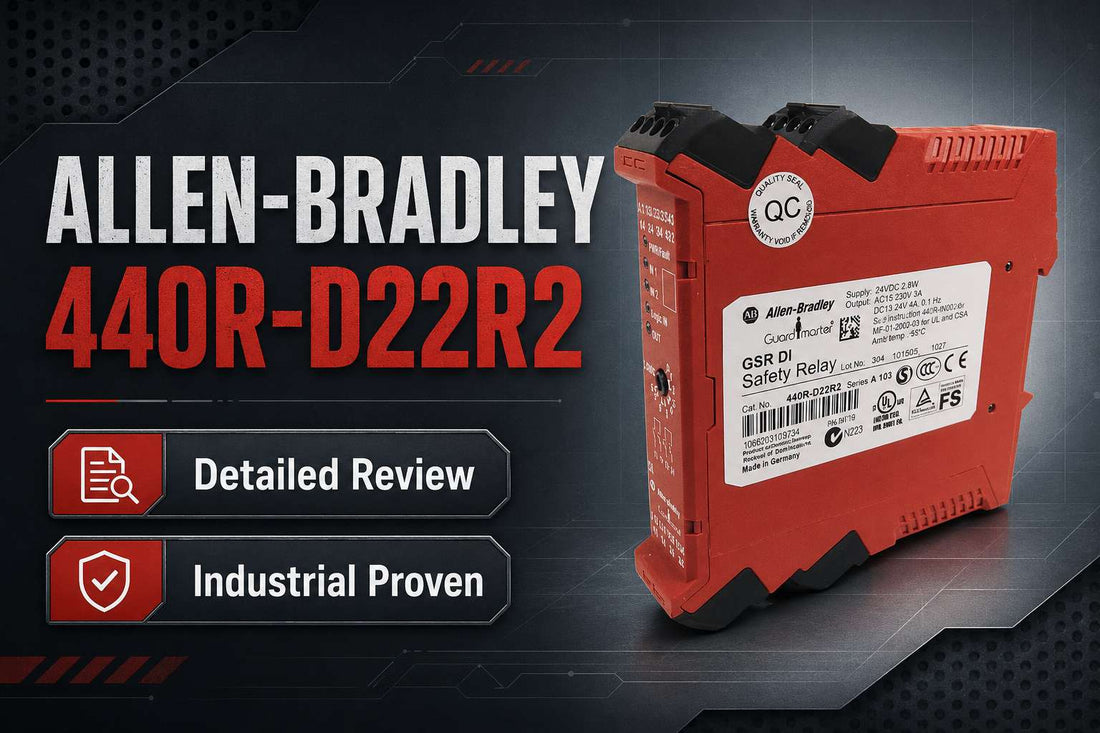

Allen-Bradley 440R-D22R2 Guardmaster Dual Input Safety Relay mounted on DIN rail in industrial control panel

Allen-Bradley 440R-D22R2 Guardmaster Dual Input Safety Relay (GSR DI) — Specs, Review, and Buying Guide

Controls engineers specifying a dual-channel safety relay for a Rockwell-based machine need to confirm three things fast: input compatibility with their specific safety devices, sufficient safety outputs for all control circuits that must de-energize on a safety event, and a catalog number that won't get confused with a functionally different GSR variant. The Allen-Bradley 440R-D22R2 is a 24 V DC Guardmaster Dual Input safety relay (GSR DI) with two dual-channel universal inputs — accepting both contact-based and OSSD-type devices — plus two N.O. safety outputs and one solid-state auxiliary output. It sits in the safety logic layer between field devices like e-stops, interlock switches, and safety light curtains and the machine's control circuits, providing certified stop functions to EN ISO 13849 and IEC 62061 standards.

If you have already confirmed this is the right part, check current pricing and availability for the 440R-D22R2 at LeadTime.ca — ships worldwide.

Who Should Buy the 440R-D22R2 — and Who Shouldn't

The Allen-Bradley 440R-D22R2 is the right relay for safety designers working in Allen-Bradley or Rockwell-standardized panels who need to monitor up to two dual-channel safety device groups on a single compact module. Order with confidence if all of the following apply to your application:

  • Your control voltage is 24 V DC — this relay does not support AC supply
  • You are monitoring contact-based devices (e-stops, interlock switches) and/or OSSD outputs from safety light curtains on dual-channel inputs
  • Two N.O. safety relay outputs plus one solid-state auxiliary output are sufficient to cover every circuit that must drop on a safety event
  • Your risk assessment targets a performance level and safety category achievable with a dual-input standalone safety relay to EN ISO 13849 and IEC 62061
  • You do not require integrated timing functions (on-delay or off-delay) in the safety output — if you do, a GSR timing variant is the correct choice
  • Your safety logic is discrete and straightforward — applications requiring complex multi-zone logic or networked safety integration belong on a programmable safety controller such as Compact GuardLogix or GuardLogix

If your project requires timed safety outputs, significantly more output contacts, AC supply, or programmable safety logic across multiple zones, the 440R-D22R2 is not the right selection. Look at other Guardmaster GSR variants — including the TI (timing input) and SI (single input) models — or evaluate a configurable safety controller for complex architectures.

On this page:

What the 440R-D22R2 Actually Does in a Safety Circuit

The Allen-Bradley 440R-D22R2 occupies the safety logic and output switching position between your field safety devices and the machine's power-removal or motion-inhibit circuits. When an e-stop is pressed, a guard is opened, or a safety light curtain detects a person in the hazard zone, the relay's monitored inputs detect the change, the two safety-rated N.O. output contacts open, and the connected machine contactor coil or enable circuit de-energizes — stopping the hazardous motion in a controlled and certified manner.

What makes the GSR DI designation meaningful is the dual-input architecture: the 440R-D22R2 monitors two independent dual-channel safety input groups simultaneously. Each input group can accept either dry contact devices (e-stops, safety interlock switches, safety mats) or semiconductor-based OSSD outputs from devices such as safety light curtains, within the manufacturer's specified input compatibility. This universal input design means a machine builder can consolidate an e-stop and a guard door interlock onto a single relay without using two separate modules, reducing panel space and simplifying the spare parts list.

Beyond the two safety outputs, the relay provides one solid-state auxiliary output for status signaling to a PLC or HMI, allowing the control system to log safety events without routing signals through the safety output contacts. The relay also supports a monitored feedback loop from downstream contactor auxiliary contacts, enabling detection of welded or stuck output devices — a requirement in many ISO 13849 Category 3 and Category 4 circuit architectures. Manual or automatic reset configurations are supported, with manual monitored reset being the standard choice for guarded access applications where an operator must actively acknowledge before restart is permitted.

The relay is certified to recognized functional safety standards including EN ISO 13849 and IEC 62061, making it usable in formally validated machine safety designs where documented performance levels are required. As with all safety relays, the achievable performance level depends not only on the relay itself but on the complete circuit architecture, including device selection, wiring method, and diagnostic coverage — all of which must be assessed per the safety manual.

Typical Safety System Architecture

The 440R-D22R2 sits at the safety logic layer — after the field safety devices and before the power-switching elements (contactors, drives, or valve solenoids). Here is how a typical chain looks:

  • Field safety devices (e-stops, guard door interlock switches, safety light curtains with OSSD outputs, safety mats) connected to dual-channel input terminals on the 440R-D22R2
  • 440R-D22R2 monitoring both input channels and feedback loop continuously; safety outputs held closed when all inputs and feedback indicate a safe state
  • Safety output contacts wired in series with safety contactor coil circuits or drive enable inputs to remove energy from hazardous actuators on a safety event
  • Contactor auxiliary contacts wired back to the relay's feedback monitoring loop to detect welded contacts before the next restart is permitted
  • Reset button circuit wired to the relay for operator-initiated restart, with the solid-state auxiliary output providing status signal to the main PLC or control panel indicator
  • Optional expansion: additional Guardmaster GSR modules connected via single-wire safety connection for multi-device or multi-zone safety circuits without additional relay wiring complexity

Typical Applications and Deployment Scenarios

The Allen-Bradley 440R-D22R2 is most at home on small-to-medium machines where the safety function can be defined by monitoring two dual-channel input groups and where the machine's safety architecture does not require programmable logic or networked safety. Automotive assembly line sub-stations, packaging machines, palletizers, conveyor sections with access doors, and material handling equipment all represent typical deployment environments for this relay in Rockwell-based panels.

OEM machine builders standardized on Allen-Bradley hardware regularly specify the 440R-D22R2 to cover access door interlocks and e-stop circuits simultaneously on a single module, reducing panel wiring compared to using two single-input relays. In food and beverage applications where frequent wash-down cleaning creates access events, the relay's clear LED status indicators help maintenance staff quickly confirm whether a safety circuit is active or faulted without entering the panel.

The relay also appears frequently in machine upgrade and retrofit projects where an aging or obsolete safety relay needs to be replaced with a currently certified component that fits within an existing DIN-rail layout. Its DIN-rail mounting and compact form factor make it a practical fit in retrofits where panel real estate is limited.

For applications involving safety light curtains with OSSD outputs alongside contact-based e-stops — a common pairing in robotic cell guarding and press safety — the universal dual-channel inputs reduce the relay count needed and simplify the BOM.

Application Typical Deployment
Two dual-channel e-stop circuits on a single machine Both e-stop strings wired as dual-channel inputs to a single 440R-D22R2; common stop output to machine contactors
E-stop plus guard door interlock on same machine E-stop on input 1, tongue interlock switch on input 2; both monitored simultaneously with manual reset required
Safety light curtain (OSSD) combined with contact-based interlock OSSD outputs from light curtain to one input group; contact interlock to second input group, within manufacturer wiring specifications
Small machine retrofit replacing obsolete safety relay Like-for-like swap on existing DIN rail; catalog number and input/output wiring verified before installation
GSR family multi-zone expansion via single-wire safety connection 440R-D22R2 as primary module with additional GSR expansion modules for additional safety device groups

Key Specifications for Purchase Decisions

Parameter Value / Description
Brand / Series Allen-Bradley Guardmaster GSR DI
Catalog Number 440R-D22R2
Supply Voltage 24 V DC only
Safety Inputs 2 dual-channel universal inputs — compatible with contact-based devices and OSSD outputs per datasheet
Safety Outputs 2 N.O. safety relay output contacts
Auxiliary Output 1 solid-state immediate auxiliary output
Feedback Monitoring Monitored feedback loop for downstream contactor auxiliary contacts
Reset Types Manual monitored reset and automatic reset configurable
Safety Standards EN ISO 13849, IEC 62061 — performance level and category per Rockwell safety documentation
Mounting DIN rail mount

Full technical specifications are available on the product page at LeadTime.ca.

440R-D22R2 vs Other Guardmaster GSR Variants — Which One Do You Actually Need?

The Guardmaster GSR family covers a range of safety relay functions. The DI (Dual Input) variant — the 440R-D22R2 — is not the right selection for every application. The table below maps the key functional differences to help avoid the most common variant ordering mistake in the GSR lineup.

GSR Variant Type Inputs Safety Outputs Timing Function Best Fit Application
DI — Dual Input (440R-D22R2) 2 dual-channel universal (contact / OSSD) 2 N.O. + 1 solid-state auxiliary No Two safety device groups, mixed device types, no timing needed
SI — Single Input 1 dual-channel universal Varies by model No Single safety device group; simpler circuits
TI — Timing Input Dual-channel with timing capability Includes timed outputs Yes (on-delay / off-delay) Applications requiring a timed safety output for controlled stop sequences
EM — Expansion Module Via single-wire safety connection from primary module Additional N.O. safety outputs No Expanding output count from an existing GSR primary module
Configurable / Programmable Safety Controller (e.g., Compact GuardLogix) Configurable, multiple zones Multiple, networked Yes, programmable Complex multi-zone safety logic, networked safety, large machines

If your application requires timed safety outputs or more N.O. contacts than the 440R-D22R2 provides, a GSR TI or expansion module is the correct selection — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the 440R-D22R2 Worth Specifying?

For safety designers working in Rockwell-standardized plants, the Allen-Bradley 440R-D22R2 delivers exactly what a dual-input safety relay should: two universal dual-channel inputs that accept the mixed device types found on real machines, a clean diagnostic LED layout that supports fast fault-finding, and documented certification to EN ISO 13849 and IEC 62061 for formally validated safety circuits. The practical benefit of consolidating an e-stop circuit and a guard door interlock onto one module — while maintaining dual-channel integrity and feedback monitoring — is real and tangible on machines where BOM simplification and spares standardization matter. OEM builders who produce multiple machine variants benefit particularly from the universal input design, since one relay covers the wiring variations across platforms without stocking multiple input-specific relay types.

The honest limits are equally clear. The 440R-D22R2 has no timing functions — if your safety function requires a controlled stop with an off-delay before power is removed, you need a GSR timing variant, not this relay. Applications with more than two safety device groups, complex conditional safety logic, or safety network integration belong on a programmable safety controller such as GuardLogix or Compact GuardLogix, where the 440R-D22R2 would be an undersized solution regardless of how cleanly it fits on the DIN rail. Cost-driven retrofit projects in plants with no Allen-Bradley standardization requirement should honestly evaluate lower-cost safety relay options from other manufacturers, since the Guardmaster premium is largely justified by ecosystem integration — an advantage that disappears when the surrounding hardware is mixed-brand.

On the procurement side, the 440R-D22R2 is a recognized catalog item with established distribution in North America, though specific lead times vary by distributor and change with supply conditions. Ordering through a specialist distributor — rather than a generic channel — provides a meaningful advantage at the specification stage: a specialist can confirm that the DI variant is the correct functional match for your safety architecture, flag if a different GSR module would be a better fit, and verify real-time stock across warehouse locations before you commit a lead time to your project schedule. View current pricing and availability for the 440R-D22R2 at LeadTime.ca — ships worldwide.

For volume pricing, project BOM review, or to confirm lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can source across North American warehouses.

What Engineers Need to Know Before Ordering the 440R-D22R2

Community discussions around Guardmaster GSR safety relays — spanning forums including PLCTalk, PLCS.net, MrPLC, Reddit r/PLC, and Rockwell's own support channels — reflect a consistently positive baseline experience among engineers working in Rockwell-centric environments. The recurring themes of praise center on three practical points: terminal labeling and LED diagnostics that make wiring verification and fault-finding faster than many competing relays, the value of standardizing on a single GSR relay family across multiple machine types to simplify maintenance training and spares management, and the flexibility of the universal dual-channel input design that lets a single relay cover mixed device types — e-stops, interlocks, and OSSD light curtain outputs — without requiring dedicated input-specific modules.

The complaints that surface repeatedly are equally consistent. Price is the most cited concern: Guardmaster relays carry a cost premium compared with safety relays from smaller or non-Rockwell brands, and in cost-sensitive retrofit work, that premium requires explicit justification tied to plant standardization or ecosystem benefits. Lead time is a secondary concern that escalates during supply constraint periods, with forum users reporting multi-week waits for specific GSR part numbers when distributor stock is depleted. A third recurring theme — particularly among engineers newer to functional safety — is difficulty interpreting the input configuration options in the technical manual and understanding how circuit architecture choices affect the achievable performance level and safety category. The manual is thorough but dense, and the interaction between relay capability and overall circuit design is not always obvious to less-experienced safety designers.

The ordering mistakes most frequently reported at the family level map directly to the specification decisions that matter most for the 440R-D22R2 specifically. Engineers have ordered a timing GSR module when they needed a dual-input module, or a single-input module when two input groups were required, because the catalog number structure across the GSR family looks similar at a glance. Others have selected an AC-supply relay or a model with a regional suffix that differed from what was intended. A third documented mistake is assuming that any Guardmaster relay will accept OSSD light curtain outputs without verifying the specific input type compatibility in the datasheet — OSSD inputs require correct polarity, specific wiring, and are not interchangeable with dry contact inputs without confirming against the manufacturer's wiring guidance. When community data is sparse and the technical manual alone isn't resolving your selection question, speaking directly with a specialist distributor before ordering is the most efficient path to a correct first-time order.

Wiring and Installation Overview

The following points outline the key requirements for installing the 440R-D22R2. Full wiring diagrams and step-by-step procedures are provided in Rockwell's official user manual and safety documentation — refer to those documents for complete installation guidance.

  • Connect 24 V DC supply to the relay's power terminals as shown in the manufacturer's wiring diagram; confirm polarity and verify zero energy state with lockout/tagout applied before wiring begins
  • Wire each safety device group as a true dual-channel input to the designated input terminals, keeping channels physically separated; for OSSD devices, observe polarity and wiring requirements specific to semiconductor outputs — do not treat OSSD outputs as simple dry contacts
  • Wire the two N.O. safety output contacts in series with the machine contactor coil or drive enable circuits that must de-energize on a safety event; connect the feedback loop from contactor auxiliary contacts back to the relay's feedback monitoring terminals
  • Configure and wire the reset circuit according to the intended safety function — manual monitored reset is the standard choice for applications involving guarded access; verify the reset input wiring matches the user manual requirements to avoid nuisance trips
  • After wiring is complete, restore power and verify LED status indicators against the user manual before performing a full functional test of every connected safety device; document test results as part of the machine's safety validation record

Single-Wire Safety Connection and GSR System Expansion

The Guardmaster GSR series supports single-wire safety connection between modules, allowing the 440R-D22R2 to be paired with GSR expansion modules to increase output capacity or extend safety coverage to additional device groups — without the additional home-run wiring that would be required between independent relay modules. This feature is particularly useful when a machine grows beyond what a single DI relay can cover, or when an OEM wants to add a second safety zone to an existing GSR-based architecture without replacing the primary relay.

  • GSR EM (Expansion Module) — adds additional N.O. safety output contacts driven by the primary module's safety state via single-wire connection
  • Additional GSR DI modules — for machines with more than two dual-channel safety input groups requiring independent monitoring
  • GSR TI modules — for applications within the same panel where a timed safety output is needed alongside the standard instantaneous outputs of the 440R-D22R2

Wrong-Part Prevention Checklist

Before finalizing your order for the Allen-Bradley 440R-D22R2, work through this checklist to confirm the relay is the correct selection for your specific application:

  1. Confirm the machine control safety voltage is 24 V DC; this relay does not support AC supply.
  2. Verify your safety devices (e-stops, interlocks, light curtains) are compatible with the "dual input" universal inputs, including any OSSD outputs, and that the number of channels matches the design.
  3. Check that two N.O. safety outputs plus one solid-state auxiliary output are sufficient for all circuits that must be de-energized on a safety event.
  4. Confirm the required performance level / safety category and standards (ISO 13849, IEC 62061) can be met with this relay in your architecture, per the datasheet and safety manual.
  5. Make sure you do not need timing functions; if timed safety outputs are required, choose an appropriate timing safety relay instead.
  6. Check panel space and DIN rail layout; ensure enough clearance for wiring and indicator visibility.
  7. Validate that no one has specified a programmable safety controller where logic conditions are more complex than this relay can handle.
  8. Confirm catalog number formatting (440R-D22R2 vs similar GSR part numbers) before ordering to avoid variant mix-ups.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can verify the correct catalog number for your application and confirm current availability worldwide.

Frequently Asked Questions

Can the 440R-D22R2 accept both OSSD outputs from a safety light curtain and dry contact inputs from an e-stop on the same relay?

The 440R-D22R2 features universal dual-channel inputs designed to work with both contact-based devices and OSSD-type outputs, per Rockwell's datasheet and product description. However, OSSD devices require specific polarity observation and wiring per the manufacturer's instructions — they cannot be wired identically to dry contact inputs. Always verify the exact wiring configuration for your combination of devices against the official wiring diagram before installation.

What safety category and performance level can I achieve with the 440R-D22R2?

The relay is certified to EN ISO 13849 and IEC 62061 standards, with the achievable performance level and safety category depending on the complete circuit architecture — including device selection, wiring method, diagnostic coverage, and feedback loop implementation. The relay itself does not determine the PL or SIL in isolation. Refer to Rockwell's safety documentation and conduct a full risk assessment for your specific circuit to confirm the achievable ratings.

What is the correct way to wire the feedback loop, and what happens if I omit it?

The feedback monitoring loop connects auxiliary contacts from downstream safety contactors back to the relay, allowing the 440R-D22R2 to detect welded or stuck output devices before permitting a restart. Omitting the feedback loop or wiring it incorrectly removes this diagnostic layer from the circuit, which may prevent achieving the required safety category (Category 3 or 4 under ISO 13849) and can allow unsafe restart conditions if a contactor fails to open. The user manual provides the correct terminal connections and wiring diagrams for feedback loop implementation.

What do the LED status indicators mean, and how do I interpret a persistent fault condition?

The 440R-D22R2 uses status LEDs to indicate power, input channel state, output state, and fault conditions. Specific LED flash patterns correspond to identifiable fault states — such as input channel discrepancy, feedback loop fault, or reset circuit issue — detailed in the user manual's diagnostic section. When a fault persists after addressing the apparent cause, verify supply voltage, confirm that both input channels are in the correct state, check the feedback loop wiring, and confirm the reset circuit is functioning as designed before reclosing the relay.

Is the 440R-D22R2 a direct drop-in replacement for an older or obsolete safety relay in an existing panel?

A like-for-like replacement of an older GSR DI module or equivalent safety relay is typically straightforward if the catalog number, input configuration, and output wiring are matched exactly. Confirm that the replacement relay's catalog number is 440R-D22R2, verify input and output terminal assignments against the existing wiring, and perform a full functional safety test of all connected safety devices before returning the machine to service. Document the replacement in the machine's safety maintenance records.

What are the key differences between the 440R-D22R2 and other Guardmaster GSR relay types?

The 440R-D22R2 is the GSR DI — Dual Input — variant, designed to monitor two dual-channel safety device groups with universal inputs and no timing functions. Other GSR types serve different functional needs: the SI (Single Input) variant monitors one safety device group; the TI (Timing Input) variant adds on-delay or off-delay timing to the safety output; and expansion modules add additional output contacts driven by a primary module via single-wire safety connection. Selecting the wrong variant — such as ordering a timing module when a dual-input module is needed — is the most common GSR ordering mistake reported in the field.

Why Order the 440R-D22R2 from LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships the Allen-Bradley 440R-D22R2 to customers worldwide, not limited to any single region
  • Specialist distributor knowledge — our team can confirm that 440R-D22R2 is the correct GSR variant for your application before the order is placed, reducing the risk of wrong-part returns
  • Real-time availability across North American warehouse locations — useful when project schedules are sensitive to lead time variability
  • Volume and project pricing available — contact us for BOM-level pricing on larger quantities or multi-unit machine builds
  • Hard-to-find parts support — if the 440R-D22R2 is on extended lead time, we can identify alternative stocking locations or equivalent interim solutions

At-a-Glance Summary

  • Catalog number: Allen-Bradley 440R-D22R2 — Guardmaster Dual Input Safety Relay (GSR DI)
  • Supply voltage: 24 V DC only — no AC supply variant
  • Inputs: 2 dual-channel universal inputs, compatible with contact-based safety devices and OSSD outputs per Rockwell datasheet
  • Safety outputs: 2 N.O. safety relay output contacts plus 1 solid-state auxiliary output
  • Feedback monitoring: Monitored feedback loop for downstream contactor auxiliary contacts supported
  • Reset: Manual monitored reset and automatic reset configurable
  • Safety standards: Certified to EN ISO 13849 and IEC 62061 — achievable PL and category depend on complete circuit architecture
  • Expansion: Supports single-wire safety connection to additional GSR modules for output expansion
  • Mounting: DIN rail mount
  • Not suitable for: applications requiring timed safety outputs, AC supply, complex multi-zone safety logic, or more than two dual-channel input groups on a single module
  • Pricing: Available on the product page at LeadTime.ca — contact for volume or project pricing
