Allen-Bradley 440N-Z21SS2H SensaGuard — Safety Switch Buyer Review
Allen-Bradley 440N-Z21SS2H Guardmaster SensaGuard Non-contact Interlock Switch — Specs, Review, and Buying Guide
If you are specifying a non-contact safety interlock for a machine guard, access panel, or robot cell perimeter door and your plant runs on Rockwell Automation hardware, the Allen-Bradley 440N-Z21SS2H belongs on your shortlist. This Guardmaster SensaGuard device delivers 2 N.C. solid-state safety outputs plus 1 N.O. auxiliary output over a 24 V DC supply, connecting directly to Guardmaster safety relays or safety controllers using OSSD-style outputs — no mechanical tongue, no key, and no wear-related nuisance trips. The question is whether this exact catalog number matches your housing, connector, coding, and environmental requirements — and that confirmation is what this review is built to deliver.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.
Who Should Buy the 440N-Z21SS2H — and Who Should Look at Alternatives
The Allen-Bradley 440N-Z21SS2H is the right choice if all of the following apply to your project:
- Your safety design calls for a non-contact RFID/inductive interlock to achieve the required performance level (PLe/Cat. 4 or applicable SIL level) confirmed by your risk assessment.
- Your control architecture uses 24 V DC and a Guardmaster safety relay or safety controller that accepts OSSD-type solid-state safety inputs.
- You need 2 N.C. safety output channels plus 1 N.O. auxiliary output — and your safety function and PLC/HMI logic are designed for exactly that contact configuration.
- Your environmental conditions are satisfied by at least IP67 protection, and the housing material and washdown rating of this specific catalog number match your application (food and beverage, washdown, or standard industrial).
- Your field wiring harness uses an M12 connector with the correct pin count and orientation for this catalog code.
If your application instead calls for a lower-cost plastic housing, a pre-wired cable pigtail rather than M12, a different RFID coding level, or a lockable interlock function, a different 440N SensaGuard variant is the correct selection — not this catalog number.
On this page:
- What the 440N-Z21SS2H Actually Does in a Safety System
- Typical System Architecture for Guard Monitoring
- Where the 440N-Z21SS2H Gets Specified: Real Applications
- Specifications and Variant Comparison
- Expert Verdict: Is the 440N-Z21SS2H Worth the Premium?
- What Engineers Need to Know Before Ordering the 440N-Z21SS2H
- Wiring and Installation Overview
- Wrong-Part Prevention Checklist
- Frequently Asked Questions
- Why Order Through LeadTime.ca
- At-a-Glance Summary
What the 440N-Z21SS2H Actually Does in a Safety System

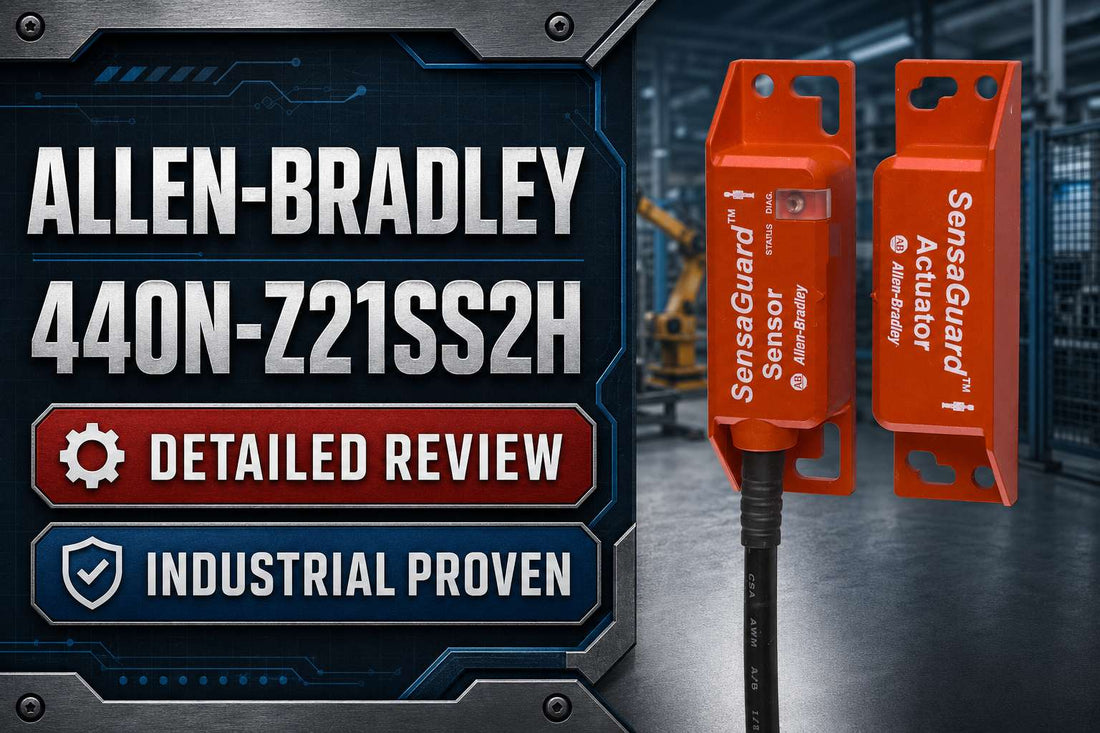

The Allen-Bradley 440N-Z21SS2H is a non-contact safety interlock switch in the Guardmaster 440N SensaGuard family. Its job is to monitor the position of a machine guard — a hinged door, a sliding panel, an access hatch — and report that position to the safety system through two independent solid-state safety output channels. When the guard is closed and the SensaGuard actuator is within detection range, both N.C. safety outputs are active. The moment the guard moves out of range, those outputs de-energize, and the downstream Guardmaster safety relay or safety controller brings the hazardous motion to a safe state.
The RFID and inductive sensing principle is what distinguishes SensaGuard devices from basic magnetic switches. Because there is no mechanical tongue to insert, no key to align, and no contact to wear, the device delivers consistent operation over a long service life. The 440N SensaGuard family uses RFID coding in the actuator, which reduces the risk of simple defeat by a spare magnet or substitute actuator — an important consideration when the safety design calls for higher performance levels. The 2 N.C. safety output plus 1 N.O. auxiliary configuration means both the safety function and the diagnostic or status indication channel are handled from a single compact switch body, reducing panel wiring complexity.
According to Rockwell Automation product information, the 440N SensaGuard family supports multiple housing styles, mounting options, and connector configurations, making it adaptable across a wide range of machine guard geometries. The 440N-Z21SS2H is one specific catalog selection within that family — and catalog code discipline matters here, because adjacent part numbers represent meaningfully different products.
Typical System Architecture for Guard Monitoring
The 440N-Z21SS2H sits at the field level in a safety architecture, between the physical guard and the safety logic device. Understanding the full signal chain helps confirm that the switch interfaces correctly with everything above and below it.
- Safety controller or safety PLC — executes the safety logic and monitors OSSD input channel status; issues the safe stop command.
- Guardmaster safety relay or safety I/O module — receives the two OSSD-style N.C. safety outputs from the switch and provides the safety-rated feedback loop to the controller.
- Allen-Bradley 440N-Z21SS2H — mounted on the guard frame; monitors the guard position via RFID/inductive sensing of the paired SensaGuard actuator.
- Matching SensaGuard actuator — mounted on the moving guard door or panel; no electrical connection required on the actuator itself.
- Downstream: drive, contactor, or safety-rated output device — receives the stop command from the safety relay when the guard is opened.
Where the 440N-Z21SS2H Gets Specified: Real Applications
OEM machinery builders specify the 440N-Z21SS2H most often on hinged and sliding guard doors that require reliable, repeatable switching without the maintenance burden of tongue-and-key mechanisms. On packaging lines with frequent operator access, a mechanical tongue switch will wear in months under shift-work cycling; the SensaGuard non-contact design eliminates that wear mode entirely.
Robot cells are a primary fit. Perimeter doors on collaborative and traditional robot cells typically require PLe/Cat. 4 rated guard monitoring, and the SensaGuard family's RFID coding provides a higher level of tamper resistance than a simple reed-switch magnetic interlock. In automotive assembly, where safety audits are rigorous and traceability of safety components matters, the documentation ecosystem around Guardmaster devices simplifies validation.
Food and beverage plants present a specific housing and washdown challenge. Whether the 440N-Z21SS2H's IP rating and housing material qualify for a particular washdown regime must be confirmed against the current Rockwell datasheet — this is a known data gap that buyers should resolve with the manufacturer documentation or a specialist distributor before ordering.
Maintenance-driven upgrades are another strong use case. Plants retiring older Guardmaster magnetic tongue switches or simple inductive switches can install SensaGuard devices in the same guard mounting footprint and gain higher coding and RFID-based defeat resistance, often with the same safety relay already installed.
| Application | Typical Deployment |
|---|---|
| Robot cell perimeter door | Single or series-wired SensaGuard on access doors feeding a Guardmaster safety relay, stopping robot motion on door open |
| Packaging line access panel | Non-contact interlock replacing worn tongue switch on frequently opened guard; auxiliary output feeds HMI guard-open indicator |
| Automotive assembly guard door | PLe/Cat. 4 guard monitoring on station perimeter doors in a Rockwell-based safety architecture |
| Conveyor or material handling guard | Multiple SensaGuard devices wired in series monitoring a series of maintenance access covers along a conveyor run |
| Pharmaceutical or food line enclosure | Guard monitoring on enclosed processing equipment; housing and IP rating must be confirmed for washdown compliance |
| Legacy upgrade (tongue switch replacement) | Drop-in SensaGuard replacing mechanical interlock; same safety relay retained; improved coding and reduced maintenance |
Specifications and Variant Comparison for the 440N-Z21SS2H
| Parameter | Value / Description |
|---|---|
| Catalog number | 440N-Z21SS2H |
| Product type | Non-contact safety interlock switch, Guardmaster SensaGuard family, RFID/inductive sensing |
| Supply voltage | 24 V DC nominal; confirm exact range in Rockwell datasheet |
| Safety outputs | 2 N.C. solid-state safety outputs (OSSD-style) |
| Auxiliary output | 1 N.O. auxiliary output |
| Output interface | Solid-state; compatible with Guardmaster safety relays and safety controllers accepting OSSD inputs |
| Safety ratings | Family supports up to PLe/Cat. 4 and applicable SIL levels per Rockwell data; confirm exact values for this catalog number in current datasheet |
| IP rating | At least IP67 per distributor data; confirm if IP69K applies to this catalog from official datasheet |
| Connection type | M12 connector, 6-pin per distributor listing; verify pinout and orientation against field wiring |
| Housing material | Confirm from Rockwell datasheet — distributor data suggests stainless is indicated by catalog code; verify before ordering |
Full technical specifications are available on the product page at LeadTime.ca.
440N SensaGuard Variant Comparison: Choosing the Right Catalog Number
| Selection Criteria | 440N-Z21SS2H | Alternative 440N SensaGuard Variant | Non-Contact Switch from Different Family |
|---|---|---|---|
| Sensing principle | Non-contact RFID/inductive | Non-contact RFID/inductive | Varies (magnetic, RFID, inductive) |
| Safety outputs | 2 N.C. + 1 N.O. auxiliary | Varies by catalog (different output config) | Varies by model |
| Supply voltage | 24 V DC | 24 V DC | Varies |
| Connection | M12, 6-pin | Pre-wired cable or different M12 orientation | Varies by manufacturer |
| Housing material | Confirm from datasheet (stainless indicated) | Plastic ABS or different stainless grade | Varies |
| Integration with Rockwell safety relays | Direct — designed for Guardmaster ecosystem | Direct — same ecosystem | Requires careful OSSD compatibility check |
| Typical price level | Mid-range to premium (mid-200s USD-equivalent indicative) | Lower for plastic-body variants | Varies widely |
If the connector style, housing material, or coding level on this table does not match your application, the adjacent 440N SensaGuard catalog numbers are the first place to look — check availability and current pricing at LeadTime.ca or contact the team to cross-reference the right variant for your requirements.
Expert Verdict: Is the 440N-Z21SS2H Worth the Premium?
The 440N-Z21SS2H is a solid default specification for controls engineers and OEM machine designers whose plants standardize on Rockwell Automation safety hardware. The core value proposition is straightforward: RFID/inductive non-contact sensing eliminates the mechanical wear and misalignment failures that make tongue-and-key interlocks a maintenance liability on high-cycle guards, while the dual solid-state safety output plus auxiliary channel configuration maps cleanly onto Guardmaster safety relay wiring without adapters or workarounds. For engineers working within a Rockwell-centric architecture who need guard monitoring that will pass a functional safety audit, this is a well-understood, well-documented component with a mature ecosystem behind it.
Where the 440N-Z21SS2H is not the right answer: if your budget is constrained and the risk assessment permits a simpler magnetic interlock, the cost premium of the SensaGuard may not be justified. If your plant is standardizing on a competitor's safety platform and wants to minimize vendor diversity, integrating an Allen-Bradley safety switch adds a cross-brand dependency. And if your specific requirements call for a lockable interlock function, a different RFID coding level, a plastic ABS housing for cost, a pre-wired cable instead of M12, or a confirmed IP69K rating for aggressive washdown — then a different 440N catalog number or an adjacent product family is the specification to write. The Guardmaster tongue interlock range and basic magnetic switch range within the 440-series exist for good reasons, and selecting the SensaGuard format when those simpler options are sufficient adds unnecessary cost.
From a procurement standpoint, the 440N-Z21SS2H is typically available through safety-focused distributors with lead times ranging from ex-stock to several weeks depending on region and variant. Stainless or less-common housing configurations can move toward the longer end of that range. For projects where commissioning date is fixed, confirming stock status before the purchase order is placed is not optional — it is the difference between on-time handover and a delay for a single safety switch. For confirmation of the correct variant, current lead times, and volume pricing, the product page at LeadTime.ca is the right starting point, and the team can cross-reference the full 440N SensaGuard range if the catalog number needs adjustment.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Need to Know Before Ordering the 440N-Z21SS2H
Model-specific forum discussions for the 440N-Z21SS2H are sparse across the communities where controls engineers typically share field experience — including Reddit r/PLC, PLCTalk, PLCS.net, and Rockwell Automation user forums. At the SensaGuard family level, the device is treated as a standard, reliable component and rarely surfaces as a problem topic in its own right. The absence of recurring complaint threads is a reasonable indicator that this is a low-trouble part in normal deployment — but it also means that engineers approaching it for the first time do not have a body of peer commentary to draw on. In that environment, the correct substitute for community guidance is the combination of manufacturer documentation and a distributor who has handled the product before.
What the community does consistently flag — not about this catalog specifically, but about non-contact safety switches in this class — is that troubleshooting difficulty spikes when engineers do not have the wiring diagram in front of them during commissioning, particularly in series-wired configurations where a single open guard anywhere in the chain creates a stop condition and diagnosing which guard is the cause requires systematic testing. The second recurring theme is ordering error: the Guardmaster 440N range includes catalog numbers that differ in housing material, connector style, coding level, and actuator compatibility in ways that are not obvious from a partial part number. Engineers who specify from memory or from a previous project BOM without re-validating the full catalog number against the current datasheet are the ones who end up waiting for an exchange order.
LeadTime.ca specializes in exactly this kind of pre-order validation. When community data is thin and the catalog family is dense with closely related part numbers, talking to a distributor who knows the 440N range before placing the order is the fastest path to getting the right part on the first shipment. The team can confirm housing material, connector orientation, coding level, and pairing with your safety relay model — not as a sales step, but as a sourcing function that prevents the delays that follow a wrong-part receipt.
Wiring and Installation Overview for the 440N-Z21SS2H
The following points summarize the installation and wiring approach. For full procedures, refer to Rockwell Automation installation instructions for the 440N SensaGuard family.
- Mount the switch body on a rigid, stable surface on the guard frame and mount the paired SensaGuard actuator on the moving door or panel, maintaining the specified sensing distance and allowable misalignment tolerance from the Rockwell datasheet; avoid mounting directly on ferrous surfaces without manufacturer-recommended spacers if applicable.
- Connect the 24 V DC supply and 0 V reference to the correct M12 pins as identified in the pinout diagram; verify pin assignments from the current Rockwell datasheet before wiring, as incorrect supply wiring can damage solid-state outputs.
- Wire the two N.C. solid-state safety outputs to the corresponding OSSD safety inputs on the Guardmaster safety relay or safety controller, following Rockwell's recommended wiring diagrams for the relay model in use.
- Connect the N.O. auxiliary output to the standard PLC input or HMI status indicator circuit if guard-open indication or diagnostic feedback is required by the machine logic.
- When wiring multiple SensaGuard devices in series on a single safety relay input channel, follow Rockwell's series-wiring examples precisely, noting that each device in the series must operate correctly for the safety outputs to remain active — and verify diagnostic coverage implications against your safety calculation.
Wrong-Part Prevention Checklist for the 440N-Z21SS2H
Before placing your purchase order, confirm every item on this checklist against your safety design documents and the current Rockwell datasheet:
- Confirm catalog number 440N-Z21SS2H matches the required SensaGuard style in your safety design documents (not a Ferroguard or other 440-series switch).
- Verify supply voltage and safety interface: 24 V DC system, OSSD-style solid-state safety outputs, and compatibility with your safety relay/PLC input type.
- Check contact configuration: ensure 2 N.C. safety outputs plus 1 N.O. auxiliary is what the safety function and HMI/PLC logic are designed for.
- Validate environmental requirements: required IP rating, temperature range, and washdown/chemical resistance (for food, beverage, or washdown areas).
- Confirm connector type and pinout (M12 size and pin count) aligns with your field wiring harness or I/O blocks.
- Verify any special requirements such as stainless housing, coding level, and actuator style in the risk assessment before ordering.
If any item on this list cannot be confirmed from available documentation, contact the LeadTime.ca team before ordering — a short pre-order conversation is faster than processing an exchange for the wrong variant.
Frequently Asked Questions
Can I wire multiple 440N-Z21SS2H switches in series to a single Guardmaster safety relay input?
Yes, the SensaGuard family supports series wiring of multiple devices to a single safety relay channel, which reduces relay input count in multi-door applications. However, series wiring affects diagnostic coverage and fault detection capability — if one switch in the series fails while the guard is closed, the system may not detect it until the next guard-open event. Follow Rockwell Automation's series-wiring diagrams exactly and confirm that the resulting diagnostic coverage meets your safety performance level requirements before finalizing the design.
What safety performance level can the 440N-Z21SS2H contribute to?
The 440N SensaGuard family is rated to support up to PLe/Cat. 4 and applicable SIL levels according to Rockwell Automation product data. The exact PFHd value and validated PL for the 440N-Z21SS2H catalog number must be drawn from the current Rockwell documentation and incorporated into your ISO 13849-1 or IEC 62061 safety calculation — the family-level rating is a starting point, not a substitute for the catalog-specific figure.
Is the 440N-Z21SS2H suitable for food and beverage washdown environments?
Distributor data identifies at least IP67 environmental protection for this catalog number, but whether IP69K or specific chemical resistance requirements for your washdown application are met must be confirmed against the current Rockwell datasheet. The housing material indicated by the catalog code also affects washdown suitability. Do not assume IP67 is sufficient for high-pressure or high-temperature washdown without reviewing the official environmental specifications for 440N-Z21SS2H specifically.
How do the LED indicators on the 440N-Z21SS2H help with troubleshooting?
SensaGuard devices include LED status indicators that show whether the switch is detecting the actuator and whether the safety outputs are in a healthy state. When a Guardmaster safety relay will not reset, the LED on the switch is the first diagnostic point — an unlit or fault-indicating LED confirms the switch is not seeing the actuator, which typically points to misalignment, an incorrect actuator, or a wiring fault before the relay. Refer to the Rockwell installation instructions for the LED state table specific to the 440N-Z21SS2H.
Is the 440N-Z21SS2H a direct replacement for an older Guardmaster magnetic tongue switch?
The SensaGuard non-contact switch is a functional upgrade over a basic magnetic tongue interlock rather than a pin-compatible swap. The physical mounting footprint, connector type, wiring pinout, and operating principle are different enough that you should treat it as a new installation rather than a drop-in replacement. Verify that your existing safety relay accepts OSSD-type solid-state inputs (which the SensaGuard provides) rather than dry-contact inputs, and update the wiring documentation and safety validation records accordingly.
Why Order the 440N-Z21SS2H Through LeadTime.ca
- Global shipping — LeadTime.ca sources and ships worldwide, not limited to any single country or region.
- Variant confirmation — the 440N SensaGuard range contains closely related catalog numbers with meaningful differences; the team can cross-reference housing, connector, and coding options before the order is placed.
- Safety relay pairing advice — confirm that the switch variant you are ordering is the correct match for your Guardmaster relay or safety controller model.
- Lead time transparency — current stock status and expected delivery timelines are available before you commit, avoiding schedule surprises on fixed commissioning dates.
- Volume and project pricing — contact for current pricing on multi-unit orders or repeat-buy agreements.
- View the 440N-Z21SS2H product page at LeadTime.ca
- Contact LeadTime.ca for a quote or technical confirmation
At-a-Glance Summary
- Catalog number: 440N-Z21SS2H — Guardmaster SensaGuard non-contact interlock switch, RFID/inductive sensing.
- Outputs: 2 N.C. solid-state safety channels (OSSD-style) plus 1 N.O. auxiliary output.
- Supply voltage: 24 V DC nominal.
- Connection: M12 connector, 6-pin per distributor data — verify pinout from current Rockwell datasheet.
- Environmental protection: at least IP67 per distributor data; IP69K status requires confirmation from official datasheet.
- Safety ratings: 440N SensaGuard family supports up to PLe/Cat. 4 and applicable SIL levels — confirm catalog-specific values from Rockwell documentation.
- Housing material: stainless indicated by catalog code — confirm from Rockwell datasheet before ordering for washdown or food applications.
- Indicative price: mid-200s USD-equivalent per unit from North American distributor data — verify current pricing on the product page.
- Typical lead time: ex-stock to several weeks depending on region and variant; confirm before committing to a build schedule.
- Best fit: Rockwell-centric OEM or plant machines requiring non-contact guard monitoring with direct integration into Guardmaster safety relays or safety controllers.
- Not the best fit: lowest-cost magnetic switch applications, non-Rockwell architectures minimizing vendor diversity, or applications requiring a different connector style, housing, or coding level than 440N-Z21SS2H provides.
