Allen-Bradley 2711R-T7T — PanelView 800 7" HMI Buyer Review

By Abdullah Zahid
14 min read

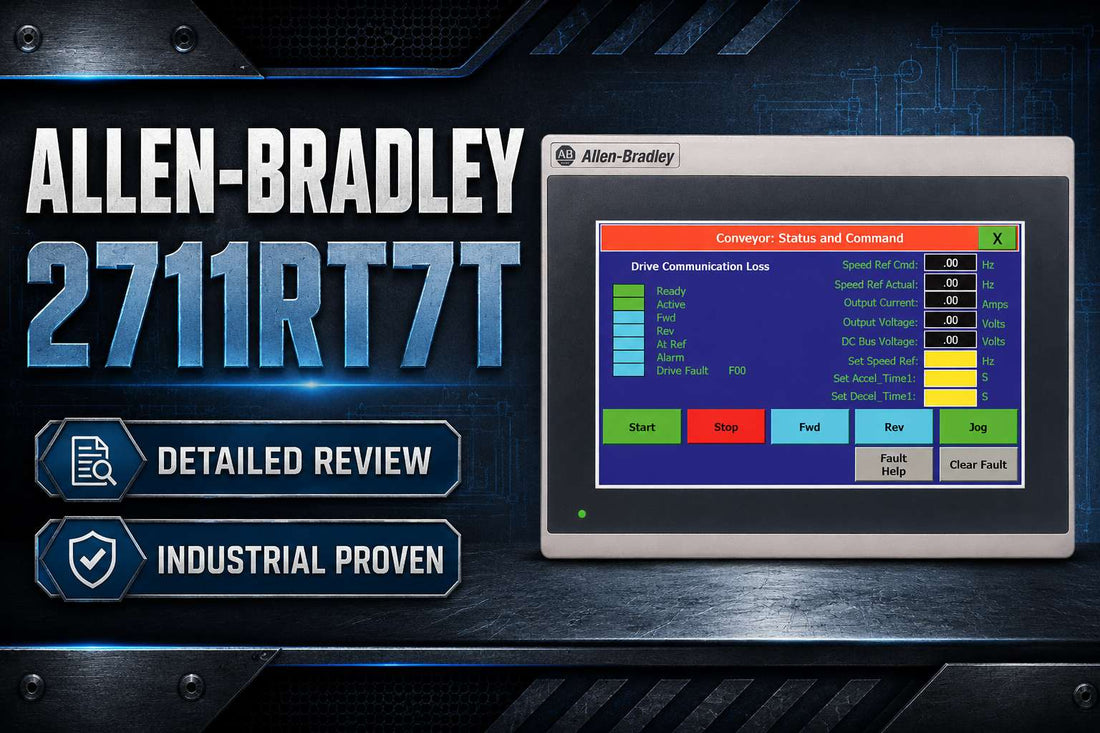

Allen-Bradley 2711R-T7T PanelView 800 7-inch color touchscreen HMI terminal mounted in industrial control panel

Allen-Bradley 2711R-T7T PanelView 800 7-Inch HMI Terminal, Touch Screen, Serial and Ethernet, 24V DC — Specs, Pricing, and Best Alternatives

Controls engineers specifying a 7-inch HMI for a Micro800 or CompactLogix machine have a short list of practical requirements: the right screen size, 24 V DC panel power, clean Ethernet and serial integration, and a development environment that doesn't require expensive licensing. The Allen-Bradley 2711R-T7T delivers all four in a single panel-mount terminal rated IP65 and NEMA 4X for industrial enclosure doors. This review covers the hardware facts, real-world fit, ordering traps to avoid, and the honest cases where a different model is the smarter choice.

If you have already confirmed this is the right part, check current pricing and availability for the 2711R-T7T at LeadTime.ca — ships worldwide.

Who Should Buy the 2711R-T7T — and Who Shouldn't

The Allen-Bradley 2711R-T7T is the right choice for engineers and OEM designers who need a proven 7-inch color HMI tightly integrated with Allen-Bradley controllers at a lower cost than the PanelView Plus family.

  • Your project requires a 7-inch TFT color display at 800 x 480 resolution and the panel cutout space supports the approximately 197 mm x 144 mm front footprint.
  • Your control panel supplies 24 V DC and can accommodate the approximately 11 W power draw with appropriate overcurrent protection.
  • Your PLC is a Micro800, MicroLogix, CompactLogix, SLC, or PLC-5 and your network uses Ethernet/IP, DF1, DH-485, or Modbus — not ControlNet, DeviceNet, or DLR ring.
  • Your engineering team uses or is prepared to adopt Connected Components Workbench (CCW) as the HMI development environment.
  • The installation environment is within 0 to 50 °C ambient and the IP65 / NEMA 4X indoor rating is adequate for the panel location.
  • Your application needs basic alarming, recipes, numeric entry, and operator monitoring — not historical trending databases, advanced reporting, or complex multi-session visualization.

If your application demands advanced alarming, historical data logging, or non-Rockwell PLC integration, the PanelView Plus 7 or PanelView 5000 series are the correct step up — or a third-party HMI if multi-vendor flexibility is the priority.

On this page:

What the 2711R-T7T Actually Does in a Control System

The Allen-Bradley 2711R-T7T is a panel-mount graphic operator terminal from the PanelView 800 family (Bulletin 2711R). Its primary job is to serve as the local human interface for a PLC-controlled machine — displaying process values, accepting operator inputs, presenting alarm conditions, and allowing setpoint or recipe adjustments without requiring a laptop or remote software session on the plant floor.

The 2711R-T7T sits between entry-level panel meters and the more capable PanelView Plus family in the Rockwell HMI lineup. It runs on 24 V DC, connects to the PLC via a built-in 10/100 Mbps Ethernet port or serial interface (RS-232 and RS-422/485), and is programmed using Connected Components Workbench — a free Rockwell development environment that also covers Micro800 controllers. The 800 MHz processor and 256 MB of memory keep screen transitions and data updates responsive for typical machine HMI workloads. The analog resistive touchscreen is durable in industrial glove use and the LED backlight carries a manufacturer-rated service life of approximately 40,000 hours.

What the terminal does not do is equally important to understand at the selection stage. It does not support ControlNet or DeviceNet natively, does not offer FactoryTalk-based historical data logging or advanced alarming databases, and does not scale to the complex visualization projects that belong on PanelView Plus or PanelView 5000 platforms. Engineers who stay within those boundaries get a reliable, cost-effective HMI that integrates predictably with the Rockwell ecosystem.

Typical System Architecture for the 2711R-T7T

The 2711R-T7T typically sits at the field-level operator interface layer, connecting downstream from the PLC and upstream from the operator on the machine panel door.

  • Plant Ethernet switch or dedicated HMI subnet → 2711R-T7T RJ45 Ethernet port (EtherNet/IP or Modbus TCP to PLC)
  • Micro800, MicroLogix, or CompactLogix controller ↔ 2711R-T7T (tag-based data exchange, alarm triggers, setpoint writes)
  • Serial RS-232 or RS-422/485 port → legacy PLC or remote serial device when Ethernet is not available at the controller
  • USB host port or microSD slot → engineering laptop or memory card for project download, firmware update, and application backup
  • Panel door cutout (approx. 197 mm x 144 mm front face, 54 mm depth) → operator-facing touchscreen with IP65 / NEMA 4X seal at the gasket line

Typical Applications and Deployment Scenarios

The 2711R-T7T is a natural fit for OEM machine builders who standardize on Micro800 or smaller CompactLogix platforms and need a 7-inch color interface without the engineering overhead and cost of the PanelView Plus family. Packaging lines, conveyor cells, and assembly stations are common placements where operator interaction is moderate — start/stop, recipe selection, fault acknowledgment, and basic status monitoring.

In food and beverage facilities, the IP65 and NEMA 4X front rating supports panel-door installations in areas subject to washdown splash, making the terminal practical for light production areas where a fully stainless-steel IP69K enclosure is not required. Small process skids — HVAC controls, water treatment dosing stations, or utility panels — also use the 2711R-T7T for local setpoint entry and status display where a full SCADA terminal would be over-specified.

Retrofit projects replacing older PanelView Standard or PanelView 300–600 terminals benefit from the 2711R-T7T's modern Ethernet port and CCW environment, which modernizes both the network architecture and the development workflow in a single hardware change. The VNC server capability is specifically valued by maintenance teams at sites that need occasional remote visibility into machine status without deploying a full remote-access infrastructure.

Application Typical Deployment
OEM packaging machine Panel door HMI on Micro800-controlled fill/seal or labeling machine; EtherNet/IP, CCW project
Conveyor and material handling cell CompactLogix or MicroLogix cell with 7" operator station for speed, zone control, and fault reset
Food and beverage light production NEMA 4X panel door installation; recipe selection and batch setpoints for small mixing or portioning systems
Process skid (HVAC / water treatment) Local operator interface for setpoint adjustment, alarm acknowledgment, and basic trending on Micro800 skid
Retrofit of legacy PanelView terminal Replacement of PanelView Standard or 300–600 series; modernized Ethernet connectivity and CCW-based project
Maintenance remote monitoring VNC server access over plant LAN for remote troubleshooting of small machine cells

Purchase-Decision Specifications

Specification Value
Catalog Number 2711R-T7T
Display Size / Type 7-inch TFT color LCD, 65K colors, LED backlight (~40,000 hr rated life)
Resolution 800 x 480 pixels
Touchscreen Analog resistive
Supply Voltage 24 V DC
Power Consumption Approx. 11 W
Processor / Memory 800 MHz CPU, 256 MB memory
Communications 1 x 10/100 Mbps Ethernet (RJ45); RS-232 and RS-422/485 serial; USB host; microSD
Front Protection Rating IP65, NEMA Type 4X (indoor), 12, 13
Operating Temperature 0 to 50 °C

Full technical specifications are available on the product page at LeadTime.ca.

2711R-T7T vs Other PanelView 800 Sizes and Rockwell HMI Families

The PanelView 800 Bulletin 2711R line spans multiple screen sizes and the catalog number changes predictably with size. The 2711R-T7T is the 7-inch touch variant. Engineers choosing between sizes are primarily balancing panel door space, operator viewing distance, and the number of objects they need to present simultaneously on a single screen.

Model Screen Size Resolution Best Fit
2711R-T4T 4 inches 480 x 272 Very compact machines, minimal operator interaction, space-constrained panels
2711R-T7T 7 inches 800 x 480 Standard OEM machine panels, moderate operator interaction, 24 V DC panels
2711R-T10T 10 inches 800 x 480 Larger panels, greater operator viewing distance, more screen objects required
PanelView Plus 7 / PanelView 5000 (7") 7 inches Higher-end variants Advanced alarming, historical data logging, FactoryTalk View, complex Logix integration

If your project has outgrown the PanelView 800 feature set and requires FactoryTalk View Studio or Studio 5000 View Designer, moving to the PanelView Plus or PanelView 5000 platform is the correct path — not squeezing an undersized tool into an over-specified application. Check current availability for the 2711R-T7T at LeadTime.ca if the 7-inch PanelView 800 meets your requirements.

Expert Verdict: Is the 2711R-T7T the Right 7-Inch HMI for Your Project?

The Allen-Bradley 2711R-T7T occupies a genuinely useful position in the Rockwell HMI portfolio. OEM machine builders who standardize on Micro800 or CompactLogix and need a 7-inch color touchscreen with Ethernet and serial connectivity — without paying PanelView Plus pricing or learning FactoryTalk View — will find this terminal hits the right balance. The 800 MHz processor, 256 MB of memory, 800 x 480 TFT display, and IP65 / NEMA 4X front rating deliver what most small-to-mid machine applications actually need. The free CCW development environment lowers the total project cost further and keeps the toolchain consistent with Micro800 controller programming.

Where the 2711R-T7T has real limits is in advanced visualization workloads. Engineers who need historical data trending with database logging, sophisticated multi-level alarming, complex recipe management, or integration with non-Rockwell PLCs as the primary architecture will find the PanelView 800 feature ceiling arrives quickly. In those cases, the PanelView Plus 7 or PanelView 5000 series are the honest next step, and the engineering investment in FactoryTalk View or Studio 5000 View Designer is justified by capability. For multi-vendor environments where no single PLC ecosystem dominates, a third-party HMI platform offers broader driver support and can reduce long-term ecosystem lock-in.

From a procurement standpoint, the 2711R-T7T benefits from being a well-established catalog number in the Rockwell distribution network, with typical availability in the days-to-weeks range for standard stocked units in North America. That said, project demand cycles and broader supply chain conditions can shift lead times, and confirming stock and realistic ship dates before committing to a build schedule is always worth the call. A specialist distributor adds concrete value here — verifying the exact catalog number against your drawings, confirming firmware compatibility with your CCW version, and flagging any configuration considerations that generic e-commerce channels will not surface. View current pricing and stock status for the 2711R-T7T at LeadTime.ca, available to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 2711R-T7T

Community feedback on the PanelView 800 family — drawn from forums including Reddit r/PLC, PLCTalk, PLCS.net, and MrPLC — is broadly positive for the applications this terminal is designed for. Engineers consistently highlight the combination of 7-inch color display, Ethernet connectivity, and free CCW software as a cost-effective package for Micro800 and small Logix projects. Terminals are generally described as reliable in properly installed and powered environments, and the lack of an expensive software license for CCW is a recurring point of appreciation among OEM builders managing per-machine cost.

The recurring frustrations are just as consistent and worth taking seriously before you specify this terminal. Connected Components Workbench draws criticism for performance and polish compared to higher-end Rockwell tools, particularly on projects that push the boundaries of what PanelView 800 was designed for. Users who arrive at the platform expecting PanelView Plus capability — sophisticated alarming databases, historical trending, complex graphics libraries — consistently find the feature ceiling limiting. Occasional reports of Ethernet communication dropouts or serial configuration confusion also appear, typically tracing back to IP address conflicts, subnet mismatches, or baud rate and node address discrepancies between the HMI and PLC settings. These are solvable problems, but they surface often enough in community discussion that verifying communication parameters in a bench test before field deployment is a standard recommendation from experienced integrators.

The ordering mistakes reported by the community map directly onto catalog number discipline. The PanelView 800 family uses catalog suffixes that differ by a single character for meaningfully different products — a 4-inch terminal versus a 7-inch terminal, or a PanelView 800 project versus a PanelView Plus project, can be the difference between an on-schedule commissioning and a costly rework cycle. Engineers who have been through this mistake once are emphatic: verify the full catalog number — 2711R-T7T — on both the drawing and the purchase order, and confirm that your development environment is CCW rather than FactoryTalk View before the order ships. When community feedback is limited for a specific catalog number, consulting a specialist distributor before ordering is the most reliable way to close the gap.

Wiring and Installation Overview

  • Mark and cut the panel opening using the cutout dimensions from the Rockwell installation manual; deburr all edges and confirm panel thickness falls within the supported range before inserting the terminal.
  • Insert the 2711R-T7T from the front with the gasket properly seated, then install and tighten mounting clips evenly to maintain the IP65 / NEMA 4X seal without distorting the bezel.
  • Wire 24 V DC supply to the power terminals observing correct polarity, include a protective earth connection bonded to the panel ground, and provide external overcurrent protection (fuse or circuit breaker) sized per the installation manual for the approximately 11 W load.
  • Connect the Ethernet cable to the RJ45 port using shielded cable with proper strain relief; for RS-422/485 serial use, verify termination resistor requirements and cable shielding practices at both ends.
  • Segregate HMI power and communication wiring from high-voltage conductors and noisy signal sources within the enclosure to minimize induced interference on the Ethernet and serial circuits.

Commissioning in Connected Components Workbench

  • Install or open CCW and create a new PanelView 800 project, selecting catalog number 2711R-T7T and matching the firmware version to what is installed on the physical terminal.
  • Build HMI screens and configure tags, communication paths (EtherNet/IP or serial protocol), alarm definitions, and any recipe structures required by the application.
  • Assign a fixed IP address and subnet mask to the terminal consistent with the plant or machine network design, ensuring no address conflicts with the PLC or other network devices.
  • Download the project to the 2711R-T7T via Ethernet or using the USB host port or microSD card as applicable, then verify successful download confirmation on the terminal.
  • Test live data exchange with the PLC, confirm navigation and alarm behavior, and validate VNC remote access if that feature is included in the project scope.

Wrong-Part Prevention Checklist

Before placing your order for the Allen-Bradley 2711R-T7T, work through each of these checks against your project documentation:

  1. Confirm 7-inch screen size is acceptable for operator visibility and panel cutout space (197 x 144 mm front dimensions).
  2. Verify 24 V DC power is available and sized for approximately 11 W load, and that external protection (fuse/breaker) is provided as per installation instructions.
  3. Check that Ethernet plus serial connectivity (no ControlNet, DeviceNet, or DLR ring) is sufficient for the target PLC and network architecture.
  4. Ensure PanelView 800 family and CCW are approved by your engineering standards; do not confuse with PanelView Plus or PanelView 5000 projects.
  5. Confirm environmental ratings (IP65 / NEMA 4X indoor) and 0…50 °C ambient are suitable for the installation location.
  6. Validate that the selected PLC (Micro800, MicroLogix, CompactLogix, SLC/PLC-5) has compatible firmware and communication protocol settings.
  7. Make sure the model is 2711R-T7T (touch, color, Ethernet/serial) and not a similar catalog (e.g., different size or feature) when ordering.
  8. Check that available panel depth and mounting hardware accommodate the 54 mm terminal depth and required clearances.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can confirm compatibility against your specific PLC, network, and panel configuration before the part ships.

Frequently Asked Questions

Is the 2711R-T7T fully compatible with Micro800 and CompactLogix controllers over EtherNet/IP?

Yes. The 2711R-T7T is optimized for Micro800 integration via EtherNet/IP and CCW tag-based programming, and it also supports CompactLogix, MicroLogix, SLC, and PLC-5 families. Compatibility depends on the specific firmware versions on both the HMI and the PLC, so aligning CCW project firmware with the installed terminal firmware and verifying the PLC's EtherNet/IP driver version before commissioning is essential.

What is the practical difference between PanelView 800 and PanelView Plus, and how do I know which one my project needs?

PanelView 800 is programmed in CCW (free), supports basic alarming, recipes, and numeric display, and is positioned for small-to-mid machine applications. PanelView Plus uses FactoryTalk View ME, supports historical data logging, advanced alarm management, and tighter integration with larger Logix platforms, but carries higher hardware and software costs. If your application needs data historians, multi-level alarm databases, or complex graphical objects, PanelView Plus or PanelView 5000 is the correct platform.

What power supply and protection does the 2711R-T7T require?

The terminal requires a 24 V DC supply and draws approximately 11 W under normal operating conditions. External overcurrent protection — a fuse or circuit breaker sized per the installation manual — must be provided in the panel wiring, along with a protective earth connection bonded to the panel ground. Do not rely on the upstream power supply's internal protection alone.

Can I access the 2711R-T7T remotely using VNC or a VPN connection?

The 2711R-T7T includes a VNC server capability that allows remote viewing and interaction with the HMI screen over a plant Ethernet network. Remote access via VPN is possible when the plant network infrastructure supports it, but configuration of the VPN gateway and network security is outside the scope of the HMI itself. Confirm your IT and OT network policies before relying on remote VNC access for maintenance workflows.

Is the 2711R-T7T a direct replacement for an older PanelView Standard or PanelView 300–600 terminal?

The 2711R-T7T is a modern replacement candidate for aging PanelView Standard and 300–600 series terminals in terms of functionality and physical panel-mount format, but it is not a drop-in electrical or software replacement. The application must be rebuilt in CCW, communication protocols and wiring connections must be re-verified, and panel cutout dimensions should be checked against the new terminal's requirements. Plan for engineering time to recreate and test the HMI project in CCW as part of the retrofit scope.

How do I recover or update firmware on a 2711R-T7T that will not boot correctly?

Firmware updates and recovery procedures for the 2711R-T7T are performed using a USB host port or microSD card following the Rockwell-published firmware update procedure for the PanelView 800 family. Always download firmware from the official Rockwell Automation support site and match the firmware version to the CCW project version. Refer to the Rockwell installation and user manual for the exact recovery sequence — do not attempt firmware updates without confirming the correct file and procedure for this specific catalog number.

Why Order the 2711R-T7T From LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships Allen-Bradley hardware worldwide, not limited to any single region.
  • Catalog number verification — a specialist team can confirm that 2711R-T7T matches your drawings, PLC platform, and network requirements before the order is placed.
  • Realistic lead-time visibility — current stock and lead-time information provided before you commit to a build schedule.
  • Volume and project pricing — contact for multi-unit or project quantities where standard list pricing may not reflect the best available option.
  • Hard-to-find parts — specialist sourcing capability for discontinued, allocated, or long-lead Rockwell catalog numbers beyond standard stock.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 2711R-T7T, PanelView 800 family (Bulletin 2711R)
  • Display: 7-inch TFT color LCD, 800 x 480 resolution, 65K colors, LED backlight with approximately 40,000-hour rated service life
  • Touchscreen: Analog resistive, suitable for gloved industrial use
  • Power: 24 V DC, approximately 11 W — requires external overcurrent protection
  • Processor and memory: 800 MHz CPU, 256 MB memory
  • Communications: 1 x 10/100 Mbps Ethernet (RJ45), RS-232, RS-422/485 serial, USB host, microSD
  • Protocols supported: EtherNet/IP, DF1, DH-485, Modbus RTU/ASCII
  • Front protection: IP65, NEMA Type 4X (indoor), 12, 13
  • Operating temperature: 0 to 50 °C
  • Front dimensions: Approx. 197 mm x 144 mm; depth approx. 54 mm
  • Development environment: Connected Components Workbench (CCW) — free from Rockwell Automation
  • Best fit: Micro800, MicroLogix, and CompactLogix machines requiring a 7-inch local operator interface with basic alarming, recipes, and VNC remote access
  • Step up if needed: PanelView Plus 7 or PanelView 5000 for advanced alarming, historical logging, and FactoryTalk View projects
