Allen-Bradley 440R-N23132 MSR127TP Safety Relay — Selection Guide
Allen-Bradley 440R-N23132 Guardmaster MSR127TP Safety Relay – Specs, Selection Guide & Where to Buy
When a controls engineer or panel builder is specifying a safety relay for a 24 V AC/DC system and needs three N.O. safety outputs to drive multiple contactors, the Allen-Bradley 440R-N23132 Guardmaster MSR127TP is one of the first catalog numbers that surfaces. This single-function Guardmaster safety relay monitors E-stops, guard interlock switches, and compatible 3-wire safety light curtains, then immediately de-energizes its safety outputs when a fault or actuation is detected — no programmable logic required. If you have already confirmed this is the right part for your panel, check current pricing and availability at LeadTime.ca — we ship worldwide.
Who Should Buy the 440R-N23132 — and Who Shouldn't
The Allen-Bradley 440R-N23132 Guardmaster MSR127TP is the right choice for engineers and panel builders who can confirm all of the following:
- Your control circuit supply is 24 V AC/DC — this relay is not rated for 120 V or 230 V control voltage.
- You need exactly three N.O. safety contacts and one N.C. auxiliary contact — not a different contact combination.
- Your safety devices are E-stops, guard interlock switches, or compatible 3-wire safety light curtains that match the MSR127TP input wiring scheme.
- Immediate (non-time-delayed) safety outputs are acceptable under your risk assessment.
- You are mounting to a 35 mm DIN rail and removable terminal blocks are acceptable in your panel design.
- Your project operates within an Allen-Bradley or Rockwell Automation ecosystem where Guardmaster familiarity and spare-parts standardization have value.
If your application requires time-delayed safety outputs, a different supply voltage, complex multi-zone safety logic, or integrated network diagnostics, a different MSR127 variant, a configurable Guardmaster safety controller, or a GuardLogix safety PLC will be the better fit. Specific alternatives are discussed in the variant comparison section below.
On this page:
- What the 440R-N23132 Actually Does in a Safety Circuit
- Typical System Architecture for the MSR127TP
- Typical Applications and Deployment Scenarios
- Key Specifications and Contact Configuration
- MSR127TP vs Other Guardmaster Variants — Which One Do You Need?
- Expert Verdict: When the 440R-N23132 Is the Right Call
- What Engineers Need to Know Before Ordering the 440R-N23132
- Wiring and Installation Overview
- Wrong-Part Prevention Checklist
- Frequently Asked Questions
- Why Order from LeadTime.ca
- At-a-Glance Summary
What the 440R-N23132 Actually Does in a Safety Circuit

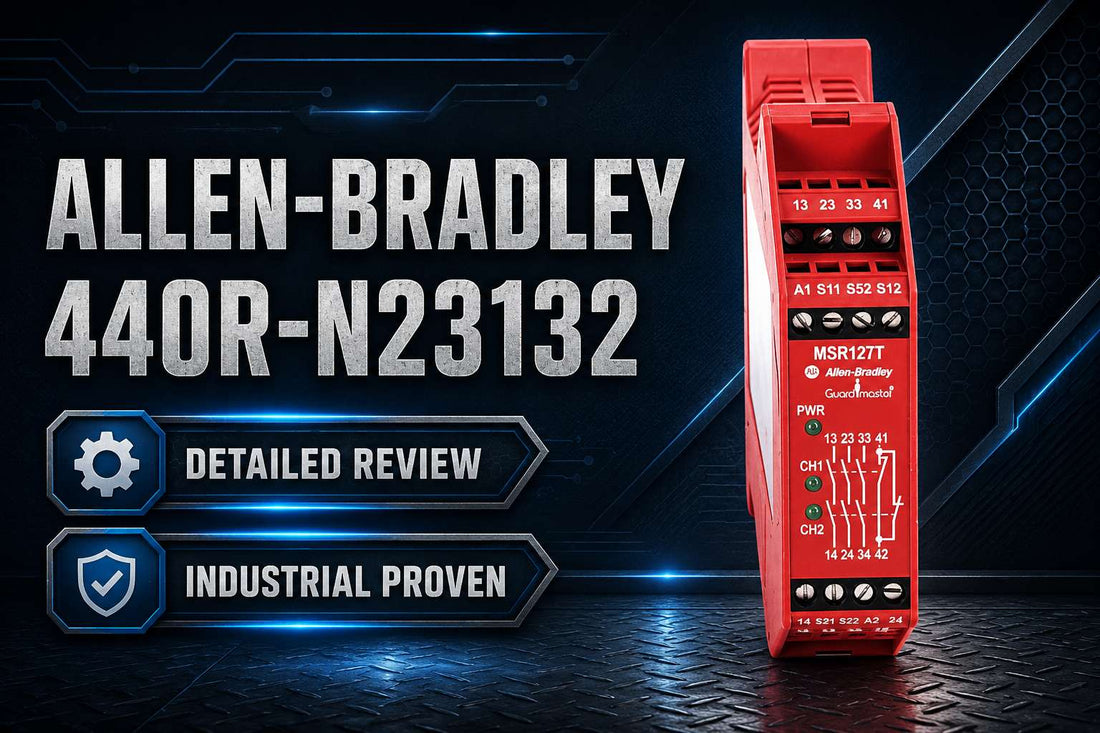

The Allen-Bradley 440R-N23132 is a single-function Guardmaster MSR127TP safety relay — a hardwired, dedicated monitoring device that sits between field safety devices and the power-contacting elements (contactors or safety relays) that control hazardous energy. It does not run user programs, does not have a network port, and does not make complex logic decisions. That is precisely the point. Its job is one thing: continuously monitor the safety input channels, and the instant a safety device opens or a channel-consistency fault is detected, immediately drop all three N.O. safety outputs to de-energize the connected contactors and bring the machine to a safe state.
The relay operates on a 24 V AC/DC supply and supports dual-channel input monitoring, which is fundamental to achieving the redundancy required in safety circuits. The MSR127TP functional designation indicates support for E-stop buttons, guard switches, and compatible 3-wire safety light curtains — a broader input capability than some other MSR127 variants that handle only mechanical switches. Reset behavior (automatic or manual) is determined by how the reset circuit terminals are wired, giving the installer flexibility without requiring programming.
Rockwell Automation identifies the 440R-N23132 as a Guardmaster MSR127TP safety relay with 24 V AC/DC supply and three N.O. safety outputs intended for DIN-rail mounting in safety control circuits. Authorized distributor data confirms the unit carries 3 N.O. safety contacts plus 1 N.C. auxiliary contact for signaling, with automatic or manual reset capability determined by wiring. Those two verified facts define the envelope of what this relay does — and what it cannot replace.
Typical System Architecture for the MSR127TP
The 440R-N23132 sits at the logic layer of a hardwired safety circuit, bridging field safety devices and the power-switching contactors that control the machine. A typical deployment looks like this:
- 24 V DC control power supply feeds the relay's power terminals and, where applicable, the safety light curtain or safety device supply.
- Field safety devices — E-stop buttons, guard door interlock switches, or a 3-wire safety light curtain — connect to the dual-channel safety input terminals of the 440R-N23132.
- A reset pushbutton (for manual reset applications) connects to the relay's reset input terminal; for auto-reset, this terminal is wired per the Rockwell wiring diagram.
- The three N.O. safety output contacts connect to the coils of safety contactors or safety relays, which in turn control the hazardous drive or actuator circuit.
- The 1 N.C. auxiliary contact feeds back to the PLC or HMI for status signaling — indicating relay state without being relied upon for the safety function itself.
Typical Applications and Deployment Scenarios
The 440R-N23132 sees consistent use on conveyor lines and packaging machines where multiple E-stop stations must be monitored and two or three contactors need to drop simultaneously on an emergency stop. The three N.O. safety outputs make this relay practical for machines where a single-output safety relay would require additional expansion hardware.
Guard door monitoring on robot cells, palletizers, and mechanical presses is another core use case. Where a guard interlock switch must prevent access during hazardous motion, the MSR127TP function provides dual-channel monitoring with the channel-consistency checking required for meaningful fault detection.
Integrating a 3-wire safety light curtain into a 24 V AC/DC control system is where the MSR127TP designation specifically earns its place. Not all MSR127 variants support light curtain inputs; confirming the TP designation before ordering is essential for this application.
Machine retrofit projects — where older equipment must be brought to current safety standards without the cost and complexity of installing a safety PLC — are a natural fit for the 440R-N23132. A single-function relay with a clear, auditable wiring scheme is often easier to validate and document for compliance purposes than a configurable controller in a retrofit context.
OEM machine builders who standardize one safety relay type across multiple machine platforms to reduce spare-part SKU count and simplify technician training also regularly specify the 440R-N23132 as their standard Guardmaster safety relay.
| Application | Typical Deployment |
|---|---|
| Conveyor E-stop monitoring | Multiple E-stop stations wired dual-channel; three contactors de-energized on actuation |
| Robot cell guard door | Guard interlock switch on access door; manual reset required before restart |
| Safety light curtain integration | 3-wire light curtain connected to MSR127TP inputs; immediate output drop on beam break |
| Packaging machine E-stop | 24 V DC panel; multiple drive contactors controlled via three safety outputs |
| Machine retrofit for compliance | Simple hardwired relay replaces obsolete safety circuit; auditable wiring for ISO 13849 documentation |
| OEM multi-machine standardization | Single relay type across product line; simplified spares and technician familiarity |
Key Specifications and Contact Configuration
| Parameter | Value | Notes |
|---|---|---|
| Brand | Allen-Bradley (Rockwell Automation) | Guardmaster product family |
| Catalog Number | 440R-N23132 | Guardmaster MSR127TP safety relay |
| Product Family | Guardmaster MSR127 single-function safety relays | Immediate output type |
| Supply Voltage | 24 V AC/DC | Not rated for 120 V or 230 V control circuits |
| Safety Outputs | 3 N.O. relay contacts | Immediate — no internal time delay |
| Auxiliary Output | 1 N.C. auxiliary contact | Signaling only — not safety-rated |
| Reset Modes | Automatic or manual (determined by wiring) | No programming required; set at installation |
| Supported Safety Devices | E-stops, guard interlock switches, compatible 3-wire safety light curtains | Confirm device compatibility with Rockwell documentation |
| Mounting | 35 mm DIN rail | Standard control panel mounting |
| Terminals | Removable terminal blocks | Useful for maintenance and like-for-like swap |
Full technical specifications are available on the product page at LeadTime.ca.
MSR127TP vs Other Guardmaster Variants — Which One Do You Need?
The MSR127 family covers multiple functional variants. The 440R-N23132 carries the MSR127TP designation, which specifically indicates support for E-stops, guard switches, and 3-wire safety light curtains with 24 V AC/DC supply and three N.O. immediate safety outputs. Other MSR127 catalog numbers differ in contact configuration, supported input devices, or supply voltage. If your application requires time-delayed safety outputs, a different output count, or a different supply voltage, the 440R-N23132 is not the correct catalog number regardless of how similar the part numbers appear.
For applications requiring multi-zone safety logic, network-based diagnostics, or integration of many simultaneous safety functions, the Guardmaster configurable safety relays or a GuardLogix safety PLC would be more appropriate than any single-function MSR127 relay.
| Relay Type | Best Fit | Key Difference vs 440R-N23132 |
|---|---|---|
| 440R-N23132 (MSR127TP) | E-stop, guard switch, 3-wire light curtain; 24 V AC/DC; 3 N.O. immediate outputs | This product |
| Other MSR127 variants | Different contact configurations, different input device support, or different supply voltage | Different catalog number — verify contact set and input type |
| MSR138 series | Different functional monitoring (e.g., two-hand control, door monitoring with timing) | Different functional behavior — not a swap |
| Guardmaster configurable safety relay | Multiple safety functions in one device, EtherNet/IP diagnostics | Configurable logic, higher cost, requires configuration tool |
| GuardLogix safety PLC | Complex multi-zone safety, integrated motion safety, full network integration | Full programmable safety — different product class entirely |
If you need to confirm which MSR127 variant matches your contact and input requirements, review the 440R-N23132 product page at LeadTime.ca or contact our team for selection support.
Expert Verdict: When the 440R-N23132 Is the Right Call
The Allen-Bradley 440R-N23132 Guardmaster MSR127TP earns its place in a panel when the application is straightforward and the safety architecture is already defined: a 24 V AC/DC control system, a known set of safety input devices (E-stops, guard switches, or a 3-wire light curtain), and a need to de-energize two or three contactors simultaneously on an emergency stop or guard opening. For OEM machine builders and plant engineers already operating within a Rockwell ecosystem, the Guardmaster footprint, removable terminal blocks for maintenance, and the flexibility to configure auto or manual reset purely through wiring make this a practical, low-complexity solution. The two verified facts about this relay — that it is a single-function immediate-output device with 3 N.O. safety contacts and 1 N.C. auxiliary, running on 24 V AC/DC — define exactly what it delivers and exactly who it serves well.
Where the 440R-N23132 has real limits is equally important to state honestly. If your risk assessment calls for time-delayed outputs before the machine can restart, a different MSR127 catalog number or a different relay series is required. If you are building a new machine with multiple safety zones, dynamic safety logic, or a need for network-level diagnostics, the investment in a configurable Guardmaster safety controller or a GuardLogix safety PLC will pay back quickly in commissioning time and long-term maintenance visibility. The 440R-N23132 is a single-function relay — its simplicity is a feature, not a limitation, but only when the application matches.
From a procurement standpoint, the 440R-N23132 is a standard Guardmaster catalog number that authorized distributors typically carry in stock or can source on short lead times under normal market conditions. That said, Rockwell Automation lead times fluctuate with broader supply conditions, and confirming real-time availability before committing to a build schedule is always the right move. Buying through a specialist automation distributor rather than a generic channel gives you access to variant confirmation, real-time lead-time checks, and alternatives if stock is constrained — all before a PO is released. Check current availability and pricing for the 440R-N23132 at LeadTime.ca — we ship to customers worldwide.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Need to Know Before Ordering the 440R-N23132
Specific community discussion about catalog number 440R-N23132 is sparse across the major automation forums — r/PLC, PLCTalk, PLCS.net, MrPLC, and the Rockwell support communities. What does surface at the MSR127 family level is broadly neutral to positive: these relays are treated as familiar, standard components by engineers who work with Rockwell panels regularly. The most common sentiment is not enthusiasm or frustration — it is the quiet confidence of a technician reaching for a part they have wired before. That familiarity, however, is also where ordering errors creep in, because a part you think you know is the one you check least carefully.
At the family level, forum discussions do flag a few recurring patterns worth knowing. Reset circuit miswiring is the most commonly mentioned commissioning issue — specifically, wiring the reset input in a way that produces either a non-starting system or an unintended auto-reset behavior. Engineers new to the MSR127 family occasionally report this, and it nearly always traces back to a mismatch between the wiring diagram version used and the actual terminal layout of the unit on hand. The second recurring theme is relay contact wear over time producing intermittent faults that get misdiagnosed as sensor problems before the relay itself is suspected. This is a normal end-of-life behavior for any electromechanical safety relay, but it catches maintenance teams off guard when they have not tracked cycle counts or relay age.
The ordering mistake that comes up most often in general Allen-Bradley safety relay discussions — and is directly relevant here — is selecting a nearby catalog number that looks similar but has a different contact set, a different supply voltage, or time-delayed rather than immediate outputs. The MSR127 family uses a compact catalog numbering system where adjacent part numbers can differ in critical ways. When community data is thin for a specific catalog number, that is precisely when specialist distributor knowledge matters most. The LeadTime.ca team can confirm that 440R-N23132 matches your 24 V AC/DC supply, three N.O. immediate output, and MSR127TP input requirements before the order is placed — saving the rework cost of discovering a mismatch at the panel build stage.
Wiring and Installation Overview
The following is a high-level overview only. Full wiring procedures must follow the official Rockwell Automation documentation for catalog number 440R-N23132 and applicable safety standards for your jurisdiction and machine category.
- Mount the relay on a 35 mm DIN rail with adequate spacing for ventilation and cable management; segregate 24 V control wiring from power wiring as required by panel design standards.
- Connect 24 V AC/DC supply to the power terminals exactly as shown in the Rockwell wiring diagram; include protective earth or reference connections as specified.
- Wire dual-channel safety inputs — E-stop buttons, guard interlock switches, or a compatible 3-wire safety light curtain — to the designated input terminals following the Rockwell wiring examples for the MSR127TP function; do not mix incompatible device types on the same input unless a supported wiring scheme is explicitly shown in manufacturer documentation.
- Wire the reset circuit to the reset input terminal in the configuration matching your chosen reset mode (auto or manual); if manual reset is required, connect a normally-open momentary pushbutton as specified and verify the reset circuit does not permit reset while a safety device is still actuated.
- Connect the three N.O. safety output contacts to the coils of the safety contactors; verify contact utilization category and current ratings from the datasheet match your load, and add external protection components where required.
Wrong-Part Prevention Checklist
Before releasing a purchase order for the Allen-Bradley 440R-N23132 Guardmaster MSR127TP, work through the following checklist against your electrical drawings and safety design documentation:
- Confirm the required supply is 24 V AC/DC – do not use this relay on 120/230 V control circuits.
- Verify you truly need three N.O. safety contacts and one N.C. auxiliary; compare to other MSR127 catalog numbers with different contact sets.
- Check that your safety devices (E-stops, guard switches, or compatible 3-wire safety light curtains) match the input wiring scheme of MSR127TP.
- Confirm that immediate (non-time-delayed) safety outputs are acceptable for your risk assessment.
- Verify reset philosophy: this unit supports auto/manual reset via wiring; ensure this matches your safety functional requirement and standards.
- Ensure removable terminal blocks are acceptable and that you are not expecting spring-clamp or fixed terminals.
- Check required approvals (UL/cUL, CE, etc.) for your region and machine category and verify they are listed for this catalog number.
- Do not confuse 440R-N23132 with nearby Allen-Bradley safety relay part numbers (e.g., other MSR127 variants or MSR138 series) that have different functional behavior.
If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — we can confirm the correct catalog number against your requirements and check real-time availability worldwide.
Frequently Asked Questions
Can the 440R-N23132 monitor both an E-stop and a guard door interlock on the same relay input?
The MSR127TP function supports E-stops and guard interlock switches as input devices, but combining multiple device types on a single relay input must be done only where the Rockwell wiring documentation explicitly shows a supported scheme. Mixing incompatible devices on the same input channels can result in reduced diagnostic coverage or faults. Consult the official wiring diagrams for your specific combination before panel build.
How do I set the 440R-N23132 for manual versus automatic reset?
Reset mode on the MSR127TP is determined entirely by wiring — there is no switch or programming parameter to change. The Rockwell wiring documentation shows the specific terminal connections for each mode. For manual reset, a normally-open momentary pushbutton is wired to the reset input terminal; for automatic reset, the terminal is wired per the auto-reset diagram. Verify the reset circuit prevents restart while any safety device is still actuated before commissioning.
Is the 440R-N23132 a direct swap for another MSR127 safety relay that has failed?
If the failed relay is also catalog number 440R-N23132, it is a like-for-like replacement using the same wiring. If the failed relay is a different MSR127 catalog number, you must verify that the contact configuration, supply voltage, functional designation, and supported input devices are identical before treating it as a direct swap. The MSR127 family contains multiple variants; adjacent catalog numbers can differ in critical ways.
How many contactors can the three safety outputs of the 440R-N23132 drive?
The relay provides three independent N.O. safety output contacts, each of which can drive one contactor coil (subject to the contact utilization category and current ratings specified in the Rockwell datasheet). Each output contact is separate, so the relay can control up to three individual contactor circuits simultaneously. Do not exceed the rated contact capacity — verify the utilization category and load ratings from the official datasheet for your specific contactor coil loads.
What does it mean if the safety relay's output LED is on but the machine will not start after a reset?
If the safety outputs appear energized but the machine does not start, the issue is most likely downstream of the relay — check that the contactor coils are receiving voltage, that the contactor auxiliary contacts feeding back to the PLC are functioning, and that the PLC or drive enable logic is satisfied. Also confirm the reset circuit is correctly wired and that the reset pushbutton is being held and released as required. Persistent faults should be investigated using the Rockwell troubleshooting guide for the MSR127TP alongside a functional test of each safety input channel.
What is the typical availability and lead time for the 440R-N23132 when ordering worldwide?
The 440R-N23132 is a standard Guardmaster catalog number that major authorized distributors typically carry in stock or on short lead times under normal conditions. In-stock units can ship same day or next day; during supply constraint periods, lead times can extend from several days to multiple weeks depending on Rockwell Automation's production schedule. Real-time stock status should always be confirmed before committing to a build schedule — contact LeadTime.ca for current availability and worldwide shipping options.
Why Order from LeadTime.ca
- Global shipping — we ship Allen-Bradley and Rockwell Automation products to customers worldwide, not just within a single region.
- Variant confirmation — our team can cross-check your catalog number against your supply voltage, contact requirements, and input device type before an order is placed.
- Real-time lead time checks — we monitor Rockwell Automation availability and can identify alternatives or expedite options when stock is constrained.
- Volume pricing available — contact us for project quantities or blanket order discussions.
- Specialist support — we work with controls engineers and procurement teams, not just order takers; we understand the difference between MSR127 variants and can help prevent costly reorders.
- View the 440R-N23132 product page and check availability at LeadTime.ca
- Contact the LeadTime.ca team for a quote or selection support
At-a-Glance Summary
- Catalog number: Allen-Bradley 440R-N23132 — Guardmaster MSR127TP safety relay
- Supply voltage: 24 V AC/DC — not compatible with 120 V or 230 V control circuits
- Safety outputs: 3 N.O. relay contacts — immediate, no internal time delay
- Auxiliary output: 1 N.C. contact for signaling only — not safety-rated
- Supported safety devices: E-stops, guard interlock switches, and compatible 3-wire safety light curtains
- Reset mode: Automatic or manual — determined entirely by wiring, no programming required
- Mounting: 35 mm DIN rail with removable terminal blocks
- Product family: Guardmaster MSR127 single-function safety relays (Rockwell Automation)
- Best fit: 24 V AC/DC panels in Rockwell ecosystems requiring simple, validated safety monitoring for up to three contactor circuits
- Not the right choice for: time-delayed outputs, different supply voltages, multi-zone safety logic, or network diagnostics requirements
- Available worldwide through LeadTime.ca — confirm real-time stock before committing to a build schedule
