Allen-Bradley 2711P-T7C22D9P — PanelView Plus 7 Buyer Review

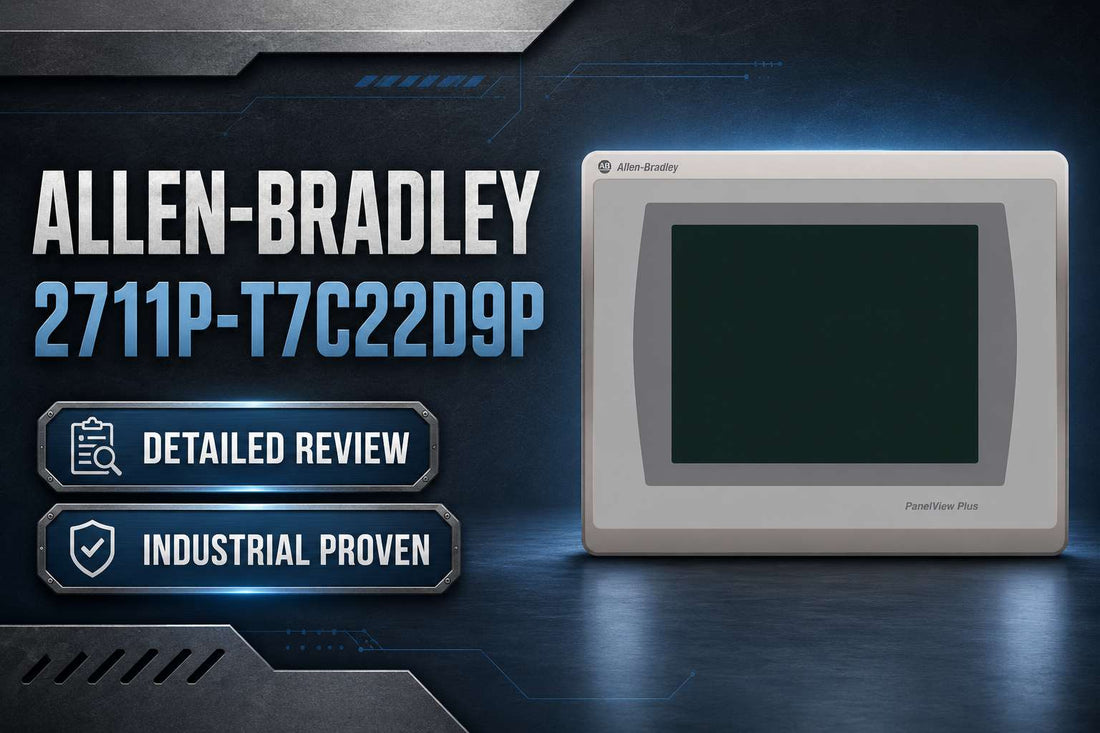

Allen-Bradley 2711P-T7C22D9P PanelView Plus 7 Performance Graphic Terminal, 7 in TFT Color Touch, Dual-Port Ethernet, 24 V DC — Specs, Price and Alternatives Review
Controls engineers specifying a compact HMI for a CompactLogix or ControlLogix system often land on the Allen-Bradley 2711P-T7C22D9P after confirming they need a 7-inch PanelView Plus 7 Performance terminal with dual-port Ethernet and Device Level Ring support. This is a bottom-of-funnel decision: you know the platform, you know the screen size, and you need to confirm specs, pricing, and availability before committing. The 2711P-T7C22D9P delivers a 640 x 480 VGA TFT color resistive touchscreen, dual 10/100 Mbps Ethernet ports, 24 V DC power input across an 18–30 V DC range, and an IP66-rated front panel — all on Windows CE 6.0 with full FactoryTalk View ME runtime support.
If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.
Who Should Buy the 2711P-T7C22D9P — and Who Shouldn't
This terminal is the right choice for engineers and OEMs whose application checks all of the following boxes:
- You need a 7-inch class TFT color HMI with 640 x 480 VGA resolution — not a widescreen or larger format.
- Your application requires PanelView Plus 7 Performance (not Standard) for full connectivity and feature support, including dual Ethernet ports and DLR topology.
- 24 V DC (18–30 V DC) control power is available in the panel with external overcurrent protection.
- Your FactoryTalk View ME application version and firmware strategy are confirmed compatible with PanelView Plus 7 Performance.
- The installation environment requires an IP66-rated front panel for panel-mount use, with an operating temperature range of 0 to 55 °C.
- You are standardized on EtherNet/IP and the Rockwell architecture, and long-term maintainability within that ecosystem is a priority.
If your project is cost-sensitive with simple visualization needs, or if you require a larger display (9–12 inch), a keypad terminal, a stainless-steel bezel, or integration with a non-Rockwell PLC platform, a different variant or platform will serve you better — specific alternatives are covered below.
On this page:
- What the 2711P-T7C22D9P Actually Does in a Rockwell System
- Typical System Architecture for the PanelView Plus 7 Performance
- Where Engineers Deploy the 2711P-T7C22D9P
- Purchase-Decision Specs and Variant Comparison
- Expert Verdict: When This HMI Earns Its Price Tag
- What Engineers Consistently Get Wrong When Ordering This Part
- Wiring and Installation Overview
- Commissioning the 2711P-T7C22D9P: FactoryTalk View ME Setup Overview
- Wrong-Part Prevention Checklist Before You Order
- Frequently Asked Questions
- Why Order from LeadTime.ca
- At-a-Glance Summary
What the 2711P-T7C22D9P Actually Does in a Rockwell System
The Allen-Bradley 2711P-T7C22D9P is the front-end operator interface for Allen-Bradley controller-based automation cells. It runs FactoryTalk View Machine Edition, which means it is purpose-matched to CompactLogix and ControlLogix PLCs communicating over EtherNet/IP. The operator sees visualized process data, navigates screens, acknowledges alarms, and enters setpoints — all through a 7-inch resistive TFT color touchscreen that supports gloved-hand operation.
What separates this model from the PanelView Plus 7 Standard line is the Performance platform designation: Windows CE 6.0 with extended features, dual 10/100 Mbps Ethernet ports with Device Level Ring capability, and the full feature set that comes with Performance-class firmware. In a practical sense, this means the terminal can participate directly in a DLR network without a separate managed switch, simplifying the panel layout and improving network resilience on the machine floor. The nonvolatile memory retains the application and configuration through power cycles without a battery, and USB host and device ports plus a serial port extend connectivity options for firmware updates, application transfers, and legacy device integration.
The front panel carries an IP66/NEMA-type enclosure rating when installed correctly with the supplied gasket, which is the threshold most discrete manufacturing panel cutouts require. Operating temperature spans 0 to 55 °C, covering the vast majority of indoor industrial environments without special provisions.
Typical System Architecture for the PanelView Plus 7 Performance
The 2711P-T7C22D9P sits at the human-machine boundary in the EtherNet/IP device layer — between the operator and the controller, not between the controller and field devices. Here is where it typically lands in the signal and data chain:
- CompactLogix or ControlLogix controller running the machine program, connected over EtherNet/IP to the plant network or a dedicated machine network.
- The 2711P-T7C22D9P connects to the controller's EtherNet/IP network via one or both of its dual 10/100 Mbps Ethernet ports, operating in DLR, linear, or star topology as the design requires.
- The second Ethernet port on the terminal enables pass-through or DLR ring closure — removing the need for a separate switch at the machine level in many architectures.
- FactoryTalk View ME application on the terminal reads and writes tags directly to the controller using configured communication paths (FactoryTalk Linx or RSLinx Enterprise).
- USB host/device ports and serial port provide connections for application loading, firmware updates, barcode scanners, or legacy serial devices as the application requires.
Where Engineers Deploy the 2711P-T7C22D9P
Discrete manufacturing accounts for the largest share of deployments. Packaging lines and assembly cells built around CompactLogix PLCs use this terminal as the main machine HMI, displaying cycle counts, fault codes, recipe parameters, and alarm histories on a panel door or machine frame.
Conveyor systems, palletizers, and material handling subsystems are a natural fit because the 7-inch form factor mounts in a compact enclosure door without requiring the larger panel real estate of a 10- or 12-inch terminal. The dual Ethernet and DLR support make it practical for ring-topology machine networks that are common in these applications.
OEM machine builders frequently standardize on the 2711P-T7C22D9P across a family of machines sold into multiple facilities. Standardization on a single catalog number simplifies FactoryTalk View ME project management, spare-parts inventory, and technician training across the installed base.
Replacement and upgrade projects from older PanelView Plus or PanelView Standard terminals represent a significant share of orders. Engineers migrating aging HMIs to PanelView Plus 7 Performance get a direct panel-cutout-compatible upgrade path within the Rockwell ecosystem, with FactoryTalk View Studio tools available to assist with application conversion.
Food and beverage processing, water and wastewater utilities, and light process industries also deploy this terminal in appropriate enclosures where the IP66 front rating and 0 to 55 °C operating range meet site requirements.
| Application | Typical Deployment |
|---|---|
| Packaging machine main HMI | Panel-mounted on CompactLogix cell, DLR ring with I/O modules |
| Conveyor and palletizer operator panel | Machine-frame enclosure, linear Ethernet to CompactLogix controller |
| OEM standardized machine HMI | Single catalog number across machine family, FactoryTalk View ME project template |
| PanelView Plus legacy replacement | Drop-in upgrade in existing panel cutout, application migration via FactoryTalk View Studio |
| Line-side diagnostic terminal | Alarm and trend display for production area, star topology to plant network switch |
| Food and beverage processing | Panel-mounted in NEMA enclosure, IP66 front rating, 0–55 °C environment |
Purchase-Decision Specs and Variant Comparison for the 2711P-T7C22D9P
| Specification | Value |
|---|---|
| Product family | PanelView Plus 7 Performance |
| Display size | 7 in class TFT color (approx. 6.5 in viewable) |
| Resolution | 640 x 480 (VGA, 4:3 aspect ratio) |
| Touchscreen type | Resistive (gloved-hand and stylus compatible) |
| Ethernet ports | Dual 10/100 Mbps with DLR, linear, and star topology support |
| Power supply | 24 V DC (18–30 V DC range); requires external overcurrent protection |
| Power consumption | Approx. 50 W |
| Operating temperature | 0 to 55 °C |
| Front protection rating | IP66 / NEMA panel-mount (with supplied gasket) |
| Operating system / runtime | Windows CE 6.0 with extended features; FactoryTalk View ME |
Full technical specifications are available on the product page at LeadTime.ca.
PanelView Plus 7 Performance 7-Inch Variant Comparison
| Model | Screen Size | Resolution | Ethernet | Power | When to Choose |
|---|---|---|---|---|---|
| 2711P-T7C22D9P | 7 in TFT color | 640 x 480 VGA | Dual 10/100 Mbps, DLR | 24 V DC | Performance features, dual Ethernet, DLR ring required |
| PanelView Plus 7 Standard 7 in | 7 in TFT color | 640 x 480 VGA | Single Ethernet (model-dependent) | 24 V DC | Lower cost, simpler networks, no DLR requirement |
| PanelView Plus 7 Performance 9–12 in | 9–12 in TFT color | Higher resolution | Dual 10/100 Mbps, DLR | 24 V DC | Complex graphics, more screens, larger panel real estate available |
If your application demands more screen real estate or higher graphic complexity than a 640 x 480 VGA display can deliver, the 9- to 12-inch PanelView Plus 7 Performance models are the correct upgrade path — check current availability at LeadTime.ca.
Expert Verdict: When the 2711P-T7C22D9P Earns Its Price Tag
The 2711P-T7C22D9P is the right building-block HMI for controls engineers and OEMs who are already standardized on CompactLogix or ControlLogix and who need a compact, 7-inch operator terminal with genuine network resilience. The dual 10/100 Mbps Ethernet ports with DLR support are the key differentiator at this screen size — they allow the terminal to participate directly in a ring topology without adding a managed switch to the machine cabinet, which matters both for cost and for network fault recovery. Paired with an IP66-rated front panel, 0 to 55 °C operating range, and the full PanelView Plus 7 Performance feature set running FactoryTalk View ME, this is a terminal that will hold up in a real industrial panel for years of continuous operation. The consistent community reports of long service life and strong EtherNet/IP integration reliability reinforce that assessment.
Where the 2711P-T7C22D9P has real limits: the purchase price sits in the mid four-figure range, which is hard to justify for simple standalone machines with basic status display needs. If your application does not require dual Ethernet, DLR, or the full Performance feature set, a PanelView Plus 7 Standard variant will do the job at lower cost. If the screen size is the constraint — either because the panel door allows a larger terminal or because the application has dense graphics and navigation — the 9- to 12-inch PanelView Plus 7 Performance models are the honest recommendation. For projects not standardized on the Rockwell ecosystem, the integration overhead of FactoryTalk View ME and FactoryTalk Linx is real, and a non-Rockwell HMI on a non-Rockwell PLC will typically deliver faster commissioning and lower licensing complexity.
From a procurement standpoint, Allen-Bradley HMI availability has historically ranged from in-stock to several weeks of lead time depending on the distributor and market conditions — confirming current availability before committing to a build schedule is not optional on this product family. Buying through a specialist automation distributor gives you a compatibility check on firmware and FactoryTalk View ME version alignment before the order ships, which is the single most common source of commissioning delays on PanelView Plus 7 projects. View current pricing and lead time for the 2711P-T7C22D9P at LeadTime.ca — we ship worldwide.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Consistently Get Wrong When Ordering This Part
Community discussions across PLCTalk, Reddit r/PLC, Reddit r/automation, MrPLC, and PLCS.net reveal a consistent pattern of praise and frustration around the PanelView Plus 7 Performance family. Engineers who are already running CompactLogix or ControlLogix systems report that these terminals integrate reliably over EtherNet/IP once configured correctly — the phrase that comes up repeatedly is that they "just work" within the Rockwell architecture. Migration from older PanelView Plus terminals is also frequently cited as smooth, with the familiar FactoryTalk View ME environment reducing retraining time and allowing existing project assets to be reused with conversion tooling in FactoryTalk View Studio.
The frustration points are equally consistent. Purchase cost is the most common complaint, especially from integrators who are asked to deliver a simple machine interface and find that the 2711P-T7C22D9P is overspecified and overpriced for the task. FactoryTalk View ME licensing, version management between firmware revisions, and project portability across different PanelView Plus 7 firmware levels are recurring sources of commissioning friction — engineers who have not standardized on a specific firmware version across their installed base report spending significant time on compatibility resolution. Touchscreen responsiveness degradation over extended service in harsh environments is also mentioned, with community consensus being that full terminal replacement is the practical remediation path rather than repair.
The most costly ordering mistakes reported in the community are ordering a PanelView Plus 7 Standard instead of the Performance variant and not catching the missing dual Ethernet ports until the machine is on the shop floor, selecting the wrong screen size or aspect ratio and then being forced to redesign panel graphics, and ordering a unit with different communication options than the network design requires. These mistakes are preventable with a pre-order compatibility check — the checklist below is the structured version of what experienced engineers do before every PanelView Plus 7 order.
Wiring and Installation Overview for the 2711P-T7C22D9P
- Cut the panel opening to the dimensions specified in the Rockwell datasheet; verify adequate panel depth for the terminal body (approx. 70 mm) plus cable bend radius clearance before cutting.
- Fit the supplied gasket onto the HMI bezel before inserting the unit into the cutout, and tighten all mounting hardware to manufacturer torque specifications to achieve the IP66 front-panel rating — uneven torque causes gasket gaps and seal failure.
- Wire 24 V DC power using correctly rated conductors with external overcurrent protection and a dedicated, solid earth ground to the panel ground bus; marginal or shared power supplies are a primary cause of brownout resets and display instability.
- Connect Ethernet ports using industrial-grade shielded cables routed away from high-voltage conductors and VFD wiring; configure DLR or star/linear topology in both the terminal and the PLC to match the network design.
- Apply power and confirm the terminal boots to the configuration screen without faults before loading any application; verify IP address, subnet mask, and gateway settings match the plant network standard.
Commissioning the 2711P-T7C22D9P: FactoryTalk View ME Setup Overview
- Set the HMI IP address, subnet mask, and gateway from the terminal configuration menu according to plant network standards and document the settings before proceeding.
- Copy the FactoryTalk View ME .mer runtime file to a USB drive or SD card and import it to the terminal using the onboard file management utility; confirm the runtime version matches the firmware version on the terminal.
- If the existing application was developed for an older firmware revision, use FactoryTalk View Studio to convert the project to the correct runtime target before deploying to the 2711P-T7C22D9P.
- Configure communication paths in FactoryTalk Linx (or RSLinx Enterprise) on the terminal to point to the correct PLC IP address, and verify the controller is responding before testing tag reads and writes.
- Validate all critical functions — tag reads and writes, alarm annunciation, screen navigation, and operator prompts — and record the final firmware version and application version in the machine documentation package.
Wrong-Part Prevention Checklist Before You Order the 2711P-T7C22D9P
Work through each item before placing the order — these six checks address every common ordering mistake reported for this model:
- Confirm you need a PanelView Plus 7 Performance (not Standard) terminal and that dual Ethernet ports are required.
- Verify 24 VDC control power is available; this unit does not support 120 VAC directly and requires external protection.
- Check the 7 in (VGA 4:3) form factor and panel cutout dimensions fit the enclosure and operator visibility requirements.
- Ensure FactoryTalk View ME application version is compatible with the firmware supported by 2711P-T7C22D9P.
- Confirm required network topology (DLR/linear/star) and IP addressing scheme match plant standards.
- Verify environmental ratings (IP66, temperature range, Class I Div 2 where applicable) meet site and code requirements.
If any item on this checklist raises a question before you order, contact the LeadTime.ca team — our team can validate compatibility and confirm current lead time before your order is placed.
Frequently Asked Questions
What is the difference between PanelView Plus 7 Performance and PanelView Plus 7 Standard — and which is the 2711P-T7C22D9P?
The 2711P-T7C22D9P is a PanelView Plus 7 Performance terminal. The Performance platform includes dual 10/100 Mbps Ethernet ports with DLR topology support, Windows CE 6.0 with extended features, and the full FactoryTalk View ME feature set. PanelView Plus 7 Standard models typically offer a single Ethernet port and a reduced feature set suited to simpler applications — they cost less but do not support DLR ring topologies or all Performance-class capabilities.
Which FactoryTalk View ME version and firmware level should I use with the 2711P-T7C22D9P?
Rockwell Automation documents specific FactoryTalk View ME runtime versions that are compatible with each PanelView Plus 7 Performance firmware revision. The critical step is to confirm the firmware version currently on the terminal and match it to the runtime target set in FactoryTalk View Studio before deploying the application. Standardizing all PanelView Plus 7 devices in a plant or machine family on the same firmware level is strongly recommended to avoid version-mismatch issues during replacement or upgrade events.
Can I reuse a PanelView Plus 6 application on the 2711P-T7C22D9P without redesigning it?
Direct transfer without conversion is not supported — FactoryTalk View Studio includes a conversion utility that migrates PanelView Plus 6 applications to PanelView Plus 7 runtime format. The conversion process handles most elements automatically, but graphic libraries, scripting, and communication paths often require manual review and adjustment. Engineers should budget conversion and validation time before committing to a tight commissioning schedule.
Does the 2711P-T7C22D9P support Device Level Ring natively, or does it require a separate managed switch?
The dual 10/100 Mbps Ethernet ports on the 2711P-T7C22D9P natively support DLR topology, meaning the terminal can act as a DLR ring node without a separate managed switch at the machine level. This is one of the primary reasons to choose this Performance model over a Standard variant — it simplifies ring-topology machine networks and supports automatic ring fault recovery as defined by the DLR protocol.
What are realistic lead times for the 2711P-T7C22D9P, and what should I do if it is not in stock?
Lead times for Allen-Bradley HMIs have ranged from immediate stock availability to several weeks depending on the distributor and prevailing supply conditions. Confirming stock and lead time with your distributor before finalizing a build schedule is essential. If the exact catalog number is temporarily unavailable, a specialist distributor can identify whether an adjacent PanelView Plus 7 Performance variant meets the application requirements or whether the project timeline needs to be adjusted — this is a conversation worth having before the machine build is underway.
Is the 2711P-T7C22D9P a direct panel-cutout replacement for an older PanelView Plus terminal?
Panel-cutout compatibility depends on the specific older model being replaced. The 2711P-T7C22D9P carries approximate dimensions of 212 x 170 x 70 mm and requires the panel cutout dimensions specified in the current Rockwell datasheet. Many PanelView Plus 7 models share similar cutout envelopes with PanelView Plus 6 equivalents, but this must be verified against the specific predecessor model's datasheet — do not assume dimensional compatibility without checking both datasheets before cutting the panel.
Why Order the 2711P-T7C22D9P from LeadTime.ca
- LeadTime.ca ships Allen-Bradley hardware worldwide — not limited to any single region or country.
- Our team can validate firmware and FactoryTalk View ME compatibility before the order ships, reducing the risk of commissioning delays caused by version mismatches.
- We source across multiple channels to provide current stock and lead-time visibility on hard-to-find Allen-Bradley catalog numbers.
- Volume pricing is available for OEM builders and plant-wide standardization projects — contact us before committing to a multi-unit order.
- Specialist distributor support means a real answer on availability and alternatives, not a generic catalog listing.
- View pricing and availability for the 2711P-T7C22D9P at LeadTime.ca
- Contact LeadTime.ca for a quote or compatibility question
At-a-Glance Summary: Allen-Bradley 2711P-T7C22D9P
- 7-inch class TFT color resistive touchscreen with 640 x 480 VGA resolution — 4:3 aspect ratio, approx. 6.5 in viewable diagonal.
- PanelView Plus 7 Performance platform running Windows CE 6.0 with extended features and FactoryTalk View ME runtime.
- Dual 10/100 Mbps Ethernet ports with native DLR, linear, and star topology support — no separate managed switch required for ring topology at the machine level.
- 24 V DC power input, 18–30 V DC operating range, approx. 50 W power consumption; requires external overcurrent protection.
- IP66/NEMA-rated front panel (with supplied gasket), 0 to 55 °C operating temperature range.
- USB host, USB device, and serial ports for application loading, firmware updates, and legacy device connectivity.
- Typical applications: packaging machines, conveyors, palletizers, OEM machine families, and PanelView Plus legacy replacements.
- Pricing available on the product page; lead times range from in-stock to several weeks — confirm before committing to a build schedule.
