Allen-Bradley 2711P-RDT10C — PanelView Plus 1000 Display Buying Guide

By Abdullah Zahid
15 min read

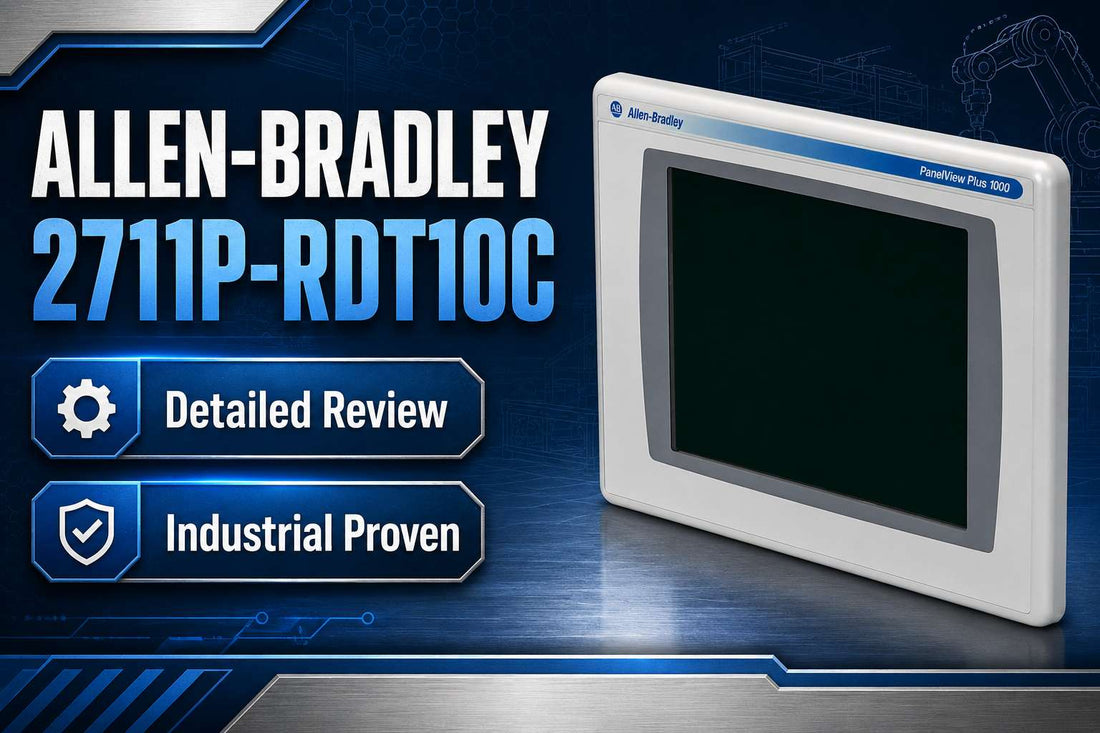

Allen-Bradley 2711P-RDT10C PanelView Plus 1000 10.4-inch color touchscreen display module for industrial HMI replacement

Allen-Bradley 2711P-RDT10C PanelView Plus Display Module, 1000 Touch Color Display — Specs, Sourcing, and Replacement Decision Guide

When a 10.4-inch PanelView Plus 1000 screen goes dark on a production line, the clock starts immediately. Controls engineers and maintenance teams searching for the Allen-Bradley 2711P-RDT10C need to know one thing above all else before ordering: this is a display module only, not a complete HMI terminal. The 2711P-RDT10C is a 10.4-inch color TFT touchscreen display component within the modular PanelView Plus 1000 architecture — it must pair with a compatible logic module, communication module, and power supply to form a working operator terminal. Officially discontinued as of December 30, 2021, this part is available exclusively through new surplus, refurbished, or repair channels, making distributor selection and pre-order verification critical.

If you have already confirmed this is the correct display module for your application, check current availability and pricing at LeadTime.ca — we ship worldwide.

Who Should Buy the 2711P-RDT10C — and Who Shouldn't

The 2711P-RDT10C is the right part for facilities already running PanelView Plus 1000 terminals that need a fast, drop-in display replacement without re-engineering the panel or rewriting FactoryTalk View ME applications. Consider this module if all of the following apply:

  • Your existing PanelView Plus 1000 terminal uses a 10.4-inch color touchscreen display and the panel cutout matches the original mounting dimensions
  • Your logic module and communication module are confirmed healthy and compatible with a replacement display
  • Your installation environment is indoor-rated and meets NEMA/UL Type 12, 13, or 4X indoor requirements — this display is not rated for outdoor or direct washdown service
  • You require analog resistive color touch input at 640 × 480 VGA resolution — not a monochrome or keypad-only variant
  • Your organization accepts the discontinued lifecycle status for a maintenance or spares application, not a new machine design
  • You can confirm firmware and FactoryTalk View ME application compatibility with the replacement unit before installation

If you are specifying an HMI for a new machine, a greenfield project, or a plant standardizing on current-generation hardware, the 2711P-RDT10C is not the right starting point. In those cases, the PanelView Plus 7 family is the appropriate current-lifecycle alternative to evaluate.

On this page:

What the 2711P-RDT10C Actually Does in a PanelView Plus 1000 System

The Allen-Bradley 2711P-RDT10C is listed in the official PanelView Plus user manual as the "1000 touch color display" module — one physical component within a modular terminal assembly. The PanelView Plus 1000 platform is built from separable modules: a display module, a logic module, a communication module, and a power supply. The 2711P-RDT10C covers only the display function. It delivers the 10.4-inch color TFT LCD screen and analog resistive touchscreen interface that the operator sees and touches, but all application processing, PLC communication, and power conversion happen in the other modules.

This modular architecture is precisely what makes the 2711P-RDT10C valuable as a maintenance spare. When a display fails — cracked touch surface, dimmed or dark backlight, unreadable image — only the display module needs to be replaced, leaving the logic module, communication configuration, and FactoryTalk View ME application intact. No rewiring of field devices, no PLC reprogramming, no communication reconfiguration is required if the rest of the terminal is healthy.

The broader PanelView Plus family spans 700, 1000, and 1500 screen sizes in the modular platform. The 1000 size occupies the mid-range, offering more screen real estate than the 700 for machines that require more operator visibility or more concurrent display elements, while fitting in panels where the 1500 would be physically impractical. It has been widely deployed alongside CompactLogix and ControlLogix PLCs in mid-size machines across manufacturing, packaging, and OEM equipment — which is exactly why demand for replacement display modules like the 2711P-RDT10C persists long after the product's discontinuation date.

Typical PanelView Plus 1000 System Architecture

The 2711P-RDT10C sits at the operator interface layer of the control system — it is the display surface that connects a human operator to the logic running in the PLC. Understanding the full chain helps confirm whether the display is the only failed component before ordering.

  • PLC (CompactLogix or ControlLogix) runs the machine control program and communicates operator data over EtherNet/IP or other supported network
  • Communication module within the PanelView Plus 1000 terminal handles the network connection between the PLC and the HMI terminal
  • Logic module runs FactoryTalk View ME, manages application execution, and interfaces with both the communication module and the display module
  • Power supply module converts panel supply voltage to the internal levels required by the terminal assembly
  • 2711P-RDT10C display module receives signal from the logic module and presents the operator interface — touch inputs from the screen are passed back through the logic module to the application

Where the 2711P-RDT10C Gets Deployed: Industries and Use Cases

The PanelView Plus 1000 was widely adopted across discrete and light process manufacturing during its active production years. The 2711P-RDT10C replacement display module is relevant wherever those terminals remain in service. General manufacturing and packaging lines represent the highest concentration of installed PanelView Plus 1000 units, where the 10.4-inch screen provides sufficient display area for machine status, recipe management, and alarm visualization on conveyors, filling lines, and case-handling equipment.

Food and beverage facilities with indoor, non-washdown machine areas rely on the NEMA/UL Type 12 and 13 ratings for protection against dust and oil mist — common environmental conditions in dry processing and secondary packaging areas. Automotive assembly and material handling operations installed large numbers of PanelView Plus 1000 terminals on transfer lines, AGV stations, and test fixtures, creating ongoing demand for display replacements as screens age and backlights wear.

OEM machine builders and repair shops represent another significant buyer segment. Refurbishing an older machine for resale or returning it to service often involves replacing the display module to restore full operator interface function while keeping the original PanelView Plus architecture that the end customer's maintenance team already knows. This avoids the engineering effort and revalidation cost of replacing the entire HMI platform.

The 2711P-RDT10C is rated for indoor use only. Installations requiring outdoor exposure, direct water washdown, or ratings beyond NEMA 4X indoor should not use this display without evaluating whether the application is suitable for the stated ratings.

Application Typical Deployment
Packaging line operator station Drop-in replacement display on existing PanelView Plus 1000 terminal controlling case erectors, fillers, or wrappers
Automotive assembly transfer line Display module replacement to restore HMI function on legacy line control panels without PLC or application changes
Food and beverage dry processing Spare display module maintained in critical spares inventory for NEMA 12/13-rated panel environments
OEM machine refurbishment Repair shop or integrator replaces display to return a PanelView Plus 1000 terminal to full operational status for resale or recommission
Material handling conveyor system Like-for-like replacement after touchscreen wear or backlight failure on a high-cycle operator station
Transitional spares before migration Procurement of one or more 2711P-RDT10C units as bridge stock while a PanelView Plus 7 migration project is planned

Key Specifications for Purchase Decision

Parameter Value Notes
Product type PanelView Plus 1000 display module Display component only — logic, comms, and power modules are separate
Display size 10.4 inch Diagonal active area
Resolution 640 × 480 (VGA) Standard VGA; not widescreen or HD
Display technology Color TFT LCD Backlit; confirm backlight condition on refurbished units
Touch input type Analog resistive touchscreen Stylus or gloved hand operable; single-touch only
Enclosure rating (front panel) NEMA/UL Type 12, 13, 4X indoor; IP54 / IP65 Indoor use only; not rated for outdoor or direct washdown
Compatible terminal family PanelView Plus 1000 Display module must pair with compatible PanelView Plus 1000 logic module
Power source Via matching logic module No separate mains wiring to the display module itself
Application environment FactoryTalk View ME Firmware compatibility must be verified with existing logic module
Lifecycle status Discontinued (December 30, 2021) Available through new surplus, refurbished, or repair channels only

Full technical specifications are available on the product page at LeadTime.ca.

2711P-RDT10C vs Alternatives: Which Display or Platform Do You Actually Need?

Understanding how the 2711P-RDT10C positions against its alternatives determines whether a direct replacement is the right call or whether a broader change is warranted. The table below covers the primary options a controls engineer or procurement specialist will evaluate when a PanelView Plus 1000 display fails.

Option What It Is Fit for Existing Installation Lifecycle Status Key Consideration
Allen-Bradley 2711P-RDT10C 10.4" color touch display module for PanelView Plus 1000 Direct drop-in replacement — no panel or application changes Discontinued Dec 30, 2021 Sourcing from surplus or refurbished channels; pre-verify series and condition
Allen-Bradley 2711P-RDT10CM Conformal-coated variant of the same display module Drop-in for installations requiring conformal coating (moisture/condensation protection) Discontinued Required for environments with condensation risk; standard 2711P-RDT10C is not a substitute if coating is specified
PanelView Plus 1000 complete terminal Full terminal assembly including display, logic, comms, and power Replaces failed terminal when multiple modules are damaged Discontinued Higher cost; still requires surplus/refurb sourcing; only warranted if logic or comms modules are also failed
PanelView Plus 7 (10" equivalent) Current-generation Allen-Bradley HMI terminal Not a drop-in — requires new cutout assessment, wiring review, and application migration Active / Current Longer lifecycle support; higher upfront engineering cost; correct choice for new designs or planned migration
Third-party 10" HMI (non-Rockwell) Alternative HMI brand with similar screen size Not compatible without full reprogramming and wiring changes Varies by brand Only viable when full HMI re-engineering is acceptable; requires new application development

If your installation requires conformal coating and you ordered a standard 2711P-RDT10C, the part is not the correct one — confirm whether 2711P-RDT10CM is needed before purchasing. For any doubt about which variant matches your terminal, review the product details at LeadTime.ca or contact the team directly to pre-verify compatibility.

Expert Verdict: Is the 2711P-RDT10C Worth Buying in a Discontinued Market?

The Allen-Bradley 2711P-RDT10C is the correct purchasing decision in exactly one scenario: you have a PanelView Plus 1000 terminal on a running machine, the display has failed, and the logic module and communication module are confirmed healthy. In that situation, the 2711P-RDT10C delivers what no other option can — a drop-in mechanical and electrical replacement that preserves your FactoryTalk View ME application, your panel cutout, and your existing PLC communication configuration. For plants carrying a large installed base of PanelView Plus 1000 terminals across production lines, maintaining a verified spare of this display module is a straightforward risk-management decision. The alternative — an unplanned line stoppage while waiting for a sourcing solution — is a worse outcome than the cost of holding one or two pre-verified units in critical spares inventory.

Where the 2711P-RDT10C has real limits is equally clear. Its discontinued status as of December 30, 2021, means availability is entirely dependent on the surplus and refurbished market, and that pool shrinks over time. It is not appropriate for new machine designs, platform standardization projects, or any application where long-term manufacturer support and firmware updates are required. For those use cases, the PanelView Plus 7 family is the current-generation path forward. Yes, migrating requires a new panel cutout assessment, application conversion, and wiring review — but it exchanges a dependency on an increasingly scarce discontinued part for a platform with active support. The honest calculus is this: if you are replacing a failed display on one machine today, buy the 2711P-RDT10C and get the line running. If you have five of these terminals in service and all of them are aging, use this replacement as the trigger to budget a PanelView Plus 7 migration project rather than stacking up discontinued spare inventory indefinitely.

From a procurement standpoint, the discontinued status of the 2711P-RDT10C makes distributor selection more consequential than it would be for a current-production part. A specialist automation distributor can pre-verify the series letter, confirm whether a unit is new surplus or refurbished, and assess condition before it ships — reducing the real risk of receiving a unit that fails on arrival or is incompatible with your specific logic module revision. Generic channels cannot reliably provide that verification. Check current stock and availability for the 2711P-RDT10C at LeadTime.ca — sourced and shipped worldwide with the technical verification a discontinued part demands.

For volume pricing across multiple units or to confirm lead time before committing to a build schedule, contact the LeadTime.ca team directly — we ship worldwide and can advise on series compatibility and condition.

What Engineers Need to Know Before Ordering the 2711P-RDT10C

Because the 2711P-RDT10C is a discontinued, module-only component within a modular terminal system, it generates a specific category of ordering confusion that community forums rarely document by catalog number. The questions that come up in practice are not about whether the display module works well — it is a straightforward hardware component — but about whether the buyer is ordering exactly the right thing in a market where getting it wrong means additional downtime while a second order is processed.

The most common point of confusion is the distinction between a display module catalog number and a complete terminal catalog number. The 2711P-RDT10C is the display only. Engineers who order it expecting a fully functional HMI will find they still need the logic module, communication module, and power supply to have a working terminal. Before placing an order, the first step is always to confirm which components in the existing terminal are actually failed and which are healthy — replacing a display on a terminal with a failed logic module will not restore operation.

The second practical concern is the difference between the standard 2711P-RDT10C and the conformal-coated 2711P-RDT10CM. These are not interchangeable in applications where conformal coating was specified for moisture or condensation protection. Ordering the standard variant for a conformal-coat application is a mistake that does not become apparent until the unit is installed in a challenging environment. Additionally, series letter revisions (for example, Series B versus a later revision) can affect compatibility with specific logic module versions — this is why pre-verification with a knowledgeable distributor, rather than ordering by catalog number alone, is the lower-risk approach for a discontinued part. The availability pool in the surplus market contains units of varying revision levels, and confirming compatibility before shipment prevents a costly mismatch on the shop floor.

Installation and Wiring Overview

The following points cover the key mechanical, electrical, and commissioning requirements for replacing a 2711P-RDT10C display module. Engineers performing this work should refer to the Rockwell Automation PanelView Plus user manual for complete procedures, torque specifications, and safety requirements.

  • Isolate all power to the control panel using lockout/tagout procedures before beginning display module removal or installation; wait for all power indicators on the terminal to extinguish before handling modules
  • The 2711P-RDT10C connects to the logic module mechanically and electrically as an integrated assembly — there is no separate mains field wiring to the display module itself; power is supplied through the logic module interface
  • Inspect the panel cutout, gasket, and gasket seating surface before installing the replacement display; a damaged or improperly seated gasket will compromise the NEMA/IP front-panel rating of the installed terminal
  • Tighten panel mounting clamps to the torque value specified in the Rockwell user manual — under-torquing compromises the environmental seal, and over-torquing can damage the bezel or enclosure
  • After restoring power, verify that the display boots correctly, touch calibration is accurate, and the existing FactoryTalk View ME application loads and operates as expected before returning the machine to service

Wrong-Part Prevention Checklist for the 2711P-RDT10C

Before placing an order for the Allen-Bradley 2711P-RDT10C, work through the following checklist in sequence. Each item addresses a documented category of ordering error for this part.

  1. Confirm catalog number is exactly 2711P-RDT10C (including hyphen and suffix letters for series, if relevant) and not a logic module or full terminal.
  2. Verify you only need the display module and that your existing logic and communication modules are healthy and compatible.
  3. Check PanelView Plus 1000 panel cutout and mounting dimensions match the original unit to avoid enclosure rework.
  4. Confirm color touchscreen requirement; do not substitute with monochrome or keypad-only variants.
  5. Check environmental rating (indoor NEMA 12/13/4X, IP54/IP65) is suitable for the installation area and that you do not require outdoor-rated hardware.
  6. Verify lifecycle (discontinued) is acceptable and that your organization is not standardizing on newer PanelView Plus 7 hardware.
  7. Match supply voltage and power via the existing logic module; do not expect the display module to accept separate mains wiring.
  8. Confirm firmware/application compatibility (FactoryTalk View ME version) for the existing PanelView terminal you are maintaining.

If any item on this checklist raises a question you cannot resolve from the nameplate and system documentation alone, contact the LeadTime.ca team before ordering — pre-order verification on a discontinued part costs nothing and can prevent a costly return or a second sourcing cycle.

Frequently Asked Questions

Is the 2711P-RDT10C a complete PanelView Plus terminal, or just the display module?

The 2711P-RDT10C is the display module only. The official PanelView Plus user manual identifies it as the "1000 touch color display" component. To form a fully operational terminal, it must be combined with a compatible PanelView Plus 1000 logic module, a communication module, and a power supply. If you order this part expecting a ready-to-run HMI, you will still need the other modules to have a working system.

What is the difference between the 2711P-RDT10C and the 2711P-RDT10CM?

The 2711P-RDT10CM is a conformal-coated variant of the same display module, intended for environments where condensation, humidity, or moisture exposure requires additional board-level protection. The standard 2711P-RDT10C does not include conformal coating. If your original terminal was specified with a conformal-coated display, substituting the standard variant may not meet the environmental requirements of your installation.

Can a PanelView Plus 7 terminal be used as a drop-in replacement for a PanelView Plus 1000 with a failed 2711P-RDT10C display?

No — a PanelView Plus 7 terminal is not a drop-in replacement. It is a complete terminal with different physical dimensions, a different mounting and cutout profile, and a different application environment that requires FactoryTalk View ME application migration. A PanelView Plus 7 is the correct long-term migration path for new designs or planned upgrades, but it requires engineering work to implement, not a simple module swap.

How do I determine whether the display module or the logic module has failed?

If the display is dark or unresponsive but status LEDs on the logic module indicate normal operation, the display module is the likely fault. If the logic module shows fault indicators or the application fails to load regardless of display condition, the logic module requires diagnosis before a display replacement is ordered. Replacing the display module on a terminal with a failed logic module will not restore operation. Refer to the Rockwell Automation PanelView Plus user manual for LED status definitions and diagnostic procedures.

What environmental conditions is the 2711P-RDT10C front panel rated for?

The front panel of the PanelView Plus 1000 display module, when properly installed with the gasket correctly seated and mounting clamps torqued to specification, is rated for NEMA/UL Type 12, 13, and 4X indoor use, and IEC IP54 and IP65. These ratings cover indoor industrial environments with dust, oil mist, and incidental liquid contact. The display is not rated for outdoor installation or direct washdown service.

How do I handle the discontinued status of the 2711P-RDT10C for long-term plant maintenance?

Plants with multiple PanelView Plus 1000 terminals in service should treat each replacement purchase as a prompt to assess whether maintaining a critical spares inventory of 2711P-RDT10C units or budgeting a migration to PanelView Plus 7 is the lower long-term risk. Buying replacement display modules through a specialist distributor who can pre-verify series and condition reduces the risk of receiving incompatible or substandard units from the surplus market. Indefinite reliance on an increasingly scarce discontinued part without a migration plan is the highest-risk strategy.

Why Order the 2711P-RDT10C Through LeadTime.ca

  • Specialist automation distributor with the technical knowledge to pre-verify series letters, condition (new surplus vs refurbished), and compatibility for discontinued parts like the 2711P-RDT10C before shipment
  • Global shipping — LeadTime.ca sources and ships to facilities worldwide, not limited to any single region
  • Direct access to the sourcing team for questions about lead time, volume pricing, or compatibility verification before committing to an order
  • Transparent communication on part condition and provenance — critical for a discontinued module where the surplus market contains units of varying revision and condition levels

At-a-Glance Summary

  • Allen-Bradley 2711P-RDT10C is a 10.4-inch color TFT LCD touchscreen display module for PanelView Plus 1000 terminals — display component only, not a complete HMI
  • Resolution is 640 × 480 VGA with analog resistive touchscreen input
  • Front panel rated NEMA/UL Type 12, 13, 4X indoor and IEC IP54/IP65 when properly installed — indoor use only
  • Officially discontinued by Rockwell Automation as of December 30, 2021 — available through new surplus and refurbished channels only
  • Power is supplied via the compatible PanelView Plus 1000 logic module — no separate mains field wiring to the display
  • Application environment is FactoryTalk View ME; firmware compatibility with the existing logic module must be confirmed before ordering
  • Conformal-coated variant is 2711P-RDT10CM — not interchangeable with standard 2711P-RDT10C in applications where coating is required
  • Correct application: drop-in display replacement for an existing PanelView Plus 1000 terminal with a healthy logic and communication module
  • Incorrect application: new machine design, greenfield project, or platform standardization requiring current lifecycle support
  • For new designs or long-term lifecycle planning, the PanelView Plus 7 family is the current-generation alternative to evaluate
