Allen-Bradley 2711P-T15C22D9P — PanelView Plus 7 Buyer's Guide

By Abdullah Zahid
15 min read

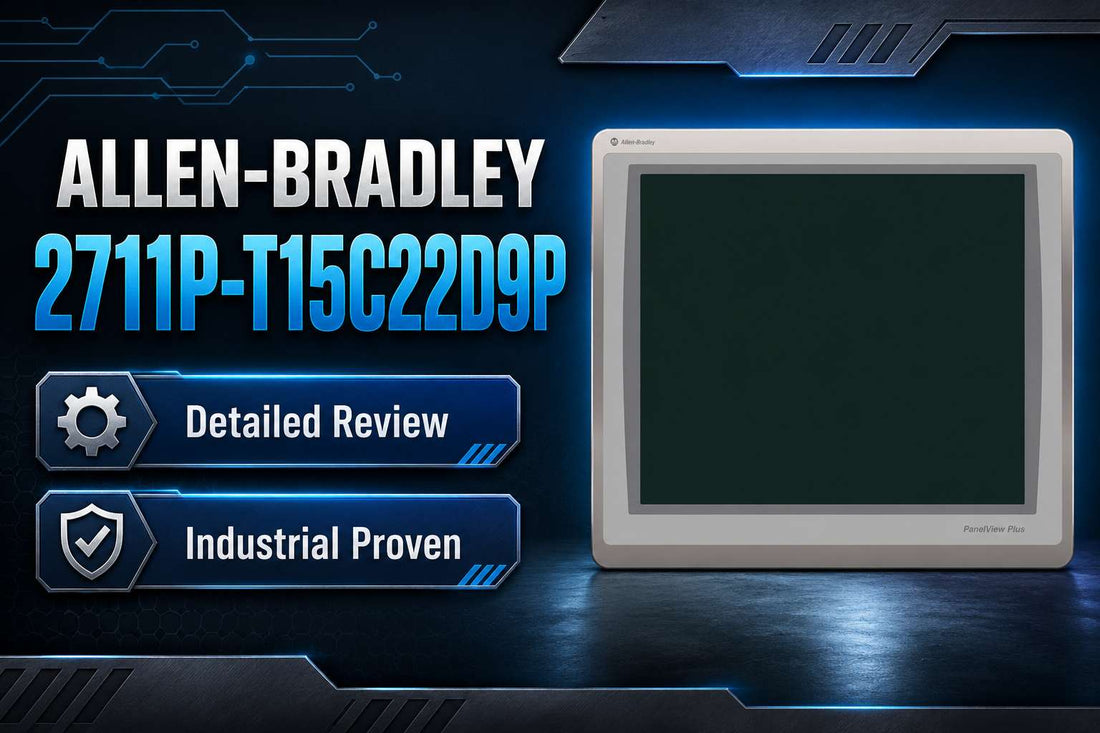

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance 15-inch color touchscreen HMI terminal for EtherNet/IP industrial automation

Allen-Bradley 2711P-T15C22D9P PanelView Plus 7 Performance Graphic Terminal, 15" Color TFT, Touch, Dual Ethernet (DLR), 24V DC, Windows CE OS License Pro — Specs, Review & Selection Guide

Controls engineers finalizing an HMI specification for a Rockwell EtherNet/IP architecture have one central question to answer: does the 2711P-T15C22D9P match the exact combination of screen size, network topology, and feature tier the application demands? This is a 15" XGA color TFT touchscreen terminal from the PanelView Plus 7 Performance family, powered by 24 V DC, equipped with dual 10/100 Mbps Ethernet ports supporting Device Level Ring (DLR), and running Windows CE 6.0 with extended features including File Viewers, RDP, and VNC-type remote access. If you are specifying a front-end operator interface for CompactLogix or ControlLogix on a ring-topology EtherNet/IP network and need Performance-class memory and connectivity, this catalog number warrants a close look.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 2711P-T15C22D9P — and Who Shouldn't

This terminal is the right choice for engineering teams standardizing on EtherNet/IP with CompactLogix or ControlLogix controllers who need a large, high-resolution operator interface with DLR ring support and Performance-level feature headroom. Confirm all of the following before ordering:

  • You need a 15" XGA (1024 x 768) color touchscreen — panel space accommodates the cutout and up to 12 mounting clips required for this size.
  • Your site provides 24 V DC power in the 18–30 V DC range with appropriate external overcurrent protection — this unit does not accept AC mains directly.
  • Dual 10/100 Mbps Ethernet with DLR support is your required network architecture — there are no built-in serial ports on this catalog number.
  • Your application justifies the Performance tier: 1 GB RAM, 512 MB nonvolatile memory, Windows CE 6.0 extended features, and remote access capabilities.
  • Your FactoryTalk View ME project version can be aligned with the terminal's firmware version before commissioning.
  • Front IP66 / NEMA-type environmental rating meets your installation requirements (0–55 °C operating range, industrial enclosure).

If your machine is cost-sensitive, panel space is limited, or you do not require Performance-tier features, the PanelView Plus 7 Standard family or a smaller size such as the 2711P-T12C22D9P will likely serve the application at lower cost and with fewer integration steps.

On this page:

What the 2711P-T15C22D9P Actually Does in a Rockwell System

The 2711P-T15C22D9P is a graphic operator terminal — the human touchpoint between plant personnel and the Logix controller running the machine. It does not execute control logic itself. Its job is to present machine status, alarms, recipes, and trend data in a form operators can act on, and to pass commands back to the PLC over EtherNet/IP. The 15" XGA display at 1024 x 768 resolution gives operators enough screen real estate to read detailed graphics, alarm queues, and multi-cell status simultaneously without zooming or navigating away from a primary view.

Within the PanelView Plus 7 family, this is a Performance-tier unit. The distinction from Standard models matters at the application level: the Performance terminal carries 1 GB of RAM and 512 MB of nonvolatile storage, runs Windows CE 6.0 with extended features and File Viewers, and supports remote connectivity through RDP and VNC-type clients where enabled. Standard models serve simpler HMI tasks at lower cost; Performance models are specified when complex applications, large project files, or remote monitoring requirements are part of the design.

Network connectivity is dual 10/100 Mbps Ethernet with Device Level Ring (DLR) support. DLR allows the terminal to participate in a ring topology EtherNet/IP network — if one segment of the ring is interrupted, the network reconfigures around the break automatically. For plants standardizing on resilient EtherNet/IP architectures, this is a concrete operational advantage over single-port HMIs that require a separate switch for redundant paths.

Typical System Architecture for the 2711P-T15C22D9P

The 2711P-T15C22D9P sits at the operator interface layer of an EtherNet/IP control network, downstream of the Logix controller and upstream of the operator's physical interaction with the machine. A representative deployment looks like this:

  • CompactLogix or ControlLogix controller — executes the control program and serves as the EtherNet/IP data source for the HMI runtime.
  • Managed EtherNet/IP switch or DLR ring backbone — the 2711P-T15C22D9P connects via one or both of its dual RJ45 Ethernet ports into the ring or linear segment.
  • 2711P-T15C22D9P running FactoryTalk View ME runtime — presents operator screens, alarms, and recipe controls; passes operator inputs back to the controller.
  • 24 V DC panel power supply — dedicated, fused supply within the control enclosure powers the terminal within the 18–30 V DC input range.
  • USB host port or SD/MMC slot — used for project backups, data logging downloads, and firmware updates during commissioning or maintenance.

Industries and Applications Where This Terminal Fits

Packaging line engineers frequently specify the 2711P-T15C22D9P as the central operator station on multi-axis or multi-zone lines where operators need to monitor multiple conveyor segments, alarm queues, and recipe parameters simultaneously. The 15" display provides enough working area to avoid screen navigation during production runs, reducing operator error on high-throughput lines.

Food and beverage facilities that have standardized on Rockwell architecture and EtherNet/IP ring topologies use this terminal in areas where IP66 front protection is required — wash-down-adjacent locations where the panel face is exposed to cleaning procedures. The IP66 front rating, achieved when the terminal is correctly installed with the supplied gasket and the required mounting clips torqued to specification, meets the environmental requirements of many such installations.

Automotive and material handling system integrators building multi-cell automation systems with ControlLogix backplanes use the Performance terminal's dual Ethernet and DLR capability to connect the HMI into the plant ring without adding a dedicated switch at every station. The terminal becomes a transparent DLR node, reducing panel component count and simplifying network documentation.

Modernization projects replacing end-of-life PanelView or older PanelView Plus terminals in existing Rockwell-centric plants are a natural application. The FactoryTalk View ME toolchain provides a migration path for legacy projects, and the Performance terminal's memory headroom accommodates upgraded applications that were previously constrained by older hardware.

Application Typical Deployment
Packaging line operator station 15" terminal at line-level HMI panel; DLR ring connecting multiple drives and I/O over EtherNet/IP
Food and beverage wash-down-adjacent panel IP66-rated front in stainless enclosure; 24 V DC from panel-mounted power supply
Automotive multi-cell automation DLR node replacing managed switch at each station in ControlLogix-based ring topology
Material handling supervisory interface End-of-line palletizing or inspection station HMI with multiple PLC connections over EtherNet/IP
Legacy PanelView modernization Direct physical replacement using FactoryTalk View ME project migration; Performance memory handles expanded applications
Water and wastewater SCADA-adjacent panel Performance terminal running FactoryTalk View ME with VNC remote access for operator visibility from control room

Key Specifications and How the 2711P-T15C22D9P Compares to Adjacent Models

Parameter Value Notes
Product family PanelView Plus 7 Performance Higher memory and feature tier vs Standard
Display 15" color TFT, XGA 1024 x 768 Touchscreen-only operator input
Touchscreen type Resistive Gloved-hand compatible; verify for application
Power supply 24 V DC (18–30 V DC) DC only; requires external overcurrent protection
Memory 1 GB RAM, 512 MB nonvolatile Performance tier spec
Operating system Windows CE 6.0 with extended features / File Viewers Supports RDP, VNC-type remote clients where enabled
Ethernet ports Dual 10/100 Mbps Ethernet (RJ45) with DLR support EtherNet/IP; ring or linear topology
Additional I/O ports USB host, USB device, SD/MMC slot Backup, restore, data logging
Environmental rating (front) IP66 / NEMA-type when correctly installed with gasket and mounting clips Operating temperature 0–55 °C
Certifications CE, UL/cUL, KC, and others per datasheet Confirm current certifications against application requirements

Full technical specifications are available on the product page at LeadTime.ca.

The table below places the 2711P-T15C22D9P alongside its closest siblings in the PanelView Plus 7 Performance family to help engineers who are deciding on screen size or evaluating the Standard tier for cost savings.

Model Display Size Family Tier Power Ethernet / DLR When to Choose
2711P-T12C22D9P 12" Performance 24 V DC Dual / DLR Panel space is constrained; operator viewing distance is shorter; budget is tighter than 15" allows
2711P-T15C22D9P 15" Performance 24 V DC Dual / DLR This model — large display with full Performance features and DLR for complex EtherNet/IP architectures
2711P-T19C22D9P 19" Performance 24 V DC Dual / DLR Maximum display area required; large panel enclosure available; supervisory or line-overview applications
PanelView Plus 7 Standard 15" (various) 15" Standard 24 V DC Single or dual depending on catalog Application does not require Performance memory, extended OS features, or remote access — reduces unit cost

If your application calls for a 19" display or your panel space cannot accommodate a 15" cutout requiring up to 12 mounting clips, the 2711P-T19C22D9P or 2711P-T12C22D9P are the natural next steps — check current availability at LeadTime.ca and confirm the correct size before issuing a purchase order.

Expert Verdict: Is the 2711P-T15C22D9P Worth the Investment?

For engineering teams running CompactLogix or ControlLogix on an EtherNet/IP backbone, the 2711P-T15C22D9P is a well-matched operator interface. The 15" XGA display at 1024 x 768 gives operators a genuinely usable workspace on complex machines — alarm management, multi-zone status, and recipe views all fit without compromise. The dual 10/100 Mbps Ethernet ports with DLR support are a concrete advantage in plants standardizing on ring topologies, eliminating the need for an additional switch at every operator station. The Performance tier's 1 GB RAM and 512 MB nonvolatile storage provide headroom that Standard models cannot match, and remote connectivity through RDP and VNC-type clients — where enabled under Windows CE 6.0 extended features — is increasingly expected in modern plant architectures. If your design specifies all of these requirements, this catalog number is a defensible, well-supported choice within the Rockwell ecosystem.

The honest limits are cost and fit. The 2711P-T15C22D9P carries a price point appropriate for a large Performance-class HMI, which is difficult to justify on single-axis machines, small panels, or applications where a PanelView Plus 7 Standard model meets functional requirements at lower cost. Engineers whose projects do not require DLR, Performance-level memory, or advanced remote access should evaluate the Standard family first. For teams considering a generational upgrade rather than a like-for-like replacement, the PanelView 5000 and PanelView 5310 families offer tighter Logix integration and a more current platform — those are worth evaluating when a project timeline allows for the additional engineering effort.

On the procurement side, this model is not always available from stock at standard distributors. Lead times can extend during periods of high demand, and catalog number errors — particularly confusing Standard and Performance variants, or 12" and 15" sizes with similar part numbers — are among the most common and costly ordering mistakes in this product family. Ordering through a specialist distributor that knows Rockwell lead time patterns, can validate the catalog number against your design requirements, and will advise on firmware alignment before you commit to a build reduces the risk of schedule impact significantly. View current pricing and availability for the 2711P-T15C22D9P at LeadTime.ca — we ship worldwide.

For volume pricing, project-quantity commitments, or to confirm realistic lead time before locking in a build schedule, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About PanelView Plus 7 Performance

Across forum discussions on PLCTalk, PLCS.net, MrPLC, and subreddits including r/PLC and r/automation, the PanelView Plus 7 Performance family earns consistent praise in one specific context: EtherNet/IP integration with Logix controllers. Engineers who have been through commissioning report that once firmware and FactoryTalk View ME runtime versions are correctly aligned, the terminal communicates reliably with CompactLogix and ControlLogix without the workarounds that older platforms sometimes required. The 15" display size in particular receives positive comments from operators on complex lines — the larger screen reduces the navigation burden during production and makes alarm queues easier to manage without switching views. DLR support is a recurring talking point among system integrators who are building ring-topology networks; the ability to use the terminal as a DLR node without adding a switch is noted as a practical panel-space and wiring simplification.

The complaints that surface repeatedly are worth taking seriously before specifying this terminal. Version management in the FactoryTalk ecosystem is the most commonly cited frustration: the interdependency between FactoryTalk View Studio version, View ME runtime version, and terminal firmware creates a matrix of compatibility that catches engineers off guard, particularly on retrofit projects where the existing software infrastructure has not been recently updated. Boot time and performance under large project loads are also noted negatives — the terminal is not fast by modern embedded computing standards, and users on forums describe occasional sluggishness during heavy project loads that requires tolerance or mitigation through screen design. Replacement cost is a recurring concern: the hardware price point makes physical damage or power-quality events more consequential than they would be with lower-cost third-party HMIs.

Ordering mistakes are a consistent thread in community discussions. The most damaging is confusing PanelView Plus 7 Standard and Performance catalog numbers — the visual similarity of the part numbers leads buyers to receive a terminal with insufficient memory or missing features for the intended application. A closely related error is ordering the wrong screen size because 12" and 15" Performance models share very similar catalog structures, and the panel cutout dimensions are meaningfully different. A third mistake that appears regularly: engineers assume the terminal has on-board serial ports, discover during installation that the 2711P-T15C22D9P is Ethernet-only, and then face unplanned gateway procurement and wiring changes to connect legacy PLCs. All three of these errors are preventable with a structured pre-order verification — the checklist below addresses each one directly.

Wiring and Installation Overview for the 2711P-T15C22D9P

  • Panel cutout preparation: The 15" PanelView Plus 7 Performance requires a specific cutout opening and accommodates up to 12 mounting clips — cut to the dimensions in the current Rockwell installation instructions and verify clearance before cutting.
  • Gasket and IP rating: The supplied gasket must be installed evenly on the HMI bezel and all mounting clips torqued to the specified value; any gap in gasket compression compromises the IP66 front rating.
  • 24 V DC power wiring: Connect within the 18–30 V DC range using correct conductor sizing; external overcurrent protection is required — the unit does not include internal fusing for the supply input.
  • Grounding and noise: Follow Rockwell grounding guidance for the enclosure and terminal chassis; EtherNet/IP wiring quality directly affects communication reliability, particularly on long cable runs or in electrically noisy environments.
  • Ethernet / DLR connections: For DLR ring topology, connect both Ethernet ports into the ring segment per the planned network diagram; for linear topology, one port is sufficient — verify port assignment against the terminal's network configuration before powering up.

Full wiring diagrams, torque specifications, and step-by-step installation procedures are provided in Rockwell Automation's installation instructions for the PanelView Plus 7 Performance family. Always refer to the current version of that document for your specific hardware revision.

What Engineers Get Wrong When Ordering This Part

The following checklist captures the most consequential verification steps before issuing a purchase order for the 2711P-T15C22D9P. These are drawn directly from documented ordering mistakes and design oversights in this product family — work through each item before committing.

  1. Confirm you truly need a Performance model (xxx22x9P) and not a Standard model (xxx4x9, etc.) – software, memory, and feature set differ.
  2. Verify 15" XGA cutout and mounting space are available; 2711P-T15C22D9P requires a larger panel opening and up to 12 mounting clips according to the technical data.
  3. Confirm site power is 24 V DC within 18–30 V DC range; this unit does not accept AC mains directly and requires external protection.
  4. Ensure dual Ethernet/DLR-only communications are acceptable; this catalog number does not include built-in serial ports, so legacy PLCs may require external gateways.
  5. Check environmental ratings (IP66 / NEMA type front, 0–55 °C operating) against the application (washdown, outdoor, high-temp, or food-grade requirements).
  6. Align firmware version of the terminal with your FactoryTalk View ME project version to prevent download/compatibility issues (common Rockwell ecosystem constraint).
  7. Confirm touchscreen-only operator interface is acceptable; this catalog number has no physical keypad.

If any item on this checklist raises a question, contact the LeadTime.ca team before ordering — confirming the right catalog number now costs nothing; ordering the wrong one costs significantly more.

Frequently Asked Questions

Which FactoryTalk View ME and firmware versions are compatible with the 2711P-T15C22D9P?

Compatibility between the terminal firmware and the FactoryTalk View ME runtime version is a version-specific dependency that Rockwell Automation documents in their product compatibility and download center. There is no single answer that remains current as software updates are released — always verify the supported firmware matrix in the current Rockwell release notes for your View Studio version before downloading a project to the terminal. Mismatches between firmware and runtime versions are among the most commonly reported commissioning issues for this family.

Does the 2711P-T15C22D9P support DLR, and how do I configure the dual Ethernet ports for a ring topology?

Yes, the 2711P-T15C22D9P includes dual 10/100 Mbps Ethernet ports with native Device Level Ring (DLR) support. In a ring topology, both ports are connected to adjacent DLR ring nodes — the terminal participates as a DLR node without requiring a separate managed switch at that panel location. IP addressing and ring configuration are set through the terminal's network settings during initial commissioning. Refer to the current Rockwell EtherNet/IP DLR configuration documentation for port assignment and ring health monitoring guidance.

Can I migrate an existing PanelView Plus project directly to the 2711P-T15C22D9P without rebuilding from scratch?

FactoryTalk View Studio provides migration tools for bringing older PanelView Plus projects into the PanelView Plus 7 environment, but the process is not always a direct conversion. Object compatibility, font support, and communication tag structures may require review and adjustment depending on the source project version. The Performance terminal's memory headroom generally accommodates expanded applications, but engineers should plan time for migration validation rather than assuming a zero-touch transfer.

What is the correct panel cutout size and mounting clip count for the 2711P-T15C22D9P?

The 2711P-T15C22D9P requires a panel opening sized for a 15" PanelView Plus 7 Performance terminal and uses up to 12 mounting clips to secure the unit and maintain the IP66 front rating. Exact cutout dimensions in millimeters and inches are specified in the current Rockwell Automation installation instructions for this catalog number — always use the current revision of that document rather than relying on generic 15" HMI cutout dimensions, as the PanelView Plus 7 Performance mechanical envelope differs from earlier generations.

How do I back up and restore the 2711P-T15C22D9P configuration using an SD card?

The terminal includes an SD/MMC slot that supports backup and restore of the FactoryTalk View ME runtime project, terminal configuration, and related files. The backup procedure involves accessing the terminal's file management interface and copying the relevant project and configuration files to the SD card. Restoration reverses this process from the card. Rockwell's detailed procedure for this operation is documented in the PanelView Plus 7 user manual — maintaining a current SD card backup before any firmware update or major configuration change is a widely recommended practice in the user community.

Is the IP66 front rating maintained in all installation orientations, and does it cover the rear of the terminal?

The IP66 rating applies to the front face of the terminal only when correctly installed with the supplied gasket and all mounting clips torqued to specification. The rear of the terminal is not rated to IP66 and must be protected by the control enclosure itself. Installation orientation, enclosure design, and gasket condition all affect the front rating — inspect the gasket for damage before installation and verify compression after mounting clip installation. The terminal's operating temperature range of 0–55 °C must also be maintained within the enclosure, which may require ventilation or heat management depending on the installation environment.

Why Order the 2711P-T15C22D9P From LeadTime.ca

  • Global shipping: LeadTime.ca fulfills orders worldwide — not limited to any single region or country.
  • Catalog number validation: Our team is familiar with PanelView Plus 7 Performance variant structures and can help confirm you have the right catalog number before a PO is issued.
  • Lead time transparency: We provide realistic availability expectations for high-demand Allen-Bradley models, including current stock status and estimated lead times.
  • Volume and project pricing: For multi-unit orders or project-quantity commitments, contact us directly for pricing that reflects volume requirements.
  • Hard-to-find parts: When standard distribution channels show extended lead times, LeadTime.ca sources through specialized channels to meet project schedules.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 2711P-T15C22D9P — PanelView Plus 7 Performance family, 15" XGA color TFT touchscreen.
  • Resolution: 1024 x 768 (XGA); resistive touchscreen; no physical keypad on this catalog number.
  • Power: 24 V DC input, 18–30 V DC operating range; DC only; external overcurrent protection required.
  • Memory: 1 GB RAM, 512 MB nonvolatile storage; Windows CE 6.0 with extended features and File Viewers.
  • Network: Dual 10/100 Mbps Ethernet (RJ45) with Device Level Ring (DLR) support; EtherNet/IP protocol; no built-in serial ports.
  • Additional ports: USB host, USB device, SD/MMC slot for backup, restore, and data logging.
  • Environmental: IP66 front rating (NEMA-type) when correctly installed with gasket and up to 12 mounting clips; 0–55 °C operating temperature.
  • Software: FactoryTalk View ME runtime; firmware version must be aligned with View Studio/View ME project version before commissioning.
  • Primary controller compatibility: CompactLogix, ControlLogix, and other EtherNet/IP controllers via FactoryTalk View ME.
  • Pricing and availability: Contact LeadTime.ca or view the product page for current pricing — this model can carry extended lead times during periods of high demand.
