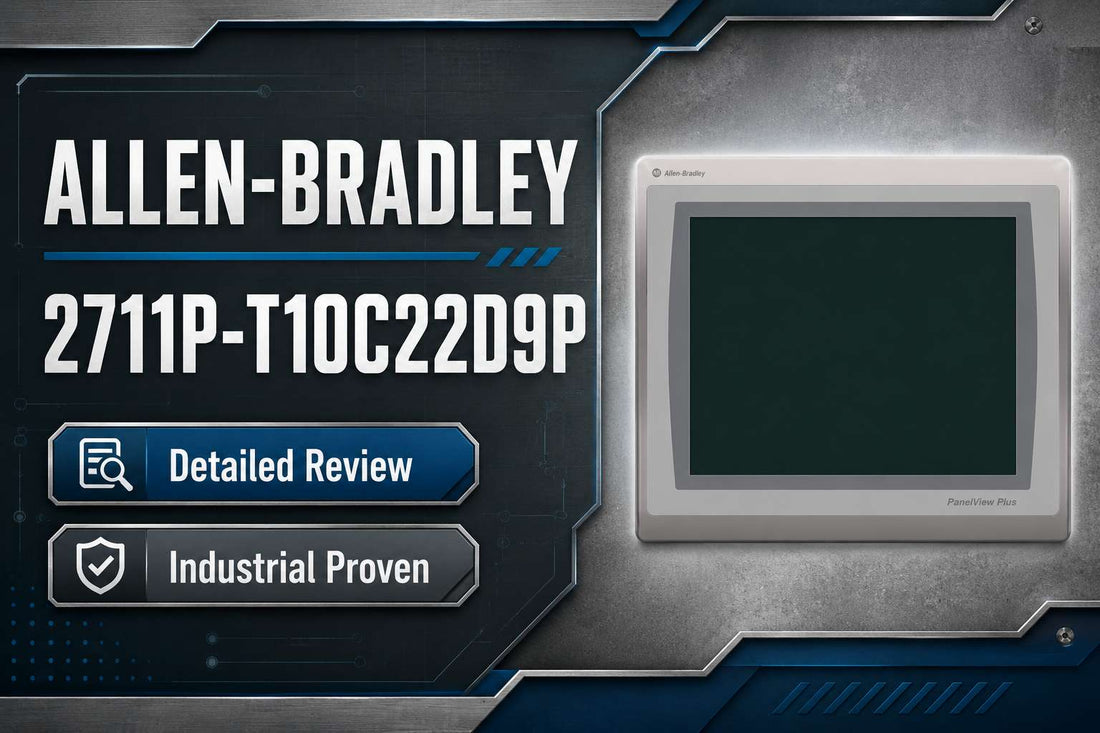

Allen-Bradley 2711P-T10C22D9P PanelView Plus 7 Performance 10-inch SVGA touchscreen HMI terminal for industrial machine control

Allen‑Bradley 2711P-T10C22D9P PanelView Plus 7 Performance Terminal, Touch Screen, 10" SVGA TFT Color, Ethernet DLR, 24V DC, Windows 10 IoT Core — Specs, Price and Selection Guide

Controls engineers and OEM machine designers searching for the Allen‑Bradley 2711P-T10C22D9P are typically at the final stage of a hardware decision: they have a 10-inch performance-class HMI slot to fill in a Rockwell-centric system, and they need to confirm this is the exact catalog number before issuing the purchase order. The 2711P-T10C22D9P is a PanelView Plus 7 Performance terminal featuring a 10.4-inch SVGA TFT color touchscreen, dual Ethernet ports with Device Level Ring capability, 24V DC power input, and Windows 10 IoT Core — positioned at the upper end of the PanelView Plus 7 family for applications demanding higher tag counts, broader connectivity, and resilient network topologies.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the 2711P-T10C22D9P at LeadTime.ca — ships worldwide.

Who Should Buy the 2711P-T10C22D9P — and Who Should Choose a Different Variant

This terminal is the right choice when all five of the following conditions apply to your project:

  • You need a 10-inch class color touchscreen with 800 x 600 SVGA resolution and touchscreen-only input — no physical keypad required or desired.
  • Your control panel supplies 24V DC from a Class 2 or SELV source with external overcurrent protection.
  • Your network architecture uses dual Ethernet with Device Level Ring, linear, or star topology and you cannot substitute a single-Ethernet model.
  • Your application runs FactoryTalk View Machine Edition and requires Performance-class memory and processing resources, including the 512 MB RAM and 512 MB storage available on this model.
  • Your site environment and panel design are compatible with the PanelView Plus 7 Performance 10-inch panel-mount form factor and associated enclosure ratings.

If your application fits within PanelView Plus 7 Standard capabilities, or if you need a 7-inch, 12-inch widescreen, 15-inch, or 19-inch display, a different catalog number within the 2711P family is the correct choice. For harsh or corrosive environments, evaluate the conformal-coated -B variants before committing to this model.

On this page:

What the 2711P-T10C22D9P Actually Does in a Control System

The 2711P-T10C22D9P serves as the primary operator interface between a production team and a Rockwell Automation PLC-based control system. Running FactoryTalk View Machine Edition on Windows 10 IoT Core, the terminal displays process graphics, machine status, alarm histories, and recipe parameters — all configured in FactoryTalk View Studio and downloaded to the terminal as a runtime application file. Operators interact exclusively through the analog resistive touchscreen; there is no physical keypad on this model.

At the Performance tier of the PanelView Plus 7 family, this terminal carries 512 MB of RAM and 512 MB of storage, which separates it from Standard-class models and makes it appropriate for larger, more complex FactoryTalk View ME applications with higher tag counts and more demanding visualization requirements. The dual Ethernet ports with Device Level Ring support allow the terminal to participate in ring-topology Ethernet/IP networks without requiring an external managed switch at the terminal node, improving network resilience on the machine or production line.

Typical System Architecture for the 2711P-T10C22D9P

In most deployments, the 2711P-T10C22D9P sits at the operator interface layer, bridging the operator and the Logix controller layer over an Ethernet/IP network. Here is how it fits into a typical system chain:

  • ControlLogix or CompactLogix PLC at the controller layer, running the machine or process logic.
  • Ethernet/IP network connecting the PLC to field devices, drives, and the HMI terminal — with the 2711P-T10C22D9P participating as a ring node when DLR topology is in use.
  • The 2711P-T10C22D9P panel-mounted at the machine or control panel, receiving tag data from the PLC and sending operator commands back over Ethernet/IP.
  • A 24V DC Class 2/SELV power supply in the control cabinet powering the terminal on a separately fused circuit.
  • Optional RS-232 serial connection to legacy devices or a USB port for configuration, USB storage, or an external keyboard during commissioning.

Where the 2711P-T10C22D9P Gets Deployed

Discrete manufacturing lines — particularly packaging machinery, material handling systems, and automotive assembly equipment — represent the most common home for this terminal. OEM machine builders standardized on Allen‑Bradley controls routinely specify the 2711P-T10C22D9P as the main operator panel, where the 10.4-inch SVGA display provides enough screen area for full process graphics without requiring the larger footprint of a 12-inch or 15-inch unit.

Food and beverage processors frequently select this terminal for line-side operator stations where recipe management, alarm response, and batch tracking are operator responsibilities. The dual Ethernet ports with DLR capability are particularly valuable here, since many food and beverage facilities have invested in ring-topology Ethernet/IP networks for fault tolerance.

Water and wastewater facilities and mining operations running Logix-based SCADA or control systems also deploy this terminal at remote operator stations, where the Performance-class feature set and DLR networking justify the investment over a Standard-tier HMI.

Replacement of a failed PanelView Plus 7 Performance 10-inch terminal is another significant use case — controls engineers sourcing a like-for-like replacement to restore production quickly need to confirm catalog number alignment precisely, which is why the wrong-part checklist in this article matters as much as the specifications.

Application Typical Deployment
Packaging line main HMI Panel-mounted 2711P-T10C22D9P connected to CompactLogix over Ethernet/IP ring
OEM machine operator panel Single 2711P-T10C22D9P as the primary interface on a machine with ControlLogix controller
Process skid recipe and alarm station 2711P-T10C22D9P driving FactoryTalk View ME application with recipe management and alarm history
Line-side DLR node operator station 2711P-T10C22D9P as a node in a Device Level Ring network for fault-tolerant machine-level HMI
Like-for-like HMI replacement Swapping a failed PanelView Plus 7 Performance 10-inch terminal to restore production
Upgrade from older PanelView generation Migrating from PanelView Standard or PanelView Plus to PanelView Plus 7 with DLR capability

Purchase-Decision Specs and Variant Comparison for the 2711P-T10C22D9P

Parameter Value Notes
Catalog number 2711P-T10C22D9P Allen‑Bradley PanelView Plus 7 Performance terminal
Display size and type 10.4-inch color TFT, SVGA (800 x 600) Touchscreen-only input; no physical keypad
Touch input technology Analog resistive touchscreen Suitable for gloved operation typical in industrial environments
Input voltage 24V DC, 18–30V DC operating range Requires external Class 2/SELV supply with overcurrent protection
Backlight Solid-state LED, non-replaceable Approximately 50,000-hour class life per PanelView Plus 7 family data
Ethernet ports Dual Ethernet with Device Level Ring support Supports linear, star, and ring topologies with embedded switch
Serial port 1 x RS-232 For legacy PLC or serial device connections
USB ports Multiple USB host/device ports Keyboard, mouse, USB storage, or configuration use
Operating system Windows 10 IoT Core As listed on Rockwell Automation product page
Memory (RAM / Storage) 512 MB RAM / 512 MB storage Performance-class specification per distributor technical data

Full technical specifications are available on the product page at LeadTime.ca.

2711P-T10C22D9P vs. Adjacent PanelView Plus 7 Performance Variants

Model Screen Size Ethernet Class Best For
2711P-T10C22D9P 10.4-inch SVGA Dual, DLR Performance Mid-size machine HMI with DLR ring topology requirement
2711P-T10C21D9P 10.4-inch SVGA Single Ethernet (no DLR) Performance Same screen size and class without DLR ring requirement
PanelView Plus 7 Standard 10-inch 10-inch class Ethernet (family-dependent) Standard Simpler applications with lower tag counts and tighter budgets
PanelView Plus 7 Performance 7-inch 7-inch class Dual, DLR Performance Compact machine panels where 10-inch footprint does not fit
PanelView Plus 7 Performance 12W/15/19-inch 12-inch widescreen to 19-inch Dual, DLR Performance Complex visualization, multi-pane process graphics, larger operator stations

If your project does not require Device Level Ring — and many single-machine installations do not — the 2711P-T10C21D9P with single Ethernet may be the more cost-effective choice. Check current availability for the 2711P-T10C22D9P at LeadTime.ca and contact the team if you want to discuss which variant fits your specific topology.

Expert Verdict: Is the 2711P-T10C22D9P Worth the Investment?

The 2711P-T10C22D9P earns its place in a Rockwell Automation system when the application genuinely demands what it delivers: a 10.4-inch SVGA touchscreen at the Performance tier, dual Ethernet with Device Level Ring, Windows 10 IoT Core, and 512 MB RAM backing a complex FactoryTalk View ME application. For OEM builders and plant engineers already standardized on PanelView Plus 7 and FactoryTalk tooling, this terminal removes integration uncertainty — the software stack, network protocol, and controller communication are all within a known and tested ecosystem. The approximately 50,000-hour LED backlight rating and Performance-class memory also reduce the risk of capacity-related application failures that can affect smaller or Standard-tier terminals pushed beyond their design envelope.

Where this terminal falls short of being the automatic choice is cost and scope alignment. Applications that fit comfortably within PanelView Plus 7 Standard memory and feature limits do not benefit from paying the Performance premium. If your operators need a 7-inch display at a compact panel, or a widescreen 12-inch or 15-inch display for process overview work, a different catalog number is the correct answer. For plants running non-Rockwell PLCs or pursuing a vendor-neutral HMI strategy, committing to this terminal also means committing to FactoryTalk View ME licensing and toolchain — that is a reasonable commitment in a Rockwell-standardized environment, but not a trivial one in a mixed-vendor or greenfield plant evaluating all options.

From a procurement standpoint, the 2711P-T10C22D9P is a higher-end HMI that can carry lead times ranging from immediate shipment at some distributors to several weeks on special order, depending on stock positions at any given time. Confirming lifecycle status before designing this terminal into a new machine build — rather than a replacement order — is worthwhile, since PanelView Plus 7 family models can move through active, active-mature, and limited-availability stages. Ordering through a distributor that specializes in Rockwell Automation products means getting a catalog-number validation, a lifecycle check, and honest lead-time information before a PO is issued rather than after. View current pricing and stock status for the 2711P-T10C22D9P at LeadTime.ca — available to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 2711P-T10C22D9P

Because there is limited model-specific community discussion tied to the exact 2711P-T10C22D9P catalog number across major PLC forums including PLCTalk, MrPLC, PLCS.net, and the Rockwell Automation user forums, this section draws on the most common ordering and specification mistakes engineers encounter with this product family — and the checks that prevent them. Where community threads do mention PanelView Plus 7 at a family level, two themes surface consistently: confusion between Performance and Standard variants, and firmware-to-application version mismatches. Both are avoidable with the right pre-order process, and both are reasons to work with a distributor who can validate your selection before shipment rather than after arrival on site.

The Performance versus Standard distinction is the most frequently misunderstood aspect of the PanelView Plus 7 family. The 2711P-T10C22D9P is explicitly a Performance terminal — it carries 512 MB RAM and 512 MB storage, and it includes dual Ethernet with Device Level Ring support. A Standard-class 10-inch PanelView Plus 7 will not provide these capabilities. Engineers ordering a replacement unit must confirm they are replacing a Performance terminal with a Performance terminal; substituting a Standard model to save cost mid-project typically forces application changes that are more expensive than the hardware savings.

FactoryTalk View ME version alignment is the second most common source of post-delivery complications. The Windows 10 IoT Core operating system on the 2711P-T10C22D9P must be matched to a compatible FactoryTalk View ME application version. Deploying a runtime file built against a different firmware or software version can cause failures to load, runtime errors, or tag communication problems that are difficult to diagnose without knowing the root cause. Rockwell publishes compatibility matrices for this purpose — verifying against them before application download is a standard step that is sometimes skipped when a terminal is replaced urgently to restore production. A specialist distributor familiar with PanelView Plus 7 lead times, lifecycle status, and version history is the practical first call when a terminal fails unexpectedly and production is down.

Wiring and Installation Overview for the 2711P-T10C22D9P

The following overview covers the key requirements for physical installation and initial wiring. Engineers performing full installation should refer to the Rockwell Automation installation instructions for PanelView Plus 7 Performance terminals for dimensional cutout specifications, torque values, and grounding diagrams.

  • Panel mounting: Prepare the enclosure cutout per Rockwell's PanelView Plus 7 Performance 10-inch cutout dimensions; insert the terminal from the front, secure mounting clips from the rear, and torque to the specified value to ensure the gasket compresses evenly and the enclosure rating is maintained.
  • Power wiring: Connect a 24V DC Class 2 or SELV supply (18–30V DC operating range) to the terminal's power terminals with correct polarity; provide external overcurrent protection (fuse or circuit breaker) per Rockwell guidelines and connect the protective earth terminal to the panel ground bus.
  • Ethernet connections: Wire Port 1 and Port 2 according to the intended topology — linear pass-through, star connection to a managed switch, or Device Level Ring — ensuring cable type and segment lengths comply with Ethernet standards; confirm DLR configuration in the terminal and PLC program if ring topology is used.
  • Serial and USB: Connect RS-232 to legacy devices or PLCs if required, confirming pinout per Rockwell documentation; USB ports can be used for keyboard or mouse input during commissioning, or for loading a FactoryTalk View ME runtime file from a USB drive.
  • Pre-power verification: Before applying power, confirm supply voltage at the terminal, verify polarity, check that grounding connections are complete, and confirm Ethernet cabling matches the planned topology before bringing up the DLR ring or Ethernet/IP network.

Compatible Software Environment and System Expansion

The 2711P-T10C22D9P operates within the Rockwell Automation software and hardware ecosystem. The following components and software are directly relevant to specifying and commissioning this terminal:

  • FactoryTalk View Machine Edition (ME) — the runtime and development software required to create, download, and run applications on the 2711P-T10C22D9P; version compatibility with terminal firmware must be confirmed before deployment.
  • FactoryTalk View Studio — the development environment used to author ME applications; engineers should verify that the project's Studio version aligns with the terminal's firmware and ME runtime version.
  • ControlLogix and CompactLogix controllers — the primary PLC platforms this terminal communicates with over Ethernet/IP using FactoryTalk View ME tag-based communication.
  • Device Level Ring infrastructure — managed Ethernet switches and other DLR-capable devices in the ring must be configured consistently with the 2711P-T10C22D9P's dual Ethernet DLR setup for ring supervisory and fault recovery to function correctly.
  • FactoryTalk Activation — licensing for FactoryTalk View ME runtime is tied to terminal hardware; confirm activation requirements and any additional license needs when replacing or adding terminals to an existing system.

Wrong-Part Prevention Checklist Before Ordering the 2711P-T10C22D9P

Before placing a purchase order for the 2711P-T10C22D9P, confirm all of the following against your project drawings, existing hardware, and site requirements:

  1. Confirm required screen size and resolution: 10" SVGA touchscreen only (no physical keypad on this model).
  2. Verify control platform: intended for Rockwell PLCs and FactoryTalk View ME; check firmware and software version compatibility with your existing applications.
  3. Confirm power requirements: 24V DC only (18–30V DC range typical) and availability of an appropriate Class 2/SELV, externally protected supply.
  4. Check network topology: you specifically need dual Ethernet with DLR; do not substitute with a single-Ethernet or Standard PanelView Plus 7 model if ring redundancy is required.
  5. Confirm environmental rating and enclosure cut-out match your panel design (PanelView Plus 7 Performance 10" size).
  6. Verify memory and Performance vs. Standard model; ensure application size and features fit Performance terminal capabilities but do not exceed them.
  7. Check OS requirement: this model uses Windows 10 IoT Core; ensure alignment with IT policies and FactoryTalk support.
  8. Validate lifecycle status with distributor (active, active mature, or limited availability) to avoid using a near-obsolete terminal in a new design.

If any item on this checklist raises a question, contact the LeadTime.ca team before placing an order — we can validate catalog numbers, check lifecycle status, and confirm stock availability worldwide.

Frequently Asked Questions

What is the difference between the 2711P-T10C22D9P and the 2711P-T10C21D9P?

The primary difference is the Ethernet configuration. The 2711P-T10C22D9P has dual Ethernet ports with Device Level Ring support, allowing it to participate in ring, linear, and star Ethernet/IP topologies with an embedded switch. The 2711P-T10C21D9P has a single Ethernet port and does not support DLR ring topology. Both are 10.4-inch SVGA Performance terminals running on 24V DC with Windows 10 IoT Core. Choose the 2711P-T10C22D9P only if your network topology genuinely requires dual Ethernet or DLR capability.

How do I confirm which FactoryTalk View ME version is compatible with the 2711P-T10C22D9P?

Rockwell Automation publishes compatibility matrices for PanelView Plus 7 terminals that map terminal firmware versions to supported FactoryTalk View ME application versions. You should check the release notes and compatibility guide for your specific terminal firmware before downloading an application. A version mismatch can prevent the runtime file from loading or cause communication failures with the PLC. When replacing a failed terminal, also confirm the firmware level on the replacement unit before re-deploying an existing application.

When should I repair a failed 2711P-T10C22D9P rather than replace it?

For production-critical applications, replacement is generally faster and more predictable than repair, particularly if a spare or distributor stock is available. Repair may be worth evaluating if the terminal is in a non-critical location, if the fault is isolated to a non-display component, or if the catalog number is at an active-mature or limited-availability lifecycle stage where replacement units carry longer lead times. Always confirm the replacement unit's firmware version and lifecycle status before ordering.

Can I use the 2711P-T10C22D9P as a Device Level Ring supervisor node, or is it only a ring member?

PanelView Plus 7 terminals with dual Ethernet and DLR support participate as ring nodes in a Device Level Ring network. The DLR supervisor role is typically assigned to the PLC or a managed switch, not the HMI terminal. Refer to Rockwell Automation's EtherNet/IP Device Level Ring documentation for your specific ring architecture to confirm supervisory device selection before commissioning.

Can I migrate an application from an older PanelView Plus model to the 2711P-T10C22D9P without rewriting it?

In many cases, FactoryTalk View ME applications created for older PanelView Plus or PanelView Plus 6 terminals can be converted or opened in FactoryTalk View Studio and re-targeted for PanelView Plus 7 Performance terminals. However, the migration process typically requires verification of tag structures, display resolution alignment, and feature compatibility. The Windows 10 IoT Core platform of the 2711P-T10C22D9P may also introduce differences compared to older Windows CE-based terminals. Rockwell's migration documentation and a test deployment in a non-production environment are recommended before going live.

What power supply specifications do I need for the 2711P-T10C22D9P?

The terminal requires a 24V DC supply within the 18–30V DC operating range, sourced from a Class 2 or SELV-rated power supply with external overcurrent protection. The supply must be sized to cover the terminal's power consumption as stated in Rockwell's technical data, plus any margin for inrush and other loads on the same circuit. Using an undersized or non-Class 2 supply is one of the most common causes of intermittent resets and instability on PanelView Plus 7 terminals.

Why Order the 2711P-T10C22D9P From LeadTime.ca

  • Global shipping: LeadTime.ca ships Allen‑Bradley hardware worldwide, not limited to any single region.
  • Catalog validation: Our team can confirm you have the correct catalog number — Performance vs. Standard, dual vs. single Ethernet — before your order ships.
  • Lifecycle and lead-time transparency: We check current stock positions and lifecycle status so you know whether this is an off-the-shelf shipment or a lead-time order before committing.
  • Volume and project pricing: For OEM machine builders and multi-unit plant orders, contact us for project pricing on the 2711P-T10C22D9P and related PanelView Plus 7 terminals.
  • Specialist sourcing: When standard channels show extended lead times, our sourcing network helps locate genuine Allen‑Bradley hardware faster for production-critical replacements.

At-a-Glance Summary: Allen‑Bradley 2711P-T10C22D9P

  • 10.4-inch SVGA TFT color touchscreen with 800 x 600 resolution — no physical keypad on this model.
  • Analog resistive touchscreen input suitable for industrial environments.
  • 24V DC power input, 18–30V DC operating range, Class 2/SELV supply required with external overcurrent protection.
  • Dual Ethernet ports with Device Level Ring support — embedded switch enables linear, star, and ring topologies without an external switch at the terminal.
  • 1 x RS-232 serial port for legacy device connectivity; multiple USB host/device ports for keyboard, storage, and configuration.
  • Windows 10 IoT Core operating system; FactoryTalk View Machine Edition runtime environment.
  • 512 MB RAM and 512 MB storage — Performance-class specification separating this model from Standard-tier PanelView Plus 7 terminals.
  • Solid-state LED backlight, non-replaceable, approximately 50,000-hour class life per PanelView Plus 7 family data.
  • Panel-mount installation with gasket; enclosure and IP ratings per Rockwell PanelView Plus 7 Performance 10-inch technical data.
  • Lifecycle status should be confirmed with distributor before designing into a new machine build.
