Allen‑Bradley 2711P-T10C21D8S — PanelView Plus 7 Buyer Review

By Abdullah Zahid
14 min read

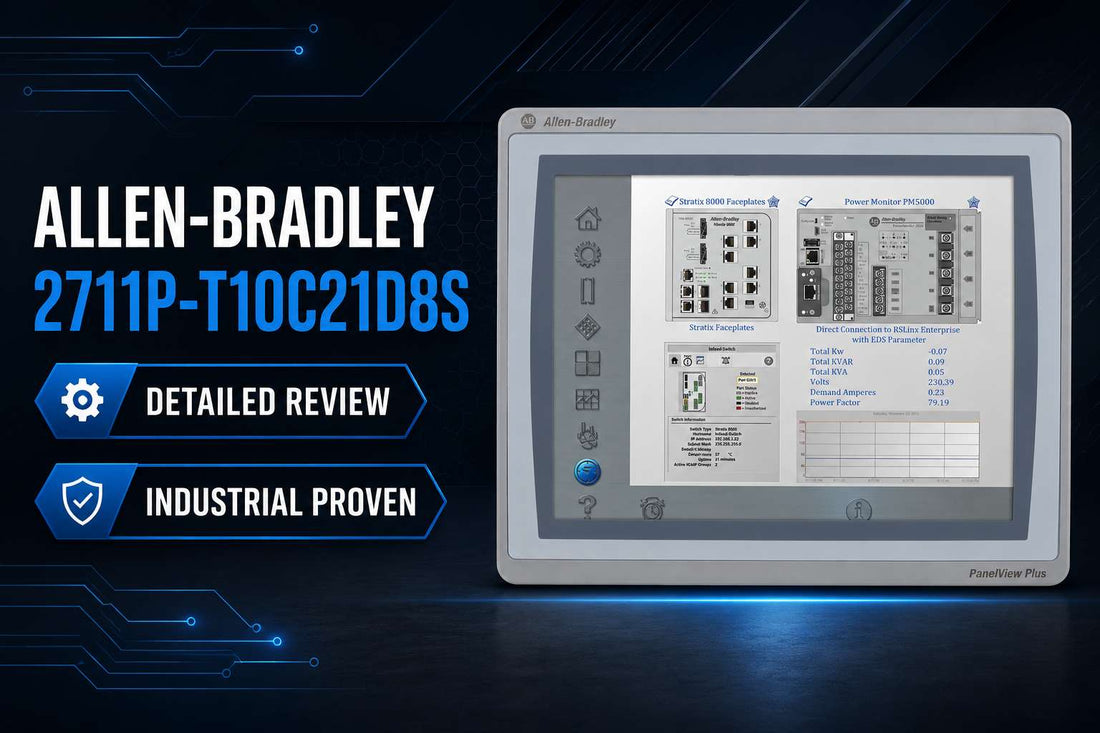

Allen-Bradley 2711P-T10C21D8S PanelView Plus 7 Standard 10.4-inch TFT color touchscreen HMI terminal for machine-level EtherNet/IP control

Allen‑Bradley 2711P-T10C21D8S PanelView Plus 7 Standard Terminal, Touch Screen, 10.4 in, TFT Color, Single Ethernet, 24V DC, Windows CE 6, Standard Model

Controls engineers and OEM machine builders searching for the Allen‑Bradley 2711P-T10C21D8S are typically at a very specific decision point: they have a 10.4-inch panel opening, a CompactLogix or ControlLogix controller on EtherNet/IP, a 24 V DC power rail, and a FactoryTalk View ME project already in development or already running on the floor. This terminal is the PanelView Plus 7 Standard family member built precisely for that scenario — a TFT color touchscreen HMI running Windows CE 6 with a single Ethernet port, designed for machine-level operator interface within Rockwell Automation architectures. The core question before ordering is not whether this is a capable HMI — it is — but whether the Standard tier's capacity and single-port network configuration match the exact demands of your application.

If you have already confirmed the catalog number and are ready to check availability, view current pricing and stock status for the 2711P-T10C21D8S at LeadTime.ca — we ship worldwide.

Who Should Buy the 2711P-T10C21D8S — and Who Shouldn't

This terminal is the right choice for projects where the following conditions are all true:

  • The panel cutout or machine enclosure is designed for a 10.4-inch display — not 7-inch, 9-inch, or 12-inch.
  • A 24 V DC power supply is available in the panel and sized to support the HMI's consumption with proper external overcurrent protection.
  • A single Ethernet port is sufficient — no device-level ring topology or dual-network separation is required.
  • The application's tag count and controller connection requirements fall within PanelView Plus 7 Standard limits.
  • The plant or OEM is already developing in FactoryTalk View ME and the firmware level on this unit can be matched to the existing project.
  • Environmental conditions, including NEMA/Type enclosure rating and Class I Div 2 certification requirements, align with what this catalog number provides.

If your application requires dual Ethernet ports, device-level ring support, higher tag counts, or multiple simultaneous controller connections beyond Standard limits, the correct choice is the 2711P-T10C22D8S or a Performance-tier model. For applications moving to Studio 5000 View Designer and a more modern HMI development environment, the PanelView 5000 family deserves evaluation instead.

On this page:

What the 2711P-T10C21D8S Actually Does in a Control System

The Allen‑Bradley 2711P-T10C21D8S is a machine-level HMI terminal — the operator's window into the control system. It sits between the controls engineer's FactoryTalk View ME application and the operator standing at the machine, translating controller data into readable screens, navigation, alarm management, and operator input. The 10.4-inch TFT color analog resistive touchscreen gives operators a large enough viewing area to handle multi-screen navigation on a packaging line or assembly cell without requiring a full-sized panel PC or a wall-mount enclosure.

The terminal runs a FactoryTalk View Machine Edition runtime on Windows CE 6, meaning your application is compiled as an .MER file and deployed to the unit — not a PC-based SCADA installation. This runtime model keeps the HMI tightly scoped to machine-level control, which is appropriate for the OEM and discrete manufacturing applications where this terminal is most commonly specified. Communication to the controller happens over EtherNet/IP through the single built-in Ethernet port, using CIP over Ethernet — the same protocol stack used across Rockwell's Logix platform.

External overcurrent protection is required per Rockwell guidance — this is not optional, and it affects how the panel is assembled. The 24 V DC supply must be sized and protected correctly before the terminal is powered up for the first time.

Typical System Architecture for the PanelView Plus 7 Standard

The 2711P-T10C21D8S typically sits at the machine-level HMI layer, connected upstream to the controller via Ethernet and downstream to the operator via the touchscreen. A standard deployment looks like this:

  • CompactLogix or ControlLogix controller running the machine program and serving tag data over EtherNet/IP on the control network.
  • Managed or unmanaged Ethernet switch connecting the controller, HMI, drives, and remote I/O on the same network segment.
  • 2711P-T10C21D8S connected to the switch via the single Ethernet port, with a static IP address assigned to the HMI per plant network standards.
  • FactoryTalk View ME runtime on the HMI polling controller tags and displaying process values, alarms, and operator controls on configured screens.
  • USB host port on the HMI used for a keyboard or USB storage during commissioning or firmware updates; Ethernet used for application downloads from a programming laptop on the same subnet.

Where This HMI Fits: Industries and Typical Deployments

The 2711P-T10C21D8S is most commonly specified for discrete manufacturing environments where a Rockwell Logix controller is already in the architecture and the machine needs a reliable, mid-sized operator interface. Packaging machine OEMs building CompactLogix-based lines find the 10.4-inch format practical — large enough for multi-zone status displays, small enough to fit a standard panel door cutout without relocating other components.

Food and beverage facilities running production lines with EtherNet/IP drives and remote I/O racks use this terminal as the primary operator station for recipe selection, batch tracking, and alarm acknowledgment. The enclosure and hazardous location ratings — including Class I Div 2 per Rockwell technical data — make it applicable in areas where lighter-duty HMIs would not be acceptable.

Plant maintenance teams also stock the 2711P-T10C21D8S as a like-for-like replacement for existing PanelView Plus 7 terminals in plants that have already standardized on this family. Upgrading from PanelView Plus 6 to PanelView Plus 7 Standard at the 10.4-inch size is a documented migration path, though project conversion and mechanical fit should both be verified before committing to that approach.

Water and wastewater skid builders and light-process OEMs shipping equipment to a range of facility types also appear in the installed base for this model, particularly where the customer site already runs FactoryTalk View ME across other equipment on the floor.

Application Typical Deployment
Packaging machine HMI CompactLogix-based line, 10.4" panel door mount, EtherNet/IP single network
Food and beverage production line Operator recipe and alarm station, Class I Div 2-rated zone, 24 V DC panel
Material handling cell Machine-level status visualization, single controller connection, FactoryTalk View ME runtime
OEM machine family standardization Single PanelView Plus 7 Standard catalog number across multiple machine variants
PanelView Plus 6 replacement / upgrade Like-for-like swap in existing 10.4" panel cutout, FactoryTalk View ME project migration
Water/wastewater skid operator station ControlLogix or CompactLogix skid, EtherNet/IP, outdoor-rated enclosure integration

Specifications That Drive the Purchase Decision

Specification Value
Display size 10.4 in diagonal
Display type TFT color
Touchscreen type Analog resistive
Operating system Windows CE 6
HMI runtime FactoryTalk View Machine Edition (ME)
Supply voltage 24 V DC
Ethernet ports Single Ethernet
Supported protocol EtherNet/IP (CIP over Ethernet)
Hazardous location rating Class I Div 2 per Rockwell technical data
External protection Required (fuse/breaker, sized per Rockwell datasheet)

Full technical specifications are available on the product page at LeadTime.ca.

2711P-T10C21D8S vs 2711P-T10C22D8S vs PanelView 5000: Which One Do You Need?

Model Screen Size Ethernet Ports HMI Tier Development Environment Best For
2711P-T10C21D8S 10.4 in TFT color Single PanelView Plus 7 Standard FactoryTalk View ME Mid-range machines, single network, Standard tag limits
2711P-T10C22D8S 10.4 in TFT color Dual PanelView Plus 7 Standard FactoryTalk View ME Same screen size, device-level ring or dual-network architectures
PanelView Plus 7 Performance (10.4 in) 10.4 in TFT color Dual (typical) PanelView Plus 7 Performance FactoryTalk View ME Higher tag counts, multiple controller connections, advanced features
PanelView 5000 (comparable size) Varies by catalog Dual (typical) PanelView 5000 Studio 5000 View Designer Modern Logix integration, View Designer workflow, new machine designs

If your network design requires dual Ethernet ports or device-level ring support, the 2711P-T10C22D8S is the correct 10.4-inch selection — check current availability for the 2711P-T10C21D8S at LeadTime.ca and contact us if you need to discuss the dual-port variant.

Expert Verdict: Is the 2711P-T10C21D8S the Right Call?

The 2711P-T10C21D8S earns its place in a Rockwell-centric machine build where a 10.4-inch operator station, 24 V DC power, and a single EtherNet/IP connection cover the application requirements. For controls engineers and OEM machine builders already working in FactoryTalk View ME with CompactLogix or ControlLogix, commissioning this terminal is a known, repeatable process — the integration is predictable, long-term parts availability is backed by Rockwell's support structure, and the installed base in discrete manufacturing and food and beverage environments is substantial. It is not the lowest-cost 10.4-inch HMI available, but within a Rockwell architecture, the price reflects a genuine reduction in integration risk and support complexity over the life of the machine.

Where this terminal falls short is equally clear. If your application is hitting the tag or controller connection limits of the Standard tier, or if the network design calls for dual Ethernet ports and device-level ring topology, the 2711P-T10C21D8S is the wrong catalog number regardless of how attractive the price point appears. The 2711P-T10C22D8S handles the dual-port requirement at the same screen size, and Performance-tier models handle higher-capacity applications. For new machine designs being developed in Studio 5000, the PanelView 5000 family offers a more forward-looking development experience with View Designer — though it comes with a different learning curve and cost structure. Cost-sensitive projects open to non-Rockwell platforms can find comparable screen size and Ethernet features elsewhere, but those choices involve re-engineering the HMI application entirely.

From a procurement standpoint, the 2711P-T10C21D8S is frequently a special-order item — multi-week lead times are common when distributor stock is not on hand. Getting ahead of this reality matters: confirming availability early, validating the catalog number against the firmware level already deployed in the plant, and working through a specialist distributor who can cross-reference alternatives within the PanelView Plus 7 family or suggest in-stock substitutes if lead time is critical. View current pricing and availability for the 2711P-T10C21D8S at LeadTime.ca — we ship to customers worldwide and can advise on equivalent options when this specific catalog is on extended lead time.

For volume pricing, lead time confirmation, or help validating the right catalog number for your project, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 2711P-T10C21D8S

Community feedback on the PanelView Plus 7 Standard family — drawn from discussions on PLCTalk, PLCS.net, MrPLC, and Reddit communities including r/PLC, r/automation, and r/industrialautomation — converges on a consistent picture: these are dependable terminals that integrate predictably within Rockwell environments, and they are expensive enough that an ordering mistake is genuinely painful. Controls engineers with experience on this family are consistently positive about hardware reliability in harsh plant environments and about how smoothly the EtherNet/IP connection to CompactLogix and ControlLogix behaves when set up correctly. OEMs value the ability to standardize a single Rockwell HMI catalog number across a family of machines shipped to multiple sites — the consistency in support, firmware management, and spare stocking is a real operational advantage.

The recurring complaints center on two areas. The first is cost: community members frequently note that third-party HMIs at a similar screen size and with comparable Ethernet connectivity are available at a significantly lower price, and that for cost-sensitive projects or customers not locked into a Rockwell ecosystem, the price premium requires justification. The second is the FactoryTalk View Studio ME development environment itself — developers on multiple forums describe it as slow and cumbersome, particularly on larger projects or less powerful engineering workstations. This is not a hardware fault of the 2711P-T10C21D8S, but it is part of the total ownership experience buyers should plan for. A third, more operational concern appears repeatedly: firmware and application version mismatches between the terminal and the .MER runtime file cause failed downloads, unexpected reboots, and runtime errors that consume commissioning time. Standardizing the firmware level across all terminals in a plant before deploying new applications is strongly recommended by experienced users.

The most common ordering mistakes reported in these communities map directly to the wrong-part checklist below: buying a Standard model when the application needed Performance-tier capacity, selecting the wrong screen size and discovering the panel cutout mismatch on delivery, and ordering a single-Ethernet variant into a network architecture that assumed dual ports. When community data is sparse for a specific catalog number and the cost of an ordering error is high, this is precisely the scenario where consulting a specialist distributor before placing the order — not after — saves both time and money.

Wiring and Installation: Key Requirements at a Glance

  • Mount the terminal using the supplied panel clamps and gasket into the correct 10.4-inch panel cutout; verify panel thickness and torque values against Rockwell installation documentation before tightening.
  • Connect 24 V DC power with correct polarity, protective earth, and an external fuse or circuit breaker sized to Rockwell's datasheet specification — this external protection is a hard requirement, not a recommendation.
  • Use shielded twisted-pair Ethernet cabling to the control network switch or directly to the controller; verify shield grounding practice matches plant standards to avoid noise-related communication issues.
  • USB host ports support a keyboard, mouse, or external USB storage for commissioning tasks and application transfers; avoid using unshielded USB extensions in electrically noisy panel environments.
  • Before powering on, confirm the Ethernet IP address plan, verify the firmware version loaded on the terminal, and have the matching .MER runtime file version ready — resolving firmware mismatches after installation is significantly more disruptive than confirming version compatibility beforehand.

Wrong-Part Prevention: Confirm These Before You Order

Work through every item on this checklist before finalizing the 2711P-T10C21D8S on your bill of materials:

  1. Confirm the required screen size is 10.4 in; if the machine layout expects 7" or 12", this catalog is wrong.
  2. Verify 24 V DC power is available in the panel and sized correctly; do not order this if only AC power is available without an auxiliary DC supply.
  3. Check whether a single Ethernet port is sufficient; if you need dual Ethernet for device-level ring or separate networks, choose a "22" or Performance model.
  4. Validate that PanelView Plus 7 Standard tag and connection limits are adequate for the application; if you need more, move to Performance or a different platform.
  5. Match firmware/FactoryTalk View ME version with plant standard; existing runtime applications may need a specific firmware.
  6. Confirm environmental rating (NEMA/Type, Class I Div 2) matches the installation zone and enclosure design.

If any item on this checklist raises a question about the catalog number, contact the LeadTime.ca team before ordering — we can validate the selection and suggest the correct variant if this one does not fit.

Frequently Asked Questions

What is the practical difference between the 2711P-T10C21D8S and the 2711P-T10C22D8S?

Both are 10.4-inch TFT color PanelView Plus 7 Standard terminals running FactoryTalk View ME on Windows CE 6. The key difference is the Ethernet port configuration: the 2711P-T10C21D8S has a single Ethernet port, while the 2711P-T10C22D8S provides dual Ethernet ports for device-level ring topologies or separate network connections. If your network architecture requires dual ports, the 2711P-T10C21D8S is the wrong catalog number regardless of price.

Can I replace a PanelView Plus 6 terminal with the 2711P-T10C21D8S directly?

A PanelView Plus 6-to-PanelView Plus 7 migration is a supported path within the Rockwell ecosystem, but it is not a simple plug-in swap. The application project will require conversion using FactoryTalk View Studio ME, and the panel cutout dimensions should be verified against the 2711P-T10C21D8S mounting specifications before ordering. Communication configuration and firmware version compatibility also need to be confirmed against the existing controller and plant network setup.

Why won't my .MER runtime file load on the 2711P-T10C21D8S?

The most common cause reported by engineers in multiple community forums is a firmware version mismatch — the .MER file was compiled for a different FactoryTalk View ME version than the firmware currently installed on the terminal. Verify the firmware version on the physical terminal, match it to the FactoryTalk View Studio ME version used to compile the application, and recompile if necessary. Rockwell documentation provides guidance on supported firmware and application version combinations.

Can the 2711P-T10C21D8S connect to multiple controllers simultaneously?

The PanelView Plus 7 Standard tier has defined limits on simultaneous controller connections and tag counts — these are lower than the Performance tier. If your application requires connections to multiple controllers or a high tag count, verify your specific requirements against the PanelView Plus 7 Standard selection guide before ordering. Applications exceeding Standard limits require a Performance model or a different platform.

Is the 2711P-T10C21D8S rated for Class I Div 2 installations?

Per Rockwell Automation technical data, the PanelView Plus 7 Standard is classified for use in Class I Div 2 environments, as well as Class II and Class III areas. The exact group listings and installation requirements are documented in Rockwell's technical data and installation instructions — confirm the specific groups and conditions against your installation zone classification before specifying this terminal for a hazardous area.

What should I do if Ethernet communication to the controller is dropping intermittently?

Start with the basics: verify the 24 V DC power supply quality and that the external overcurrent protection is correctly sized, check the Ethernet cable shielding and grounding practice at both ends, and confirm the IP address configuration on both the HMI and controller has not changed. Firmware version mismatches and network switch configuration issues — particularly IGMP settings on managed switches — are also common causes documented in Rockwell support literature and community troubleshooting threads.

Why Order Through LeadTime.ca

  • LeadTime.ca ships the Allen‑Bradley 2711P-T10C21D8S worldwide — no geographic restriction on orders.
  • Our team can validate catalog numbers against application requirements and flag mismatches before an order is placed, not after.
  • When the 2711P-T10C21D8S is on extended lead time, we can cross-reference in-stock alternatives within the PanelView Plus 7 family and advise on equivalent options.
  • Volume pricing and blanket order discussions are available for OEMs standardizing on this catalog number across a machine family.
  • Pricing is available live on the product page; contact us for volume or project-specific quotes.

At-a-Glance Summary

  • Catalog number: Allen‑Bradley 2711P-T10C21D8S — PanelView Plus 7 Standard family, machine-level HMI.
  • Display: 10.4-inch TFT color touchscreen, analog resistive touch technology.
  • Operating system: Windows CE 6, running FactoryTalk View Machine Edition runtime.
  • Power: 24 V DC supply required; external overcurrent protection is mandatory per Rockwell guidance.
  • Network: Single Ethernet port, EtherNet/IP (CIP over Ethernet) — not suitable for dual-port or device-level ring architectures.
  • Hazardous location: Rated for Class I Div 2 per Rockwell technical data; verify groups and installation conditions against site requirements.
  • Primary use: Machine-level operator interface for CompactLogix and ControlLogix controllers in discrete manufacturing, food and beverage, OEM machinery, and similar applications.
  • Key ordering risk: Confirming Standard-tier tag and connection limits, single Ethernet sufficiency, and firmware version match before placing the order eliminates the most common costly mis-order scenarios.
  • Lead time reality: Often a special-order item; plan ahead or consult LeadTime.ca for in-stock status and alternate catalog options.
