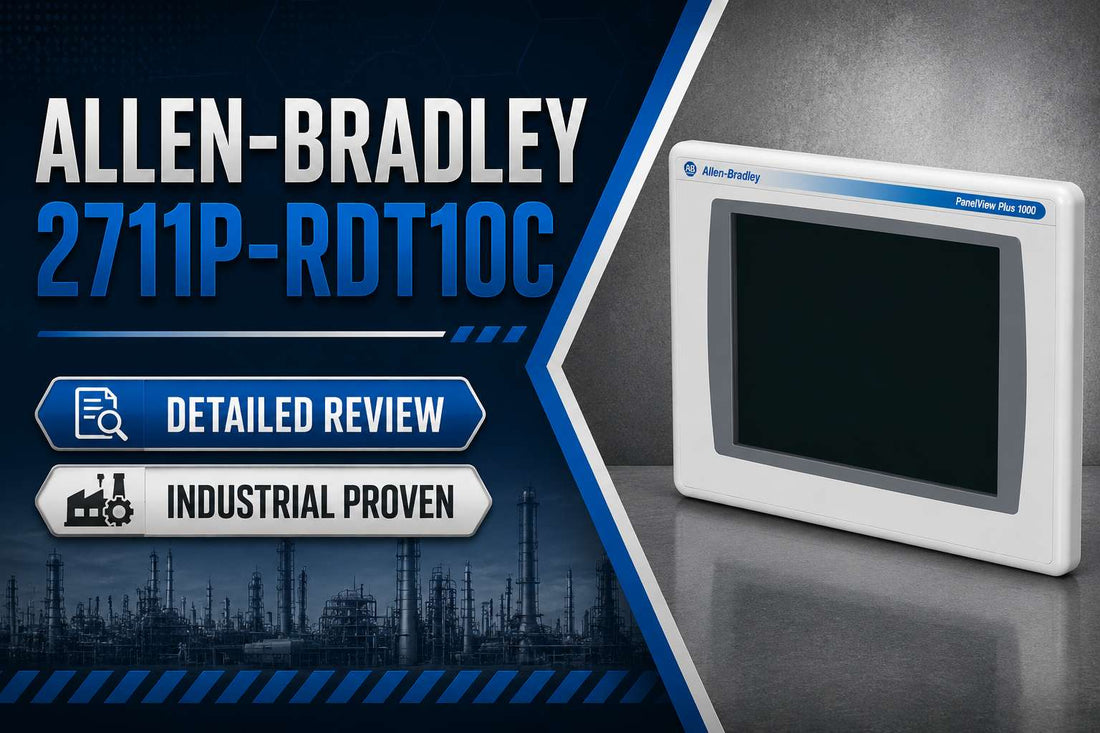

Allen-Bradley 2711P-RDT10C PanelView Plus 6 1000 10.4-inch color touch display module for industrial HMI panel replacement

Allen-Bradley 2711P-RDT10C PanelView Plus 6 1000 Color Touch Display Module — Specs, Compatibility & Buying Guide

When a PanelView Plus 6 1000 touchscreen fails on a production line, the fastest path back to operation is a verified like-for-like replacement. The Allen-Bradley 2711P-RDT10C is a 10.4-inch color TFT touchscreen display module built for that exact scenario — it slots into the existing 1000-family panel cutout, connects to the installed PanelView Plus 6 logic module, and restores your FactoryTalk View ME operator interface without cutout modifications or application rewrites. Understanding that this is a display-only module — not a complete terminal — is the single most important fact before placing an order.

If you have already confirmed this is the correct part for your system, check current pricing and availability for the 2711P-RDT10C at LeadTime.ca — ships worldwide.

Who Should Buy the 2711P-RDT10C — and Who Should Look at Alternatives

This display module is the right choice for teams replacing or stocking spare displays on PanelView Plus 6 1000 terminals already installed in the field. It is purpose-confirmed for the following situations:

  • You have a PanelView Plus 6 1000 terminal with a failed or degraded display and need a direct drop-in replacement that preserves the existing panel cutout.
  • Your site is standardized on Allen-Bradley and FactoryTalk View ME, and you need hardware that integrates without a runtime rebuild.
  • You require a 10.4-inch color analog resistive touchscreen with NEMA/UL Type 12, 13, 4X indoor and IP54/IP66 front-panel ratings.
  • Your operating environment falls within the 0 to 55 °C operating temperature range and non-condensing humidity conditions.
  • You are stocking a spare display for a critical line where any unplanned downtime drives significant cost.

If you need a complete HMI terminal including logic module for a new project, are moving to the PanelView Plus 7 generation, or are evaluating cost-competitive third-party HMIs for a greenfield build, the 2711P-RDT10C is not your answer — see the variant comparison and alternatives sections below for specific guidance.

On this page:

What the 2711P-RDT10C Actually Does in a Control System

The Allen-Bradley 2711P-RDT10C is a display-only module — it provides the 10.4-inch color TFT LCD screen and analog resistive touchscreen interface, but it does not contain a processor, memory, communication ports, or power supply. Those functions reside entirely in the paired PanelView Plus 6 logic module. This modular architecture is a defining feature of the PanelView Plus 6 1000 family: the display and logic sections are separate, serviceable units. When a backlight fades, a touchscreen loses calibration stability, or an overlay is physically damaged, the correct service action is replacing the display module — not the entire terminal.

The 640 x 480 pixel VGA resolution and 18-bit color graphics render FactoryTalk View ME operator screens, alarms, trends, and navigation buttons as built by the machine's controls engineers. Screen response quality, data refresh rates, and communication to the Logix controller are all governed by the logic module. The 2711P-RDT10C contributes the visual output quality — CCFL backlight with a typical rated life of approximately 50,000 hours, color accuracy, and touchscreen sensitivity for finger or stylus input even through light gloves.

Typical System Architecture for PanelView Plus 6 1000 Deployments

The 2711P-RDT10C sits at the operator interface layer of a Rockwell Automation control architecture, receiving display commands from the logic module and relaying touchscreen input back to the running FactoryTalk View ME application. Here is where it fits in the signal and hardware chain:

  • Logix controller (CompactLogix or ControlLogix) hosts the machine program and tag database on the plant network.
  • Ethernet or RS-232 network connects the controller to the PanelView Plus 6 logic module, which hosts the FactoryTalk View ME runtime (.mer file).
  • The PanelView Plus 6 logic module — running Windows CE 6.0 with commonly 512 MB RAM — handles all processing, I/O polling, and communication port management.
  • The 2711P-RDT10C display module connects directly to the logic module via an internal interface and presents the operator interface to the panel door.
  • The operator interacts with the 10.4-inch analog resistive touchscreen; inputs are processed by the logic module and commands are sent to the controller.

Industries and Applications Where This Display Module Belongs

The 2711P-RDT10C is deployed wherever a PanelView Plus 6 1000 terminal serves as the primary machine-level operator interface. In general manufacturing — automotive, metals, and packaging — this means conveyors, fillers, wrappers, and assembly cells where operators need clear color graphics and reliable touch input through an 8-hour shift. Food and beverage facilities rely on the IP66 front-panel rating when washdown or high-humidity environments are adjacent, even though the terminal itself is rated for indoor use only.

Material handling and logistics systems running on Allen-Bradley platforms regularly have PanelView Plus 6 1000 terminals at sortation stations, pick-and-place cells, and palletizing lines. Replacement displays are frequently stocked as MRO spares at these facilities due to the cost of unplanned downtime. Water and wastewater treatment plants and life sciences production sites that have standardized on Rockwell Automation control hardware are also strong deployment environments, where the priority is not the lowest-cost HMI but rather platform consistency, operator familiarity, and minimal validation overhead when replacing a display.

OEM machine builders who originally shipped equipment with PanelView Plus 6 1000 terminals represent another significant buying group — either stocking spares for their service teams or fulfilling after-sales replacement requests from end customers.

Application Typical Deployment
Packaging line HMI replacement Drop-in display swap on filler, wrapper, or case packer using existing PanelView Plus 6 1000 cutout
Automotive assembly cell Spare display stocked for critical station where PanelView Plus 6 is plant standard
Food and beverage batching Replacement display on mixing or CIP skid; IP66 front rating maintained with correct gasket installation
OEM machine refurbishment New display module fitted to existing logic module during field refurbishment or resale prep
Water and wastewater SCADA panel Brownfield HMI display replacement where Rockwell platform is standardized across the facility
Phased control system upgrade Logic module retained or upgraded while new display module refreshes the operator interface

Key Specifications — What Engineers Need to Evaluate

Parameter Value Notes
Catalog Number 2711P-RDT10C Display-only module; logic module sold separately
Display Size and Type 10.4 inch color TFT LCD PanelView Plus 6 1000 family form factor
Resolution 640 x 480 pixels (VGA) Supports standard FactoryTalk View ME graphics
Color Depth 18-bit color graphics Enables detailed operator screen designs
Touchscreen Type Analog resistive Finger or stylus; compatible with light gloves
Backlight CCFL, typical rated life ~50,000 hours Brightness approx. 300 cd/m²; indoor use only
Front Panel Rating NEMA/UL Type 12, 13, 4X (indoor); IP54/IP66 Gasket must be correctly installed to maintain rating
Operating Temperature 0 to 55 °C Verify exact value in Rockwell technical data for your application
Storage Temperature -20 to 70 °C Applicable for warehousing and shipment
Runtime Environment FactoryTalk View Machine Edition (via logic module) Logic module runs Windows CE 6.0; applications loaded as .mer files

Full technical specifications are available on the product page at LeadTime.ca.

2711P-RDT10C vs Related PanelView Plus Variants — Which One Do You Need?

The PanelView Plus 6 family spans multiple screen sizes and product types. Selecting the wrong catalog number is the most common ordering mistake in this family, so the table below covers the key decision points.

Model / Option Type Screen Size Best For
2711P-RDT10C Display module only 10.4 inch color touch Replacing a failed display on an existing PanelView Plus 6 1000 terminal
PanelView Plus 6 1000 complete terminal Full terminal (display + logic) 10.4 inch New installations or full terminal replacement where logic module is also failed or outdated
PanelView Plus 6 700-size display module Display module only 7 inch Smaller panel cutout applications; incompatible with 1000-size cutout
PanelView Plus 6 1250 / 1500 display module Display module only 12.1 inch / 15 inch Larger cutout installations; different form factor than 2711P-RDT10C
PanelView Plus 7 standard terminal Full terminal Multiple sizes available New projects, lifecycle migration, or sites that can accept engineering changes for a modern platform

If your existing panel cutout is the 1000 family and your logic module is confirmed as PanelView Plus 6, the 2711P-RDT10C is the correct display module. If the logic module is also failed or you are starting a new build, you should be evaluating a complete PanelView Plus 6 1000 terminal or migrating to PanelView Plus 7 — check current availability and options at LeadTime.ca.

Expert Verdict — When This Part Makes Sense and When It Does Not

The 2711P-RDT10C earns its place in the parts room of any facility that has multiple PanelView Plus 6 1000 terminals in production. The value proposition is straightforward: a confirmed display failure on a running machine gets resolved by swapping this module into the existing cutout, reconnecting to the existing logic module, and returning to operation — no panel rework, no application rebuild, no retraining. The 640 x 480 VGA resolution and 18-bit color display handle FactoryTalk View ME screens built to that specification without compromise, and the CCFL backlight rated at approximately 50,000 hours gives a realistic service window before the next planned replacement. For maintenance teams with a Rockwell standard and a downtime budget that does not tolerate surprises, this is the low-risk answer.

Where the 2711P-RDT10C is the wrong call: greenfield projects where there is no installed base to protect, cost-sensitive builds where third-party HMIs with Ethernet/IP support offer comparable functionality at a lower price point, and any site beginning a considered migration to PanelView Plus 7. The PanelView Plus 7 platform brings a more modern display technology, a newer software stack, and a longer forward lifecycle — if your facility is planning a capital refresh within the next few years, spending on additional PanelView Plus 6 display modules may not be the best investment. In those cases, accelerating the migration and accepting the engineering change cost upfront may be the smarter procurement decision.

From a procurement standpoint, the 2711P-RDT10C is a mature Rockwell part number where availability on the open market ranges from stocked units at specialist distributors to factory lead times of several weeks depending on timing and source. Remanufactured and repaired units are commonly available through specialty repair houses and can reduce cost and lead time, but firmware and series compatibility must be verified before accepting a remanufactured unit. Buying through a distributor that understands PanelView Plus 6 series revisions and firmware levels — rather than a generic catalog channel — meaningfully reduces the risk of a mis-order or a compatibility problem that only surfaces at installation. Check pricing and current stock for the 2711P-RDT10C at LeadTime.ca, where the team can confirm compatibility before the order ships.

For volume pricing, lead time confirmation, or to discuss remanufactured options before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 2711P-RDT10C

Model-specific forum discussion for the 2711P-RDT10C is sparse — most community conversation happens at the PanelView Plus 6 family level rather than for individual display module catalog numbers. That absence of concentrated discussion is itself informative: this is a replacement part that experienced Rockwell engineers order against a confirmed catalog number from the nameplate, not a product evaluated in depth on forums. What the community does say about the broader PanelView Plus 6 family is relevant to anyone ordering this display.

The strongest recurring theme from PanelView Plus 6 users is the value of platform familiarity. Maintenance teams at Rockwell-standardized facilities appreciate that replacing a display module restores an interface their operators already know, with no retraining and no change to alarm response procedures. That continuity has real production value in environments where operator error during a changeover can itself cause downtime. The counterpoint raised consistently in community discussions is cost — PanelView Plus hardware sits at a premium compared with third-party HMIs of similar screen size, and for facilities not already locked into the Rockwell ecosystem, that premium is difficult to justify. Backlight degradation and touchscreen calibration drift on older units are frequently mentioned as the triggers for replacement, which aligns with the CCFL backlight's approximately 50,000-hour rated life — a figure that translates to real-world replacement planning on high-utilization lines.

The ordering mistakes the community flags most often are precisely the ones the wrong-part checklist below is designed to prevent. Buying a full terminal instead of a display-only module, selecting the 700-size or 1250-size display instead of the 1000 family, and overlooking series revision letters and firmware compatibility when sourcing from secondary market channels — these mistakes appear repeatedly and result in parts that physically cannot install or will not communicate correctly with the installed logic module. When community feedback is limited for a specific catalog number, that is exactly when consulting a specialist distributor who handles Rockwell hardware daily has the most value. The LeadTime.ca team fields these compatibility questions routinely and can confirm series and firmware alignment before the order is placed.

Installation and Wiring Overview

The 2711P-RDT10C is a panel-mount display module; all external wiring for power, communications, and I/O connects to the logic module, not to the display itself. Before and during installation, verify the following:

  • Isolate power to the terminal and follow lockout/tagout procedures before removing the existing display module or handling the new unit.
  • Inspect the panel cutout gasket and replace it if aged or damaged to maintain the NEMA/UL Type 12, 13, 4X and IP54/IP66 front-panel ratings.
  • Connect the 2711P-RDT10C to the logic module per the Rockwell user manual internal interface procedure, then secure mounting clips evenly to avoid display stress or gasket under-compression.
  • Confirm all external Ethernet, RS-232, and USB connections on the logic module are secure before restoring power; these ports are the communication interface to the controller and programming tools.
  • After power-up, perform touchscreen calibration from the terminal configuration menu and verify that the FactoryTalk View ME runtime application loads and communicates correctly to the Logix controller before returning the machine to production.

Full installation procedures are provided in Rockwell Automation's PanelView Plus 6 user manual and installation instructions. Engineers replacing this display for the first time should consult that documentation directly.

Wrong-Part Prevention Checklist Before You Order

The following checklist should be completed before placing any order for the 2711P-RDT10C. These checks reflect the most common ordering mistakes documented across the PanelView Plus 6 family.

  1. Confirm you need a 10.4" color touchscreen display module (2711P-RDT10C) – not a full terminal or a keypad/monochrome variant.
  2. Verify it is for the PanelView Plus 6 (or compatible PanelView Plus) 1000 platform, matching the existing logic module catalog number and series.
  3. Check panel cutout and bezel size are for the 1000 family, not 700, 1250, 1500, or other form factors.
  4. Confirm series/revision (e.g., 2711P-RDT10C/B) aligns with installed logic module firmware and plant standards.
  5. Ensure the controller and application are FactoryTalk View Machine Edition; this module does not run non-Rockwell HMI runtimes.
  6. Verify environment: indoor NEMA/IP rating, temperature range, and no requirement for outdoor sunlight-readable, high-temp, or hazardous-location display beyond PanelView Plus 6 capabilities.
  7. Check that necessary communication ports (Ethernet, serial, etc.) are provided by the logic module you will pair with this display.
  8. Confirm replacement strategy: if the existing terminal is PanelView Plus 6, ensure this display will mechanically mate with the existing logic module and mounting hardware.

If any item on this checklist raises a question, contact LeadTime.ca before ordering — confirming compatibility upfront is far less costly than a mis-shipped part during an unplanned outage.

Frequently Asked Questions

Is the 2711P-RDT10C a complete HMI terminal or only a display module?

The 2711P-RDT10C is a display module only. It provides the 10.4-inch color TFT touchscreen but does not include a processor, memory, communication ports, or power supply. Those functions are provided by the separate PanelView Plus 6 logic module. You must pair this display with a compatible logic module to have a functioning terminal.

How do I confirm whether the 2711P-RDT10C will work with my existing installed terminal?

Record the catalog number and series from the nameplate labels on both the display and the logic module currently installed in your panel. Cross-reference those numbers against Rockwell Automation's documentation to confirm that 2711P-RDT10C is a supported display for your specific logic module catalog number and firmware level. Verify that the panel cutout matches the 1000-family dimensions and that the series revision of the replacement aligns with your plant standards.

Can I use my existing FactoryTalk View ME application (.mer file) without modification after swapping in the 2711P-RDT10C?

In a like-for-like display replacement where the logic module and firmware version remain unchanged, the existing .mer runtime file should continue to operate without modification. The application is stored on and executed by the logic module, not the display. If the replacement unit requires a firmware update, you must verify that the existing .mer file was compiled for a compatible firmware version before updating.

What is the difference between the 2711P-RDT10C and PanelView Plus 7 HMIs?

The 2711P-RDT10C belongs to the PanelView Plus 6 generation, which runs Windows CE 6.0 via the logic module and uses FactoryTalk View ME as the runtime environment. PanelView Plus 7 terminals represent a newer generation with a different hardware platform, updated display technology, and a longer forward lifecycle. PanelView Plus 7 is not a direct drop-in replacement for PanelView Plus 6 hardware — migration requires engineering changes, application review, and typically panel modifications. For plants on a defined upgrade path, PanelView Plus 7 is worth evaluating; for facilities needing a fast, low-risk like-for-like replacement, 2711P-RDT10C remains the correct choice.

What should I do if the 2711P-RDT10C shows a dim or non-responsive screen after installation?

A dim screen on a new or replacement unit should first be checked against brightness settings in the terminal configuration menu before assuming a hardware fault. On an aged unit, a failed or failing CCFL backlight — rated at approximately 50,000 hours — is the most common cause of dimming. An unresponsive or misaligned touchscreen is addressed through the touchscreen calibration utility in the terminal configuration menu. If symptoms persist after calibration, inspect the display-to-logic module connection and confirm the unit's series revision is compatible with the installed logic module.

What are my options if the 2711P-RDT10C is on long lead time?

When new stock is on extended lead time, remanufactured and professionally repaired 2711P-RDT10C units are commonly available through specialist industrial repair houses and distributors. Before accepting a remanufactured unit, confirm that its series revision and firmware compatibility match your installed logic module. A specialist distributor can also advise on whether a complete PanelView Plus 6 1000 terminal replacement — sourcing a new or remanufactured full terminal — represents a faster or more cost-effective resolution than waiting on a display-only module.

Why Order Through LeadTime.ca

  • Global shipping — LeadTime.ca sources and ships industrial automation hardware to customers worldwide, not limited to any single region.
  • Specialist knowledge of Rockwell Automation part families — series revisions, firmware compatibility, and display-vs-terminal distinctions are handled at the quoting stage, not discovered at installation.
  • Access to both new and remanufactured options — the team can advise on the best sourcing path when new stock lead times are extended.
  • Volume and project pricing available — contact the team directly for multi-unit orders or spares program pricing.
  • Transparent lead time information — realistic availability and shipping timelines confirmed before you commit, not after.

At-a-Glance Summary

  • The Allen-Bradley 2711P-RDT10C is a 10.4-inch color TFT display module for the PanelView Plus 6 1000 family — display only, not a complete terminal.
  • Native resolution is 640 x 480 pixels (VGA) with 18-bit color graphics, matched to standard FactoryTalk View ME screen designs.
  • Touchscreen is analog resistive, supporting finger or stylus input.
  • CCFL backlight with a typical rated life of approximately 50,000 hours; brightness approximately 300 cd/m² for indoor panel use.
  • Front-panel environmental rating: NEMA/UL Type 12, 13, 4X (indoor) and IP54/IP66 — requires correct gasket installation to maintain.
  • Operating temperature range typically 0 to 55 °C; storage temperature typically -20 to 70 °C.
  • All communications, power, and processing are handled by the paired PanelView Plus 6 logic module running Windows CE 6.0 with commonly 512 MB RAM.
  • FactoryTalk View Machine Edition is the required runtime environment; applications are stored on the logic module as .mer files.
  • The primary use case is like-for-like replacement of a failed display on an existing PanelView Plus 6 1000 terminal with no panel cutout modification.
  • Verify catalog number, series revision, logic module compatibility, and firmware level before ordering — these are the four checks that prevent costly mis-orders.
