Allen-Bradley 25B-D4P0N104 PowerFlex 525 — Drive Selection Guide

By Abdullah Zahid
15 min read

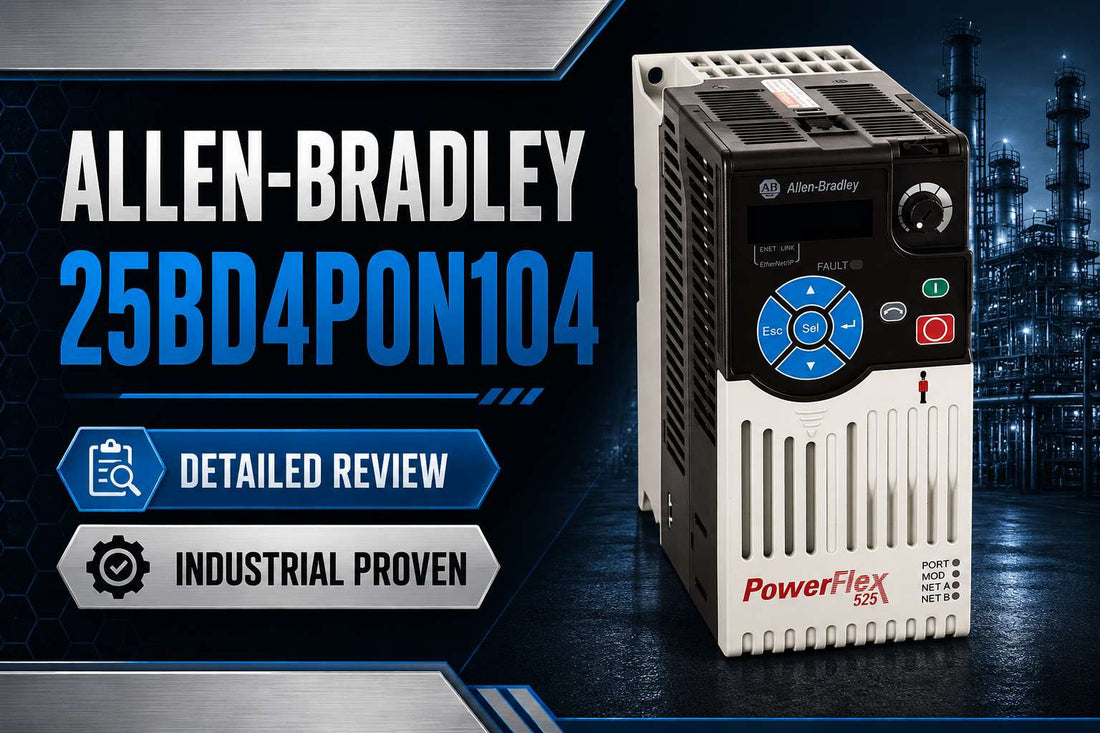

Allen-Bradley 25B-D4P0N104 PowerFlex 525 AC drive Frame A IP20 480V 2HP with embedded EtherNet/IP for conveyor and pump control

Allen-Bradley 25B-D4P0N104 PowerFlex 525 AC Drive, 480 VAC, 3-Phase, 1.5 kW (2 HP), Frame A, IP20 Open Type, with Embedded EtherNet/IP and Safety, No Filter — Specs, Review and Alternatives

Controls engineers and OEM machine designers searching for the Allen-Bradley 25B-D4P0N104 are typically at the final stage of their selection: they have a 480 VAC three-phase motor in the 1.5 kW (2 HP) range, they need embedded EtherNet/IP for PLC integration, and they want integrated Safe Torque-Off without adding a separate safety relay. This PowerFlex 525 catalog number answers all three of those requirements in a Frame A IP20 open-type package that fits neatly inside a standard control panel. The remaining question is whether every detail of this specific catalog — voltage class, current rating, enclosure type, and the absence of an internal EMC filter — aligns with what is actually on your panel drawing and motor nameplate.

If you have already confirmed this is the right part, check current pricing and availability for the 25B-D4P0N104 at LeadTime.ca — we ship worldwide.

Who Should Buy the 25B-D4P0N104 — and Who Shouldn't

This drive is the right choice for engineers and buyers who can confirm all of the following:

  • The motor is three-phase, rated at or below 1.5 kW (2 HP) at 480 VAC, with full-load current that falls within the drive's nominal output current of approximately 4.0 A.
  • Plant supply is 3-phase in the 323–528 VAC range (480 V class) — this unit is not rated for 230 V or 600 V systems.
  • The drive will be mounted inside a protective enclosure, making the IP20 open-type rating acceptable for the installation environment.
  • Embedded EtherNet/IP is required or beneficial for integration with a CompactLogix, ControlLogix, or compatible Ethernet-based controller.
  • Integrated Safe Torque-Off aligns with the machine's safety concept and the safety wiring will be completed per manufacturer documentation.
  • The absence of an internal EMC filter is understood, and external filtering or a line reactor can be added if local EMC requirements demand it.

If your motor exceeds 2 HP, your supply is not 480 V class, or your environment requires IP54, IP66, or NEMA 4X ingress protection, this catalog is not the correct choice. Step up to a higher-current PowerFlex 525 variant or specify a drive with an integrated EMC filter and higher-rated enclosure before ordering.

On this page:

What the 25B-D4P0N104 Actually Does in a Control System

The Allen-Bradley 25B-D4P0N104 is a PowerFlex 525 AC drive that accepts 3-phase 323–528 VAC input power and delivers variable-frequency, variable-voltage output to control the speed, acceleration, and deceleration of a three-phase induction motor rated up to 1.5 kW (2 HP). It handles the fundamental job of any variable frequency drive — converting fixed-frequency line power into an adjustable output so the motor runs at the speed the process actually demands rather than always at full speed.

What distinguishes this catalog number within the broader PowerFlex 525 family is the combination of features packed into a Frame A footprint: embedded EtherNet/IP communications that allow a CompactLogix or ControlLogix PLC to read and write drive parameters, issue start/stop and speed commands, and monitor drive status using standard Add-On Profiles without additional communication modules; and integrated Safe Torque-Off, which provides a hardwired safety function that removes the rotational energy from the motor without removing main power from the drive itself. Both features are built in — no add-on communication card, no separate safety relay — which is precisely why this catalog number is the default specification for small motors in Rockwell-centric automation systems.

Control modes include V/Hz (volts per hertz) for general-purpose loads and sensorless vector control for applications that need tighter speed regulation under varying loads. A built-in PID loop makes the drive suitable for pump or fan applications where a process variable — pressure, flow, or temperature — is fed back via an analog input to regulate motor speed automatically. A built-in dynamic braking transistor allows connection of an external braking resistor for applications requiring fast deceleration. The front-mounted keypad provides local parameter access and jog capability during commissioning without a separate handheld device.

Typical System Architecture for the PowerFlex 525

The 25B-D4P0N104 sits between the plant's 480 VAC distribution panel and the motor terminals, taking commands from a Logix controller over EtherNet/IP and delivering conditioned three-phase power to the motor. A typical deployment looks like this:

  • 480 VAC 3-phase distribution panel with upstream branch-circuit protection (fuses or circuit breaker sized per NEC and manufacturer requirements) feeding the drive input terminals.
  • Optional external line reactor or EMC filter between the panel and the drive input, required when local EMC standards or plant practices mandate additional harmonic attenuation beyond what the drive provides internally.
  • The 25B-D4P0N104 mounted inside a control enclosure, with its embedded EtherNet/IP port connected to the machine's Ethernet switch, which is in turn connected to the CompactLogix or ControlLogix PLC.
  • Drive output terminals wired to the three-phase motor, with a properly bonded protective earth conductor and shielded motor cable where required by installation practice.
  • Safe Torque-Off input terminals wired to the safety system (safety relay or safety PLC output) to provide hardwired speed/torque removal on a safety-rated signal.

Where the 25B-D4P0N104 Is Deployed: Applications and Industries

The 2 HP, 480 V rating of the 25B-D4P0N104 covers a large portion of small motor applications in general manufacturing, packaging, and material handling. Conveyor drives are perhaps the most common deployment: a small 480 V motor driving a belt or roller conveyor where the PLC controls speed via EtherNet/IP and the safety system commands STO during an emergency stop event. The drive's compact Frame A size means it can be placed in a machine-mounted enclosure or a shared panel alongside other drives without consuming excessive panel real estate.

Variable-speed pump and fan control is another primary application, particularly in HVAC, water, and process systems where the built-in PID loop eliminates the need for a separate process controller for simple single-loop speed regulation. Small OEM machine axes — indexing systems, fillers, small process equipment — are a natural fit where the OEM is standardizing on PowerFlex 525 across their machine range and the 2 HP frame covers the majority of auxiliary motion axes.

The drive is also frequently specified in retrofit projects: replacing an older or discontinued Allen-Bradley drive in an existing EtherNet/IP-based system where the PowerFlex 525 is the current supported family. Training rigs and technical education environments are another documented use case, given the broad availability of example code, Add-On Profiles, and application notes for the PowerFlex 525 paired with Logix controllers.

Application Typical Deployment
Small conveyor drives 480 V belt or roller conveyor motor up to 2 HP, PLC speed reference over EtherNet/IP, STO on E-stop
Variable-speed pump control Small process or HVAC pump with built-in PID loop using analog pressure or flow feedback
Fan speed control HVAC or exhaust fan motor with variable-speed demand signal from BMS or PLC over EtherNet/IP
OEM machine auxiliary axes Filler, indexer, or small process axis in a machine standardized on PowerFlex 525 and CompactLogix
Drive retrofit / replacement Replacing older Allen-Bradley drives in existing panels where 480 V 2 HP PowerFlex 525 is the approved replacement standard
Training and commissioning rigs Technical college or integrator test bench pairing Logix with PowerFlex 525 for staff training

Key Specifications for the 25B-D4P0N104 and Variant Comparison

Parameter Value
Brand / Family Allen-Bradley PowerFlex 525
Catalog Number 25B-D4P0N104
Input Voltage / Phase 323–528 VAC, 3-phase (480 V class)
Power Rating 1.5 kW (2 HP)
Nominal Output Current Approx. 4.0 A
Frame Size Frame A
Enclosure / IP Rating IP20 / NEMA Open Type
EMC Filter No internal EMC filter
Embedded Communications EtherNet/IP (built-in)
Safety Function Integrated Safe Torque-Off

Full technical specifications are available on the product page at LeadTime.ca.

How the 25B-D4P0N104 Compares to Related PowerFlex 525 Variants

Catalog Variant Voltage Class Power Rating Key Difference from 25B-D4P0N104
25B-D4P0N104 480 V class (323–528 VAC), 3-phase 1.5 kW (2 HP) This catalog — embedded EtherNet/IP and safety, no filter, Frame A, IP20
Lower HP 480 V 525 variant 480 V class, 3-phase Below 1.5 kW Lower output current; use only when motor is sized below 2 HP
25B-D6P0N104 (next step up) 480 V class, 3-phase Higher than 2 HP Higher output current for motors that exceed 4.0 A full-load current
480 V PowerFlex 525 with EMC filter 480 V class, 3-phase Similar range Internal EMC filter included; use where external filtering is not practical
240 V class PowerFlex 525 variant 200–240 VAC, 1 or 3-phase Similar kW range Different input voltage class; not interchangeable with 480 V catalog
PowerFlex 523 equivalent rating 480 V class, 3-phase Similar kW range No embedded EtherNet/IP or safety; lower cost where communications and STO are not required

If your motor's full-load current exceeds 4.0 A or your application falls above the 2 HP threshold, the next variant up — such as the 25B-D6P0N104 — is the correct choice rather than attempting to run an oversized motor on this catalog. Check current availability at LeadTime.ca and confirm the right catalog number before placing your order.

Expert Verdict: Is the 25B-D4P0N104 the Right Drive for Your Project?

The 25B-D4P0N104 earns its position as a default specification in Allen-Bradley-centric plants primarily because of what it combines in a single Frame A package: a 480 V 2 HP rating that covers an enormous share of small-motor applications, embedded EtherNet/IP that plugs directly into any Logix-based system without add-on hardware, and integrated Safe Torque-Off that satisfies the safety requirements of most machine safety concepts without a separate safety relay. The buyer profile this drive suits best is the controls engineer or OEM machine designer working in a plant standardized on CompactLogix or ControlLogix, specifying motors in the 1.5 kW (2 HP) range, and mounting drives in protected panels where IP20 is entirely acceptable. The breadth of documentation, Add-On Profiles, application notes, and community knowledge around the PowerFlex 525 family means commissioning support is rarely hard to find.

Where the 25B-D4P0N104 genuinely falls short is not a hardware quality issue but a specification boundary issue. If the installation environment requires IP54, IP66, or NEMA 4X protection — a food processing washdown area, an outdoor pump station, or a wet utility environment — an IP20 open-type drive is simply the wrong enclosure class, regardless of how good the hardware is. Similarly, if the motor demand exceeds the drive's nominal output current of approximately 4.0 A, or if the application calls for a 240 V or 600 V supply, this catalog is not a close match — it is the wrong part. For those scenarios, specify the appropriate PowerFlex 525 variant with the correct voltage class and current rating, or evaluate whether a PowerFlex 523 (without embedded EtherNet/IP and safety) offers adequate functionality at lower cost when the control and safety architecture does not require what this model provides.

From a procurement standpoint, the PowerFlex 525 family is widely stocked by authorized distributors, and manufacturer documentation indicates an estimated lead time of approximately one week for this catalog when not immediately available at distribution — relatively short for an industrial VFD, but still worth confirming before locking in a delivery schedule on a tight project timeline. Ordering through a specialist automation distributor rather than a generic channel matters here: a specialist can validate your catalog selection against motor and panel data in real time, identify compatible alternatives if this exact catalog is temporarily short, and flag the most common ordering mistake on this part — which is selecting the wrong voltage class or overlooking the IP20 limitation — before the order ships rather than after. View current pricing and lead time for the 25B-D4P0N104 at LeadTime.ca, where the team ships worldwide and can support your sourcing regardless of location.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 25B-D4P0N104

Community discussions around PowerFlex 525 drives — across forums including Reddit r/PLC, PLCTalk, PLCS.net, MrPLC, and the Rockwell Automation user forum — paint a consistently positive picture of the hardware itself, with the vast majority of reported issues tracing back to installation and setup decisions rather than drive failures. Users frequently praise the straightforward EtherNet/IP integration with CompactLogix and ControlLogix, citing the standard Add-On Profiles and tag mapping as genuinely reducing the time needed to get the drive talking to the PLC. The compact Frame A footprint and the broad availability of application examples for conveyor, pump, and fan configurations are recurring positive themes.

The complaints that appear most often are equally instructive. Parameter navigation frustrates technicians who are migrating from older drive platforms, and several threads on PLCTalk and MrPLC describe time lost during commissioning because the menu structure is unfamiliar. More practically significant are the recurring reports of overcurrent, ground fault, and communication loss faults — almost all of which, on closer reading of those threads, come down to grounding practices, cable routing, or EtherNet/IP configuration details like IP addressing and switch port settings. The PowerFlex 525 is not unusually sensitive hardware, but it does require installation practices that match what the manual specifies.

The ordering mistakes reported in community discussions are worth taking seriously as pre-order checkpoints. Voltage class confusion — ordering a 480 V catalog for a 240 V supply, or vice versa — appears repeatedly and is an expensive mistake to correct after the fact. IP rating mismatches are the second most common theme: buyers specifying an IP20 open-type drive for environments that required NEMA 4X or IP66 protection and discovering the problem only when the enclosure design review caught it. The third recurring mistake is selecting a variant without embedded EtherNet/IP or without integrated safety when the machine safety concept and control network required both — exactly the gaps that the 25B-D4P0N104 addresses, but only if the buyer confirmed those requirements before ordering. When community data is sparse on a specific catalog number, that is precisely the situation in which consulting a specialist distributor before ordering pays for itself in avoided rework.

Wiring and Installation Overview for the 25B-D4P0N104

The following is a high-level orientation for installation planning. Full wiring diagrams, terminal specifications, and commissioning procedures are contained in the manufacturer's PowerFlex 525 installation and programming documentation, which should be consulted before any physical work begins.

  • Mount the Frame A drive inside a protective enclosure following manufacturer-specified clearances on all sides for airflow and heat dissipation; the IP20 open-type rating means the enclosure itself provides the environmental protection.
  • Connect 3-phase line power to the designated input terminals and three-phase motor leads to the output terminals; ensure protective earth/ground conductors are bonded at both the drive and the motor frame, and use shielded motor cable where installation practice or EMC requirements call for it.
  • Wire control I/O — digital inputs for start/stop/direction, analog input for speed reference or PID feedback, and relay output for status signaling — according to the specific I/O configuration required by the application; Safe Torque-Off terminals must be wired to the safety output per the manufacturer's safety wiring section and the machine's safety design documentation.
  • Connect the EtherNet/IP port to the machine's Ethernet switch using a properly shielded cable routed and segregated from high-voltage power conductors; configure the drive's IP address and confirm the EDS file or Add-On Profile is loaded in the Logix project before attempting network communication.
  • Upstream branch-circuit protection — correctly rated fuses or a circuit breaker — is required per NEC and manufacturer documentation and must be in place before energizing the drive; confirm that no internal EMC filter is present and plan for an external line reactor or filter if EMC compliance or harmonic mitigation requires it.

Wrong-Part Prevention Checklist for the 25B-D4P0N104

Before placing your order, work through each item on this checklist. These are the exact points where misorders occur most frequently on this catalog number:

  1. Confirm motor is three-phase and sized at or below 1.5 kW (2 HP) at 480 V; check full-load current against the drive's output current.
  2. Verify plant supply is 3-phase 323–528 VAC (480 V class); this unit is not for 230 V or 600 V systems.
  3. Ensure IP20 open-type drive is acceptable because it must be mounted in an appropriate enclosure for the environment.
  4. Confirm embedded EtherNet/IP and safety are required or acceptable; if you need a simpler interface or different fieldbus, review other catalog variants.
  5. Check that "no EMC filter" is compatible with local EMC requirements; external filtering may be required.
  6. Confirm frame A physical dimensions and heat dissipation fit the existing control panel layout and thermal design.

If any item on this checklist does not resolve cleanly against your system documentation, contact the LeadTime.ca team before ordering — confirming these details takes minutes and can prevent a costly misorder.

Frequently Asked Questions

How do I configure the 25B-D4P0N104 for EtherNet/IP control from a CompactLogix PLC?

The drive's embedded EtherNet/IP port is configured by assigning a static IP address through the front keypad or a connected HIM, then adding the drive to the PLC's I/O tree in Studio 5000 using the appropriate EDS file or Add-On Profile. The Add-On Profile provides pre-built tags for start, stop, speed reference, status, and fault codes, which significantly reduces configuration time compared to manual tag mapping. Full step-by-step network setup procedures are detailed in the manufacturer's PowerFlex 525 user manual and the relevant Rockwell Automation application notes.

What are the most common causes of overcurrent and ground fault faults on this drive?

Based on community experience with PowerFlex 525 drives, overcurrent faults most often trace to acceleration ramp times that are too aggressive for the connected load, a motor that is oversized relative to the drive's output current rating, or motor cable that is not properly rated or shielded. Ground fault faults are almost always an installation issue — inadequate bonding of the motor frame earth conductor, damaged cable insulation, or ground loops created by incorrect shielding termination. Reviewing grounding and motor cable practices against the manufacturer's installation guide resolves the majority of these faults before they become recurring issues.

Can the 25B-D4P0N104 replace an older Allen-Bradley PowerFlex drive without rewiring the motor or changing the control panel?

In many retrofit scenarios, the 25B-D4P0N104 is a direct or near-direct replacement for an older PowerFlex drive in the same power and voltage class, particularly within the same panel layout. However, control terminal pinouts, parameter numbers, and EtherNet/IP configuration details differ between PowerFlex families, so a direct swap without reviewing the manufacturer's migration or cross-reference documentation is not advisable. Verifying motor voltage and HP compatibility and confirming that the embedded EtherNet/IP and STO wiring match your existing safety and network architecture are the critical steps before proceeding with a replacement.

Is an external EMC filter always required with the 25B-D4P0N104?

The 25B-D4P0N104 has no internal EMC filter, which is clearly stated in its catalog designation. Whether an external filter or line reactor is required depends on the applicable EMC standards for your installation, the length and type of motor cable, and your plant's electrical environment. Many panel-mounted installations inside well-shielded enclosures operate without issues, but installations in EMC-sensitive environments or where motor cable runs are long may require an external line reactor or EMC filter to meet compliance requirements. The manufacturer's EMC installation guidelines for the PowerFlex 525 family provide specific guidance by category and cable length.

How do I reset the 25B-D4P0N104 to factory defaults and restore a saved parameter set?

Factory default reset on the PowerFlex 525 is performed through a specific parameter setting accessible from the front keypad; the exact parameter number and procedure are documented in the manufacturer's programming manual. Parameter backup and restore can be performed using the front keypad module's built-in memory function or via Connected Components Workbench or Studio 5000 with the drive connected over EtherNet/IP. Documenting and backing up the parameter set before any major change or replacement is strongly recommended, as it significantly reduces recommissioning time after a drive swap.

Why Order the 25B-D4P0N104 From LeadTime.ca

  • LeadTime.ca ships worldwide — no geographic restriction on orders, whether the destination is Canada, the US, or international locations.
  • Specialist automation focus means the team can validate your catalog selection against motor and panel data before the order ships, not after.
  • Real-time visibility into stock across multiple channels helps identify available alternatives when a specific catalog number has an extended lead time.
  • Volume pricing is available for OEMs and repeat buyers — contact directly for project-quantity quotes.
  • Hard-to-find and short-lead-time parts are a core competency, reducing the risk of production downtime caused by single-source availability gaps.

At-a-Glance Summary: Allen-Bradley 25B-D4P0N104

  • PowerFlex 525 AC drive rated 1.5 kW (2 HP) at 480 VAC, 3-phase, nominal output current approximately 4.0 A.
  • Input voltage range: 323–528 VAC, 3-phase (480 V class only — not suitable for 230 V or 600 V systems).
  • Frame A, IP20 NEMA open type — requires mounting inside a protective enclosure.
  • Embedded EtherNet/IP communications for direct integration with CompactLogix, ControlLogix, and other Ethernet-based Logix controllers using Add-On Profiles.
  • Integrated Safe Torque-Off for hardwired safety function without a separate safety relay.
  • No internal EMC filter — external line reactor or EMC filter required if applicable standards or installation conditions demand it.
  • Built-in dynamic braking transistor supports connection of an external braking resistor for fast-deceleration applications.
  • Built-in PID loop supports variable-speed pump and fan applications with analog process feedback.
  • Manufacturer estimated lead time on the order of approximately one week when not immediately in stock at distribution.
  • Most common ordering mistakes: wrong voltage class (480 V vs 230 V), IP20 specified where IP54/IP66 is required, omitting EtherNet/IP or safety requirement check.
