Allen-Bradley 25B-D6P0N104 PowerFlex 525 — 3 Hp Drive Buying Guide

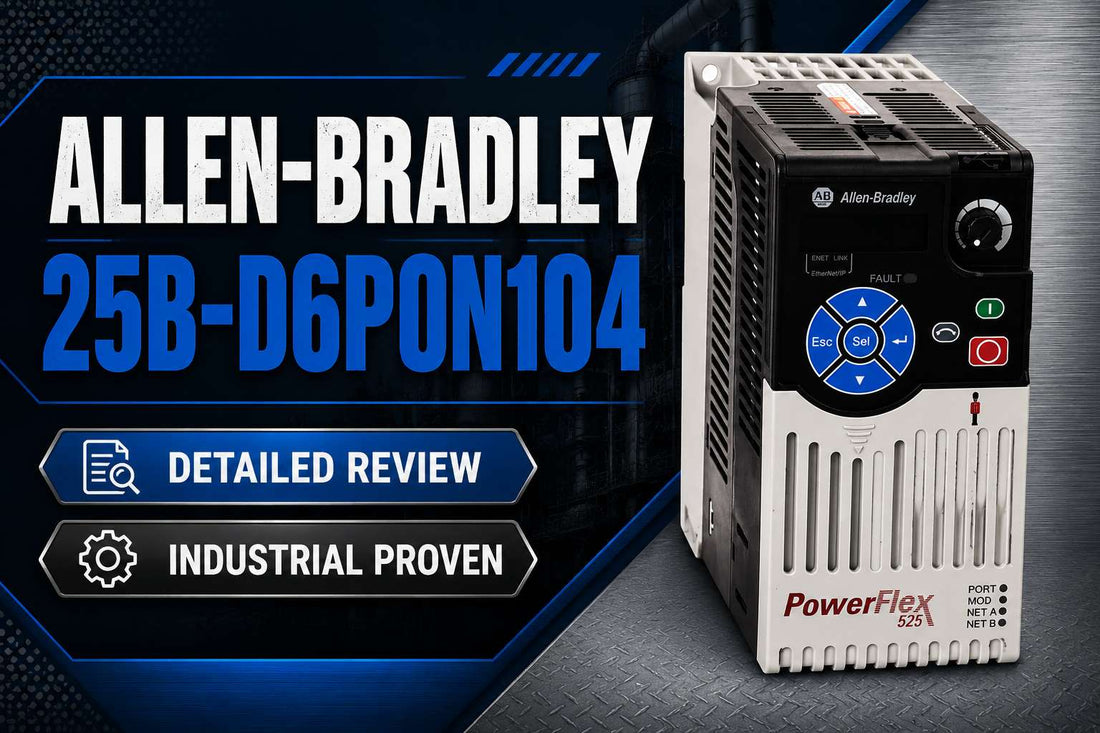

Allen-Bradley PowerFlex 525 2.2 kW (3 Hp) AC Drive 25B-D6P0N104 — Specs, Pricing, and Buying Guide
If you are specifying or replacing a 3 Hp 480 V-class variable frequency drive on a conveyor, pump, or fan application and you are working inside an Allen-Bradley ecosystem, the 25B-D6P0N104 is almost certainly already on your shortlist. This is the Allen-Bradley PowerFlex 525 AC drive rated 2.2 kW (3 Hp) with a 6.0 A output current and a 323–528 V AC three-phase input range — a well-established catalog number in the PowerFlex 520-series family that controls engineers reach for when standardization, compact footprint, and PLC integration matter more than absolute lowest cost.
If you have already confirmed this is the right part, check current pricing and availability for the 25B-D6P0N104 at LeadTime.ca — we ship worldwide.
Who Should Buy the 25B-D6P0N104 — and Who Shouldn't
The Allen-Bradley PowerFlex 525 25B-D6P0N104 is the right choice for engineers and procurement teams who can confirm all of the following criteria:
- The motor is rated 3 Hp (2.2 kW) at 480 V three-phase and the full-load amps fall within the 6.0 A output rating of this drive with appropriate margin.
- The plant supply is 323–528 V AC, three-phase, 50/60 Hz — this drive is not suitable for single-phase-only supplies.
- An open-type drive intended for panel or DIN rail mounting inside a suitable enclosure is acceptable for the installation environment.
- The communication requirements (EtherNet/IP or other PowerFlex 525 network options) match the specific catalog configuration and the PLC platform in use.
- External branch-circuit protection, fusing or breakers, disconnects, and motor overload protection are already specified or will be added — the drive does not replace these devices.
- The site is standardized on Allen-Bradley PLCs (CompactLogix, ControlLogix, or similar) where PowerFlex 525 predefined profiles and AOIs deliver real integration value.
If your motor is rated above or below 3 Hp at 480 V, look at adjacent PowerFlex 525 catalog numbers such as 25B-D4P0N104 or 25B-D010N104. If your supply voltage is a different class entirely, or if you need a higher ingress protection rating without an additional external enclosure, a different variant or family will serve you better.
On this page:
- What the 25B-D6P0N104 Actually Does in a System
- Typical System Architecture for the 25B-D6P0N104
- Where This Drive Gets Installed
- Key Specifications and Variant Comparison
- Expert Verdict: Is the 25B-D6P0N104 the Right Drive for Your Project?
- What Engineers Need to Know Before Ordering the 25B-D6P0N104
- Wiring and Installation Overview
- Wrong-Part Prevention Checklist
- Frequently Asked Questions
- Why Order From LeadTime.ca
- At-a-Glance Summary
What the 25B-D6P0N104 Actually Does in a System
The Allen-Bradley PowerFlex 525 2.2 kW (3 Hp) AC Drive sits between the three-phase power supply and the motor, translating a fixed plant voltage — anywhere from 323 to 528 V AC — into a variable frequency and voltage signal that controls motor speed and torque. At 6.0 A output, it is sized for the most common light-to-medium duty motor class in industrial plants: small conveyors, transfer pumps, cooling fans, agitators, and OEM-built machinery that cannot justify the cost or complexity of a larger drive frame.
What makes the 25B-D6P0N104 more than a basic speed controller is its membership in the PowerFlex 520-series. The PowerFlex 525 family brings embedded control I/O, local keypad operation, and network connectivity to a compact open-type frame that mounts in a panel or on a DIN rail. This combination lets controls engineers run the drive in standalone mode for simple applications, or drop it into a CompactLogix or ControlLogix architecture using predefined drive profiles and Add-On Instructions — without writing custom communication code from scratch.
The PowerFlex 520-series datasheet confirms the 25B-D6P0N104 as a 2.2 kW (3 Hp) drive with 6.0 A output at the 480 V-class input range, and multiple distributor listings independently verify this rating. For a plant standardized on Allen-Bradley hardware, this is the catalog number that lands when the motor nameplate reads 3 Hp at 480 V and there is no need to move to a larger, more expensive drive frame.
Typical System Architecture for the 25B-D6P0N104
The 25B-D6P0N104 sits in the drive tier between the upstream distribution panel and the motor, receiving network commands from the PLC layer above and delivering controlled three-phase power to the load below. A typical installation chain looks like this:
- Three-phase 480 V distribution panel with branch-circuit fusing or breaker and a disconnect — required upstream of the drive, not provided by the drive itself.
- Allen-Bradley PowerFlex 525 25B-D6P0N104 installed inside a suitable panel or enclosure on DIN rail or panel mount, receiving the three-phase supply and any hardwired control I/O (digital start/stop, analog speed reference).
- Shielded motor cable from the drive output terminals to the three-phase induction motor — proper shielding and grounding at this stage is essential to limit conducted noise back into control wiring.
- Three-phase induction motor rated 3 Hp (2.2 kW) at 480 V, with FLA within the 6.0 A output rating of the drive.
- CompactLogix or ControlLogix PLC connected via EtherNet/IP or other supported network, sending speed reference and start/stop commands and receiving drive status and fault data through the PowerFlex 525 drive profile.
Where This Drive Gets Installed
The 25B-D6P0N104 appears most often in packaging and material handling environments where small conveyor sections need variable speed without the overhead of a large drive cabinet. A 3 Hp rating covers a wide range of belt, roller, and chain conveyor applications common in food and beverage plants, assembly lines, and distribution centers.
Variable-speed pump control is another core use case. Cooling water loops, transfer pumps on process skids, and small circulation pumps benefit from the energy savings and soft-start capability that come with a VFD at this power level, and the 25B-D6P0N104 handles these variable-torque loads within the PowerFlex 525's standard control modes.
Fan applications in HVAC and process ventilation are a natural fit. Reducing fan speed from full speed to a lower operating point produces significant energy savings proportional to the cube of the speed ratio — a well-understood benefit that procurement teams use to justify VFD installations on new and retrofit projects alike.
OEM machine builders standardize on the PowerFlex 525 family specifically because one catalog family covers a broad power range, uses consistent parameter structure, and ties into Allen-Bradley PLC ecosystems without custom integration work. The 25B-D6P0N104 is the 3 Hp entry point in that standardization strategy.
| Application | Typical Deployment |
|---|---|
| Packaging conveyor | Variable speed belt or roller conveyor, CompactLogix PLC speed reference over EtherNet/IP |
| Cooling water pump | Variable-torque pump on process skid, analog speed reference from PLC analog output |
| Process ventilation fan | Fan speed modulated by process demand, hardwired digital I/O start/stop with analog reference |
| OEM mixer or agitator | Small agitator on food or chemical machine, standardized PowerFlex 525 catalog for fleet service |
| Material handling sortation | Individual drive per conveyor zone, network-controlled speed from ControlLogix system |
Key Specifications, Ratings, and PowerFlex 525 Variant Comparison
| Specification | 25B-D6P0N104 Value |
|---|---|
| Catalog Number | 25B-D6P0N104 |
| Product Family | PowerFlex 525 (PowerFlex 520-series) |
| Power Rating | 2.2 kW (3 Hp) — normal duty |
| Output Current | 6.0 A |
| Input Voltage Range | 323–528 V AC, three-phase, 50/60 Hz |
| Voltage Class | 480 V-class |
| Mounting Style | Panel or DIN rail mounting |
| Enclosure Type | Open-type — requires installation inside suitable enclosure |
| Control Interface | Local keypad, hardwired I/O, embedded network (PowerFlex 525 family) |
| Typical Applications | Conveyors, pumps, fans, OEM machinery |
Full technical specifications are available on the product page at LeadTime.ca.
The table below shows how the 25B-D6P0N104 sits within the 480 V-class PowerFlex 525 family so you can confirm you are ordering the correct current rating for your motor.
| Catalog Number | Power Rating | Output Current | Voltage Class | Notes |
|---|---|---|---|---|
| 25B-D2P3N104 | 0.4 kW (0.5 Hp) | 2.3 A | 480 V-class | Smallest 480 V frame in family |
| 25B-D4P0N104 | 1.5 kW (2 Hp) | 4.0 A | 480 V-class | Step below 25B-D6P0N104 |
| 25B-D6P0N104 | 2.2 kW (3 Hp) | 6.0 A | 480 V-class | This model |
| 25B-D010N104 | 4.0 kW (5 Hp) | 10.0 A | 480 V-class | Step above 25B-D6P0N104 |
If your motor's full-load amps exceed the 6.0 A output of the 25B-D6P0N104, the 25B-D010N104 is the correct next step — check current availability and pricing at LeadTime.ca before finalizing your order.
Expert Verdict: Is the 25B-D6P0N104 the Right Drive for Your Project?
The Allen-Bradley PowerFlex 525 2.2 kW (3 Hp) AC Drive 25B-D6P0N104 is a well-matched choice for controls engineers and OEM machine designers who are already inside the Rockwell Automation ecosystem and need a compact 3 Hp 480 V drive that delivers more than basic speed control. The combination of embedded network capability, local keypad operation, predefined CompactLogix and ControlLogix profiles, and consistent PowerFlex 525 parameter structure across the family is genuine day-to-day value — not marketing copy. Plants that have standardized on this family report faster drive swaps, reusable parameter templates, and less custom integration code. If your motor nameplate reads 3 Hp at 480 V and your FLA is within 6.0 A, this drive earns its place on the BOM.
Where the 25B-D6P0N104 is not the right answer: if your application is a simple standalone pump or fan that will never connect to a PLC network, the feature set may exceed what you need and a lower-cost basic VFD is worth evaluating. If your installation environment demands a higher ingress protection class without an additional enclosure, the open-type frame of this drive is a constraint you need to plan around. And if your control platform is not Allen-Bradley, the integration advantages largely disappear — the drive will run a motor, but the ecosystem benefits will not follow. In those cases, look at adjacent PowerFlex 525 variants for voltage or power adjustments, or step down to the PowerFlex 523 family for simpler applications that do not require the full 525 feature set.
From a procurement standpoint, the 25B-D6P0N104 is documented at distributor listings as a special-order item with a multi-day lead time in at least one region, and at least one distributor list price places it slightly above the USD 1,200 mark — confirming this is not a commodity shelf item. That reality makes the sourcing relationship matter. A specialist automation distributor can check multi-warehouse stock across regions, flag whether your specific catalog number is available or on extended lead, and propose a confirmed alternate within the PowerFlex 525 family if needed — something a generic channel rarely offers with the speed a line-down situation demands. For current pricing and live availability on the 25B-D6P0N104, visit the product page at LeadTime.ca.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Are Saying About the PowerFlex 525 25B-D6P0N104
Across communities including Reddit r/PLC, Reddit r/automation, PLCTalk, PLCS.net, and MrPLC, the general sentiment around PowerFlex 525 drives in the 3 Hp class is positive — but with a consistent set of qualifications. Engineers who are already comfortable with the Rockwell toolchain describe the 25B-D6P0N104 class as a reliable workhorse that integrates smoothly with CompactLogix and ControlLogix. The predefined drive profiles and Add-On Instructions that Rockwell publishes for the PowerFlex 525 family come up repeatedly as a real time saver — users report that dropping the drive into a Studio 5000 project with an existing profile removes a significant chunk of custom programming effort. Compact size and DIN rail mounting flexibility also draw consistent praise from electricians retrofitting older panels with limited cabinet real estate.
The complaints that surface repeatedly are not about hardware reliability — they are about setup. Parameter group navigation is the most common frustration: engineers who are new to the PowerFlex 525 or who do not use these drives frequently report spending more time than expected sorting out which parameters control the command source and speed reference. A drive that appears completely unresponsive because the start source is still set to keypad mode while the PLC is sending network commands is a near-universal experience in these forum threads. Nuisance overcurrent and overvoltage trips on loads with fast-changing torque demands — conveyors with sudden stops and starts, for example — also appear frequently, with most solutions coming back to accel/decel tuning and braking resistor evaluation rather than any fault in the drive itself. EtherNet/IP configuration errors, particularly IP address conflicts and mismatched settings between the drive and the PLC's I/O tree, generate a steady stream of questions on PLCTalk and PLCS.net.
Ordering mistakes within the PowerFlex 525 catalog are a recurring and avoidable source of project delays. The most damaging pattern is receiving a 240 V-class drive on a 480 V supply — or the reverse — because catalog codes were not verified against the actual supply voltage before purchase. A close second is selecting a current rating within the 525 family that is too low for the motor FLA, leading to immediate overload faults on first power-up. The subtler mistake is assuming that all PowerFlex 525 catalog numbers include identical communication or safety options: engineers have discovered after delivery that the specific STO variant or network option they required was not present in the catalog number they ordered. These are exactly the mistakes that a structured pre-order checklist and a technical conversation with a knowledgeable distributor prevent.
Wiring and Installation Overview for the 25B-D6P0N104
The following points summarize the key requirements engineers should verify before and during installation. Full wiring procedures are detailed in the PowerFlex 520-series Installation Instructions and Quick Start Guide published by Rockwell Automation — always refer to current manufacturer documentation for your specific installation.
- Connect three-phase line conductors (323–528 V AC) to the designated input power terminals and motor leads to the output terminals, verifying correct phase order for the desired rotation direction; connect protective earth to the grounding terminal as specified in the installation manual.
- External branch-circuit protection (fusing or circuit breaker), a disconnect device, and motor overload protection must be provided upstream and in the circuit — the 25B-D6P0N104 does not function as a branch-circuit breaker and does not replace these required protective devices.
- Route control and signal wiring in separate conduit or tray from power wiring; use shielded motor cable between the drive output and the motor, with shielding terminated at the drive ground per PowerFlex 520-series grounding and shielding guidelines.
- For hardwired control, wire digital input terminals for start/stop commands and an analog input for speed reference when not using network control; confirm terminal assignments in the drive's I/O wiring diagram section of the installation manual.
- Before energizing, verify all terminations, conductor sizing and torque values, clearances, and upstream protection ratings against the manufacturer's recommendations and the applicable electrical code for the installation site.
Wrong-Part Prevention Checklist Before Ordering the 25B-D6P0N104
Before placing your order, run through every item on this checklist. One missed item is enough to receive the wrong drive and delay your project.
- Confirm motor Hp / kW and full-load current match 3 Hp / 2.2 kW, 6.0 A rating at 480 V.
- Verify plant supply is 323–528 V AC, 3-phase; this drive is not for single-phase-only supplies.
- Check that the drive's enclosure type and IP rating are suitable for the panel location (open-type, panel/DIN mounting).
- Confirm communication needs (EtherNet/IP / other networks) match the selected PowerFlex 525 configuration and PLC platform.
- Verify that any required safety features (for example, Safe Torque Off) are present in this exact catalog option; do not assume all 525 units have identical safety options.
- Ensure external branch-circuit protection, disconnects, fuses/breakers, and motor overload protection are specified; the drive itself does not replace required protection devices.
If any item on this list raises a question before you order, contact the LeadTime.ca team — we can validate catalog numbers, check current stock, and confirm the right variant for your application worldwide.
Frequently Asked Questions
Can the 25B-D6P0N104 run on a single-phase supply?
The 25B-D6P0N104 is a 480 V-class three-phase input drive requiring a 323–528 V AC three-phase supply. It is not designed for single-phase-only installations. If your supply is single-phase or a different voltage class, you need a different PowerFlex 525 catalog number or a different product entirely.
How do I switch the start command source from the keypad to the PLC on a PowerFlex 525?
This is one of the most common commissioning issues reported in engineering communities. The start command source and speed reference source are set through specific parameters in the PowerFlex 525 parameter groups — the exact parameter numbers are documented in the PowerFlex 525 User Manual. Until those parameters are explicitly changed from their default values, the drive will respond only to keypad commands, which is why PLC-commanded starts appear to do nothing. Always verify these settings during commissioning and document the configured values for future maintenance.
What motor sizes will the 25B-D6P0N104 support?
The 25B-D6P0N104 is rated for a 3 Hp (2.2 kW) motor at 480 V with a 6.0 A output current. The motor's full-load amps must fall within this 6.0 A output with appropriate margin for your duty cycle and application. Motors rated above 3 Hp at 480 V whose FLA exceeds 6.0 A require a higher-rated catalog number such as the 25B-D010N104.
Why does my PowerFlex 525 keep faulting on overcurrent or overvoltage when the load changes quickly?
Rapid load changes — such as conveyor belt jams clearing suddenly or fast-stopping applications — can cause the drive to exceed its current or voltage limits if accel/decel ramp times are too aggressive or if regenerated energy from the motor has nowhere to go during deceleration. The typical resolution involves lengthening decel ramp times in the drive parameters and, for applications with high inertia or frequent braking, evaluating whether a dynamic braking resistor is appropriate. The PowerFlex 525 User Manual covers fault code definitions and the parameter adjustments relevant to each.
What are the closest in-family alternatives if the 25B-D6P0N104 is on extended lead time?
If the 25B-D6P0N104 is unavailable and the application cannot wait, the immediate question is whether your motor and application can accept the next higher current rating in the PowerFlex 525 480 V family — such as the 25B-D010N104 — used with conservative parameter settings. This is a temporary strategy that requires verifying the larger drive's compatibility with existing mounting, wiring, and protection devices. A specialist distributor can check multi-warehouse stock and advise on lead times versus available alternatives before you commit to a substitution that may require panel modifications.
How do I back up and restore parameters when replacing a failed 25B-D6P0N104?
The PowerFlex 525 supports parameter backup and transfer through Rockwell's Connected Components Workbench software and through the drive's own copy functions depending on the method used at your site. Documenting and storing parameter files for every installed drive is a best practice that the maintenance and controls engineering communities consistently recommend — it is the single most effective way to reduce downtime when a drive fails unexpectedly. The parameter file restores motor data, ramp times, command source settings, and network configuration in a single operation rather than requiring manual re-entry from a paper printout.
Why Order the 25B-D6P0N104 From LeadTime.ca
- Global shipping — LeadTime.ca sources and ships Allen-Bradley PowerFlex 525 drives worldwide, not just within a single region or country.
- Catalog validation — our team can confirm the exact catalog number against your motor and supply specifications before the order ships, catching the ordering mistakes documented in engineering communities before they reach your panel.
- Multi-warehouse stock checks — when a specific catalog number is shown as special order or on extended lead, we check across sources to find available stock or propose confirmed PowerFlex 525 alternates.
- Volume and project pricing — for OEM builds or multi-unit plant standardization projects, contact us for volume pricing discussions.
- Technical support at point of sale — questions about wiring, parameter setup starting points, or integration with CompactLogix are part of the conversation, not a separate service call.
- View current pricing and availability for the 25B-D6P0N104 at LeadTime.ca
- Contact LeadTime.ca for a quote or technical pre-order questions
At-a-Glance Summary
- Catalog number: Allen-Bradley 25B-D6P0N104, part of the PowerFlex 525 (PowerFlex 520-series) family.
- Power rating: 2.2 kW (3 Hp) normal duty, 6.0 A output current.
- Input supply: 323–528 V AC, three-phase, 50/60 Hz — not suitable for single-phase supply.
- Mounting: Open-type drive for panel or DIN rail installation inside a suitable enclosure.
- Integration: Embedded network and I/O for CompactLogix and ControlLogix architectures using PowerFlex 525 predefined profiles and AOIs.
- Pricing: At least one distributor list price documented slightly above USD 1,200 — current pricing is available on the product page; contact for volume rates.
- Availability: Documented as a special-order item with multi-day lead time at distributor level — confirm live stock before committing to a build schedule.
- Key ordering risk: Voltage class, current rating, and option set must be verified against motor nameplate, plant supply, and communication requirements before ordering.
- Best fit: Plants standardized on Allen-Bradley PLCs needing a compact 3 Hp 480 V drive with family-consistent programming and diagnostics.
