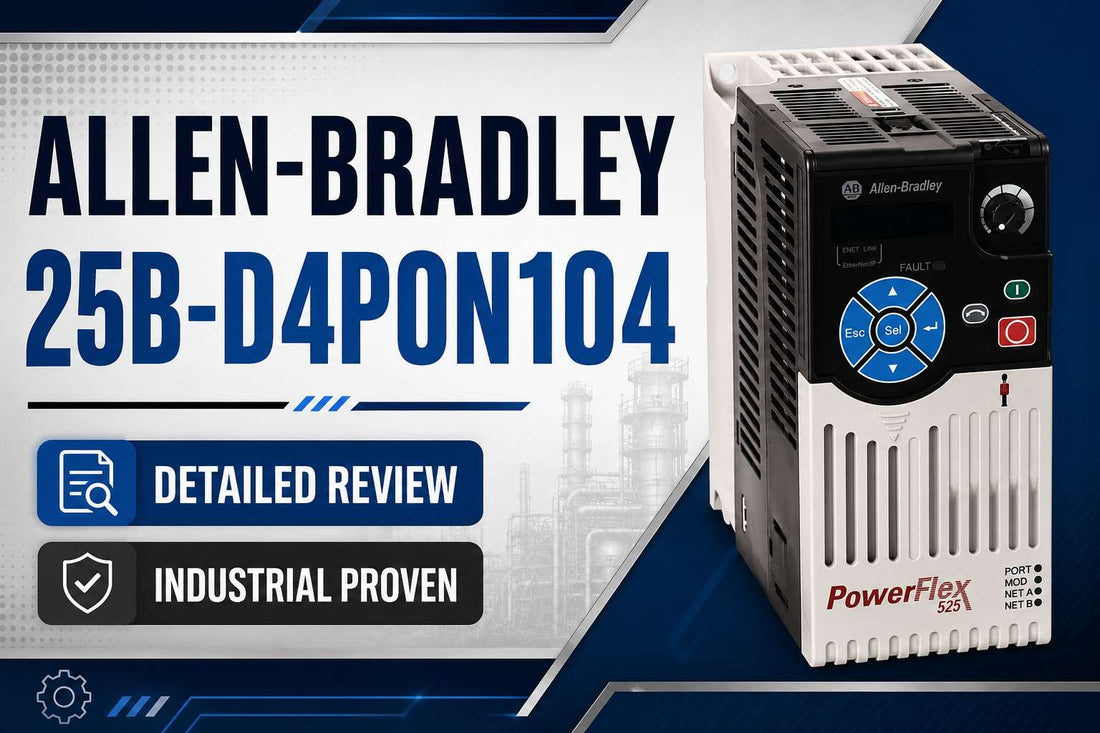

Allen-Bradley 25B-D4P0N104 PowerFlex 525 Frame A 1.5 kW 2HP 480V AC drive with embedded EtherNet/IP for industrial panel installation

Allen-Bradley 25B-D4P0N104 PowerFlex 525 1.5 kW (2 HP) AC Drive, 480 VAC, 3-Phase, Frame A, IP20 / Open Type, Embedded EtherNet/IP and Safety, No Filter — Specs, Pricing and Selection Guide

Controls engineers specifying a small 480 V motor drive for a Logix-based system will recognize the Allen-Bradley 25B-D4P0N104 immediately: it is the PowerFlex 525 Frame A drive rated for 1.5 kW (2 HP) at 380–480 VAC, 3-phase, with embedded dual-port EtherNet/IP and integrated safety built in as standard. The question is never whether this is a capable drive — it is — but whether this exact catalog number matches your supply voltage, motor load, enclosure conditions, and network architecture before the purchase order goes out.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — we ship worldwide.

Who Should Buy the 25B-D4P0N104 — and Who Shouldn't

This drive is the right choice for engineers and buyers who can confirm all of the following:

  • Supply voltage is 380–480 VAC, 3-phase, 50/60 Hz — this unit is not for 230 VAC or single-phase supply without consulting derating rules in the manufacturer manual.
  • Motor load is at or below the 1.5 kW (2 HP) normal-duty rating at 480 VAC — motor FLA must be verified against the drive's continuous output current from the official catalog table.
  • Embedded dual-port EtherNet/IP and integrated safety are active requirements in your design — if neither feature is needed, a different catalog code or drive family may be more economical.
  • The drive will be mounted inside a suitable control panel that provides protection, ventilation, and keeps ambient conditions within the specified operating temperature range — IP20 / Open Type means the panel does the environmental work.
  • The system architecture is CompactLogix, ControlLogix, or another Logix PAC using EtherNet/IP — the 25B-D4P0N104 is optimized for this environment.

If your supply is 230 VAC, your motor exceeds 2 HP, or you need a washdown or outdoor-rated enclosure, the 25B-D4P0N104 is not the right fit. Look instead at the appropriate PowerFlex 525 voltage or power variant, or consider a higher-enclosure option within the 520-series family.

On this page:

Where the 25B-D4P0N104 Sits in the PowerFlex 520 Family

The PowerFlex 520-series covers a broad range of low-voltage AC drive applications, with two primary members: the PowerFlex 523, which provides core V/Hz and basic I/O control without network or safety integration, and the PowerFlex 525, which adds embedded EtherNet/IP and integrated safety as standard features. The 25B-D4P0N104 is a PowerFlex 525, catalog prefix 25B confirming the EtherNet/IP and safety variant rather than the 25A prefix used for the 523.

Within the PowerFlex 525 line, the 25B-D4P0N104 occupies the 2 HP (1.5 kW) position at 480 VAC in the compact Frame A housing — the smallest mechanical form factor in the family. This matters for panel builders working with crowded enclosures where every millimeter of DIN rail or back-panel space is contested. Engineers specifying drives across a machine with multiple small motors will find that the Frame A footprint, consistent parameter structure, and shared accessories across the 520-series make the 25B-D4P0N104 a natural anchor for a standardized small-drive lineup.

Electrical Ratings, Mechanical Form, and Purchase-Decision Specs

The table below covers only the specifications an engineer needs to make a confident purchase decision for the Allen-Bradley 25B-D4P0N104. For the complete electrical, mechanical, and environmental specification set, refer to the official Rockwell Automation datasheet and installation manual.

Parameter Value / Description Selection Note
Product Family PowerFlex 525 (520-series) 25B prefix = EtherNet/IP and safety; not interchangeable with 25A (523)
Catalog Number 25B-D4P0N104 Verify exact casing matches your BOM and PO
Input Voltage / Phase 380–480 VAC, 3-phase, 50/60 Hz Not rated for 230 VAC or single-phase without derating verification
Motor Rating (Normal Duty) 1.5 kW / 2 HP at 480 VAC Verify motor FLA against catalog current table
Motor Rating (Heavy Duty) 1.1 kW / 1.5 HP at 480 VAC Use HD rating for constant-torque or high-inertia loads
Frame Size Frame A Smallest mechanical frame in the 520-series; check panel clearances
Enclosure Rating IP20 / Open Type Must be mounted inside a suitable rated control panel
Communications Embedded dual-port EtherNet/IP Supports daisy-chain and Device Level Ring (DLR) topologies
Integrated Safety Included (Safe Torque Off and safety functions) Requires correct wiring and validation — does not replace external protection
EMC Filter No filter (N in catalog code) External line reactor or EMC filter must be specified separately if required

Full technical specifications are available on the product page at LeadTime.ca.

Typical Applications and Deployment Scenarios

The Allen-Bradley 25B-D4P0N104 is used wherever a small 480 V, 3-phase motor needs networked speed control integrated into a Logix-based architecture. Speed control for small conveyor lines and feeders is among the most common deployments, where EtherNet/IP allows the CompactLogix or ControlLogix PAC to command speed, read drive status, and surface diagnostics in the same Studio 5000 environment used for the rest of the machine.

Variable-speed pumps and fans in light process, HVAC, and food and beverage applications make strong use of the drive's ability to modulate speed against process feedback, reducing energy consumption compared to fixed-speed operation on a small motor. The 2 HP rating at 480 VAC covers the majority of small auxiliary and utility motor loads in these environments.

OEM machine builders standardizing on the PowerFlex 525 family benefit from a consistent parameter set, common spare parts, and Rockwell-level global support across all drive sizes in a machine. The 25B-D4P0N104's compact Frame A footprint allows it to share a panel with larger PowerFlex 525 frames without disproportionate space requirements.

Retrofit projects replacing older drives with newer EtherNet/IP-capable units represent another major use case. Plants migrating from legacy drives to a networked architecture can drop the 25B-D4P0N104 into existing panel spaces, connect to the Logix network, and gain remote diagnostics and parameter management without rewiring motor circuits.

Application Typical Deployment
Small conveyor or feeder speed control CompactLogix PAC commanding speed via EtherNet/IP; drive controls 2 HP conveyor motor in Frame A panel section
Variable-speed pump or fan Analog or network speed reference; energy reduction on auxiliary 480 V motor in process or HVAC system
OEM machine standardization Multiple 25B-D4P0N104 units across machine axes; consistent parameters and spares strategy across product range
Safety-rated small axis Embedded Safe Torque Off used for functional safety stop without external contactors on a 2 HP motion axis
Legacy drive retrofit Replacing older non-networked drive; adding EtherNet/IP diagnostics and remote control in existing panel space

EtherNet/IP Integration and Safety Functions in Practice

The embedded dual-port EtherNet/IP on the 25B-D4P0N104 is not an add-on option card — it is standard on every PowerFlex 525 unit, which is the defining distinction between the 25B and 25A catalog families. The two Ethernet ports support daisy-chain wiring and Device Level Ring (DLR) topologies, reducing the number of managed switches required in a machine network and simplifying cable routing in multi-drive panels.

Integration with ControlLogix and CompactLogix PACs is supported through add-on profiles and automatic device configuration in Studio 5000, which community users consistently identify as a significant time saver compared to manual parameter mapping. The drive appears as a standard EtherNet/IP node, allowing speed commands, status feedback, and fault data to be exchanged over the same network infrastructure as other Logix I/O.

The integrated safety functions, including Safe Torque Off, allow engineers to design safety-rated stop functions for small motor axes without installing external safety contactors in the power circuit. This reduces panel component count and wiring complexity in machines that require SIL-rated safety functions. It is essential to note that safety functions require correct wiring, a validated safety design, and verification per applicable safety standards — the drive does not self-validate.

Typical System Architecture

The 25B-D4P0N104 sits in the drive layer of a Logix-based EtherNet/IP network, between the PAC controller and the motor load it controls.

  • ControlLogix or CompactLogix PAC running Studio 5000 — issues speed commands and reads drive status over EtherNet/IP
  • Managed or unmanaged Ethernet switch (or DLR ring) — connects PAC to one or more PowerFlex 525 drives via standard Cat5e/Cat6 cabling
  • Allen-Bradley 25B-D4P0N104 — receives network commands, controls motor speed and direction, reports faults and diagnostics
  • External branch-circuit protection (fuses or circuit breaker) — sized per manufacturer catalog tables, installed upstream of the drive input terminals
  • 3-phase induction motor up to 1.5 kW / 2 HP at 480 VAC — connected to drive output terminals T1/T2/T3

PowerFlex 525 Variant Comparison: Which Catalog Number Do You Actually Need?

The PowerFlex 525 family spans multiple voltage classes, power ratings, and enclosure options. The table below compares the 25B-D4P0N104 to the closest adjacent variants to help engineers confirm they are specifying the correct catalog number.

Catalog Number Input Voltage Normal Duty Rating Frame Enclosure Use When
25B-D2P3N104 380–480 VAC, 3-phase ~0.75 kW / 1 HP Frame A IP20 / Open Motor load is below 2 HP at 480 V
25B-D4P0N104 380–480 VAC, 3-phase 1.5 kW / 2 HP Frame A IP20 / Open This model — 2 HP at 480 V, EtherNet/IP, no filter
25B-D6P0N104 380–480 VAC, 3-phase ~2.2 kW / 3 HP Frame A IP20 / Open Motor load exceeds 2 HP at 480 V
25B-D4P0N114 380–480 VAC, 3-phase 1.5 kW / 2 HP Frame A IP20 / Open Same power rating with integrated EMC filter required
25A-D4P0N104 380–480 VAC, 3-phase 1.5 kW / 2 HP Frame A IP20 / Open PowerFlex 523 — no embedded EtherNet/IP or safety; cost-reduced option

If your motor load exceeds 2 HP at 480 VAC or your application requires an integrated EMC filter, the adjacent catalog number is the correct choice — check current availability and confirm the right variant at LeadTime.ca.

Expert Verdict: Is the 25B-D4P0N104 the Right Drive for Your Project?

The Allen-Bradley 25B-D4P0N104 earns its place in a standardized drive lineup when the application genuinely uses what it offers: embedded dual-port EtherNet/IP, integrated safety, and a compact Frame A footprint sized for a 1.5 kW (2 HP) motor at 480 VAC. For OEM machine builders and plants running CompactLogix or ControlLogix architectures, this drive reduces external hardware, simplifies network wiring, and plugs into Studio 5000 with add-on profiles that experienced Rockwell engineers will recognize immediately. The consistent parameter structure across the PowerFlex 525 family means that engineers who have commissioned one unit can move efficiently across an entire machine — a real advantage on tight project schedules.

Where the 25B-D4P0N104 is not the right answer is equally clear. If your site runs non-Rockwell controllers, the EtherNet/IP and safety features become underutilized features you are paying for. If the drive will be installed in a dusty production environment, a washdown area, or outdoors, the IP20 / Open Type enclosure rating is inadequate without a properly sealed and ventilated panel — and even then, contamination and heat are ongoing risks that the installation must manage actively. For applications that do not need EtherNet/IP or safety, the PowerFlex 523 (25A prefix) delivers the same motor control capability at a lower cost. For demanding variable-torque or multi-axis servo-adjacent applications, the PowerFlex 753 or 755 family offers higher performance and richer feature sets than any 520-series drive.

From a procurement standpoint, the 25B-D4P0N104 is an established catalog item with broad distributor coverage, but availability can vary between US and Canadian warehouses, and lead times on specific quantities should always be confirmed before committing to a build schedule. Ordering through a specialist distributor rather than a generic channel matters most at the specification stage — confirming voltage code, duty rating, enclosure requirements, and whether an external filter or line reactor needs to be co-ordered before the PO is placed prevents the kind of rework that costs far more than the drive itself. View current stock and pricing for the 25B-D4P0N104 at LeadTime.ca, and reach out to the team if you need sizing validation or lead time confirmation before committing.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Need to Know Before Ordering the 25B-D4P0N104

Community feedback across forums including PLCTalk, PLCS.net, MrPLC, the Rockwell Automation user forum, and automation subreddits reflects a consistently positive baseline view of the PowerFlex 525 family in Rockwell-centric environments. Engineers frequently cite how cleanly the 25B-series integrates with CompactLogix and ControlLogix over EtherNet/IP — add-on profiles and automatic device configuration in Studio 5000 are repeatedly mentioned as genuine time savers that distinguish this family from drives that require manual parameter mapping or third-party configuration tools. Once engineers are familiar with the parameter structure, the consistency across Frame A through larger frames in the 520-series makes repeat projects progressively faster.

The recurring complaints in community discussions center on three themes: power quality sensitivity, environmental installation failures, and keypad limitations. Users report nuisance trips on small PowerFlex 525 units when installation practices are weak — inadequate grounding, poor cable routing, or noisy supply voltage are the most common root causes cited. In dusty or high-ambient-temperature environments, fan and thermal-related issues appear in forum threads when drives are not mounted in properly ventilated, clean enclosures. On the commissioning side, many engineers note that the local HIM (keypad) is adequate for basic startup but limited for in-depth configuration — software-based commissioning via Studio 5000 or a connected PC is the community consensus for anything beyond a simple first power-up.

Ordering mistakes are a consistent thread across distributor Q&A sections and forum discussions. The most frequently reported errors are: receiving a drive with the wrong voltage code because the buyer focused only on HP, accidentally ordering 25A-series (PowerFlex 523, no EtherNet/IP) instead of 25B-series for a project requiring full network integration, and installing an IP20 / Open Type drive in an environment that required a higher protection class. These are preventable errors — but they require checking the catalog number character by character against the verified application requirements, not just the power rating. The wrong-part checklist below addresses each of these failure modes directly.

Wiring and Installation Overview

The following is a high-level overview for planning purposes. Engineers must refer to the official Rockwell Automation installation manual and wiring diagrams for full procedures and code-compliant implementation.

  • Connect 380–480 VAC, 3-phase supply to drive input terminals L1/L2/L3 and motor leads to output terminals T1/T2/T3; verify phase sequence and confirm protective earth conductor is landed on the drive's ground terminal and bonded to the panel ground bar.
  • Install external branch-circuit protection (fuses or circuit breaker) sized per the manufacturer catalog tables upstream of the drive — the 25B-D4P0N104 does not include an integrated breaker; this is a code and safety requirement, not optional.
  • If an EMC filter or line reactor is required for your installation (the N in 25B-D4P0N104 indicates no integrated filter), specify and install these components externally, sized per Rockwell Automation recommendations.
  • Connect EtherNet/IP via standard Cat5e/Cat6 cabling to one or both of the drive's Ethernet ports; assign a static or DHCP-allocated IP address and verify the drive appears on the network before connecting to PLC control.
  • Safety function wiring (Safe Torque Off) must be implemented per the safety wiring diagram in the official manual and validated by a qualified safety professional before the system is placed in service — the safety inputs are not self-commissioning.

Compatible Accessories and System Expansion

The PowerFlex 525 supports a range of external accessories that must be specified and ordered separately from the drive itself. Confirm compatibility with the 25B-D4P0N104 catalog number before ordering any accessory.

  • External braking resistors — required if dynamic braking is needed; must be sized per the manufacturer's datasheet for the specific frame and duty cycle.
  • Line reactors — reduce harmonic distortion and protect the drive from supply voltage transients; recommended for installations with poor power quality or long cable runs.
  • EMC / RFI filters — external filter modules for installations requiring compliance with EMC standards; note that the 25B-D4P0N104 has no integrated filter (N designation in catalog code).
  • Remote HIM (Human Interface Module) — allows parameter access and drive control from a panel-door-mounted keypad, useful when the drive is mounted in a deep enclosure.
  • PowerFlex 520-series option cards — for applications requiring additional I/O, encoder feedback, or alternative communication protocols beyond embedded EtherNet/IP.

Wrong-Part Prevention Checklist

Before placing a purchase order for the Allen-Bradley 25B-D4P0N104, work through every item on this checklist. These are the exact failure points that cause costly returns, panel rework, and project delays:

  1. Confirm supply voltage and phase: this unit is for 380–480 VAC, 3-phase only; do not use on 230 VAC or single-phase without checking the manual and derating rules.
  2. Check motor HP/kW and FLA against the catalog table for 25B-D4P0N104; ensure full-load current is within the drive's continuous output rating.
  3. Verify you actually need embedded EtherNet/IP and safety; if you do not use them, a different code or family may be more economical.
  4. Ensure IP20 / open-type enclosure is acceptable; if the drive will be in a dusty or washdown area, plan for a sealed panel or a different enclosure variant.
  5. Check regional approvals (UL, cUL, CE) and short-circuit ratings against your panel SCCR and local code requirements.
  6. Confirm that external branch-circuit protection (fuses or circuit breaker) and, if needed, a line reactor or EMC filter are specified separately.
  7. Verify braking requirements: if dynamic braking is needed, confirm compatibility with an external braking resistor sized per the datasheet.
  8. Double-check catalog code vs. 25A vs. 25B variants; make sure you are ordering the correct PowerFlex 525 Ethernet/Safety version, not a different 520-series drive.

If any item on this checklist raises a question before you order, contact the LeadTime.ca team — we can validate sizing, confirm stock, and flag co-required accessories before your PO is placed.

Frequently Asked Questions

Can I run a motor smaller than 2 HP on the 25B-D4P0N104, and how should I configure motor overload protection?

Yes, the 25B-D4P0N104 can control motors smaller than its 1.5 kW (2 HP) rating. The critical step is entering the exact motor nameplate current into the motor overload parameter during commissioning — this ensures the drive's electronic overload protection is calibrated to the actual motor, not the drive's maximum rating. Running a significantly undersized motor without correct parameter entry can result in the drive failing to trip on a real overload condition. Always verify the motor FLA entry after initial power-up.

What is the fastest way to configure EtherNet/IP communication between the 25B-D4P0N104 and a CompactLogix PLC?

The recommended path in a Studio 5000 environment is to use the PowerFlex 525 add-on profile, which automates much of the tag creation and I/O configuration. Assign the drive a static IP address (or use BOOTP/DHCP for initial setup), add the drive to the Logix I/O tree using the correct catalog number and EtherNet/IP node address, and download the configuration. Community engineers consistently report that the add-on profile approach reduces commissioning time significantly compared to manual parameter mapping. Verify network topology — DLR or daisy-chain — before wiring the Ethernet cables.

Can the 25B-D4P0N104 be powered from a single-phase supply in an emergency, and what are the actual constraints?

The 25B-D4P0N104 is rated for 380–480 VAC, 3-phase input. Single-phase operation is not a standard or recommended mode for this drive. Some engineers in forum discussions have noted that single-phase input can be used at a significant power derating, but this must be verified against the specific guidance in the official installation manual — operating outside rated input conditions without following the manufacturer's derating rules risks drive damage, nuisance trips, and potentially unsafe conditions. Do not assume single-phase operation is acceptable without consulting the manual and confirming with Rockwell Automation.

How do I reset a fault on the 25B-D4P0N104 and access fault history?

A fault can be cleared via the local HIM keypad using the standard fault reset procedure described in the user manual, through a digital input configured for fault reset, or via an EtherNet/IP command from the Logix controller. Fault history is accessible through the drive's parameter set and can be reviewed on the HIM display or read via Studio 5000. Before resetting any fault, identify the root cause from the fault code — repeating faults without addressing the underlying condition (wiring issue, overload, over-temperature, ground fault) will result in recurring trips and potential drive damage.

How do I correctly wire and validate the Safe Torque Off safety inputs on the 25B-D4P0N104?

The Safe Torque Off function on the PowerFlex 525 disables the drive's output to the motor when the safety inputs are de-energized, without removing power from the drive itself. Correct implementation requires wiring the safety inputs per the dedicated safety wiring diagram in the official safety reference manual, using a safety-rated input device (safety relay or safety PLC output), and performing a documented validation test before the machine enters service. The safety function is not self-validating and does not replace a formal functional safety design review. For SIL-rated applications, a qualified functional safety engineer must verify the complete safety function including the drive, wiring, and initiating device.

What are the first parameters to configure during a basic conveyor or pump commissioning on the 25B-D4P0N104?

The essential first-pass parameters are motor nameplate data (rated voltage, rated current, rated frequency, rated speed), start and stop source selection, speed reference source, and acceleration and deceleration times. Setting minimum and maximum output frequency limits appropriate to the load protects both the motor and the driven equipment. Run a no-load or light-load test from the local keypad before handing speed control to the PLC network, and back up the parameter set — either through Studio 5000 or the drive's parameter backup function — before leaving the site.

Why Order the 25B-D4P0N104 from LeadTime.ca

  • LeadTime.ca ships Allen-Bradley 25B-D4P0N104 drives worldwide — not limited to any single region or country.
  • Specialist distributor knowledge means sizing validation, voltage code confirmation, and accessory co-ordering happen before the PO goes out, not after a return.
  • Real-time stock and lead time checks across North American inventory sources, with transparent communication on availability for both single units and volume orders.
  • Volume pricing available for OEM machine builders and MRO buyers standardizing on the PowerFlex 525 family — contact the team directly for project pricing.
  • Hard-to-source parts and urgent replacement units for production-down situations — reach out for fast response.

At-a-Glance Summary

  • Catalog number: Allen-Bradley 25B-D4P0N104 — PowerFlex 525, 520-series family, 25B (EtherNet/IP and safety) prefix
  • Motor rating: 1.5 kW (2 HP) normal duty / 1.1 kW (1.5 HP) heavy duty at 480 VAC
  • Input supply: 380–480 VAC, 3-phase, 50/60 Hz — not for 230 VAC or single-phase without derating verification
  • Frame size: Frame A — smallest mechanical form factor in the PowerFlex 520 family
  • Enclosure: IP20 / Open Type — requires mounting inside a suitable rated control panel
  • Communications: Embedded dual-port EtherNet/IP — supports daisy-chain and DLR topologies, integrates with CompactLogix/ControlLogix via Studio 5000 add-on profiles
  • Safety: Integrated safety functions (Safe Torque Off) — requires correct wiring and formal validation before service
  • Filter: No integrated EMC filter (N designation) — external line reactor or filter must be specified separately if required
  • External branch-circuit protection required — fuses or circuit breaker sized per manufacturer catalog tables, not included
  • Primary use cases: small conveyor and feeder speed control, variable-speed pumps and fans, OEM machine standardization, safety-rated stop functions, legacy drive retrofits with EtherNet/IP upgrade
  • Not the right choice for: 230 VAC supplies, motors above 2 HP ND at 480 V, washdown or outdoor environments without proper enclosures, non-Rockwell controller architectures, or applications where EtherNet/IP and safety features are not needed
