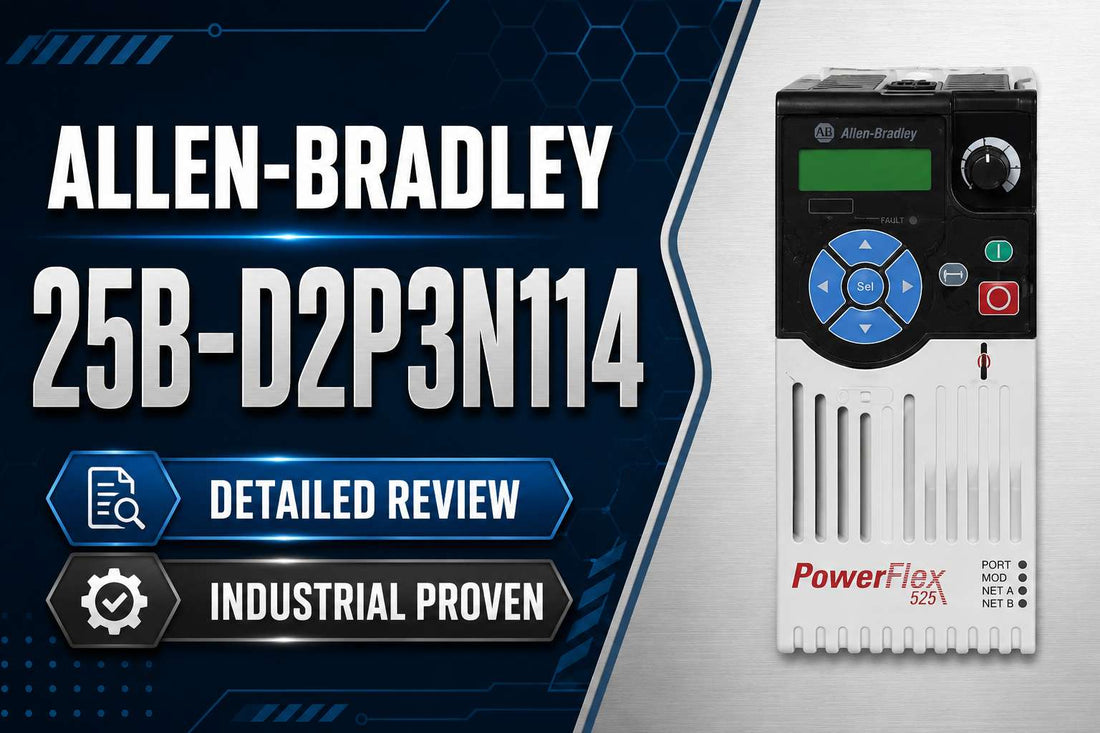

Allen-Bradley 25B-D2P3N114 — PowerFlex 525 VFD Buyer Review
Allen-Bradley PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 380…480V AC, 3 Phase, 2.3 A, 1 Hp (0.75 kW) Normal/Heavy Duty, IP20 NEMA/Open, Frame A
Controls engineers specifying a compact 480 V VFD for a Rockwell-based system often arrive at the same catalog number: the Allen-Bradley 25B-D2P3N114. This is a PowerFlex 525 AC drive rated at 1 Hp (0.75 kW), 2.3 A output, with embedded EtherNet/IP and Safe Torque Off (STO) safety built in — all in a Frame A, IP20 / NEMA Open package. If you are validating that this is the correct variant before placing an order, this review covers the specs, the right-fit criteria, common ordering mistakes, and where alternatives make more sense.
If you have already confirmed this is the right part, check current pricing and availability for the 25B-D2P3N114 at LeadTime.ca — ships worldwide.
Who Should Buy the 25B-D2P3N114 — and Who Shouldn't
This drive is the right choice for controls and OEM engineers standardizing on Allen-Bradley PLCs who need a 1 Hp, 480 V drive with embedded EtherNet/IP and Safe Torque Off installed in an enclosed panel environment. You are in the right place if all of the following apply:
- Your supply is 380…480 V AC, 3-phase — not 120 V, 240 V, or 600 V
- Your motor's full-load current is at or below 2.3 A at 480 V for both normal and heavy duty
- You need embedded EtherNet/IP for integration with CompactLogix, ControlLogix, or GuardLogix
- Integrated Safe Torque Off (STO) is required or preferred for your safety architecture
- The drive will be panel-mounted — IP20 / NEMA Open is acceptable and a suitable enclosure is provided
- You are comfortable with V/Hz or sensorless vector control modes for the target application
If you need a higher enclosure rating such as NEMA 12 or 4X, a different voltage class, a larger motor Hp, or a non-EtherNet/IP network, see the alternatives section below for specific variant guidance.
On this page:
- What the 25B-D2P3N114 Actually Does in a Control System
- Typical System Architecture for the PowerFlex 525
- Applications Where This Drive Gets Specified
- Specs That Determine Fit: Electrical, Mechanical, and Network
- 25B-D2P3N114 vs Other PowerFlex 525 Variants: Which One Do You Need?
- Expert Verdict: Is the 25B-D2P3N114 Worth Specifying?
- What Engineers Report After Using the PowerFlex 525 in the Field
- Wiring and Installation: What to Verify Before Commissioning
- Wrong-Part Prevention Checklist Before You Order
- Frequently Asked Questions
- Why Order the 25B-D2P3N114 Through LeadTime.ca
- At-a-Glance Summary
What the 25B-D2P3N114 Actually Does in a Control System
The Allen-Bradley 25B-D2P3N114 is a member of the PowerFlex 525 line within the broader PowerFlex 520-series family. The 25B prefix is the key differentiator: it designates the PowerFlex 525, which includes embedded EtherNet/IP and integrated safety functions. The 25A prefix designates the PowerFlex 523, which is a simpler drive without those features. If your panel design, safety architecture, or PLC program depends on EtherNet/IP communications or Safe Torque Off, you must be on the 25B series — the 25A will not substitute.
At its core, this drive takes 380…480 V AC, 3-phase power and delivers adjustable-frequency, adjustable-voltage output to control the speed and torque of a connected three-phase AC motor rated at 1 Hp (0.75 kW) or less. The output current rating is 2.3 A, which applies at both normal duty and heavy duty for this model. The drive supports V/Hz and sensorless vector control modes, and its output frequency range extends up to 500 Hz, making it suitable for a wide range of motor types and application demands. The embedded EtherNet/IP port enables the drive to participate directly in a Logix-based network for command, feedback, diagnostics, and parameter management — without a separate communication module.
The Safe Torque Off function removes the drive's ability to generate torque to the motor without removing main power from the drive itself, supporting SIL 2 / PLd safety architectures when wired and configured per Rockwell's instructions. This is a meaningful operational advantage in cells where safety gates, light curtains, or E-stops must interrupt motion without a full power cycle.
Typical System Architecture for the PowerFlex 525
The 25B-D2P3N114 sits between the plant Ethernet network and the motor load, acting as both the power conversion device and the network node for speed control and diagnostics.
- Plant EtherNet/IP network connects to a managed switch, which feeds the CompactLogix or ControlLogix processor and downstream devices
- The 25B-D2P3N114 connects directly to the same Ethernet switch using its embedded EtherNet/IP port — no add-on comm module required
- Three-phase 480 V supply feeds the drive's input terminals through a properly sized fuse or circuit breaker and a disconnect means
- Motor leads connect from the drive's output terminals to the three-phase AC motor, with shielded cable routed separately from control wiring
- Safety wiring connects to the STO terminals and back to a safety relay, GuardLogix output, or similar safety device per the safety circuit design
Applications Where This Drive Gets Specified
The 25B-D2P3N114 is a frequent choice on small conveyor segments in packaging, assembly, and material handling lines where 1 Hp is sufficient and the machine builder is standardized on Allen-Bradley controls. The drive's compact Frame A footprint makes it viable in tight MCCs and OEM panels where space is a premium constraint.
Fan and blower control is another natural fit — process air handling, cooling zones, and HVAC sections in industrial facilities where the motor is small and variable-speed operation saves energy. Pump duties such as coolant circulation, CIP skid pumps, and wash system pumps at 1 Hp are also commonly served by this drive when the plant already runs Logix PLCs.
OEM machine builders use this drive extensively in indexing tables, feeders, small labeling machines, and case erectors where networked drives reduce hardwired I/O, simplify diagnostics, and allow centralized parameter management from Studio 5000. Mixers, agitators, and small extruders where 1 Hp is the correct motor size round out the typical use case set.
| Application | Typical Deployment |
|---|---|
| Packaging conveyor segment | 1 Hp belt drive, EtherNet/IP speed command from CompactLogix, STO tied to safety gate |
| Process fan / blower | Variable speed for airflow control, V/Hz mode, networked status monitoring |
| Coolant or wash pump | Small pump on CIP or coolant skid, 480 V, 3-phase supply, panel-mounted IP20 |
| OEM indexing table or feeder | Sensorless vector for torque control, EtherNet/IP parameter access, compact frame A panel |
| Mixer or agitator | 1 Hp duty, adjustable speed, integrated safety for operator access points |
| HVAC zone control | Energy-saving mode, variable frequency fan drive, networked diagnostics |
Specs That Determine Fit: Electrical, Mechanical, and Network
| Parameter | Value | Notes |
|---|---|---|
| Input voltage | 380…480 V AC, 3-phase | Not compatible with 120 V, 240 V, or 600 V supplies |
| Power rating | 1 Hp (0.75 kW) — normal and heavy duty | Both ND and HD ratings apply to this model |
| Output current | 2.3 A | Motor FLA must not exceed this value |
| Output frequency range | Up to 500 Hz | Confirm exact range in PowerFlex 525 datasheet |
| Control modes | V/Hz, sensorless vector, energy-saving modes | Confirm supported modes for specific application in user manual |
| Enclosure type | IP20 / NEMA Open | Must be installed inside a suitable panel or enclosure |
| Frame size | Frame A | Compact footprint; check dimensions in installation manual for panel layout |
| Embedded network | EtherNet/IP | No additional comm module required for Logix integration |
| Safety function | Safe Torque Off (STO) | Wire to safety circuit per PowerFlex 525 safety manual |
| Certifications | UL, cUL, CE (PowerFlex 525 family) | Confirm exact markings on unit nameplate for site code compliance |
Full technical specifications are available on the product page at LeadTime.ca.
25B-D2P3N114 vs Other PowerFlex 525 Variants: Which One Do You Actually Need?
| Variant Consideration | 25B-D2P3N114 | When to Choose Differently |
|---|---|---|
| Voltage class | 380…480 V AC, 3-phase | Select a 25B-V or 25B-B catalog number for 120/240 V; a different series for 600 V |
| Motor Hp / current | 1 Hp, 2.3 A | Move to next PowerFlex 525 current tier (e.g., 25B-D4P0N114 at higher Hp) if motor FLA exceeds 2.3 A |
| Enclosure rating | IP20 / NEMA Open | Select a packaged or NEMA 12/4X drive variant when washdown or harsh environment is required |
| Network / safety requirement | Embedded EtherNet/IP + STO | Choose PowerFlex 523 (25A) if EtherNet/IP and safety are not needed — lower cost, simpler setup |
| Non-Rockwell ecosystem | Optimized for Logix / Studio 5000 | Consider platform-native drives when the PLC is not Allen-Bradley and deep integration is required |
If your motor's full-load current exceeds 2.3 A, the next current tier in the PowerFlex 525 480 V lineup is the correct choice — confirm current availability and check compatible variants at LeadTime.ca.
Expert Verdict: Is the 25B-D2P3N114 Worth Specifying?
For controls engineers running Rockwell-based systems, the 25B-D2P3N114 is one of the more practical small-drive specifications available at the 1 Hp, 480 V level. The combination of embedded EtherNet/IP and Safe Torque Off in a Frame A body removes the need for separate communication hardware and simplifies safety wiring in cells that require STO without a full power-down. The drive's 2.3 A output current rating covers both normal and heavy duty at 1 Hp, and the support for sensorless vector alongside V/Hz gives engineers flexibility across conveyor, pump, fan, and small process drive applications. Proof points from the PowerFlex 525 family bear this out: the drive is rated for output frequencies up to 500 Hz and carries UL, cUL, and CE certifications relevant to North American and international panel builds.
Where this model has clear limits: it is not the answer when the supply voltage is anything other than 380…480 V AC, 3-phase, when the motor FLA exceeds 2.3 A, or when the installation environment demands a higher ingress protection rating than IP20. If EtherNet/IP and safety are not required for the application, the PowerFlex 523 (25A series) is a simpler and typically lower-cost option worth evaluating — do not over-specify when the application does not need the network and safety capability. For sites where Allen-Bradley is not the automation standard, platform-native drives from other manufacturers will integrate more cleanly and should be evaluated on their own merits rather than forcing a Rockwell-centric solution.
From a procurement standpoint, the 25B-D2P3N114 is a frequently stocked size in North America given its popularity in OEM and general manufacturing applications, but availability can tighten during periods of high demand or supply chain pressure — confirming stock before committing to a build schedule is always worthwhile. A specialist distributor adds real value here by checking inventory across multiple channels simultaneously, validating that the catalog number matches the application, and proposing compatible alternatives when the exact part is constrained. Check current pricing and stock status for the 25B-D2P3N114 at LeadTime.ca — orders ship worldwide.
For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.
What Engineers Report After Using the PowerFlex 525 in the Field
Across engineering forums including r/PLC, PLCTalk, PLCS.net, and MrPLC, the PowerFlex 525 family draws consistently positive feedback from engineers who are already inside the Rockwell ecosystem. The most frequently cited strength is how naturally the drive integrates with CompactLogix and ControlLogix over EtherNet/IP, particularly when Add-On Profiles are used in Studio 5000 for diagnostics, parameter mapping, and fault handling. Engineers describe this as a genuine time-saver during commissioning compared to drives that require custom EDS configuration or external comm modules. The small Frame A footprint also earns repeated praise from panel builders working in tight OEM enclosures, and once a parameter set is standardized across a machine line, drive replacement is reported to be straightforward using copy functions or software backup tools.
The recurring complaints center on three areas: keypad navigation, network/wiring faults, and environment. The onboard HIM keypad and parameter structure are frequently described as unintuitive, especially for technicians who are new to the PowerFlex 525 and are not using Connected Components Workbench or Studio 5000 to configure the drive. EtherNet/IP-related nuisance trips — caused by incorrect IP addressing, poor cable terminations, or missing safety wiring — are a common theme in troubleshooting threads, and experienced users consistently recommend completing and verifying all network and STO wiring before any powered testing. Dust accumulation and inadequate panel ventilation are cited in multiple discussions as contributors to premature fan wear and thermal faults, reinforcing that the IP20 / NEMA Open rating demands a clean, well-ventilated enclosure.
Ordering mistakes that appear repeatedly in community discussions map directly to the catalog number structure. Confusing 25A (PowerFlex 523) with 25B (PowerFlex 525) is the most common specification error — the drives look similar and share a form factor, but the 25A does not include embedded EtherNet/IP or safety, and discovering this at installation is a costly delay. Voltage class mismatches (ordering a 240 V unit for a 480 V system, or vice versa) and undersizing the current rating relative to actual motor FLA are the next most frequent issues. A smaller number of buyers report ordering the IP20 open-type drive for environments that required a higher enclosure rating and only realizing the issue during panel inspection or customer review. These mistakes are preventable with the checklist below.
Wiring and Installation: What to Verify Before Commissioning
- Mount the drive in an enclosure that meets clearance and ventilation requirements specified in the PowerFlex 525 installation manual — do not exceed the rated ambient temperature, and keep heat sink vents clear
- Connect three-phase 380…480 V AC line supply to the designated input terminals with correct phase identification; ground the drive per Rockwell's grounding guidelines using a dedicated ground conductor
- Connect motor leads to the drive's output terminals; use shielded cable routed separately from control and signal wiring to minimize EMC interference
- Install external short-circuit protection (fuses or circuit breaker) and a suitable disconnecting means sized according to Rockwell's recommendations and applicable local electrical code — the drive itself requires this external protection and does not substitute for it
- Wire the Safe Torque Off (STO) terminals to the safety circuit (safety relay, GuardLogix output, or equivalent) per the PowerFlex 525 safety reference manual, and verify correct STO operation — including a functional test — before placing the machine in production
Wrong-Part Prevention Checklist Before You Order
Use this checklist verbatim against your application requirements before placing an order for the 25B-D2P3N114. These are the exact checks that prevent the most common and costly ordering mistakes on this drive:
- Confirm supply voltage: This unit is 380…480 V AC, 3-phase only (not 120/230/600 V).
- Confirm motor full-load current: must be ≤ 2.3 A at 480 V for both normal and heavy-duty ratings.
- Verify network/safety needs: 25B series includes embedded EtherNet/IP and safety; do not substitute with 25A (PowerFlex 523) if those are required.
- Check enclosure requirements: IP20 / open-type; must be installed in a suitable panel or enclosure.
- Verify regional approvals (UL, cUL, CE) meet the site's electrical code and customer standards.
- Confirm any derating for ambient temperature, altitude, and switching frequency as per datasheet.
- Ensure plug-in options (if needed, such as extra I/O or encoder) are compatible with the PowerFlex 525 platform.
- Align control method requirements (V/Hz, sensorless vector) with the motor and application performance expectations.
If any of these checks surface a mismatch, contact the LeadTime.ca team before ordering — our team can validate your catalog selection, identify the correct PowerFlex 525 variant, and check worldwide stock availability.
Frequently Asked Questions
Can the 25B-D2P3N114 be operated on a single-phase supply?
The 25B-D2P3N114 is rated for 380…480 V AC, 3-phase input. While some PowerFlex 525 variants can accept single-phase input with derating, this specific model is specified for 3-phase supply. Running a 3-phase rated drive on single-phase input without explicit manufacturer guidance and derating confirmation is not recommended — consult the PowerFlex 525 installation manual and Rockwell technical support before attempting this in any application.
How do I reset the 25B-D2P3N114 to factory defaults and clear persistent faults?
Factory defaults on PowerFlex 525 drives can be restored through a specific parameter reset procedure using the onboard HIM keypad or through Connected Components Workbench or Studio 5000. Persistent fault codes require identifying the fault source first — clearing a fault without resolving the underlying cause will result in repeat trips. Refer to the PowerFlex 525 user manual and troubleshooting guide for the exact reset parameter and fault code definitions.
How do I control the 25B-D2P3N114 exclusively over EtherNet/IP without any hardwired start/stop?
The drive supports a network-only control mode where start, stop, direction, and speed reference commands are all delivered over EtherNet/IP from the Logix controller. This requires configuring the drive's start source and speed reference parameters to the network option, assigning the correct I/O mapping in Studio 5000 using the Add-On Profile, and ensuring the PLC logic sends valid command words. Without the correct parameter settings pointing start/stop to the network source, the drive will not respond to PLC commands regardless of network connectivity.
What is the fastest way to copy parameters from one 25B-D2P3N114 to a replacement unit?
Parameter cloning on PowerFlex 525 drives can be performed using the optional HIM copy function, Connected Components Workbench parameter file backup and restore, or Studio 5000 drive configuration backup. For field replacement, engineers standardizing on this drive commonly maintain a parameter backup file so that a replacement unit can be configured quickly without manual re-entry. Confirm parameter file compatibility between firmware versions if the replacement unit is from a different production lot.
Why does the drive trip on over-current or under-voltage during acceleration, and what parameters should I adjust?
Nuisance over-current trips during acceleration are most commonly caused by acceleration ramp times that are too short for the connected motor and load inertia — increasing the acceleration time parameter reduces the peak current demand. Under-voltage trips during acceleration can indicate a weak supply, undersized wiring, or a shared bus with other large loads starting simultaneously. Verify motor nameplate data is entered correctly, check supply voltage under load, and confirm that current limit parameters are set appropriately for the application before adjusting ramp times.
Why Order the 25B-D2P3N114 Through LeadTime.ca
- Ships worldwide — not limited to any single region or country; suitable for Canadian, U.S., and international buyers
- Specialist distributor validation: cross-check catalog numbers, flag voltage class and current rating mismatches before the order ships
- Parallel inventory checks across multiple stock channels to locate parts when primary stock is constrained
- Volume pricing available — contact for current pricing on multi-unit builds or MRO blanket orders
- Responsive team familiar with PowerFlex 525 family variants, lead time realities, and compatible alternatives
- View the 25B-D2P3N114 product page at LeadTime.ca
- Contact LeadTime.ca for a quote or stock confirmation
At-a-Glance Summary
- Catalog number: Allen-Bradley 25B-D2P3N114 — PowerFlex 525 AC Drive
- Input supply: 380…480 V AC, 3-phase only
- Motor rating: 1 Hp (0.75 kW), normal and heavy duty
- Output current: 2.3 A — motor FLA must not exceed this value
- Output frequency range: up to 500 Hz
- Control modes: V/Hz and sensorless vector supported
- Embedded EtherNet/IP included — no add-on communication module required
- Safety function: Safe Torque Off (STO) — must be wired to safety circuit per Rockwell manual
- Enclosure: IP20 / NEMA Open, Frame A — panel or enclosure installation required
- Certifications: UL, cUL, CE (PowerFlex 525 family) — verify nameplate markings for site code compliance
- Primary use cases: small conveyors, fans, pumps, OEM networked machine drives at 1 Hp, 480 V
- Key ordering risk: confusing 25A (PowerFlex 523, no EtherNet/IP/safety) with 25B — verify before ordering
