Allen-Bradley 25B-D2P3N104 — PowerFlex 525 Buying Guide

By Abdullah Zahid
16 min read

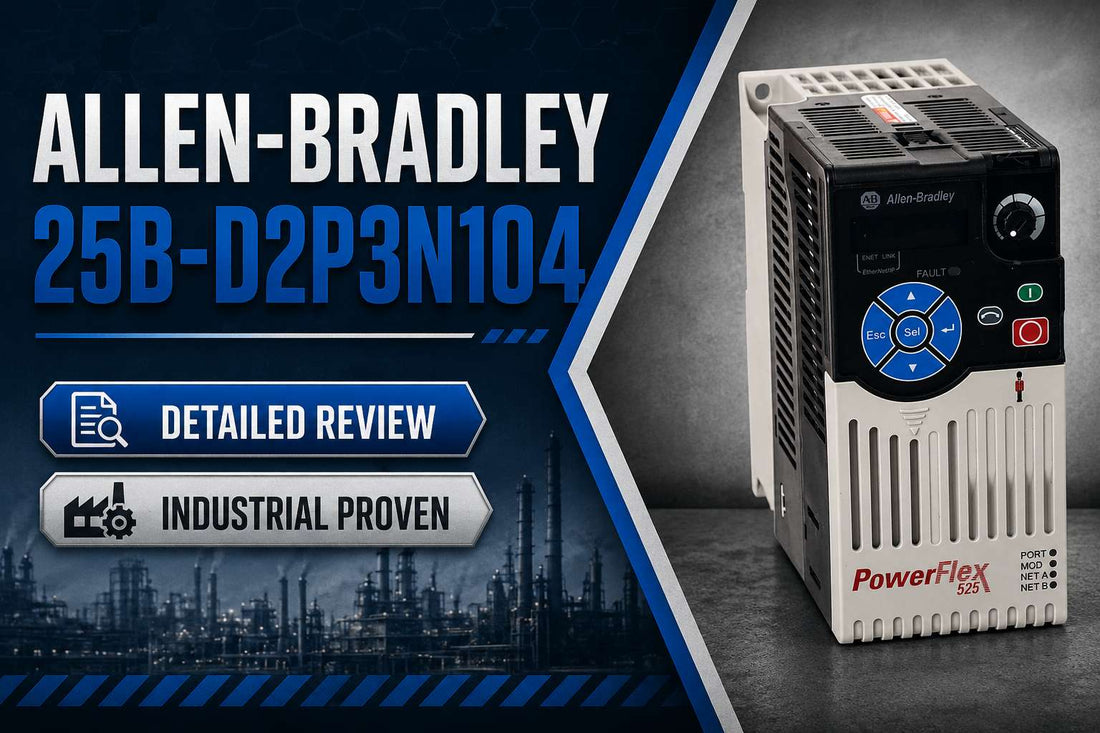

Allen-Bradley 25B-D2P3N104 PowerFlex 525 Frame A IP20 AC drive 0.75kW 480V for panel mounting

Allen-Bradley PowerFlex 525 AC Drive, 0.75 kW (1 HP), 480 VAC, 3-Phase, Frame A, IP20, Open Type, with Embedded EtherNet/IP and Safety, No Filter — Specs, Pricing and Alternatives

Controls engineers and panel builders searching for the Allen-Bradley 25B-D2P3N104 are typically confirming one thing before they commit: does this exact catalog number match the motor power, supply voltage, enclosure rating, and network requirements of the project in front of them? The 25B-D2P3N104 is a 0.75 kW (1 HP), 480 VAC, 3-phase PowerFlex 525 AC drive with embedded EtherNet/IP and Safe Torque Off, housed in a compact Frame A, IP20 open-type enclosure with no EMC filter. For Rockwell-centric installations with those exact requirements, it is a clean fit. For applications with different supply voltages, sealed enclosure needs, or no requirement for Ethernet and safety, it is not — and getting that distinction clear before ordering saves real time.

If you have already confirmed this is the right part, check current pricing and availability at LeadTime.ca — ships worldwide.

Who Should Buy the 25B-D2P3N104 — and Who Shouldn't

This drive is right for controls engineers and OEM machine designers standardizing on Allen-Bradley hardware who need a compact 1 HP drive with EtherNet/IP integration and safety capability built in. Buy this catalog number if all of the following apply:

  • Your motor is 0.75 kW (1 HP) class with a full-load current that aligns with the nominal output of approximately 2.3 A at 480 V.
  • Your plant supply is 3-phase 380–480 V AC — this is not a 230 V or single-phase input drive.
  • Your enclosure environment is suitable for IP20 open-type mounting — no washdown, heavy dust, or corrosive atmosphere.
  • You require embedded EtherNet/IP for integration with CompactLogix or ControlLogix without additional communication modules.
  • Your safety plan calls for Safe Torque Off capability and the drive's safety ratings align with your local standard requirements.
  • You have confirmed that no built-in EMC filter is required, or you are providing external EMC mitigation.

If your supply is 230 V, your environment demands IP54 or higher, or your application does not need EtherNet/IP or safety features, a different PowerFlex 525 catalog variant or the simpler PowerFlex 523 family will be a better and more cost-effective match.

On this page:

What the 25B-D2P3N104 Actually Does in a Control System

The Allen-Bradley 25B-D2P3N104 is a variable frequency drive — its job is to control the speed and torque of a 3-phase AC motor by varying the frequency and voltage delivered to the motor terminals. At 0.75 kW (1 HP) and 480 VAC, it targets the smaller end of the drive power range: think conveyor sections, small process pumps, fans, and light-duty agitators rather than large compressor or hoisting applications.

What separates this catalog number from a generic VFD at the same power rating is the embedded communications and safety hardware. EtherNet/IP is built into the drive without any add-on module, which means a CompactLogix or ControlLogix PLC can command speed and read status over standard Ethernet infrastructure using Add-On Profiles and standard I/O data. The Safe Torque Off feature provides a hardware-level means of removing motor torque without removing mains power from the drive — a key requirement in machinery safety applications. Both of these capabilities are present at Frame A size, making it one of the more feature-complete drives in the 1 HP class within the Rockwell ecosystem.

The drive supports V/Hz and sensorless vector control modes, includes an internal dynamic braking transistor (an external resistor is required if braking capability is to be used), and operates from -20 °C to +50 °C in its standard range without derating. It is rated IP20 open type with no built-in EMC filter, which means the installation environment and cable management practices carry real responsibility for electromagnetic compliance and environmental protection.

Typical System Architecture for the PowerFlex 525

The 25B-D2P3N104 sits between the plant's Ethernet network and the motor terminals, translating PLC commands into controlled motor output. In a typical deployment, the data and power paths look like this:

  • Upstream power: 3-phase 380–480 V AC supply, protected by external branch-circuit fusing or a circuit breaker sized to the drive's requirements, feeding the drive's line input terminals.
  • Network layer: The drive's embedded EtherNet/IP port connects to a managed Ethernet switch shared with or dedicated to the control network, linking directly to a CompactLogix or ControlLogix PLC project.
  • Safety layer: Dual-channel Safe Torque Off wiring from a safety relay or safety PLC output connects to the drive's dedicated safety terminals, providing hardware-enforced torque removal on demand.
  • Motor output: The drive's motor output terminals connect to the 3-phase motor via appropriately shielded cable, with the motor rated at or below 0.75 kW (1 HP) at 480 V.
  • Local interface: The integrated keypad and display allow local parameter entry, fault reading, and manual jog during commissioning — no separate HMI required at the drive level.

Where the 25B-D2P3N104 Gets Deployed

In packaging and material handling lines, the 25B-D2P3N104 appears most often on small conveyor sections and indexing drives where individual speed control and PLC feedback are needed without dedicating a large drive enclosure to a 1 HP motor. The EtherNet/IP connection allows the machine controller to monitor drive status and fault bits directly in the PLC program, simplifying diagnostics during production.

Process engineers in food and beverage and general manufacturing use it for speed control of small pumps and fans where the Rockwell PLC platform is already established. Rather than adding a separate communication module or relying on analog speed references, the embedded Ethernet keeps the architecture clean and consistent with the rest of the panel.

OEM machine designers building modular equipment in standard control panels find the Frame A footprint useful for keeping panel layouts compact while still providing the safety and communication capabilities that end users increasingly require. The integrated STO removes the need for an external safety relay dedicated to motor torque removal on smaller axes.

In retrofit and upgrade projects, the 25B-D2P3N104 replaces older contactor-based starters or earlier-generation drives on small motors, bringing EtherNet/IP connectivity and safety to machines that previously lacked both.

Application Typical Deployment
Packaging line conveyor section Frame A drive in panel, EtherNet/IP to CompactLogix, STO wired to safety relay
Small process pump speed control PID loop via PLC over EtherNet/IP, analog feedback from flow or pressure transmitter
OEM modular machine design Multiple Frame A drives per panel, standardized Rockwell platform, safety integrated
HVAC fan or blower control V/Hz mode, speed reference from building automation system via EtherNet/IP or analog input
Legacy drive or starter retrofit Drop-in replacement adding EtherNet/IP and STO to existing 480 V motor wiring

Key Specifications for Purchase Decisions

Parameter Value Notes
Catalog Number 25B-D2P3N104 Verify exact catalog before ordering
Motor Power Rating 0.75 kW (1 HP) Normal and heavy duty rating
Nominal Output Current Approximately 2.3 A at 480 V Do not undersize for high-starting-torque loads
Input Supply 3-phase 380–480 V AC, 47–63 Hz Not suitable for 230 V or single-phase input
Control Modes V/Hz, sensorless vector Refer to PowerFlex 525 manual for full list
Embedded Communications EtherNet/IP No additional communication module required
Safety Function Safe Torque Off (STO) Dual-channel; refer to safety manual for ratings
Enclosure Rating IP20, open type, no EMC filter External filter and enclosure may be required
Operating Temperature -20 °C to +50 °C Without derating in standard range
Dynamic Braking Transistor Included (internal) External braking resistor required if braking used

Full technical specifications are available on the product page at LeadTime.ca.

25B-D2P3N104 vs. Other PowerFlex 525 Variants and Competing Drives

The PowerFlex 525 family covers a range of power ratings, input voltages, and enclosure options. The 25B-D2P3N104 is a specific intersection of those variables — 0.75 kW, 480 V, 3-phase, IP20, no filter. Understanding where it sits relative to nearby options prevents ordering the wrong catalog.

Drive / Catalog Power / Voltage Key Differentiator vs. 25B-D2P3N104 When to Choose Instead
25B-D2P3N104 (this drive) 0.75 kW / 480 V 3-phase Baseline: EtherNet/IP, STO, IP20, no filter Your baseline selection
PowerFlex 525 higher HP variant 1.5 kW+ / 480 V 3-phase Higher output current and power rating Motor exceeds 0.75 kW or starting torque requires more current
PowerFlex 525 with EMC filter option 0.75 kW / 480 V 3-phase Integrated EMC filter in catalog number EMC compliance requires built-in filtering
PowerFlex 525 240 V variant 0.75 kW / 240 V 3-phase Different input voltage class Plant supply is 240 V, not 480 V
PowerFlex 523 0.75 kW / 480 V 3-phase No embedded EtherNet/IP or safety EtherNet/IP and STO are not required; lower budget
PowerFlex 753/755 Higher HP, 480 V Advanced vector control, larger frame Application requires higher HP or advanced motor control features

If your load exceeds the 0.75 kW (1 HP) rating or your starting current requirements push beyond the approximately 2.3 A nominal output, moving to the next power rating in the PowerFlex 525 family is the correct decision — check current availability for the full PowerFlex 525 range at LeadTime.ca.

Expert Verdict: Is the 25B-D2P3N104 Worth It for Your Project?

The Allen-Bradley 25B-D2P3N104 earns its place in Rockwell-centric plants precisely because it does not require any compromise on communications or safety at the 1 HP level. Embedded EtherNet/IP means your CompactLogix or ControlLogix project sees the drive the same way it sees any other network node — no analog wiring for speed reference, no separate communication card to configure, and fault data available directly in the PLC program. The Frame A size keeps panel layouts tight. For controls engineers standardizing hardware across a machine or facility, having a 0.75 kW drive that fits the same integration pattern as larger drives in the same family is a genuine operational advantage. The PowerFlex 525 parameter structure is also well understood by most Rockwell-experienced electricians and integrators, which matters at commissioning and during field troubleshooting years later.

The honest limits of this drive are worth naming. The IP20 open-type enclosure means the drive itself is not protected against dust ingress or liquid — it depends entirely on the panel or enclosure around it. The absence of a built-in EMC filter means noise management falls to cable routing, shielding, and external filtering. Neither is a flaw in isolation, but both become problems if the installation environment or EMC requirements are not evaluated against the catalog at the point of selection. For applications that genuinely do not need EtherNet/IP or safety — a simple pump with a manual speed pot and no PLC feedback — the PowerFlex 523 or an equivalent drive from another manufacturer will deliver the same motor control at a lower cost. The 25B-D2P3N104 is not the right answer to a price-optimization question; it is the right answer to an integration and safety question at 1 HP.

From a procurement standpoint, the PowerFlex 525 family has historically been stocked by authorized Allen-Bradley distributors, but lead times can extend during supply constraints — occasionally from days to several weeks depending on channel and timing. Ordering through a specialist distributor with direct access to authorized stock reduces the risk of receiving incorrect revisions, unverified surplus units, or drives with mismatched firmware. A specialist can also confirm the exact catalog number against your application before the order is placed, which matters more than it sounds when one character in a catalog string changes the voltage class or filter option. Check current stock and pricing for the 25B-D2P3N104 at LeadTime.ca — available to buyers worldwide.

For volume pricing or to confirm lead time before committing to a build, contact the LeadTime.ca team directly — we ship worldwide.

What Engineers Are Saying About the PowerFlex 525 25B-D2P3N104

Across PLC and automation communities including Reddit's r/PLC and r/industrialautomation, PLCTalk, PLCS.net, and MrPLC, the PowerFlex 525 family consistently draws positive sentiment from engineers working in Rockwell-centric environments. The embedded EtherNet/IP capability is the most frequently cited reason for choosing this family over alternatives at similar power levels — users consistently note that it eliminates the need for add-on communication modules and makes integration with CompactLogix and ControlLogix clean and familiar. The compact footprint and DIN-rail mounting ease also appear regularly in discussions where panel space is constrained and multiple small drives need to fit alongside other components. Engineers working in Rockwell-heavy plants also note that the parameter structure and diagnostics feel consistent with the wider Allen-Bradley ecosystem, which reduces the learning curve for maintenance staff who already know the platform.

The complaints that surface repeatedly are worth taking seriously. Keypad navigation and the parameter menu structure draw criticism from users unfamiliar with the family — drives that arrive on a maintenance ticket and need a quick parameter change can frustrate technicians who have not worked with the PowerFlex 525 before. Grounding and electrical noise sensitivity is a recurring theme: multiple threads document nuisance faults and communication dropouts that traced back to poor cable separation, inadequate shielding, or missing ground connections rather than drive faults. Cooling fan wear and overtemperature faults in dusty or poorly ventilated enclosures also appear in long-term maintenance discussions, reinforcing that the IP20 open-type rating demands a well-managed panel environment over the drive's service life.

The ordering mistakes that come up most frequently in community discussions are directly relevant to the 25B-D2P3N104. Engineers have ordered this 480 V 3-phase catalog for sites that turned out to have 230 V or single-phase supply — a mismatch that is not discovered until installation. Others have assumed the drive includes an EMC filter or higher IP rating based on the broader PowerFlex 525 reputation rather than reading the specific catalog designators, resulting in non-compliance or reliability problems in the field. A third recurring issue is STO wiring: some users have assumed the safety function is active by default or have wired it incorrectly, leading to failed safety validation during commissioning. All three of these mistakes are avoidable with a catalog-level review before ordering, which is exactly what the checklist below addresses.

Wiring and Installation Overview

The following points cover the key requirements and configurations to verify before and during installation. For full wiring diagrams and terminal assignments, refer to the official PowerFlex 525 installation and user manuals from Rockwell Automation.

  • Power wiring: Connect 3-phase 380–480 V AC to the line input terminals and motor leads to the output terminals; maintain physical separation between power and control/signal cables throughout the enclosure and cable trays.
  • Grounding and shielding: Proper equipment grounding and shielded motor cable with the shield terminated at the drive end are critical for noise immunity — poor grounding is the most common cause of nuisance faults and EtherNet/IP communication issues in the field.
  • Branch-circuit protection: The drive requires external branch-circuit protection (fusing or circuit breaker) upstream — this protection is not built in and must be sized and installed per applicable electrical codes.
  • Control and I/O wiring: Digital inputs for start/stop and analog inputs for speed reference are available if not using EtherNet/IP for control; verify terminal assignments and logic voltage levels against the drive's control wiring section before connecting.
  • Safe Torque Off terminals: STO requires dual-channel wiring from a safety relay or safety controller output; do not jumper STO terminals to bypass the function — always wire, configure, and validate STO as part of the machine safety commissioning process.

Commissioning and EtherNet/IP Setup Overview

Commissioning the 25B-D2P3N104 involves motor parameter entry, network configuration, and safety validation. The following is an orientation overview — full procedures are documented in the PowerFlex 525 user manual and Rockwell Automation EtherNet/IP configuration guides.

  • Motor nameplate data entry: Enter motor voltage, full-load current, base frequency, and base speed from the motor nameplate into the drive's basic setup parameter group before running the motor.
  • Start/stop and speed reference: Configure the command source (EtherNet/IP network control or hardwired digital inputs) and speed reference source to match the machine's control architecture.
  • IP address assignment: Assign a unique IP address to the drive via the keypad or a BOOTP/DHCP tool before adding it to the PLC project; confirm the address does not conflict with other devices on the network.
  • PLC project integration: Add the drive to the CompactLogix or ControlLogix hardware tree using the correct catalog number and firmware revision; map speed command and status tags and verify fault bit reporting before running under load.
  • STO validation: Activate and test both STO channels as part of the safety commissioning plan; document the test results and store parameter backups before handing the machine to production.

Wrong-Part Prevention Checklist Before You Order

Before placing an order for the 25B-D2P3N104, work through each of the following checks against your application requirements. These are verbatim from the application review process used to validate this catalog selection:

  1. Confirm motor HP and full-load current align with 0.75 kW (1 HP) / ~2.3 A output at 480 V; do not undersize for heavy starting loads.
  2. Verify plant power is 3-phase 380–480 V; this model is not a 230 V or single-phase input drive.
  3. Check that IP20 open-type is acceptable; if you need a sealed or higher NEMA/IP rating, this is not the right enclosure.
  4. Ensure Ethernet connectivity is required; if you do not need EtherNet/IP, a lower-cost PowerFlex model may be more suitable.
  5. Confirm safety requirements (e.g., STO level, category) match the drive's safety capabilities and local code.
  6. Verify EMC/noise requirements; this catalog number is "no filter" and may require external EMC mitigation.
  7. Confirm panel space and frame size A fit the layout and cooling/clearance requirements.
  8. Match control scheme (digital inputs, analog in/out, Ethernet, safety terminals) to your I/O and PLC design.

If any item on this list raises a question about your application, contact the LeadTime.ca team before ordering — we can help confirm the right catalog or identify the correct variant.

Frequently Asked Questions

Can the 25B-D2P3N104 run from a single-phase or 230 V input supply?

No. The 25B-D2P3N104 is rated for 3-phase 380–480 V AC input only. It is not designed for single-phase or 230 V supply. Using it on an incompatible supply will damage the drive. If your application has single-phase or 230 V supply, a different catalog number from the PowerFlex 525 family — or a different drive family entirely — is required.

Does the 25B-D2P3N104 include a braking resistor?

The drive includes an internal dynamic braking transistor, but a braking resistor is not included — it must be ordered and installed separately if braking capability is required for the application. Consult the PowerFlex 525 selection guide for compatible external braking resistor specifications.

How do I reset the drive to factory default parameters?

Factory reset is performed through the drive's parameter menu. The specific parameter and procedure are documented in the PowerFlex 525 user manual available from Rockwell Automation. Before resetting, back up any custom parameter configuration — a factory reset will overwrite all user-entered values including motor data and network settings.

How do I wire the Safe Torque Off inputs correctly?

STO requires dual-channel wiring from a safety relay or safety-rated PLC output to the drive's dedicated safety terminals. Do not jumper or bypass the STO terminals. The complete wiring diagram, terminal identification, and safety validation procedure are in the PowerFlex 525 safety reference manual. STO wiring must be validated and documented as part of the machine safety commissioning process to meet applicable safety standards.

What are the most common fault codes and how do I begin troubleshooting?

The PowerFlex 525 displays fault codes on the integrated keypad. Common fault categories include overvoltage, undervoltage, overcurrent, overtemperature, and communication loss — each points to a specific area to check: input power quality, motor and load condition, wiring integrity, ambient temperature, and network configuration respectively. The full fault code reference with cause and corrective action is in the PowerFlex 525 user manual. For EtherNet/IP communication faults specifically, check IP address conflicts, cable connections, and switch configuration first.

Is the 25B-D2P3N104 a direct swap for older Allen-Bradley drives or contactor-based starters?

The 25B-D2P3N104 can physically replace older drives or starters on a 1 HP 480 V 3-phase motor, but it is not a plug-and-play swap in terms of wiring, parameters, or control logic. Power terminal connections, control wiring, and PLC integration will all require review and likely reconfiguration. If the existing machine uses a different drive family, parameter migration tools are available from Rockwell Automation but manual verification of all settings is still required.

Why Order the 25B-D2P3N104 Through LeadTime.ca

  • Worldwide shipping — LeadTime.ca sources and ships the Allen-Bradley 25B-D2P3N104 to buyers globally, not just within a single region.
  • Catalog verification support — specialist staff can confirm the exact catalog number against your application requirements before the order is placed, reducing the risk of incorrect parts.
  • Access to hard-to-find inventory — when standard distributor channels show extended lead times, LeadTime.ca works alternative sourcing paths to minimize project delays.
  • Volume and project pricing — for multi-unit orders or BOM-level procurement, contact for current volume pricing rather than relying on single-unit list price.
  • Honest lead time guidance — realistic availability and lead time information before you commit to a build schedule, not after.

At-a-Glance Summary

  • Catalog number: 25B-D2P3N104 — PowerFlex 525 AC Drive, Frame A, IP20, no EMC filter.
  • Motor power: 0.75 kW (1 HP), nominal output approximately 2.3 A at 480 V, normal and heavy duty rating.
  • Input supply: 3-phase 380–480 V AC, 47–63 Hz — not compatible with 230 V or single-phase input.
  • Communications: Embedded EtherNet/IP — no additional module required for CompactLogix or ControlLogix integration.
  • Safety: Safe Torque Off (STO) with dual-channel wiring — requires correct installation and validation per applicable safety standards.
  • Control modes: V/Hz and sensorless vector; dynamic braking transistor included, external resistor required for braking.
  • Operating temperature: -20 °C to +50 °C without derating in standard range.
  • Enclosure: IP20 open type — suitable for panelized environments; not rated for washdown or high-dust exposure.
  • Primary applications: Small conveyors, pumps, fans, OEM machinery, retrofit of starters in Rockwell-centric plants.
  • Key ordering check: Confirm voltage, phase, enclosure rating, filter requirement, and safety needs before placing order.
